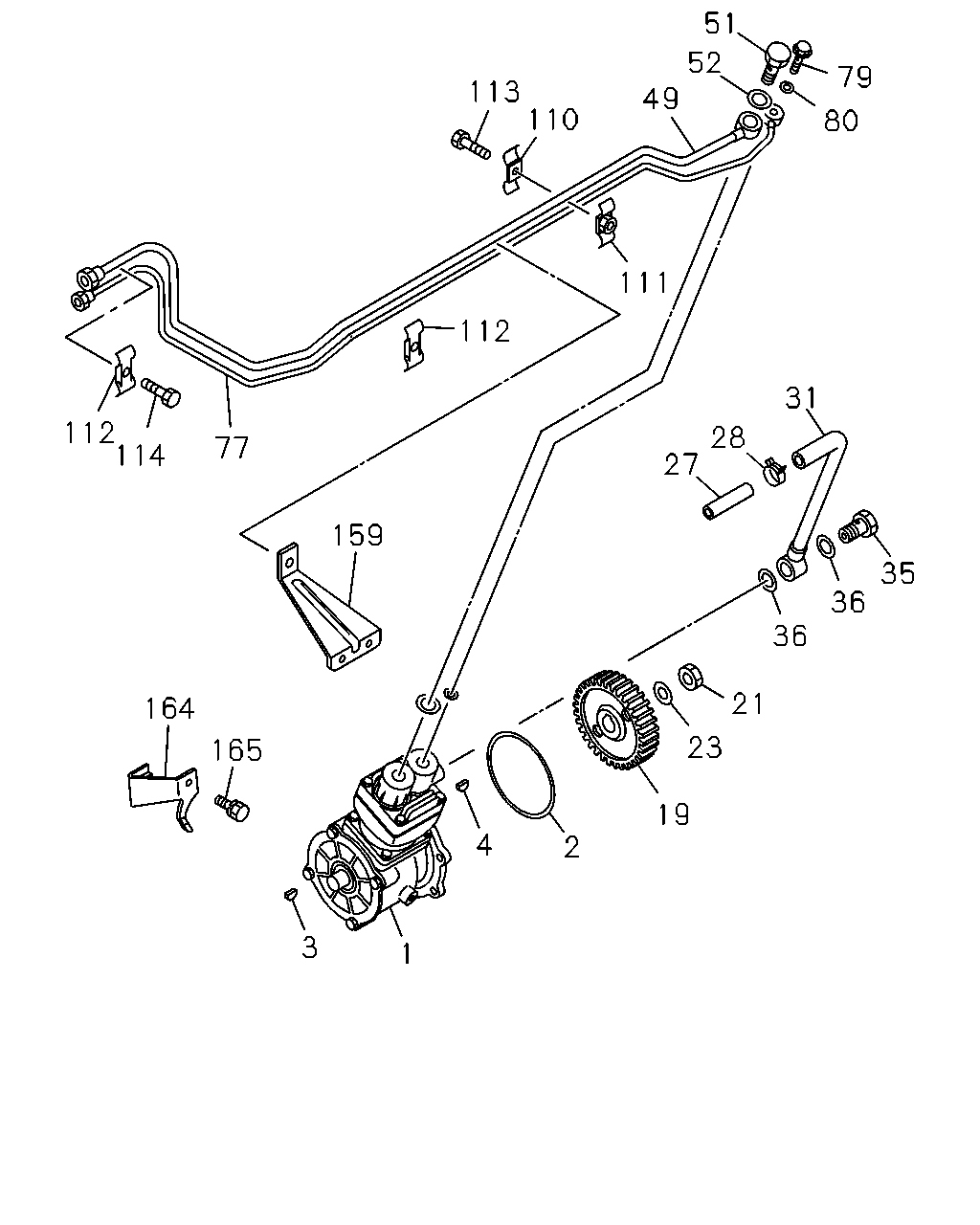

0-38 — AIR COMPRESSOR PIPING; ENGINE SIDE (#3254) — 31 parça

51 52 49 79 113 110 80 111 112 31 112 114 28 27 77 159 35 36 36 21 164 23 165 19 4 2 3 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-19100-255-2	01	1	9101-9911	●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-19100-325-0	01	1	9912-	●	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=139.6	1-09623-464-0	01	1	9101-	●	●
3	KEY; COUPLING,INJ PUMP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	9-08055-416-0	01	1	9101-	●	●
4	KEY; INJ PUMP GEAR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	9-08055-516-0	01	1	9101-	●	●
19	GEAR; INJ PUMP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) Z=50	1-12524-033-0	01	1	9101-	●	●
21	NUT; PUMP GEAR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	9-99110-520-0	01	1	9101-	●	●
23	WASHER; PL,PUMP GEAR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	9-09160-520-0	01	1	9101-	●	●
27	HOSE; AIR CMPR,SUCTION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-09360-694-0	01	1	9101-	●	●
28	CLIP; HOSE,AIR CMPR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-09707-091-0	02	1	9101-	●	●
31	PIPE; AIR,AIR CMPR SUCTION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-19192-219-0	01	1	9101-	●	●
35	BOLT; EYE,AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M24X39	1-09675-132-0	01	1	9101-	●	●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=24.5 OD=32	9-09571-424-0	02	1	9101-	●	●
49	PIPE; AIR,CHARGE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AT545 A/T ALLISON(MD1)	1-19192-308-1	01	1	9101-	●	●
49	PIPE; AIR,CHARGE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ISUZU M/T<X9A>	1-19192-153-1	01	1	9101-	●	●
51	BOLT; EYE,AIR PIPE TO CMPR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M20X38	1-09675-133-0	01	1	9101-	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	9-09571-420-0	02	1	9101-	●	●
77	PIPE; AIR,GOV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AT545 A/T ALLISON(MD1)	1-19192-328-0	01	1	9101-	●	●
77	PIPE; AIR,GOV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ISUZU M/T<X9A>	1-19191-902-0	01	1	9101-	●	●
79	BOLT; EYE,AIR PIPE TO CMPR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-09675-058-0	01	1	9101-	●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-09630-087-0	02	1	9101-	●	●
110	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=15 & 6 WO/NUT	1-09700-828-0	05	1	9101-	●	●
111	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=15 & 6 W/NUT	1-09700-829-0	03	1	9101-	●	●
112	CLIP; AIR PIPE END BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-09700-844-0	02	1	9101-	●	●
113	BOLT; CLIP,AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	9-01900-632-0	04	1	9101-9204	●	●
113	BOLT; CLIP,AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	0-50040-632-0	04	1	9205-	●	●
114	BOLT; CLIP,AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	9-01900-632-0	01	1	9101-9204	●	●
114	BOLT; CLIP,AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	0-50040-632-0	01	1	9205-	●	●
159	BRACKET; AIR PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-19199-096-0	01	1	9101-	●	●
164	BRACKET; OIL PIPE CLIP FIX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-13345-166-0	01	1	9101-	●	●
165	BOLT; BRKT OIL PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	0-50041-020-0	01	1	9101-	●	●
