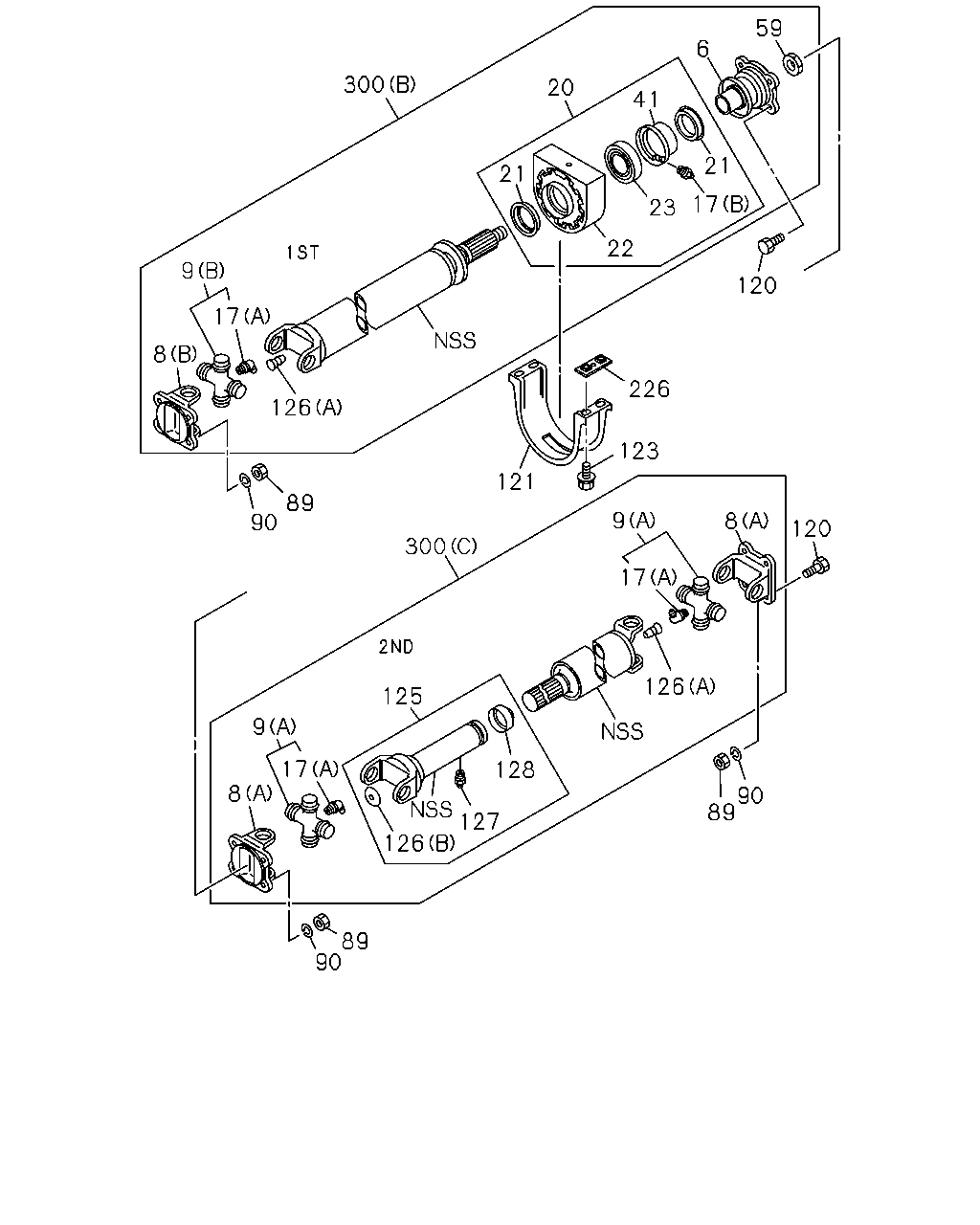

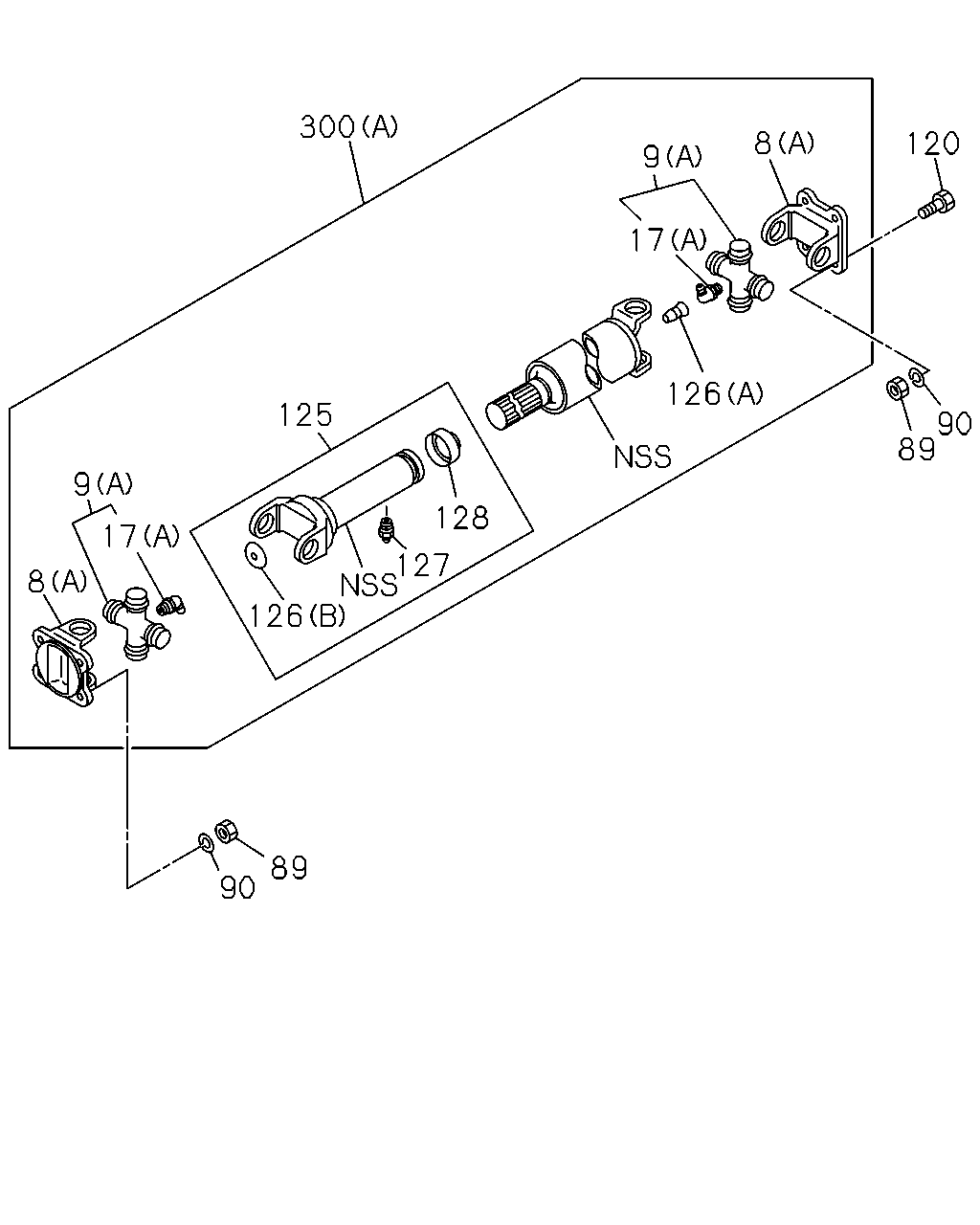

4-01 — PROPELLER SHAFT (#32539) — 129 parça

59 6 300 20 41 21 21 17 23 22 9 120 17 8 226 126 123 121 89 90 9 8 120 300 17 126 125 9 17 128 8 127 126 90 89 89 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
6	05.600 COUPLING ASM; DRIVER,PROP SHAFT 4JJ1 ENG(LFB)	8-97036-123-0	01	1	0612-	●	●
6	05.600 COUPLING ASM; DRIVER,PROP SHAFT 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) 05.556	1-37245-115-1	01	1	0612-	●	●	●
8	05.544 YOKE; FLANGE,PROP SHAFT 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) (A) D=80	1-37211-037-4	02	1	0612-	●	●	●	●
8	05.544 YOKE; FLANGE,PROP SHAFT 4JJ1 ENG(LFB) (B)	8-97322-663-0	01	1	0612-	●	●
8	05.544 YOKE; FLANGE,PROP SHAFT 4JJ1 ENG(LFB) (A)	8-97322-663-0	02	1	0612-	●	●
8	05.544 YOKE; FLANGE,PROP SHAFT 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) (B) D=80	1-37211-037-4	01	1	0612-	●	●	●
9	05.548 JOURNAL ASM; PROP SHAFT 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) (A)	1-37300-103-0	02	1	0612-1106	●	●	●	●
9	05.548 JOURNAL ASM; PROP SHAFT 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) (A)	8-98020-789-1	02	1	1107-	●	●	●	●
9	05.548 JOURNAL ASM; PROP SHAFT 4JJ1 ENG(LFB) (B)	8-97322-749-0	01	1	0612-0612	●	●
9	05.548 JOURNAL ASM; PROP SHAFT 4JJ1 ENG(LFB) (B)	8-98033-605-0	01	1	0701-	●	●
9	05.548 JOURNAL ASM; PROP SHAFT 4JJ1 ENG(LFB) (A)	8-97322-749-0	02	1	0612-0612	●	●
9	05.548 JOURNAL ASM; PROP SHAFT 4JJ1 ENG(LFB) (A)	8-98033-605-0	02	1	0701-	●	●
9	05.548 JOURNAL ASM; PROP SHAFT 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) (B)	1-37300-103-0	01	1	0612-1106	●	●	●
9	05.548 JOURNAL ASM; PROP SHAFT 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) (B)	8-98020-789-1	01	1	1107-	●	●	●
17	05.601 NIPPLE; GREASE,PROP SHAFT 08.984 (A) PT1/8 ELBOW	0-90301-610-0	02	1	0612-	●	●	●	●
17	05.601 NIPPLE; GREASE,PROP SHAFT 4JJ1 ENG(LFB) (B) M6 STRAIGHT	0-90301-406-0	01	1	0612-	●	●
17	05.601 NIPPLE; GREASE,PROP SHAFT 08.984 (A) PT1/8 ELBOW	0-90301-610-0	01	1	0612-	●	●	●
17	05.601 NIPPLE; GREASE,PROP SHAFT 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) (B) PT1/16 ELBOW 40 DEGREES	8-97240-194-0	01	1	0612-	●	●	●
20	05.600 BEARING ASM; CTR,PROP SHAFT 4JJ1 ENG(LFB) W/NIPPLE;GREASE DOWN SIDE	5-37510-007-1	01	1	0612-0702	●	●
20	05.600 BEARING ASM; CTR,PROP SHAFT 4JJ1 ENG(LFB)	8-98020-880-0	01	1	0703-	●	●
20	05.600 BEARING ASM; CTR,PROP SHAFT 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV)	8-97131-143-1	01	1	0612-	●	●	●
21	05.590 SEAL; OIL,CENTER BRG 4JJ1 ENG(LFB) 05.601 ID=49	5-09625-067-1	02	1	0612-	●	●
21	05.590 SEAL; OIL,CENTER BRG 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) ID=54	1-09625-161-0	02	1	0612-	●	●	●
22	05.600 RUBBER; CUSHION,CENTER BRG,1ST 4JJ1 ENG(LFB)	5-37516-005-2	01	1	0612-0612	●	●
22	05.600 RUBBER; CUSHION,CENTER BRG,1ST 4JJ1 ENG(LFB)	8-98020-875-0	01	1	0701-	●	●
22	05.600 RUBBER; CUSHION,CENTER BRG,1ST 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV)	8-97131-125-0	01	1	0612-	●	●	●
23	05.600 BEARING; CENTER,PROP SHAFT 4JJ1 ENG(LFB) OD=80	5-09800-068-0	01	1	0612-	●	●
23	05.600 BEARING; CENTER,PROP SHAFT 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV)	9-00090-071-0	01	1	0612-	●	●	●
41	05.601 COVER; CENTER BRG,PROP SHAFT 4JJ1 ENG(LFB)	5-37512-004-0	01	1	0612-0612	●	●
41	05.601 COVER; CENTER BRG,PROP SHAFT 4JJ1 ENG(LFB)	8-98020-795-0	01	1	0701-	●	●
41	05.601 COVER; CENTER BRG,PROP SHAFT 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) 05.600	1-37529-068-0	01	1	0612-1106	●	●	●
41	05.601 COVER; CENTER BRG,PROP SHAFT 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV)	8-98020-882-0	01	1	1107-	●	●	●
59	05.586 NUT; RET TO SUPPORT 4JJ1 ENG(LFB) 04.412 M27 H=25	8-97253-126-0	01	1	0612-0612	●	●
59	05.586 NUT; RET TO SUPPORT 4JJ1 ENG(LFB) 04.525 M27 H=25	8-97360-410-0	01	1	0701-	●	●
59	05.586 NUT; RET TO SUPPORT 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) M30	8-97160-857-0	01	1	0612-	●	●	●
89	05.586 NUT; YOKE TO RR AXLE M12	8-97365-450-0	08	1	0612-				●
89	05.586 NUT; YOKE TO RR AXLE M12	8-97365-450-0	12	1	0612-	●	●	●
90	05.586 WASHER; LK,YOKE TO RR AXLE 07.347 ID=12.2	0-91510-812-0	08	1	0612-				●
90	05.586 WASHER; LK,YOKE TO RR AXLE 07.347 ID=12.2	0-91510-812-0	12	1	0612-	●	●	●
120	05.586 BOLT; YOKE TO RR AXLE M12X35	8-97365-451-0	04	1	0612-				●
120	05.586 BOLT; YOKE TO RR AXLE M12X35	8-97365-451-0	08	1	0612-	●	●	●
121	05.598 RETAINER; CUSHION RUBBER	8-97035-623-1	01	1	0612-	●	●	●
123	05.601 BOLT; RET M10X25 W/LK&PL WASHER	0-50641-025-0	04	1	0612-	●	●	●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) L=183	8-98040-513-0	01	1	0612-	●	●	●	●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT 4JJ1 ENG(LFB) L=183	8-97327-979-1	01	1	0612-	●	●
126	05.556 PLUG; SPLINED YOKE 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) (B)	1-09600-014-0	02	1	0612-1106	●	●
126	05.556 PLUG; SPLINED YOKE (A)	1-09600-023-0	01	1	0612-	●	●	●	●
126	05.556 PLUG; SPLINED YOKE (A)	1-09600-023-0	01	1	0612-	●	●	●	●
126	05.556 PLUG; SPLINED YOKE (B)	1-09600-014-0	01	1	0612-1106			●	●
126	05.556 PLUG; SPLINED YOKE 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV)	1-09600-014-0	01	1	1107-	●	●	●	●
126	05.556 PLUG; SPLINED YOKE 4JJ1 ENG(LFB) (B)	8-94366-900-0	01	1	0612-	●	●
127	05.586 NIPPLE; GREASE,SPLINED YOKE 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) 08.984 PT1/8 STRAIGHT	0-90301-410-0	02	1	0612-1106	●	●
127	05.586 NIPPLE; GREASE,SPLINED YOKE 08.984 PT1/8 STRAIGHT	0-90301-410-0	01	1	0612-1106			●	●
127	05.586 NIPPLE; GREASE,SPLINED YOKE 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) 08.984 PT1/8 STRAIGHT	0-90301-410-0	01	1	1107-	●	●	●	●
127	05.586 NIPPLE; GREASE,SPLINED YOKE 4JJ1 ENG(LFB) 05.601 M6 STRAIGHT	0-90301-406-0	01	1	0612-	●	●
128	05.586 SEAL; SLEEVE 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) 05.560	1-37247-001-1	02	1	0612-1106	●	●
128	05.586 SEAL; SLEEVE 05.560	1-37247-001-1	01	1	0612-1106			●	●
128	05.586 SEAL; SLEEVE 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) 05.560	1-37247-001-1	01	1	1107-	●	●	●	●
128	05.586 SEAL; SLEEVE 4JJ1 ENG(LFB)	8-97145-746-0	01	1	0612-	●	●
226	05.586 PLATE; LK,CENTER BRG FRAME STRAIGHT TYPE<7KJ>	8-97371-572-0	02	1	0612-	●	●
226	05.586 PLATE; LK,CENTER BRG	8-97371-572-0	02	1	0612-			●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98019-990-1	01	1	0612-				●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=1068	8-97352-792-1	01	1	0612-				●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=538	8-97376-941-1	01	1	0612-	●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=608	8-97360-238-1	01	1	0612-	●
300	05.544 SHAFT ASM; PROP,RR 4JJ1 ENG(LFB) M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=645	8-98019-988-0	01	1	0612-	●
300	05.544 SHAFT ASM; PROP,RR 4JJ1 ENG(LFB) M/T MYY6S(RST) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=719	8-97350-384-3	01	1	0612-	●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) (C) L=1080	8-97214-108-1	01	1	0612-	●	●
300	05.544 SHAFT ASM; PROP,RR 4JJ1 ENG(LFB) (C) L=1075	8-97350-389-2	01	1	0612-	●	●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=988	8-97376-944-1	01	1	0612-		●
300	05.544 SHAFT ASM; PROP,RR 4JJ1 ENG(LFB) M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1092	8-98019-989-0	01	1	0612-		●
300	05.544 SHAFT ASM; PROP,RR 4JJ1 ENG(LFB) M/T MYY6S(RST) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1167	8-97350-386-3	01	1	0612-		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCC ENG(RDV) M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=993	8-97376-945-1	01	1	0612-		●	●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCC ENG(RDV) M/T MZZ6F(RSR) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1058	8-97360-239-1	01	1	0612-		●	●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1058	8-97360-239-1	01	1	0612-		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCC ENG(RDV) M/T MZZ6F(RSR) (C) L=1424	8-97214-110-1	01	1	0612-			●

300 8 120 9 17 126 125 90 89 9 128 17 127 126 8 89 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
8	05.544 YOKE; FLANGE,PROP SHAFT 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) (A) D=80	1-37211-037-4	02	1	0612-	●	●	●	●
8	05.544 YOKE; FLANGE,PROP SHAFT 4JJ1 ENG(LFB) (B)	8-97322-663-0	01	1	0612-	●	●
8	05.544 YOKE; FLANGE,PROP SHAFT 4JJ1 ENG(LFB) (A)	8-97322-663-0	02	1	0612-	●	●
8	05.544 YOKE; FLANGE,PROP SHAFT 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) (B) D=80	1-37211-037-4	01	1	0612-	●	●	●
9	05.548 JOURNAL ASM; PROP SHAFT 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) (A)	1-37300-103-0	02	1	0612-1106	●	●	●	●
9	05.548 JOURNAL ASM; PROP SHAFT 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) (A)	8-98020-789-1	02	1	1107-	●	●	●	●
9	05.548 JOURNAL ASM; PROP SHAFT 4JJ1 ENG(LFB) (B)	8-97322-749-0	01	1	0612-0612	●	●
9	05.548 JOURNAL ASM; PROP SHAFT 4JJ1 ENG(LFB) (B)	8-98033-605-0	01	1	0701-	●	●
9	05.548 JOURNAL ASM; PROP SHAFT 4JJ1 ENG(LFB) (A)	8-97322-749-0	02	1	0612-0612	●	●
9	05.548 JOURNAL ASM; PROP SHAFT 4JJ1 ENG(LFB) (A)	8-98033-605-0	02	1	0701-	●	●
9	05.548 JOURNAL ASM; PROP SHAFT 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) (B)	1-37300-103-0	01	1	0612-1106	●	●	●
9	05.548 JOURNAL ASM; PROP SHAFT 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) (B)	8-98020-789-1	01	1	1107-	●	●	●
17	05.601 NIPPLE; GREASE,PROP SHAFT 08.984 (A) PT1/8 ELBOW	0-90301-610-0	02	1	0612-	●	●	●	●
17	05.601 NIPPLE; GREASE,PROP SHAFT 4JJ1 ENG(LFB) (B) M6 STRAIGHT	0-90301-406-0	01	1	0612-	●	●
17	05.601 NIPPLE; GREASE,PROP SHAFT 08.984 (A) PT1/8 ELBOW	0-90301-610-0	01	1	0612-	●	●	●
17	05.601 NIPPLE; GREASE,PROP SHAFT 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) (B) PT1/16 ELBOW 40 DEGREES	8-97240-194-0	01	1	0612-	●	●	●
89	05.586 NUT; YOKE TO RR AXLE M12	8-97365-450-0	08	1	0612-				●
89	05.586 NUT; YOKE TO RR AXLE M12	8-97365-450-0	12	1	0612-	●	●	●
90	05.586 WASHER; LK,YOKE TO RR AXLE 07.347 ID=12.2	0-91510-812-0	08	1	0612-				●
90	05.586 WASHER; LK,YOKE TO RR AXLE 07.347 ID=12.2	0-91510-812-0	12	1	0612-	●	●	●
120	05.586 BOLT; YOKE TO RR AXLE M12X35	8-97365-451-0	04	1	0612-				●
120	05.586 BOLT; YOKE TO RR AXLE M12X35	8-97365-451-0	08	1	0612-	●	●	●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) L=183	8-98040-513-0	01	1	0612-	●	●	●	●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT 4JJ1 ENG(LFB) L=183	8-97327-979-1	01	1	0612-	●	●
126	05.556 PLUG; SPLINED YOKE 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) (B)	1-09600-014-0	02	1	0612-1106	●	●
126	05.556 PLUG; SPLINED YOKE (A)	1-09600-023-0	01	1	0612-	●	●	●	●
126	05.556 PLUG; SPLINED YOKE (A)	1-09600-023-0	01	1	0612-	●	●	●	●
126	05.556 PLUG; SPLINED YOKE (B)	1-09600-014-0	01	1	0612-1106			●	●
126	05.556 PLUG; SPLINED YOKE 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV)	1-09600-014-0	01	1	1107-	●	●	●	●
126	05.556 PLUG; SPLINED YOKE 4JJ1 ENG(LFB) (B)	8-94366-900-0	01	1	0612-	●	●
127	05.586 NIPPLE; GREASE,SPLINED YOKE 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) 08.984 PT1/8 STRAIGHT	0-90301-410-0	02	1	0612-1106	●	●
127	05.586 NIPPLE; GREASE,SPLINED YOKE 08.984 PT1/8 STRAIGHT	0-90301-410-0	01	1	0612-1106			●	●
127	05.586 NIPPLE; GREASE,SPLINED YOKE 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) 08.984 PT1/8 STRAIGHT	0-90301-410-0	01	1	1107-	●	●	●	●
127	05.586 NIPPLE; GREASE,SPLINED YOKE 4JJ1 ENG(LFB) 05.601 M6 STRAIGHT	0-90301-406-0	01	1	0612-	●	●
128	05.586 SEAL; SLEEVE 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) 05.560	1-37247-001-1	02	1	0612-1106	●	●
128	05.586 SEAL; SLEEVE 05.560	1-37247-001-1	01	1	0612-1106			●	●
128	05.586 SEAL; SLEEVE 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) 05.560	1-37247-001-1	01	1	1107-	●	●	●	●
128	05.586 SEAL; SLEEVE 4JJ1 ENG(LFB)	8-97145-746-0	01	1	0612-	●	●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98019-990-1	01	1	0612-				●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=1068	8-97352-792-1	01	1	0612-				●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=538	8-97376-941-1	01	1	0612-	●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=608	8-97360-238-1	01	1	0612-	●
300	05.544 SHAFT ASM; PROP,RR 4JJ1 ENG(LFB) M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=645	8-98019-988-0	01	1	0612-	●
300	05.544 SHAFT ASM; PROP,RR 4JJ1 ENG(LFB) M/T MYY6S(RST) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=719	8-97350-384-3	01	1	0612-	●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) (C) L=1080	8-97214-108-1	01	1	0612-	●	●
300	05.544 SHAFT ASM; PROP,RR 4JJ1 ENG(LFB) (C) L=1075	8-97350-389-2	01	1	0612-	●	●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=988	8-97376-944-1	01	1	0612-		●
300	05.544 SHAFT ASM; PROP,RR 4JJ1 ENG(LFB) M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1092	8-98019-989-0	01	1	0612-		●
300	05.544 SHAFT ASM; PROP,RR 4JJ1 ENG(LFB) M/T MYY6S(RST) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1167	8-97350-386-3	01	1	0612-		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCC ENG(RDV) M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=993	8-97376-945-1	01	1	0612-		●	●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCC ENG(RDV) M/T MZZ6F(RSR) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1058	8-97360-239-1	01	1	0612-		●	●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1058	8-97360-239-1	01	1	0612-		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCC ENG(RDV) M/T MZZ6F(RSR) (C) L=1424	8-97214-110-1	01	1	0612-			●
