Sayfa 3-60 - Isuzu EPC

3-60 — BRAKE PIPING; VACUUM (#32538) — 523 parça

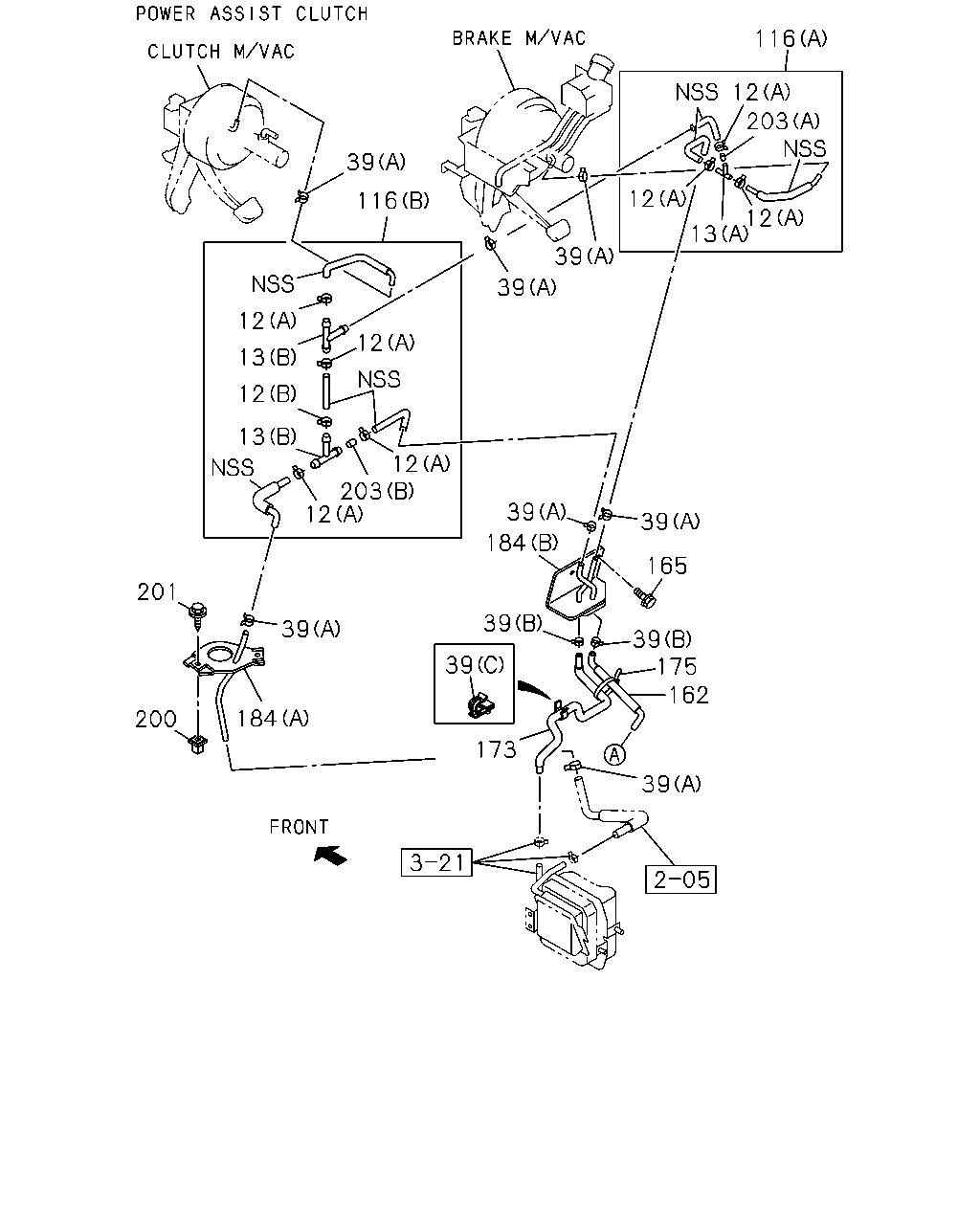

201 184 200 202

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
184	04.685 BRACKET; UNION FIX (B)	8-97078-460-5	01	1	0612-	●	●
184	04.685 BRACKET; UNION FIX EXC. HYDRO BRAKE BOOSTER<7QQ> (B)	8-97078-460-5	01	1	0612-			●
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) (A)	8-98009-402-1	01	1	0612-	●	●	●	●
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T) (C)	8-97094-014-4	01	1	0612-	●	●	●	●
184	04.685 BRACKET; UNION FIX HYDRO BRAKE BOOSTER<7QQ> (D)	8-97175-473-1	01	1	0612-			●
184	04.685 BRACKET; UNION FIX (D)	8-97175-473-1	01	1	0612-				●
200	04.931 GROMMET; SCREW H=15	8-94463-268-1	02	1	0612-	●	●	●	●
201	04.686 SCREW; BRKT 04.012 M5X16 TAPPING W/PL WASHER	0-74365-516-0	02	1	0612-	●	●	●	●
202	04.686 SEAL EXC. POWER ASSIST CLUTCH(S2T) 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	01	1	0612-	●	●	●	●

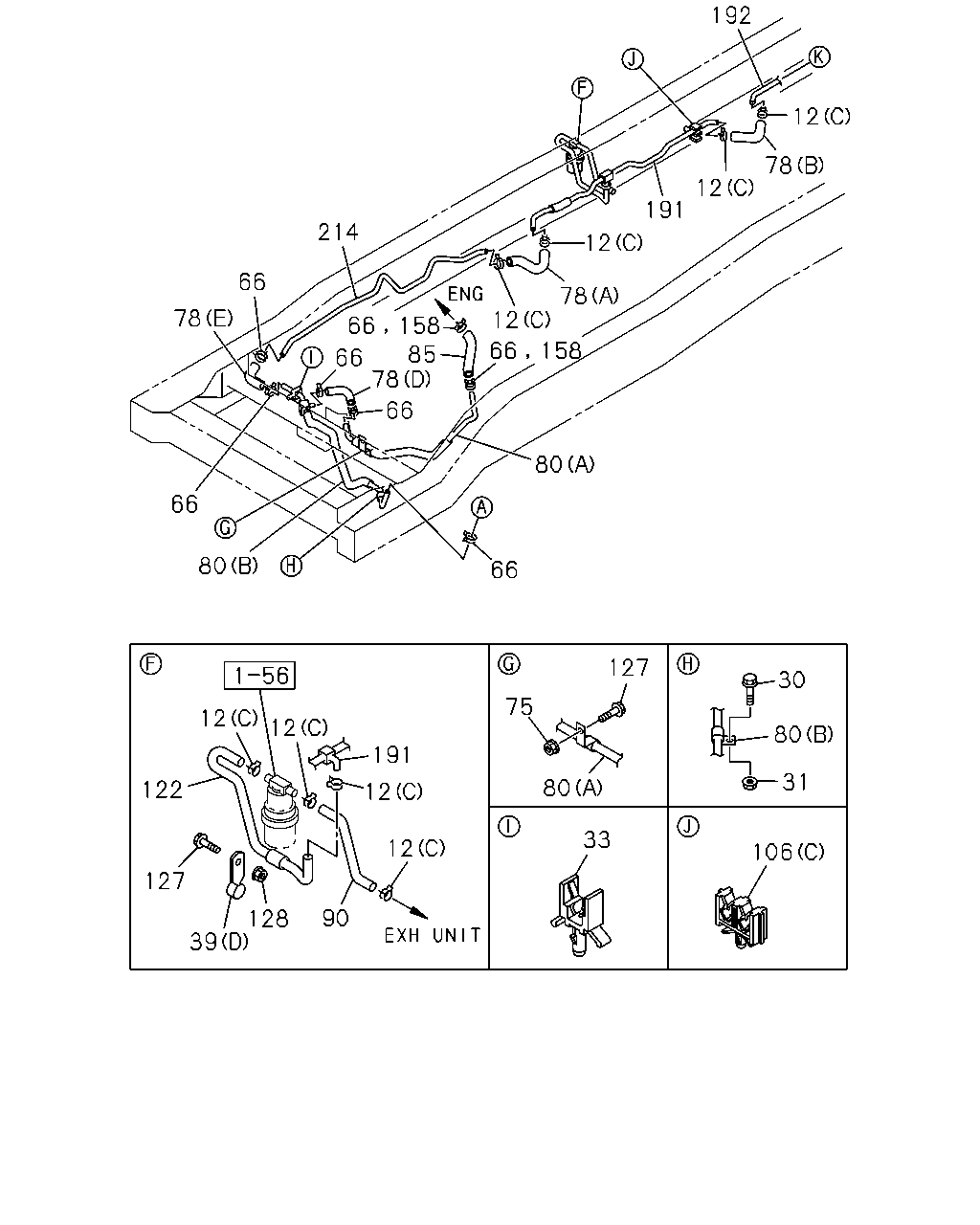

192 12 78 12 191 214 12 66 78 12 78 66 158 66 85 78 66 158 66 80 66 80 66 127 30 75 12 12 80 191 31 80 122 12 33 12 106 127 90 128 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
12	04.681 CLIP; HOSE 04.930 (A) ID=14.5	8-94167-480-0	03	1	0612-	●	●
12	04.681 CLIP; HOSE EXC. HYDRO BRAKE BOOSTER<7QQ> 04.930 (A) ID=14.5	8-94167-480-0	03	1	0612-			●
12	04.681 CLIP; HOSE FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER<7QQ> 04.930 (C) ID=16	8-94238-568-0	02	1	0612-0911	●	●	●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> 04.930 (C) ID=16	8-94238-568-0	02	1	0612-0911			●	●
12	04.681 CLIP; HOSE FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER<7QQ> 03.162 (C) ID=16	8-98008-098-0	02	1	0912-	●	●	●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> 03.162 (C) ID=16	8-98008-098-0	02	1	0912-			●	●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=14.5	8-94167-480-0	04	1	0612-	●	●	●	●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) (B) ID=15.5	8-94367-944-0	01	1	0612-	●	●	●	●
12	04.681 CLIP; HOSE 04.930 (C) ID=16	8-94238-568-0	08	1	0612-0911	●			●
12	04.681 CLIP; HOSE FRAME STRAIGHT TYPE<7KJ> 04.930 (C) ID=16	8-94238-568-0	08	1	0612-0911			●
12	04.681 CLIP; HOSE 03.162 (C) ID=16	8-98008-098-0	08	1	0912-	●			●
12	04.681 CLIP; HOSE FRAME STRAIGHT TYPE<7KJ> 03.162 (C) ID=16	8-98008-098-0	08	1	0912-			●
12	04.681 CLIP; HOSE FRAME STRAIGHT TYPE<7KJ> 04.930 (C) ID=16	8-94238-568-0	06	1	0612-0911		●
12	04.681 CLIP; HOSE FRAME STRAIGHT TYPE<7KJ> 03.162 (C) ID=16	8-98008-098-0	06	1	0912-		●
12	04.681 CLIP; HOSE 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 (C) ID=16	8-94238-568-0	14	1	0612-0911		●
12	04.681 CLIP; HOSE 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 (C) ID=16	8-94238-568-0	14	1	0612-0911			●
12	04.681 CLIP; HOSE 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) ID=16	8-98008-098-0	14	1	0912-		●
12	04.681 CLIP; HOSE 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) ID=16	8-98008-098-0	14	1	0912-			●
30	04.686 BOLT; CLIP,VAC PIPE 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 M6X20 FLANGE	0-28650-620-0	01	1	0612-		●	●
31	04.686 NUT; CLIP,VAC PIPE 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M6 FLANGE	0-91180-106-0	01	1	0612-		●	●
33	04.930 CLIP; VAC PIPE 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER<7QQ> ID=10 H=40	8-94462-219-0	02	1	0612-	●	●	●
33	04.930 CLIP; VAC PIPE 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER<7QQ> ID=10 H=40	8-94462-219-0	02	1	0612-	●	●	●
33	04.930 CLIP; VAC PIPE 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> ID=10 H=40	8-94462-219-0	02	1	0612-			●	●
33	04.930 CLIP; VAC PIPE 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> ID=10 H=40	8-94462-219-0	02	1	0612-			●	●
33	04.930 CLIP; VAC PIPE 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> ID=10 H=40	8-94462-219-0	01	1	0612-		●	●
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16	5-09707-023-2	02	1	0612-	●	●
39	04.681 CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER<7QQ> 04.930 (B) ID=16	5-09707-023-2	02	1	0612-			●
39	04.681 CLIP; HOSE,VAC (C) ID=25.5	8-97077-492-0	01	1	0612-	●	●
39	04.681 CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER<7QQ> (C) ID=25.5	8-97077-492-0	01	1	0612-			●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.930 (A) ID=16	8-94238-568-0	06	1	0612-	●	●
39	04.681 CLIP; HOSE,VAC FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER<7QQ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 04.930 (A) ID=16	8-94238-568-0	06	1	0612-			●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER<7QQ> 04.930 (A) ID=16	8-94238-568-0	01	1	0612-	●	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER<7QQ> 04.930 (A) ID=16	8-94238-568-0	03	1	0612-	●	●	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER<7QQ> 04.930 (A) ID=16	8-94238-568-0	04	1	0612-			●	●
39	04.681 CLIP; HOSE,VAC 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (D) ID=28 L=60	1-09700-585-1	01	1	0612-		●	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER<7QQ> 04.930 (B) ID=16	5-09707-023-2	01	1	0612-			●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	5-09707-023-2	01	1	0612-				●
66	04.930 CLIP; VAC HOSE,M/VAC 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER<7QQ> ID=16	8-94238-568-0	01	1	0612-0911	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> ID=16	8-94238-568-0	01	1	0612-0911			●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER<7QQ> 03.162 ID=16	8-98008-098-0	01	1	0912-	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> 03.162 ID=16	8-98008-098-0	01	1	0912-			●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> ID=16	8-94238-568-0	04	1	0612-0911	●	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16	8-98008-098-0	04	1	0912-	●	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> ID=16	8-94238-568-0	05	1	0612-0911		●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16	8-98008-098-0	05	1	0912-		●	●
75	04.930 NUT; CLIP,VAC HOSE 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0612-		●	●
78	04.931 HOSE; VAC,PIPE TO PIPE FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER<7QQ> 03.630 (A) L=140 SERVICED BY L=3000	0-08258-300-0	01	1	0612-	●	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 03.630 (A) L=140 SERVICED BY L=3000	0-08258-300-0	01	1	0612-		●	●
78	04.931 HOSE; VAC,PIPE TO PIPE POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> 03.630 (A) L=140 SERVICED BY L=3000	0-08258-300-0	01	1	0612-			●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 03.630 (B) L=160 SERVICED BY L=3000	0-08258-300-0	01	1	0612-	●			●
78	04.931 HOSE; VAC,PIPE TO PIPE FRAME STRAIGHT TYPE<7KJ> 03.630 (B) L=160 SERVICED BY L=3000	0-08258-300-0	01	1	0612-		●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 03.630 (B) L=160 SERVICED BY L=3000	0-08258-300-0	01	1	0612-		●	●
78	04.931 HOSE; VAC,PIPE TO PIPE (C)	8-98027-915-0	01	1	0612-	●			●
78	04.931 HOSE; VAC,PIPE TO PIPE FRAME STRAIGHT TYPE<7KJ> (C)	8-98027-915-0	01	1	0612-		●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 03.630 (E) L=200 SERVICED BY L=3000	0-08258-300-0	01	1	0612-		●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 03.630 (D) L=280 SERVICED BY L=3000	0-08258-300-0	01	1	0612-		●	●
80	04.930 PIPE; VAC,ENG SIDE 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER<7QQ> (D)	8-98027-872-1	01	1	0612-	●	●	●
80	04.930 PIPE; VAC,ENG SIDE 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> (D)	8-98027-872-1	01	1	0612-			●	●
80	04.930 PIPE; VAC,ENG SIDE 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98009-047-5	01	1	0612-	●	●	●	●
80	04.930 PIPE; VAC,ENG SIDE 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98009-509-5	01	1	0612-	●	●	●	●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98005-240-1	01	1	0612-		●	●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98005-241-0	01	1	0612-		●	●
85	04.931 HOSE; VAC,ENG SIDE 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ>	8-98029-339-2	01	1	0612-	●	●	●	●
85	04.931 HOSE; VAC,ENG SIDE 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98000-702-2	01	1	0612-		●	●
90	04.931 HOSE; VAC,MAG VLV	8-98027-912-1	01	1	0612-	●			●
90	04.931 HOSE; VAC,MAG VLV FRAME STRAIGHT TYPE<7KJ>	8-98027-912-1	01	1	0612-		●	●
90	04.931 HOSE; VAC,MAG VLV 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98019-658-1	01	1	0612-		●	●
106	04.930 CLIP; PIPE 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=10X2 H=47.5	8-97018-605-0	01	1	0612-		●
106	04.930 CLIP; PIPE 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=10X2 H=47.5	8-97018-605-0	01	1	0612-			●
106	04.930 CLIP; PIPE 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=10 H=40	8-94462-219-0	02	1	0612-		●	●
106	04.930 CLIP; PIPE 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 06.672 (D) ID=10X2 H=22	8-94252-455-2	01	1	0612-			●
106	04.930 CLIP; PIPE 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0612-			●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE	8-98027-914-1	01	1	0612-	●			●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE FRAME STRAIGHT TYPE<7KJ>	8-98027-914-1	01	1	0612-		●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98019-657-2	01	1	0612-		●	●
127	04.930 BOLT; CLIP 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0612-	●	●	●	●
127	04.930 BOLT; CLIP 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0612-		●	●
127	04.930 BOLT; CLIP 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0612-		●	●
128	04.930 NUT; CLIP 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	02	1	0612-	●	●	●	●
128	04.930 NUT; CLIP 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0612-		●	●
158	04.681 CLIP; HOSE 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 ID=16	8-94238-568-0	02	1	0612-0911		●	●
158	04.681 CLIP; HOSE 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16	8-98008-098-0	02	1	0912-		●	●
191	04.685 PIPE; VAC	8-98027-849-0	01	1	0612-	●			●
191	04.685 PIPE; VAC FRAME STRAIGHT TYPE<7KJ>	8-98027-849-0	01	1	0612-		●	●
191	04.685 PIPE; VAC 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98019-623-1	01	1	0612-		●	●
192	04.685 PIPE; VAC,HOSE TO MAG VLV 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98006-634-3	01	1	0612-		●
192	04.685 PIPE; VAC,HOSE TO MAG VLV 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98006-656-2	01	1	0612-			●
214	04.931 PIPE; VAC,PIPE TO PIPE 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98005-242-2	01	1	0612-		●	●

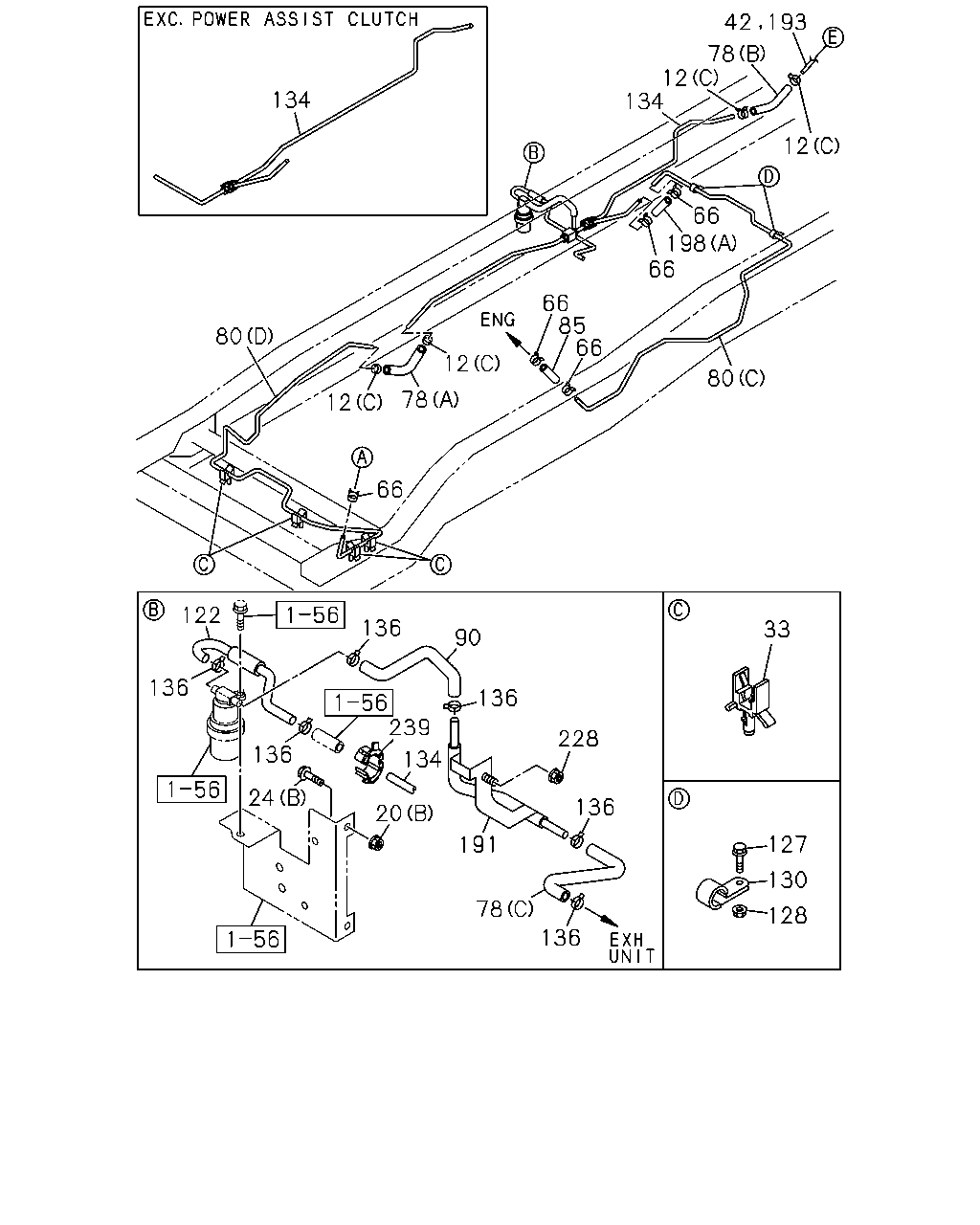

78 12 134 134 12 66 198 66 66 85 66 80 12 80 78 12 66 122 136 33 90 136 136 239 136 228 134 24 136 20 127 191 130 78 128 136 42 193

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
12	04.681 CLIP; HOSE 04.930 (A) ID=14.5	8-94167-480-0	03	1	0612-	●	●
12	04.681 CLIP; HOSE EXC. HYDRO BRAKE BOOSTER<7QQ> 04.930 (A) ID=14.5	8-94167-480-0	03	1	0612-			●
12	04.681 CLIP; HOSE FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER<7QQ> 04.930 (C) ID=16	8-94238-568-0	02	1	0612-0911	●	●	●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> 04.930 (C) ID=16	8-94238-568-0	02	1	0612-0911			●	●
12	04.681 CLIP; HOSE FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER<7QQ> 03.162 (C) ID=16	8-98008-098-0	02	1	0912-	●	●	●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> 03.162 (C) ID=16	8-98008-098-0	02	1	0912-			●	●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=14.5	8-94167-480-0	04	1	0612-	●	●	●	●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) (B) ID=15.5	8-94367-944-0	01	1	0612-	●	●	●	●
12	04.681 CLIP; HOSE 04.930 (C) ID=16	8-94238-568-0	08	1	0612-0911	●			●
12	04.681 CLIP; HOSE FRAME STRAIGHT TYPE<7KJ> 04.930 (C) ID=16	8-94238-568-0	08	1	0612-0911			●
12	04.681 CLIP; HOSE 03.162 (C) ID=16	8-98008-098-0	08	1	0912-	●			●
12	04.681 CLIP; HOSE FRAME STRAIGHT TYPE<7KJ> 03.162 (C) ID=16	8-98008-098-0	08	1	0912-			●
12	04.681 CLIP; HOSE FRAME STRAIGHT TYPE<7KJ> 04.930 (C) ID=16	8-94238-568-0	06	1	0612-0911		●
12	04.681 CLIP; HOSE FRAME STRAIGHT TYPE<7KJ> 03.162 (C) ID=16	8-98008-098-0	06	1	0912-		●
12	04.681 CLIP; HOSE 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 (C) ID=16	8-94238-568-0	14	1	0612-0911		●
12	04.681 CLIP; HOSE 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 (C) ID=16	8-94238-568-0	14	1	0612-0911			●
12	04.681 CLIP; HOSE 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) ID=16	8-98008-098-0	14	1	0912-		●
12	04.681 CLIP; HOSE 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) ID=16	8-98008-098-0	14	1	0912-			●
20	04.686 NUT; BRKT 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	0612-	●			●
20	04.686 NUT; BRKT FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	0612-		●	●
20	04.686 NUT; BRKT 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	0612-	●			●
20	04.686 NUT; BRKT FRAME STRAIGHT TYPE<7KJ> 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	0612-		●	●
24	04.686 BOLT; BRKT 06.216 (C) M8X25 FLANGE	0-28650-825-0	01	1	0612-	●
24	04.686 BOLT; BRKT 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	0612-	●			●
24	04.686 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	0612-		●	●
24	04.686 BOLT; BRKT 00.029 (B) M10X25 FLANGE	0-28651-025-0	01	1	0612-	●			●
24	04.686 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 00.029 (B) M10X25 FLANGE	0-28651-025-0	01	1	0612-		●	●
33	04.930 CLIP; VAC PIPE 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER<7QQ> ID=10 H=40	8-94462-219-0	02	1	0612-	●	●	●
33	04.930 CLIP; VAC PIPE 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER<7QQ> ID=10 H=40	8-94462-219-0	02	1	0612-	●	●	●
33	04.930 CLIP; VAC PIPE 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> ID=10 H=40	8-94462-219-0	02	1	0612-			●	●
33	04.930 CLIP; VAC PIPE 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> ID=10 H=40	8-94462-219-0	02	1	0612-			●	●
33	04.930 CLIP; VAC PIPE 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> ID=10 H=40	8-94462-219-0	01	1	0612-		●	●
42	04.685 PIPE; VAC,UNION TO MAG VLV	8-98035-731-3	01	1	0612-	●
66	04.930 CLIP; VAC HOSE,M/VAC 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER<7QQ> ID=16	8-94238-568-0	01	1	0612-0911	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> ID=16	8-94238-568-0	01	1	0612-0911			●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER<7QQ> 03.162 ID=16	8-98008-098-0	01	1	0912-	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> 03.162 ID=16	8-98008-098-0	01	1	0912-			●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> ID=16	8-94238-568-0	04	1	0612-0911	●	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16	8-98008-098-0	04	1	0912-	●	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> ID=16	8-94238-568-0	05	1	0612-0911		●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16	8-98008-098-0	05	1	0912-		●	●
78	04.931 HOSE; VAC,PIPE TO PIPE FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER<7QQ> 03.630 (A) L=140 SERVICED BY L=3000	0-08258-300-0	01	1	0612-	●	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 03.630 (A) L=140 SERVICED BY L=3000	0-08258-300-0	01	1	0612-		●	●
78	04.931 HOSE; VAC,PIPE TO PIPE POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> 03.630 (A) L=140 SERVICED BY L=3000	0-08258-300-0	01	1	0612-			●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 03.630 (B) L=160 SERVICED BY L=3000	0-08258-300-0	01	1	0612-	●			●
78	04.931 HOSE; VAC,PIPE TO PIPE FRAME STRAIGHT TYPE<7KJ> 03.630 (B) L=160 SERVICED BY L=3000	0-08258-300-0	01	1	0612-		●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 03.630 (B) L=160 SERVICED BY L=3000	0-08258-300-0	01	1	0612-		●	●
78	04.931 HOSE; VAC,PIPE TO PIPE (C)	8-98027-915-0	01	1	0612-	●			●
78	04.931 HOSE; VAC,PIPE TO PIPE FRAME STRAIGHT TYPE<7KJ> (C)	8-98027-915-0	01	1	0612-		●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 03.630 (E) L=200 SERVICED BY L=3000	0-08258-300-0	01	1	0612-		●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 03.630 (D) L=280 SERVICED BY L=3000	0-08258-300-0	01	1	0612-		●	●
80	04.930 PIPE; VAC,ENG SIDE 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER<7QQ> (D)	8-98027-872-1	01	1	0612-	●	●	●
80	04.930 PIPE; VAC,ENG SIDE 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> (D)	8-98027-872-1	01	1	0612-			●	●
80	04.930 PIPE; VAC,ENG SIDE 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98009-047-5	01	1	0612-	●	●	●	●
80	04.930 PIPE; VAC,ENG SIDE 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98009-509-5	01	1	0612-	●	●	●	●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98005-240-1	01	1	0612-		●	●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98005-241-0	01	1	0612-		●	●
85	04.931 HOSE; VAC,ENG SIDE 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ>	8-98029-339-2	01	1	0612-	●	●	●	●
85	04.931 HOSE; VAC,ENG SIDE 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98000-702-2	01	1	0612-		●	●
90	04.931 HOSE; VAC,MAG VLV	8-98027-912-1	01	1	0612-	●			●
90	04.931 HOSE; VAC,MAG VLV FRAME STRAIGHT TYPE<7KJ>	8-98027-912-1	01	1	0612-		●	●
90	04.931 HOSE; VAC,MAG VLV 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98019-658-1	01	1	0612-		●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE	8-98027-914-1	01	1	0612-	●			●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE FRAME STRAIGHT TYPE<7KJ>	8-98027-914-1	01	1	0612-		●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98019-657-2	01	1	0612-		●	●
127	04.930 BOLT; CLIP 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0612-	●	●	●	●
127	04.930 BOLT; CLIP 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0612-		●	●
127	04.930 BOLT; CLIP 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0612-		●	●
128	04.930 NUT; CLIP 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	02	1	0612-	●	●	●	●
128	04.930 NUT; CLIP 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0612-		●	●
130	04.930 CLIP; VAC PIPE TO FRAME 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> ID=11 L=32	0-95235-065-0	02	1	0612-	●	●	●	●
134	04.685 PIPE; VAC,3 WAY TO HOSE FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER<7QQ>	8-98019-655-2	01	1	0612-	●	●	●
134	04.685 PIPE; VAC,3 WAY TO HOSE POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ>	8-98019-655-2	01	1	0612-			●	●
134	04.685 PIPE; VAC,3 WAY TO HOSE FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> EXC. POWER ASSIST CLUTCH(S2T)	8-98019-656-1	01	1	0612-			●	●
136	04.681 CLIP; VAC HOSE 04.930 ID=16	8-94238-568-0	06	1	0612-0911	●			●
136	04.681 CLIP; VAC HOSE FRAME STRAIGHT TYPE<7KJ> 04.930 ID=16	8-94238-568-0	06	1	0612-0911		●	●
136	04.681 CLIP; VAC HOSE 03.162 ID=16	8-98008-098-0	06	1	0912-	●			●
136	04.681 CLIP; VAC HOSE FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16	8-98008-098-0	06	1	0912-		●	●
191	04.685 PIPE; VAC	8-98027-849-0	01	1	0612-	●			●
191	04.685 PIPE; VAC FRAME STRAIGHT TYPE<7KJ>	8-98027-849-0	01	1	0612-		●	●
191	04.685 PIPE; VAC 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98019-623-1	01	1	0612-		●	●
193	04.685 PIPE; VAC,3 WAY TO MAG VLV FRAME STRAIGHT TYPE<7KJ>	8-98019-674-2	01	1	0612-		●
193	04.685 PIPE; VAC,3 WAY TO MAG VLV FRAME STRAIGHT TYPE<7KJ>	8-98019-675-2	01	1	0612-			●
193	04.685 PIPE; VAC,3 WAY TO MAG VLV	8-98019-675-2	01	1	0612-				●
198	04.931 HOSE; VAC,PIPE TO MAG VLV (B)	8-98035-890-2	01	1	0612-	●
198	04.931 HOSE; VAC,PIPE TO MAG VLV 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 03.630 (A) L=200 SERVICED BY L=3000	0-08258-300-0	01	1	0612-	●	●	●	●
198	04.931 HOSE; VAC,PIPE TO MAG VLV 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.630 (A) L=140 SERVICED BY L=3000	0-08258-300-0	01	1	0612-	●	●	●	●
198	04.931 HOSE; VAC,PIPE TO MAG VLV FRAME STRAIGHT TYPE<7KJ> 03.630 (C) L=220 SERVICED BY L=3000	0-08258-300-0	01	1	0612-		●	●
198	04.931 HOSE; VAC,PIPE TO MAG VLV 03.630 (C) L=220 SERVICED BY L=3000	0-08258-300-0	01	1	0612-				●
198	04.931 HOSE; VAC,PIPE TO MAG VLV 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-98036-849-0	01	1	0612-		●	●
198	04.931 HOSE; VAC,PIPE TO MAG VLV 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> (E)	8-98036-850-0	01	1	0612-		●	●
228	04.930 NUT; PIPE 03.162 M10 FLANGE	0-91180-110-0	01	1	0612-	●			●
228	04.930 NUT; PIPE FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE	0-91180-110-0	01	1	0612-		●	●
228	04.930 NUT; PIPE 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0612-		●	●
239	04.931 GROMMET; FRAME 02.343 ID=17	8-94128-319-2	01	1	0612-	●			●
239	04.931 GROMMET; FRAME FRAME STRAIGHT TYPE<7KJ> 02.343 ID=17	8-94128-319-2	01	1	0612-		●	●

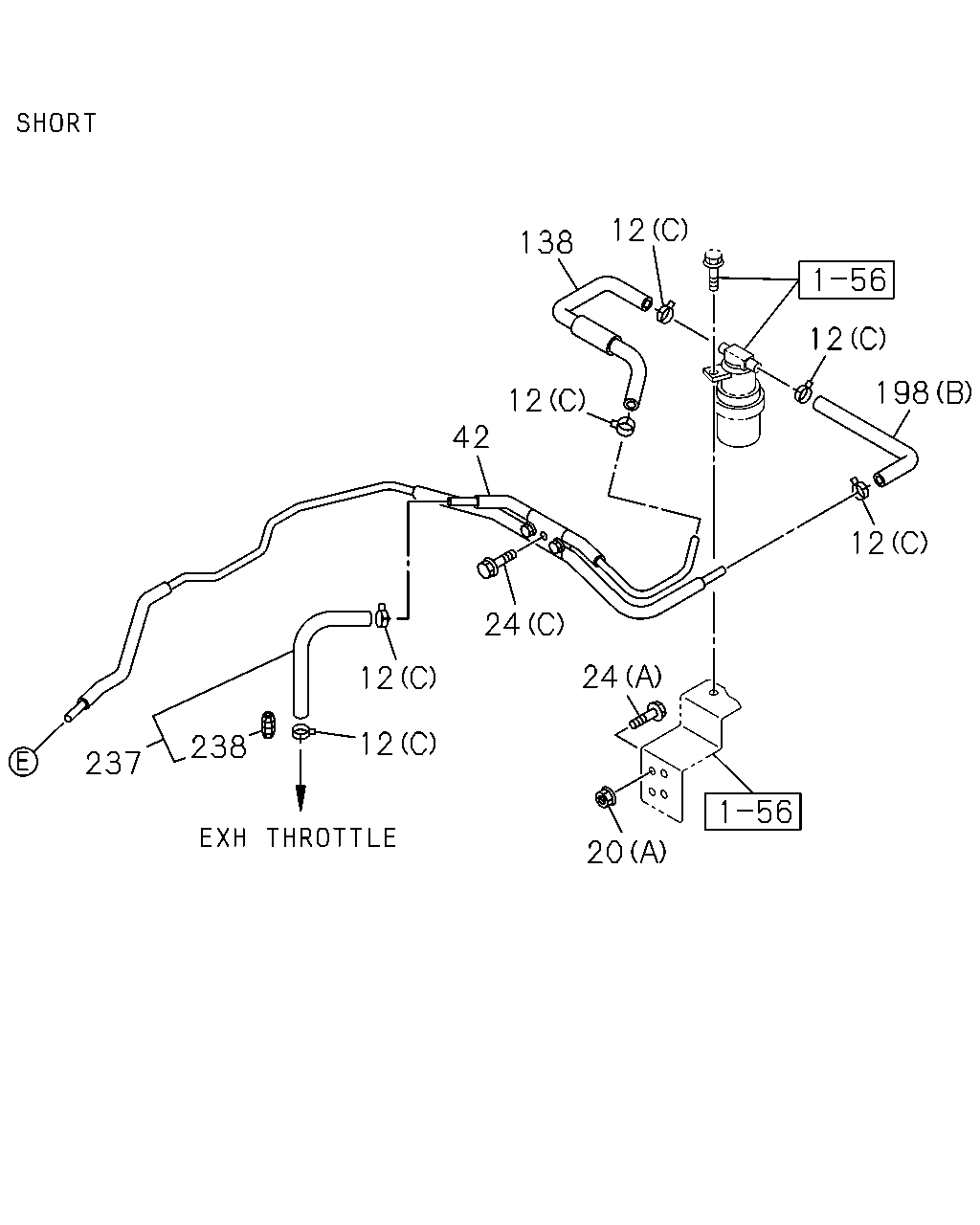

12 138 12 198 12 42 12 24 24 12 12 238 237 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
12	04.681 CLIP; HOSE 04.930 (A) ID=14.5	8-94167-480-0	03	1	0612-	●	●
12	04.681 CLIP; HOSE EXC. HYDRO BRAKE BOOSTER<7QQ> 04.930 (A) ID=14.5	8-94167-480-0	03	1	0612-			●
12	04.681 CLIP; HOSE FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER<7QQ> 04.930 (C) ID=16	8-94238-568-0	02	1	0612-0911	●	●	●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> 04.930 (C) ID=16	8-94238-568-0	02	1	0612-0911			●	●
12	04.681 CLIP; HOSE FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER<7QQ> 03.162 (C) ID=16	8-98008-098-0	02	1	0912-	●	●	●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> 03.162 (C) ID=16	8-98008-098-0	02	1	0912-			●	●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=14.5	8-94167-480-0	04	1	0612-	●	●	●	●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) (B) ID=15.5	8-94367-944-0	01	1	0612-	●	●	●	●
12	04.681 CLIP; HOSE 04.930 (C) ID=16	8-94238-568-0	08	1	0612-0911	●			●
12	04.681 CLIP; HOSE FRAME STRAIGHT TYPE<7KJ> 04.930 (C) ID=16	8-94238-568-0	08	1	0612-0911			●
12	04.681 CLIP; HOSE 03.162 (C) ID=16	8-98008-098-0	08	1	0912-	●			●
12	04.681 CLIP; HOSE FRAME STRAIGHT TYPE<7KJ> 03.162 (C) ID=16	8-98008-098-0	08	1	0912-			●
12	04.681 CLIP; HOSE FRAME STRAIGHT TYPE<7KJ> 04.930 (C) ID=16	8-94238-568-0	06	1	0612-0911		●
12	04.681 CLIP; HOSE FRAME STRAIGHT TYPE<7KJ> 03.162 (C) ID=16	8-98008-098-0	06	1	0912-		●
12	04.681 CLIP; HOSE 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 (C) ID=16	8-94238-568-0	14	1	0612-0911		●
12	04.681 CLIP; HOSE 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 (C) ID=16	8-94238-568-0	14	1	0612-0911			●
12	04.681 CLIP; HOSE 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) ID=16	8-98008-098-0	14	1	0912-		●
12	04.681 CLIP; HOSE 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) ID=16	8-98008-098-0	14	1	0912-			●
20	04.686 NUT; BRKT 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	0612-	●			●
20	04.686 NUT; BRKT FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	0612-		●	●
20	04.686 NUT; BRKT 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	0612-	●			●
20	04.686 NUT; BRKT FRAME STRAIGHT TYPE<7KJ> 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	0612-		●	●
24	04.686 BOLT; BRKT 06.216 (C) M8X25 FLANGE	0-28650-825-0	01	1	0612-	●
24	04.686 BOLT; BRKT 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	0612-	●			●
24	04.686 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	0612-		●	●
24	04.686 BOLT; BRKT 00.029 (B) M10X25 FLANGE	0-28651-025-0	01	1	0612-	●			●
24	04.686 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 00.029 (B) M10X25 FLANGE	0-28651-025-0	01	1	0612-		●	●
42	04.685 PIPE; VAC,UNION TO MAG VLV	8-98035-731-3	01	1	0612-	●
138	04.931 HOSE; MAG VLV TO PIPE	8-98035-889-0	01	1	0612-	●
138	04.931 HOSE; MAG VLV TO PIPE FRAME STRAIGHT TYPE<7KJ> 03.630 L=220 SERVICED BY L=3000	0-08258-300-0	01	1	0612-			●
138	04.931 HOSE; MAG VLV TO PIPE 03.630 L=220 SERVICED BY L=3000	0-08258-300-0	01	1	0612-				●
198	04.931 HOSE; VAC,PIPE TO MAG VLV (B)	8-98035-890-2	01	1	0612-	●
198	04.931 HOSE; VAC,PIPE TO MAG VLV 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 03.630 (A) L=200 SERVICED BY L=3000	0-08258-300-0	01	1	0612-	●	●	●	●
198	04.931 HOSE; VAC,PIPE TO MAG VLV 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.630 (A) L=140 SERVICED BY L=3000	0-08258-300-0	01	1	0612-	●	●	●	●
198	04.931 HOSE; VAC,PIPE TO MAG VLV FRAME STRAIGHT TYPE<7KJ> 03.630 (C) L=220 SERVICED BY L=3000	0-08258-300-0	01	1	0612-		●	●
198	04.931 HOSE; VAC,PIPE TO MAG VLV 03.630 (C) L=220 SERVICED BY L=3000	0-08258-300-0	01	1	0612-				●
198	04.931 HOSE; VAC,PIPE TO MAG VLV 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-98036-849-0	01	1	0612-		●	●
198	04.931 HOSE; VAC,PIPE TO MAG VLV 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> (E)	8-98036-850-0	01	1	0612-		●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE	8-98035-891-0	01	1	0612-	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE FRAME STRAIGHT TYPE<7KJ>	8-98036-082-0	01	1	0612-		●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98019-660-2	01	1	0612-		●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE FRAME STRAIGHT TYPE<7KJ>	8-97378-769-0	01	1	0612-			●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE	8-97378-769-0	01	1	0612-				●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97378-771-0	01	1	0612-			●
238	04.892 ORIFICE; VACUUM HOSE	8-97377-521-0	01	1	0612-	●			●
238	04.892 ORIFICE; VACUUM HOSE FRAME STRAIGHT TYPE<7KJ>	8-97377-521-0	01	1	0612-		●	●
238	04.892 ORIFICE; VACUUM HOSE 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97377-521-0	01	1	0612-		●
238	04.892 ORIFICE; VACUUM HOSE 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97377-521-0	01	1	0612-			●

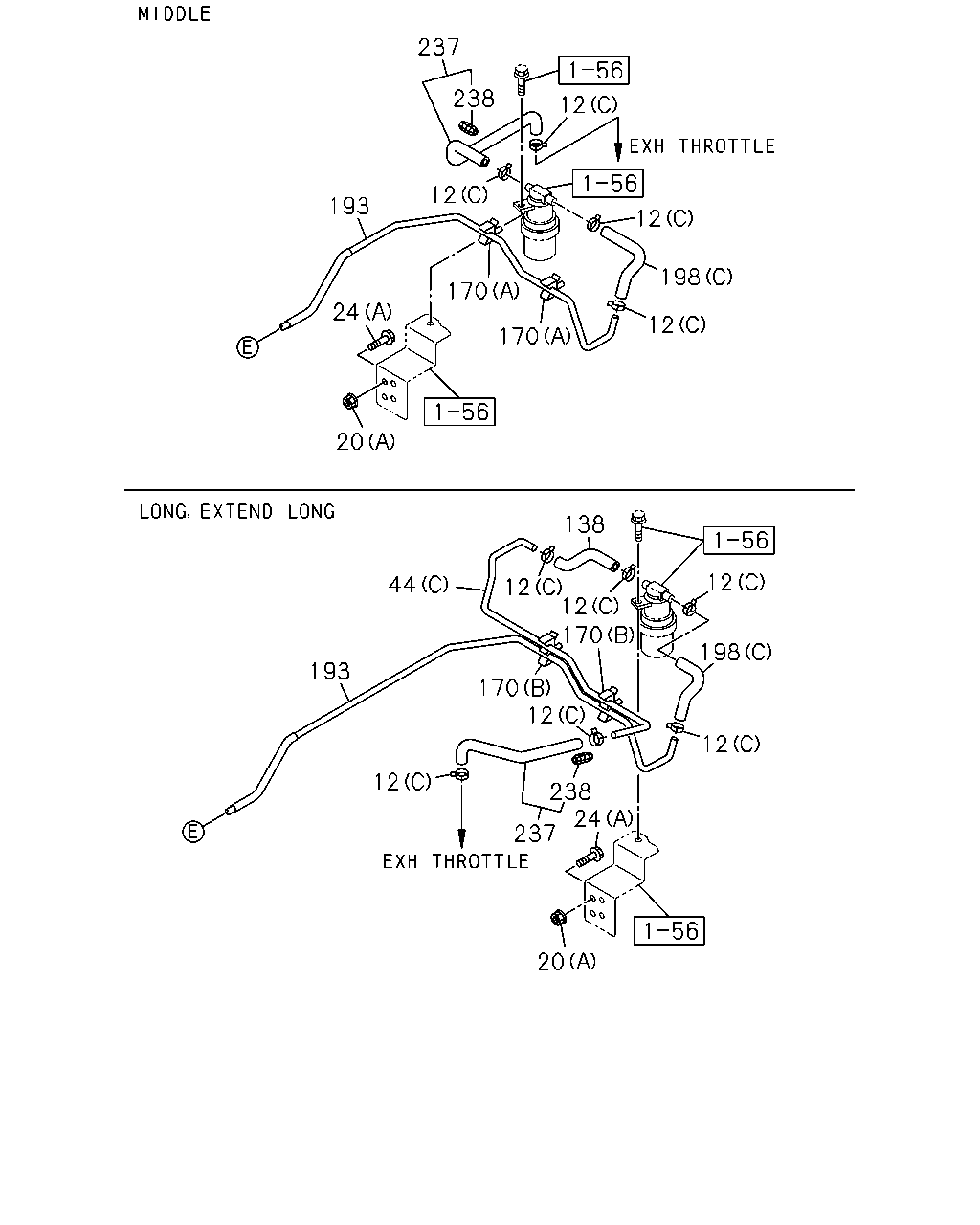

237 238 12 12 193 12 198 170 24 12 170 20 138 12 44 12 12 170 198 193 170 12 12 12 238 24 237 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
12	04.681 CLIP; HOSE 04.930 (A) ID=14.5	8-94167-480-0	03	1	0612-	●	●
12	04.681 CLIP; HOSE EXC. HYDRO BRAKE BOOSTER<7QQ> 04.930 (A) ID=14.5	8-94167-480-0	03	1	0612-			●
12	04.681 CLIP; HOSE FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER<7QQ> 04.930 (C) ID=16	8-94238-568-0	02	1	0612-0911	●	●	●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> 04.930 (C) ID=16	8-94238-568-0	02	1	0612-0911			●	●
12	04.681 CLIP; HOSE FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER<7QQ> 03.162 (C) ID=16	8-98008-098-0	02	1	0912-	●	●	●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> 03.162 (C) ID=16	8-98008-098-0	02	1	0912-			●	●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=14.5	8-94167-480-0	04	1	0612-	●	●	●	●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) (B) ID=15.5	8-94367-944-0	01	1	0612-	●	●	●	●
12	04.681 CLIP; HOSE 04.930 (C) ID=16	8-94238-568-0	08	1	0612-0911	●			●
12	04.681 CLIP; HOSE FRAME STRAIGHT TYPE<7KJ> 04.930 (C) ID=16	8-94238-568-0	08	1	0612-0911			●
12	04.681 CLIP; HOSE 03.162 (C) ID=16	8-98008-098-0	08	1	0912-	●			●
12	04.681 CLIP; HOSE FRAME STRAIGHT TYPE<7KJ> 03.162 (C) ID=16	8-98008-098-0	08	1	0912-			●
12	04.681 CLIP; HOSE FRAME STRAIGHT TYPE<7KJ> 04.930 (C) ID=16	8-94238-568-0	06	1	0612-0911		●
12	04.681 CLIP; HOSE FRAME STRAIGHT TYPE<7KJ> 03.162 (C) ID=16	8-98008-098-0	06	1	0912-		●
12	04.681 CLIP; HOSE 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 (C) ID=16	8-94238-568-0	14	1	0612-0911		●
12	04.681 CLIP; HOSE 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 (C) ID=16	8-94238-568-0	14	1	0612-0911			●
12	04.681 CLIP; HOSE 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) ID=16	8-98008-098-0	14	1	0912-		●
12	04.681 CLIP; HOSE 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) ID=16	8-98008-098-0	14	1	0912-			●
20	04.686 NUT; BRKT 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	0612-	●			●
20	04.686 NUT; BRKT FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	0612-		●	●
20	04.686 NUT; BRKT 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	0612-	●			●
20	04.686 NUT; BRKT FRAME STRAIGHT TYPE<7KJ> 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	0612-		●	●
24	04.686 BOLT; BRKT 06.216 (C) M8X25 FLANGE	0-28650-825-0	01	1	0612-	●
24	04.686 BOLT; BRKT 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	0612-	●			●
24	04.686 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	0612-		●	●
24	04.686 BOLT; BRKT 00.029 (B) M10X25 FLANGE	0-28651-025-0	01	1	0612-	●			●
24	04.686 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 00.029 (B) M10X25 FLANGE	0-28651-025-0	01	1	0612-		●	●
44	04.930 PIPE; VAC,MAG VLV 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98019-530-1	01	1	0612-		●
44	04.930 PIPE; VAC,MAG VLV FRAME STRAIGHT TYPE<7KJ> (C)	8-98019-677-2	01	1	0612-			●
44	04.930 PIPE; VAC,MAG VLV (C)	8-98019-677-2	01	1	0612-				●
44	04.930 PIPE; VAC,MAG VLV 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98006-658-3	01	1	0612-			●
138	04.931 HOSE; MAG VLV TO PIPE	8-98035-889-0	01	1	0612-	●
138	04.931 HOSE; MAG VLV TO PIPE FRAME STRAIGHT TYPE<7KJ> 03.630 L=220 SERVICED BY L=3000	0-08258-300-0	01	1	0612-			●
138	04.931 HOSE; MAG VLV TO PIPE 03.630 L=220 SERVICED BY L=3000	0-08258-300-0	01	1	0612-				●
170	04.930 CLIP; VAC PIPE FRAME STRAIGHT TYPE<7KJ> (A) ID=10 H=40	8-94462-219-0	02	1	0612-		●
170	04.930 CLIP; VAC PIPE FRAME STRAIGHT TYPE<7KJ> (B) ID=10X2 H=37.5	8-97018-546-0	02	1	0612-			●
170	04.930 CLIP; VAC PIPE (B) ID=10X2 H=37.5	8-97018-546-0	02	1	0612-				●
193	04.685 PIPE; VAC,3 WAY TO MAG VLV FRAME STRAIGHT TYPE<7KJ>	8-98019-674-2	01	1	0612-		●
193	04.685 PIPE; VAC,3 WAY TO MAG VLV FRAME STRAIGHT TYPE<7KJ>	8-98019-675-2	01	1	0612-			●
193	04.685 PIPE; VAC,3 WAY TO MAG VLV	8-98019-675-2	01	1	0612-				●
198	04.931 HOSE; VAC,PIPE TO MAG VLV (B)	8-98035-890-2	01	1	0612-	●
198	04.931 HOSE; VAC,PIPE TO MAG VLV 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 03.630 (A) L=200 SERVICED BY L=3000	0-08258-300-0	01	1	0612-	●	●	●	●
198	04.931 HOSE; VAC,PIPE TO MAG VLV 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.630 (A) L=140 SERVICED BY L=3000	0-08258-300-0	01	1	0612-	●	●	●	●
198	04.931 HOSE; VAC,PIPE TO MAG VLV FRAME STRAIGHT TYPE<7KJ> 03.630 (C) L=220 SERVICED BY L=3000	0-08258-300-0	01	1	0612-		●	●
198	04.931 HOSE; VAC,PIPE TO MAG VLV 03.630 (C) L=220 SERVICED BY L=3000	0-08258-300-0	01	1	0612-				●
198	04.931 HOSE; VAC,PIPE TO MAG VLV 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-98036-849-0	01	1	0612-		●	●
198	04.931 HOSE; VAC,PIPE TO MAG VLV 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> (E)	8-98036-850-0	01	1	0612-		●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE	8-98035-891-0	01	1	0612-	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE FRAME STRAIGHT TYPE<7KJ>	8-98036-082-0	01	1	0612-		●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98019-660-2	01	1	0612-		●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE FRAME STRAIGHT TYPE<7KJ>	8-97378-769-0	01	1	0612-			●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE	8-97378-769-0	01	1	0612-				●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97378-771-0	01	1	0612-			●
238	04.892 ORIFICE; VACUUM HOSE	8-97377-521-0	01	1	0612-	●			●
238	04.892 ORIFICE; VACUUM HOSE FRAME STRAIGHT TYPE<7KJ>	8-97377-521-0	01	1	0612-		●	●
238	04.892 ORIFICE; VACUUM HOSE 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97377-521-0	01	1	0612-		●
238	04.892 ORIFICE; VACUUM HOSE 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97377-521-0	01	1	0612-			●

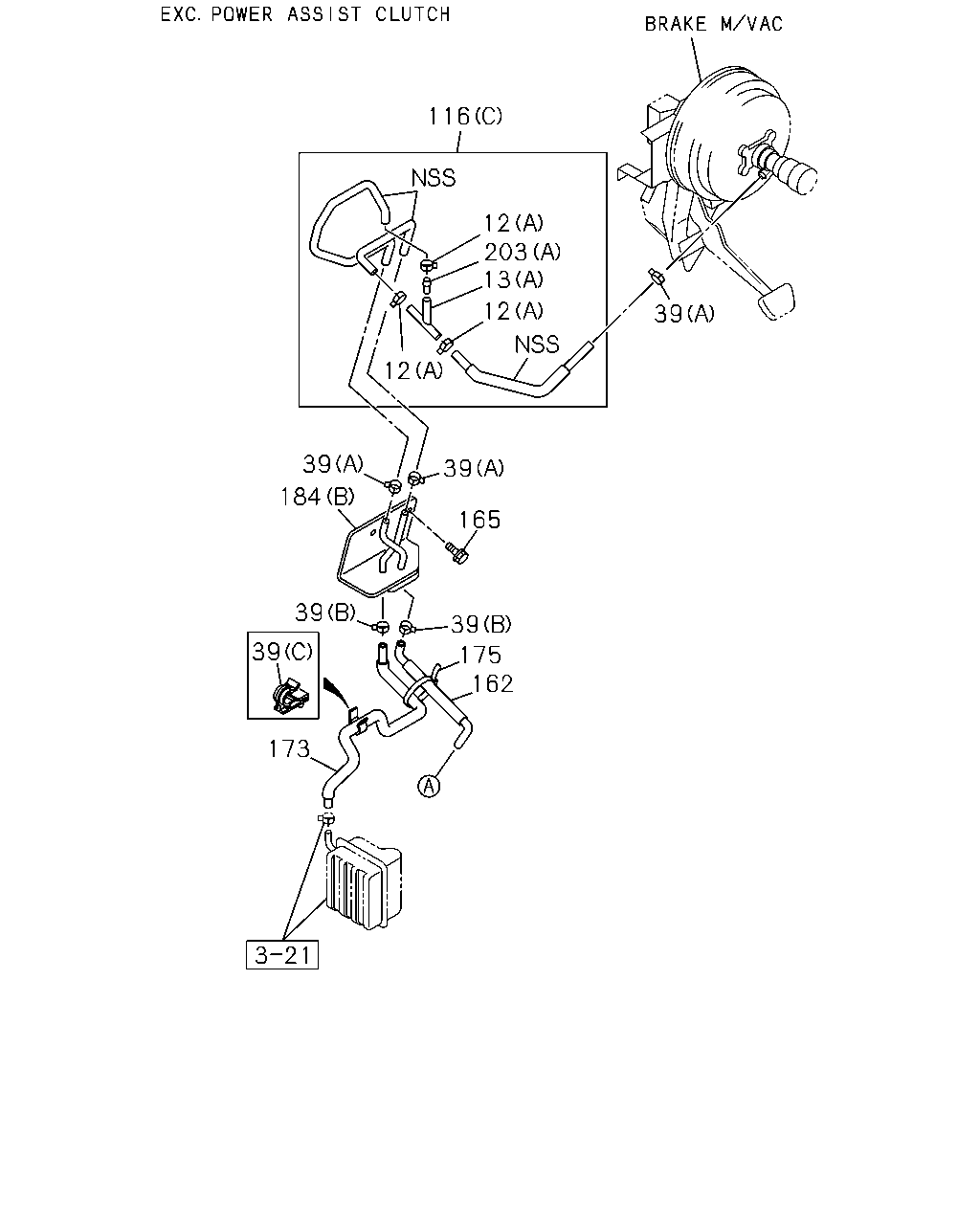

116 12 12 12 12 203 13 12 39 39 39 184 201 108 165 184 200 39 39 162

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
12	04.681 CLIP; HOSE 04.930 (A) ID=14.5	8-94167-480-0	03	1	0612-	●	●
12	04.681 CLIP; HOSE EXC. HYDRO BRAKE BOOSTER<7QQ> 04.930 (A) ID=14.5	8-94167-480-0	03	1	0612-			●
12	04.681 CLIP; HOSE FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER<7QQ> 04.930 (C) ID=16	8-94238-568-0	02	1	0612-0911	●	●	●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> 04.930 (C) ID=16	8-94238-568-0	02	1	0612-0911			●	●
12	04.681 CLIP; HOSE FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER<7QQ> 03.162 (C) ID=16	8-98008-098-0	02	1	0912-	●	●	●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> 03.162 (C) ID=16	8-98008-098-0	02	1	0912-			●	●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=14.5	8-94167-480-0	04	1	0612-	●	●	●	●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) (B) ID=15.5	8-94367-944-0	01	1	0612-	●	●	●	●
12	04.681 CLIP; HOSE 04.930 (C) ID=16	8-94238-568-0	08	1	0612-0911	●			●
12	04.681 CLIP; HOSE FRAME STRAIGHT TYPE<7KJ> 04.930 (C) ID=16	8-94238-568-0	08	1	0612-0911			●
12	04.681 CLIP; HOSE 03.162 (C) ID=16	8-98008-098-0	08	1	0912-	●			●
12	04.681 CLIP; HOSE FRAME STRAIGHT TYPE<7KJ> 03.162 (C) ID=16	8-98008-098-0	08	1	0912-			●
12	04.681 CLIP; HOSE FRAME STRAIGHT TYPE<7KJ> 04.930 (C) ID=16	8-94238-568-0	06	1	0612-0911		●
12	04.681 CLIP; HOSE FRAME STRAIGHT TYPE<7KJ> 03.162 (C) ID=16	8-98008-098-0	06	1	0912-		●
12	04.681 CLIP; HOSE 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 (C) ID=16	8-94238-568-0	14	1	0612-0911		●
12	04.681 CLIP; HOSE 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 (C) ID=16	8-94238-568-0	14	1	0612-0911			●
12	04.681 CLIP; HOSE 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) ID=16	8-98008-098-0	14	1	0912-		●
12	04.681 CLIP; HOSE 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) ID=16	8-98008-098-0	14	1	0912-			●
13	04.681 JOINT; HOSE,VAC 04.686 (A) 3WAY	8-94441-184-0	01	1	0612-	●	●
13	04.681 JOINT; HOSE,VAC EXC. HYDRO BRAKE BOOSTER<7QQ> 04.686 (A) 3WAY	8-94441-184-0	01	1	0612-			●
13	04.681 JOINT; HOSE,VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER<7QQ> 04.931 (B) 3WAY	8-94167-478-0	02	1	0612-	●	●	●
13	04.681 JOINT; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER<7QQ> 04.931 (B) 3WAY	8-94167-478-0	01	1	0612-			●
13	04.681 JOINT; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.931 (B) 3WAY	8-94167-478-0	01	1	0612-				●
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16	5-09707-023-2	02	1	0612-	●	●
39	04.681 CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER<7QQ> 04.930 (B) ID=16	5-09707-023-2	02	1	0612-			●
39	04.681 CLIP; HOSE,VAC (C) ID=25.5	8-97077-492-0	01	1	0612-	●	●
39	04.681 CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER<7QQ> (C) ID=25.5	8-97077-492-0	01	1	0612-			●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.930 (A) ID=16	8-94238-568-0	06	1	0612-	●	●
39	04.681 CLIP; HOSE,VAC FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER<7QQ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 04.930 (A) ID=16	8-94238-568-0	06	1	0612-			●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER<7QQ> 04.930 (A) ID=16	8-94238-568-0	01	1	0612-	●	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER<7QQ> 04.930 (A) ID=16	8-94238-568-0	03	1	0612-	●	●	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER<7QQ> 04.930 (A) ID=16	8-94238-568-0	04	1	0612-			●	●
39	04.681 CLIP; HOSE,VAC 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (D) ID=28 L=60	1-09700-585-1	01	1	0612-		●	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER<7QQ> 04.930 (B) ID=16	5-09707-023-2	01	1	0612-			●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	5-09707-023-2	01	1	0612-				●
108	04.931 GROMMET; PIPE HYDRO BRAKE BOOSTER<7QQ> EXC. POWER ASSIST CLUTCH(S2T)	9-09956-353-0	01	1	0612-			●
108	04.931 GROMMET; PIPE EXC. POWER ASSIST CLUTCH(S2T)	9-09956-353-0	01	1	0612-				●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER<7QQ> (B)	8-97178-727-2	01	1	0612-	●	●	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER<7QQ> (A)	8-97314-596-1	01	1	0612-	●	●	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER<7QQ> (C)	8-97314-597-1	01	1	0612-	●	●	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER<7QQ> (D)	8-97188-946-2	01	1	0612-			●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (D)	8-97188-946-2	01	1	0612-				●
162	04.931 HOSE; VAC	8-97081-535-1	01	1	0612-	●	●
162	04.931 HOSE; VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER<7QQ>	8-97081-535-1	01	1	0612-			●
162	04.931 HOSE; VAC EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97081-535-1	01	1	0612-			●
162	04.931 HOSE; VAC POWER ASSIST CLUTCH(S2T)	8-97081-535-1	01	1	0612-				●
165	04.686 BOLT; BRKT 02.343 M6X16 FLANGE	0-28650-616-0	02	1	0612-	●	●	●	●
184	04.685 BRACKET; UNION FIX (B)	8-97078-460-5	01	1	0612-	●	●
184	04.685 BRACKET; UNION FIX EXC. HYDRO BRAKE BOOSTER<7QQ> (B)	8-97078-460-5	01	1	0612-			●
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) (A)	8-98009-402-1	01	1	0612-	●	●	●	●
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T) (C)	8-97094-014-4	01	1	0612-	●	●	●	●
184	04.685 BRACKET; UNION FIX HYDRO BRAKE BOOSTER<7QQ> (D)	8-97175-473-1	01	1	0612-			●
184	04.685 BRACKET; UNION FIX (D)	8-97175-473-1	01	1	0612-				●
200	04.931 GROMMET; SCREW H=15	8-94463-268-1	02	1	0612-	●	●	●	●
201	04.686 SCREW; BRKT 04.012 M5X16 TAPPING W/PL WASHER	0-74365-516-0	02	1	0612-	●	●	●	●
203	04.690 VALVE; CHECK (A)	8-94386-540-0	01	1	0612-	●	●
203	04.690 VALVE; CHECK EXC. HYDRO BRAKE BOOSTER<7QQ> (A)	8-94386-540-0	01	1	0612-			●
203	04.690 VALVE; CHECK POWER ASSIST CLUTCH(S2T) (B)	8-94104-021-0	01	1	0612-	●	●	●	●

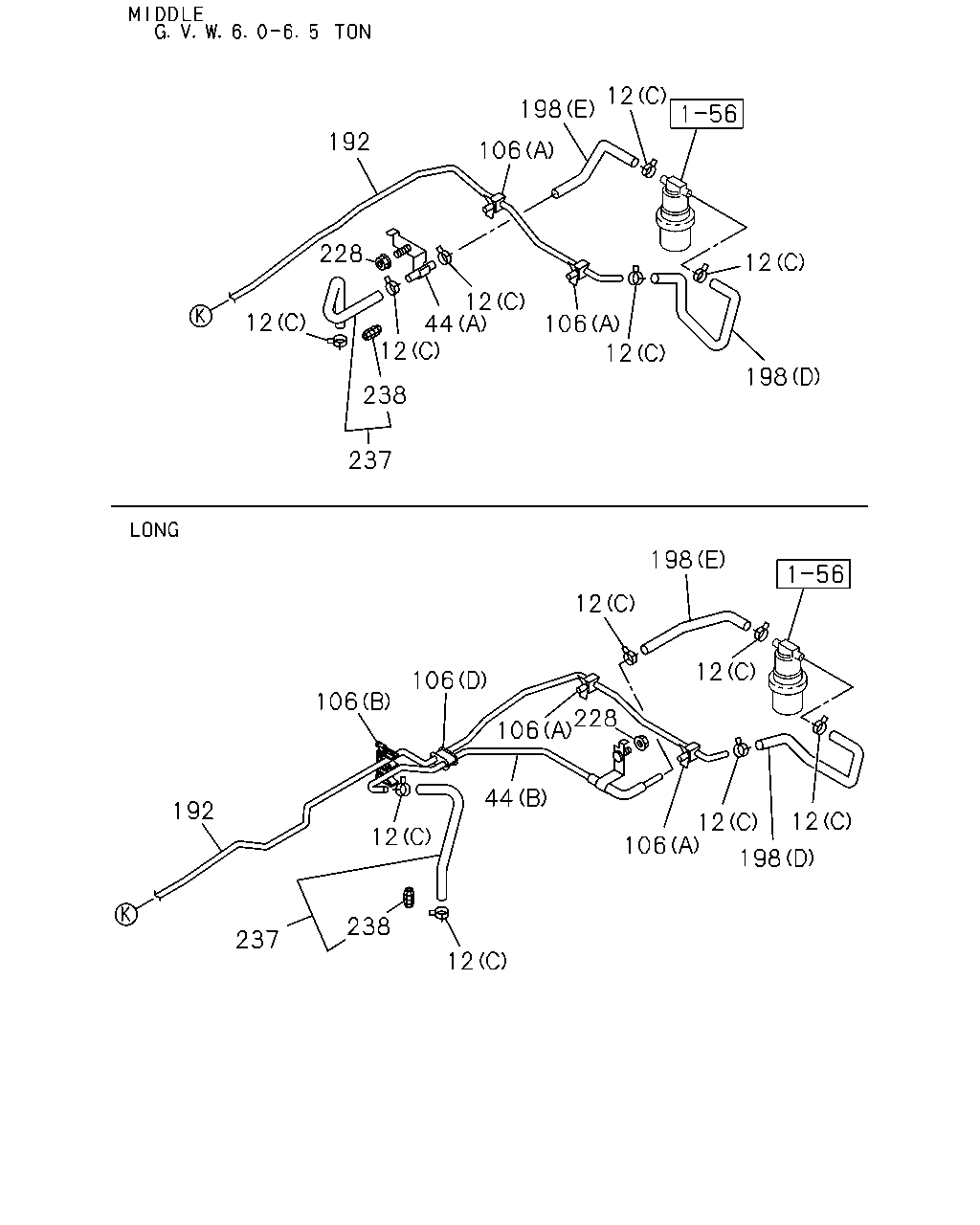

12 198 192 106 228 12 12 44 12 12 106 12 198 238 237 198 12 12 106 106 228 106 44 192 12 12 12 106 198 238 237 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
12	04.681 CLIP; HOSE 04.930 (A) ID=14.5	8-94167-480-0	03	1	0612-	●	●
12	04.681 CLIP; HOSE EXC. HYDRO BRAKE BOOSTER<7QQ> 04.930 (A) ID=14.5	8-94167-480-0	03	1	0612-			●
12	04.681 CLIP; HOSE FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER<7QQ> 04.930 (C) ID=16	8-94238-568-0	02	1	0612-0911	●	●	●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> 04.930 (C) ID=16	8-94238-568-0	02	1	0612-0911			●	●
12	04.681 CLIP; HOSE FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER<7QQ> 03.162 (C) ID=16	8-98008-098-0	02	1	0912-	●	●	●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> 03.162 (C) ID=16	8-98008-098-0	02	1	0912-			●	●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=14.5	8-94167-480-0	04	1	0612-	●	●	●	●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) (B) ID=15.5	8-94367-944-0	01	1	0612-	●	●	●	●
12	04.681 CLIP; HOSE 04.930 (C) ID=16	8-94238-568-0	08	1	0612-0911	●			●
12	04.681 CLIP; HOSE FRAME STRAIGHT TYPE<7KJ> 04.930 (C) ID=16	8-94238-568-0	08	1	0612-0911			●
12	04.681 CLIP; HOSE 03.162 (C) ID=16	8-98008-098-0	08	1	0912-	●			●
12	04.681 CLIP; HOSE FRAME STRAIGHT TYPE<7KJ> 03.162 (C) ID=16	8-98008-098-0	08	1	0912-			●
12	04.681 CLIP; HOSE FRAME STRAIGHT TYPE<7KJ> 04.930 (C) ID=16	8-94238-568-0	06	1	0612-0911		●
12	04.681 CLIP; HOSE FRAME STRAIGHT TYPE<7KJ> 03.162 (C) ID=16	8-98008-098-0	06	1	0912-		●
12	04.681 CLIP; HOSE 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 (C) ID=16	8-94238-568-0	14	1	0612-0911		●
12	04.681 CLIP; HOSE 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 (C) ID=16	8-94238-568-0	14	1	0612-0911			●
12	04.681 CLIP; HOSE 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) ID=16	8-98008-098-0	14	1	0912-		●
12	04.681 CLIP; HOSE 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) ID=16	8-98008-098-0	14	1	0912-			●
44	04.930 PIPE; VAC,MAG VLV 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98019-530-1	01	1	0612-		●
44	04.930 PIPE; VAC,MAG VLV FRAME STRAIGHT TYPE<7KJ> (C)	8-98019-677-2	01	1	0612-			●
44	04.930 PIPE; VAC,MAG VLV (C)	8-98019-677-2	01	1	0612-				●
44	04.930 PIPE; VAC,MAG VLV 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98006-658-3	01	1	0612-			●
106	04.930 CLIP; PIPE 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=10X2 H=47.5	8-97018-605-0	01	1	0612-		●
106	04.930 CLIP; PIPE 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=10X2 H=47.5	8-97018-605-0	01	1	0612-			●
106	04.930 CLIP; PIPE 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=10 H=40	8-94462-219-0	02	1	0612-		●	●
106	04.930 CLIP; PIPE 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 06.672 (D) ID=10X2 H=22	8-94252-455-2	01	1	0612-			●
106	04.930 CLIP; PIPE 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0612-			●
192	04.685 PIPE; VAC,HOSE TO MAG VLV 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98006-634-3	01	1	0612-		●
192	04.685 PIPE; VAC,HOSE TO MAG VLV 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98006-656-2	01	1	0612-			●
198	04.931 HOSE; VAC,PIPE TO MAG VLV (B)	8-98035-890-2	01	1	0612-	●
198	04.931 HOSE; VAC,PIPE TO MAG VLV 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 03.630 (A) L=200 SERVICED BY L=3000	0-08258-300-0	01	1	0612-	●	●	●	●
198	04.931 HOSE; VAC,PIPE TO MAG VLV 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.630 (A) L=140 SERVICED BY L=3000	0-08258-300-0	01	1	0612-	●	●	●	●
198	04.931 HOSE; VAC,PIPE TO MAG VLV FRAME STRAIGHT TYPE<7KJ> 03.630 (C) L=220 SERVICED BY L=3000	0-08258-300-0	01	1	0612-		●	●
198	04.931 HOSE; VAC,PIPE TO MAG VLV 03.630 (C) L=220 SERVICED BY L=3000	0-08258-300-0	01	1	0612-				●
198	04.931 HOSE; VAC,PIPE TO MAG VLV 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-98036-849-0	01	1	0612-		●	●
198	04.931 HOSE; VAC,PIPE TO MAG VLV 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> (E)	8-98036-850-0	01	1	0612-		●	●
228	04.930 NUT; PIPE 03.162 M10 FLANGE	0-91180-110-0	01	1	0612-	●			●
228	04.930 NUT; PIPE FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE	0-91180-110-0	01	1	0612-		●	●
228	04.930 NUT; PIPE 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0612-		●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE	8-98035-891-0	01	1	0612-	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE FRAME STRAIGHT TYPE<7KJ>	8-98036-082-0	01	1	0612-		●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98019-660-2	01	1	0612-		●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE FRAME STRAIGHT TYPE<7KJ>	8-97378-769-0	01	1	0612-			●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE	8-97378-769-0	01	1	0612-				●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97378-771-0	01	1	0612-			●
238	04.892 ORIFICE; VACUUM HOSE	8-97377-521-0	01	1	0612-	●			●
238	04.892 ORIFICE; VACUUM HOSE FRAME STRAIGHT TYPE<7KJ>	8-97377-521-0	01	1	0612-		●	●
238	04.892 ORIFICE; VACUUM HOSE 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97377-521-0	01	1	0612-		●
238	04.892 ORIFICE; VACUUM HOSE 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97377-521-0	01	1	0612-			●

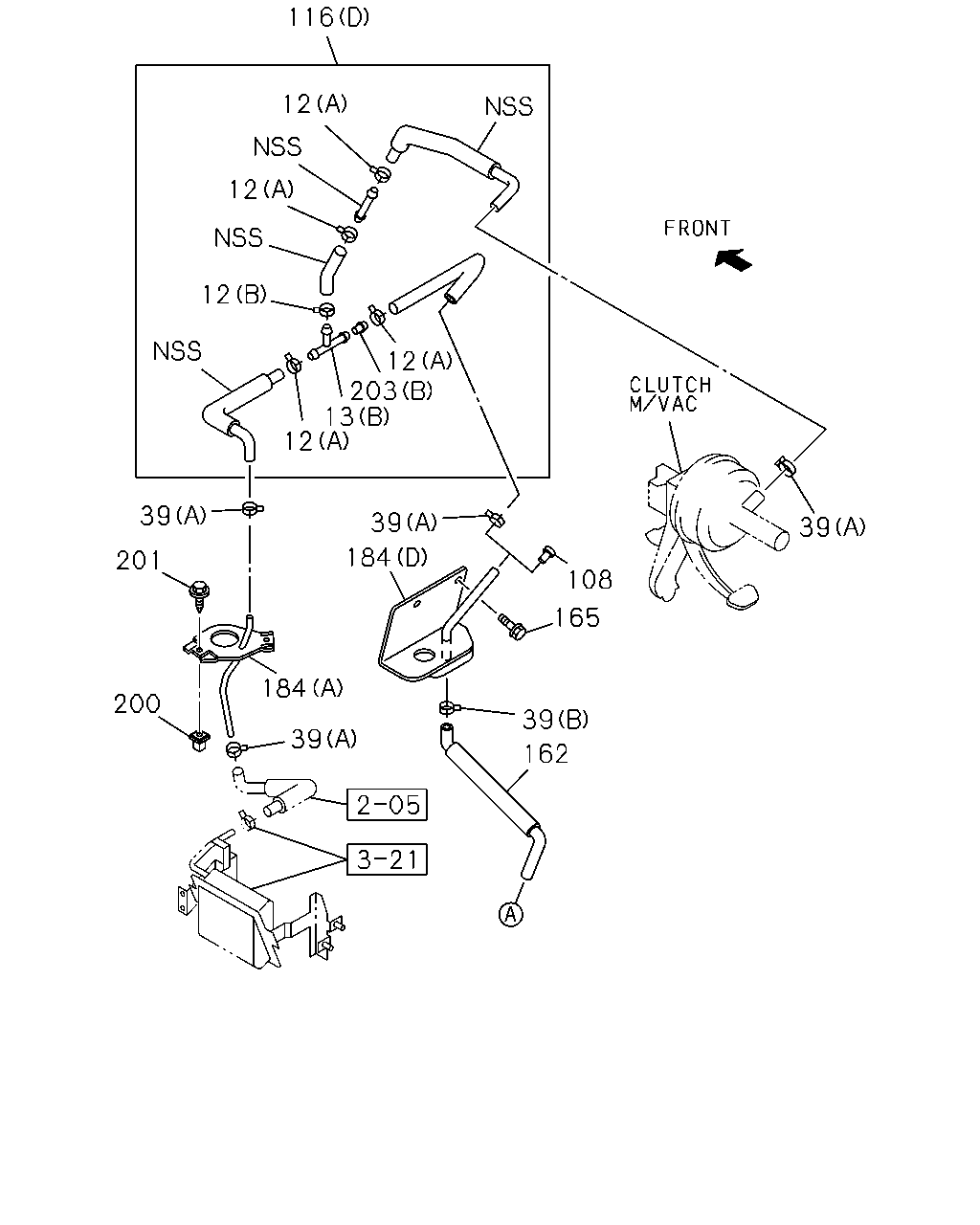

116 12 203 13 12 39 12 39 39 184 165 39 39 39 175 162 173

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
12	04.681 CLIP; HOSE 04.930 (A) ID=14.5	8-94167-480-0	03	1	0612-	●	●
12	04.681 CLIP; HOSE EXC. HYDRO BRAKE BOOSTER<7QQ> 04.930 (A) ID=14.5	8-94167-480-0	03	1	0612-			●
12	04.681 CLIP; HOSE FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER<7QQ> 04.930 (C) ID=16	8-94238-568-0	02	1	0612-0911	●	●	●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> 04.930 (C) ID=16	8-94238-568-0	02	1	0612-0911			●	●
12	04.681 CLIP; HOSE FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER<7QQ> 03.162 (C) ID=16	8-98008-098-0	02	1	0912-	●	●	●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> 03.162 (C) ID=16	8-98008-098-0	02	1	0912-			●	●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=14.5	8-94167-480-0	04	1	0612-	●	●	●	●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) (B) ID=15.5	8-94367-944-0	01	1	0612-	●	●	●	●
12	04.681 CLIP; HOSE 04.930 (C) ID=16	8-94238-568-0	08	1	0612-0911	●			●
12	04.681 CLIP; HOSE FRAME STRAIGHT TYPE<7KJ> 04.930 (C) ID=16	8-94238-568-0	08	1	0612-0911			●
12	04.681 CLIP; HOSE 03.162 (C) ID=16	8-98008-098-0	08	1	0912-	●			●
12	04.681 CLIP; HOSE FRAME STRAIGHT TYPE<7KJ> 03.162 (C) ID=16	8-98008-098-0	08	1	0912-			●
12	04.681 CLIP; HOSE FRAME STRAIGHT TYPE<7KJ> 04.930 (C) ID=16	8-94238-568-0	06	1	0612-0911		●
12	04.681 CLIP; HOSE FRAME STRAIGHT TYPE<7KJ> 03.162 (C) ID=16	8-98008-098-0	06	1	0912-		●
12	04.681 CLIP; HOSE 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 (C) ID=16	8-94238-568-0	14	1	0612-0911		●
12	04.681 CLIP; HOSE 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 (C) ID=16	8-94238-568-0	14	1	0612-0911			●
12	04.681 CLIP; HOSE 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) ID=16	8-98008-098-0	14	1	0912-		●
12	04.681 CLIP; HOSE 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) ID=16	8-98008-098-0	14	1	0912-			●
13	04.681 JOINT; HOSE,VAC 04.686 (A) 3WAY	8-94441-184-0	01	1	0612-	●	●
13	04.681 JOINT; HOSE,VAC EXC. HYDRO BRAKE BOOSTER<7QQ> 04.686 (A) 3WAY	8-94441-184-0	01	1	0612-			●
13	04.681 JOINT; HOSE,VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER<7QQ> 04.931 (B) 3WAY	8-94167-478-0	02	1	0612-	●	●	●
13	04.681 JOINT; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER<7QQ> 04.931 (B) 3WAY	8-94167-478-0	01	1	0612-			●
13	04.681 JOINT; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.931 (B) 3WAY	8-94167-478-0	01	1	0612-				●
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16	5-09707-023-2	02	1	0612-	●	●
39	04.681 CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER<7QQ> 04.930 (B) ID=16	5-09707-023-2	02	1	0612-			●
39	04.681 CLIP; HOSE,VAC (C) ID=25.5	8-97077-492-0	01	1	0612-	●	●
39	04.681 CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER<7QQ> (C) ID=25.5	8-97077-492-0	01	1	0612-			●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.930 (A) ID=16	8-94238-568-0	06	1	0612-	●	●
39	04.681 CLIP; HOSE,VAC FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER<7QQ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 04.930 (A) ID=16	8-94238-568-0	06	1	0612-			●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER<7QQ> 04.930 (A) ID=16	8-94238-568-0	01	1	0612-	●	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER<7QQ> 04.930 (A) ID=16	8-94238-568-0	03	1	0612-	●	●	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER<7QQ> 04.930 (A) ID=16	8-94238-568-0	04	1	0612-			●	●
39	04.681 CLIP; HOSE,VAC 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (D) ID=28 L=60	1-09700-585-1	01	1	0612-		●	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER<7QQ> 04.930 (B) ID=16	5-09707-023-2	01	1	0612-			●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	5-09707-023-2	01	1	0612-				●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER<7QQ> (B)	8-97178-727-2	01	1	0612-	●	●	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER<7QQ> (A)	8-97314-596-1	01	1	0612-	●	●	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER<7QQ> (C)	8-97314-597-1	01	1	0612-	●	●	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER<7QQ> (D)	8-97188-946-2	01	1	0612-			●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (D)	8-97188-946-2	01	1	0612-				●
162	04.931 HOSE; VAC	8-97081-535-1	01	1	0612-	●	●
162	04.931 HOSE; VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER<7QQ>	8-97081-535-1	01	1	0612-			●
162	04.931 HOSE; VAC EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97081-535-1	01	1	0612-			●
162	04.931 HOSE; VAC POWER ASSIST CLUTCH(S2T)	8-97081-535-1	01	1	0612-				●
165	04.686 BOLT; BRKT 02.343 M6X16 FLANGE	0-28650-616-0	02	1	0612-	●	●	●	●
173	04.931 HOSE; VAC,VAC TANK SIDE	8-97129-872-0	01	1	0612-	●	●
173	04.931 HOSE; VAC,VAC TANK SIDE EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97129-872-0	01	1	0612-			●
175	04.930 CLIP; BAND,VAC HOSE 02.559 L=219.5	1-09987-136-0	01	1	0612-	●	●
175	04.930 CLIP; BAND,VAC HOSE EXC. HYDRO BRAKE BOOSTER<7QQ> 02.559 L=219.5	1-09987-136-0	01	1	0612-			●
184	04.685 BRACKET; UNION FIX (B)	8-97078-460-5	01	1	0612-	●	●
184	04.685 BRACKET; UNION FIX EXC. HYDRO BRAKE BOOSTER<7QQ> (B)	8-97078-460-5	01	1	0612-			●
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) (A)	8-98009-402-1	01	1	0612-	●	●	●	●
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T) (C)	8-97094-014-4	01	1	0612-	●	●	●	●
184	04.685 BRACKET; UNION FIX HYDRO BRAKE BOOSTER<7QQ> (D)	8-97175-473-1	01	1	0612-			●
184	04.685 BRACKET; UNION FIX (D)	8-97175-473-1	01	1	0612-				●
203	04.690 VALVE; CHECK (A)	8-94386-540-0	01	1	0612-	●	●
203	04.690 VALVE; CHECK EXC. HYDRO BRAKE BOOSTER<7QQ> (A)	8-94386-540-0	01	1	0612-			●
203	04.690 VALVE; CHECK POWER ASSIST CLUTCH(S2T) (B)	8-94104-021-0	01	1	0612-	●	●	●	●

116 12 203 39 12 116 12 13 39 39 12 12 13 12 13 12 203 12 39 39 184 165 201 39 39 39 175 162 39 184 200 173 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
12	04.681 CLIP; HOSE 04.930 (A) ID=14.5	8-94167-480-0	03	1	0612-	●	●
12	04.681 CLIP; HOSE EXC. HYDRO BRAKE BOOSTER<7QQ> 04.930 (A) ID=14.5	8-94167-480-0	03	1	0612-			●
12	04.681 CLIP; HOSE FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER<7QQ> 04.930 (C) ID=16	8-94238-568-0	02	1	0612-0911	●	●	●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> 04.930 (C) ID=16	8-94238-568-0	02	1	0612-0911			●	●
12	04.681 CLIP; HOSE FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER<7QQ> 03.162 (C) ID=16	8-98008-098-0	02	1	0912-	●	●	●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> 03.162 (C) ID=16	8-98008-098-0	02	1	0912-			●	●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=14.5	8-94167-480-0	04	1	0612-	●	●	●	●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) (B) ID=15.5	8-94367-944-0	01	1	0612-	●	●	●	●
12	04.681 CLIP; HOSE 04.930 (C) ID=16	8-94238-568-0	08	1	0612-0911	●			●
12	04.681 CLIP; HOSE FRAME STRAIGHT TYPE<7KJ> 04.930 (C) ID=16	8-94238-568-0	08	1	0612-0911			●
12	04.681 CLIP; HOSE 03.162 (C) ID=16	8-98008-098-0	08	1	0912-	●			●
12	04.681 CLIP; HOSE FRAME STRAIGHT TYPE<7KJ> 03.162 (C) ID=16	8-98008-098-0	08	1	0912-			●
12	04.681 CLIP; HOSE FRAME STRAIGHT TYPE<7KJ> 04.930 (C) ID=16	8-94238-568-0	06	1	0612-0911		●
12	04.681 CLIP; HOSE FRAME STRAIGHT TYPE<7KJ> 03.162 (C) ID=16	8-98008-098-0	06	1	0912-		●
12	04.681 CLIP; HOSE 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 (C) ID=16	8-94238-568-0	14	1	0612-0911		●
12	04.681 CLIP; HOSE 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 (C) ID=16	8-94238-568-0	14	1	0612-0911			●
12	04.681 CLIP; HOSE 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) ID=16	8-98008-098-0	14	1	0912-		●
12	04.681 CLIP; HOSE 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) ID=16	8-98008-098-0	14	1	0912-			●
13	04.681 JOINT; HOSE,VAC 04.686 (A) 3WAY	8-94441-184-0	01	1	0612-	●	●
13	04.681 JOINT; HOSE,VAC EXC. HYDRO BRAKE BOOSTER<7QQ> 04.686 (A) 3WAY	8-94441-184-0	01	1	0612-			●
13	04.681 JOINT; HOSE,VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER<7QQ> 04.931 (B) 3WAY	8-94167-478-0	02	1	0612-	●	●	●
13	04.681 JOINT; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER<7QQ> 04.931 (B) 3WAY	8-94167-478-0	01	1	0612-			●
13	04.681 JOINT; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.931 (B) 3WAY	8-94167-478-0	01	1	0612-				●
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16	5-09707-023-2	02	1	0612-	●	●
39	04.681 CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER<7QQ> 04.930 (B) ID=16	5-09707-023-2	02	1	0612-			●
39	04.681 CLIP; HOSE,VAC (C) ID=25.5	8-97077-492-0	01	1	0612-	●	●
39	04.681 CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER<7QQ> (C) ID=25.5	8-97077-492-0	01	1	0612-			●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.930 (A) ID=16	8-94238-568-0	06	1	0612-	●	●
39	04.681 CLIP; HOSE,VAC FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER<7QQ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 04.930 (A) ID=16	8-94238-568-0	06	1	0612-			●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER<7QQ> 04.930 (A) ID=16	8-94238-568-0	01	1	0612-	●	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER<7QQ> 04.930 (A) ID=16	8-94238-568-0	03	1	0612-	●	●	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER<7QQ> 04.930 (A) ID=16	8-94238-568-0	04	1	0612-			●	●
39	04.681 CLIP; HOSE,VAC 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (D) ID=28 L=60	1-09700-585-1	01	1	0612-		●	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER<7QQ> 04.930 (B) ID=16	5-09707-023-2	01	1	0612-			●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	5-09707-023-2	01	1	0612-				●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER<7QQ> (B)	8-97178-727-2	01	1	0612-	●	●	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER<7QQ> (A)	8-97314-596-1	01	1	0612-	●	●	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER<7QQ> (C)	8-97314-597-1	01	1	0612-	●	●	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER<7QQ> (D)	8-97188-946-2	01	1	0612-			●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (D)	8-97188-946-2	01	1	0612-				●
162	04.931 HOSE; VAC	8-97081-535-1	01	1	0612-	●	●
162	04.931 HOSE; VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER<7QQ>	8-97081-535-1	01	1	0612-			●
162	04.931 HOSE; VAC EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97081-535-1	01	1	0612-			●
162	04.931 HOSE; VAC POWER ASSIST CLUTCH(S2T)	8-97081-535-1	01	1	0612-				●
165	04.686 BOLT; BRKT 02.343 M6X16 FLANGE	0-28650-616-0	02	1	0612-	●	●	●	●
173	04.931 HOSE; VAC,VAC TANK SIDE	8-97129-872-0	01	1	0612-	●	●
173	04.931 HOSE; VAC,VAC TANK SIDE EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97129-872-0	01	1	0612-			●
175	04.930 CLIP; BAND,VAC HOSE 02.559 L=219.5	1-09987-136-0	01	1	0612-	●	●
175	04.930 CLIP; BAND,VAC HOSE EXC. HYDRO BRAKE BOOSTER<7QQ> 02.559 L=219.5	1-09987-136-0	01	1	0612-			●
184	04.685 BRACKET; UNION FIX (B)	8-97078-460-5	01	1	0612-	●	●
184	04.685 BRACKET; UNION FIX EXC. HYDRO BRAKE BOOSTER<7QQ> (B)	8-97078-460-5	01	1	0612-			●
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) (A)	8-98009-402-1	01	1	0612-	●	●	●	●
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T) (C)	8-97094-014-4	01	1	0612-	●	●	●	●
184	04.685 BRACKET; UNION FIX HYDRO BRAKE BOOSTER<7QQ> (D)	8-97175-473-1	01	1	0612-			●
184	04.685 BRACKET; UNION FIX (D)	8-97175-473-1	01	1	0612-				●
200	04.931 GROMMET; SCREW H=15	8-94463-268-1	02	1	0612-	●	●	●	●
201	04.686 SCREW; BRKT 04.012 M5X16 TAPPING W/PL WASHER	0-74365-516-0	02	1	0612-	●	●	●	●
203	04.690 VALVE; CHECK (A)	8-94386-540-0	01	1	0612-	●	●
203	04.690 VALVE; CHECK EXC. HYDRO BRAKE BOOSTER<7QQ> (A)	8-94386-540-0	01	1	0612-			●
203	04.690 VALVE; CHECK POWER ASSIST CLUTCH(S2T) (B)	8-94104-021-0	01	1	0612-	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
