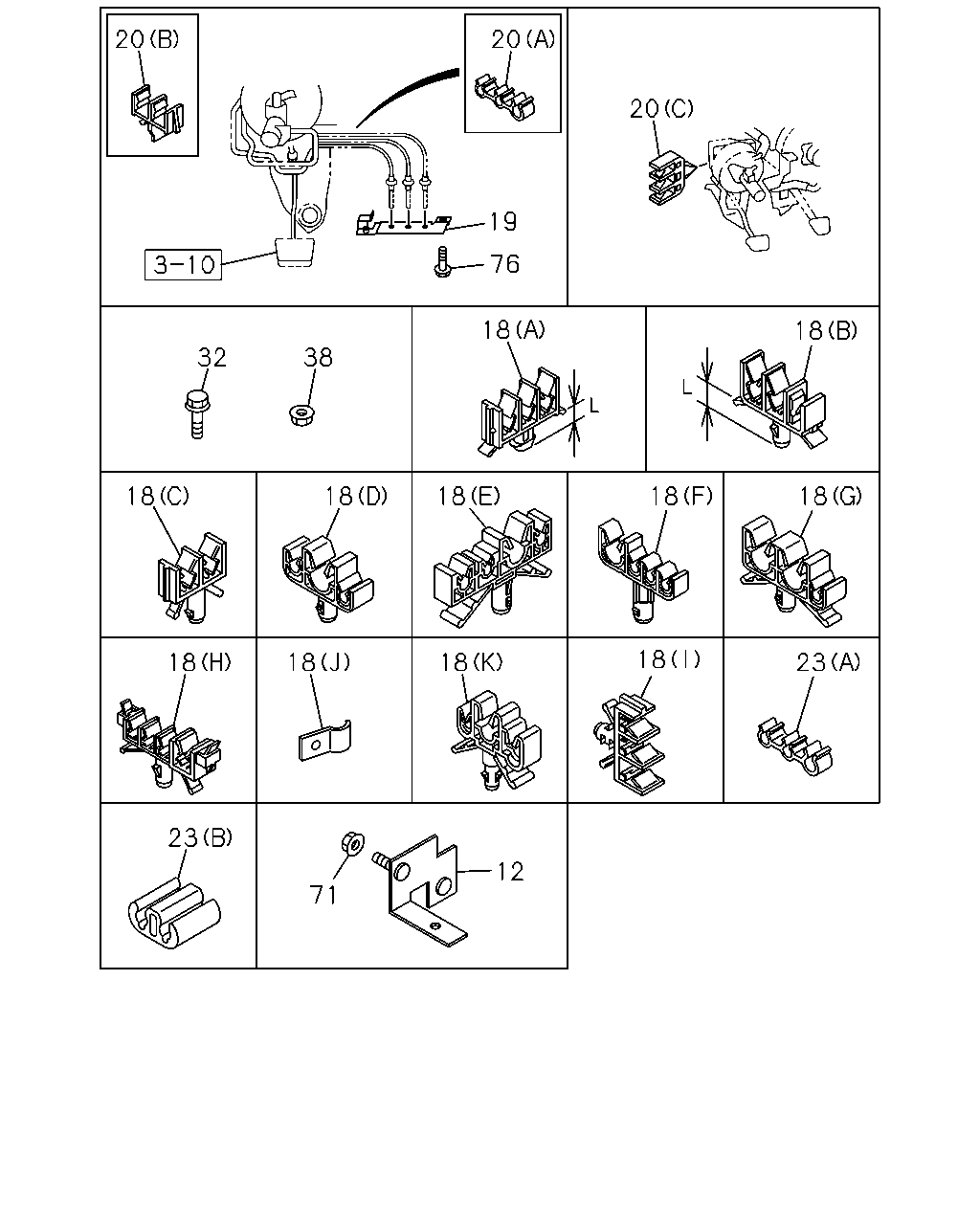

3-58 — FIXING PARTS; OIL PIPING (#32537) — 83 parça

20 20 20 19 76 18 18 32 38 18 18 18 18 18 18 18 18 18 23 23 12 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
12	04.686 BRACKET; OIL PIPE 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98027-477-1	01	1	0612-	●	●
18	04.686 CLIP; BRK PIPE (H) ID=10 & 4.76X3	8-97326-158-1	02	1	0612-			●
18	04.686 CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (H) ID=10 & 4.76X3	8-97326-158-1	02	1	0612-	●
18	04.686 CLIP; BRK PIPE (B) ID=4.8X2 & 6.5 L=15	8-94131-710-2	01	1	0612-	●	●	●	●
18	04.686 CLIP; BRK PIPE FRAME STRAIGHT TYPE<7KJ> (B) ID=4.8X2 & 6.5 L=15	8-94131-710-2	02	1	0612-	●	●	●	●
18	04.686 CLIP; BRK PIPE FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=4.8X2 & 6.5 L=15	8-94131-710-2	02	1	0612-	●	●	●	●
18	04.686 CLIP; BRK PIPE (C) ID=4.8X2	8-94455-816-0	01	1	0612-			●	●
18	04.686 CLIP; BRK PIPE FRAME STRAIGHT TYPE<7KJ> (C) ID=4.8X2	8-94455-816-0	01	1	0612-	●	●
18	04.686 CLIP; BRK PIPE (F) ID=10 & 4.76X3	8-97168-819-0	02	1	0612-			●	●
18	04.686 CLIP; BRK PIPE FRAME STRAIGHT TYPE<7KJ> (F) ID=10 & 4.76X3	8-97168-819-0	02	1	0612-	●	●
18	04.686 CLIP; BRK PIPE (H) ID=10 & 4.76X3	8-97326-158-1	09	1	0612-			●	●
18	04.686 CLIP; BRK PIPE FRAME STRAIGHT TYPE<7KJ> (H) ID=10 & 4.76X3	8-97326-158-1	09	1	0612-	●	●
18	04.686 CLIP; BRK PIPE 03.162 (E) ID=10 OR 12 & 6.35X2 & 4.76	8-97326-156-2	03	1	0612-			●	●
18	04.686 CLIP; BRK PIPE FRAME STRAIGHT TYPE<7KJ> 03.162 (E) ID=10 OR 12 & 6.35X2 & 4.76	8-97326-156-2	03	1	0612-	●	●
18	04.686 CLIP; BRK PIPE FRAME STRAIGHT TYPE<7KJ> (H) ID=10 & 4.76X3	8-97326-158-1	04	1	0612-	●
18	04.686 CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (H) ID=10 & 4.76X3	8-97326-158-1	04	1	0612-		●
18	04.686 CLIP; BRK PIPE BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=4.8X2 & 6.5 L=11	8-94249-689-2	02	1	0612-	●	●
18	04.686 CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=4.8X2 & 6.5 L=11	8-94249-689-2	02	1	0612-	●
18	04.686 CLIP; BRK PIPE EXC. BRK WHL LK CONT LSPV<6PH>,FRAME STRAIGHT TYPE<7KJ> (A) ID=4.8X2 & 6.5 L=11	8-94249-689-2	03	1	0612-	●	●
18	04.686 CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (J) B=18 L=20	1-09700-372-0	02	1	0612-	●	●
18	04.686 CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (K) ID=12 & 6.35 & 4.76	8-97202-954-1	02	1	0612-	●	●
18	04.686 CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) (K) ID=12 & 6.35 & 4.76	8-97202-954-1	02	1	0612-	●	●
18	04.686 CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (I) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	0612-	●	●
18	04.686 CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (H) ID=10 & 4.76X3	8-97326-158-1	08	1	0612-	●	●
18	04.686 CLIP; BRK PIPE G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=4.8X2 & 6.5 L=17.5	8-94405-139-0	01	1	0612-	●	●
18	04.686 CLIP; BRK PIPE G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=4.8X2 & 6.5 L=17.5	8-94405-139-0	01	1	0612-	●	●
18	04.686 CLIP; BRK PIPE G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=4.8X2 & 6.5 L=21	8-94424-234-0	01	1	0612-	●	●
18	04.686 CLIP; BRK PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 (G) ID=10X2 & 4.76	8-97170-259-0	02	1	0612-	●	●
18	04.686 CLIP; BRK PIPE 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (D) ID=12 & 6.35 & 4.76	8-97305-169-1	01	1	0612-	●	●
18	04.686 CLIP; BRK PIPE FRAME STRAIGHT TYPE<7KJ> (H) ID=10 & 4.76X3	8-97326-158-1	05	1	0612-		●
18	04.686 CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=4.8X2 & 6.5 L=11	8-94249-689-2	01	1	0612-		●
18	04.686 CLIP; BRK PIPE (H) ID=10 & 4.76X3	8-97326-158-1	06	1	0612-				●
19	04.686 BRACKET; OIL PIPE TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97178-321-1	01	1	0612-	●		●
19	04.686 BRACKET; OIL PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97178-321-1	01	1	0612-		●
19	04.686 BRACKET; OIL PIPE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97178-320-1	01	1	0612-	●		●
19	04.686 BRACKET; OIL PIPE FLOOR REMOTE SHIFT<M11> EXC. HYDRO BRAKE BOOSTER<7QQ>, TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97178-320-1	01	1	0612-		●
19	04.686 BRACKET; OIL PIPE FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97171-018-3	01	1	0612-		●
19	04.686 BRACKET; OIL PIPE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97171-018-3	01	1	0612-				●
19	04.686 BRACKET; OIL PIPE HYDRO BRAKE BOOSTER<7QQ> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97174-755-3	01	1	0612-		●
19	04.686 BRACKET; OIL PIPE TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97174-755-3	01	1	0612-				●
20	04.686 CLIP; BRK PIPE (A) ID=6.4 & 4.8X2	8-94146-043-0	03	1	0612-	●	●	●	●
20	04.686 CLIP; BRK PIPE 04.868 (B) ID=4.6X2	8-94241-454-0	01	1	0612-	●	●	●	●
20	04.686 CLIP; BRK PIPE (C) ID=6.35 & 4.76X2	8-94250-923-2	01	1	0612-	●	●	●	●
23	04.686 CLAMP; PIPE BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> (B) ID=4.8X2	8-94389-060-0	01	1	0612-	●	●
23	04.686 CLAMP; PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=6.4 & 4.8X2	8-94146-043-0	01	1	0612-	●	●
32	04.686 BOLT; CLIP,OIL PIPE EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0612-	●	●
38	04.686 NUT; CLIP FIX EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	02	1	0612-	●	●
71	04.686 NUT; BRKT 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE	0-91180-110-0	01	1	0612-	●	●
76	04.686 BOLT; BRKT,OIL PIPE 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0612-	●	●	●	●

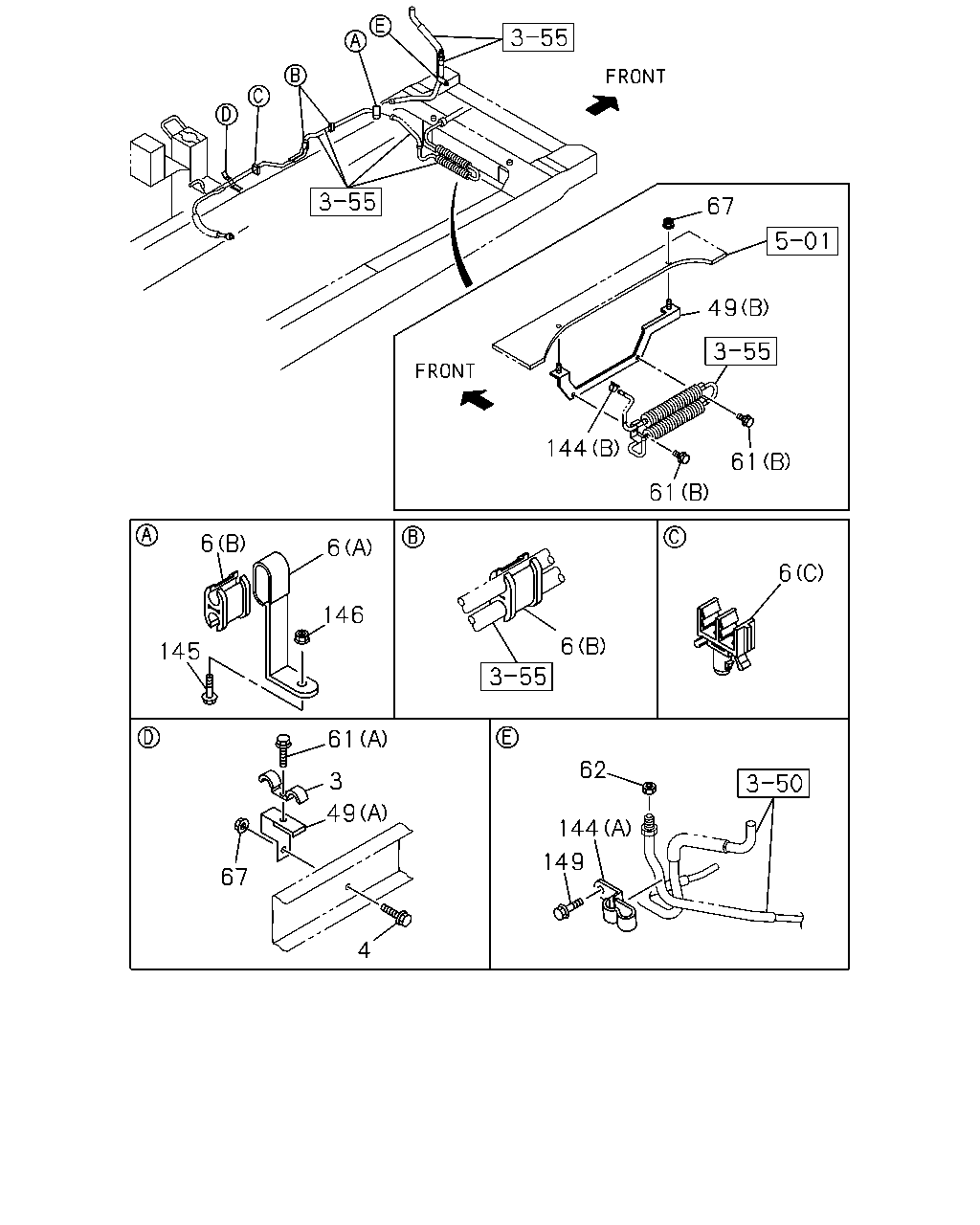

67 49 144 61 61 6 6 6 146 6 145 61 62 3 49 144 149 67 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B	D
3	04.685 CLIP; BRK PIPE FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> 04.047 ID=13 & 13 L=16 & 16	1-09700-072-0	01	1	0612-	●
3	04.685 CLIP; BRK PIPE 04.047 ID=13 & 13 L=16 & 16	1-09700-072-0	01	1	0612-		●
4	04.686 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> 00.029 M10X25 FLANGE	0-28651-025-0	01	1	0612-	●
4	04.686 BOLT; BRKT 00.029 M10X25 FLANGE	0-28651-025-0	01	1	0612-		●
6	04.686 CLIP; PIPE FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> 04.047 (A) ID=14X29 H=30 L=25	1-09701-101-0	01	1	0612-	●
6	04.686 CLIP; PIPE 04.047 (A) ID=14X29 H=30 L=25	1-09701-101-0	01	1	0612-		●
6	04.686 CLIP; PIPE FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> 06.672 (B) ID=10X2 H=22	8-94252-455-2	03	1	0612-	●
6	04.686 CLIP; PIPE 06.672 (B) ID=10X2 H=22	8-94252-455-2	03	1	0612-		●
6	04.686 CLIP; PIPE FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> 04.930 (C) ID=10X2 H=37.5	8-97018-546-0	01	1	0612-	●
6	04.686 CLIP; PIPE 04.930 (C) ID=10X2 H=37.5	8-97018-546-0	01	1	0612-		●
49	04.686 BRACKET; BRK PIPE FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> (A)	8-97174-638-0	01	1	0612-	●
49	04.686 BRACKET; BRK PIPE (A)	8-97174-638-0	01	1	0612-		●
49	04.686 BRACKET; BRK PIPE FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> (B)	8-97378-054-0	01	1	0612-	●
49	04.686 BRACKET; BRK PIPE (B)	8-97378-054-0	01	1	0612-		●
61	04.686 BOLT; BRK PIPE FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	0612-	●
61	04.686 BOLT; BRK PIPE 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	0612-		●
61	04.686 BOLT; BRK PIPE FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> 00.029 (B) M10X25 FLANGE	0-28651-025-0	02	1	0612-	●
61	04.686 BOLT; BRK PIPE 00.029 (B) M10X25 FLANGE	0-28651-025-0	02	1	0612-		●
62	04.686 NUT FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> 06.515 M14	0-91111-514-0	01	1	0612-	●
62	04.686 NUT 06.515 M14	0-91111-514-0	01	1	0612-		●
67	04.686 NUT; BRKT FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> 03.162 M10 FLANGE	0-91180-110-0	03	1	0612-	●
67	04.686 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	03	1	0612-		●
144	04.686 CLIP; HOSE FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> (A) ID=19 & 19 L=53	1-09700-681-0	01	1	0612-	●
144	04.686 CLIP; HOSE (A) ID=19 & 19 L=53	1-09700-681-0	01	1	0612-		●
144	04.686 CLIP; HOSE FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> (B) ID=11-19.5	8-94426-597-0	03	1	0612-1005	●
144	04.686 CLIP; HOSE (B) ID=11-19.5	8-94426-597-0	03	1	0612-1005		●
144	04.686 CLIP; HOSE FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> 04.681 (B) ID=11-17	8-98173-762-0	03	1	1006-	●
144	04.686 CLIP; HOSE 04.681 (B) ID=11-17	8-98173-762-0	03	1	1006-		●
145	04.686 BOLT; PIPE FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> 01.531 M8X20 FLANGE	0-28650-820-0	01	1	0612-	●
145	04.686 BOLT; PIPE 01.531 M8X20 FLANGE	0-28650-820-0	01	1	0612-		●
146	04.686 NUT; PIPE FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0612-	●
146	04.686 NUT; PIPE 01.062 M8 FLANGE	0-91180-108-0	01	1	0612-		●
149	04.686 BOLT; HOSE FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> 03.162 M6X12 FLANGE	0-28050-612-0	01	1	0612-	●
149	04.686 BOLT; HOSE 03.162 M6X12 FLANGE	0-28050-612-0	01	1	0612-		●
