◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51103 - NPR/NQR(LHD) EURO4 ▶ 3 - Brakes, Brake System ▶ 3-55 - BRAKE PIPING; OIL,REAR ▶
3-55 — BRAKE PIPING; OIL,REAR (#32536) — 34 parça

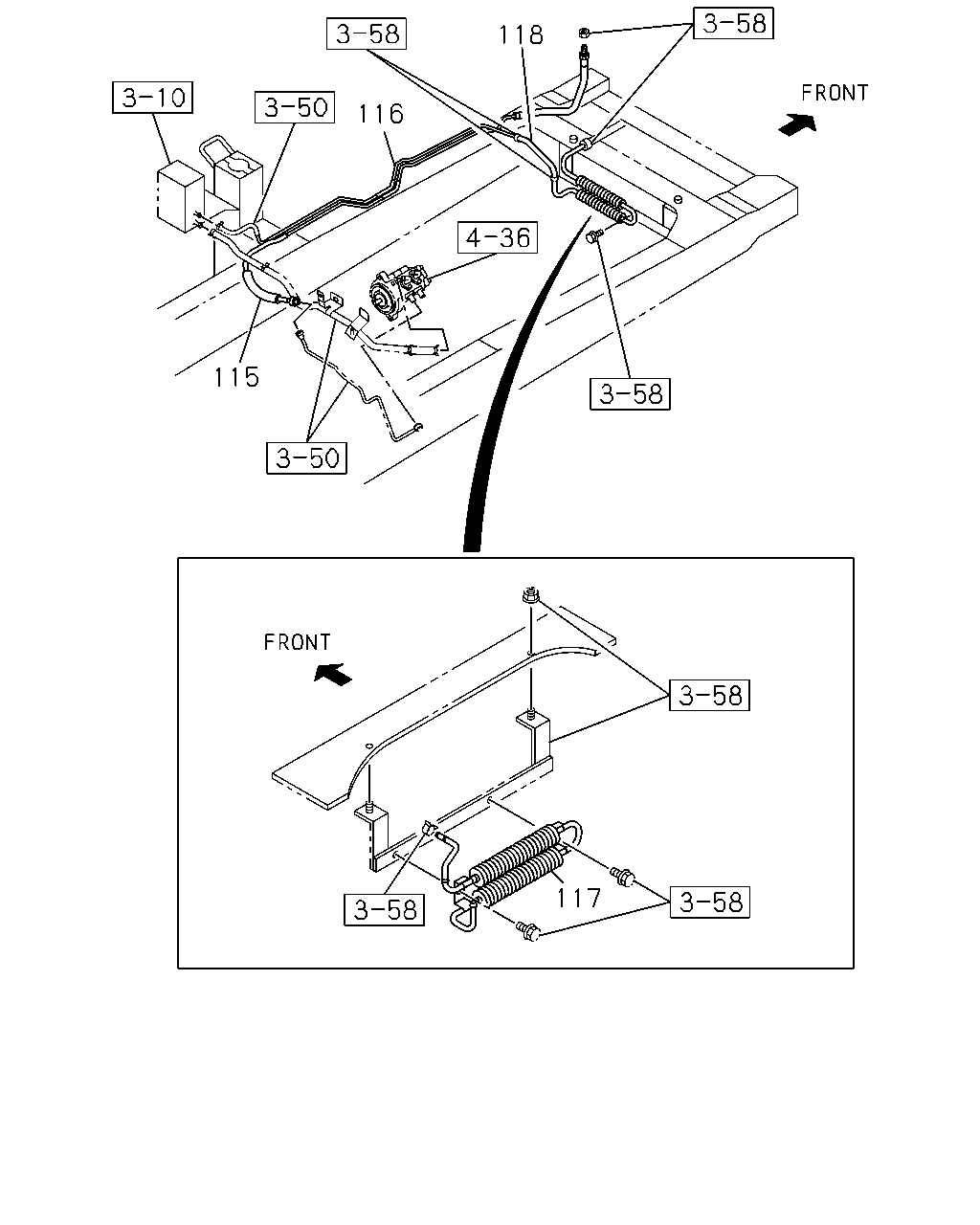

çizim 57630
118 116 115 117
BalonParca AdiParca NoAdetTipApplied Date A B C D
115 04.685 PIPE; PRESS,HYDRAULIC BRK BOOSTE
FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> 		8-98035-909-2 01 1 0612- ●
115 04.685 PIPE; PRESS,HYDRAULIC BRK BOOSTE 8-98035-909-2 01 1 0612- ●
116 04.685 PIPE; BRK,PIPE TO TANK
FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> 		8-97330-452-3 01 1 0612- ●
116 04.685 PIPE; BRK,PIPE TO TANK 8-97330-452-3 01 1 0612- ●
117 04.685 PIPE; BRK,RETURN
FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> 		8-97180-991-2 01 1 0612- ●
117 04.685 PIPE; BRK,RETURN 8-97180-991-2 01 1 0612- ●
118 04.680 HOSE; PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> 		8-97181-217-2 01 1 0612- ●
118 04.680 HOSE; PIPE TO PIPE 8-97181-217-2 01 1 0612- ●

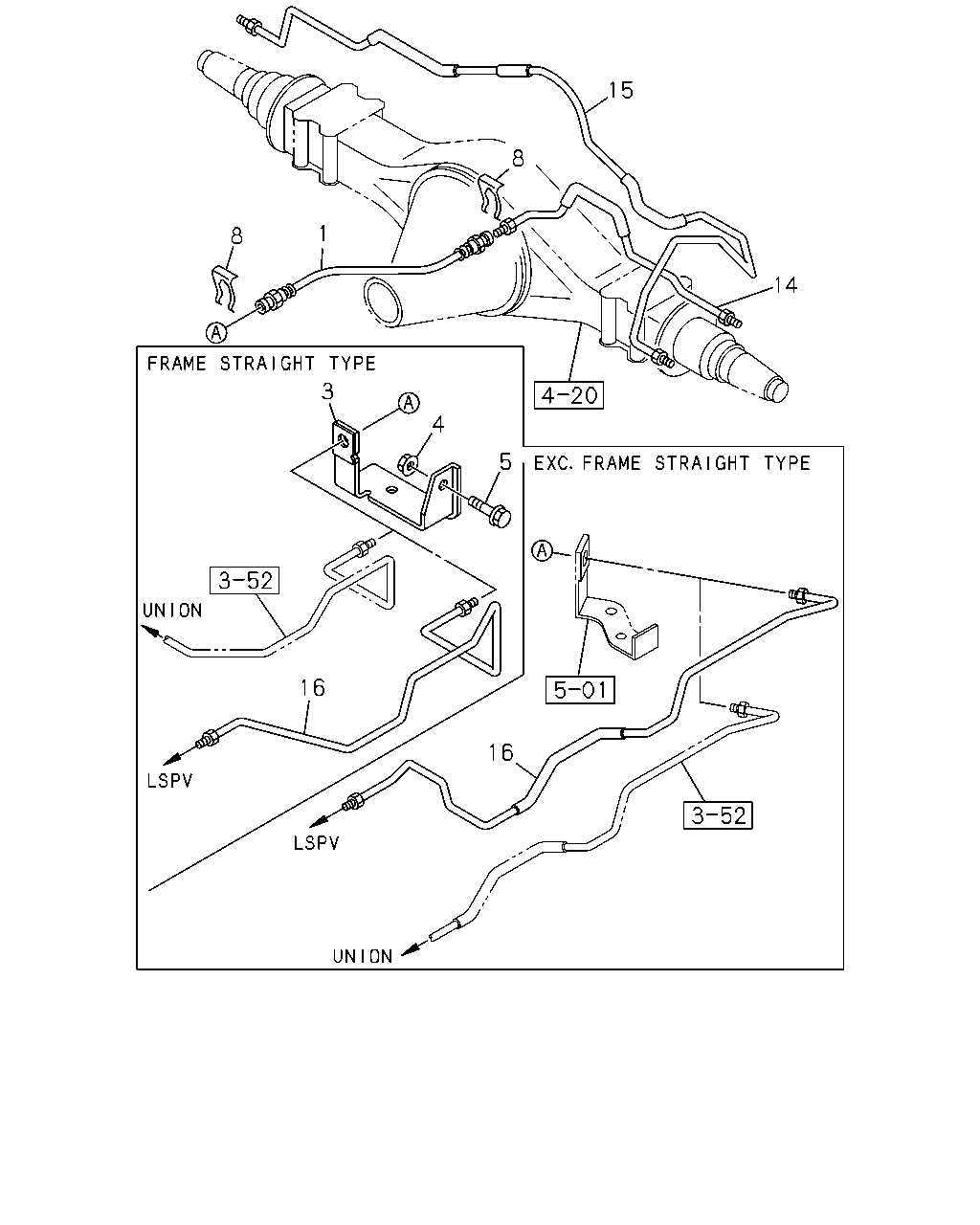

çizim 57834
15 8 1 8 14 3 4 5 16 16
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 04.680 HOSE; FLEX,RR BRK
L=405 		8-97089-061-0 01 1 0612- ● ●
1 04.680 HOSE; FLEX,RR BRK
FRAME STRAIGHT TYPE<7KJ> L=405 		8-97089-061-0 01 1 0612- ● ●
1 04.680 HOSE; FLEX,RR BRK
EXC. FRAME STRAIGHT TYPE<7KJ> L=370 		8-97035-574-0 01 1 0612- ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK 8-97205-714-1 01 1 0612- ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
FRAME STRAIGHT TYPE<7KJ> 		8-97205-714-1 01 1 0612- ● ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
01.062 M8 FLANGE 		0-91180-108-0 01 1 0612- ● ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 0612- ● ●
5 04.681 BOLT; BRKT,FLEX HOSE,RR BRK
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0612- ● ●
5 04.681 BOLT; BRKT,FLEX HOSE,RR BRK
FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0612- ● ●
8 04.686 CLIP; RR BRK 8-97360-054-0 02 1 0612- ● ● ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97206-086-1 01 1 0612-0701 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> 		8-97206-086-1 01 1 0612-0701 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> EXC. VEHICLE CATEGORY NQR<7NQ>,HYDRO BRAKE BOOSTER<7QQ> 		8-97206-086-1 01 1 0612-0701 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97359-746-0 01 1 0702- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> 		8-97359-746-0 01 1 0702- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> EXC. VEHICLE CATEGORY NQR<7NQ>,HYDRO BRAKE BOOSTER<7QQ> 		8-97359-746-0 01 1 0702- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) 		8-97088-703-0 01 1 0612- ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> 		8-97212-795-2 01 1 0612-0701 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97212-795-2 01 1 0612-0701 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> 		8-97359-748-0 01 1 0702- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97359-748-0 01 1 0702- ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL 8-97122-715-1 01 1 0612- ● ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> 		8-97122-715-1 01 1 0612- ● ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) 		8-97079-904-0 01 1 0612- ● ●
16 08.964 PIPE; OIL,VLV TO RR FLEX HOSE
BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> 		8-97183-535-1 01 1 0612- ● ●
16 08.964 PIPE; OIL,VLV TO RR FLEX HOSE
BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97073-490-4 01 1 0612- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
