3-50 — BRAKE PIPING; OIL,MASTER CYLINDER (#32534) — 89 parça

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
55	04.686 PIPE; BRK,VLV TO UNION BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> REAR	5-47411-784-0	01	1	0612-	●
55	04.686 PIPE; BRK,VLV TO UNION BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> REAR	8-97325-785-0	01	1	0612-	●
55	04.686 PIPE; BRK,VLV TO UNION BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> 04.685 REAR	5-47411-786-0	01	1	0612-		●
55	04.686 PIPE; BRK,VLV TO UNION BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> REAR	8-97325-786-0	01	1	0612-		●

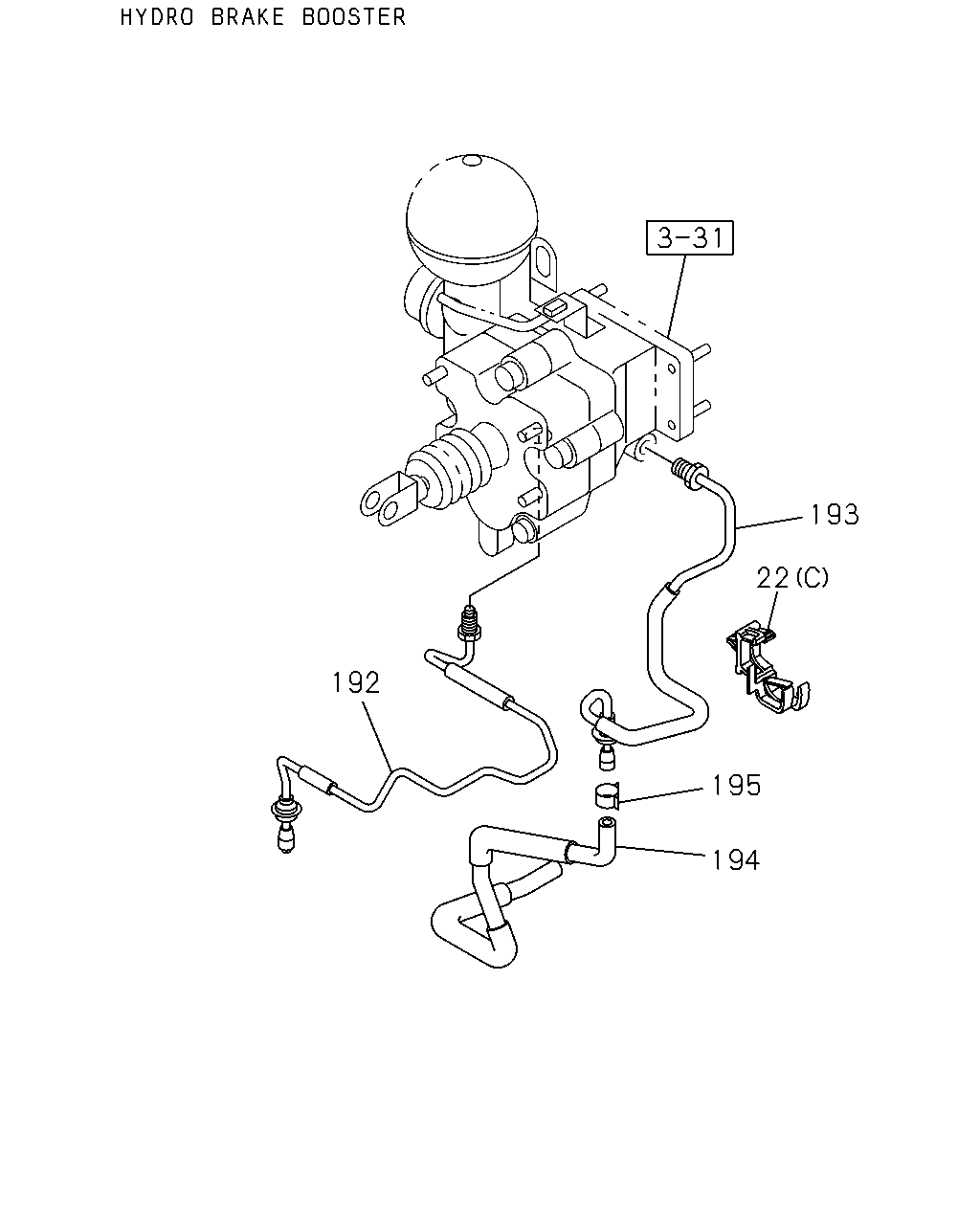

193 22 192 195 194

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B	C
22	04.685 CLIP HYDRO BRAKE BOOSTER<7QQ> 02.343 (C) ID=10 & 16	8-94413-325-0	01	1	0612-	●
22	04.685 CLIP 02.343 (C) ID=10 & 16	8-94413-325-0	01	1	0612-		●
22	04.685 CLIP 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) HYDRO BRAKE BOOSTER<7QQ> (A) ID=11 L=16	0-95235-025-0	02	1	0612-0708	●
22	04.685 CLIP 4HK1-TCC ENG(RDV) (A) ID=11 L=16	0-95235-025-0	02	1	0612-0708		●
22	04.685 CLIP 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) HYDRO BRAKE BOOSTER<7QQ> (A) ID=10 L=16.5	8-98082-034-0	02	1	0709-	●
22	04.685 CLIP 4HK1-TCC ENG(RDV) (A) ID=10 L=16.5	8-98082-034-0	02	1	0709-		●
22	04.685 CLIP 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) HYDRO BRAKE BOOSTER<7QQ> (B) ID=19 L=20	0-95235-836-0	01	1	0612-0708	●
22	04.685 CLIP 4HK1-TCC ENG(RDV) (B) ID=19 L=20	0-95235-836-0	01	1	0612-0708		●
22	04.685 CLIP 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) HYDRO BRAKE BOOSTER<7QQ> (B) ID=17 L=21	8-98082-035-0	01	1	0709-	●
22	04.685 CLIP 4HK1-TCC ENG(RDV) (B) ID=17 L=21	8-98082-035-0	01	1	0709-		●
192	04.685 PIPE; PRESSURE HYDRO BRAKE BOOSTER<7QQ>	8-97148-805-2	01	1	0612-	●
192	04.685 PIPE; PRESSURE	8-97148-805-2	01	1	0612-		●
193	04.685 PIPE; RETURN HYDRO BRAKE BOOSTER<7QQ>	8-97171-016-2	01	1	0612-	●
193	04.685 PIPE; RETURN	8-97171-016-2	01	1	0612-		●
194	04.681 HOSE; CAB TO PIPE HYDRO BRAKE BOOSTER<7QQ>	8-97201-847-3	01	1	0612-	●
194	04.681 HOSE; CAB TO PIPE	8-97201-847-3	01	1	0612-		●
195	04.681 CLIP; HOSE HYDRO BRAKE BOOSTER<7QQ> 04.686 ID=11-19.5	8-94426-597-0	01	1	0612-1005	●
195	04.681 CLIP; HOSE 04.686 ID=11-19.5	8-94426-597-0	01	1	0612-1005		●
195	04.681 CLIP; HOSE HYDRO BRAKE BOOSTER<7QQ> ID=11-17	8-98173-762-0	01	1	1006-	●
195	04.681 CLIP; HOSE ID=11-17	8-98173-762-0	01	1	1006-		●

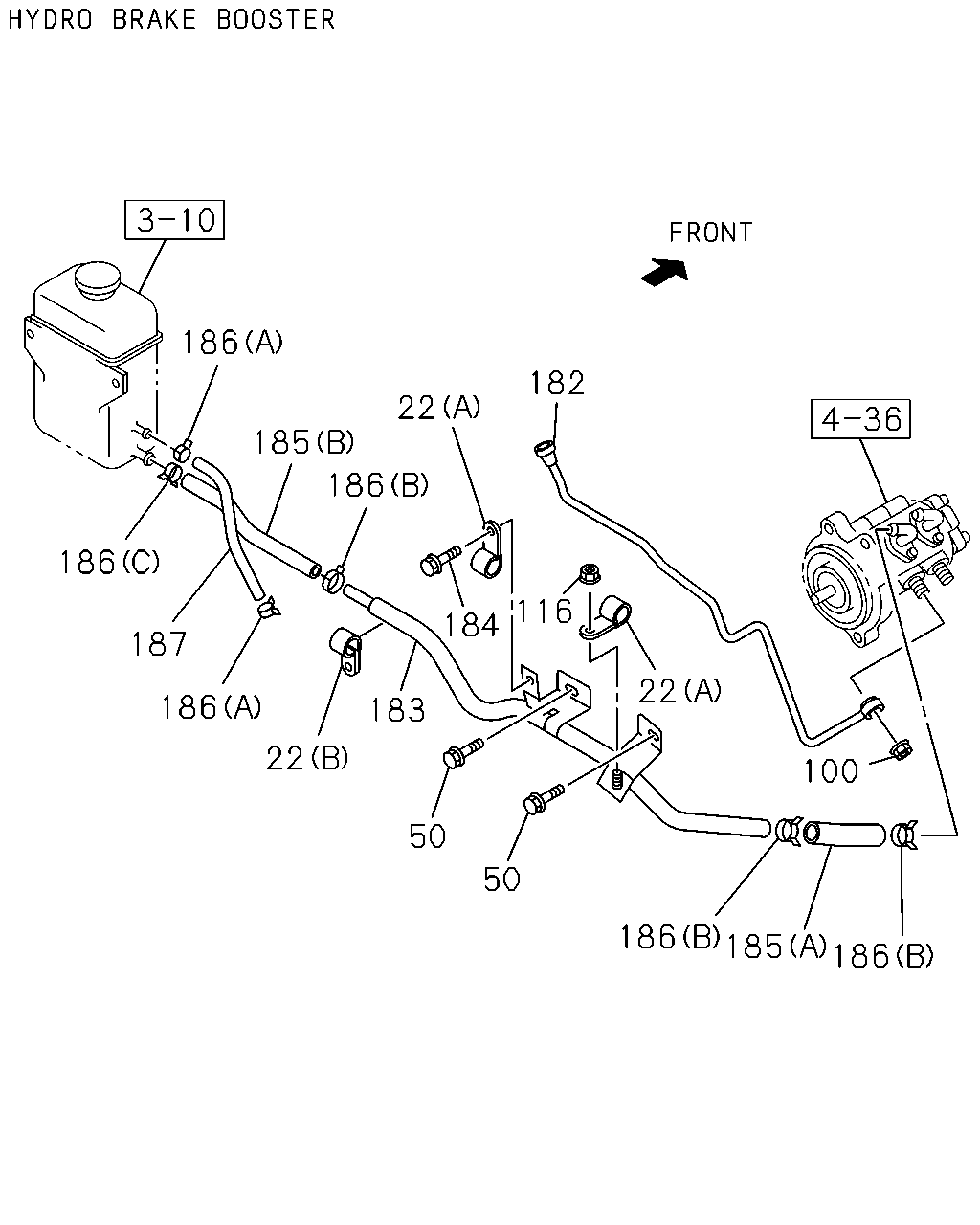

186 182 22 185 186 186 116 184 187 22 186 183 22 100 50 50 186 185 186

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B	C
22	04.685 CLIP HYDRO BRAKE BOOSTER<7QQ> 02.343 (C) ID=10 & 16	8-94413-325-0	01	1	0612-	●
22	04.685 CLIP 02.343 (C) ID=10 & 16	8-94413-325-0	01	1	0612-		●
22	04.685 CLIP 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) HYDRO BRAKE BOOSTER<7QQ> (A) ID=11 L=16	0-95235-025-0	02	1	0612-0708	●
22	04.685 CLIP 4HK1-TCC ENG(RDV) (A) ID=11 L=16	0-95235-025-0	02	1	0612-0708		●
22	04.685 CLIP 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) HYDRO BRAKE BOOSTER<7QQ> (A) ID=10 L=16.5	8-98082-034-0	02	1	0709-	●
22	04.685 CLIP 4HK1-TCC ENG(RDV) (A) ID=10 L=16.5	8-98082-034-0	02	1	0709-		●
22	04.685 CLIP 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) HYDRO BRAKE BOOSTER<7QQ> (B) ID=19 L=20	0-95235-836-0	01	1	0612-0708	●
22	04.685 CLIP 4HK1-TCC ENG(RDV) (B) ID=19 L=20	0-95235-836-0	01	1	0612-0708		●
22	04.685 CLIP 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) HYDRO BRAKE BOOSTER<7QQ> (B) ID=17 L=21	8-98082-035-0	01	1	0709-	●
22	04.685 CLIP 4HK1-TCC ENG(RDV) (B) ID=17 L=21	8-98082-035-0	01	1	0709-		●
50	04.710 BOLT; PIPE HYDRO BRAKE BOOSTER<7QQ> 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0612-	●
50	04.710 BOLT; PIPE 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0612-		●
100	04.730 NUT; HYDRAULIC UNIT HYDRO BRAKE BOOSTER<7QQ>	8-97358-958-0	01	1	0612-	●
100	04.730 NUT; HYDRAULIC UNIT	8-97358-958-0	01	1	0612-		●
116	04.686 NUT 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) HYDRO BRAKE BOOSTER<7QQ> TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE	0-91180-108-0	01	1	0612-	●	●
116	04.686 NUT 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) HYDRO BRAKE BOOSTER<7QQ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE	0-91180-108-0	02	1	0612-	●	●
182	04.685 PIPE; HYDRAULIC BRK BOOSTER 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) HYDRO BRAKE BOOSTER<7QQ>	8-98036-161-0	01	1	0612-	●
182	04.685 PIPE; HYDRAULIC BRK BOOSTER 4HK1-TCC ENG(RDV)	8-98036-161-0	01	1	0612-		●
183	04.685 PIPE; SUCTION 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) HYDRO BRAKE BOOSTER<7QQ>	8-98036-162-0	01	1	0612-	●
183	04.685 PIPE; SUCTION 4HK1-TCC ENG(RDV)	8-98036-162-0	01	1	0612-		●
184	04.681 BOLT; CLIP 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) HYDRO BRAKE BOOSTER<7QQ> TRANSMISSION CONTROL-SMOOTHER(8GF) 02.343 M8X16 FLANGE	0-28050-816-0	01	1	0612-	●	●
184	04.681 BOLT; CLIP 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) HYDRO BRAKE BOOSTER<7QQ> 02.343 M8X16 FLANGE	0-28050-816-0	01	1	0612-	●	●
185	04.681 HOSE; RUBBER,SUCTION HYDRO BRAKE BOOSTER<7QQ> (A)	8-97330-513-0	01	1	0612-	●
185	04.681 HOSE; RUBBER,SUCTION (A)	8-97330-513-0	01	1	0612-		●
185	04.681 HOSE; RUBBER,SUCTION 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) HYDRO BRAKE BOOSTER<7QQ> 06.670 (B) SERVICED BY L=300	0-09814-300-0	01	1	0612-	●
185	04.681 HOSE; RUBBER,SUCTION 4HK1-TCC ENG(RDV) 06.670 (B) SERVICED BY L=300	0-09814-300-0	01	1	0612-		●
186	04.681 CLIP; HOSE HYDRO BRAKE BOOSTER<7QQ> 04.930 (A) ID=16	8-94238-568-0	02	1	0612-0911	●
186	04.681 CLIP; HOSE 04.930 (A) ID=16	8-94238-568-0	02	1	0612-0911		●
186	04.681 CLIP; HOSE HYDRO BRAKE BOOSTER<7QQ> 03.162 (A) ID=16	8-98008-098-0	02	1	0912-	●
186	04.681 CLIP; HOSE 03.162 (A) ID=16	8-98008-098-0	02	1	0912-		●
186	04.681 CLIP; HOSE HYDRO BRAKE BOOSTER<7QQ> 06.672 (B) ID=21	8-94242-034-0	03	1	0612-0911	●
186	04.681 CLIP; HOSE 06.672 (B) ID=21	8-94242-034-0	03	1	0612-0911		●
186	04.681 CLIP; HOSE HYDRO BRAKE BOOSTER<7QQ> (B) ID=21	8-98150-355-0	03	1	0912-	●
186	04.681 CLIP; HOSE (B) ID=21	8-98150-355-0	03	1	0912-		●
186	04.681 CLIP; HOSE HYDRO BRAKE BOOSTER<7QQ> 08.846 (C) ID=22	8-94382-401-0	01	1	0612-1003	●
186	04.681 CLIP; HOSE 08.846 (C) ID=22	8-94382-401-0	01	1	0612-1003		●
186	04.681 CLIP; HOSE HYDRO BRAKE BOOSTER<7QQ> 03.278 (C) ID=22	8-97359-141-0	01	1	1004-	●
186	04.681 CLIP; HOSE 03.278 (C) ID=22	8-97359-141-0	01	1	1004-		●
187	04.681 HOSE; RUBBER,OIL TANK 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) HYDRO BRAKE BOOSTER<7QQ> 06.671 L=270 SERVICED BY L=3000	0-19809-300-0	01	1	0612-	●
187	04.681 HOSE; RUBBER,OIL TANK 4HK1-TCC ENG(RDV) 06.671 L=270 SERVICED BY L=3000	0-19809-300-0	01	1	0612-		●

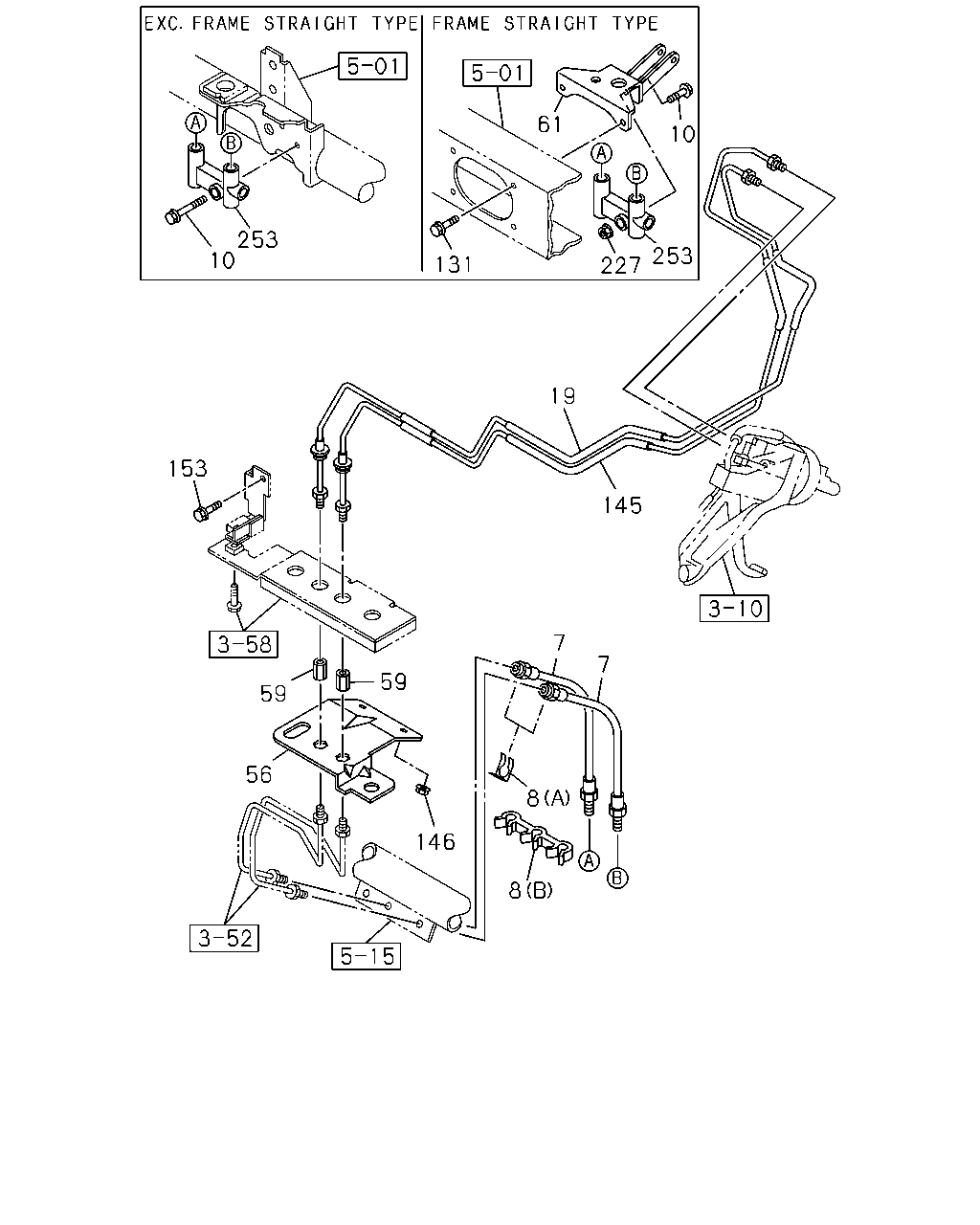

61 10 253 10 253 131 227 19 153 145 7 7 59 59 56 8 146 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
7	04.680 HOSE; FLEX,PIPE TO 5 WAY JOINT	8-97171-031-0	02	1	0612-	●	●	●	●
8	04.681 CLIP; FLEX HOSE,CABLE SIDE 04.686 (B)	8-97076-471-0	01	1	0612-	●	●	●	●
8	04.681 CLIP; FLEX HOSE,CABLE SIDE (A)	8-97365-304-0	02	1	0612-	●	●	●	●
10	04.686 BOLT; JOINT 00.685 M6X40 FLANGE	0-28650-640-0	01	1	0612-	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION REAR	8-97314-593-0	01	1	0612-	●			●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. HYDRO BRAKE BOOSTER<7QQ> REAR	8-97314-593-0	01	1	0612-		●
19	04.685 PIPE; BRK,M/CYL TO UNION HYDRO BRAKE BOOSTER<7QQ> REAR	8-97119-830-0	01	1	0612-		●
19	04.685 PIPE; BRK,M/CYL TO UNION REAR	8-97119-830-0	01	1	0612-			●
56	04.686 BRACKET; UNION,BRK	8-97171-017-1	01	1	0612-	●	●	●	●
59	04.686 UNION; BRK PIPE M10 STRAIGHT	0-92107-005-0	02	1	0612-	●	●	●	●
61	04.686 BRACKET; 5 WAY JOINT	8-97170-632-0	01	1	0612-			●	●
61	04.686 BRACKET; 5 WAY JOINT FRAME STRAIGHT TYPE<7KJ>	8-97170-632-0	01	1	0612-	●	●
131	04.710 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0612-			●	●
131	04.710 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0612-	●	●
145	04.685 PIPE; BRK,METERING VLV TO UNION FRONT	8-97314-586-0	01	1	0612-	●			●
145	04.685 PIPE; BRK,METERING VLV TO UNION EXC. HYDRO BRAKE BOOSTER<7QQ> FRONT	8-97314-586-0	01	1	0612-		●
145	04.685 PIPE; BRK,METERING VLV TO UNION HYDRO BRAKE BOOSTER<7QQ> FRONT	8-97119-829-0	01	1	0612-		●
145	04.685 PIPE; BRK,METERING VLV TO UNION FRONT	8-97119-829-0	01	1	0612-			●
146	04.685 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	0612-	●	●	●	●
153	04.730 SCREW; BRKT FIX 03.885 M5X16 TAPPING W/PL WASHER	0-74360-516-0	01	1	0612-	●	●	●	●
227	04.685 NUT; JOINT 01.062 M6 FLANGE	0-91180-106-0	01	1	0612-			●	●
227	04.685 NUT; JOINT FRAME STRAIGHT TYPE<7KJ> 01.062 M6 FLANGE	0-91180-106-0	01	1	0612-	●	●
253	04.840 JOINT 04.686	5-47456-009-1	01	1	0612-			●	●
253	04.840 JOINT EXC. BRK WHL LK CONT LSPV<6PH> 04.686	5-47456-009-1	01	1	0612-	●	●
253	04.840 JOINT BRK WHL LK CONT LSPV<6PH> 04.686	8-97120-033-2	01	1	0612-	●	●
