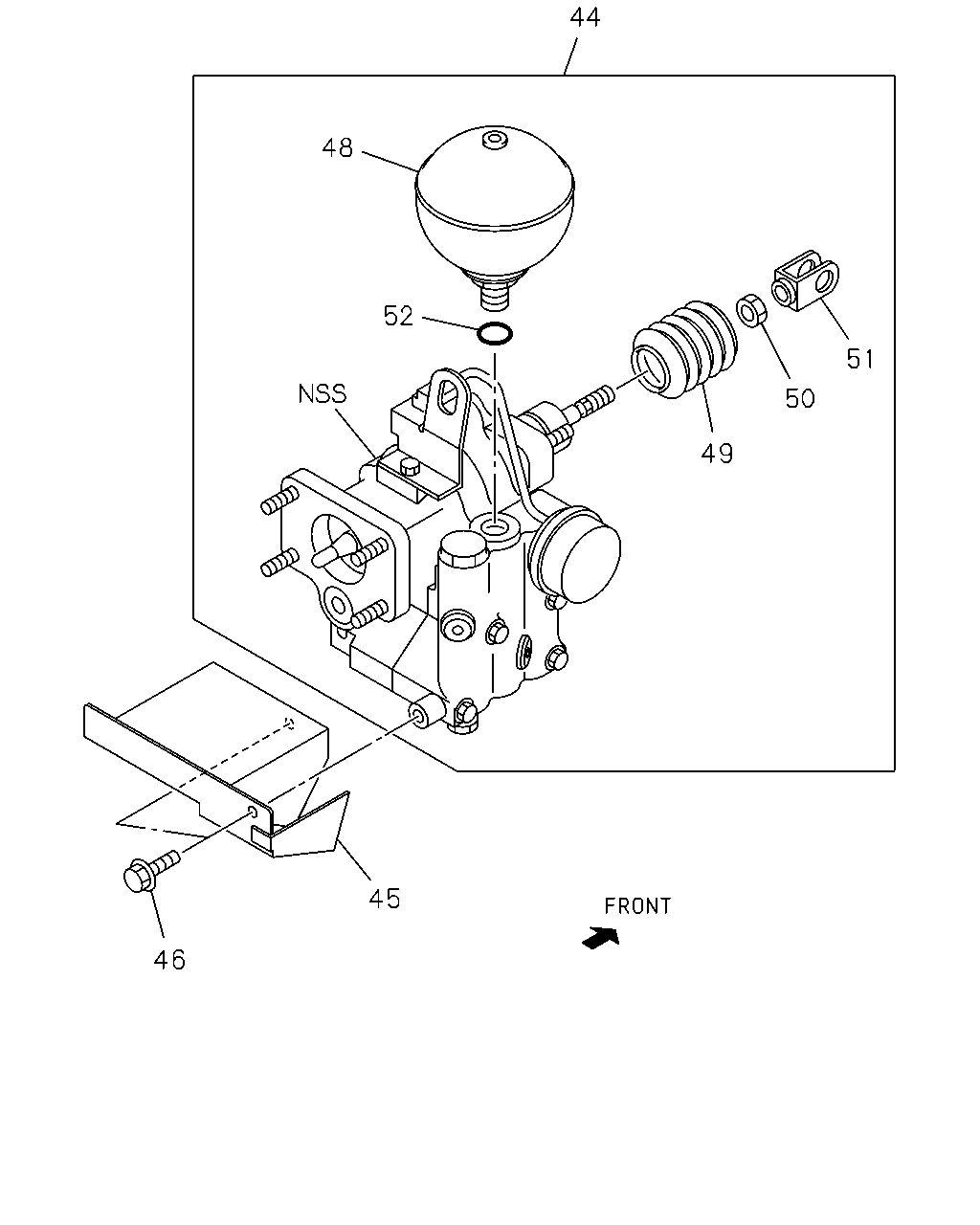

3-31 — BRAKE MASTER VAC AND BRAKE BOOSTER (#32532) — 43 parça

44 48 52 51 50 49 45 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
44	04.901 BOOSTER; HYDRAULIC BRK HYDRO BRAKE BOOSTER<7QQ>	8-98031-414-0	01	1	0612-	●
44	04.901 BOOSTER; HYDRAULIC BRK	8-98031-414-0	01	1	0612-		●
45	04.901 PROTECTOR; HEAT HYDRO BRAKE BOOSTER<7QQ>	8-97182-354-1	01	1	0612-	●
45	04.901 PROTECTOR; HEAT	8-97182-354-1	01	1	0612-		●
46	04.901 BOLT; HEAT PROTECTOR HYDRO BRAKE BOOSTER<7QQ> 03.671 M6X10 FLANGE	0-28050-610-0	02	1	0612-	●
46	04.901 BOLT; HEAT PROTECTOR 03.671 M6X10 FLANGE	0-28050-610-0	02	1	0612-		●
48	04.906 ACCUMULATOR; HYDRO BOOSTER HYDRO BRAKE BOOSTER<7QQ>	8-98038-346-0	01	1	0612-	●
48	04.906 ACCUMULATOR; HYDRO BOOSTER	8-98038-346-0	01	1	0612-		●
49	04.906 GUARD; HYDRO BRK BOOSTER HYDRO BRAKE BOOSTER<7QQ>	8-97191-043-0	01	1	0612-	●
49	04.906 GUARD; HYDRO BRK BOOSTER	8-97191-043-0	01	1	0612-		●
50	04.906 NUT; HYDRO BRK BOOSTER HYDRO BRAKE BOOSTER<7QQ>	8-98038-349-0	01	1	0612-	●
50	04.906 NUT; HYDRO BRK BOOSTER	8-98038-349-0	01	1	0612-		●
51	04.906 CLEVIS; HYDRO BRK BOOSTER HYDRO BRAKE BOOSTER<7QQ>	8-98038-347-0	01	1	0612-	●
51	04.906 CLEVIS; HYDRO BRK BOOSTER	8-98038-347-0	01	1	0612-		●
52	04.906 GASKET; HYDRO BRK BOOSTER HYDRO BRAKE BOOSTER<7QQ> 04.910	8-97191-038-0	01	1	0612-	●
52	04.906 GASKET; HYDRO BRK BOOSTER 04.910	8-97191-038-0	01	1	0612-		●

1 17 16 24 15 12 11 23 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	C	D
1	04.901 MASTER VAC ASM; BRK	8-97162-800-1	01	1	0612-		●
1	04.901 MASTER VAC ASM; BRK G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97162-800-1	01	1	0612-	●		●
1	04.901 MASTER VAC ASM; BRK G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97162-798-1	01	1	0612-	●		●
3	04.906 RETAINER; FRT SHELL,M/VAC	9-83315-319-0	01	1	0612-		●
3	04.906 RETAINER; FRT SHELL,M/VAC G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX)	9-83315-319-0	01	1	0612-			●
3	04.906 RETAINER; FRT SHELL,M/VAC EXC. HYDRO BRAKE BOOSTER<7QQ>	9-83315-319-0	01	1	0612-	●
11	04.906 FILTER; M/VAC	8-97205-576-0	01	1	0612-		●
11	04.906 FILTER; M/VAC G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX)	8-97205-576-0	01	1	0612-			●
11	04.906 FILTER; M/VAC EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97205-576-0	01	1	0612-	●
12	04.906 SILENCER; M/VAC	8-97205-577-0	01	1	0612-		●
12	04.906 SILENCER; M/VAC G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX)	8-97205-577-0	01	1	0612-			●
12	04.906 SILENCER; M/VAC EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97205-577-0	01	1	0612-	●
15	04.906 RETAINER; GUARD,M/VAC	8-94375-083-0	01	1	0612-		●
15	04.906 RETAINER; GUARD,M/VAC G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX)	8-94375-083-0	01	1	0612-			●
15	04.906 RETAINER; GUARD,M/VAC EXC. HYDRO BRAKE BOOSTER<7QQ>	8-94375-083-0	01	1	0612-	●
16	04.662 NUT; VLV ROD,M/VAC M10	1-52139-008-0	01	1	0612-		●
16	04.662 NUT; VLV ROD,M/VAC G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) M10	1-52139-008-0	01	1	0612-			●
16	04.662 NUT; VLV ROD,M/VAC EXC. HYDRO BRAKE BOOSTER<7QQ> M10	1-52139-008-0	01	1	0612-	●
17	04.662 CLEVIS; YOKE,M/VAC	8-97224-610-0	01	1	0612-		●
17	04.662 CLEVIS; YOKE,M/VAC G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX)	8-97224-610-0	01	1	0612-			●
17	04.662 CLEVIS; YOKE,M/VAC EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97224-610-0	01	1	0612-	●
23	04.910 SEAL; M/VAC	8-97079-350-0	01	1	0612-		●
23	04.910 SEAL; M/VAC G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97079-350-0	01	1	0612-	●		●
23	04.910 SEAL; M/VAC G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97261-943-0	01	1	0612-	●		●
24	04.906 GUARD; VLV BODY,M/VAC	8-97205-578-0	01	1	0612-		●
24	04.906 GUARD; VLV BODY,M/VAC G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX)	8-97205-578-0	01	1	0612-			●
24	04.906 GUARD; VLV BODY,M/VAC EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97205-578-0	01	1	0612-	●
