◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51103 - NPR/NQR(LHD) EURO4 ▶ 3 - Brakes, Brake System ▶ 3-21 - VACUUM TANK ▶
3-21 — VACUUM TANK (#32530) — 30 parça
çizim 57594
1 3 37 2
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 04.902 TANK; VAC,MAIN
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER<7QQ> (A) 		8-97078-215-2 01 1 0612- ● ● ●
1 04.902 TANK; VAC,MAIN
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER<7QQ> (B) 		8-97078-216-2 01 1 0612- ● ● ●
1 04.902 TANK; VAC,MAIN
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER<7QQ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-97172-123-1 01 1 0612- ●
1 04.902 TANK; VAC,MAIN
POWER ASSIST CLUTCH(S2T) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-97172-123-1 01 1 0612- ●
2 04.902 BOLT; VAC TANK
01.531 M8X20 FLANGE 		0-28650-820-0 02 1 0612- ● ●
2 04.902 BOLT; VAC TANK
POWER ASSIST CLUTCH(S2T) 01.531 M8X20 FLANGE 		0-28650-820-0 02 1 0612- ● ●
2 04.902 BOLT; VAC TANK
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER<7QQ> 01.531 M8X20 FLANGE 		0-28650-820-0 02 1 0612- ●
3 04.902 NUT; VAC TANK TO BRKT
01.062 M8 FLANGE 		0-91180-108-0 01 1 0612- ● ●
3 04.902 NUT; VAC TANK TO BRKT
POWER ASSIST CLUTCH(S2T) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0612- ● ●
3 04.902 NUT; VAC TANK TO BRKT
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER<7QQ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 0612- ●
37 04.902 CLIP; RUBBER HOSE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER<7QQ> 02.559 (A) L=219.5 		1-09987-136-0 01 1 0612- ● ● ●
37 04.902 CLIP; RUBBER HOSE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER<7QQ> 04.930 (B) ID=16 		8-94238-568-0 02 1 0612- ● ● ●
37 04.902 CLIP; RUBBER HOSE
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER<7QQ> 04.930 (B) ID=16 		8-94238-568-0 01 1 0612- ● ● ●
37 04.902 CLIP; RUBBER HOSE
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER<7QQ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.930 (B) ID=16 		8-94238-568-0 01 1 0612- ● ●

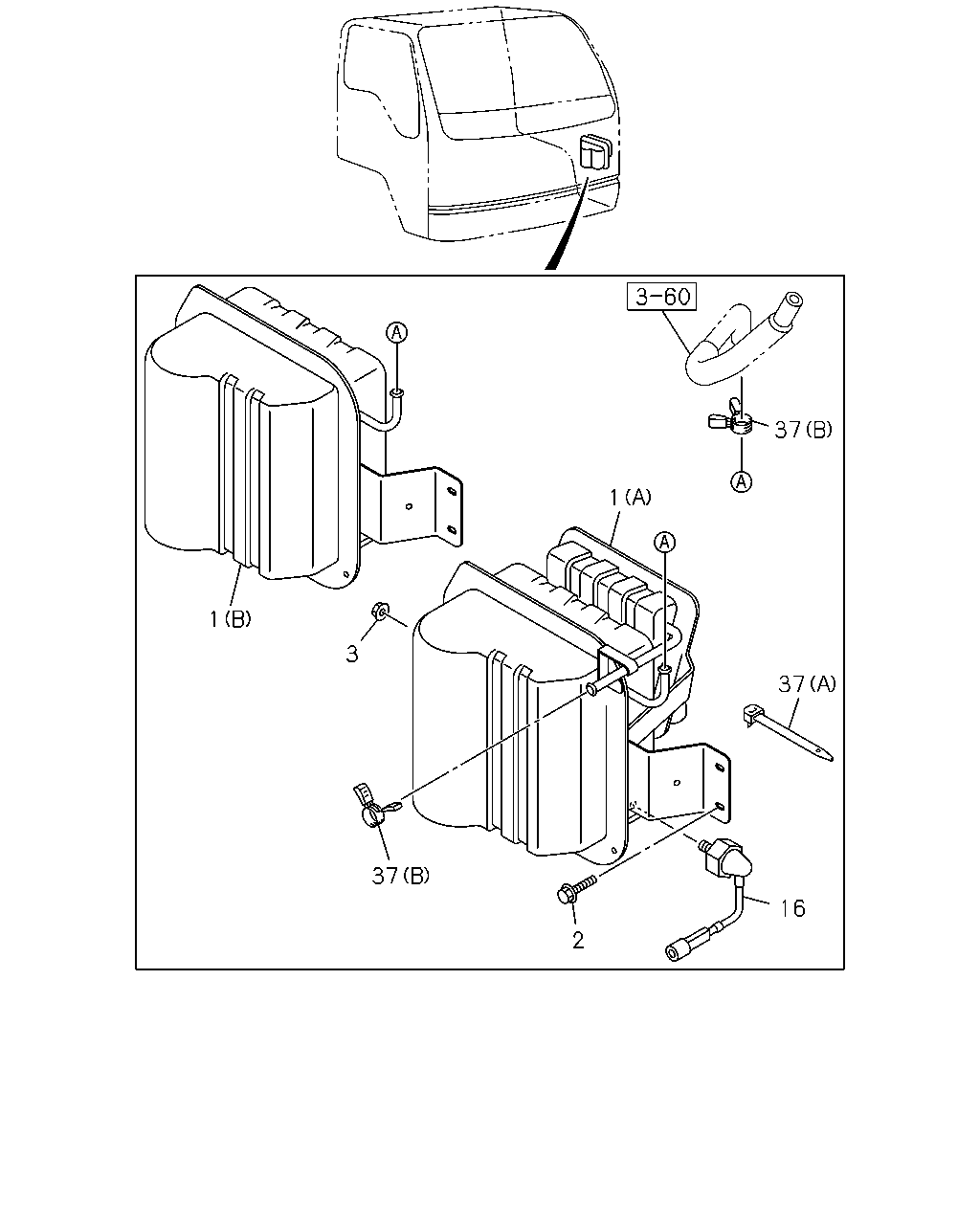

çizim 57830
37 1 1 3 37 37 16 2
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 04.902 TANK; VAC,MAIN
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER<7QQ> (A) 		8-97078-215-2 01 1 0612- ● ● ●
1 04.902 TANK; VAC,MAIN
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER<7QQ> (B) 		8-97078-216-2 01 1 0612- ● ● ●
1 04.902 TANK; VAC,MAIN
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER<7QQ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-97172-123-1 01 1 0612- ●
1 04.902 TANK; VAC,MAIN
POWER ASSIST CLUTCH(S2T) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-97172-123-1 01 1 0612- ●
2 04.902 BOLT; VAC TANK
01.531 M8X20 FLANGE 		0-28650-820-0 02 1 0612- ● ●
2 04.902 BOLT; VAC TANK
POWER ASSIST CLUTCH(S2T) 01.531 M8X20 FLANGE 		0-28650-820-0 02 1 0612- ● ●
2 04.902 BOLT; VAC TANK
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER<7QQ> 01.531 M8X20 FLANGE 		0-28650-820-0 02 1 0612- ●
3 04.902 NUT; VAC TANK TO BRKT
01.062 M8 FLANGE 		0-91180-108-0 01 1 0612- ● ●
3 04.902 NUT; VAC TANK TO BRKT
POWER ASSIST CLUTCH(S2T) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0612- ● ●
3 04.902 NUT; VAC TANK TO BRKT
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER<7QQ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 0612- ●
16 04.906 SWITCH; VAC 8-97073-374-1 01 1 0612- ● ●
16 04.906 SWITCH; VAC
EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97073-374-1 01 1 0612- ●
37 04.902 CLIP; RUBBER HOSE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER<7QQ> 02.559 (A) L=219.5 		1-09987-136-0 01 1 0612- ● ● ●
37 04.902 CLIP; RUBBER HOSE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER<7QQ> 04.930 (B) ID=16 		8-94238-568-0 02 1 0612- ● ● ●
37 04.902 CLIP; RUBBER HOSE
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER<7QQ> 04.930 (B) ID=16 		8-94238-568-0 01 1 0612- ● ● ●
37 04.902 CLIP; RUBBER HOSE
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER<7QQ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.930 (B) ID=16 		8-94238-568-0 01 1 0612- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
