0-35 — ENGINE CONTROL VALVE AND LEVER (#3253) — 28 parça

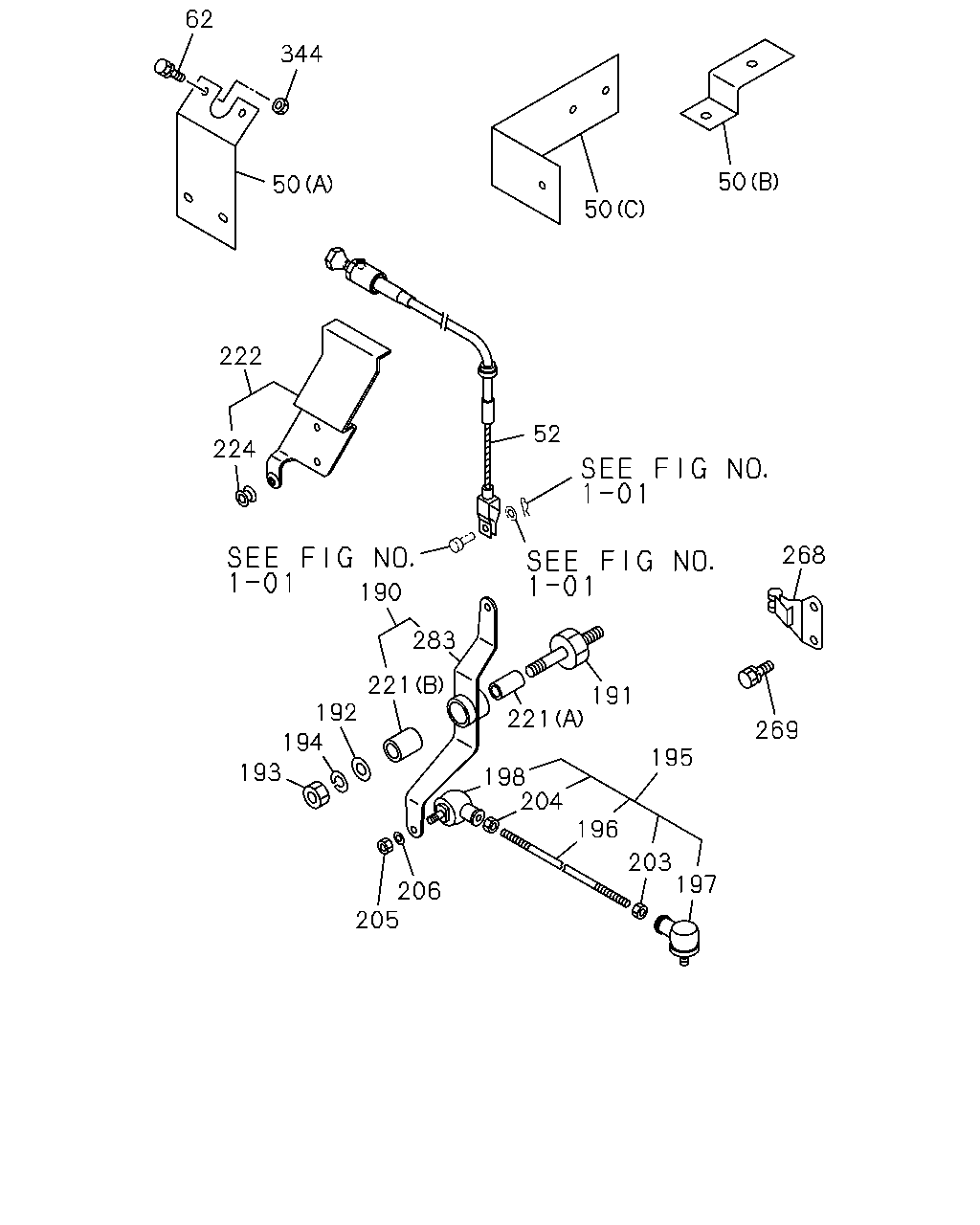

çizim 37113
62 344 50 50 50 222 52 224 268 190 283 221 192 194 221 191 269 195 193 198 204 196 203 197 206 205
BalonParca AdiParca NoAdetTipApplied Date A B
50 BRACKET; ENG CONT CABLE
RIGHT HAND DRIVE(MRR5FB) (A) 		1-23335-296-1 01 1 9101- ● ●
50 BRACKET; ENG CONT CABLE
LEFT HAND DRIVE(MRR6FB) (B) 		1-47475-641-1 01 1 9101- ● ●
50 BRACKET; ENG CONT CABLE
LEFT HAND DRIVE(MRR6FB) (C) 		1-47475-714-1 01 1 9101- ● ●
52 CABLE; FUEL CUT
RIGHT HAND DRIVE(MRR5FB) EXC. AUTO ENG SHUTOFF(KB6) 		1-23210-900-0 01 1 9101- ● ●
52 CABLE; FUEL CUT
LEFT HAND DRIVE(MRR6FB) EXC. AUTO ENG SHUTOFF(KB6) 		1-23210-583-1 01 1 9101- ● ●
62 BOLT; CABLE END 9-01900-614-0 02 1 9101-9204 ● ●
62 BOLT; CABLE END 0-50040-614-0 02 1 9205- ● ●
190 LEVER; ENG CONT 1-14333-058-0 01 1 9101- ● ●
191 SHAFT; LEVER,ENG STOP 1-14336-002-1 01 1 9101- ● ●
192 WASHER; PL,LEVER 5-09503-135-0 01 1 9101- ● ●
193 NUT; LEVER 9-09111-408-0 01 1 9101- ● ●
194 WASHER; LK,LEVER 9-09150-508-0 01 1 9101- ● ●
195 ROD; ENG STOP 1-14332-021-0 01 1 9101- ● ●
196 LINK ASM; ENG STOP 9-09882-382-0 01 1 9101- ● ●
197 JOINT; BALL,RIGHT SCREW,ENG STOP LINK 1-09760-101-0 01 1 9101- ● ●
198 JOINT; BALL,ENG STOP LINK 1-09760-102-0 01 1 9101- ● ●
203 NUT; BALL JOINT,RIGHT SCREW,ENG STOP 9-99110-405-0 01 1 9101- ● ●
204 NUT; BALL JOINT,ENG STOP
M5 LH THREAD 		9-09840-277-0 01 1 9101- ● ●
205 NUT; BALL JOINT,LINK 9-99110-405-0 02 1 9101- ● ●
206 WASHER; LK,BALL JOINT 9-09150-505-0 02 1 9101- ● ●
221 BUSHING; LEVER
(A) 		1-09330-057-0 01 1 9101- ● ●
221 BUSHING; LEVER
(B) 		1-09330-058-0 01 1 9101- ● ●
222 BRACKET; ACTUATOR WIRE
AT545 A/T ALLISON(MD1) 		1-15649-013-0 01 1 9101- ● ●
224 BUSHING; BRKT,ACTUATOR WIRE
AT545 A/T ALLISON(MD1) 		1-09330-072-0 01 1 9101- ● ●
268 BRACKET; FUEL CUT CONT 1-14334-025-0 01 1 9101- ● ●
269 BOLT; BRKT FIX 0-50040-616-0 02 1 9101- ● ●
283 LEVER; ENG STOP 1-14333-068-0 01 1 9101- ● ●
344 NUT; CABLE END 9-09110-406-0 01 1 9101- ● ●
