Sayfa 3-11 - Isuzu EPC

3-11 — PARKING BRAKE CONTROL (#32529) — 134 parça

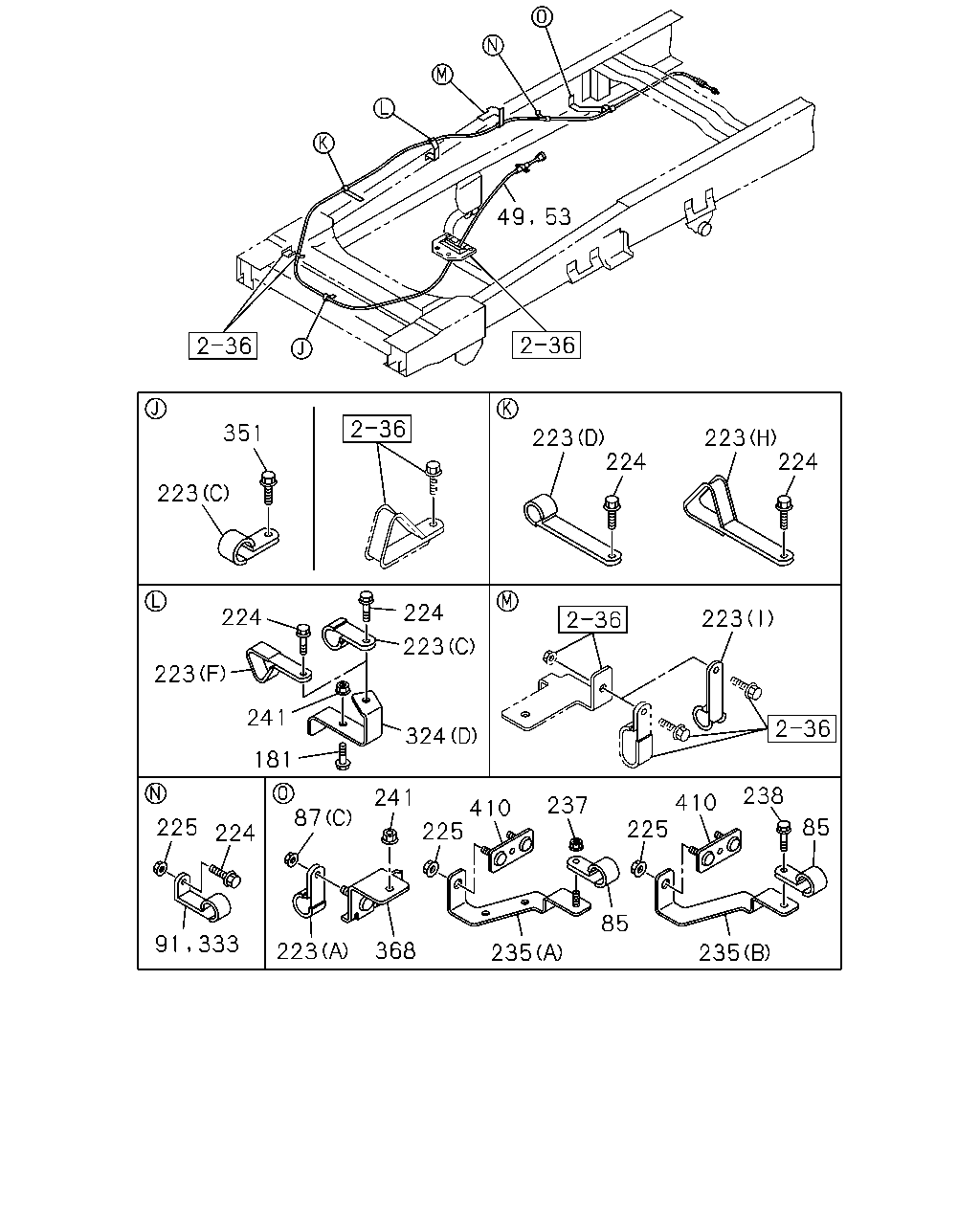

49 53 351 223 224 223 224 223 224 224 223 223 223 241 324 181 87 238 241 410 225 237 410 225 225 85 224 85 91 333 368 223 235 235

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
49	04.779 CABLE; PARKING BRK 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98020-007-2	01	1	0612-	●	●	●
49	04.779 CABLE; PARKING BRK 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98036-057-1	01	1	0612-	●	●	●
49	04.779 CABLE; PARKING BRK 4JJ1 ENG(LFB) M/T MYY6S(RST) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98020-000-1	01	1	0612-		●	●
49	04.779 CABLE; PARKING BRK 4JJ1 ENG(LFB) M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98020-001-1	01	1	0612-		●	●
53	04.779 CABLE; PARK BRK,FRT LWR 4HK1-TCC ENG(RDV) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98020-008-2	01	1	0612-			●	●
53	04.779 CABLE; PARK BRK,FRT LWR 4HK1-TCC ENG(RDV) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98020-009-3	01	1	0612-			●	●
85	04.785 CLIP; BRKT M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=14.5 L=20	1-09701-012-0	01	1	0612-	●	●	●
85	04.785 CLIP; BRKT M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> ID=13 L=20	0-95235-236-0	01	1	0612-			●	●
87	04.785 NUT (B) M6	1-71996-312-0	01	1	0612-0612	●	●	●	●
87	04.785 NUT (B) M6	8-98034-313-1	01	1	0612-	●	●	●	●
87	04.785 NUT M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0612-	●	●	●
87	04.785 NUT TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0612-		●	●
87	04.785 NUT 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	0612-	●	●	●	●
91	04.785 CLIP; PARKING BRK CABLE 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-94405-465-0	01	1	0612-	●	●	●
91	04.785 CLIP; PARKING BRK CABLE 4HK1-TCC ENG(RDV) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ>	8-94405-465-0	01	1	0612-			●	●
181	04.785 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0612-	●	●	●	●
181	04.785 BOLT; BRKT EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0612-		●	●
223	04.785 CLIP; PARKING BRK CABLE M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 00.799 (A) ID=13 L=20	1-09701-138-1	01	1	0612-	●	●	●
223	04.785 CLIP; PARKING BRK CABLE TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 00.799 (A) ID=13 L=20	1-09701-138-1	01	1	0612-		●	●
223	04.785 CLIP; PARKING BRK CABLE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (D) ID=12 L=70	1-09700-097-1	01	1	0612-	●	●	●	●
223	04.785 CLIP; PARKING BRK CABLE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (I)	8-98023-698-0	01	1	0612-	●	●	●	●
223	04.785 CLIP; PARKING BRK CABLE FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (H)	8-97039-517-1	01	1	0612-	●	●	●	●
223	04.785 CLIP; PARKING BRK CABLE TRANSMISSION CONTROL-SMOOTHER(8GF) 06.672 (C) ID=16 L=28	0-95235-556-0	01	1	0612-	●	●	●	●
223	04.785 CLIP; PARKING BRK CABLE TRANSMISSION CONTROL-SMOOTHER(8GF) 06.672 (C) ID=16 L=28	0-95235-556-0	01	1	0612-	●	●	●	●
223	04.785 CLIP; PARKING BRK CABLE 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 06.672 (C) ID=16 L=28	0-95235-556-0	01	1	0612-		●	●
223	04.785 CLIP; PARKING BRK CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (F)	8-97036-333-1	01	1	0612-	●	●	●	●
223	04.785 CLIP; PARKING BRK CABLE EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (F)	8-97036-333-1	01	1	0612-		●	●
223	04.785 CLIP; PARKING BRK CABLE EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=19 L=50	0-95235-886-0	01	1	0612-		●	●
223	04.785 CLIP; PARKING BRK CABLE EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) (G) ID=14.5 H=23 L=30	1-09700-859-0	01	1	0612-		●	●
223	04.785 CLIP; PARKING BRK CABLE 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (E)	1-09700-423-0	01	1	0612-		●	●
224	04.785 BOLT; CABLE CLIP 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0612-	●	●	●	●
224	04.785 BOLT; CABLE CLIP FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0612-	●	●	●	●
224	04.785 BOLT; CABLE CLIP EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0612-	●	●	●	●
224	04.785 BOLT; CABLE CLIP 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0612-	●	●	●
224	04.785 BOLT; CABLE CLIP M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0612-	●	●	●
224	04.785 BOLT; CABLE CLIP 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0612-		●	●
224	04.785 BOLT; CABLE CLIP 4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0612-			●	●
225	04.785 NUT; CABLE CLIP EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0612-	●	●	●	●
225	04.785 NUT; CABLE CLIP M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE	0-91180-108-0	01	1	0612-	●	●	●
225	04.785 NUT; CABLE CLIP 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE	0-91180-108-0	01	1	0612-	●	●	●
225	04.785 NUT; CABLE CLIP 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0612-		●	●
225	04.785 NUT; CABLE CLIP 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE	0-91180-108-0	01	1	0612-		●	●
225	04.785 NUT; CABLE CLIP M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0612-			●	●
225	04.785 NUT; CABLE CLIP 4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0612-			●	●
235	04.785 BRACKET; CONT CABLE TO FRAME M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98036-018-1	01	1	0612-	●	●	●
235	04.785 BRACKET; CONT CABLE TO FRAME M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> (A)	8-98048-393-0	01	1	0612-			●	●
237	04.785 NUT; BRKT TO FRAME 03.162 M10 FLANGE	0-91180-110-0	01	1	0612-	●			●
237	04.785 NUT; BRKT TO FRAME FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE	0-91180-110-0	01	1	0612-		●	●
238	04.785 BOLT; CLIP TO BRKT M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0612-	●	●	●
241	04.785 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	01	1	0612-	●	●	●	●
241	04.785 NUT; BRKT M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE	0-91180-108-0	01	1	0612-	●	●	●
241	04.785 NUT; BRKT EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE	0-91180-110-0	01	1	0612-		●	●
324	04.785 BRACKET 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> (D)	8-98039-594-0	01	1	0612-	●	●	●	●
324	04.785 BRACKET G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-98021-017-1	01	1	0612-		●	●
324	04.785 BRACKET 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98024-540-1	01	1	0612-		●	●
324	04.785 BRACKET 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98037-154-0	01	1	0612-		●	●
333	04.785 CLIP; CABLE M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-94405-465-0	01	1	0612-	●	●	●
351	04.785 BOLT; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0612-	●	●	●	●
368	04.785 BRACKET; T/M SIDE M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97372-863-1	01	1	0612-	●	●	●
368	04.785 BRACKET; T/M SIDE TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97372-863-1	01	1	0612-		●	●
410	04.748 PLATE; BRACKET	8-98045-743-0	01	1	0612-	●			●
410	04.748 PLATE; BRACKET FRAME STRAIGHT TYPE<7KJ>	8-98045-743-0	01	1	0612-		●	●

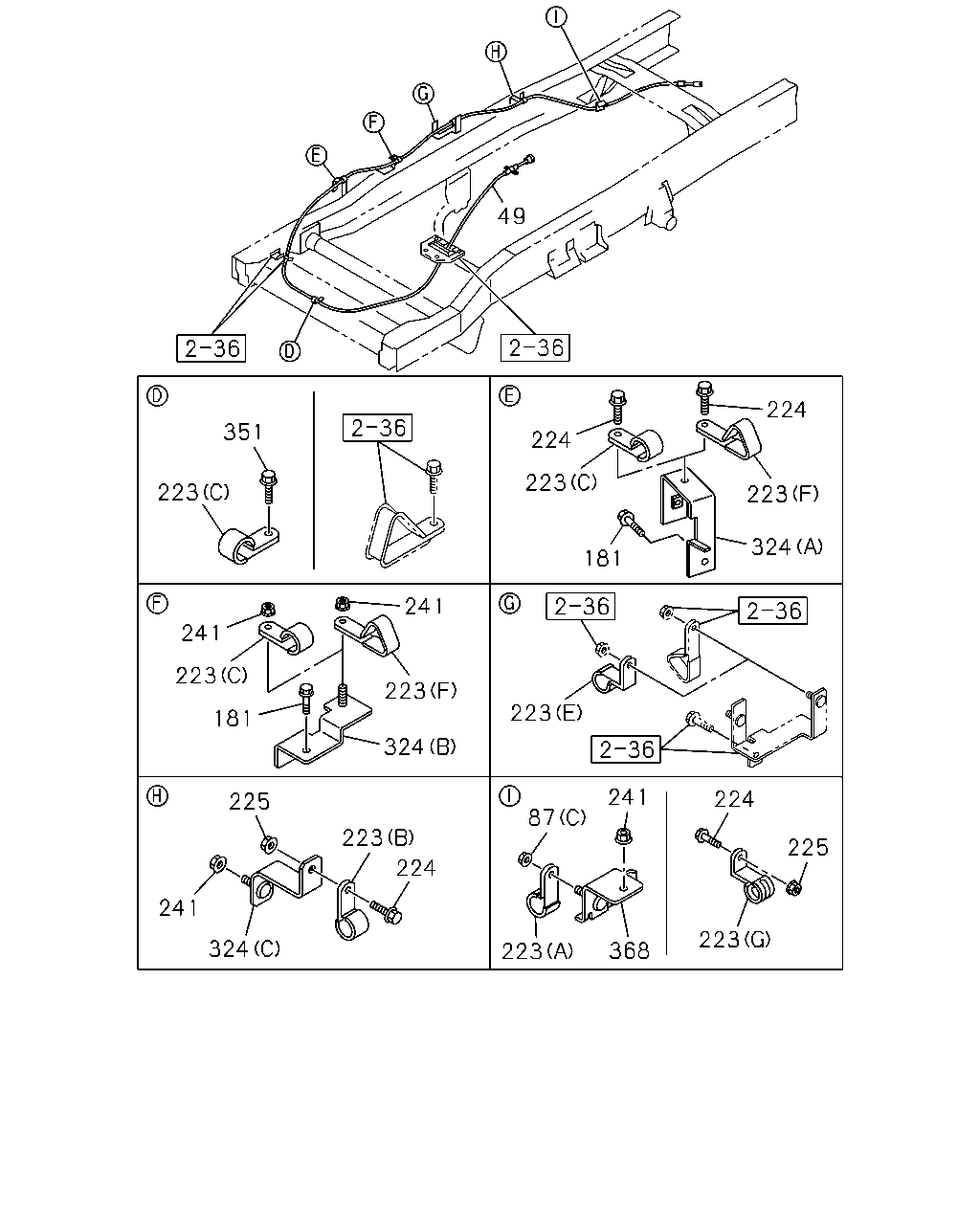

49 224 351 224 223 223 223 324 181 241 241 223 223 223 181 324 241 87 224 225 223 225 224 241 223 324 368 223

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
49	04.779 CABLE; PARKING BRK 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98020-007-2	01	1	0612-	●	●	●
49	04.779 CABLE; PARKING BRK 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98036-057-1	01	1	0612-	●	●	●
49	04.779 CABLE; PARKING BRK 4JJ1 ENG(LFB) M/T MYY6S(RST) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98020-000-1	01	1	0612-		●	●
49	04.779 CABLE; PARKING BRK 4JJ1 ENG(LFB) M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98020-001-1	01	1	0612-		●	●
87	04.785 NUT (B) M6	1-71996-312-0	01	1	0612-0612	●	●	●	●
87	04.785 NUT (B) M6	8-98034-313-1	01	1	0612-	●	●	●	●
87	04.785 NUT M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0612-	●	●	●
87	04.785 NUT TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0612-		●	●
87	04.785 NUT 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	0612-	●	●	●	●
181	04.785 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0612-	●	●	●	●
181	04.785 BOLT; BRKT EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0612-		●	●
223	04.785 CLIP; PARKING BRK CABLE M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 00.799 (A) ID=13 L=20	1-09701-138-1	01	1	0612-	●	●	●
223	04.785 CLIP; PARKING BRK CABLE TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 00.799 (A) ID=13 L=20	1-09701-138-1	01	1	0612-		●	●
223	04.785 CLIP; PARKING BRK CABLE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (D) ID=12 L=70	1-09700-097-1	01	1	0612-	●	●	●	●
223	04.785 CLIP; PARKING BRK CABLE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (I)	8-98023-698-0	01	1	0612-	●	●	●	●
223	04.785 CLIP; PARKING BRK CABLE FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (H)	8-97039-517-1	01	1	0612-	●	●	●	●
223	04.785 CLIP; PARKING BRK CABLE TRANSMISSION CONTROL-SMOOTHER(8GF) 06.672 (C) ID=16 L=28	0-95235-556-0	01	1	0612-	●	●	●	●
223	04.785 CLIP; PARKING BRK CABLE TRANSMISSION CONTROL-SMOOTHER(8GF) 06.672 (C) ID=16 L=28	0-95235-556-0	01	1	0612-	●	●	●	●
223	04.785 CLIP; PARKING BRK CABLE 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 06.672 (C) ID=16 L=28	0-95235-556-0	01	1	0612-		●	●
223	04.785 CLIP; PARKING BRK CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (F)	8-97036-333-1	01	1	0612-	●	●	●	●
223	04.785 CLIP; PARKING BRK CABLE EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (F)	8-97036-333-1	01	1	0612-		●	●
223	04.785 CLIP; PARKING BRK CABLE EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=19 L=50	0-95235-886-0	01	1	0612-		●	●
223	04.785 CLIP; PARKING BRK CABLE EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) (G) ID=14.5 H=23 L=30	1-09700-859-0	01	1	0612-		●	●
223	04.785 CLIP; PARKING BRK CABLE 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (E)	1-09700-423-0	01	1	0612-		●	●
224	04.785 BOLT; CABLE CLIP 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0612-	●	●	●	●
224	04.785 BOLT; CABLE CLIP FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0612-	●	●	●	●
224	04.785 BOLT; CABLE CLIP EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0612-	●	●	●	●
224	04.785 BOLT; CABLE CLIP 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0612-	●	●	●
224	04.785 BOLT; CABLE CLIP M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0612-	●	●	●
224	04.785 BOLT; CABLE CLIP 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0612-		●	●
224	04.785 BOLT; CABLE CLIP 4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0612-			●	●
225	04.785 NUT; CABLE CLIP EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0612-	●	●	●	●
225	04.785 NUT; CABLE CLIP M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE	0-91180-108-0	01	1	0612-	●	●	●
225	04.785 NUT; CABLE CLIP 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE	0-91180-108-0	01	1	0612-	●	●	●
225	04.785 NUT; CABLE CLIP 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0612-		●	●
225	04.785 NUT; CABLE CLIP 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE	0-91180-108-0	01	1	0612-		●	●
225	04.785 NUT; CABLE CLIP M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0612-			●	●
225	04.785 NUT; CABLE CLIP 4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0612-			●	●
241	04.785 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	01	1	0612-	●	●	●	●
241	04.785 NUT; BRKT M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE	0-91180-108-0	01	1	0612-	●	●	●
241	04.785 NUT; BRKT EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE	0-91180-110-0	01	1	0612-		●	●
324	04.785 BRACKET 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> (D)	8-98039-594-0	01	1	0612-	●	●	●	●
324	04.785 BRACKET G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-98021-017-1	01	1	0612-		●	●
324	04.785 BRACKET 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98024-540-1	01	1	0612-		●	●
324	04.785 BRACKET 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98037-154-0	01	1	0612-		●	●
351	04.785 BOLT; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0612-	●	●	●	●
368	04.785 BRACKET; T/M SIDE M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97372-863-1	01	1	0612-	●	●	●
368	04.785 BRACKET; T/M SIDE TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97372-863-1	01	1	0612-		●	●

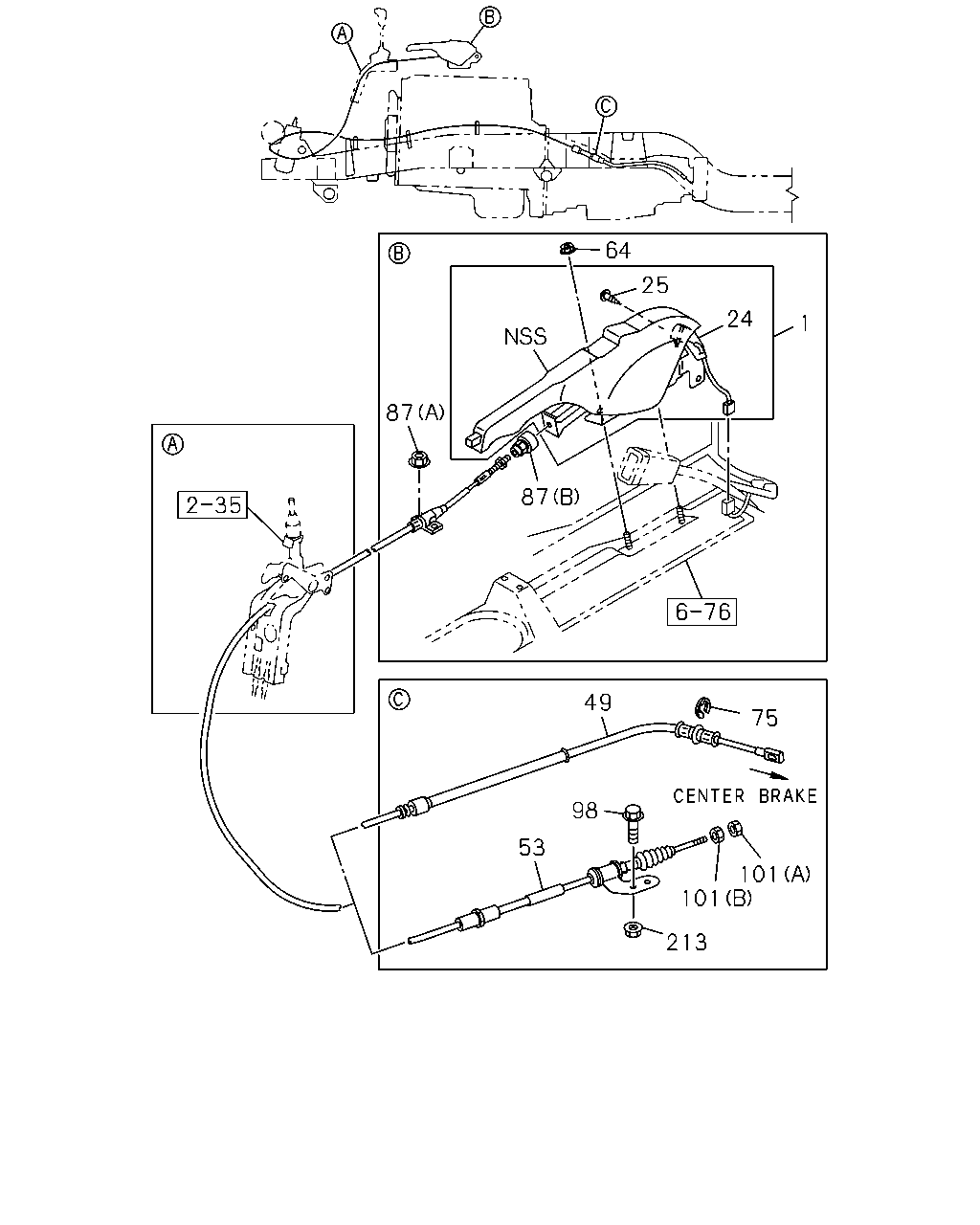

64 25 24 1 87 87 49 75 98 53 101 101 213

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	04.592 STEM ASM; PARKING BRK GRAY	8-97409-385-0	01	1	0612-	●	●	●	●
24	04.589 SWITCH ASM; PARK BRK	8-97995-828-1	01	1	0612-	●	●	●	●
25	04.589 SCREW; SW,PARKING BRK	8-98152-463-0	01	1	0612-	●	●	●	●
49	04.779 CABLE; PARKING BRK 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98020-007-2	01	1	0612-	●	●	●
49	04.779 CABLE; PARKING BRK 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98036-057-1	01	1	0612-	●	●	●
49	04.779 CABLE; PARKING BRK 4JJ1 ENG(LFB) M/T MYY6S(RST) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98020-000-1	01	1	0612-		●	●
49	04.779 CABLE; PARKING BRK 4JJ1 ENG(LFB) M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98020-001-1	01	1	0612-		●	●
53	04.779 CABLE; PARK BRK,FRT LWR 4HK1-TCC ENG(RDV) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98020-008-2	01	1	0612-			●	●
53	04.779 CABLE; PARK BRK,FRT LWR 4HK1-TCC ENG(RDV) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98020-009-3	01	1	0612-			●	●
64	04.595 NUT; PARKING BRK 16.682 M8 LOCK NUT FLANGE	0-91380-008-0	02	1	0612-	●	●	●	●
75	04.790 RING; SNAP,HAND BRK CABLE 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) M/T MYY6S(RST) ID=12	0-91805-512-0	01	1	0612-	●	●	●
75	04.790 RING; SNAP,HAND BRK CABLE 4JJ1 ENG(LFB) ID=12	0-91805-512-0	01	1	0612-		●	●
87	04.785 NUT (B) M6	1-71996-312-0	01	1	0612-0612	●	●	●	●
87	04.785 NUT (B) M6	8-98034-313-1	01	1	0612-	●	●	●	●
87	04.785 NUT M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0612-	●	●	●
87	04.785 NUT TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0612-		●	●
87	04.785 NUT 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	0612-	●	●	●	●
98	04.785 BOLT; RR COVER M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0612-	●	●	●
98	04.785 BOLT; RR COVER M/T MZZ6F(RSR) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0612-			●	●
101	04.785 NUT; CABLE TO LEVER M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 02.334 (A) M8	0-91110-508-0	01	1	0612-	●	●	●
101	04.785 NUT; CABLE TO LEVER M/T MZZ6F(RSR) 02.334 (A) M8	0-91110-508-0	01	1	0612-			●	●
101	04.785 NUT; CABLE TO LEVER M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M8 FLANGE	9-46259-016-0	01	1	0612-	●	●	●
101	04.785 NUT; CABLE TO LEVER M/T MZZ6F(RSR) (B) M8 FLANGE	9-46259-016-0	01	1	0612-			●	●
213	04.785 NUT; WIRE,RR COVER M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 M10 FLANGE	0-91180-110-0	02	1	0703-			●	●
