3-10 — BRAKE PEDAL AND CONTROL (#32528) — 126 parça

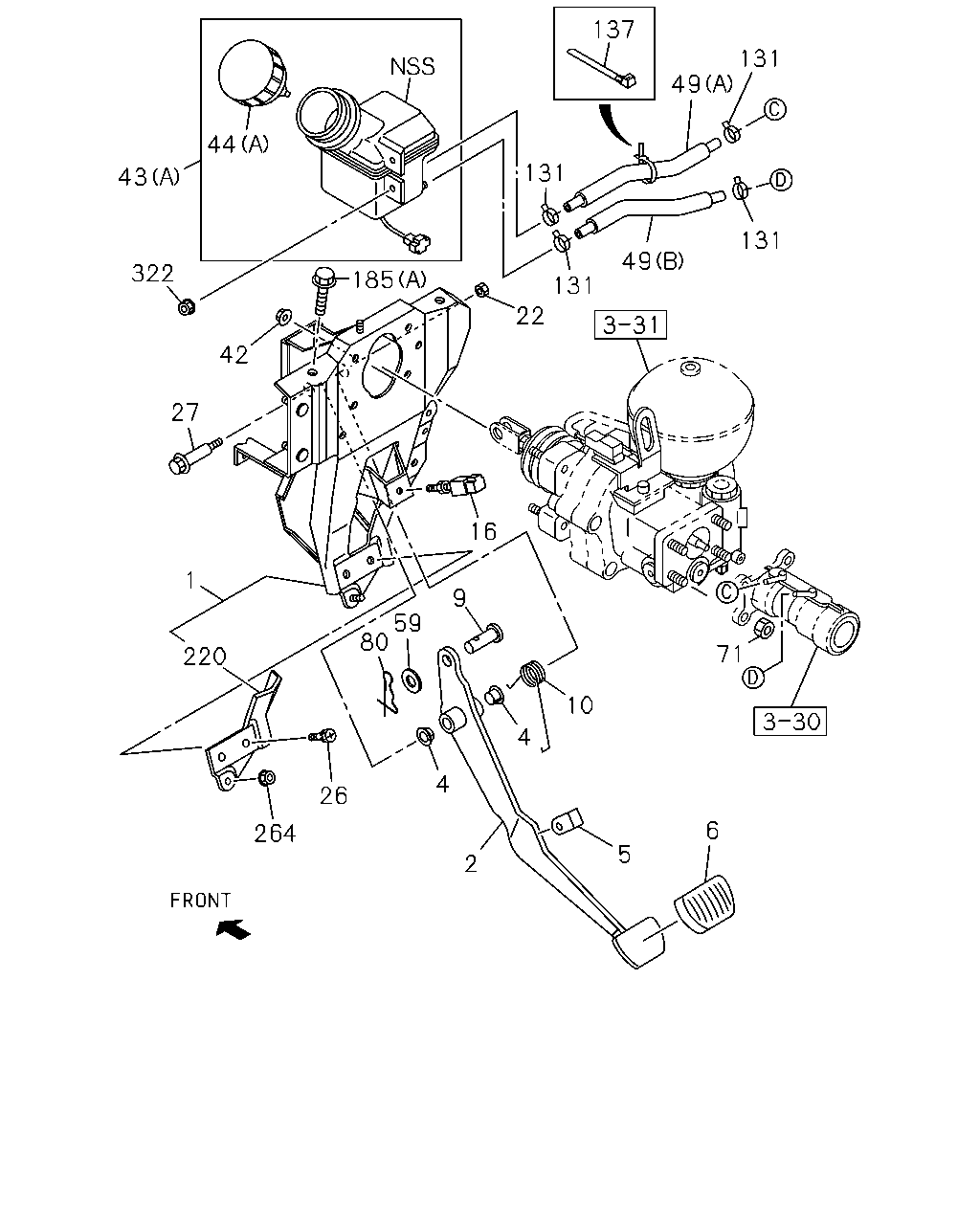

137 131 49 44 131 43 131 49 322 185 131 22 42 27 16 1 9 59 80 71 220 10 4 4 26 6 264 5 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	04.634 BRACKET ASM; PEDAL	8-97896-969-5	01	1	0612-	●	●	●	●
2	04.625 PEDAL; BRK	8-97856-336-2	02	1	0612-	●	●
2	04.625 PEDAL; BRK EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97856-336-2	02	1	0612-			●
2	04.625 PEDAL; BRK IDENTIFICATION LABEL FOR KD<6UT> HYDRO BRAKE BOOSTER<7QQ>	8-97867-872-3	02	1	0612-			●
2	04.625 PEDAL; BRK IDENTIFICATION LABEL FOR KD<6UT>	8-97867-872-3	02	1	0612-				●
2	04.625 PEDAL; BRK HYDRO BRAKE BOOSTER<7QQ> EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-97867-872-3	01	1	0612-			●
2	04.625 PEDAL; BRK EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-97867-872-3	01	1	0612-				●
4	04.634 BUSHING; BRK PEDAL 04.792	8-94238-596-0	02	1	0612-	●	●	●	●
5	04.634 STOPPER; BRK PEDAL	8-97853-602-1	01	1	0612-	●	●	●	●
6	04.630 COVER; BRK PEDAL 00.829	8-97853-413-2	02	1	0612-	●	●
6	04.630 COVER; BRK PEDAL IDENTIFICATION LABEL FOR KD<6UT> HYDRO BRAKE BOOSTER<7QQ> 00.829	8-97853-413-2	02	1	0612-			●
6	04.630 COVER; BRK PEDAL EXC. HYDRO BRAKE BOOSTER<7QQ> 00.829	8-97853-413-2	02	1	0612-			●
6	04.630 COVER; BRK PEDAL IDENTIFICATION LABEL FOR KD<6UT> 00.829	8-97853-413-2	02	1	0612-				●
6	04.630 COVER; BRK PEDAL HYDRO BRAKE BOOSTER<7QQ> EXC. IDENTIFICATION LABEL FOR KD<6UT> 00.829	8-97853-413-2	01	1	0612-			●
6	04.630 COVER; BRK PEDAL EXC. IDENTIFICATION LABEL FOR KD<6UT> 00.829	8-97853-413-2	01	1	0612-				●
9	04.634 PIN; JAW JOINT	8-94410-276-0	01	1	0612-	●	●	●	●
10	04.639 SPRING; RETURN,BRK PEDAL	8-97853-212-1	02	1	0612-	●	●
10	04.639 SPRING; RETURN,BRK PEDAL IDENTIFICATION LABEL FOR KD<6UT> HYDRO BRAKE BOOSTER<7QQ>	8-97853-212-1	02	1	0612-			●
10	04.639 SPRING; RETURN,BRK PEDAL EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97853-212-1	02	1	0612-			●
10	04.639 SPRING; RETURN,BRK PEDAL IDENTIFICATION LABEL FOR KD<6UT>	8-97853-212-1	02	1	0612-				●
10	04.639 SPRING; RETURN,BRK PEDAL HYDRO BRAKE BOOSTER<7QQ> EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-97853-212-1	01	1	0612-			●
10	04.639 SPRING; RETURN,BRK PEDAL EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-97853-212-1	01	1	0612-				●
16	02.447 SWITCH; STOP LAMP IDENTIFICATION LABEL FOR KD<6UT>	8-97855-187-0	02	1	0612-	●	●	●	●
16	02.447 SWITCH; STOP LAMP EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-97855-187-0	01	1	0612-	●	●	●	●
22	04.634 NUT; SHAFT 00.833 M10 FLANGE	1-09440-022-0	01	1	0612-	●	●	●	●
26	04.634 BOLT; PEDAL 00.833 M10X22 W/PL WASHER	8-97313-188-0	02	1	0612-	●	●	●	●
27	04.634 SHAFT; BRK PEDAL	8-97866-667-0	01	1	0612-	●	●	●	●
42	04.898 NUT; BRK PEDAL 00.777 M8 W/LK WASHER	8-94279-050-0	04	1	0612-	●	●	●	●
43	04.651 TANK ASM; OIL TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97179-814-1	01	1	0612-	●	●	●	●
43	04.651 TANK ASM; OIL EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97179-813-1	01	1	0612-	●	●	●	●
43	04.651 TANK ASM; OIL HYDRO BRAKE BOOSTER<7QQ> (B)	8-97306-217-0	01	1	0612-			●
43	04.651 TANK ASM; OIL (B)	8-97306-217-0	01	1	0612-				●
44	04.651 CAP; OIL TANK (A)	8-97178-291-1	01	1	0612-	●	●	●	●
44	04.651 CAP; OIL TANK HYDRO BRAKE BOOSTER<7QQ> 06.635 (B)	8-94146-153-2	01	1	0612-			●
44	04.651 CAP; OIL TANK 06.635 (B)	8-94146-153-2	01	1	0612-				●
49	04.680 HOSE; OIL TANK TO BRK M/CYL (A) L=335	8-97129-586-0	01	1	0612-	●	●	●	●
49	04.680 HOSE; OIL TANK TO BRK M/CYL (B) L=340	8-97130-440-0	01	1	0612-	●	●	●	●
59	04.634 WASHER; PL,JAW JOINT ID=15	0-91610-514-0	01	1	0612-	●	●	●	●
71	04.650 NUT; BRK M/CYL 00.777 M8 W/LK WASHER	8-94279-050-0	04	1	0612-	●	●	●	●
80	04.634 PIN; SNAP,BRK PEDAL	8-94279-912-0	01	1	0612-	●	●	●	●
131	04.681 CLIP; RUBBER HOSE,OIL TANK TO BR	8-97130-480-0	04	1	0612-	●	●	●	●
137	04.681 CLIP; BAND,RUBBER HOSE 02.559 L=250	5-09707-030-1	01	1	0612-	●	●	●	●
185	04.634 BOLT; BRKT 07.833 (A) M10X25 FLANGE	0-28661-025-0	02	1	0612-	●	●	●	●
185	04.634 BOLT; BRKT HYDRO BRAKE BOOSTER<7QQ> 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	0612-			●
185	04.634 BOLT; BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	0612-				●
220	04.634 BRACKET; STRG SHAFT	8-97857-044-1	01	1	0612-	●	●	●	●
264	04.634 NUT; BRKT,COLUMN SUPT TO B.PDL 01.840 M8 W/DISHED WASHER	8-97329-625-0	01	1	0612-	●	●	●	●
322	04.651 NUT; OIL TANK 01.062 M6 FLANGE	0-91180-106-0	02	1	0612-	●	●	●	●

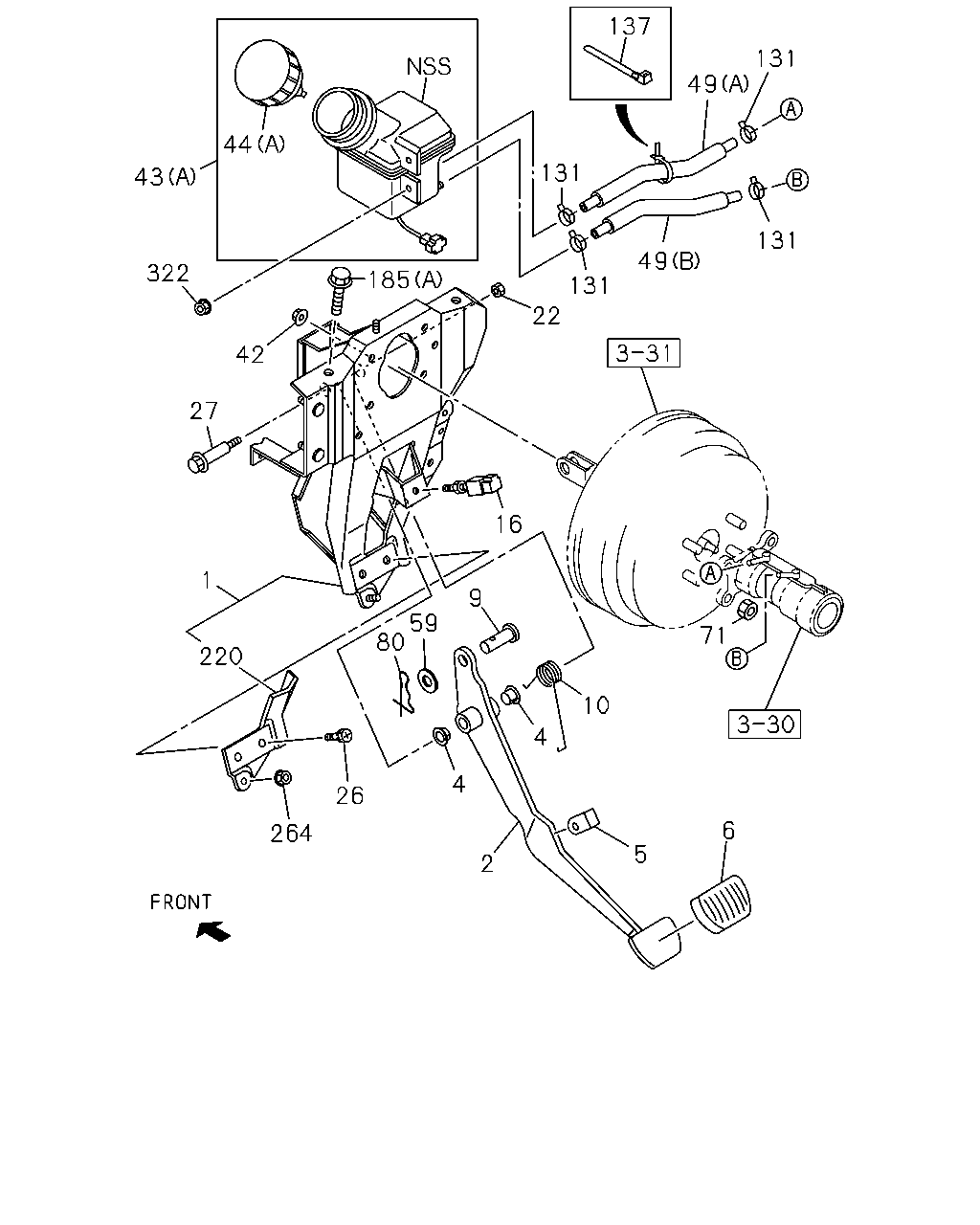

137 131 49 44 131 43 131 49 322 185 131 22 42 27 16 1 9 59 80 71 220 10 4 4 26 6 264 5 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	04.634 BRACKET ASM; PEDAL	8-97896-969-5	01	1	0612-	●	●	●	●
2	04.625 PEDAL; BRK	8-97856-336-2	02	1	0612-	●	●
2	04.625 PEDAL; BRK EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97856-336-2	02	1	0612-			●
2	04.625 PEDAL; BRK IDENTIFICATION LABEL FOR KD<6UT> HYDRO BRAKE BOOSTER<7QQ>	8-97867-872-3	02	1	0612-			●
2	04.625 PEDAL; BRK IDENTIFICATION LABEL FOR KD<6UT>	8-97867-872-3	02	1	0612-				●
2	04.625 PEDAL; BRK HYDRO BRAKE BOOSTER<7QQ> EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-97867-872-3	01	1	0612-			●
2	04.625 PEDAL; BRK EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-97867-872-3	01	1	0612-				●
4	04.634 BUSHING; BRK PEDAL 04.792	8-94238-596-0	02	1	0612-	●	●	●	●
5	04.634 STOPPER; BRK PEDAL	8-97853-602-1	01	1	0612-	●	●	●	●
6	04.630 COVER; BRK PEDAL 00.829	8-97853-413-2	02	1	0612-	●	●
6	04.630 COVER; BRK PEDAL IDENTIFICATION LABEL FOR KD<6UT> HYDRO BRAKE BOOSTER<7QQ> 00.829	8-97853-413-2	02	1	0612-			●
6	04.630 COVER; BRK PEDAL EXC. HYDRO BRAKE BOOSTER<7QQ> 00.829	8-97853-413-2	02	1	0612-			●
6	04.630 COVER; BRK PEDAL IDENTIFICATION LABEL FOR KD<6UT> 00.829	8-97853-413-2	02	1	0612-				●
6	04.630 COVER; BRK PEDAL HYDRO BRAKE BOOSTER<7QQ> EXC. IDENTIFICATION LABEL FOR KD<6UT> 00.829	8-97853-413-2	01	1	0612-			●
6	04.630 COVER; BRK PEDAL EXC. IDENTIFICATION LABEL FOR KD<6UT> 00.829	8-97853-413-2	01	1	0612-				●
9	04.634 PIN; JAW JOINT	8-94410-276-0	01	1	0612-	●	●	●	●
10	04.639 SPRING; RETURN,BRK PEDAL	8-97853-212-1	02	1	0612-	●	●
10	04.639 SPRING; RETURN,BRK PEDAL IDENTIFICATION LABEL FOR KD<6UT> HYDRO BRAKE BOOSTER<7QQ>	8-97853-212-1	02	1	0612-			●
10	04.639 SPRING; RETURN,BRK PEDAL EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97853-212-1	02	1	0612-			●
10	04.639 SPRING; RETURN,BRK PEDAL IDENTIFICATION LABEL FOR KD<6UT>	8-97853-212-1	02	1	0612-				●
10	04.639 SPRING; RETURN,BRK PEDAL HYDRO BRAKE BOOSTER<7QQ> EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-97853-212-1	01	1	0612-			●
10	04.639 SPRING; RETURN,BRK PEDAL EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-97853-212-1	01	1	0612-				●
16	02.447 SWITCH; STOP LAMP IDENTIFICATION LABEL FOR KD<6UT>	8-97855-187-0	02	1	0612-	●	●	●	●
16	02.447 SWITCH; STOP LAMP EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-97855-187-0	01	1	0612-	●	●	●	●
22	04.634 NUT; SHAFT 00.833 M10 FLANGE	1-09440-022-0	01	1	0612-	●	●	●	●
26	04.634 BOLT; PEDAL 00.833 M10X22 W/PL WASHER	8-97313-188-0	02	1	0612-	●	●	●	●
27	04.634 SHAFT; BRK PEDAL	8-97866-667-0	01	1	0612-	●	●	●	●
42	04.898 NUT; BRK PEDAL 00.777 M8 W/LK WASHER	8-94279-050-0	04	1	0612-	●	●	●	●
43	04.651 TANK ASM; OIL TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97179-814-1	01	1	0612-	●	●	●	●
43	04.651 TANK ASM; OIL EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97179-813-1	01	1	0612-	●	●	●	●
43	04.651 TANK ASM; OIL HYDRO BRAKE BOOSTER<7QQ> (B)	8-97306-217-0	01	1	0612-			●
43	04.651 TANK ASM; OIL (B)	8-97306-217-0	01	1	0612-				●
44	04.651 CAP; OIL TANK (A)	8-97178-291-1	01	1	0612-	●	●	●	●
44	04.651 CAP; OIL TANK HYDRO BRAKE BOOSTER<7QQ> 06.635 (B)	8-94146-153-2	01	1	0612-			●
44	04.651 CAP; OIL TANK 06.635 (B)	8-94146-153-2	01	1	0612-				●
49	04.680 HOSE; OIL TANK TO BRK M/CYL (A) L=335	8-97129-586-0	01	1	0612-	●	●	●	●
49	04.680 HOSE; OIL TANK TO BRK M/CYL (B) L=340	8-97130-440-0	01	1	0612-	●	●	●	●
59	04.634 WASHER; PL,JAW JOINT ID=15	0-91610-514-0	01	1	0612-	●	●	●	●
71	04.650 NUT; BRK M/CYL 00.777 M8 W/LK WASHER	8-94279-050-0	04	1	0612-	●	●	●	●
80	04.634 PIN; SNAP,BRK PEDAL	8-94279-912-0	01	1	0612-	●	●	●	●
131	04.681 CLIP; RUBBER HOSE,OIL TANK TO BR	8-97130-480-0	04	1	0612-	●	●	●	●
137	04.681 CLIP; BAND,RUBBER HOSE 02.559 L=250	5-09707-030-1	01	1	0612-	●	●	●	●
185	04.634 BOLT; BRKT 07.833 (A) M10X25 FLANGE	0-28661-025-0	02	1	0612-	●	●	●	●
185	04.634 BOLT; BRKT HYDRO BRAKE BOOSTER<7QQ> 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	0612-			●
185	04.634 BOLT; BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	0612-				●
220	04.634 BRACKET; STRG SHAFT	8-97857-044-1	01	1	0612-	●	●	●	●
264	04.634 NUT; BRKT,COLUMN SUPT TO B.PDL 01.840 M8 W/DISHED WASHER	8-97329-625-0	01	1	0612-	●	●	●	●
322	04.651 NUT; OIL TANK 01.062 M6 FLANGE	0-91180-106-0	02	1	0612-	●	●	●	●

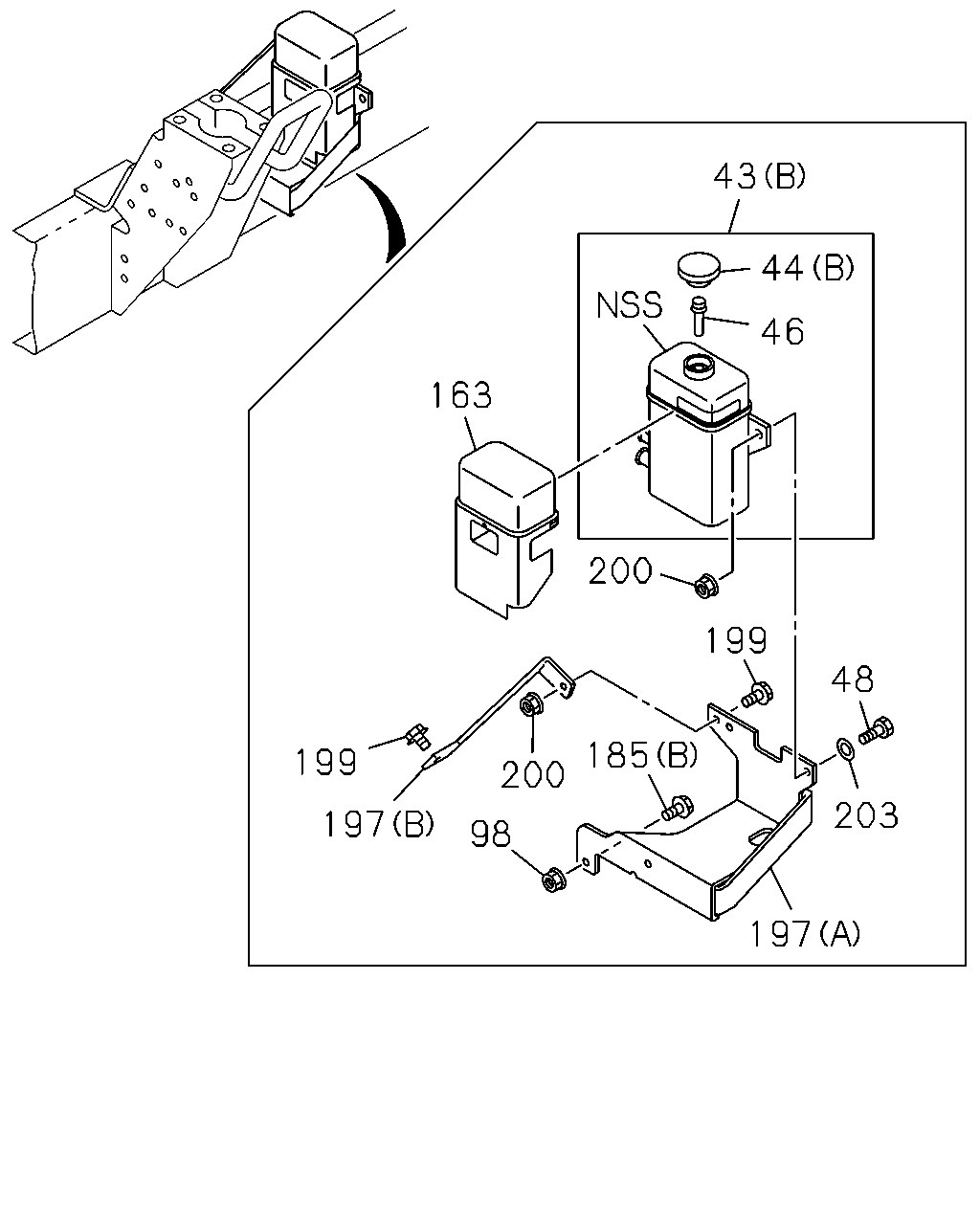

43 44 46 163 200 199 48 185 199 200 203 197 98 197

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
43	04.651 TANK ASM; OIL TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97179-814-1	01	1	0612-	●	●	●	●
43	04.651 TANK ASM; OIL EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97179-813-1	01	1	0612-	●	●	●	●
43	04.651 TANK ASM; OIL HYDRO BRAKE BOOSTER<7QQ> (B)	8-97306-217-0	01	1	0612-			●
43	04.651 TANK ASM; OIL (B)	8-97306-217-0	01	1	0612-				●
44	04.651 CAP; OIL TANK (A)	8-97178-291-1	01	1	0612-	●	●	●	●
44	04.651 CAP; OIL TANK HYDRO BRAKE BOOSTER<7QQ> 06.635 (B)	8-94146-153-2	01	1	0612-			●
44	04.651 CAP; OIL TANK 06.635 (B)	8-94146-153-2	01	1	0612-				●
46	04.651 FILTER; RESERVOIR,BRK HYDRO BRAKE BOOSTER<7QQ> 06.600	8-97094-732-0	01	1	0612-			●
46	04.651 FILTER; RESERVOIR,BRK 06.600	8-97094-732-0	01	1	0612-				●
48	04.651 BOLT; OIL TANK TO BRKT HYDRO BRAKE BOOSTER<7QQ> 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0612-			●
48	04.651 BOLT; OIL TANK TO BRKT 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0612-				●
98	04.634 NUT; BRKT HYDRO BRAKE BOOSTER<7QQ> 01.062 M8 FLANGE	0-91180-108-0	02	1	0612-			●
98	04.634 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	0612-				●
163	04.651 COVER; OIL TANK HYDRO BRAKE BOOSTER<7QQ>	8-97164-749-1	01	1	0612-			●
163	04.651 COVER; OIL TANK	8-97164-749-1	01	1	0612-				●
185	04.634 BOLT; BRKT 07.833 (A) M10X25 FLANGE	0-28661-025-0	02	1	0612-	●	●	●	●
185	04.634 BOLT; BRKT HYDRO BRAKE BOOSTER<7QQ> 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	0612-			●
185	04.634 BOLT; BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	0612-				●
197	04.634 BRACKET; OIL TANK HYDRO BRAKE BOOSTER<7QQ> (A)	8-97173-342-2	01	1	0612-			●
197	04.634 BRACKET; OIL TANK (A)	8-97173-342-2	01	1	0612-				●
197	04.634 BRACKET; OIL TANK 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) HYDRO BRAKE BOOSTER<7QQ> (B)	8-97333-555-2	01	1	0612-			●
197	04.634 BRACKET; OIL TANK 4HK1-TCC ENG(RDV) (B)	8-97333-555-2	01	1	0612-				●
199	04.634 BOLT; OIL TANK BRKT HYDRO BRAKE BOOSTER<7QQ> 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0612-			●
199	04.634 BOLT; OIL TANK BRKT 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0612-				●
200	04.634 NUT; BRKT HYDRO BRAKE BOOSTER<7QQ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0612-			●
200	04.634 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	01	1	0612-				●
200	04.634 NUT; BRKT HYDRO BRAKE BOOSTER<7QQ> 01.062 M8 FLANGE	0-91180-108-0	02	1	0612-			●
200	04.634 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	0612-				●
203	04.634 WASHER; PL,OIL TANK HYDRO BRAKE BOOSTER<7QQ> 04.595 ID=8.4 OD=22	0-91610-708-0	02	1	0612-			●
203	04.634 WASHER; PL,OIL TANK 04.595 ID=8.4 OD=22	0-91610-708-0	02	1	0612-				●
