3-05 — REAR WHEEL BRAKE (#32526) — 112 parça

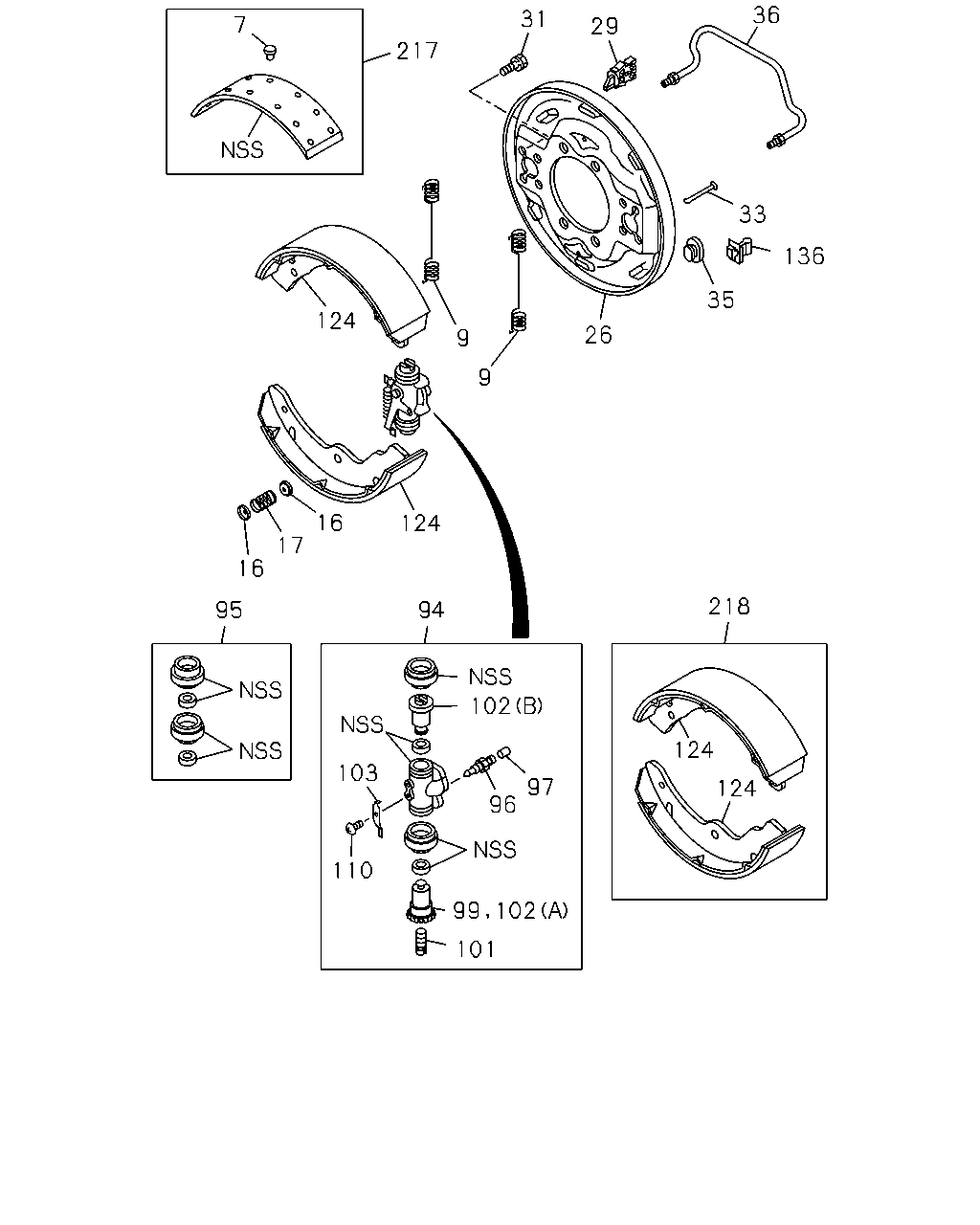

çizim 55631
36 31 7 29 217 33 136 35 124 26 9 9 16 124 17 16 218 95 94 102 124 103 97 124 96 110 101 99 102
BalonParca AdiParca NoAdetTipApplied Date A B C D
7 05.019 RIVET; LINING,RR BRK 1-09732-029-0 48 1 0612- ●
7 05.019 RIVET; LINING,RR BRK
G.V.W. 7.0-7.5TON(RPX) 		1-09732-029-0 48 1 0612- ● ●
7 05.019 RIVET; LINING,RR BRK
G.V.W. 6.0-6.5TON(RPV) 		1-09732-029-0 40 1 0612- ● ●
7 05.019 RIVET; LINING,RR BRK
G.V.W. 8.0-8.5TON(RPZ) 		1-09732-029-0 64 1 0612- ●
7 05.019 RIVET; LINING,RR BRK 1-09732-029-0 64 1 0612- ●
9 05.026 SPRING; RETURN,BRK SHOE 8-97022-087-0 04 1 0612- ●
9 05.026 SPRING; RETURN,BRK SHOE
G.V.W. 7.0-7.5TON(RPX) 		8-97022-087-0 04 1 0612- ● ●
9 05.026 SPRING; RETURN,BRK SHOE
G.V.W. 6.0-6.5TON(RPV) 		5-09583-118-0 04 1 0612- ● ●
9 05.026 SPRING; RETURN,BRK SHOE
G.V.W. 8.0-8.5TON(RPZ) 		8-97122-869-0 04 1 0612- ●
9 05.026 SPRING; RETURN,BRK SHOE 8-97122-869-0 04 1 0612- ●
16 05.043 CUP; SHOE HOLDING 9-47165-096-0 08 1 0612- ● ● ● ●
17 04.043 SPRING; SHOE HOLD DOWN
05.043 		5-09580-101-1 04 1 0612- ● ● ● ●
26 05.001 PLATE; BACK,RR BRK 8-97223-574-0 01 1 0612- ●
26 05.001 PLATE; BACK,RR BRK
G.V.W. 7.0-7.5TON(RPX) 		8-97223-574-0 01 1 0612- ● ●
26 05.001 PLATE; BACK,RR BRK 8-97223-573-0 01 1 0612- ●
26 05.001 PLATE; BACK,RR BRK
G.V.W. 7.0-7.5TON(RPX) 		8-97223-573-0 01 1 0612- ● ●
26 05.001 PLATE; BACK,RR BRK
G.V.W. 6.0-6.5TON(RPV) 		8-97078-606-0 01 1 0612- ● ●
26 05.001 PLATE; BACK,RR BRK
G.V.W. 6.0-6.5TON(RPV) 		8-97078-605-0 01 1 0612- ● ●
26 05.001 PLATE; BACK,RR BRK
G.V.W. 8.0-8.5TON(RPZ) 		8-97134-732-0 01 1 0612- ●
26 05.001 PLATE; BACK,RR BRK 8-97134-732-0 01 1 0612- ●
26 05.001 PLATE; BACK,RR BRK
G.V.W. 8.0-8.5TON(RPZ) 		8-97134-731-0 01 1 0612- ●
26 05.001 PLATE; BACK,RR BRK 8-97134-731-0 01 1 0612- ●
29 04.685 CLIP; PIPE,BRK 8-97022-086-0 02 1 0612- ● ●
29 04.685 CLIP; PIPE,BRK
G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) 		8-97022-086-0 02 1 0612- ● ●
29 04.685 CLIP; PIPE,BRK
G.V.W. 6.0-6.5TON(RPV) 		8-94128-306-0 02 1 0612- ● ●
31 04.665 BOLT; RR WHEEL CYL 8-97081-305-0 16 1 0612- ● ●
31 04.665 BOLT; RR WHEEL CYL
G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) 		8-97081-305-0 16 1 0612- ● ●
31 04.665 BOLT; RR WHEEL CYL
G.V.W. 6.0-6.5TON(RPV) 		5-09030-016-1 16 1 0612- ● ●
33 05.043 PIN; SHOE HOLD DOWN 8-97022-089-0 04 1 0612- ●
33 05.043 PIN; SHOE HOLD DOWN
G.V.W. 7.0-7.5TON(RPX) 		8-97022-089-0 04 1 0612- ● ●
33 05.043 PIN; SHOE HOLD DOWN
G.V.W. 6.0-6.5TON(RPV) 		5-47162-001-0 04 1 0612- ● ●
33 05.043 PIN; SHOE HOLD DOWN
G.V.W. 8.0-8.5TON(RPZ) 		8-97122-870-0 04 1 0612- ●
33 05.043 PIN; SHOE HOLD DOWN 8-97122-870-0 04 1 0612- ●
35 05.002 GROMMET; CHECK HOLE 8-97017-507-0 02 1 0612- ● ●
35 05.002 GROMMET; CHECK HOLE
G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) 		8-97017-507-0 02 1 0612- ● ●
35 05.002 GROMMET; CHECK HOLE
G.V.W. 6.0-6.5TON(RPV) 		8-94171-287-0 02 1 0612- ● ●
36 04.685 PIPE; OIL,RR BRK 8-97192-215-0 02 1 0612- ●
36 04.685 PIPE; OIL,RR BRK
G.V.W. 7.0-7.5TON(RPX) 		8-97192-215-0 02 1 0612- ● ●
36 04.685 PIPE; OIL,RR BRK
G.V.W. 6.0-6.5TON(RPV) 		8-94154-916-0 02 1 0612- ● ●
36 04.685 PIPE; OIL,RR BRK
G.V.W. 8.0-8.5TON(RPZ) 		8-97079-847-0 02 1 0612- ●
36 04.685 PIPE; OIL,RR BRK 8-97079-847-0 02 1 0612- ●
94 04.665 CYLINDER; WHEEL,RR BRK 8-97139-825-0 02 1 0612- ●
94 04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 7.0-7.5TON(RPX) 		8-97139-825-0 02 1 0612- ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
FRONT 		8-97139-822-0 01 1 0612- ●
94 04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 7.0-7.5TON(RPX) FRONT 		8-97139-822-0 01 1 0612- ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
REAR 		8-97139-824-0 01 1 0612- ●
94 04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 7.0-7.5TON(RPX) REAR 		8-97139-824-0 01 1 0612- ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 6.0-6.5TON(RPV) 		8-97179-352-0 02 1 0612- ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 6.0-6.5TON(RPV) FRONT 		8-97179-350-0 01 1 0612- ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 6.0-6.5TON(RPV) REAR 		8-97179-351-0 01 1 0612- ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 8.0-8.5TON(RPZ) 		8-97353-570-0 02 1 0612- ●
94 04.665 CYLINDER; WHEEL,RR BRK 8-97353-570-0 02 1 0612- ●
94 04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 8.0-8.5TON(RPZ) REAR 		8-97353-571-0 01 1 0612- ●
94 04.665 CYLINDER; WHEEL,RR BRK
REAR 		8-97353-571-0 01 1 0612- ●
94 04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 8.0-8.5TON(RPZ) FRONT 		8-97353-572-0 01 1 0612- ●
94 04.665 CYLINDER; WHEEL,RR BRK
FRONT 		8-97353-572-0 01 1 0612- ●
95 04.665 CUP SET; RR WHEEL CYL 5-87831-598-0 02 1 0612- ●
95 04.665 CUP SET; RR WHEEL CYL
G.V.W. 7.0-7.5TON(RPX) 		5-87831-598-0 02 1 0612- ● ●
95 04.665 CUP SET; RR WHEEL CYL
G.V.W. 6.0-6.5TON(RPV) 		5-87831-621-0 01 1 0612- ● ●
95 04.665 CUP SET; RR WHEEL CYL
G.V.W. 8.0-8.5TON(RPZ) 		5-87832-080-0 02 1 0612- ●
95 04.665 CUP SET; RR WHEEL CYL 5-87832-080-0 02 1 0612- ●
96 04.666 SCREW; BLEEDER,RR BRK
G.V.W. 8.0-8.5TON(RPZ) 		8-98050-477-0 01 1 0711- ●
96 04.666 SCREW; BLEEDER,RR BRK 8-98050-477-0 01 1 0711- ●
96 04.666 SCREW; BLEEDER,RR BRK 9-47615-027-0 01 1 0612-0710 ● ● ● ●
96 04.666 SCREW; BLEEDER,RR BRK 9-47615-027-0 01 1 0711-0711 ● ●
96 04.666 SCREW; BLEEDER,RR BRK
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) 		9-47615-027-0 01 1 0711-0711 ●
96 04.666 SCREW; BLEEDER,RR BRK 8-98050-476-0 01 1 0712- ● ●
96 04.666 SCREW; BLEEDER,RR BRK
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) 		8-98050-476-0 01 1 0712- ●
97 04.666 CAP; BLEEDER,RR WHEEL CYL
G.V.W. 8.0-8.5TON(RPZ) 		8-98050-479-0 01 1 0711-0711 ●
97 04.666 CAP; BLEEDER,RR WHEEL CYL 8-98050-479-0 01 1 0711-0711 ●
97 04.666 CAP; BLEEDER,RR WHEEL CYL 8-98050-479-0 01 1 0712- ● ● ● ●
97 04.666 CAP; BLEEDER,RR WHEEL CYL 1-47619-009-0 01 1 0612-0710 ● ● ● ●
97 04.666 CAP; BLEEDER,RR WHEEL CYL 1-47619-009-0 01 1 0711-0711 ● ●
97 04.666 CAP; BLEEDER,RR WHEEL CYL
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) 		1-47619-009-0 01 1 0711-0711 ●
99 04.668 PISTON; RR WHEEL CYL 8-94414-700-1 04 1 0612- ●
99 04.668 PISTON; RR WHEEL CYL
G.V.W. 7.0-7.5TON(RPX) 		8-94414-700-1 04 1 0612- ● ●
99 04.668 PISTON; RR WHEEL CYL
G.V.W. 6.0-6.5TON(RPV) 		8-97078-622-0 03 1 0612- ● ●
99 04.668 PISTON; RR WHEEL CYL
G.V.W. 8.0-8.5TON(RPZ) 		8-97353-579-0 03 1 0612- ●
99 04.668 PISTON; RR WHEEL CYL 8-97353-579-0 03 1 0612- ●
101 04.666 SCREW; ADJ,RR WHEEL CYL 8-94414-702-0 04 1 0612- ● ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) 		8-94414-702-0 04 1 0612- ● ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
G.V.W. 6.0-6.5TON(RPV) 05.110 		8-97078-623-0 04 1 0612- ● ●
102 04.668 PISTON; REAR WHEEL CYL
(B) D=30.16 		8-94414-701-1 04 1 0612-0810 ●
102 04.668 PISTON; REAR WHEEL CYL
G.V.W. 7.0-7.5TON(RPX) (B) D=30.16 		8-94414-701-1 04 1 0612-0810 ● ●
102 04.668 PISTON; REAR WHEEL CYL
(B) 		8-97078-045-0 04 1 0811- ●
102 04.668 PISTON; REAR WHEEL CYL
G.V.W. 7.0-7.5TON(RPX) (B) 		8-97078-045-0 04 1 0811- ● ●
102 04.668 PISTON; REAR WHEEL CYL
G.V.W. 6.0-6.5TON(RPV) (B) D=25.4 		8-94128-531-1 04 1 0612- ● ●
102 04.668 PISTON; REAR WHEEL CYL
G.V.W. 6.0-6.5TON(RPV) (A) 		8-97078-622-0 01 1 0612- ● ●
102 04.668 PISTON; REAR WHEEL CYL
G.V.W. 8.0-8.5TON(RPZ) (B) 		8-97353-578-0 04 1 0612- ●
102 04.668 PISTON; REAR WHEEL CYL
(B) 		8-97353-578-0 04 1 0612- ●
102 04.668 PISTON; REAR WHEEL CYL
G.V.W. 8.0-8.5TON(RPZ) (A) 		8-97353-579-0 01 1 0612- ●
102 04.668 PISTON; REAR WHEEL CYL
(A) 		8-97353-579-0 01 1 0612- ●
103 05.107 SPRING; LK,RR WHEEL CYL,ADJ 8-94128-486-0 04 1 0612- ● ● ● ●
110 05.107 SCREW; LOCK SPRING,RR WHEEL CYL 8-94128-727-0 04 1 0612- ● ● ● ●
124 05.017 SHOE ASM; BRK,RR 8-97201-061-0 04 1 0612- ●
124 05.017 SHOE ASM; BRK,RR
G.V.W. 7.0-7.5TON(RPX) 		8-97201-061-0 04 1 0612- ● ●
124 05.017 SHOE ASM; BRK,RR
G.V.W. 6.0-6.5TON(RPV) 		8-97287-778-0 04 1 0612- ● ●
124 05.017 SHOE ASM; BRK,RR
G.V.W. 8.0-8.5TON(RPZ) 		8-97188-455-0 04 1 0612- ●
124 05.017 SHOE ASM; BRK,RR 8-97188-455-0 04 1 0612- ●
136 05.002 GROMMET 8-97044-742-1 04 1 0612- ● ●
136 05.002 GROMMET
G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) 		8-97044-742-1 04 1 0612- ● ●
136 05.002 GROMMET
G.V.W. 6.0-6.5TON(RPV) 		9-09756-034-0 04 1 0612- ● ●
217 05.018 LINING KIT; RR BRK 5-87831-774-0 01 1 0612- ●
217 05.018 LINING KIT; RR BRK
G.V.W. 7.0-7.5TON(RPX) 		5-87831-774-0 01 1 0612- ● ●
217 05.018 LINING KIT; RR BRK
G.V.W. 6.0-6.5TON(RPV) 		5-87831-801-0 01 1 0612- ● ●
217 05.018 LINING KIT; RR BRK
G.V.W. 8.0-8.5TON(RPZ) 		5-87831-692-0 01 1 0612- ●
217 05.018 LINING KIT; RR BRK 5-87831-692-0 01 1 0612- ●
218 05.017 SHOE KIT; BRK,RR 5-87831-775-0 01 1 0612- ●
218 05.017 SHOE KIT; BRK,RR
G.V.W. 7.0-7.5TON(RPX) 		5-87831-775-0 01 1 0612- ● ●
218 05.017 SHOE KIT; BRK,RR
G.V.W. 6.0-6.5TON(RPV) 		5-87832-047-0 01 1 0612- ● ●
218 05.017 SHOE KIT; BRK,RR
G.V.W. 8.0-8.5TON(RPZ) 		5-87831-693-0 01 1 0612- ●
218 05.017 SHOE KIT; BRK,RR 5-87831-693-0 01 1 0612- ●
