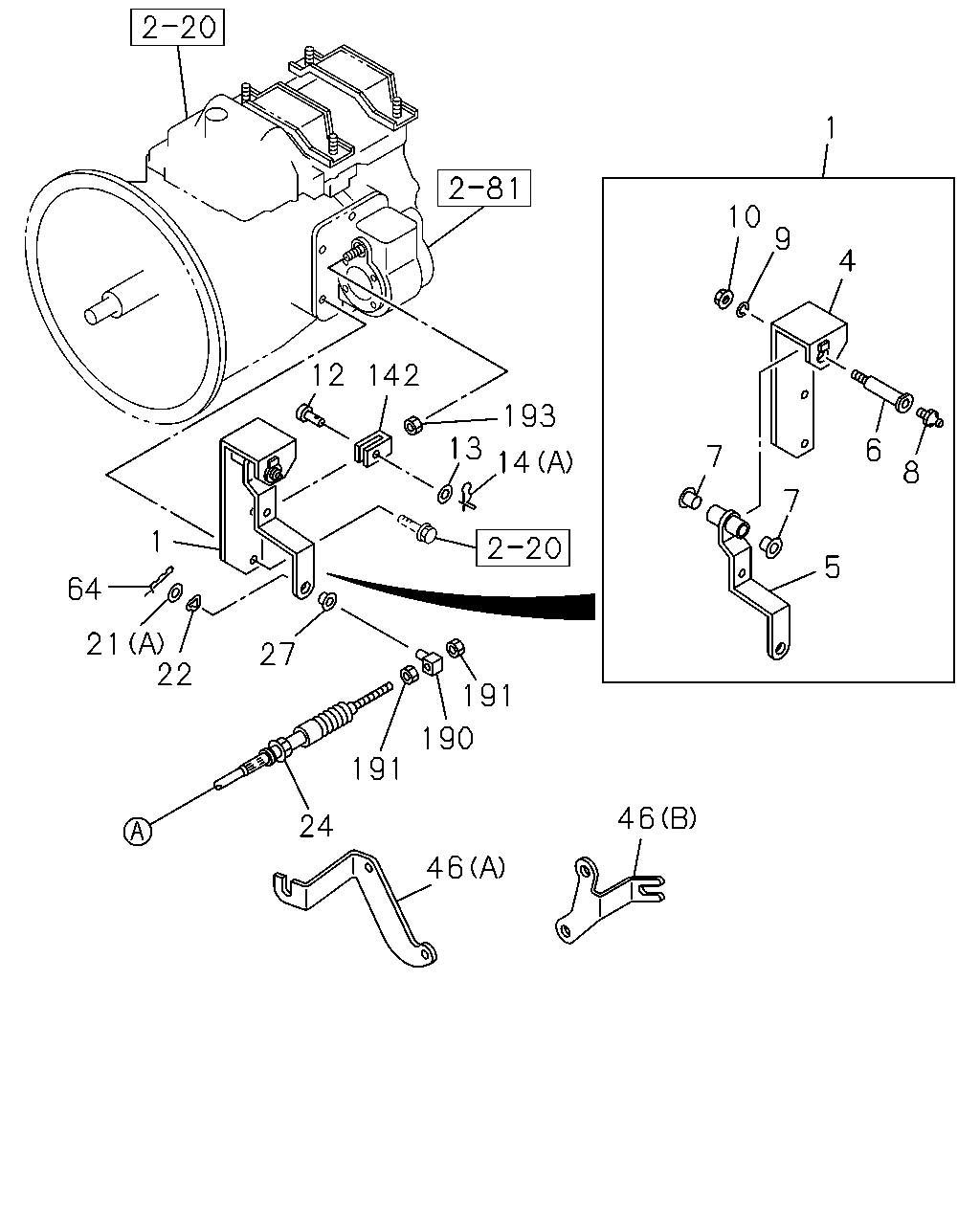

2-85 — POWER TAKE OFF CONTROL (#32524) — 92 parça

1 10 9 4 12 142 193 13 6 7 14 8 7 1 5 64 21 22 27 191 190 191 46 24 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.439 LEVER ASM; PTO & DUMP CONT 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97310-741-0	01	1	0612-	●
1	04.439 LEVER ASM; PTO & DUMP CONT 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97357-219-0	01	1	0612-	●
4	04.439 BRACKET; PTO CONT 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66)	8-97310-740-0	01	1	0612-	●
5	04.439 LEVER; PTO SHIFT CONT 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97310-747-0	01	1	0612-	●
5	04.439 LEVER; PTO SHIFT CONT 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97357-218-0	01	1	0612-	●
6	04.439 SHAFT; PTO CONT 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66)	8-97204-596-0	01	1	0612-	●
7	04.439 BUSHING; LEVER,PTO 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66)	5-33659-053-0	02	1	0612-	●
8	04.439 NIPPLE; GREASE 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66) 05.601 M6 STRAIGHT	0-90301-406-0	01	1	0612-	●
9	04.439 WASHER; LK,SHAFT,PTO 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66) ID=8.2	0-91510-508-0	01	1	0612-	●
10	04.439 NUT; SHAFT,PTO 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66) 02.334 M8	0-91110-508-0	01	1	0612-	●
12	04.439 JOINT; PIN,YOKE 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66)	8-98031-692-0	01	1	0612-	●
13	04.439 WASHER; PL,YOKE 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66) ID=12.5 OD=22	0-91610-512-0	01	1	0612-	●
14	04.439 PIN; SPLIT,YOKE PTO TRANSMISSION SIDE(V66) (B) OD=2.8 L=18	0-81123-018-0	01	1	0612-		●
14	04.439 PIN; SPLIT,YOKE 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66) 09.003 (A)	1-09987-158-1	01	1	0612-0805	●
14	04.439 PIN; SPLIT,YOKE 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66) (A)	8-97581-216-0	01	1	0806-	●
21	04.439 WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE(V66) 04.595 (B) ID=8.4 OD=22	0-91610-708-0	01	1	0612-	●	●
21	04.439 WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE(V66) 02.277 (A) ID=8.4 OD=22	0-91614-708-0	01	1	0612-	●
22	04.439 WASHER; LK,LEVER PTO TRANSMISSION SIDE(V66) 04.037 ID=8.5 T=0.3	5-09509-001-0	01	1	0612-	●
24	04.439 CABLE; PTO CONT PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) L=3118	8-98042-532-0	01	1	0612-0707		●
24	04.439 CABLE; PTO CONT PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) L=3318	8-98083-643-0	01	1	0708-		●
24	04.439 CABLE; PTO CONT PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) L=3192	8-98042-533-0	01	1	0612-0707		●
24	04.439 CABLE; PTO CONT PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) L=3392	8-98083-644-0	01	1	0708-		●
24	04.439 CABLE; PTO CONT PTO TRANSMISSION SIDE(V66) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) L=2907	8-98020-123-1	01	1	0612-	●	●
24	04.439 CABLE; PTO CONT PTO TRANSMISSION SIDE(V66) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> L=2981	8-98042-526-1	01	1	0612-	●	●
24	04.439 CABLE; PTO CONT PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) L=3131	8-97376-882-1	01	1	0612-	●
24	04.439 CABLE; PTO CONT PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=3057	8-97352-390-1	01	1	0612-	●
27	04.439 BUSHING; LEVER,PTO PTO TRANSMISSION SIDE(V66) 04.042	8-94367-367-0	01	1	0612-	●
46	04.439 BRACKET; PTO,TRANS SIDE PTO TRANSMISSION SIDE(V66) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97366-039-0	01	1	0612-	●
46	04.439 BRACKET; PTO,TRANS SIDE PTO TRANSMISSION SIDE(V66) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97357-083-0	01	1	0612-	●
64	04.439 PIN; SNAP,CONT CABLE JOINT PTO TRANSMISSION SIDE(V66) 00.833 L=27.7	8-94111-137-0	01	1	0612-	●
142	04.439 CLEVIS; CONT BOX 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66)	8-97327-588-0	01	1	0612-	●
190	04.439 BOSS; LEVER,PTO PTO TRANSMISSION SIDE(V66) 04.307	8-94366-842-2	01	1	0612-	●
191	04.439 NUT; BOSS PTO TRANSMISSION SIDE(V66) 03.330 M6	0-91110-506-0	02	1	0612-	●
193	04.439 NUT 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66) M12	0-91111-512-0	01	1	0612-	●

24 173 172 172 195 173 195 172 173 195 172 195

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	04.439 CABLE; PTO CONT PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) L=3118	8-98042-532-0	01	1	0612-0707		●
24	04.439 CABLE; PTO CONT PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) L=3318	8-98083-643-0	01	1	0708-		●
24	04.439 CABLE; PTO CONT PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) L=3192	8-98042-533-0	01	1	0612-0707		●
24	04.439 CABLE; PTO CONT PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) L=3392	8-98083-644-0	01	1	0708-		●
24	04.439 CABLE; PTO CONT PTO TRANSMISSION SIDE(V66) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) L=2907	8-98020-123-1	01	1	0612-	●	●
24	04.439 CABLE; PTO CONT PTO TRANSMISSION SIDE(V66) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> L=2981	8-98042-526-1	01	1	0612-	●	●
24	04.439 CABLE; PTO CONT PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) L=3131	8-97376-882-1	01	1	0612-	●
24	04.439 CABLE; PTO CONT PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=3057	8-97352-390-1	01	1	0612-	●
172	04.439 BOLT; BRKT PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE	0-28651-030-0	01	1	0612-		●
172	04.439 BOLT; BRKT PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0612-	●	●
172	04.439 BOLT; BRKT PTO TRANSMISSION SIDE(V66) EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0612-	●	●
173	04.439 NUT; BRKT PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE	0-91180-110-0	01	1	0612-		●
173	04.439 NUT; BRKT PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0612-	●	●
173	04.439 NUT; BRKT PTO TRANSMISSION SIDE(V66) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	02	1	0612-	●	●
195	04.439 BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> (C)	8-98041-567-0	01	1	0612-0707		●
195	04.439 BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> (C)	8-98082-228-0	01	1	0708-		●
195	04.439 BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> (D)	8-97229-563-0	01	1	0612-	●	●
195	04.439 BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97079-559-2	01	1	0612-	●	●
195	04.439 BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98055-663-0	01	1	0612-	●	●
195	04.439 BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98055-664-0	01	1	0612-	●	●

70 7 10 15 71 213 79 245 256 79 121 18 19 83 16 21 222 256 192 24 31 14 155

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
7	04.439 BUSHING; LEVER,PTO 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66)	5-33659-053-0	02	1	0612-	●
10	04.439 NUT; SHAFT,PTO 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66) 02.334 M8	0-91110-508-0	01	1	0612-	●
14	04.439 PIN; SPLIT,YOKE PTO TRANSMISSION SIDE(V66) (B) OD=2.8 L=18	0-81123-018-0	01	1	0612-		●
14	04.439 PIN; SPLIT,YOKE 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66) 09.003 (A)	1-09987-158-1	01	1	0612-0805	●
14	04.439 PIN; SPLIT,YOKE 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66) (A)	8-97581-216-0	01	1	0806-	●
15	04.439 LEVER ASM; PTO CONT PTO TRANSMISSION SIDE(V66)	8-97143-217-1	01	1	0612-0701	●	●
15	04.439 LEVER ASM; PTO CONT PTO TRANSMISSION SIDE(V66)	8-98074-716-1	01	1	0702-	●	●
16	04.439 CLIP; CABLE,PTO PTO TRANSMISSION SIDE(V66) 04.027	8-94152-900-0	01	1	0612-	●	●
18	04.439 PIN; SNAP,PTO CABLE PTO TRANSMISSION SIDE(V66) 00.833 L=27.7	8-94111-137-0	01	1	0612-	●	●
19	04.439 WASHER; PL,PTO CABLE PTO TRANSMISSION SIDE(V66) 03.417 ID=8.4 OD=16	0-91610-508-0	01	1	0612-	●	●
21	04.439 WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE(V66) 04.595 (B) ID=8.4 OD=22	0-91610-708-0	01	1	0612-	●	●
21	04.439 WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE(V66) 02.277 (A) ID=8.4 OD=22	0-91614-708-0	01	1	0612-	●
24	04.439 CABLE; PTO CONT PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) L=3118	8-98042-532-0	01	1	0612-0707		●
24	04.439 CABLE; PTO CONT PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) L=3318	8-98083-643-0	01	1	0708-		●
24	04.439 CABLE; PTO CONT PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) L=3192	8-98042-533-0	01	1	0612-0707		●
24	04.439 CABLE; PTO CONT PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) L=3392	8-98083-644-0	01	1	0708-		●
24	04.439 CABLE; PTO CONT PTO TRANSMISSION SIDE(V66) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) L=2907	8-98020-123-1	01	1	0612-	●	●
24	04.439 CABLE; PTO CONT PTO TRANSMISSION SIDE(V66) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> L=2981	8-98042-526-1	01	1	0612-	●	●
24	04.439 CABLE; PTO CONT PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) L=3131	8-97376-882-1	01	1	0612-	●
24	04.439 CABLE; PTO CONT PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=3057	8-97352-390-1	01	1	0612-	●
31	04.439 CLIP; BAND,CABLE PTO TRANSMISSION SIDE(V66) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 L=300	1-09707-001-1	01	1	0612-	●	●
31	04.439 CLIP; BAND,CABLE PTO TRANSMISSION SIDE(V66) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 L=250	5-09707-030-1	01	1	0612-	●	●
31	04.439 CLIP; BAND,CABLE 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> 02.559 L=250	5-09707-030-1	01	1	0612-	●	●
70	04.439 KNOB; DUMP CONT PTO TRANSMISSION SIDE(V66)	8-94147-332-1	01	1	0612-	●	●
71	04.439 LEVER; PTO CONT PTO TRANSMISSION SIDE(V66)	8-97143-218-0	01	1	0612-0701	●	●
71	04.439 LEVER; PTO CONT PTO TRANSMISSION SIDE(V66)	8-98074-838-0	01	1	0702-	●	●
79	04.439 BUSHING; CONT LEVER PTO TRANSMISSION SIDE(V66) 04.792	8-94238-596-0	02	1	0612-	●	●
83	04.439 BRACKET; CONT LEVER PTO TRANSMISSION SIDE(V66)	8-97118-977-0	01	1	0612-0701	●	●
83	04.439 BRACKET; CONT LEVER PTO TRANSMISSION SIDE(V66)	8-98074-837-0	01	1	0702-	●	●
121	04.439 RING; SNAP PTO TRANSMISSION SIDE(V66) 04.008 ID=10	0-91805-510-0	01	1	0612-	●	●
155	04.439 CLIP; CABLE 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66) TRANSMISSION CONTROL-SMOOTHER(8GF) 01.240 T=5.5	5-09709-047-0	01	1	0612-	●
192	04.439 BOLT; PTO BRKT PTO TRANSMISSION SIDE(V66) 02.343 M6X16 FLANGE	0-28650-616-0	01	1	0612-0702	●	●
213	04.439 SWITCH; PTO CONT PTO TRANSMISSION SIDE(V66)	8-97370-568-0	01	1	0702-0702	●	●
213	04.439 SWITCH; PTO CONT PTO TRANSMISSION SIDE(V66)	8-98079-770-0	01	1	0703-	●	●
222	04.439 BOLT; LEVER PTO TRANSMISSION SIDE(V66) 00.662 M8X14 FLANGE	0-28080-814-0	02	1	0612-	●	●
245	04.439 SCREW; COVER,CONT LEVER BRKT PTO TRANSMISSION SIDE(V66) 02.559 M4X10 W/LK&PL WASHER	0-36230-410-0	01	1	0612-	●	●
256	04.439 PLATE; LOCK PTO TRANSMISSION SIDE(V66) (B)	8-97118-983-0	01	1	0612-0702	●	●
256	04.439 PLATE; LOCK PTO TRANSMISSION SIDE(V66) (A)	8-97142-947-0	01	1	0612-	●	●
