◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51103 - NPR/NQR(LHD) EURO4 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-42 - AUTO TRANS OIL PAN AND OIL CONTROL ▶
2-42 — AUTO TRANS OIL PAN AND OIL CONTROL (#32520) — 7 parça

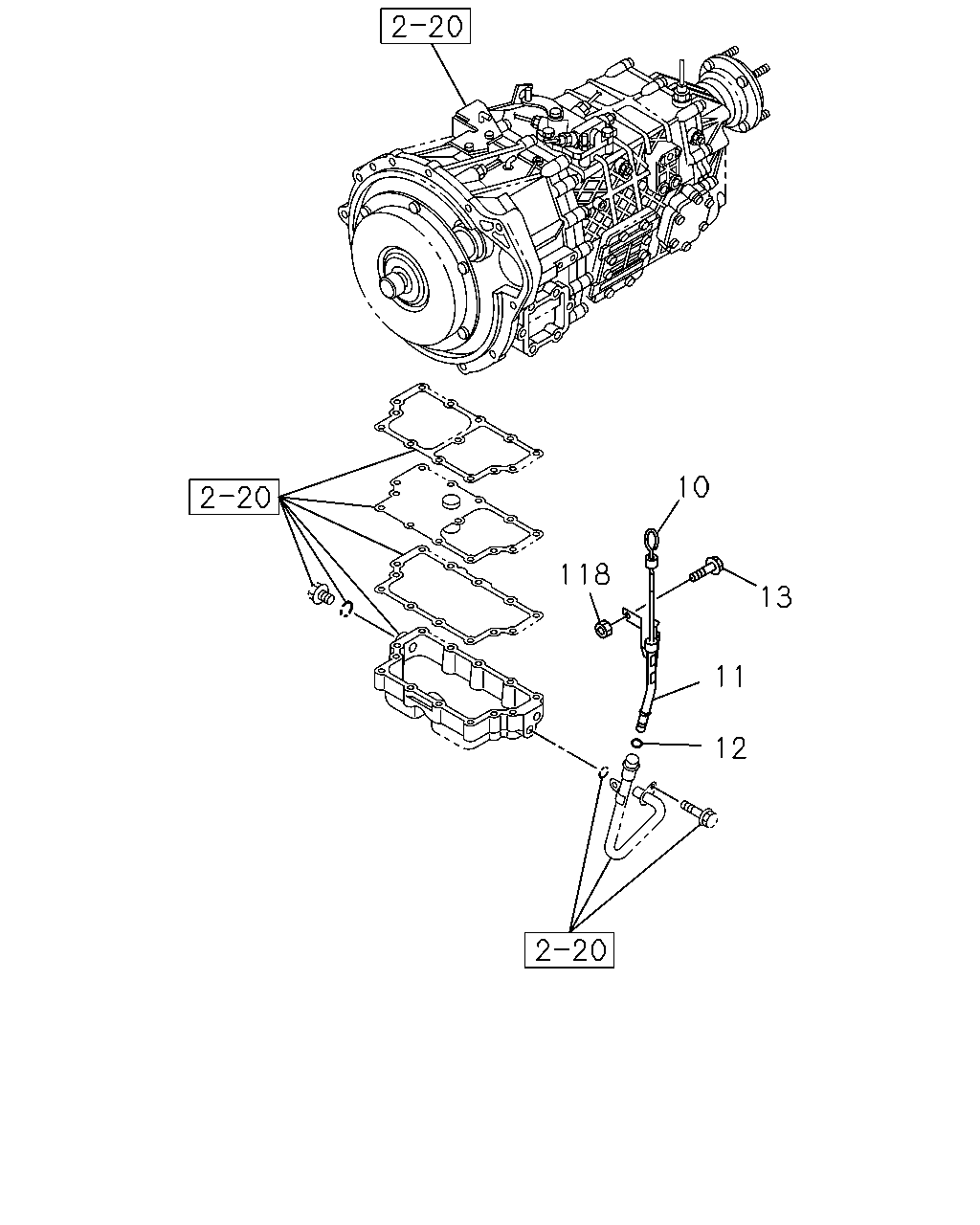

çizim 12822
10 118 13 11 12
BalonParca AdiParca NoAdetTipApplied Date A B
10 04.197 GAUGE; OIL LEVEL
4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97349-446-0 01 1 0612- ● ●
10 04.197 GAUGE; OIL LEVEL
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98028-128-0 01 1 0612- ● ●
11 04.197 TUBE; OIL FILLER
4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97367-638-1 01 1 0612- ● ●
11 04.197 TUBE; OIL FILLER
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98028-182-0 01 1 0612- ● ●
12 04.197 GASKET; OIL FILLER TUBE TO A/T
TRANSMISSION CONTROL-SMOOTHER(8GF) ID=12.3 		8-97313-558-0 01 1 0612- ● ●
13 04.197 BOLT; OIL FILLER
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) 02.343 M10X12 FLANGE 		0-28151-012-0 01 1 0612- ● ●
118 04.197 NUT; OIL FILLER TUBE
4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 M10 FLANGE 		0-91180-110-0 01 1 0612- ● ●
