2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#32518) — 78 parça

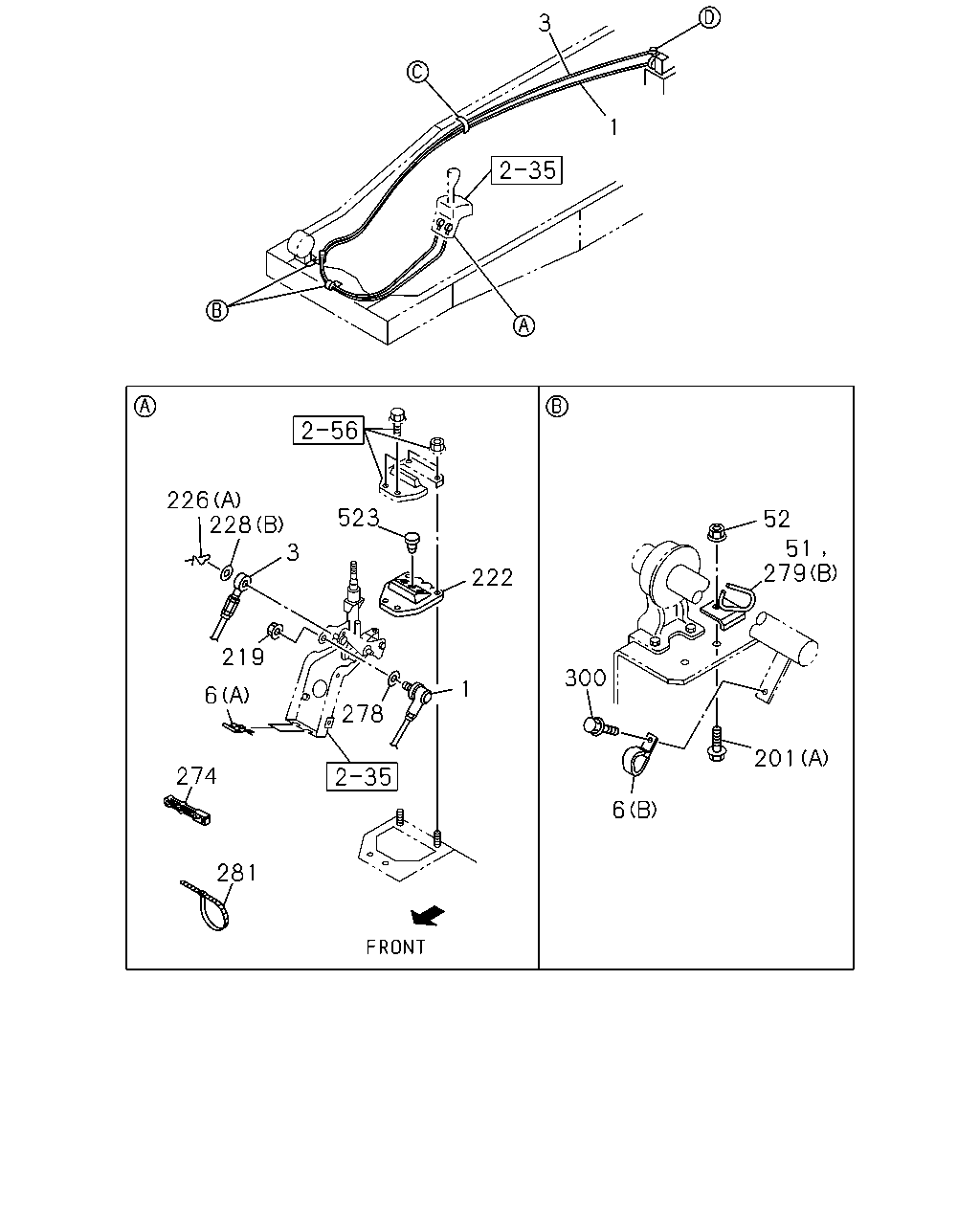

3 1 226 228 3 523 52 51 279 222 219 300 1 6 278 201 274 6 281

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	00.854 CABLE; SHIFT,TRANS CONT 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=3156	8-97388-723-0	01	1	0612-0911	●
1	00.854 CABLE; SHIFT,TRANS CONT 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=3156	8-98146-855-1	01	1	0912-	●
1	00.854 CABLE; SHIFT,TRANS CONT 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=3130	8-98007-945-0	01	1	0612-1003		●
1	00.854 CABLE; SHIFT,TRANS CONT 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=3130	8-98147-953-0	01	1	1004-		●
1	00.854 CABLE; SHIFT,TRANS CONT 4JJ1 ENG(LFB) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) L=3050	8-97388-719-1	01	1	0612-0911		●
1	00.854 CABLE; SHIFT,TRANS CONT 4JJ1 ENG(LFB) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) L=3050	8-98147-948-0	01	1	0912-		●
3	00.852 CABLE; SELECT,TRANS CONT 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=3264	8-97388-732-0	01	1	0612-	●
3	00.852 CABLE; SELECT,TRANS CONT 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=3232	8-98007-955-0	01	1	0612-		●
3	00.852 CABLE; SELECT,TRANS CONT 4JJ1 ENG(LFB) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) L=3120	8-97388-728-1	01	1	0612-		●
6	04.047 CLIP; CABLE FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98023-697-0	01	1	0612-	●	●
6	04.047 CLIP; CABLE FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-97036-332-1	01	1	0612-	●	●
6	04.047 CLIP; CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 00.854 (F) ID=22.2	1-09701-209-1	01	1	0612-	●	●
6	04.047 CLIP; CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97011-448-0	02	1	0612-	●	●
6	04.047 CLIP; CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97036-333-1	01	1	0612-	●	●
6	04.047 CLIP; CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (E) ID=19.2	8-97211-011-0	01	1	0612-	●	●
51	04.010 BRACKET; GEAR CONT FRAME STRAIGHT TYPE<7KJ> EXC. MANUAL TILT CAB<RWZ>	8-97214-437-0	01	1	0612-	●	●
52	04.047 NUT; BRKT FRAME STRAIGHT TYPE<7KJ> EXC. MANUAL TILT CAB<RWZ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0612-	●	●
52	04.047 NUT; BRKT EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0612-	●	●
52	04.047 NUT; BRKT MANUAL TILT CAB<RWZ> FRAME STRAIGHT TYPE<7KJ> 04.085 M10 FLANGE	0-91180-210-0	01	1	0612-	●	●
201	04.032 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> EXC. MANUAL TILT CAB<RWZ> 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	0612-	●	●
201	04.032 BOLT; BRKT EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	0612-	●	●
201	04.032 BOLT; BRKT EXC. FRAME STRAIGHT TYPE<7KJ> 00.029 (C) M10X30 FLANGE	0-28651-030-0	01	1	0612-	●	●
201	04.032 BOLT; BRKT MANUAL TILT CAB<RWZ> FRAME STRAIGHT TYPE<7KJ> 00.029 (A) M10X25 FLANGE	0-28651-025-0	01	1	0612-	●	●
219	04.047 NUT; FLANGE,SHAFT CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.037 M8 T=8.0	8-94363-045-0	01	1	0612-	●	●
222	04.010 GROMMET; CABLE	8-97091-890-0	01	1	0612-	●	●
226	04.047 PIN; SHIFT CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 00.833 (A) L=27.7	8-94111-137-0	01	1	0612-	●	●
226	04.047 PIN; SHIFT CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=23	8-94170-378-0	01	1	0612-	●	●
228	04.047 WASHER; PL,SHIFT CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 06.056 (B) ID=8.4 OD=16	0-91614-508-0	01	1	0612-	●	●
228	04.047 WASHER; PL,SHIFT CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=8.2 OD=40	8-97182-975-0	02	1	0612-	●	●
274	04.008 CLIP; CONT CABLE FLOOR REMOTE SHIFT<M11> EXC. MANUAL TILT CAB<RWZ>,TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97093-491-1	01	1	0612-	●	●
278	00.854 WASHER; LK,SHIFT WIRE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=8.4 TOOTH LK INT	0-91541-208-0	01	1	0612-	●	●
279	04.047 BRACKET; CABLE TO FRAME EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-98037-157-0	01	1	0612-	●	●
279	04.047 BRACKET; CABLE TO FRAME EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98046-238-0	01	1	0612-	●	●
279	04.047 BRACKET; CABLE TO FRAME 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> (B)	8-98004-932-0	01	1	0612-	●	●
279	04.047 BRACKET; CABLE TO FRAME 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> (A)	8-98035-880-0	01	1	0612-	●	●
281	04.042 CLIP; BAND 02.559 L=250	5-09707-030-1	01	1	0612-	●	●
300	00.854 BOLT; CLIP FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0612-	●	●
300	00.854 BOLT; CLIP EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0612-	●	●
523	04.010 CAP; GROMMET TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97371-108-0	02	1	0612-	●	●

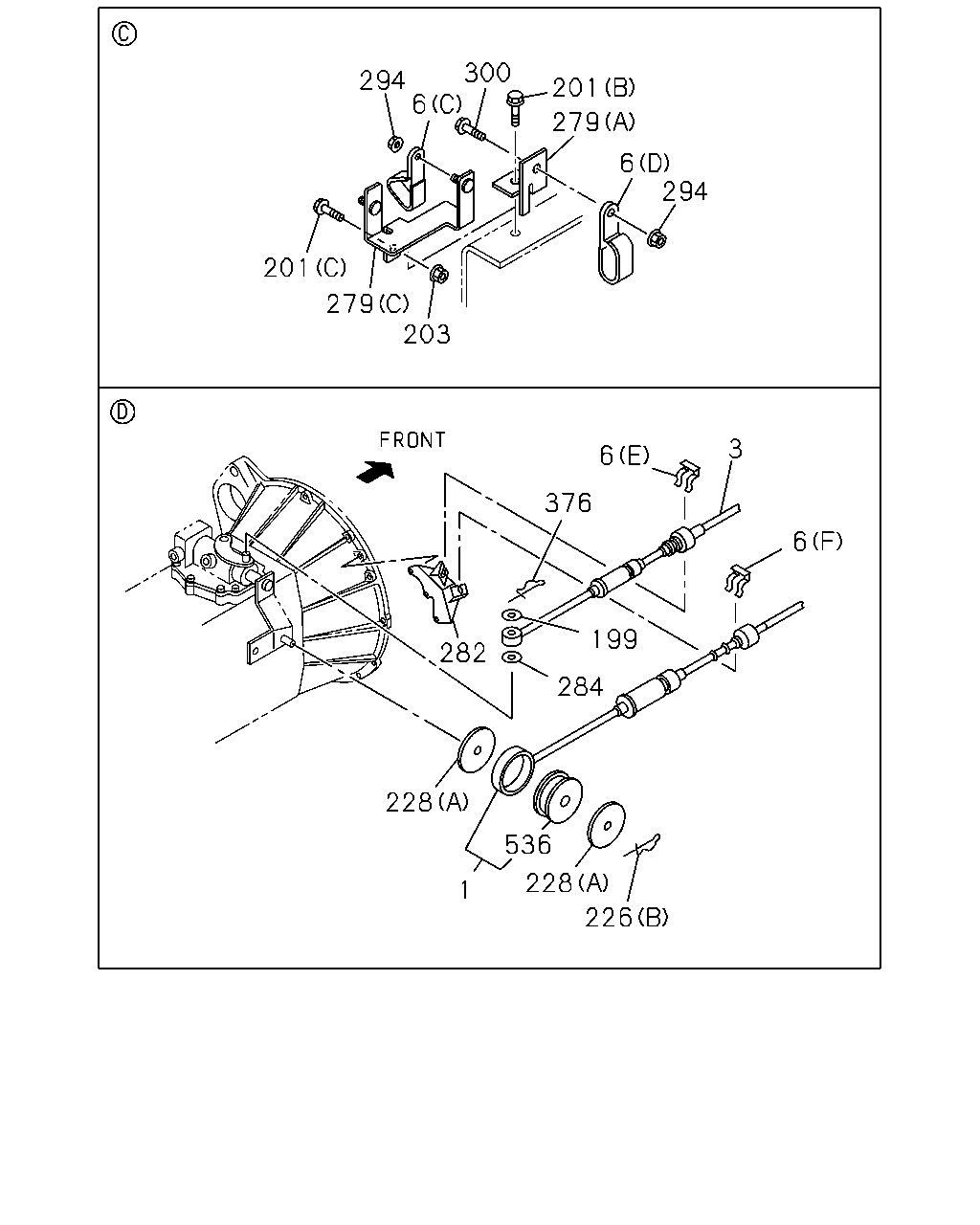

300 294 6 201 279 6 294 201 279 203 3 6 376 6 199 282 284 228 536 228 1 226

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	00.854 CABLE; SHIFT,TRANS CONT 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=3156	8-97388-723-0	01	1	0612-0911	●
1	00.854 CABLE; SHIFT,TRANS CONT 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=3156	8-98146-855-1	01	1	0912-	●
1	00.854 CABLE; SHIFT,TRANS CONT 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=3130	8-98007-945-0	01	1	0612-1003		●
1	00.854 CABLE; SHIFT,TRANS CONT 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=3130	8-98147-953-0	01	1	1004-		●
1	00.854 CABLE; SHIFT,TRANS CONT 4JJ1 ENG(LFB) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) L=3050	8-97388-719-1	01	1	0612-0911		●
1	00.854 CABLE; SHIFT,TRANS CONT 4JJ1 ENG(LFB) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) L=3050	8-98147-948-0	01	1	0912-		●
3	00.852 CABLE; SELECT,TRANS CONT 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=3264	8-97388-732-0	01	1	0612-	●
3	00.852 CABLE; SELECT,TRANS CONT 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=3232	8-98007-955-0	01	1	0612-		●
3	00.852 CABLE; SELECT,TRANS CONT 4JJ1 ENG(LFB) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) L=3120	8-97388-728-1	01	1	0612-		●
6	04.047 CLIP; CABLE FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98023-697-0	01	1	0612-	●	●
6	04.047 CLIP; CABLE FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-97036-332-1	01	1	0612-	●	●
6	04.047 CLIP; CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 00.854 (F) ID=22.2	1-09701-209-1	01	1	0612-	●	●
6	04.047 CLIP; CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97011-448-0	02	1	0612-	●	●
6	04.047 CLIP; CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97036-333-1	01	1	0612-	●	●
6	04.047 CLIP; CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (E) ID=19.2	8-97211-011-0	01	1	0612-	●	●
199	04.012 WASHER; PL,SELECT EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.417 ID=8.4 OD=16	0-91610-508-0	01	1	0612-	●	●
201	04.032 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> EXC. MANUAL TILT CAB<RWZ> 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	0612-	●	●
201	04.032 BOLT; BRKT EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	0612-	●	●
201	04.032 BOLT; BRKT EXC. FRAME STRAIGHT TYPE<7KJ> 00.029 (C) M10X30 FLANGE	0-28651-030-0	01	1	0612-	●	●
201	04.032 BOLT; BRKT MANUAL TILT CAB<RWZ> FRAME STRAIGHT TYPE<7KJ> 00.029 (A) M10X25 FLANGE	0-28651-025-0	01	1	0612-	●	●
203	04.032 NUT; BRKT FIX EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE	0-91180-110-0	01	1	0612-	●	●
226	04.047 PIN; SHIFT CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 00.833 (A) L=27.7	8-94111-137-0	01	1	0612-	●	●
226	04.047 PIN; SHIFT CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=23	8-94170-378-0	01	1	0612-	●	●
228	04.047 WASHER; PL,SHIFT CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 06.056 (B) ID=8.4 OD=16	0-91614-508-0	01	1	0612-	●	●
228	04.047 WASHER; PL,SHIFT CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=8.2 OD=40	8-97182-975-0	02	1	0612-	●	●
279	04.047 BRACKET; CABLE TO FRAME EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-98037-157-0	01	1	0612-	●	●
279	04.047 BRACKET; CABLE TO FRAME EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98046-238-0	01	1	0612-	●	●
279	04.047 BRACKET; CABLE TO FRAME 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> (B)	8-98004-932-0	01	1	0612-	●	●
279	04.047 BRACKET; CABLE TO FRAME 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> (A)	8-98035-880-0	01	1	0612-	●	●
282	04.010 BRACKET; TRANS SIDE 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98032-396-1	01	1	0612-	●
282	04.010 BRACKET; TRANS SIDE 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98032-395-0	01	1	0612-		●
282	04.010 BRACKET; TRANS SIDE 4JJ1 ENG(LFB) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97350-449-0	01	1	0612-		●
284	00.854 WASHER; WAVE,SELECT CABLE,CAB EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=8.4 OD=14	5-09550-002-0	01	1	0612-	●	●
294	00.854 NUT; CLIP 01.062 M8 FLANGE	0-91180-108-0	01	1	0612-	●	●
300	00.854 BOLT; CLIP FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0612-	●	●
300	00.854 BOLT; CLIP EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0612-	●	●
376	04.047 PIN; SNAP,SELECT CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=23	8-94170-378-0	01	1	0612-	●	●
536	00.854 DAMPER; CABLE 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98097-681-0	01	1	0612-	●	●
536	00.854 DAMPER; CABLE 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98097-681-0	01	1	0612-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
