2-35 — MANUAL TRANSMISSION SHIFT CONTROL LEVER (#32517) — 47 parça

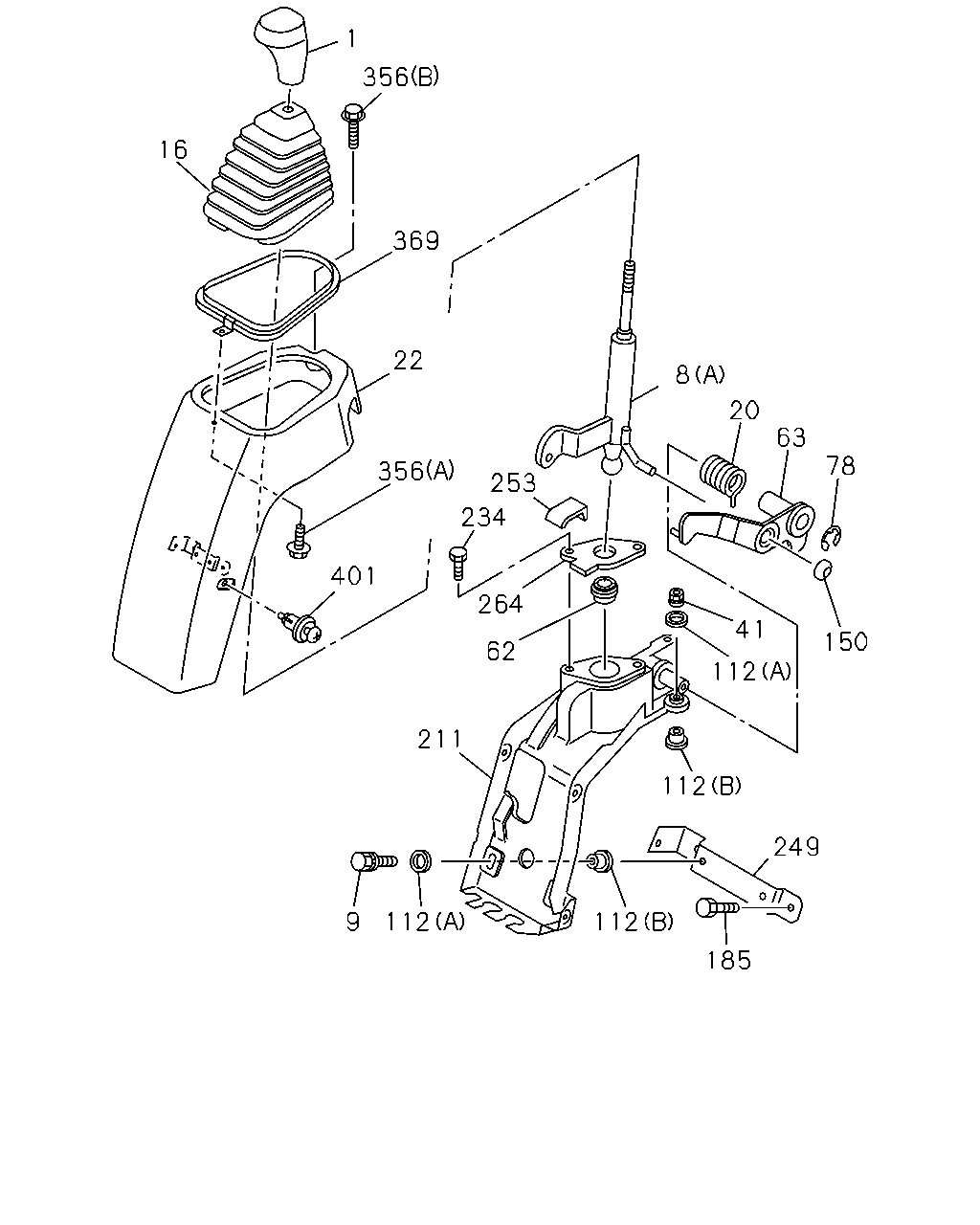

çizim 55680
1 356 16 369 22 8 20 63 253 78 356 234 401 264 41 150 62 112 211 112 249 9 112 112 185
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.006 KNOB; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER(8GF) DARK GRAY 		8-97398-495-2 01 1 0612- ● ●
1 04.006 KNOB; CHANGE LEVER
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) BLACK 		8-97196-287-1 01 1 0612- ● ●
8 04.006 LEVER; CHANGE
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) DARK GRAY 		8-97400-772-0 01 1 0612- ● ●
8 04.006 LEVER; CHANGE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97204-506-0 01 1 0612- ● ●
9 04.012 BOLT; CHANGE LEVER
FLOOR REMOTE SHIFT<M11> 07.633 M8X28 W/LK&PL WASHER 		8-94438-324-1 02 1 0612- ● ●
16 04.015 BOOT; CHANGE LEVER
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97066-287-2 01 1 0612- ● ●
20 04.012 SPRING; CHANGE LEVER
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97204-514-1 01 1 0612- ● ●
22 04.015 COVER; DUST,CHANGE LEVER
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) GRAY 		8-97585-447-3 01 1 0612- ● ●
41 04.012 NUT; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE 		0-91180-108-0 02 1 0612- ● ●
41 04.012 NUT; CHANGE LEVER
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.840 M8 W/DISHED WASHER 		8-97329-625-0 02 1 0612- ● ●
62 04.012 SEAT; BALL,CHANGE LEVER
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97011-895-1 01 1 0612- ● ●
63 04.006 LEVER; RELAY,SELECT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97163-768-0 01 1 0612- ● ●
78 04.008 RING; SNAP,CHANGE LEVER
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=10 		0-91805-510-0 01 1 0612- ● ●
112 04.012 RUBBER; CUSHION
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97091-426-0 04 1 0612- ● ●
112 04.012 RUBBER; CUSHION
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97091-427-0 04 1 0612- ● ●
150 04.008 BALL; DETENT,CONT LEVER
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97049-147-0 01 1 0612- ● ●
185 04.012 BOLT; BRKT,COVER
01.531 M8X20 FLANGE 		0-28650-820-0 02 1 0612- ● ●
211 04.010 BRACKET; CHANGE LEVER
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97204-505-1 01 1 0612- ● ●
234 04.010 BOLT; BRKT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M6X12 FLANGE 		1-33739-842-0 02 1 0612- ● ●
249 04.012 BRACKET; COVER 8-97091-820-3 01 1 0612- ● ●
253 04.012 STOPPER; CHANGE LEVER
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97204-510-0 01 1 0612- ● ●
264 04.015 PLATE; COVER
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97204-511-0 01 1 0612- ● ●
356 04.012 SCREW; COVER
(B) M6X12 		8-97094-854-0 01 1 0612-0612 ● ●
356 04.012 SCREW; COVER
16.650 (B) M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 01 1 0701- ● ●
356 04.012 SCREW; COVER
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 16.800 (A) M5X14 TAPPING W/PL WASHER 		0-74160-514-0 01 1 0612- ● ●
369 04.012 RETAINER; REINF
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97066-288-1 01 1 0612- ● ●
401 04.012 CLIP; COVER
GRAY 		8-97582-240-0 03 1 0612- ● ●

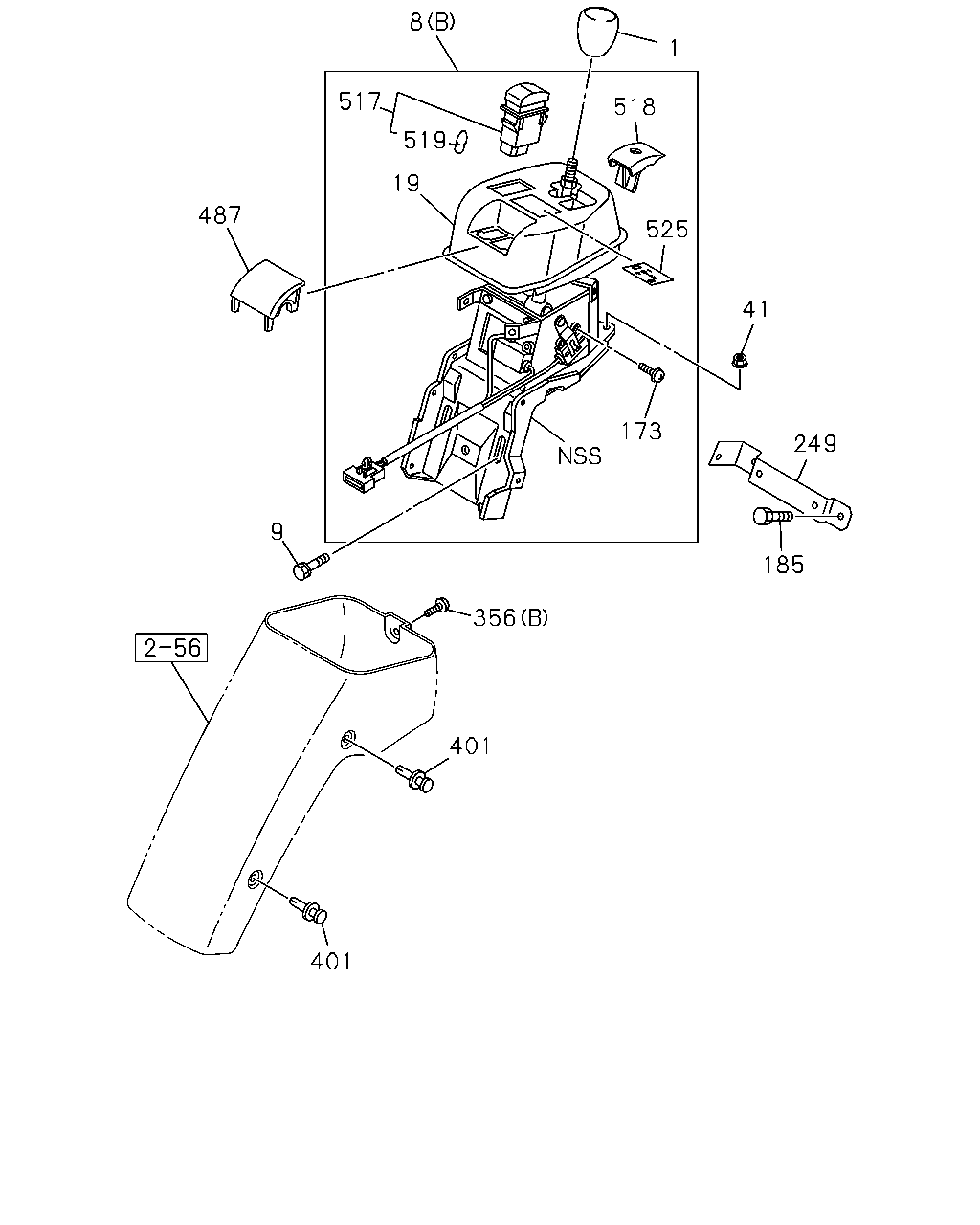

çizim 56500
8 1 517 518 519 19 487 525 41 173 249 9 185 356 401 401
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.006 KNOB; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER(8GF) DARK GRAY 		8-97398-495-2 01 1 0612- ● ●
1 04.006 KNOB; CHANGE LEVER
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) BLACK 		8-97196-287-1 01 1 0612- ● ●
8 04.006 LEVER; CHANGE
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) DARK GRAY 		8-97400-772-0 01 1 0612- ● ●
8 04.006 LEVER; CHANGE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97204-506-0 01 1 0612- ● ●
9 04.012 BOLT; CHANGE LEVER
FLOOR REMOTE SHIFT<M11> 07.633 M8X28 W/LK&PL WASHER 		8-94438-324-1 02 1 0612- ● ●
19 04.010 COVER; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER(8GF) DARK GRAY 		8-97397-324-1 01 1 0612- ● ●
41 04.012 NUT; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE 		0-91180-108-0 02 1 0612- ● ●
41 04.012 NUT; CHANGE LEVER
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.840 M8 W/DISHED WASHER 		8-97329-625-0 02 1 0612- ● ●
173 04.105 SCREW; COVER
TRANSMISSION CONTROL-SMOOTHER(8GF) 09.277 M5X10 W/PL WASHER 		9-03900-510-0 04 1 0612- ● ●
185 04.012 BOLT; BRKT,COVER
01.531 M8X20 FLANGE 		0-28650-820-0 02 1 0612- ● ●
249 04.012 BRACKET; COVER 8-97091-820-3 01 1 0612- ● ●
356 04.012 SCREW; COVER
(B) M6X12 		8-97094-854-0 01 1 0612-0612 ● ●
356 04.012 SCREW; COVER
16.650 (B) M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 01 1 0701- ● ●
356 04.012 SCREW; COVER
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 16.800 (A) M5X14 TAPPING W/PL WASHER 		0-74160-514-0 01 1 0612- ● ●
401 04.012 CLIP; COVER
GRAY 		8-97582-240-0 03 1 0612- ● ●
487 04.307 COVER; SWITCH
TRANSMISSION CONTROL-SMOOTHER(8GF) DARK GRAY 		8-97399-499-2 01 1 0612- ● ●
517 04.054 SWITCH; ECONOMY & 1ST
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97367-148-0 01 1 0612- ● ●
518 04.015 COVER; CHANGE LEVER INNER
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97373-100-0 01 1 0612- ● ●
519 04.010 BULB ASM
TRANSMISSION CONTROL-SMOOTHER(8GF) 08.991 28V 40MA 		8-97116-331-0 02 1 0612- ● ●
525 04.040 LABEL; SHIFT POSITION
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98056-775-0 01 1 0612- ● ●
