Sayfa 2-26 - Isuzu EPC

2-26 — MANUAL TRANSMISSION GEAR (#32515) — 319 parça

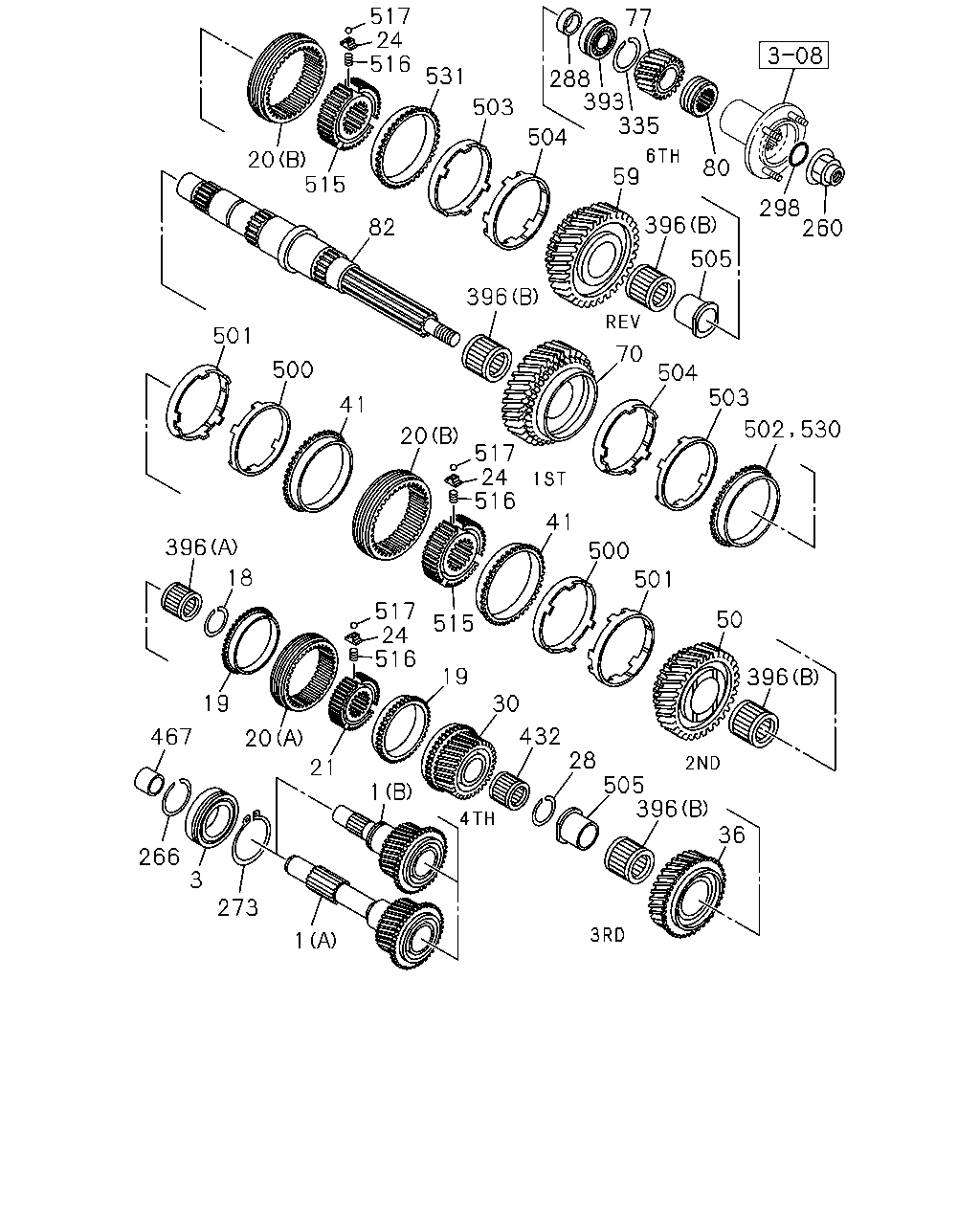

517 24 516 77 531 288 393 335 503 504 59 20 515 80 298 260 396 82 505 396 501 70 500 504 503 41 20 517 24 516 41 396 500 18 501 517 24 516 50 515 396 19 19 30 432 28 505 396 36 467 20 21 1 266 3 273 1 502 530

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.351 SHAFT; TOP GEAR,TRANS 4HK1-TCC ENG(RDV) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) Z=25	8-97371-091-0	01	1	0612-	●
1	04.351 SHAFT; TOP GEAR,TRANS 4HK1-TCC ENG(RDV) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) Z=25	8-97371-090-0	01	1	0612-	●
1	04.351 SHAFT; TOP GEAR,TRANS 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) Z=26	8-98021-267-0	01	1	0612-		●
1	04.351 SHAFT; TOP GEAR,TRANS 4HK1-TCN ENG(RDQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) Z=26	8-98021-266-0	01	1	0612-		●
1	04.351 SHAFT; TOP GEAR,TRANS 4JJ1 ENG(LFB) EXC. PTO TRANSMISSION SIDE(V66) (A) Z=26	8-97350-006-0	01	1	0612-		●
1	04.351 SHAFT; TOP GEAR,TRANS 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) Z=26	8-97350-008-0	01	1	0612-		●
3	04.403 BEARING; TOP GEAR SHAFT 4HK1-TCC ENG(RDV) NSK	8-97253-097-1	01	1	0612-	●
3	04.403 BEARING; TOP GEAR SHAFT 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) NSK	8-97253-098-1	01	1	0612-		●
18	04.384 RING; SNAP,CLU HUB 4HK1-TCC ENG(RDV) ID=35.7 T=1.8	8-97256-855-0	01	1	0612-	●
18	04.384 RING; SNAP,CLU HUB 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) ID=30.7 T=1.8	8-97254-728-0	01	1	0612-		●
19	04.383 RING; BLOCK,4TH & 5TH 4HK1-TCC ENG(RDV) Z=45	8-97241-306-1	02	1	0612-	●
20	04.383 SLEEVE 4HK1-TCC ENG(RDV) (B) Z=54	8-97241-295-2	02	1	0612-	●
20	04.383 SLEEVE 4HK1-TCC ENG(RDV) (A) Z=45	8-97241-296-1	02	1	0612-	●
21	04.384 HUB; CLU,4TH & 5TH 4HK1-TCC ENG(RDV)	8-97241-299-2	01	1	0612-	●
24	04.383 BLOCK; INDEX,SYN 4HK1-TCC ENG(RDV) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97241-313-1	09	1	0612-	●
24	04.383 BLOCK; INDEX,SYN 4HK1-TCC ENG(RDV) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97241-313-1	12	1	0612-	●
24	04.383 BLOCK; INDEX,SYN 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ)	8-97241-313-1	03	1	0612-		●
28	04.416 RING; SNAP,3RD GEAR ID=46.5 T=1.8	8-97254-743-0	01	1	0612-	●	●
30	04.415 GEAR; 4TH,MAINSHAFT 4HK1-TCC ENG(RDV) Z=28	8-97252-628-0	01	1	0612-	●
30	04.415 GEAR; 4TH,MAINSHAFT 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) Z=28	8-97241-230-0	01	1	0612-		●
36	04.415 GEAR; 3RD,MAINSHAFT 4HK1-TCC ENG(RDV) Z=31	8-97252-630-1	01	1	0612-	●
36	04.415 GEAR; 3RD,MAINSHAFT 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) Z=34	8-97241-234-0	01	1	0612-		●
41	04.383 RING; BLOCK,2ND & 3RD 4HK1-TCC ENG(RDV) Z=54	8-97241-305-2	02	1	0612-	●
41	04.383 RING; BLOCK,2ND & 3RD 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) Z=45	8-97241-306-1	02	1	0612-		●
50	04.395 GEAR; 2ND,MAINSHAFT 4HK1-TCC ENG(RDV) Z=43	8-97241-236-1	01	1	0612-	●
50	04.395 GEAR; 2ND,MAINSHAFT 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) Z=38	8-97241-237-1	01	1	0612-		●
59	04.417 GEAR; REV MAINSHAFT 4HK1-TCC ENG(RDV) Z=45	8-97241-243-0	01	1	0612-	●
59	04.417 GEAR; REV MAINSHAFT 4HK1-TCN ENG(RDQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) Z=41	8-97350-011-0	01	1	0612-		●
59	04.417 GEAR; REV MAINSHAFT 4JJ1 ENG(LFB) Z=41	8-97241-244-0	01	1	0612-		●
59	04.417 GEAR; REV MAINSHAFT 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) Z=41	8-97241-244-0	01	1	0612-		●
70	04.417 GEAR; 1ST,MAINSHAFT 4HK1-TCC ENG(RDV) Z=45	8-97241-241-0	01	1	0612-	●
70	04.417 GEAR; 1ST,MAINSHAFT EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) Z=43	8-97350-010-0	01	1	0612-		●
70	04.417 GEAR; 1ST,MAINSHAFT 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) Z=43	8-97352-815-0	01	1	0612-		●
77	04.421 GEAR; 6TH,MAINSHAFT 4HK1-TCC ENG(RDV) Z=20	8-97252-634-0	01	1	0612-	●
77	04.421 GEAR; 6TH,MAINSHAFT 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) Z=21	8-97386-582-0	01	1	0612-		●
80	04.343 GEAR; SPD DRIVE 4HK1-TCC ENG(RDV) Z=4	8-97253-555-0	01	1	0612-	●
80	04.343 GEAR; SPD DRIVE 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) Z=4	8-97253-556-0	01	1	0612-		●
82	04.403 SHAFT; MAIN,TRANS 4HK1-TCC ENG(RDV) Z=26-42-23	8-97253-115-3	01	1	0612-	●
82	04.403 SHAFT; MAIN,TRANS 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) Z=28-42-42-21	8-97253-116-3	01	1	0612-		●
260	04.412 NUT; MAINSHAFT END 04.525 M27 H=25	8-97360-410-0	01	1	0612-	●	●
266	04.525 RING; SNAP,BRG INNER 4HK1-TCC ENG(RDV)	8-97286-915-0	01	1	0612-	●
266	04.525 RING; SNAP,BRG INNER 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ)	8-97286-916-0	01	1	0612-		●
273	04.525 RING; SNAP,BRG OUTER 4HK1-TCC ENG(RDV)	8-97254-609-0	01	1	0612-	●
273	04.525 RING; SNAP,BRG OUTER 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ)	8-97254-610-0	01	1	0612-		●
288	04.399 SPACER; BRG,MAINSHAFT 4HK1-TCC ENG(RDV)	8-97252-941-0	01	1	0612-	●
288	04.399 SPACER; BRG,MAINSHAFT 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ)	8-97252-942-0	01	1	0612-		●
298	04.412 GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). 4HK1-TCC ENG(RDV) 05.595 ID=35.7 T=5	1-09623-379-0	01	1	0612-	●
298	04.412 GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) ID=30.6 T=5.7	8-98028-226-0	01	1	0612-		●
335	04.383 RING; SNAP,BEARING 4HK1-TCC ENG(RDV)	8-97254-720-0	01	1	0612-	●
335	04.383 RING; SNAP,BEARING 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ)	8-97254-722-0	01	1	0612-		●
393	04.352 BEARING; MAINSHAFT END 4HK1-TCC ENG(RDV)	8-97253-104-0	01	1	0612-	●
393	04.352 BEARING; MAINSHAFT END 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ)	8-97253-105-1	01	1	0612-		●
396	04.352 BEARING; NEEDLE,MAINSHAFT 4HK1-TCC ENG(RDV) (A)	8-97253-099-1	01	1	0612-	●
396	04.352 BEARING; NEEDLE,MAINSHAFT (B)	8-97253-110-0	04	1	0612-	●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) (A)	8-97253-102-1	01	1	0612-		●
432	04.419 BEARING; NEEDLE,4TH 4HK1-TCC ENG(RDV) NSK	8-97253-111-0	01	1	0612-	●
467	04.317 COLLAR; SHAFT TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97255-183-1	01	1	0612-	●	●
500	04.383 RING; OUTSIDE,3RD & 2ND 4HK1-TCC ENG(RDV)	8-97241-307-1	02	1	0612-	●
500	04.383 RING; OUTSIDE,3RD & 2ND 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ)	8-97241-309-1	02	1	0612-		●
501	04.383 RING; INSIDE,3RD & 2ND 4HK1-TCC ENG(RDV)	8-97241-311-1	02	1	0612-	●
501	04.383 RING; INSIDE,3RD & 2ND 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ)	8-97241-312-1	02	1	0612-		●
503	04.383 RING; OUTSIDE,LOW & REV 4HK1-TCC ENG(RDV) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97241-307-1	02	1	0612-	●
503	04.383 RING; OUTSIDE,LOW & REV 4HK1-TCN ENG(RDQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97241-309-1	02	1	0612-		●
503	04.383 RING; OUTSIDE,LOW & REV 4JJ1 ENG(LFB) EXC. PTO TRANSMISSION SIDE(V66)	8-97241-309-1	01	1	0612-		●
504	04.383 RING; INSIDE,LOW & REV 4HK1-TCC ENG(RDV) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97241-311-1	02	1	0612-	●
504	04.383 RING; INSIDE,LOW & REV 4HK1-TCN ENG(RDQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97241-312-1	02	1	0612-		●
504	04.383 RING; INSIDE,LOW & REV 4JJ1 ENG(LFB) EXC. PTO TRANSMISSION SIDE(V66)	8-97241-312-1	01	1	0612-		●
505	04.419 COLLAR; 3RD & REV	8-97253-119-2	02	1	0612-	●	●
515	04.384 HUB; CLU,1ST & REV,2ND & 3RD 4HK1-TCC ENG(RDV)	8-97239-155-2	02	1	0612-	●
515	04.384 HUB; CLU,1ST & REV,2ND & 3RD 4HK1-TCN ENG(RDQ)	8-97241-298-3	01	1	0612-		●
515	04.384 HUB; CLU,1ST & REV,2ND & 3RD 4HK1-TCN ENG(RDQ)	8-97241-298-3	01	1	0612-		●
516	04.384 SPRING; SYNCHRO,INDEX 4HK1-TCC ENG(RDV) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97305-803-1	09	1	0612-	●
516	04.384 SPRING; SYNCHRO,INDEX 4HK1-TCC ENG(RDV) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97305-803-1	12	1	0612-	●
516	04.384 SPRING; SYNCHRO,INDEX 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ)	8-97254-835-0	03	1	0612-		●
517	04.384 BALL; SYNCHRO,INDEX 4HK1-TCC ENG(RDV) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97252-935-0	09	1	0612-	●
517	04.384 BALL; SYNCHRO,INDEX 4HK1-TCC ENG(RDV) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97252-935-0	12	1	0612-	●
517	04.384 BALL; SYNCHRO,INDEX 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ)	8-97252-935-0	03	1	0612-		●
530	04.383 RING; BLOCK,LOW 4HK1-TCC ENG(RDV) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) Z=54	8-97241-305-2	01	1	0612-	●
530	04.383 RING; BLOCK,LOW EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) Z=45	8-97241-306-1	01	1	0612-		●
531	04.383 RING; BLOCK,REV 4HK1-TCC ENG(RDV) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) Z=54	8-97241-305-2	01	1	0612-	●
531	04.383 RING; BLOCK,REV 4HK1-TCN ENG(RDQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) Z=45	8-97241-306-1	01	1	0612-		●
531	04.383 RING; BLOCK,REV 4JJ1 ENG(LFB) EXC. PTO TRANSMISSION SIDE(V66) Z=45	8-97368-343-0	01	1	0612-		●

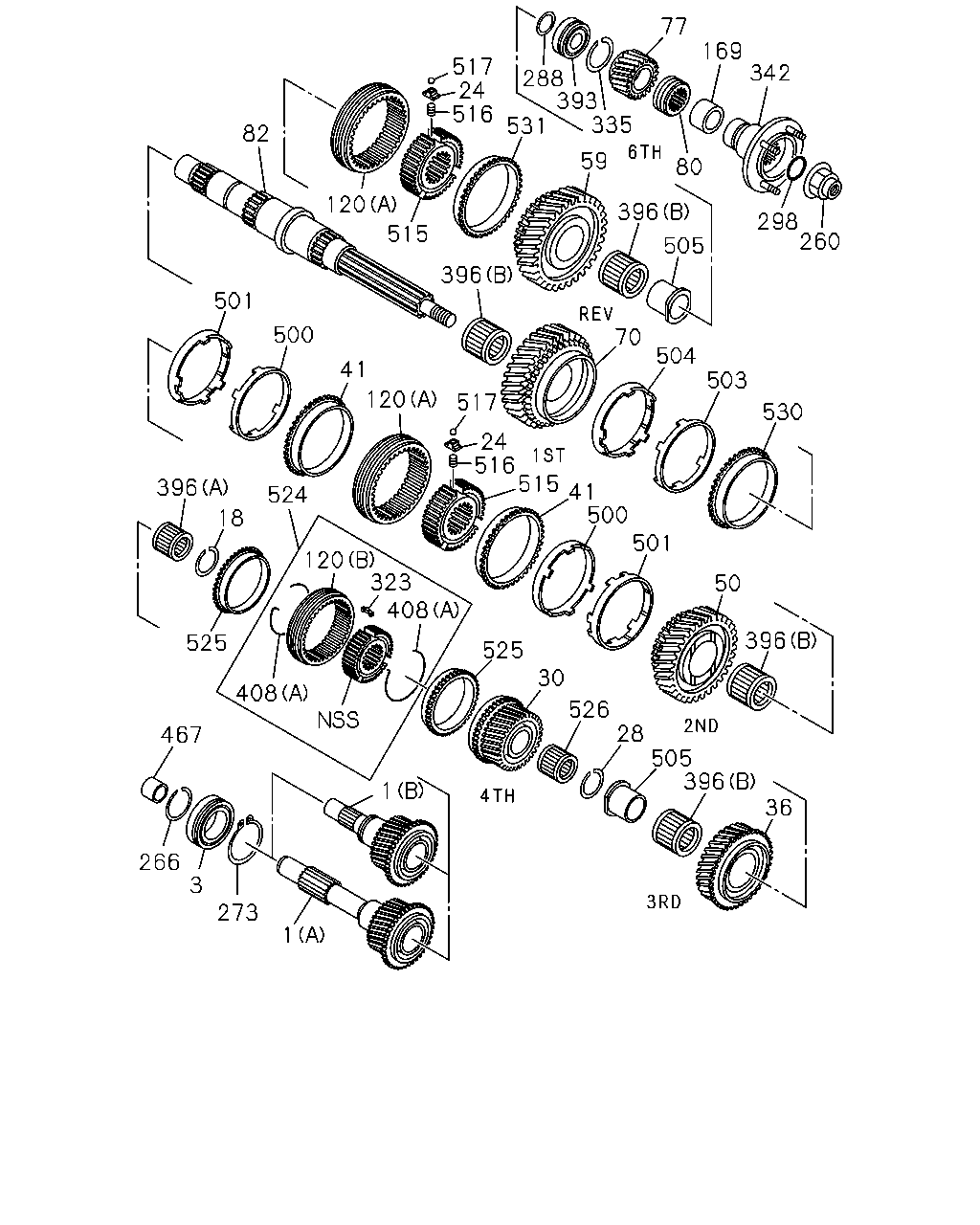

77 169 342 517 24 516 288 393 335 531 82 59 80 120 396 298 260 515 505 396 501 70 500 504 41 503 120 517 530 24 516 515 396 41 500 524 18 501 120 323 408 50 396 525 525 30 408 526 28 505 396 36 467 1 266 3 273 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.351 SHAFT; TOP GEAR,TRANS 4HK1-TCC ENG(RDV) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) Z=25	8-97371-091-0	01	1	0612-	●
1	04.351 SHAFT; TOP GEAR,TRANS 4HK1-TCC ENG(RDV) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) Z=25	8-97371-090-0	01	1	0612-	●
1	04.351 SHAFT; TOP GEAR,TRANS 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) Z=26	8-98021-267-0	01	1	0612-		●
1	04.351 SHAFT; TOP GEAR,TRANS 4HK1-TCN ENG(RDQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) Z=26	8-98021-266-0	01	1	0612-		●
1	04.351 SHAFT; TOP GEAR,TRANS 4JJ1 ENG(LFB) EXC. PTO TRANSMISSION SIDE(V66) (A) Z=26	8-97350-006-0	01	1	0612-		●
1	04.351 SHAFT; TOP GEAR,TRANS 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) Z=26	8-97350-008-0	01	1	0612-		●
3	04.403 BEARING; TOP GEAR SHAFT 4HK1-TCC ENG(RDV) NSK	8-97253-097-1	01	1	0612-	●
3	04.403 BEARING; TOP GEAR SHAFT 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) NSK	8-97253-098-1	01	1	0612-		●
18	04.384 RING; SNAP,CLU HUB 4HK1-TCC ENG(RDV) ID=35.7 T=1.8	8-97256-855-0	01	1	0612-	●
18	04.384 RING; SNAP,CLU HUB 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) ID=30.7 T=1.8	8-97254-728-0	01	1	0612-		●
24	04.383 BLOCK; INDEX,SYN 4HK1-TCC ENG(RDV) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97241-313-1	09	1	0612-	●
24	04.383 BLOCK; INDEX,SYN 4HK1-TCC ENG(RDV) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97241-313-1	12	1	0612-	●
24	04.383 BLOCK; INDEX,SYN 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ)	8-97241-313-1	03	1	0612-		●
28	04.416 RING; SNAP,3RD GEAR ID=46.5 T=1.8	8-97254-743-0	01	1	0612-	●	●
30	04.415 GEAR; 4TH,MAINSHAFT 4HK1-TCC ENG(RDV) Z=28	8-97252-628-0	01	1	0612-	●
30	04.415 GEAR; 4TH,MAINSHAFT 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) Z=28	8-97241-230-0	01	1	0612-		●
36	04.415 GEAR; 3RD,MAINSHAFT 4HK1-TCC ENG(RDV) Z=31	8-97252-630-1	01	1	0612-	●
36	04.415 GEAR; 3RD,MAINSHAFT 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) Z=34	8-97241-234-0	01	1	0612-		●
41	04.383 RING; BLOCK,2ND & 3RD 4HK1-TCC ENG(RDV) Z=54	8-97241-305-2	02	1	0612-	●
41	04.383 RING; BLOCK,2ND & 3RD 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) Z=45	8-97241-306-1	02	1	0612-		●
50	04.395 GEAR; 2ND,MAINSHAFT 4HK1-TCC ENG(RDV) Z=43	8-97241-236-1	01	1	0612-	●
50	04.395 GEAR; 2ND,MAINSHAFT 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) Z=38	8-97241-237-1	01	1	0612-		●
59	04.417 GEAR; REV MAINSHAFT 4HK1-TCC ENG(RDV) Z=45	8-97241-243-0	01	1	0612-	●
59	04.417 GEAR; REV MAINSHAFT 4HK1-TCN ENG(RDQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) Z=41	8-97350-011-0	01	1	0612-		●
59	04.417 GEAR; REV MAINSHAFT 4JJ1 ENG(LFB) Z=41	8-97241-244-0	01	1	0612-		●
59	04.417 GEAR; REV MAINSHAFT 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) Z=41	8-97241-244-0	01	1	0612-		●
70	04.417 GEAR; 1ST,MAINSHAFT 4HK1-TCC ENG(RDV) Z=45	8-97241-241-0	01	1	0612-	●
70	04.417 GEAR; 1ST,MAINSHAFT EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) Z=43	8-97350-010-0	01	1	0612-		●
70	04.417 GEAR; 1ST,MAINSHAFT 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) Z=43	8-97352-815-0	01	1	0612-		●
77	04.421 GEAR; 6TH,MAINSHAFT 4HK1-TCC ENG(RDV) Z=20	8-97252-634-0	01	1	0612-	●
77	04.421 GEAR; 6TH,MAINSHAFT 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) Z=21	8-97386-582-0	01	1	0612-		●
80	04.343 GEAR; SPD DRIVE 4HK1-TCC ENG(RDV) Z=4	8-97253-555-0	01	1	0612-	●
80	04.343 GEAR; SPD DRIVE 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) Z=4	8-97253-556-0	01	1	0612-		●
82	04.403 SHAFT; MAIN,TRANS 4HK1-TCC ENG(RDV) Z=26-42-23	8-97253-115-3	01	1	0612-	●
82	04.403 SHAFT; MAIN,TRANS 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) Z=28-42-42-21	8-97253-116-3	01	1	0612-		●
120	04.383 SLEEVE 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) 04.535 (B) Z=45	8-94421-871-1	01	1	0612-		●
120	04.383 SLEEVE 4HK1-TCN ENG(RDQ) (A) Z=45	8-97241-296-1	01	1	0612-		●
120	04.383 SLEEVE 4HK1-TCN ENG(RDQ) (A) Z=45	8-97241-296-1	01	1	0612-		●
169	04.419 COLLAR; MAINSHAFT 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ)	8-97252-937-1	01	1	0612-		●
260	04.412 NUT; MAINSHAFT END 04.525 M27 H=25	8-97360-410-0	01	1	0612-	●	●
266	04.525 RING; SNAP,BRG INNER 4HK1-TCC ENG(RDV)	8-97286-915-0	01	1	0612-	●
266	04.525 RING; SNAP,BRG INNER 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ)	8-97286-916-0	01	1	0612-		●
273	04.525 RING; SNAP,BRG OUTER 4HK1-TCC ENG(RDV)	8-97254-609-0	01	1	0612-	●
273	04.525 RING; SNAP,BRG OUTER 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ)	8-97254-610-0	01	1	0612-		●
288	04.399 SPACER; BRG,MAINSHAFT 4HK1-TCC ENG(RDV)	8-97252-941-0	01	1	0612-	●
288	04.399 SPACER; BRG,MAINSHAFT 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ)	8-97252-942-0	01	1	0612-		●
298	04.412 GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). 4HK1-TCC ENG(RDV) 05.595 ID=35.7 T=5	1-09623-379-0	01	1	0612-	●
298	04.412 GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) ID=30.6 T=5.7	8-98028-226-0	01	1	0612-		●
323	04.384 INSERT 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ)	8-94448-202-2	03	1	0612-		●
335	04.383 RING; SNAP,BEARING 4HK1-TCC ENG(RDV)	8-97254-720-0	01	1	0612-	●
335	04.383 RING; SNAP,BEARING 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ)	8-97254-722-0	01	1	0612-		●
342	05.545 FLANGE; OUTPUT 4HK1-TCN ENG(RDQ)	8-98031-862-0	01	1	0612-		●
342	05.545 FLANGE; OUTPUT 4JJ1 ENG(LFB)	8-98031-640-0	01	1	0612-		●
393	04.352 BEARING; MAINSHAFT END 4HK1-TCC ENG(RDV)	8-97253-104-0	01	1	0612-	●
393	04.352 BEARING; MAINSHAFT END 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ)	8-97253-105-1	01	1	0612-		●
396	04.352 BEARING; NEEDLE,MAINSHAFT 4HK1-TCC ENG(RDV) (A)	8-97253-099-1	01	1	0612-	●
396	04.352 BEARING; NEEDLE,MAINSHAFT (B)	8-97253-110-0	04	1	0612-	●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) (A)	8-97253-102-1	01	1	0612-		●
408	04.384 SPRING EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.422 (B)	8-94148-196-0	03	1	0612-		●
408	04.384 SPRING 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) (A)	8-97366-040-1	04	1	0612-		●
467	04.317 COLLAR; SHAFT TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97255-183-1	01	1	0612-	●	●
500	04.383 RING; OUTSIDE,3RD & 2ND 4HK1-TCC ENG(RDV)	8-97241-307-1	02	1	0612-	●
500	04.383 RING; OUTSIDE,3RD & 2ND 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ)	8-97241-309-1	02	1	0612-		●
501	04.383 RING; INSIDE,3RD & 2ND 4HK1-TCC ENG(RDV)	8-97241-311-1	02	1	0612-	●
501	04.383 RING; INSIDE,3RD & 2ND 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ)	8-97241-312-1	02	1	0612-		●
503	04.383 RING; OUTSIDE,LOW & REV 4HK1-TCC ENG(RDV) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97241-307-1	02	1	0612-	●
503	04.383 RING; OUTSIDE,LOW & REV 4HK1-TCN ENG(RDQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97241-309-1	02	1	0612-		●
503	04.383 RING; OUTSIDE,LOW & REV 4JJ1 ENG(LFB) EXC. PTO TRANSMISSION SIDE(V66)	8-97241-309-1	01	1	0612-		●
504	04.383 RING; INSIDE,LOW & REV 4HK1-TCC ENG(RDV) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97241-311-1	02	1	0612-	●
504	04.383 RING; INSIDE,LOW & REV 4HK1-TCN ENG(RDQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97241-312-1	02	1	0612-		●
504	04.383 RING; INSIDE,LOW & REV 4JJ1 ENG(LFB) EXC. PTO TRANSMISSION SIDE(V66)	8-97241-312-1	01	1	0612-		●
505	04.419 COLLAR; 3RD & REV	8-97253-119-2	02	1	0612-	●	●
515	04.384 HUB; CLU,1ST & REV,2ND & 3RD 4HK1-TCC ENG(RDV)	8-97239-155-2	02	1	0612-	●
515	04.384 HUB; CLU,1ST & REV,2ND & 3RD 4HK1-TCN ENG(RDQ)	8-97241-298-3	01	1	0612-		●
515	04.384 HUB; CLU,1ST & REV,2ND & 3RD 4HK1-TCN ENG(RDQ)	8-97241-298-3	01	1	0612-		●
516	04.384 SPRING; SYNCHRO,INDEX 4HK1-TCC ENG(RDV) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97305-803-1	09	1	0612-	●
516	04.384 SPRING; SYNCHRO,INDEX 4HK1-TCC ENG(RDV) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97305-803-1	12	1	0612-	●
516	04.384 SPRING; SYNCHRO,INDEX 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ)	8-97254-835-0	03	1	0612-		●
517	04.384 BALL; SYNCHRO,INDEX 4HK1-TCC ENG(RDV) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97252-935-0	09	1	0612-	●
517	04.384 BALL; SYNCHRO,INDEX 4HK1-TCC ENG(RDV) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97252-935-0	12	1	0612-	●
517	04.384 BALL; SYNCHRO,INDEX 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ)	8-97252-935-0	03	1	0612-		●
524	04.395 SLEEVE & HUB ASM; TOP-4TH,OD 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ)	8-97366-526-0	01	1	0612-		●
525	04.395 RING; BLOCK,TOP & 4TH,OD 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) Z=45	8-97309-532-0	02	1	0612-		●
526	04.352 BEARING; NEEDLE,4TH & 5TH 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ)	8-97253-112-0	01	1	0612-		●
530	04.383 RING; BLOCK,LOW 4HK1-TCC ENG(RDV) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) Z=54	8-97241-305-2	01	1	0612-	●
530	04.383 RING; BLOCK,LOW EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) Z=45	8-97241-306-1	01	1	0612-		●
531	04.383 RING; BLOCK,REV 4HK1-TCC ENG(RDV) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) Z=54	8-97241-305-2	01	1	0612-	●
531	04.383 RING; BLOCK,REV 4HK1-TCN ENG(RDQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) Z=45	8-97241-306-1	01	1	0612-		●
531	04.383 RING; BLOCK,REV 4JJ1 ENG(LFB) EXC. PTO TRANSMISSION SIDE(V66) Z=45	8-97368-343-0	01	1	0612-		●

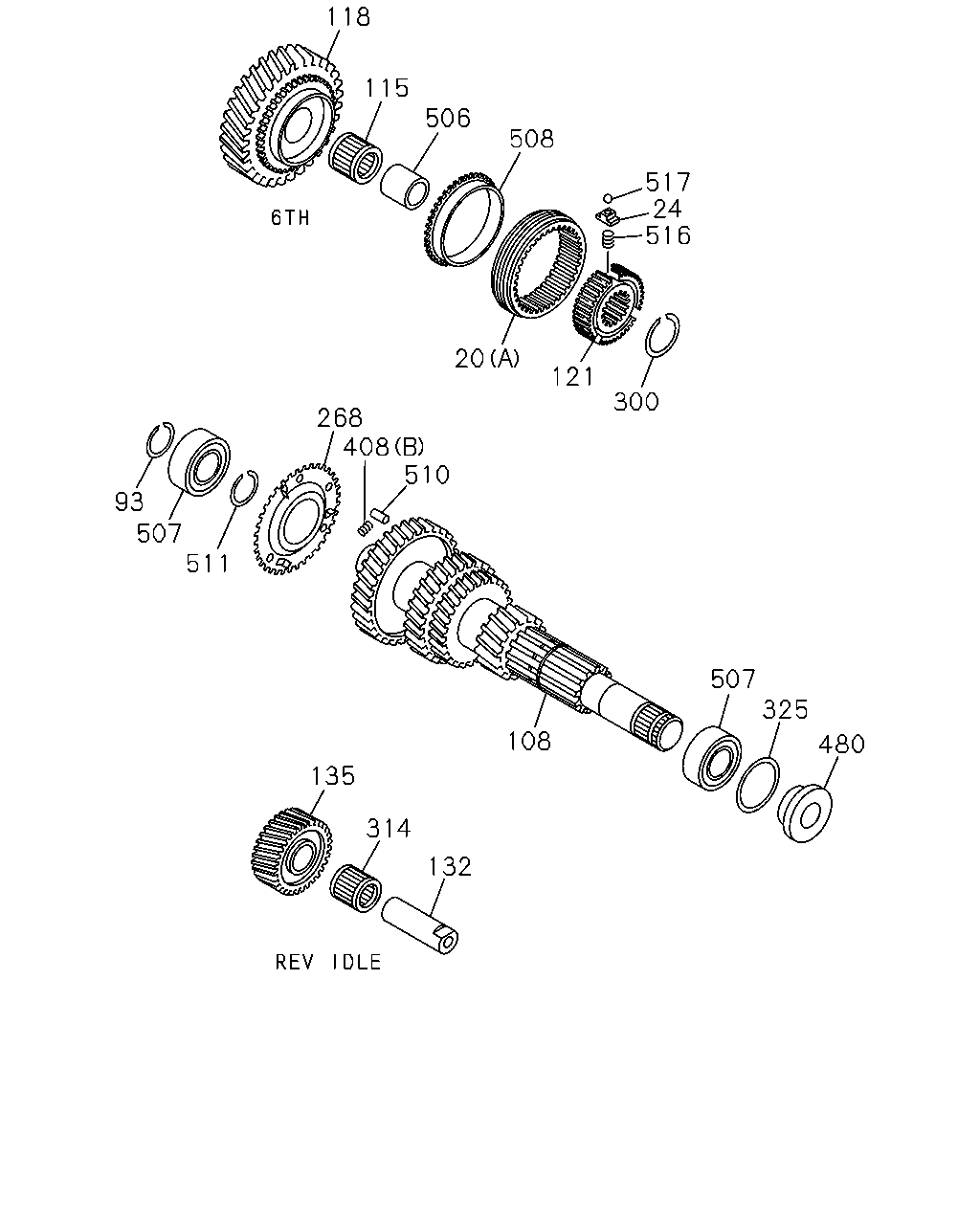

118 115 506 508 517 24 516 20 121 300 268 408 510 93 507 511 507 325 108 480 135 314 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
20	04.383 SLEEVE 4HK1-TCC ENG(RDV) (B) Z=54	8-97241-295-2	02	1	0612-	●
20	04.383 SLEEVE 4HK1-TCC ENG(RDV) (A) Z=45	8-97241-296-1	02	1	0612-	●
24	04.383 BLOCK; INDEX,SYN 4HK1-TCC ENG(RDV) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97241-313-1	09	1	0612-	●
24	04.383 BLOCK; INDEX,SYN 4HK1-TCC ENG(RDV) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97241-313-1	12	1	0612-	●
24	04.383 BLOCK; INDEX,SYN 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ)	8-97241-313-1	03	1	0612-		●
93	04.422 RING; SNAP,COUNTER FRT BRG 4HK1-TCC ENG(RDV) ID=34.4 T=1.9	8-97254-735-0	01	1	0612-	●
93	04.422 RING; SNAP,COUNTER FRT BRG 4HK1-TCC ENG(RDV) ID=34.4 T=2.1	8-97254-738-0	01	1	0612-	●
93	04.422 RING; SNAP,COUNTER FRT BRG 4HK1-TCC ENG(RDV) ID=34.4 T=2.3	8-97254-741-0	01	1	0612-	●
93	04.422 RING; SNAP,COUNTER FRT BRG 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) ID=30.7 T=1.9	8-97254-734-0	01	1	0612-		●
93	04.422 RING; SNAP,COUNTER FRT BRG 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) ID=30.7 T=2.1	8-97254-740-0	01	1	0612-		●
93	04.422 RING; SNAP,COUNTER FRT BRG 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) ID=30.7 T=2.3	8-97254-742-0	01	1	0612-		●
108	04.428 SHAFT; COUNTER 4HK1-TCC ENG(RDV) Z=46-38-29-21	8-97349-881-0	01	1	0612-0910	●
108	04.428 SHAFT; COUNTER 4HK1-TCC ENG(RDV) Z=46-38-29-21	8-98113-224-0	01	1	0911-	●
108	04.428 SHAFT; COUNTER EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) Z=47-39-33-20	8-97380-627-1	01	1	0612-		●
108	04.428 SHAFT; COUNTER 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) Z=47-39-33-20	8-97252-639-1	01	1	0612-		●
115	04.352 BEARING; NEEDLE,6TH,COUNTER OD=49.75	8-97253-113-0	01	1	0612-	●	●
118	04.421 GEAR; 6TH,COUNTER 4HK1-TCC ENG(RDV) Z=47	8-97241-246-0	01	1	0612-	●
118	04.421 GEAR; 6TH,COUNTER 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) Z=50	8-97386-580-0	01	1	0612-		●
121	04.384 HUB; CLU,6TH 4HK1-TCC ENG(RDV)	8-97241-301-2	01	1	0612-	●
132	04.433 SHAFT; REV	8-97252-655-0	01	1	0612-	●	●
135	04.430 GEAR; REV IDLER 4HK1-TCC ENG(RDV) Z=26	8-97241-292-2	01	1	0612-	●
135	04.430 GEAR; REV IDLER 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) Z=25	8-98031-869-1	01	1	0612-		●
268	04.537 PLATE; ANTI LASH,COUNTER EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97252-684-1	01	1	0612-		●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END 4HK1-TCC ENG(RDV) ID=33.2 T=1.7	8-97288-618-0	01	1	0612-	●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END 4HK1-TCC ENG(RDV) ID=33.2 T=1.8	8-97288-619-0	01	1	0612-	●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END 4HK1-TCC ENG(RDV) ID=33.2 T=1.9	8-97288-620-0	01	1	0612-	●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END 4HK1-TCC ENG(RDV) ID=33.2 T=1.6	8-97365-616-0	01	1	0612-	●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) ID=30.7 T=1.7	8-97254-727-0	01	1	0612-		●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) 04.384 ID=30.7 T=1.8	8-97254-728-0	01	1	0612-		●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) ID=30.7 T=1.9	8-97254-734-0	01	1	0612-		●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) ID=30.7 T=1.6	8-97365-617-0	01	1	0612-		●
314	04.419 BEARING; NEEDLE,REV GEAR NSK	8-97253-114-0	01	1	0612-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HK1-TCC ENG(RDV) ID=70 T=1.38	8-97252-656-0	01	1	0612-	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HK1-TCC ENG(RDV) ID=70 T=1.44	8-97252-657-0	01	1	0612-	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HK1-TCC ENG(RDV) ID=70 T=1.50	8-97252-658-0	01	1	0612-	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HK1-TCC ENG(RDV) ID=70 T=1.56	8-97252-659-0	01	1	0612-	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HK1-TCC ENG(RDV) ID=70 T=1.62	8-97252-660-0	01	1	0612-	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HK1-TCC ENG(RDV) ID=70 T=1.68	8-97252-661-0	01	1	0612-	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HK1-TCC ENG(RDV) ID=70 T=1.74	8-97252-662-0	01	1	0612-	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HK1-TCC ENG(RDV) ID=70 T=1.80	8-97252-663-0	01	1	0612-	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HK1-TCC ENG(RDV) ID=70 T=1.86	8-97252-664-0	01	1	0612-	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HK1-TCC ENG(RDV) ID=70 T=1.92	8-97252-665-0	01	1	0612-	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HK1-TCC ENG(RDV) ID=70 T=1.98	8-97257-621-0	01	1	0612-	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HK1-TCC ENG(RDV) ID=70 T=1.20	8-97306-185-0	01	1	0612-	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HK1-TCC ENG(RDV) ID=70 T=1.26	8-97306-186-0	01	1	0612-	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HK1-TCC ENG(RDV) ID=70 T=1.32	8-97306-187-0	01	1	0612-	●
325	04.423 SHIM; COUNTER SHAFT BRG 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) ID=62.7 T=2.29	8-97252-666-0	01	1	0612-		●
325	04.423 SHIM; COUNTER SHAFT BRG 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) ID=62.7 T=2.35	8-97252-667-0	01	1	0612-		●
325	04.423 SHIM; COUNTER SHAFT BRG 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) ID=62.7 T=2.41	8-97252-668-0	01	1	0612-		●
325	04.423 SHIM; COUNTER SHAFT BRG 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) ID=62.7 T=2.47	8-97252-669-0	01	1	0612-		●
325	04.423 SHIM; COUNTER SHAFT BRG 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) ID=62.7 T=2.53	8-97252-670-0	01	1	0612-		●
325	04.423 SHIM; COUNTER SHAFT BRG 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) ID=62.7 T=2.59	8-97252-671-0	01	1	0612-		●
325	04.423 SHIM; COUNTER SHAFT BRG 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) ID=62.7 T=2.65	8-97252-672-0	01	1	0612-		●
325	04.423 SHIM; COUNTER SHAFT BRG 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) ID=62.7 T=2.71	8-97252-673-0	01	1	0612-		●
325	04.423 SHIM; COUNTER SHAFT BRG 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) ID=62.7 T=2.77	8-97252-674-0	01	1	0612-		●
325	04.423 SHIM; COUNTER SHAFT BRG 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) ID=62.7 T=2.83	8-97252-675-0	01	1	0612-		●
325	04.423 SHIM; COUNTER SHAFT BRG 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) ID=62.7 T=2.89	8-97257-622-0	01	1	0612-		●
325	04.423 SHIM; COUNTER SHAFT BRG 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) ID=62.7 T=2.11	8-97306-188-0	01	1	0612-		●
325	04.423 SHIM; COUNTER SHAFT BRG 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) ID=62.7 T=2.17	8-97306-189-0	01	1	0612-		●
325	04.423 SHIM; COUNTER SHAFT BRG 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) ID=62.7 T=2.23	8-97306-190-0	01	1	0612-		●
408	04.384 SPRING EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.422 (B)	8-94148-196-0	03	1	0612-		●
408	04.384 SPRING 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) (A)	8-97366-040-1	04	1	0612-		●
480	04.419 WASHER; THRUST,6TH 4HK1-TCC ENG(RDV)	8-97253-122-1	01	1	0612-	●
480	04.419 WASHER; THRUST,6TH 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ)	8-97253-123-1	01	1	0612-		●
506	04.419 COLLAR; 6TH,COUNTER 4HK1-TCC ENG(RDV)	8-97253-120-1	01	1	0612-	●
506	04.419 COLLAR; 6TH,COUNTER 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ)	8-97253-121-1	01	1	0612-		●
507	04.422 BEARING; COUNTER SHAFT,FRT & RR 4HK1-TCC ENG(RDV)	8-97253-106-0	02	1	0612-	●
507	04.422 BEARING; COUNTER SHAFT,FRT & RR 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ)	8-97253-107-0	02	1	0612-		●
508	04.383 RING; BLOCK,6TH 4HK1-TCC ENG(RDV) Z=45	8-97241-306-1	01	1	0612-	●
508	04.383 RING; BLOCK,6TH 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) 04.395 Z=45	8-97309-532-0	01	1	0612-		●
510	04.540 PIN; STRAIGHT,ANTI LASH EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 00.862	9-08160-825-0	03	1	0612-		●
511	04.416 RING; SNAP,ANTI LASH PLATE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97254-767-0	01	1	0612-		●
516	04.384 SPRING; SYNCHRO,INDEX 4HK1-TCC ENG(RDV) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97305-803-1	09	1	0612-	●
516	04.384 SPRING; SYNCHRO,INDEX 4HK1-TCC ENG(RDV) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97305-803-1	12	1	0612-	●
516	04.384 SPRING; SYNCHRO,INDEX 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ)	8-97254-835-0	03	1	0612-		●
517	04.384 BALL; SYNCHRO,INDEX 4HK1-TCC ENG(RDV) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97252-935-0	09	1	0612-	●
517	04.384 BALL; SYNCHRO,INDEX 4HK1-TCC ENG(RDV) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97252-935-0	12	1	0612-	●
517	04.384 BALL; SYNCHRO,INDEX 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ)	8-97252-935-0	03	1	0612-		●

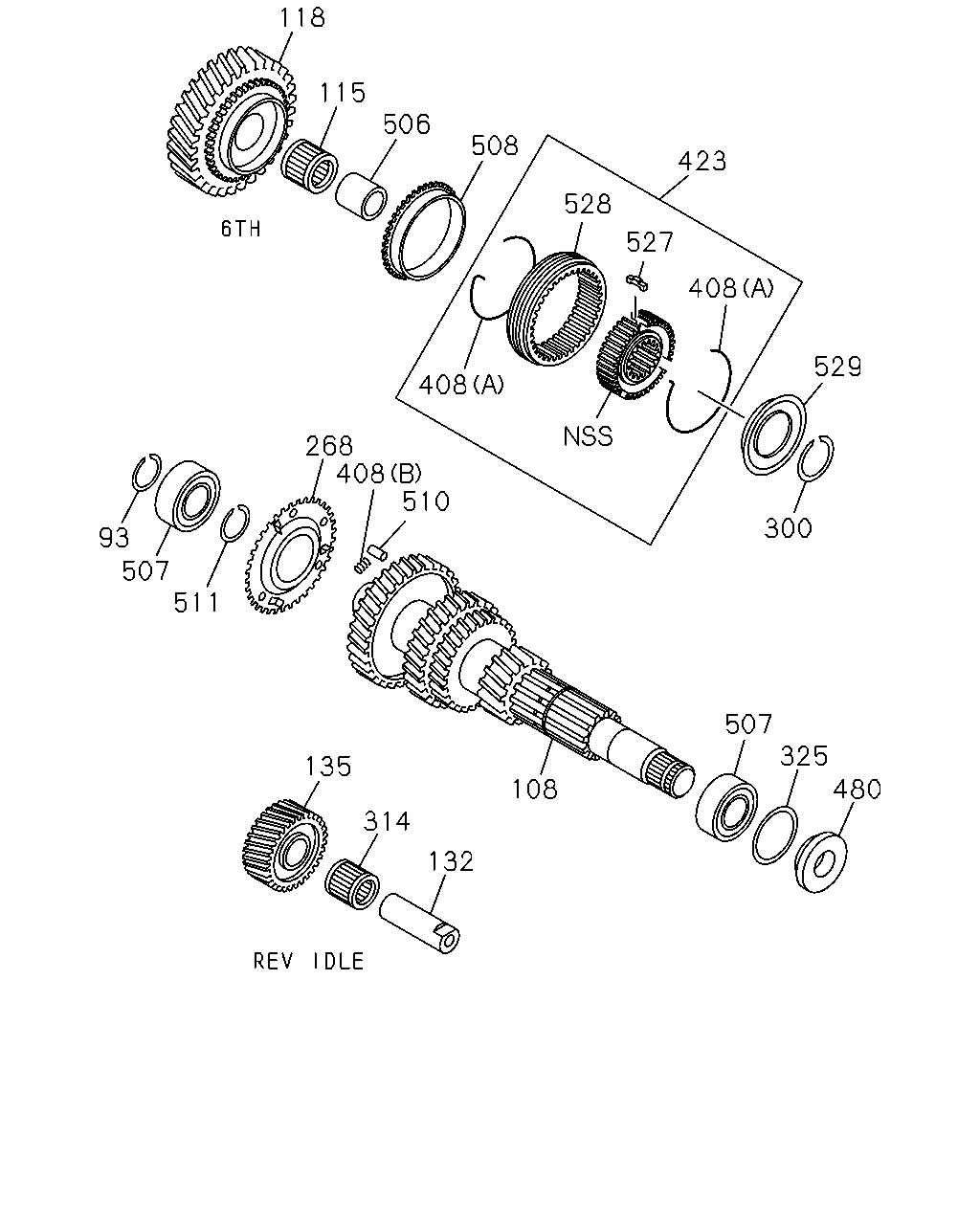

118 115 506 508 423 528 527 408 529 408 268 408 510 300 93 507 511 507 325 135 480 108 314 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
93	04.422 RING; SNAP,COUNTER FRT BRG 4HK1-TCC ENG(RDV) ID=34.4 T=1.9	8-97254-735-0	01	1	0612-	●
93	04.422 RING; SNAP,COUNTER FRT BRG 4HK1-TCC ENG(RDV) ID=34.4 T=2.1	8-97254-738-0	01	1	0612-	●
93	04.422 RING; SNAP,COUNTER FRT BRG 4HK1-TCC ENG(RDV) ID=34.4 T=2.3	8-97254-741-0	01	1	0612-	●
93	04.422 RING; SNAP,COUNTER FRT BRG 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) ID=30.7 T=1.9	8-97254-734-0	01	1	0612-		●
93	04.422 RING; SNAP,COUNTER FRT BRG 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) ID=30.7 T=2.1	8-97254-740-0	01	1	0612-		●
93	04.422 RING; SNAP,COUNTER FRT BRG 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) ID=30.7 T=2.3	8-97254-742-0	01	1	0612-		●
108	04.428 SHAFT; COUNTER 4HK1-TCC ENG(RDV) Z=46-38-29-21	8-97349-881-0	01	1	0612-0910	●
108	04.428 SHAFT; COUNTER 4HK1-TCC ENG(RDV) Z=46-38-29-21	8-98113-224-0	01	1	0911-	●
108	04.428 SHAFT; COUNTER EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) Z=47-39-33-20	8-97380-627-1	01	1	0612-		●
108	04.428 SHAFT; COUNTER 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) Z=47-39-33-20	8-97252-639-1	01	1	0612-		●
115	04.352 BEARING; NEEDLE,6TH,COUNTER OD=49.75	8-97253-113-0	01	1	0612-	●	●
118	04.421 GEAR; 6TH,COUNTER 4HK1-TCC ENG(RDV) Z=47	8-97241-246-0	01	1	0612-	●
118	04.421 GEAR; 6TH,COUNTER 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) Z=50	8-97386-580-0	01	1	0612-		●
132	04.433 SHAFT; REV	8-97252-655-0	01	1	0612-	●	●
135	04.430 GEAR; REV IDLER 4HK1-TCC ENG(RDV) Z=26	8-97241-292-2	01	1	0612-	●
135	04.430 GEAR; REV IDLER 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) Z=25	8-98031-869-1	01	1	0612-		●
268	04.537 PLATE; ANTI LASH,COUNTER EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97252-684-1	01	1	0612-		●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END 4HK1-TCC ENG(RDV) ID=33.2 T=1.7	8-97288-618-0	01	1	0612-	●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END 4HK1-TCC ENG(RDV) ID=33.2 T=1.8	8-97288-619-0	01	1	0612-	●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END 4HK1-TCC ENG(RDV) ID=33.2 T=1.9	8-97288-620-0	01	1	0612-	●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END 4HK1-TCC ENG(RDV) ID=33.2 T=1.6	8-97365-616-0	01	1	0612-	●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) ID=30.7 T=1.7	8-97254-727-0	01	1	0612-		●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) 04.384 ID=30.7 T=1.8	8-97254-728-0	01	1	0612-		●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) ID=30.7 T=1.9	8-97254-734-0	01	1	0612-		●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) ID=30.7 T=1.6	8-97365-617-0	01	1	0612-		●
314	04.419 BEARING; NEEDLE,REV GEAR NSK	8-97253-114-0	01	1	0612-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HK1-TCC ENG(RDV) ID=70 T=1.38	8-97252-656-0	01	1	0612-	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HK1-TCC ENG(RDV) ID=70 T=1.44	8-97252-657-0	01	1	0612-	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HK1-TCC ENG(RDV) ID=70 T=1.50	8-97252-658-0	01	1	0612-	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HK1-TCC ENG(RDV) ID=70 T=1.56	8-97252-659-0	01	1	0612-	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HK1-TCC ENG(RDV) ID=70 T=1.62	8-97252-660-0	01	1	0612-	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HK1-TCC ENG(RDV) ID=70 T=1.68	8-97252-661-0	01	1	0612-	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HK1-TCC ENG(RDV) ID=70 T=1.74	8-97252-662-0	01	1	0612-	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HK1-TCC ENG(RDV) ID=70 T=1.80	8-97252-663-0	01	1	0612-	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HK1-TCC ENG(RDV) ID=70 T=1.86	8-97252-664-0	01	1	0612-	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HK1-TCC ENG(RDV) ID=70 T=1.92	8-97252-665-0	01	1	0612-	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HK1-TCC ENG(RDV) ID=70 T=1.98	8-97257-621-0	01	1	0612-	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HK1-TCC ENG(RDV) ID=70 T=1.20	8-97306-185-0	01	1	0612-	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HK1-TCC ENG(RDV) ID=70 T=1.26	8-97306-186-0	01	1	0612-	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HK1-TCC ENG(RDV) ID=70 T=1.32	8-97306-187-0	01	1	0612-	●
325	04.423 SHIM; COUNTER SHAFT BRG 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) ID=62.7 T=2.29	8-97252-666-0	01	1	0612-		●
325	04.423 SHIM; COUNTER SHAFT BRG 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) ID=62.7 T=2.35	8-97252-667-0	01	1	0612-		●
325	04.423 SHIM; COUNTER SHAFT BRG 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) ID=62.7 T=2.41	8-97252-668-0	01	1	0612-		●
325	04.423 SHIM; COUNTER SHAFT BRG 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) ID=62.7 T=2.47	8-97252-669-0	01	1	0612-		●
325	04.423 SHIM; COUNTER SHAFT BRG 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) ID=62.7 T=2.53	8-97252-670-0	01	1	0612-		●
325	04.423 SHIM; COUNTER SHAFT BRG 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) ID=62.7 T=2.59	8-97252-671-0	01	1	0612-		●
325	04.423 SHIM; COUNTER SHAFT BRG 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) ID=62.7 T=2.65	8-97252-672-0	01	1	0612-		●
325	04.423 SHIM; COUNTER SHAFT BRG 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) ID=62.7 T=2.71	8-97252-673-0	01	1	0612-		●
325	04.423 SHIM; COUNTER SHAFT BRG 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) ID=62.7 T=2.77	8-97252-674-0	01	1	0612-		●
325	04.423 SHIM; COUNTER SHAFT BRG 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) ID=62.7 T=2.83	8-97252-675-0	01	1	0612-		●
325	04.423 SHIM; COUNTER SHAFT BRG 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) ID=62.7 T=2.89	8-97257-622-0	01	1	0612-		●
325	04.423 SHIM; COUNTER SHAFT BRG 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) ID=62.7 T=2.11	8-97306-188-0	01	1	0612-		●
325	04.423 SHIM; COUNTER SHAFT BRG 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) ID=62.7 T=2.17	8-97306-189-0	01	1	0612-		●
325	04.423 SHIM; COUNTER SHAFT BRG 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) ID=62.7 T=2.23	8-97306-190-0	01	1	0612-		●
408	04.384 SPRING EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.422 (B)	8-94148-196-0	03	1	0612-		●
408	04.384 SPRING 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) (A)	8-97366-040-1	04	1	0612-		●
423	04.384 SLEEVE & HUB ASM; 6TH 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ)	8-97367-022-0	01	1	0612-		●
480	04.419 WASHER; THRUST,6TH 4HK1-TCC ENG(RDV)	8-97253-122-1	01	1	0612-	●
480	04.419 WASHER; THRUST,6TH 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ)	8-97253-123-1	01	1	0612-		●
506	04.419 COLLAR; 6TH,COUNTER 4HK1-TCC ENG(RDV)	8-97253-120-1	01	1	0612-	●
506	04.419 COLLAR; 6TH,COUNTER 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ)	8-97253-121-1	01	1	0612-		●
507	04.422 BEARING; COUNTER SHAFT,FRT & RR 4HK1-TCC ENG(RDV)	8-97253-106-0	02	1	0612-	●
507	04.422 BEARING; COUNTER SHAFT,FRT & RR 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ)	8-97253-107-0	02	1	0612-		●
508	04.383 RING; BLOCK,6TH 4HK1-TCC ENG(RDV) Z=45	8-97241-306-1	01	1	0612-	●
508	04.383 RING; BLOCK,6TH 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) 04.395 Z=45	8-97309-532-0	01	1	0612-		●
510	04.540 PIN; STRAIGHT,ANTI LASH EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 00.862	9-08160-825-0	03	1	0612-		●
511	04.416 RING; SNAP,ANTI LASH PLATE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97254-767-0	01	1	0612-		●
527	04.384 INSERT; 6TH 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ)	8-94448-202-2	03	1	0612-		●
528	04.384 SLEEVE; 6TH 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) 04.535 Z=45	8-94421-871-1	01	1	0612-		●
529	04.384 PLATE; STOPPER,6TH 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ)	8-97248-952-0	01	1	0612-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
