◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51103 - NPR/NQR(LHD) EURO4 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-25 - SPEEDOMETER DRIVEN GEAR ▶
2-25 — SPEEDOMETER DRIVEN GEAR (#32514) — 20 parça

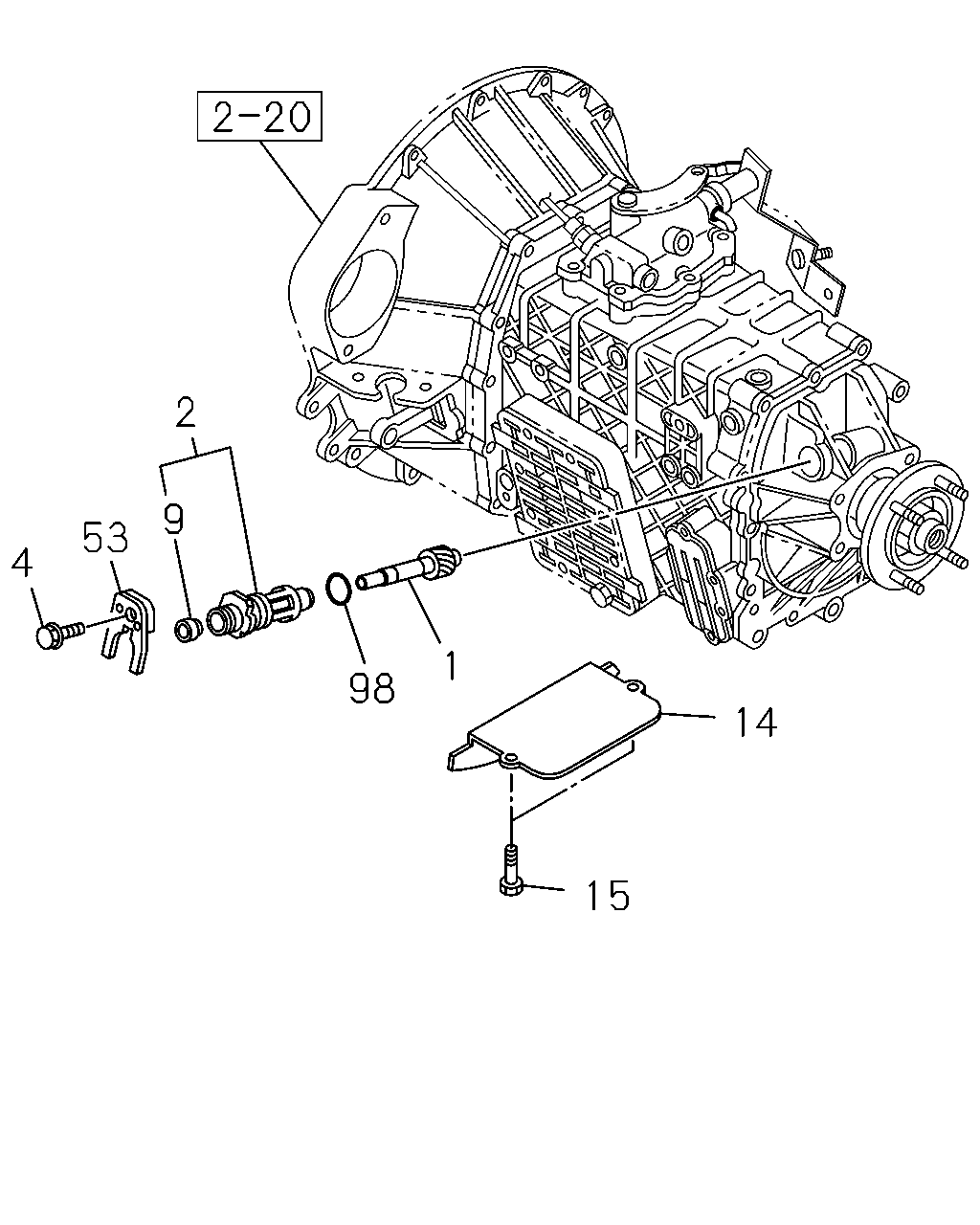

çizim 55597
2 9 53 4 1 98 14 15
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 04.337 GEAR; DRIVEN,SPD
M/T MYY6S(RST) Z=11 		8-97253-559-1 01 1 0612- ●
1 04.337 GEAR; DRIVEN,SPD
M/T MYY6S(RST) FRT&RR 215/85R16 16X6K-128(CSC) Z=11 		8-97253-559-1 01 1 0612- ●
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 43/10(S7C) FRT&RR 215/85R16 16X6K-128(CSC) Z=11 		8-97253-559-1 01 1 0612- ●
1 04.337 GEAR; DRIVEN,SPD
M/T MZZ6F(RSR) FINAL GEAR RATIO 41/10(GT5) FRT&RR 225/80R17.5 17.5X6.00-127 SILVER (CTD) Z=10 		8-97253-579-1 01 1 0612- ●
1 04.337 GEAR; DRIVEN,SPD
M/T MZZ6F(RSR) Z=10 		8-97253-579-1 01 1 0612- ●
1 04.337 GEAR; DRIVEN,SPD
M/T MYY6S(RST) FRT&RR TIRE 195/85R16 DISC 16-5.5J-116. 5(CSA) Z=12 		8-97253-563-1 01 1 0612- ●
1 04.337 GEAR; DRIVEN,SPD
M/T MYY6S(RST) FINAL GEAR RATIO 43/10(S7C) FRT&RR TIRE 195/85R16 DISC 16-5.5J-116. 5(CSA) Z=12 		8-97253-563-1 01 1 0612- ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MYY6S(RST) MARK "10,11,16,17" 		8-97253-124-0 01 1 0612- ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MYY6S(RST) FRT&RR 215/85R16 16X6K-128(CSC) MARK "10,11,16,17" 		8-97253-124-0 01 1 0612- ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 43/10(S7C) FRT&RR 215/85R16 16X6K-128(CSC) MARK "10,11,16,17" 		8-97253-124-0 01 1 0612- ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MZZ6F(RSR) FINAL GEAR RATIO 41/10(GT5) FRT&RR 225/80R17.5 17.5X6.00-127 SILVER (CTD) MARK "10,11,16,17" 		8-97253-124-0 01 1 0612- ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MZZ6F(RSR) MARK "10,11,16,17" 		8-97253-124-0 01 1 0612- ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MYY6S(RST) FRT&RR TIRE 195/85R16 DISC 16-5.5J-116. 5(CSA) MARK "12,13,14,15" 		8-97253-125-0 01 1 0612- ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MYY6S(RST) FINAL GEAR RATIO 43/10(S7C) FRT&RR TIRE 195/85R16 DISC 16-5.5J-116. 5(CSA) MARK "12,13,14,15" 		8-97253-125-0 01 1 0612- ●
4 04.338 BOLT; RET,DRIVEN GEAR
M/T MZZ6F(RSR) FINAL GEAR RATIO 41/10(GT5) FRT&RR 225/80R17.5 17.5X6.00-127 SILVER (CTD) 01.531 M8X20 FLANGE 		0-28650-820-0 01 1 0612- ● ●
9 04.338 SEAL; OIL,DRIVEN GEAR
NOK 		8-97131-328-1 01 1 0612- ● ● ● ●
14 00.679 COVER; UNDER,TRANS 8-97308-233-0 01 1 0612- ● ● ● ●
15 00.685 BOLT; UNDER COVER TO TRANS
02.343 M6X16 FLANGE 		0-28650-616-0 02 1 0612- ● ● ● ●
53 04.338 PLATE; LOCK,DRIVEN GEAR
M/T MZZ6F(RSR) FINAL GEAR RATIO 41/10(GT5) FRT&RR 225/80R17.5 17.5X6.00-127 SILVER (CTD) 		8-98046-217-0 01 1 0612- ● ●
98 04.338 SEAL; OIL,BUSH
04.439 		9-09561-324-0 01 1 0612- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
