Sayfa 2-20 - Isuzu EPC

2-20 — MANUAL TRANSMISSION ASM AND CASE (#32513) — 226 parça

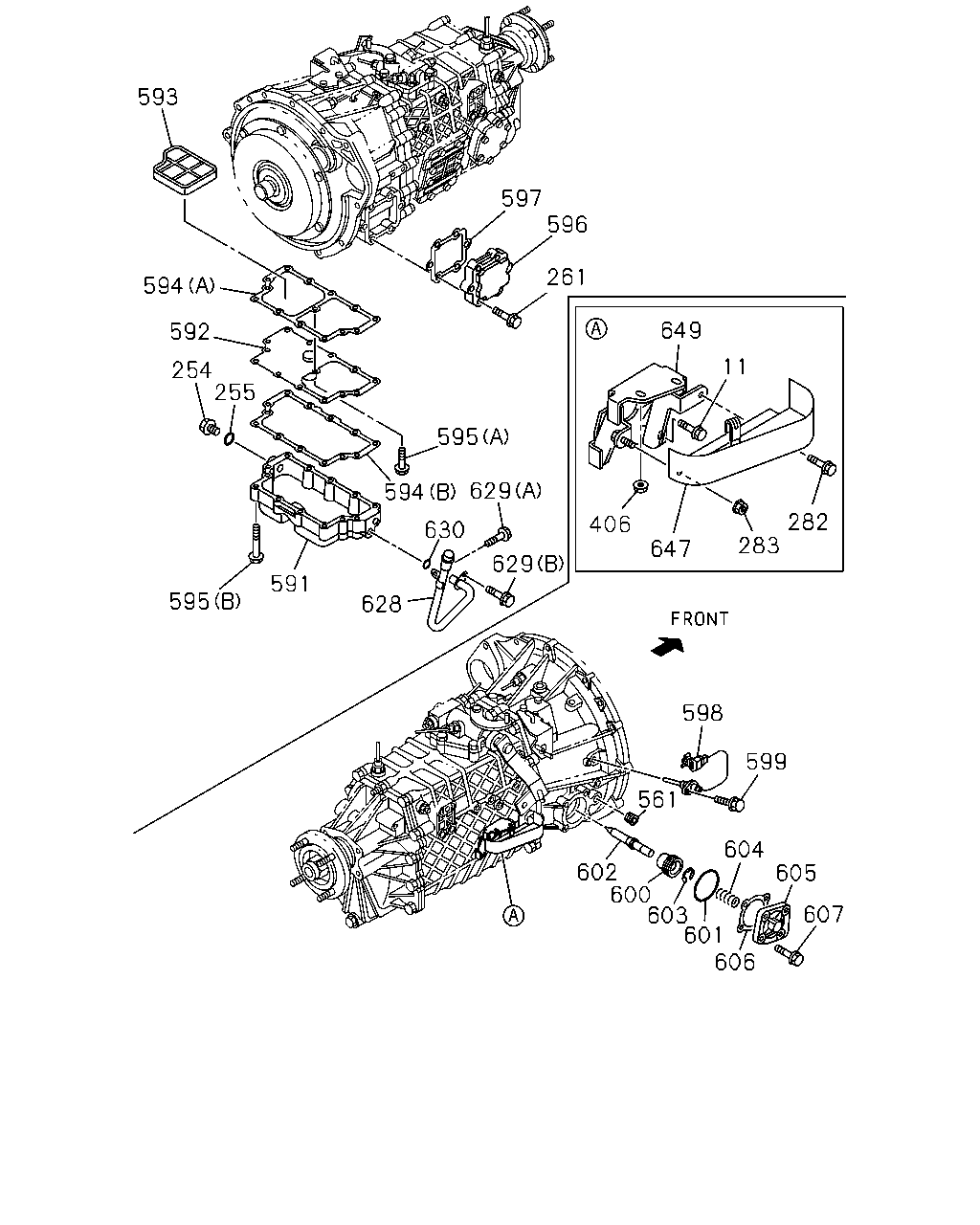

593 597 596 261 594 649 592 11 254 255 595 594 629 282 283 406 630 647 629 591 595 628 598 599 561 604 602 600 603 601 606 605 607

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
11	04.085 BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) M10X20 FLANGE	0-28761-020-0	02	1	0612-	●	●
254	04.104 PLUG; DRAIN,OIL TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98020-377-0	01	1	0612-	●	●
255	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) ID=17	8-97115-712-0	01	1	0612-	●	●
261	04.109 BOLT; COVER TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 M6X35 FLANGE	0-28650-635-0	06	1	0612-	●	●
282	00.785 BOLT; PROTECTOR TRANSMISSION CONTROL-SMOOTHER(8GF) 01.531 M8X20 FLANGE	0-28650-820-0	01	1	0612-	●	●
283	04.083 NUT; PROTECTOR 01.062 M8 FLANGE	0-91180-108-0	01	1	0612-	●	●
406	04.510 NUT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) 04.085 M10 FLANGE	0-91180-210-0	02	1	0612-	●	●
561	04.104 PLUG TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97320-204-0	01	1	0612-	●	●
591	04.195 PAN; OIL TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97256-429-2	01	1	0612-	●	●
592	04.338 COVER; STRAINER ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97289-771-1	01	1	0612-	●	●
593	04.338 FILTER; STRAINER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97256-438-1	01	1	0612-	●	●
594	04.105 GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97256-430-1	01	1	0612-	●	●
594	04.105 GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97289-772-0	01	1	0612-	●	●
595	04.510 BOLT; OIL PAN TRANSMISSION CONTROL-SMOOTHER(8GF) 02.343 (A) M6X16 FLANGE	0-28650-616-0	01	1	0612-	●	●
595	04.510 BOLT; OIL PAN TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M6X35 FLANGE	0-28650-635-0	13	1	0612-	●	●
596	04.317 COVER; OIL PAN TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97289-773-0	01	1	0612-	●	●
597	04.109 GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97289-774-0	01	1	0612-	●	●
598	04.329 SENSOR; TURBINE TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97316-495-1	01	1	0612-	●	●
599	04.329 BOLT; SENSOR TRANSMISSION CONTROL-SMOOTHER(8GF) 02.343 M6X16 FLANGE	0-28650-616-0	01	1	0612-	●	●
600	04.105 PISTON; BRAKE TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97254-652-1	01	1	0612-	●	●
601	04.317 SEAL; PISTON ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97254-755-0	01	1	0612-	●	●
602	04.166 PLUNGER; BRAKE TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97254-653-0	01	1	0612-	●	●
603	04.317 RING; SNAP TRANSMISSION CONTROL-SMOOTHER(8GF) 03.838 ID=8	9-09185-008-0	01	1	0612-	●	●
604	04.384 SPRING; PISTON TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97254-752-0	01	1	0612-	●	●
605	04.356 COVER; CYLINDER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97254-756-0	01	1	0612-	●	●
606	04.005 GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97254-757-0	01	1	0612-	●	●
607	04.109 BOLT; COVER TRANSMISSION CONTROL-SMOOTHER(8GF) 03.403 M8X30 FLANGE	0-28650-830-0	04	1	0612-	●	●
628	04.439 TUBE; OIL FILLER 4HK1-TCC ENG(RDV) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97367-636-2	01	1	0612-	●
628	04.439 TUBE; OIL FILLER 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97367-636-2	01	1	0612-		●
628	04.439 TUBE; OIL FILLER 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98018-773-0	01	1	0612-		●
629	04.317 BOLT; OIL FILLER TRANSMISSION CONTROL-SMOOTHER(8GF) 00.029 (A) M10X16 FLANGE	0-28151-016-0	01	1	0612-	●	●
629	04.317 BOLT; OIL FILLER TRANSMISSION CONTROL-SMOOTHER(8GF) 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	0612-	●	●
630	04.105 GASKET; OIL FILLER TUBE,T/M ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) ID=15.8	8-97305-656-0	01	1	0612-	●	●
647	00.782 PROTECTOR; HEAT TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97329-465-0	01	1	0612-	●	●
649	04.105 BRACKET; SOLENOID TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97378-439-0	01	1	0612-	●
649	04.105 BRACKET; SOLENOID TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97387-237-0	01	1	0612-		●

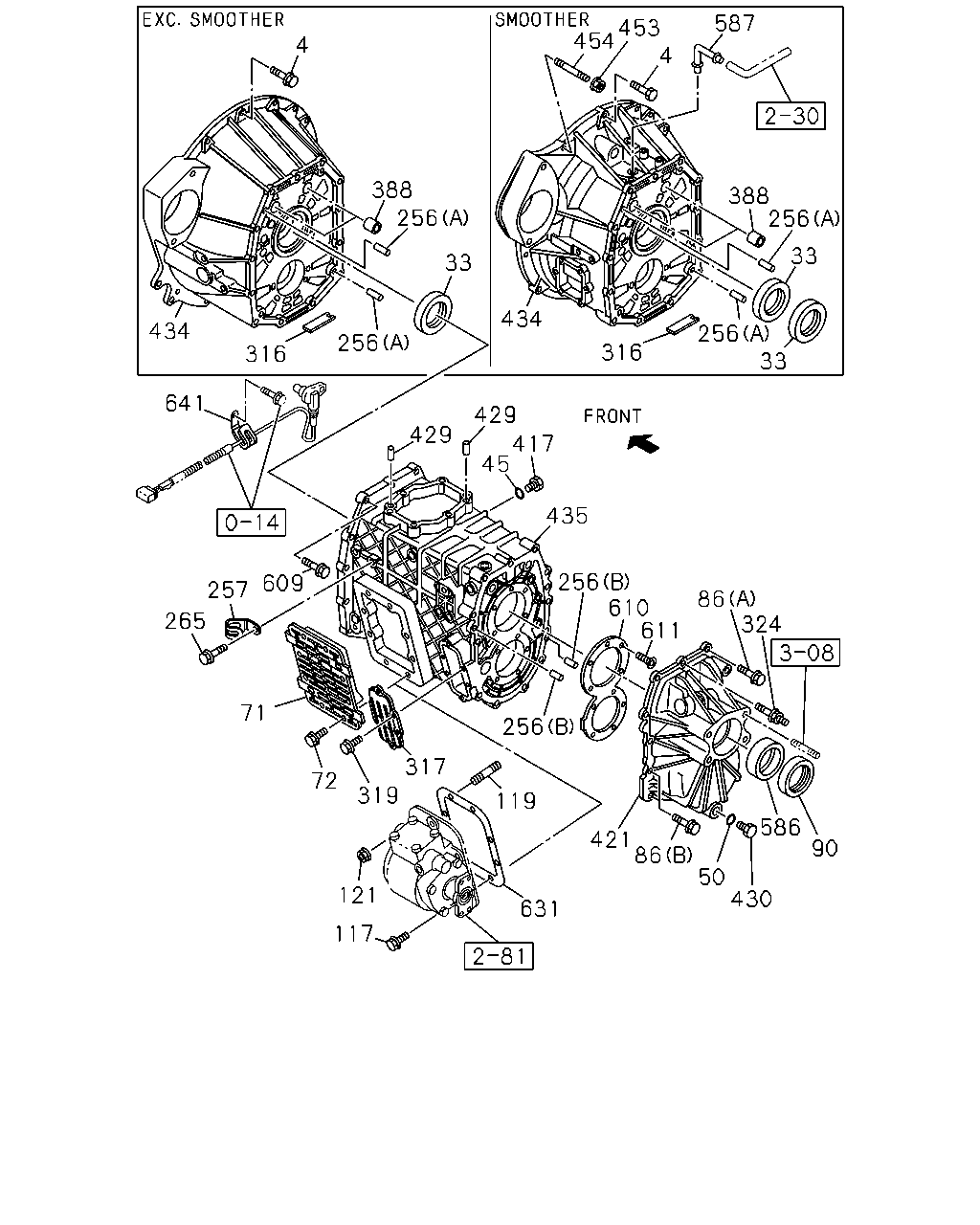

453 454 587 4 4 388 388 256 256 33 33 434 434 256 33 256 316 316 641 429 429 417 45 435 256 610 611 609 257 86 324 265 256 71 317 72 319 119 586 421 86 50 430 90 121 631 117

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	00.683 BOLT; FLYWHEEL HSG 4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66) TRANSMISSION CONTROL-SMOOTHER(8GF) M10X55 FLANGE	8-94399-863-1	02	1	0612-0612		●
4	00.683 BOLT; FLYWHEEL HSG 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) EURO4 SPECIFICATION(NT4) TRANSMISSION CONTROL-SMOOTHER(8GF) M10X55 FLANGE	8-94399-863-1	04	1	0612-0612	●	●
4	00.683 BOLT; FLYWHEEL HSG 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) EURO4 SPECIFICATION(NT4) TRANSMISSION CONTROL-SMOOTHER(8GF) M10X55 FLANGE	8-97365-449-0	04	1	0612-	●	●
4	00.683 BOLT; FLYWHEEL HSG 4JJ1 ENG(LFB) PTO TRANSMISSION SIDE(V66) TRANSMISSION CONTROL-SMOOTHER(8GF) M10X55 FLANGE	8-94399-863-1	01	1	0612-0612	●	●
4	00.683 BOLT; FLYWHEEL HSG 4JJ1 ENG(LFB) PTO TRANSMISSION SIDE(V66) TRANSMISSION CONTROL-SMOOTHER(8GF) M10X55 FLANGE	8-97365-449-0	01	1	0612-	●	●
4	00.683 BOLT; FLYWHEEL HSG 4HK1-TCC ENG(RDV) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 09.171 M10X30 FLANGE	0-28151-030-0	02	1	0612-	●
4	00.683 BOLT; FLYWHEEL HSG 4HK1-TCC ENG(RDV) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 09.171 M10X30 FLANGE	0-28151-030-0	02	1	0612-	●
4	00.683 BOLT; FLYWHEEL HSG 4HK1-TCN ENG(RDQ) EXC. PTO TRANSMISSION SIDE(V66), TRANSMISSION CONTROL-SMOOTHER(8GF) 09.171 M10X30 FLANGE	0-28151-030-0	02	1	0612-		●
4	00.683 BOLT; FLYWHEEL HSG 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 09.171 M10X30 FLANGE	0-28151-030-0	02	1	0612-		●
4	00.683 BOLT; FLYWHEEL HSG 4HK1-TCC ENG(RDV) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.670 M10X35 FLANGE	0-28151-035-0	03	1	0612-	●
4	00.683 BOLT; FLYWHEEL HSG 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.670 M10X35 FLANGE	0-28151-035-0	03	1	0612-		●
4	00.683 BOLT; FLYWHEEL HSG 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M10X55 FLANGE	8-97365-449-0	02	1	0612-0612	●	●
4	00.683 BOLT; FLYWHEEL HSG 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M10X55 FLANGE	8-97365-449-0	02	1	0612-	●	●
4	00.683 BOLT; FLYWHEEL HSG 4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66) TRANSMISSION CONTROL-SMOOTHER(8GF) M10X55 FLANGE	8-97365-449-0	02	1	0612-		●
4	00.683 BOLT; FLYWHEEL HSG 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66) 02.042 M10X50 FLANGE	0-28151-050-0	02	1	0612-	●	●
4	00.683 BOLT; FLYWHEEL HSG 4HK1-TCC ENG(RDV) TRANSMISSION CONTROL-SMOOTHER(8GF) 02.042 M10X50 FLANGE	0-28151-050-0	02	1	0612-	●	●
4	00.683 BOLT; FLYWHEEL HSG 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) EURO4 SPECIFICATION(NT4) TRANSMISSION CONTROL-SMOOTHER(8GF) 02.042 M10X50 FLANGE	0-28151-050-0	01	1	0612-	●	●
4	00.683 BOLT; FLYWHEEL HSG 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 02.042 M10X50 FLANGE	0-28151-050-0	01	1	0612-		●
4	00.683 BOLT; FLYWHEEL HSG 4JJ1 ENG(LFB) PTO TRANSMISSION SIDE(V66) TRANSMISSION CONTROL-SMOOTHER(8GF) 02.042 M10X50 FLANGE	0-28151-050-0	04	1	0612-	●	●
4	00.683 BOLT; FLYWHEEL HSG 4JJ1 ENG(LFB) PTO TRANSMISSION SIDE(V66) TRANSMISSION CONTROL-SMOOTHER(8GF) M10X140 FLANGE	0-28156-014-0	01	1	0612-	●	●
4	00.683 BOLT; FLYWHEEL HSG 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M10X140 FLANGE	0-28156-014-0	01	1	0612-		●
4	00.683 BOLT; FLYWHEEL HSG 4JJ1 ENG(LFB) PTO TRANSMISSION SIDE(V66) TRANSMISSION CONTROL-SMOOTHER(8GF) M10X150 FLANGE	0-28156-015-0	01	1	0612-	●	●
4	00.683 BOLT; FLYWHEEL HSG 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66) 02.042 M10X50 FLANGE	0-28151-050-0	05	1	0612-	●	●
4	00.683 BOLT; FLYWHEEL HSG 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66) M10X140 FLANGE	0-28156-014-0	02	1	0612-	●	●
4	00.683 BOLT; FLYWHEEL HSG 4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.670 M10X35 FLANGE	0-28151-035-0	02	1	0612-		●
4	00.683 BOLT; FLYWHEEL HSG 4JJ1 ENG(LFB) PTO TRANSMISSION SIDE(V66) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.670 M10X35 FLANGE	0-28151-035-0	01	1	0612-		●
4	00.683 BOLT; FLYWHEEL HSG 4JJ1 ENG(LFB) PTO TRANSMISSION SIDE(V66) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M10X130 FLANGE	0-28156-013-0	01	1	0612-		●
4	00.683 BOLT; FLYWHEEL HSG 4JJ1 ENG(LFB) EXC. PTO TRANSMISSION SIDE(V66), TRANSMISSION CONTROL-SMOOTHER(8GF) 09.171 M10X30 FLANGE	0-28151-030-0	01	1	0612-		●
4	00.683 BOLT; FLYWHEEL HSG 4JJ1 ENG(LFB) EXC. PTO TRANSMISSION SIDE(V66), TRANSMISSION CONTROL-SMOOTHER(8GF) 09.171 M10X120 FLANGE	0-28156-012-0	01	1	0612-		●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97255-187-0	02	1	0612-	●	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97253-550-0	01	1	0612-	●	●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0612-	●	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4HK1-TCC ENG(RDV) ID=17	8-97115-712-0	01	1	0612-	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) ID=17	8-97115-712-0	02	1	0612-		●
71	04.439 COVER; SIDE,TRANS CASE 4HK1-TCC ENG(RDV) EXC. PTO TRANSMISSION SIDE(V66)	8-97252-624-2	01	1	0612-	●
71	04.439 COVER; SIDE,TRANS CASE 4JJ1 ENG(LFB) EXC. PTO TRANSMISSION SIDE(V66)	8-97252-625-0	01	1	0612-		●
72	04.439 BOLT; SIDE COVER 4HK1-TCC ENG(RDV) EXC. PTO TRANSMISSION SIDE(V66) 00.206 M10X20 FLANGE	8-98014-142-0	08	1	0612-	●
72	04.439 BOLT; SIDE COVER 4JJ1 ENG(LFB) EXC. PTO TRANSMISSION SIDE(V66) 00.206 M10X20 FLANGE	8-98014-142-0	06	1	0612-		●
86	04.317 BOLT; RR COVER 09.171 (A) M10X40 FLANGE	0-28151-040-0	10	1	0612-	●	●
86	04.317 BOLT; RR COVER 04.510 (B) M10X40 FLANGE	8-97365-377-0	02	1	0612-	●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97253-551-1	01	1	0612-	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) NOK	8-97253-552-1	01	1	0612-		●
117	04.439 BOLT; PTO FIX 4HK1-TCC ENG(RDV) PTO TRANSMISSION SIDE(V66) 00.685 M10X28 FLANGE	0-28181-028-0	06	1	0612-0706	●
117	04.439 BOLT; PTO FIX 4HK1-TCC ENG(RDV) PTO TRANSMISSION SIDE(V66) M10X28 FLANGE	8-98044-944-0	06	1	0707-	●
117	04.439 BOLT; PTO FIX 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66) 00.780 M10X30 FLANGE	0-28751-030-0	03	1	0612-		●
119	04.439 STUD; PTO FIX 4HK1-TCC ENG(RDV) PTO TRANSMISSION SIDE(V66) 03.342 M10X25 L=40	0-44011-025-0	02	1	0612-	●
119	04.439 STUD; PTO FIX 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66) 03.342 M10X25 L=40	0-44011-025-0	03	1	0612-		●
121	04.439 NUT; PTO FIX 4HK1-TCC ENG(RDV) PTO TRANSMISSION SIDE(V66) 04.085 M10 FLANGE	0-91180-210-0	02	1	0612-	●
121	04.439 NUT; PTO FIX 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66) 04.085 M10 FLANGE	0-91180-210-0	03	1	0612-		●
256	04.317 PIN; KNOCK 04.510 (A) OD=10 L=20	8-97135-423-0	02	1	0612-	●	●
256	04.317 PIN; KNOCK 00.862 (B) ID=6 L=12	9-08160-612-0	02	1	0612-	●	●
257	02.559 CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	01	1	0612-0801	●	●
257	02.559 CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 03.671 ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	0802-	●	●
265	00.785 BOLT; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0612-	●	●
316	04.105 MAGNET; TRANS CASE	8-94249-524-2	01	1	0612-	●	●
317	04.109 COVER; CASE	8-97252-626-0	01	1	0612-	●	●
319	04.109 BOLT; COVER 04.338 M8X20 FLANGE	0-28050-820-0	06	1	0612-	●	●
324	04.319 STUD; RR COVER 04.510 M10X15,M10X40 L=65	8-97365-379-0	01	1	0612-	●	●
388	00.683 BUSHING; CLU HSG	8-97241-326-2	02	1	0612-	●	●
417	04.105 PLUG; OIL FILLER,TRANS	8-97365-373-0	01	1	0612-	●	●
421	04.317 COVER; RR,TRANS	8-97238-934-5	01	1	0612-	●
421	04.317 COVER; RR,TRANS 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ)	8-98020-028-0	01	1	0612-		●
429	04.105 PIN; STRAIGHT 04.510 OD=10 L=20	8-97135-423-0	02	1	0612-	●	●
430	04.105 PLUG; OIL DRAIN 4HK1-TCC ENG(RDV)	8-97365-374-0	01	1	0612-	●
430	04.105 PLUG; OIL DRAIN 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ)	8-97365-374-0	02	1	0612-		●
434	00.683 HOUSING; CLU 4HK1-TCC ENG(RDV) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98034-555-0	01	1	0612-0906	●
434	00.683 HOUSING; CLU 4HK1-TCC ENG(RDV) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98100-980-0	01	1	0907-	●
434	00.683 HOUSING; CLU 4HK1-TCC ENG(RDV) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97238-930-4	01	1	0612-	●
434	00.683 HOUSING; CLU EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97237-099-5	01	1	0612-		●
434	00.683 HOUSING; CLU 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98032-146-0	01	1	0612-0906		●
434	00.683 HOUSING; CLU 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98100-978-0	01	1	0907-		●
435	04.103 CASE; TRANS 4HK1-TCC ENG(RDV)	8-97382-868-1	01	1	0612-	●
435	04.103 CASE; TRANS 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ)	8-97379-374-0	01	1	0612-		●
453	00.683 NUT; CLU HSG TRANSMISSION CONTROL-SMOOTHER(8GF) 04.085 M10 FLANGE	0-91180-210-0	02	1	0612-	●	●
454	00.683 STUD; CLU HSG TRANSMISSION CONTROL-SMOOTHER(8GF) M10X50 L=99	0-49241-050-0	02	1	0612-	●	●
586	00.683 BEARING; NEEDLE	8-97253-108-0	01	1	0612-	●
586	00.683 BEARING; NEEDLE 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ)	8-97253-109-0	01	1	0612-		●
587	04.020 PIPE; BREATHER TRANSMISSION CONTROL-SMOOTHER(8GF) 04.510	8-97358-318-0	01	1	0612-	●	●
609	04.104 BOLT; HSG TO CASE 09.171 M10X40 FLANGE	0-28151-040-0	13	1	0612-	●	●
610	04.412 RETAINER; BRG 4HK1-TCC ENG(RDV)	8-97241-314-2	01	1	0612-	●
610	04.412 RETAINER; BRG 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ)	8-97241-315-1	01	1	0612-		●
611	04.104 SCREW 4HK1-TCC ENG(RDV) M10X27 TORQUES	8-97365-354-0	10	1	0612-	●
611	04.104 SCREW 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) M10X27 TORQUES	8-97365-354-0	11	1	0612-		●
631	04.439 SPACER; PTO 4HK1-TCC ENG(RDV) PTO TRANSMISSION SIDE(V66)	8-97328-662-0	01	1	0612-	●
641	04.710 CLIP; CAM SENSOR 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) 02.698 ID=8	8-94107-659-0	01	1	0612-0804	●	●

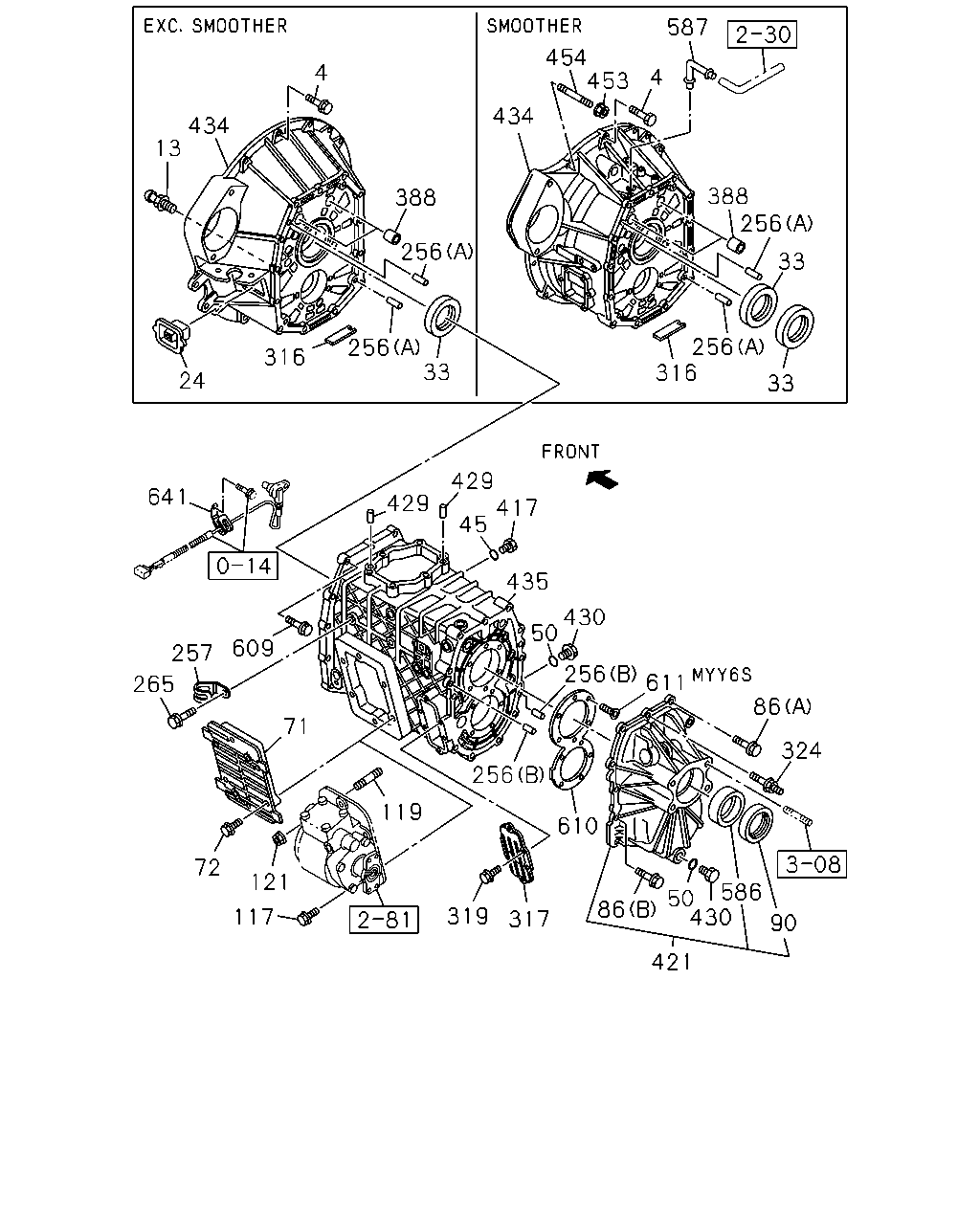

587 454 453 4 4 434 434 13 388 256 388 256 33 256 316 256 33 316 24 33 429 417 45 641 429 435 430 50 256 609 257 256 611 265 86 71 324 119 610 72 121 586 50 430 86 319 117 317 90 421

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	00.683 BOLT; FLYWHEEL HSG 4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66) TRANSMISSION CONTROL-SMOOTHER(8GF) M10X55 FLANGE	8-94399-863-1	02	1	0612-0612		●
4	00.683 BOLT; FLYWHEEL HSG 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) EURO4 SPECIFICATION(NT4) TRANSMISSION CONTROL-SMOOTHER(8GF) M10X55 FLANGE	8-94399-863-1	04	1	0612-0612	●	●
4	00.683 BOLT; FLYWHEEL HSG 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) EURO4 SPECIFICATION(NT4) TRANSMISSION CONTROL-SMOOTHER(8GF) M10X55 FLANGE	8-97365-449-0	04	1	0612-	●	●
4	00.683 BOLT; FLYWHEEL HSG 4JJ1 ENG(LFB) PTO TRANSMISSION SIDE(V66) TRANSMISSION CONTROL-SMOOTHER(8GF) M10X55 FLANGE	8-94399-863-1	01	1	0612-0612	●	●
4	00.683 BOLT; FLYWHEEL HSG 4JJ1 ENG(LFB) PTO TRANSMISSION SIDE(V66) TRANSMISSION CONTROL-SMOOTHER(8GF) M10X55 FLANGE	8-97365-449-0	01	1	0612-	●	●
4	00.683 BOLT; FLYWHEEL HSG 4HK1-TCC ENG(RDV) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 09.171 M10X30 FLANGE	0-28151-030-0	02	1	0612-	●
4	00.683 BOLT; FLYWHEEL HSG 4HK1-TCC ENG(RDV) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 09.171 M10X30 FLANGE	0-28151-030-0	02	1	0612-	●
4	00.683 BOLT; FLYWHEEL HSG 4HK1-TCN ENG(RDQ) EXC. PTO TRANSMISSION SIDE(V66), TRANSMISSION CONTROL-SMOOTHER(8GF) 09.171 M10X30 FLANGE	0-28151-030-0	02	1	0612-		●
4	00.683 BOLT; FLYWHEEL HSG 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 09.171 M10X30 FLANGE	0-28151-030-0	02	1	0612-		●
4	00.683 BOLT; FLYWHEEL HSG 4HK1-TCC ENG(RDV) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.670 M10X35 FLANGE	0-28151-035-0	03	1	0612-	●
4	00.683 BOLT; FLYWHEEL HSG 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.670 M10X35 FLANGE	0-28151-035-0	03	1	0612-		●
4	00.683 BOLT; FLYWHEEL HSG 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M10X55 FLANGE	8-97365-449-0	02	1	0612-0612	●	●
4	00.683 BOLT; FLYWHEEL HSG 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M10X55 FLANGE	8-97365-449-0	02	1	0612-	●	●
4	00.683 BOLT; FLYWHEEL HSG 4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66) TRANSMISSION CONTROL-SMOOTHER(8GF) M10X55 FLANGE	8-97365-449-0	02	1	0612-		●
4	00.683 BOLT; FLYWHEEL HSG 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66) 02.042 M10X50 FLANGE	0-28151-050-0	02	1	0612-	●	●
4	00.683 BOLT; FLYWHEEL HSG 4HK1-TCC ENG(RDV) TRANSMISSION CONTROL-SMOOTHER(8GF) 02.042 M10X50 FLANGE	0-28151-050-0	02	1	0612-	●	●
4	00.683 BOLT; FLYWHEEL HSG 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) EURO4 SPECIFICATION(NT4) TRANSMISSION CONTROL-SMOOTHER(8GF) 02.042 M10X50 FLANGE	0-28151-050-0	01	1	0612-	●	●
4	00.683 BOLT; FLYWHEEL HSG 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 02.042 M10X50 FLANGE	0-28151-050-0	01	1	0612-		●
4	00.683 BOLT; FLYWHEEL HSG 4JJ1 ENG(LFB) PTO TRANSMISSION SIDE(V66) TRANSMISSION CONTROL-SMOOTHER(8GF) 02.042 M10X50 FLANGE	0-28151-050-0	04	1	0612-	●	●
4	00.683 BOLT; FLYWHEEL HSG 4JJ1 ENG(LFB) PTO TRANSMISSION SIDE(V66) TRANSMISSION CONTROL-SMOOTHER(8GF) M10X140 FLANGE	0-28156-014-0	01	1	0612-	●	●
4	00.683 BOLT; FLYWHEEL HSG 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M10X140 FLANGE	0-28156-014-0	01	1	0612-		●
4	00.683 BOLT; FLYWHEEL HSG 4JJ1 ENG(LFB) PTO TRANSMISSION SIDE(V66) TRANSMISSION CONTROL-SMOOTHER(8GF) M10X150 FLANGE	0-28156-015-0	01	1	0612-	●	●
4	00.683 BOLT; FLYWHEEL HSG 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66) 02.042 M10X50 FLANGE	0-28151-050-0	05	1	0612-	●	●
4	00.683 BOLT; FLYWHEEL HSG 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66) M10X140 FLANGE	0-28156-014-0	02	1	0612-	●	●
4	00.683 BOLT; FLYWHEEL HSG 4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.670 M10X35 FLANGE	0-28151-035-0	02	1	0612-		●
4	00.683 BOLT; FLYWHEEL HSG 4JJ1 ENG(LFB) PTO TRANSMISSION SIDE(V66) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.670 M10X35 FLANGE	0-28151-035-0	01	1	0612-		●
4	00.683 BOLT; FLYWHEEL HSG 4JJ1 ENG(LFB) PTO TRANSMISSION SIDE(V66) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M10X130 FLANGE	0-28156-013-0	01	1	0612-		●
4	00.683 BOLT; FLYWHEEL HSG 4JJ1 ENG(LFB) EXC. PTO TRANSMISSION SIDE(V66), TRANSMISSION CONTROL-SMOOTHER(8GF) 09.171 M10X30 FLANGE	0-28151-030-0	01	1	0612-		●
4	00.683 BOLT; FLYWHEEL HSG 4JJ1 ENG(LFB) EXC. PTO TRANSMISSION SIDE(V66), TRANSMISSION CONTROL-SMOOTHER(8GF) 09.171 M10X120 FLANGE	0-28156-012-0	01	1	0612-		●
13	04.302 SUPPORT; SHIFT FORK 4HK1-TCN ENG(RDQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97255-385-1	01	1	0612-		●
13	04.302 SUPPORT; SHIFT FORK 4JJ1 ENG(LFB) EXC. PTO TRANSMISSION SIDE(V66)	8-97255-384-1	01	1	0612-		●
24	00.797 COVER; CHECK HOLE,DUST EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97255-201-0	01	1	0612-		●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97255-187-0	02	1	0612-	●	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97253-550-0	01	1	0612-	●	●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0612-	●	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4HK1-TCC ENG(RDV) ID=17	8-97115-712-0	01	1	0612-	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) ID=17	8-97115-712-0	02	1	0612-		●
71	04.439 COVER; SIDE,TRANS CASE 4HK1-TCC ENG(RDV) EXC. PTO TRANSMISSION SIDE(V66)	8-97252-624-2	01	1	0612-	●
71	04.439 COVER; SIDE,TRANS CASE 4JJ1 ENG(LFB) EXC. PTO TRANSMISSION SIDE(V66)	8-97252-625-0	01	1	0612-		●
72	04.439 BOLT; SIDE COVER 4HK1-TCC ENG(RDV) EXC. PTO TRANSMISSION SIDE(V66) 00.206 M10X20 FLANGE	8-98014-142-0	08	1	0612-	●
72	04.439 BOLT; SIDE COVER 4JJ1 ENG(LFB) EXC. PTO TRANSMISSION SIDE(V66) 00.206 M10X20 FLANGE	8-98014-142-0	06	1	0612-		●
86	04.317 BOLT; RR COVER 09.171 (A) M10X40 FLANGE	0-28151-040-0	10	1	0612-	●	●
86	04.317 BOLT; RR COVER 04.510 (B) M10X40 FLANGE	8-97365-377-0	02	1	0612-	●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97253-551-1	01	1	0612-	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) NOK	8-97253-552-1	01	1	0612-		●
117	04.439 BOLT; PTO FIX 4HK1-TCC ENG(RDV) PTO TRANSMISSION SIDE(V66) 00.685 M10X28 FLANGE	0-28181-028-0	06	1	0612-0706	●
117	04.439 BOLT; PTO FIX 4HK1-TCC ENG(RDV) PTO TRANSMISSION SIDE(V66) M10X28 FLANGE	8-98044-944-0	06	1	0707-	●
117	04.439 BOLT; PTO FIX 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66) 00.780 M10X30 FLANGE	0-28751-030-0	03	1	0612-		●
119	04.439 STUD; PTO FIX 4HK1-TCC ENG(RDV) PTO TRANSMISSION SIDE(V66) 03.342 M10X25 L=40	0-44011-025-0	02	1	0612-	●
119	04.439 STUD; PTO FIX 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66) 03.342 M10X25 L=40	0-44011-025-0	03	1	0612-		●
121	04.439 NUT; PTO FIX 4HK1-TCC ENG(RDV) PTO TRANSMISSION SIDE(V66) 04.085 M10 FLANGE	0-91180-210-0	02	1	0612-	●
121	04.439 NUT; PTO FIX 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66) 04.085 M10 FLANGE	0-91180-210-0	03	1	0612-		●
256	04.317 PIN; KNOCK 04.510 (A) OD=10 L=20	8-97135-423-0	02	1	0612-	●	●
256	04.317 PIN; KNOCK 00.862 (B) ID=6 L=12	9-08160-612-0	02	1	0612-	●	●
257	02.559 CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	01	1	0612-0801	●	●
257	02.559 CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 03.671 ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	0802-	●	●
265	00.785 BOLT; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0612-	●	●
316	04.105 MAGNET; TRANS CASE	8-94249-524-2	01	1	0612-	●	●
317	04.109 COVER; CASE	8-97252-626-0	01	1	0612-	●	●
319	04.109 BOLT; COVER 04.338 M8X20 FLANGE	0-28050-820-0	06	1	0612-	●	●
324	04.319 STUD; RR COVER 04.510 M10X15,M10X40 L=65	8-97365-379-0	01	1	0612-	●	●
388	00.683 BUSHING; CLU HSG	8-97241-326-2	02	1	0612-	●	●
417	04.105 PLUG; OIL FILLER,TRANS	8-97365-373-0	01	1	0612-	●	●
421	04.317 COVER; RR,TRANS	8-97238-934-5	01	1	0612-	●
421	04.317 COVER; RR,TRANS 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ)	8-98020-028-0	01	1	0612-		●
429	04.105 PIN; STRAIGHT 04.510 OD=10 L=20	8-97135-423-0	02	1	0612-	●	●
430	04.105 PLUG; OIL DRAIN 4HK1-TCC ENG(RDV)	8-97365-374-0	01	1	0612-	●
430	04.105 PLUG; OIL DRAIN 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ)	8-97365-374-0	02	1	0612-		●
434	00.683 HOUSING; CLU 4HK1-TCC ENG(RDV) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98034-555-0	01	1	0612-0906	●
434	00.683 HOUSING; CLU 4HK1-TCC ENG(RDV) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98100-980-0	01	1	0907-	●
434	00.683 HOUSING; CLU 4HK1-TCC ENG(RDV) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97238-930-4	01	1	0612-	●
434	00.683 HOUSING; CLU EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97237-099-5	01	1	0612-		●
434	00.683 HOUSING; CLU 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98032-146-0	01	1	0612-0906		●
434	00.683 HOUSING; CLU 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98100-978-0	01	1	0907-		●
435	04.103 CASE; TRANS 4HK1-TCC ENG(RDV)	8-97382-868-1	01	1	0612-	●
435	04.103 CASE; TRANS 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ)	8-97379-374-0	01	1	0612-		●
453	00.683 NUT; CLU HSG TRANSMISSION CONTROL-SMOOTHER(8GF) 04.085 M10 FLANGE	0-91180-210-0	02	1	0612-	●	●
454	00.683 STUD; CLU HSG TRANSMISSION CONTROL-SMOOTHER(8GF) M10X50 L=99	0-49241-050-0	02	1	0612-	●	●
586	00.683 BEARING; NEEDLE	8-97253-108-0	01	1	0612-	●
586	00.683 BEARING; NEEDLE 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ)	8-97253-109-0	01	1	0612-		●
587	04.020 PIPE; BREATHER TRANSMISSION CONTROL-SMOOTHER(8GF) 04.510	8-97358-318-0	01	1	0612-	●	●
609	04.104 BOLT; HSG TO CASE 09.171 M10X40 FLANGE	0-28151-040-0	13	1	0612-	●	●
610	04.412 RETAINER; BRG 4HK1-TCC ENG(RDV)	8-97241-314-2	01	1	0612-	●
610	04.412 RETAINER; BRG 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ)	8-97241-315-1	01	1	0612-		●
611	04.104 SCREW 4HK1-TCC ENG(RDV) M10X27 TORQUES	8-97365-354-0	10	1	0612-	●
611	04.104 SCREW 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) M10X27 TORQUES	8-97365-354-0	11	1	0612-		●
641	04.710 CLIP; CAM SENSOR 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) 02.698 ID=8	8-94107-659-0	01	1	0612-0804	●	●

1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.003 TRANSMISSION ASM; MANUAL 4HK1-TCC ENG(RDV) KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66)	8-98020-840-0	01	1	0612-	●
1	04.003 TRANSMISSION ASM; MANUAL 4HK1-TCC ENG(RDV) PTO TRANSMISSION SIDE(V66) KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98020-840-0	01	1	0612-	●
1	04.003 TRANSMISSION ASM; MANUAL 4HK1-TCC ENG(RDV) PTO TRANSMISSION SIDE(V66) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. KD PREPARATORY PACK<6HF>	8-98020-840-0	01	1	0612-	●
1	04.003 TRANSMISSION ASM; MANUAL 4HK1-TCC ENG(RDV) PTO TRANSMISSION SIDE(V66) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98020-836-0	01	1	0612-	●
1	04.003 TRANSMISSION ASM; MANUAL 4HK1-TCC ENG(RDV) EXC. PTO TRANSMISSION SIDE(V66), TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98020-836-0	01	1	0612-	●
1	04.003 TRANSMISSION ASM; MANUAL 4HK1-TCC ENG(RDV) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66),KD PREPARATORY PACK<6HF>	8-98020-840-0	01	1	0612-	●
1	04.003 TRANSMISSION ASM; MANUAL 4HK1-TCN ENG(RDQ) KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66)	8-98020-811-0	01	1	0612-		●
1	04.003 TRANSMISSION ASM; MANUAL 4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66) KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98020-811-0	01	1	0612-		●
1	04.003 TRANSMISSION ASM; MANUAL 4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. KD PREPARATORY PACK<6HF>	8-98020-811-0	01	1	0612-		●
1	04.003 TRANSMISSION ASM; MANUAL 4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98020-805-0	01	1	0612-		●
1	04.003 TRANSMISSION ASM; MANUAL 4HK1-TCN ENG(RDQ) EXC. PTO TRANSMISSION SIDE(V66), TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98020-805-0	01	1	0612-		●
1	04.003 TRANSMISSION ASM; MANUAL 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66),KD PREPARATORY PACK<6HF>	8-98020-811-0	01	1	0612-		●
1	04.003 TRANSMISSION ASM; MANUAL 4JJ1 ENG(LFB) KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66)	8-98020-807-0	01	1	0612-		●
1	04.003 TRANSMISSION ASM; MANUAL 4JJ1 ENG(LFB) PTO TRANSMISSION SIDE(V66) KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98020-807-0	01	1	0612-		●
1	04.003 TRANSMISSION ASM; MANUAL 4JJ1 ENG(LFB) PTO TRANSMISSION SIDE(V66) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. KD PREPARATORY PACK<6HF>	8-98020-807-0	01	1	0612-		●
1	04.003 TRANSMISSION ASM; MANUAL 4JJ1 ENG(LFB) PTO TRANSMISSION SIDE(V66) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98020-803-0	01	1	0612-		●
1	04.003 TRANSMISSION ASM; MANUAL 4JJ1 ENG(LFB) EXC. PTO TRANSMISSION SIDE(V66), TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98020-803-0	01	1	0612-		●
1	04.003 TRANSMISSION ASM; MANUAL 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66),KD PREPARATORY PACK<6HF>	8-98020-807-0	01	1	0612-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
