Isuzu WW
▶
TRUCKS
▶
NPR
▶
51103 - NPR/NQR(LHD) EURO4
▶
2 - Clutch, Transmission, Trans Axle
▶

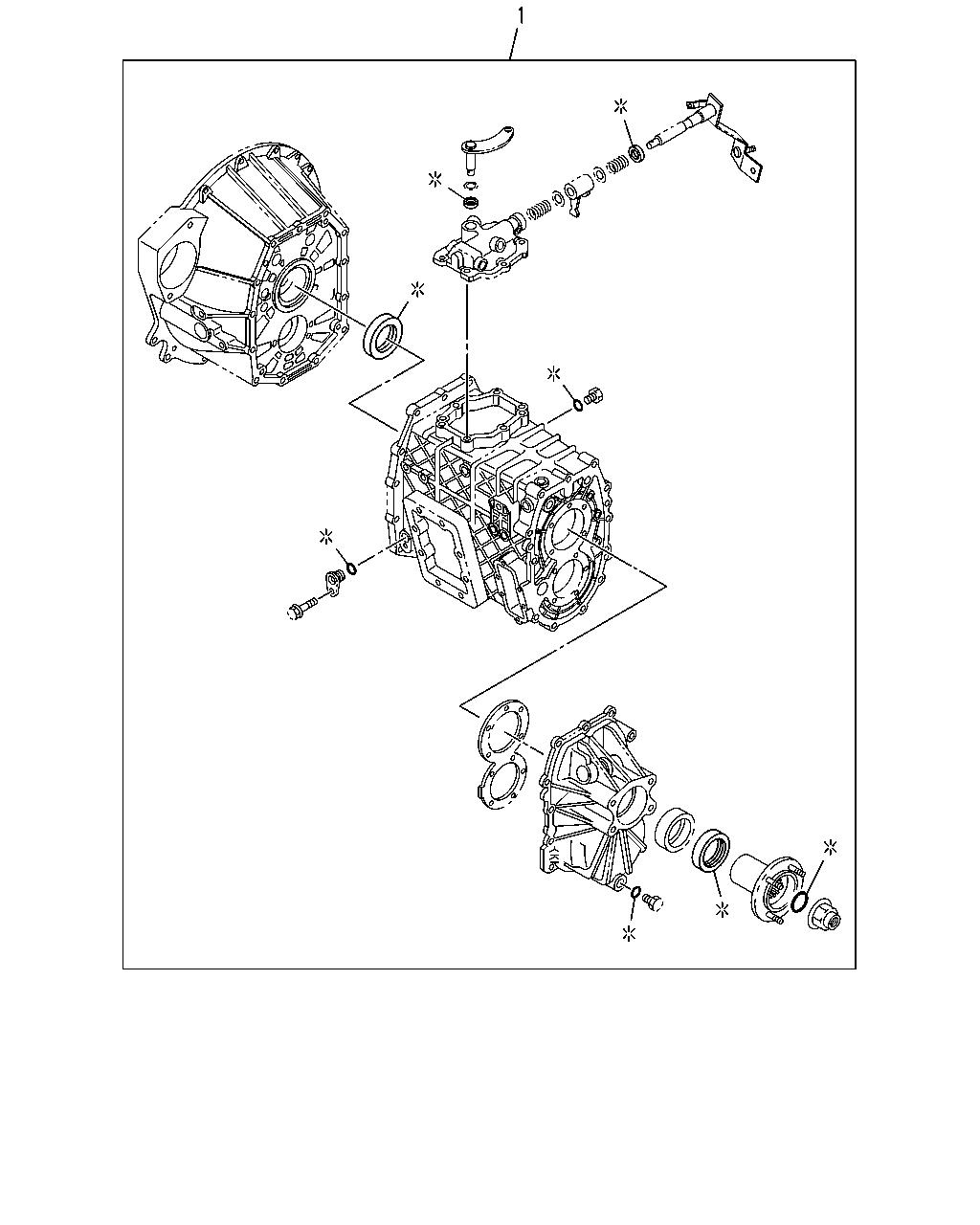

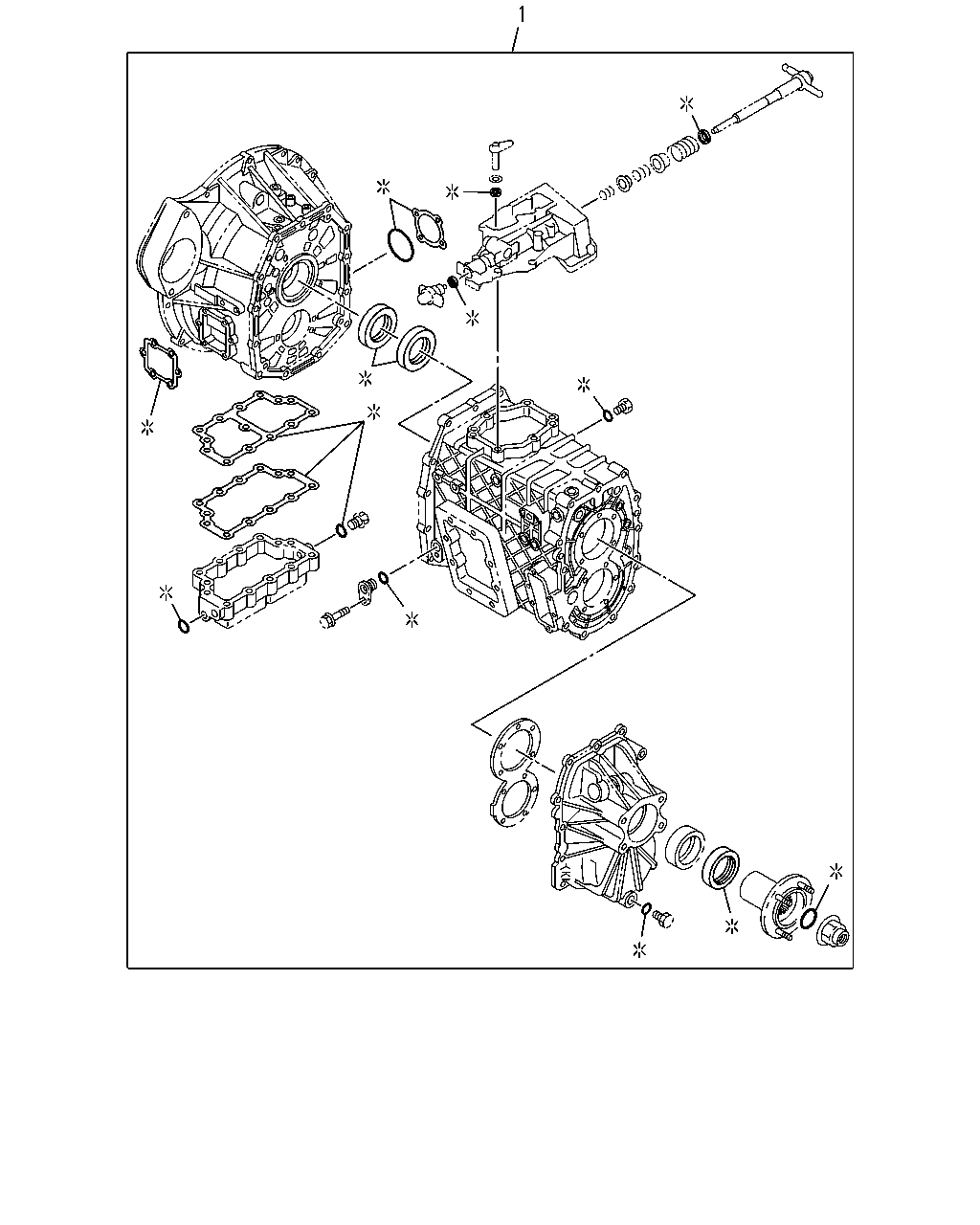

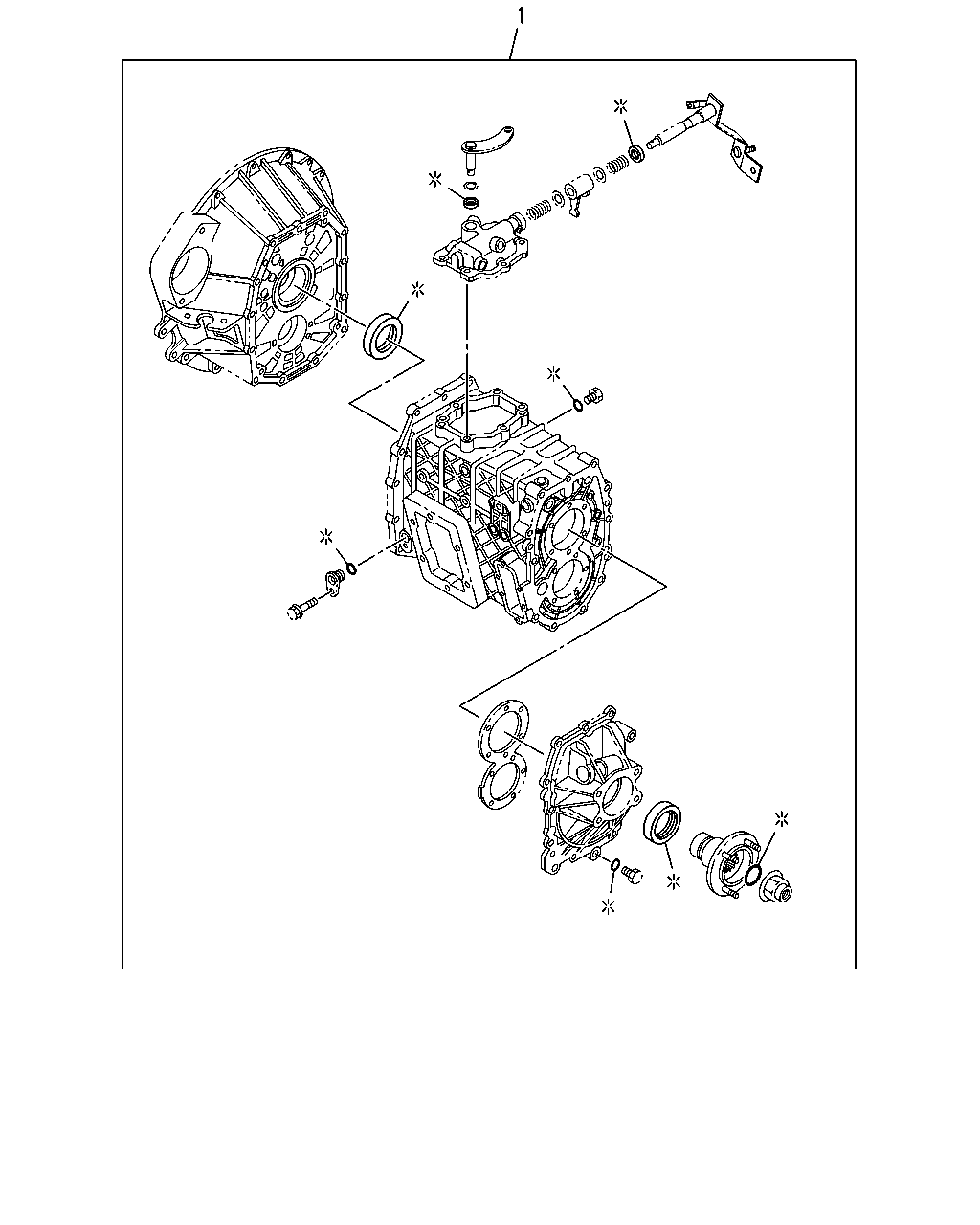

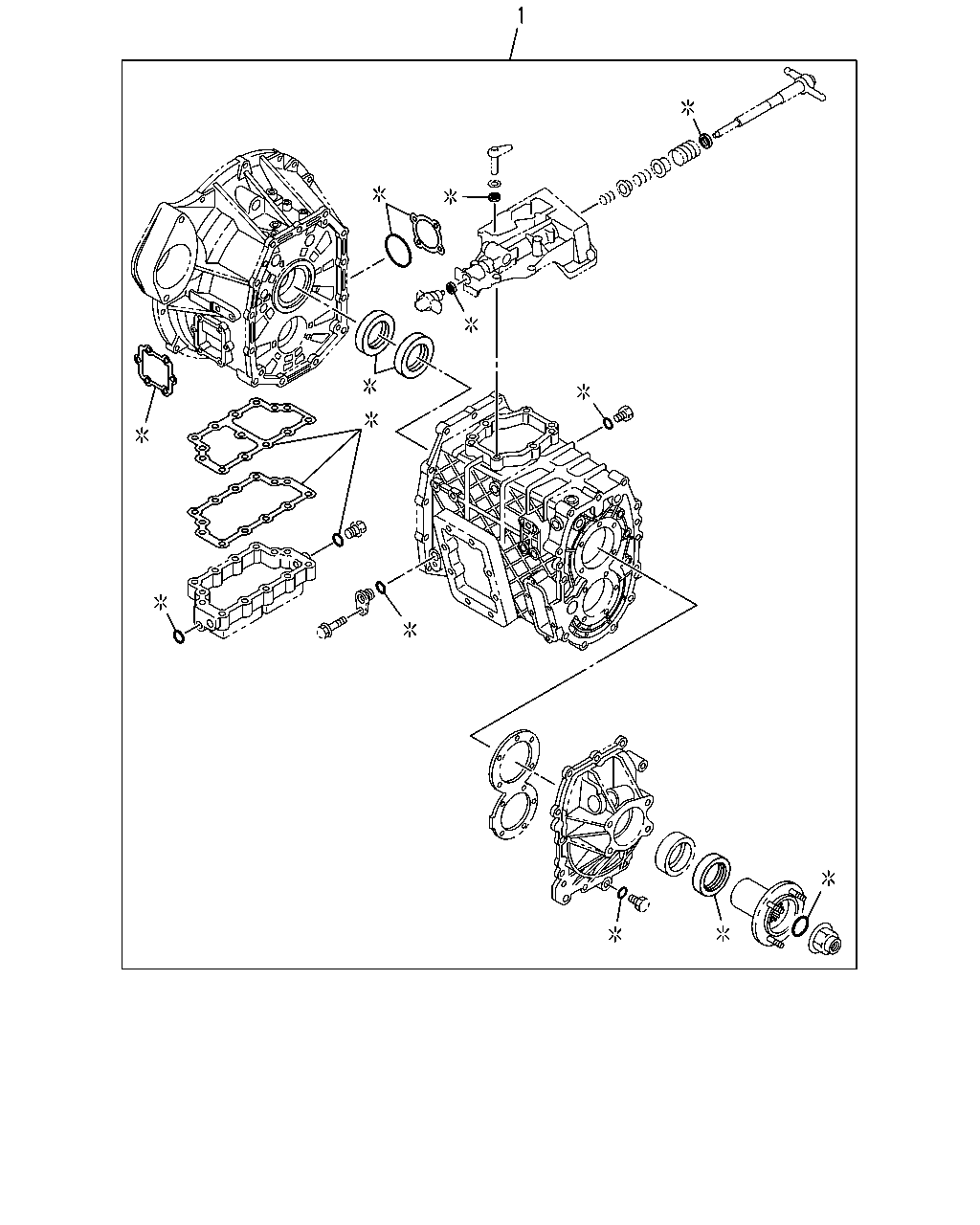

2-10 - REPAIR KIT; TRANSMISSION OVERHAUL
▶
2-10 — REPAIR KIT; TRANSMISSION OVERHAUL
(#32512) — 16 parça
Tümü
A - M/T MZZ6F
B - M/T MYY6S
◀
[210A] MYY;EXC.SMOOTHER (4 parça)
[210A] MYY;SMOOTHER (4 parça)
[210A] MZZ;EXC.SMOOTHER (4 parça)
[210A] MZZ;SMOOTHER (4 parça)
▶
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
04.005 GASKET SET; TRANS OVERHAUL
4HK1-TCC ENG(RDV) TRANSMISSION CONTROL-SMOOTHER(8GF)
5-87832-191-1
01
1
0612-
●
1
04.005 GASKET SET; TRANS OVERHAUL
4HK1-TCC ENG(RDV) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
5-87832-126-1
01
1
0612-
●
1
04.005 GASKET SET; TRANS OVERHAUL
4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF)
5-87832-192-1
01
1
0612-
●
1
04.005 GASKET SET; TRANS OVERHAUL
4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
5-87832-128-2
01
1
0612-
●
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
04.005 GASKET SET; TRANS OVERHAUL
4HK1-TCC ENG(RDV) TRANSMISSION CONTROL-SMOOTHER(8GF)
5-87832-191-1
01
1
0612-
●
1
04.005 GASKET SET; TRANS OVERHAUL
4HK1-TCC ENG(RDV) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
5-87832-126-1
01
1
0612-
●
1
04.005 GASKET SET; TRANS OVERHAUL
4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF)
5-87832-192-1
01
1
0612-
●
1
04.005 GASKET SET; TRANS OVERHAUL
4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
5-87832-128-2
01
1
0612-
●
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
04.005 GASKET SET; TRANS OVERHAUL
4HK1-TCC ENG(RDV) TRANSMISSION CONTROL-SMOOTHER(8GF)
5-87832-191-1
01
1
0612-
●
1
04.005 GASKET SET; TRANS OVERHAUL
4HK1-TCC ENG(RDV) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
5-87832-126-1
01
1
0612-
●
1
04.005 GASKET SET; TRANS OVERHAUL
4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF)
5-87832-192-1
01
1
0612-
●
1
04.005 GASKET SET; TRANS OVERHAUL
4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
5-87832-128-2
01
1
0612-
●
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
04.005 GASKET SET; TRANS OVERHAUL
4HK1-TCC ENG(RDV) TRANSMISSION CONTROL-SMOOTHER(8GF)
5-87832-191-1
01
1
0612-
●
1
04.005 GASKET SET; TRANS OVERHAUL
4HK1-TCC ENG(RDV) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
5-87832-126-1
01
1
0612-
●
1
04.005 GASKET SET; TRANS OVERHAUL
4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF)
5-87832-192-1
01
1
0612-
●
1
04.005 GASKET SET; TRANS OVERHAUL
4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
5-87832-128-2
01
1
0612-
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
