◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51103 - NPR/NQR(LHD) EURO4 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-03 - CLUTCH PEDAL AND CONTROL ▶
2-03 — CLUTCH PEDAL AND CONTROL (#32507) — 51 parça

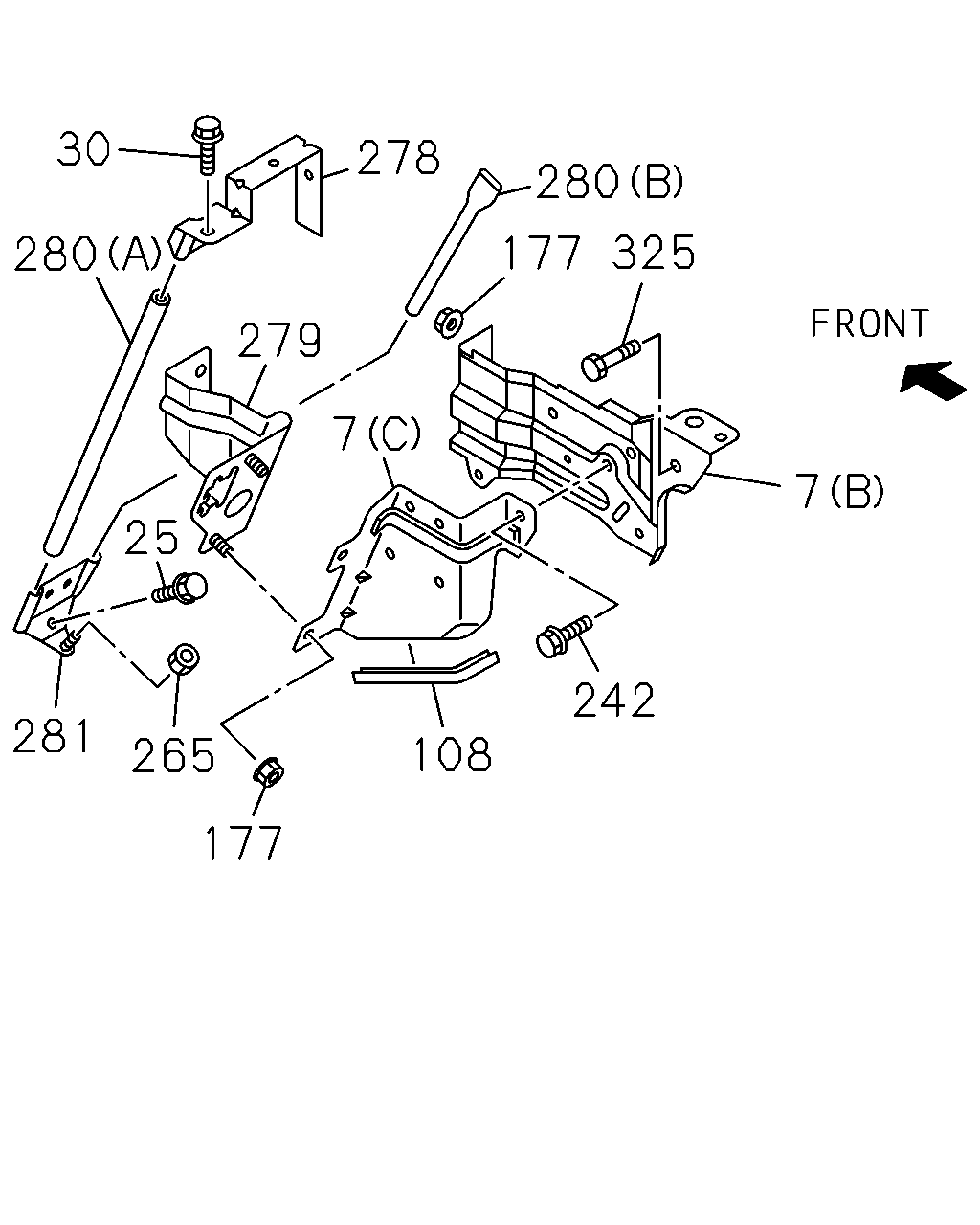

çizim 57016
30 278 280 325 177 280 279 7 7 25 242 281 108 265 177
BalonParca AdiParca NoAdetTipApplied Date A B C D
7 00.829 BRACKET; CLU PEDAL
FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97856-307-3 01 1 0612- ● ● ● ●
7 00.829 BRACKET; CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97868-177-1 01 1 0612- ● ● ● ●
7 00.829 BRACKET; CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98052-042-0 01 1 0612- ● ● ● ●
25 00.833 BOLT; PEDAL
M10X22 W/PL WASHER 		8-97313-188-0 01 1 0612- ● ● ● ●
30 00.829 BOLT; CLU MTG BRKT
07.833 M10X25 FLANGE 		0-28661-025-0 01 1 0612- ● ● ● ●
108 00.829 PROTECTOR; EDGE,CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98052-043-0 01 1 0612- ● ● ● ●
177 00.785 NUT; BRKT
00.777 M8 W/LK WASHER 		8-94279-050-0 02 1 0612- ● ● ● ●
177 00.785 NUT; BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF) 01.540 M8 FLANGE 		0-91180-208-0 02 1 0612- ● ● ● ●
242 00.785 BOLT; BRKT,CLUTCH
FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.604 M8X16 FLANGE 		0-28450-816-0 02 1 0612- ● ● ● ●
242 00.785 BOLT; BRKT,CLUTCH
TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 M6X12 FLANGE 		0-28050-612-0 01 1 0612- ● ● ● ●
265 00.777 NUT; BRKT,COLUMN SUPT TO C.PDL
01.840 M8 W/DISHED WASHER 		8-97329-625-0 01 1 0612- ● ● ● ●
278 00.833 REINFORCEMENT; VAC BRK
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97855-297-1 01 1 0612- ● ● ● ●
279 00.829 SUPPORT; VAC BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97855-299-2 01 1 0612- ● ● ● ●
280 00.829 ARM; VAC
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97855-301-0 01 1 0612- ● ● ● ●
280 00.829 ARM; VAC
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97855-302-0 01 1 0612- ● ● ● ●
281 00.829 STAY; VAC
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97855-303-1 01 1 0612- ● ● ● ●
325 00.782 BOLT; BRKT,STRG SUPPORT
01.531 M8X20 FLANGE 		0-28650-820-0 01 1 0612- ● ● ● ●

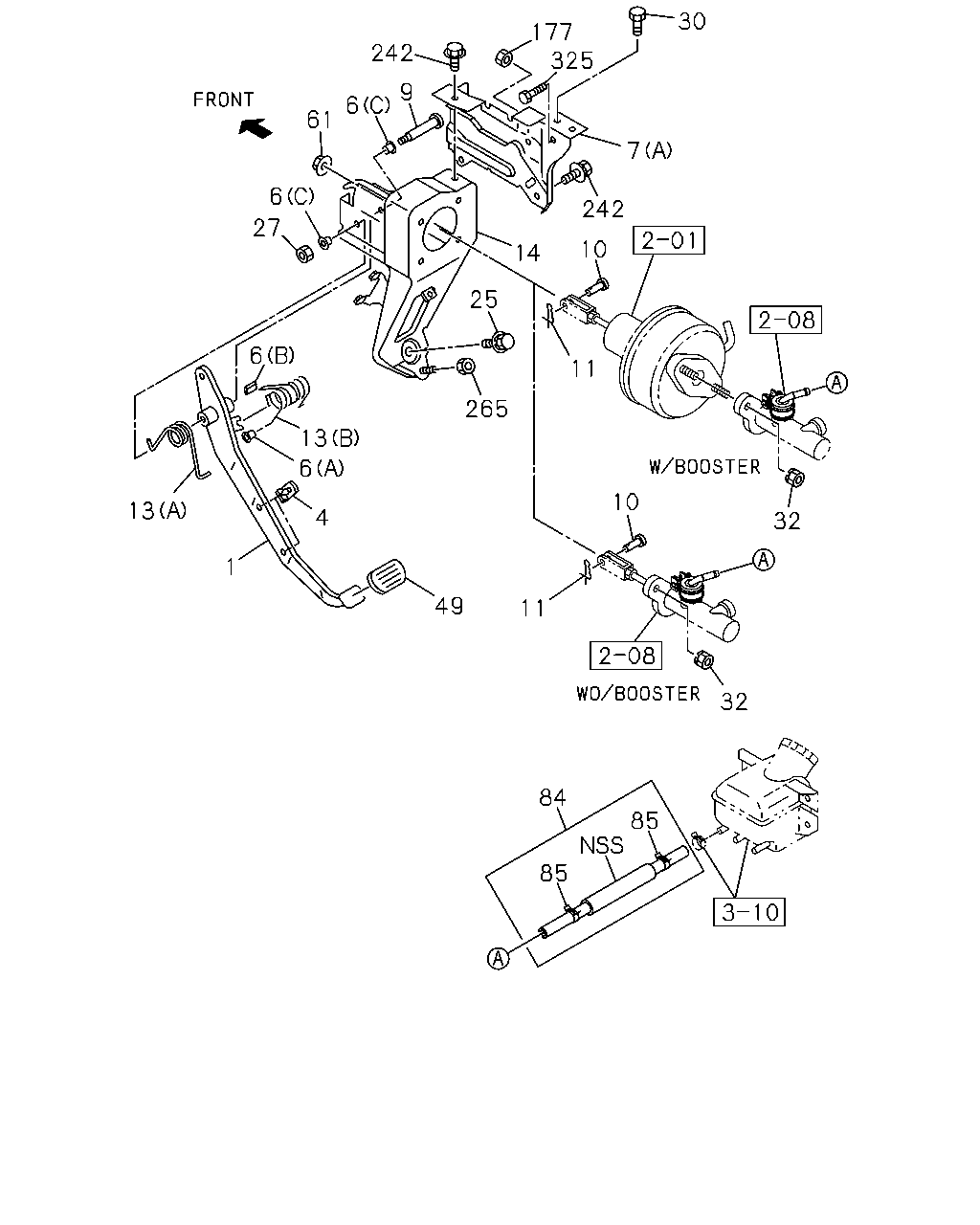

çizim 57773
30 177 325 242 9 6 61 7 6 242 27 10 14 25 6 11 265 13 6 10 13 4 32 1 49 11 32 84 85 85
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 00.830 PEDAL; CLU
FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH(S2T) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97853-220-2 01 1 0612- ● ● ● ●
1 00.830 PEDAL; CLU
4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T), TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97857-984-2 01 1 0612- ● ● ● ●
1 00.830 PEDAL; CLU
4JJ1 ENG(LFB) FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T), TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97853-219-2 01 1 0612- ● ● ● ●
4 00.829 STOPPER; CLU PEDAL
FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97853-534-1 02 1 0612- ● ● ● ●
6 00.831 BUSHING; CLU PEDAL
FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T), TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97853-619-0 02 1 0612- ● ● ● ●
6 00.831 BUSHING; CLU PEDAL
FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T), TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97853-620-0 01 1 0612- ● ● ● ●
6 00.831 BUSHING; CLU PEDAL
FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.792 (C) 		8-94238-596-0 02 1 0612- ● ● ● ●
7 00.829 BRACKET; CLU PEDAL
FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97856-307-3 01 1 0612- ● ● ● ●
7 00.829 BRACKET; CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97868-177-1 01 1 0612- ● ● ● ●
7 00.829 BRACKET; CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98052-042-0 01 1 0612- ● ● ● ●
9 00.833 PIN; CLU PEDAL
FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.634 		8-97866-667-0 01 1 0612- ● ● ● ●
10 00.833 PIN; CLU PEDAL
FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.634 		8-94410-276-0 01 1 0612- ● ● ● ●
11 00.833 PIN; SNAP,PUSH ROD TO PEDAL
FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.634 		8-94279-912-0 01 1 0612- ● ● ● ●
13 00.844 SPRING; ASSIST,CLU PEDAL
FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH(S2T) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97853-535-1 01 1 0612- ● ● ● ●
13 00.844 SPRING; ASSIST,CLU PEDAL
FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T), TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97853-221-1 01 1 0612- ● ● ● ●
14 00.829 BRACKET ASM; CLU PEDAL MTG
FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH(S2T) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98030-647-0 01 1 0612- ● ● ● ●
14 00.829 BRACKET ASM; CLU PEDAL MTG
FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T), TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98030-646-0 01 1 0612- ● ● ● ●
25 00.833 BOLT; PEDAL
M10X22 W/PL WASHER 		8-97313-188-0 01 1 0612- ● ● ● ●
27 00.833 NUT; FULCRUM PIN
FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M10 FLANGE 		1-09440-022-0 01 1 0612- ● ● ● ●
30 00.829 BOLT; CLU MTG BRKT
07.833 M10X25 FLANGE 		0-28661-025-0 01 1 0612- ● ● ● ●
32 00.777 NUT; BRKT TO CLU M/CYL
FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M8 W/LK WASHER 		8-94279-050-0 02 1 0612- ● ● ● ●
49 00.829 RUBBER; PAD,CLU PEDAL
FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97853-413-2 01 1 0612- ● ● ● ●
61 00.777 NUT; BOOSTER TO BRKT
FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M8 W/LK WASHER 		8-94279-050-0 04 1 0612- ● ● ● ●
84 00.785 HOSE; RUBBER,CLU LINE
FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97135-023-1 01 1 0612- ● ● ● ●
84 00.785 HOSE; RUBBER,CLU LINE
FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97135-027-1 01 1 0612- ● ● ● ●
84 00.785 HOSE; RUBBER,CLU LINE
POWER ASSIST CLUTCH(S2T) 		8-98033-675-0 01 1 0612- ● ● ● ●
85 00.785 CLIP; HOSE TO M/CYL
POWER ASSIST CLUTCH(S2T) 04.681 		8-98031-178-0 02 1 0612- ● ● ● ●
85 00.785 CLIP; HOSE TO M/CYL
EXC. POWER ASSIST CLUTCH(S2T), TRANSMISSION CONTROL-SMOOTHER(8GF) 04.681 		8-97130-480-0 02 1 0612- ● ● ● ●
177 00.785 NUT; BRKT
00.777 M8 W/LK WASHER 		8-94279-050-0 02 1 0612- ● ● ● ●
177 00.785 NUT; BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF) 01.540 M8 FLANGE 		0-91180-208-0 02 1 0612- ● ● ● ●
242 00.785 BOLT; BRKT,CLUTCH
FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.604 M8X16 FLANGE 		0-28450-816-0 02 1 0612- ● ● ● ●
242 00.785 BOLT; BRKT,CLUTCH
TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 M6X12 FLANGE 		0-28050-612-0 01 1 0612- ● ● ● ●
265 00.777 NUT; BRKT,COLUMN SUPT TO C.PDL
01.840 M8 W/DISHED WASHER 		8-97329-625-0 01 1 0612- ● ● ● ●
325 00.782 BOLT; BRKT,STRG SUPPORT
01.531 M8X20 FLANGE 		0-28650-820-0 01 1 0612- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
