1-56 — EXHAUST BRAKE SYSTEM (#32505) — 77 parça

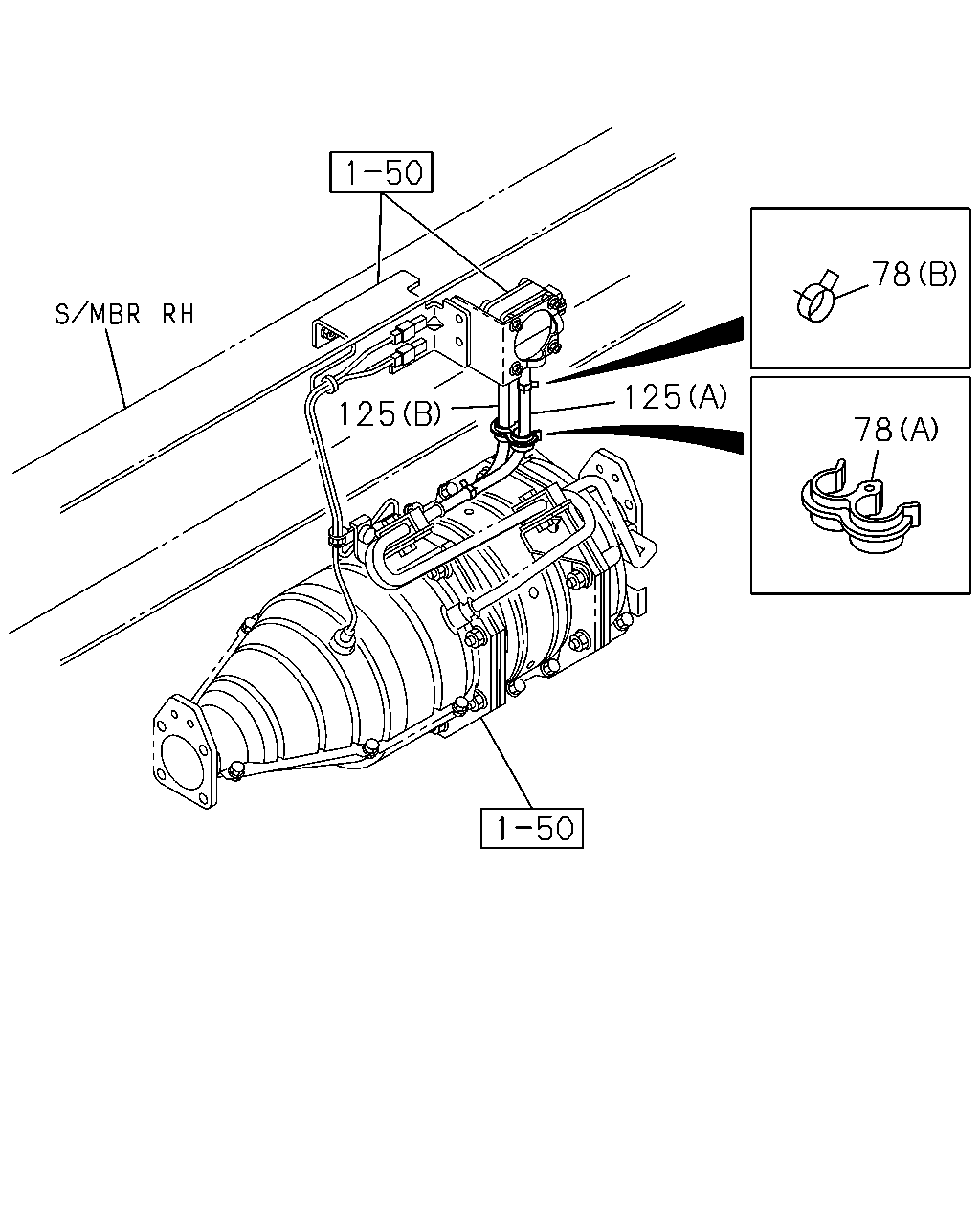

78 125 125 78

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
78	03.636 CLIP; HOSE 4HK1-TCN ENG(RDQ) 03.162 (A)	8-97173-119-0	01	1	0612-	●
78	03.636 CLIP; HOSE 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM) 03.162 (A)	8-97173-119-0	01	1	0612-		●	●
78	03.636 CLIP; HOSE 4HK1-TCN ENG(RDQ) 03.162 (B) ID=13	8-97329-627-0	04	1	0612-	●
78	03.636 CLIP; HOSE 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM) 03.162 (B) ID=13	8-97329-627-0	04	1	0612-		●
78	03.636 CLIP; HOSE EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM) 03.162 (B) ID=13	8-97329-627-0	04	1	0612-			●
78	03.636 CLIP; HOSE 4HK1-TCC ENG(RDV) 03.162 (B) ID=13	8-97329-627-0	04	1	0612-				●
125	03.630 HOSE; DPD 4HK1-TCN ENG(RDQ) (A)	8-98015-109-0	01	1	0612-	●
125	03.630 HOSE; DPD 4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM) (A)	8-98015-109-0	01	1	0612-		●	●
125	03.630 HOSE; DPD 4HK1-TCN ENG(RDQ) (B)	8-98015-110-0	01	1	0612-	●
125	03.630 HOSE; DPD 4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM) (B)	8-98015-110-0	01	1	0612-		●	●
125	03.630 HOSE; DPD 4JJ1 ENG(LFB) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM) 03.163 (B) L=250 SERVICED BY L=3000	0-01558-300-0	01	1	0612-		●	●
125	03.630 HOSE; DPD 4JJ1 ENG(LFB) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM) 03.163 (A) L=220 SERVICED BY L=3000	0-01560-300-0	01	1	0612-		●	●
125	03.630 HOSE; DPD 4HK1-TCC ENG(RDV) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM) 03.163 (A) L=170 SERVICED BY L=3000	0-01558-300-0	01	1	0612-			●
125	03.630 HOSE; DPD 4HK1-TCC ENG(RDV) 03.163 (A) L=170 SERVICED BY L=3000	0-01558-300-0	01	1	0612-				●
125	03.630 HOSE; DPD 4HK1-TCC ENG(RDV) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM) 03.163 (B) L=200 SERVICED BY L=3000	0-01558-300-0	01	1	0612-			●
125	03.630 HOSE; DPD 4HK1-TCC ENG(RDV) 03.163 (B) L=200 SERVICED BY L=3000	0-01558-300-0	01	1	0612-				●

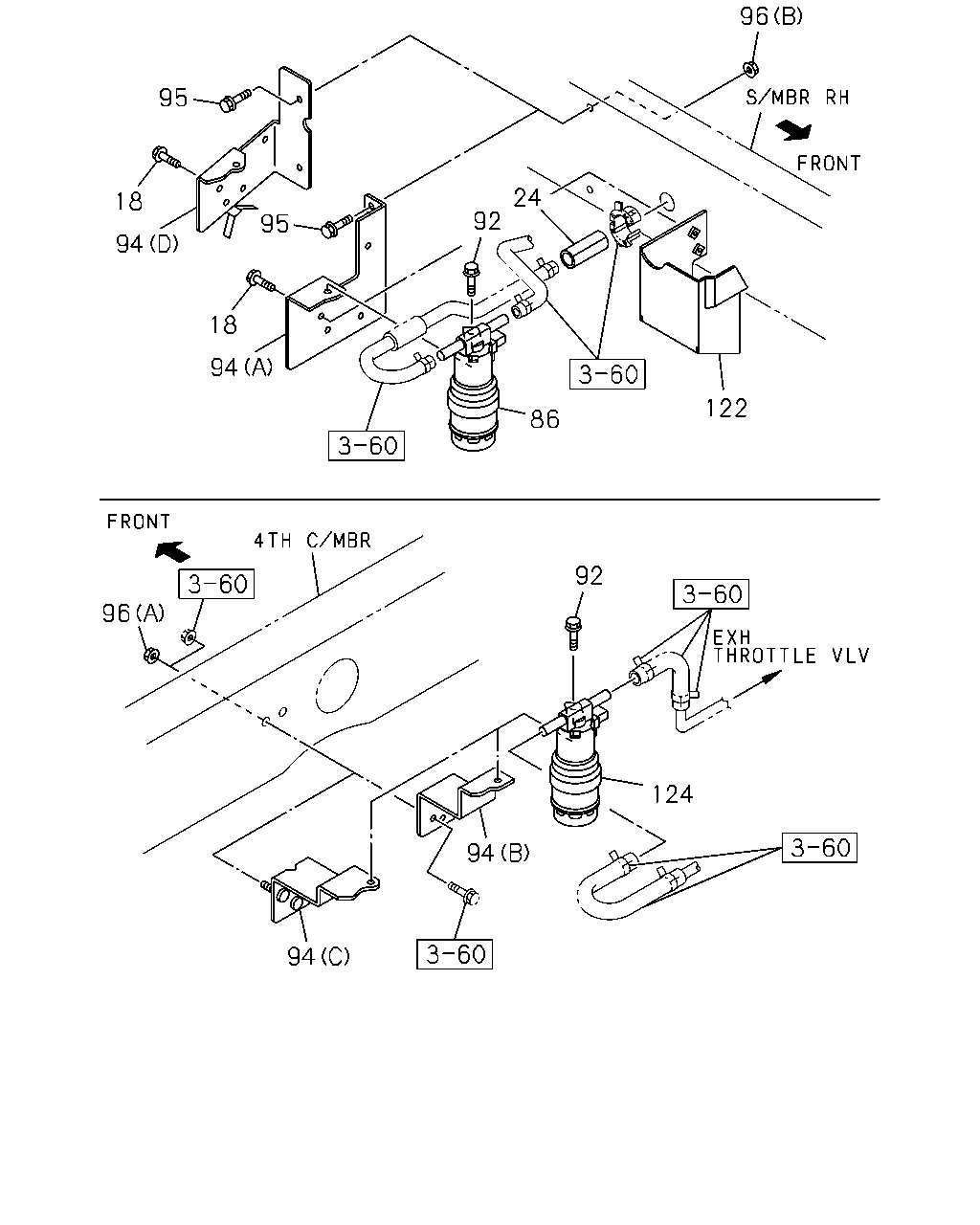

96 95 24 18 92 95 94 18 94 122 86 92 96 124 94 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
18	03.636 BOLT; PROTECTOR 4HK1-TCN ENG(RDQ) 03.162 M6X12 FLANGE	0-28050-612-0	02	1	0612-	●
18	03.636 BOLT; PROTECTOR 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) 03.162 M6X12 FLANGE	0-28050-612-0	02	1	0612-		●
18	03.636 BOLT; PROTECTOR 03.162 M6X12 FLANGE	0-28050-612-0	02	1	0612-			●
18	03.636 BOLT; PROTECTOR 4HK1-TCC ENG(RDV) 03.162 M6X12 FLANGE	0-28050-612-0	02	1	0612-				●
24	03.008 PROTECTOR; AIR FILTER 03.162 OD=15 L=50	8-97077-629-0	01	1	0612-	●			●
24	03.008 PROTECTOR; AIR FILTER FRAME STRAIGHT TYPE<7KJ> 03.162 OD=15 L=50	8-97077-629-0	01	1	0612-		●	●
86	03.636 VALVE; MAG,EXH BRK	8-98043-344-0	01	1	0612-	●	●	●	●
92	08.900 BOLT; MAG VLV 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0612-	●	●	●	●
92	08.900 BOLT; MAG VLV 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0612-	●			●
92	08.900 BOLT; MAG VLV CATALYSIS CONTROL WITH DPD(8JM) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0612-		●	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE (A)	8-98009-722-1	01	1	0612-	●			●
94	03.634 BRACKET; MAG VLV,EXH BRAKE FRAME STRAIGHT TYPE<7KJ> (A)	8-98009-722-1	01	1	0612-		●	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE (B)	8-98019-678-1	01	1	0612-	●			●
94	03.634 BRACKET; MAG VLV,EXH BRAKE FRAME STRAIGHT TYPE<7KJ> (B)	8-98019-678-1	01	1	0612-		●	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-98023-731-3	01	1	0612-		●	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-98036-835-0	01	1	0612-		●	●
95	03.636 BOLT; BRKT,MAG VLV,EXH BRAKE 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0612-		●	●
96	03.636 NUT; BRKT,MAG VLV,EXH BRAKE 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	0612-		●	●
96	03.636 NUT; BRKT,MAG VLV,EXH BRAKE 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	0612-		●	●
122	03.640 PROTECTOR; MAG VLV 4HK1-TCN ENG(RDQ)	8-98022-052-0	01	1	0612-	●
122	03.640 PROTECTOR; MAG VLV 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ)	8-98022-052-0	01	1	0612-		●
122	03.640 PROTECTOR; MAG VLV	8-98022-052-0	01	1	0612-			●
122	03.640 PROTECTOR; MAG VLV 4HK1-TCC ENG(RDV)	8-98022-052-0	01	1	0612-				●
124	03.636 VALVE; MAG,DPD EXH THROTTLE	8-98043-344-0	01	1	0612-	●			●
124	03.636 VALVE; MAG,DPD EXH THROTTLE CATALYSIS CONTROL WITH DPD(8JM)	8-98043-344-0	01	1	0612-		●	●

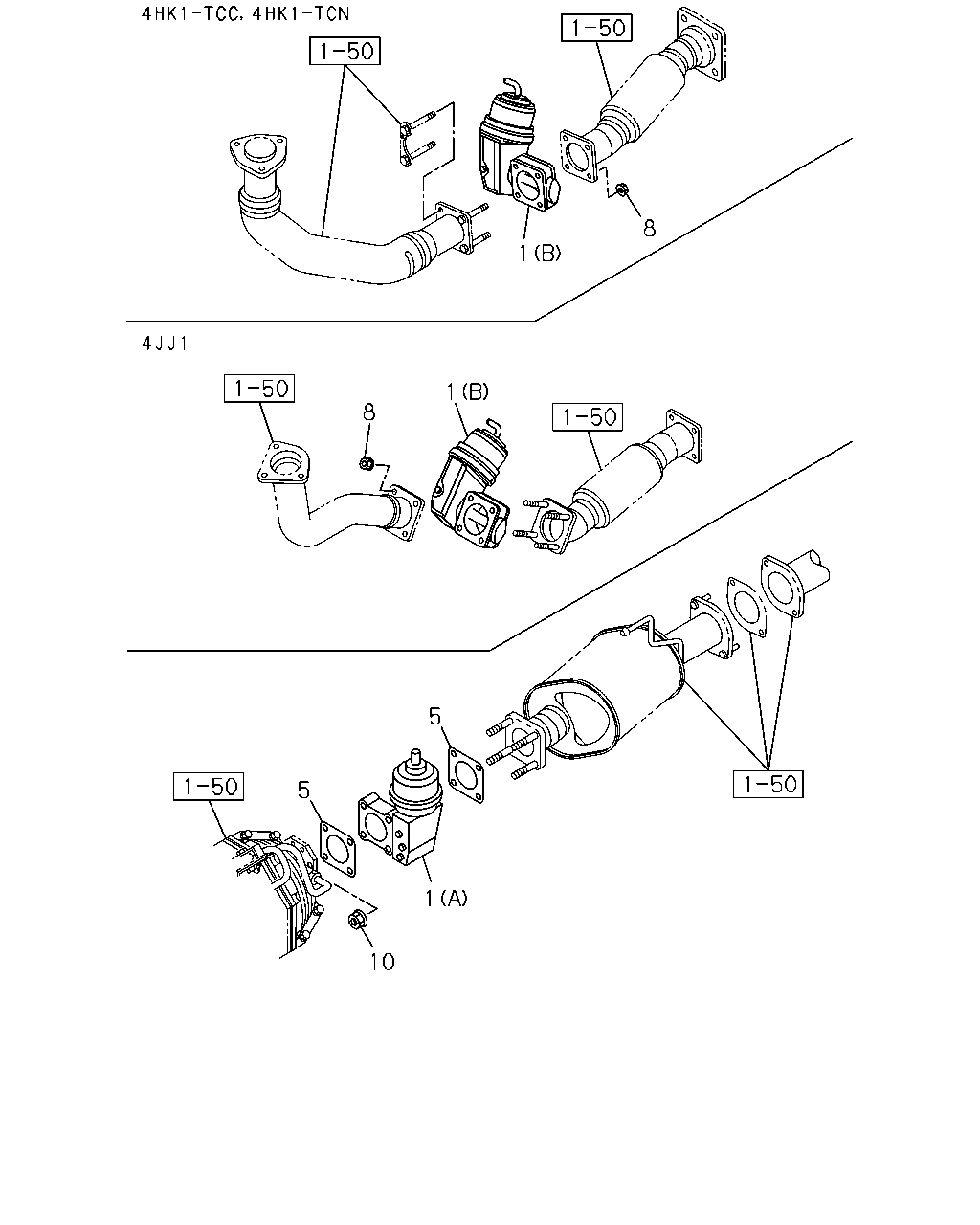

8 1 1 8 5 5 1 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.632 BRAKE UNIT; EXH 4HK1-TCN ENG(RDQ) (B)	8-98062-604-0	01	1	0612-0612	●
1	03.632 BRAKE UNIT; EXH 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) (B)	8-98062-604-0	01	1	0612-0612		●
1	03.632 BRAKE UNIT; EXH (B)	8-98062-604-0	01	1	0612-0612			●
1	03.632 BRAKE UNIT; EXH 4HK1-TCC ENG(RDV) (B)	8-98062-604-0	01	1	0612-0612				●
1	03.632 BRAKE UNIT; EXH 4HK1-TCN ENG(RDQ) (B)	8-98068-178-1	01	1	0612-	●
1	03.632 BRAKE UNIT; EXH 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) (B)	8-98068-178-1	01	1	0612-		●
1	03.632 BRAKE UNIT; EXH (B)	8-98068-178-1	01	1	0612-			●
1	03.632 BRAKE UNIT; EXH 4HK1-TCC ENG(RDV) (B)	8-98068-178-1	01	1	0612-				●
1	03.632 BRAKE UNIT; EXH 4HK1-TCN ENG(RDQ) (A)	8-98035-862-2	01	1	0612-1012	●	●
1	03.632 BRAKE UNIT; EXH 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) (A)	8-98035-862-2	01	1	0612-1012			●
1	03.632 BRAKE UNIT; EXH 4HK1-TCC ENG(RDV) (A)	8-98035-862-2	01	1	0612-1012				●
1	03.632 BRAKE UNIT; EXH 4HK1-TCN ENG(RDQ) (A)	8-98167-678-1	01	1	1101-	●	●
1	03.632 BRAKE UNIT; EXH 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) (A)	8-98167-678-1	01	1	1101-			●
1	03.632 BRAKE UNIT; EXH 4HK1-TCC ENG(RDV) (A)	8-98167-678-1	01	1	1101-				●
1	03.632 BRAKE UNIT; EXH 4JJ1 ENG(LFB) (A)	8-97384-098-2	01	1	0612-1012		●	●
1	03.632 BRAKE UNIT; EXH 4JJ1 ENG(LFB) (A)	8-98167-677-1	01	1	1101-		●	●
5	03.634 GASKET; EXH BRAKE UNIT 4HK1-TCN ENG(RDQ) 03.611 ID=64	8-97373-108-0	02	1	0612-	●
5	03.634 GASKET; EXH BRAKE UNIT 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) 03.611 ID=64	8-97373-108-0	02	1	0612-		●
5	03.634 GASKET; EXH BRAKE UNIT 03.611 ID=64	8-97373-108-0	02	1	0612-			●
5	03.634 GASKET; EXH BRAKE UNIT 4HK1-TCC ENG(RDV) 03.611 ID=64	8-97373-108-0	02	1	0612-				●
8	03.632 NUT; EXH BRAKE UNIT FIX 4HK1-TCN ENG(RDQ) 07.833 M8 W/LK WASHER	8-94327-073-0	04	1	0612-0805	●
8	03.632 NUT; EXH BRAKE UNIT FIX 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) 07.833 M8 W/LK WASHER	8-94327-073-0	04	1	0612-0805		●
8	03.632 NUT; EXH BRAKE UNIT FIX 07.833 M8 W/LK WASHER	8-94327-073-0	04	1	0612-0805			●
8	03.632 NUT; EXH BRAKE UNIT FIX 4HK1-TCC ENG(RDV) 07.833 M8 W/LK WASHER	8-94327-073-0	04	1	0612-0805				●
8	03.632 NUT; EXH BRAKE UNIT FIX 4HK1-TCN ENG(RDQ) 03.417 M8 W/LK WASHER	8-97581-234-0	04	1	0806-	●
8	03.632 NUT; EXH BRAKE UNIT FIX 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) 03.417 M8 W/LK WASHER	8-97581-234-0	04	1	0806-		●
8	03.632 NUT; EXH BRAKE UNIT FIX 03.417 M8 W/LK WASHER	8-97581-234-0	04	1	0806-			●
8	03.632 NUT; EXH BRAKE UNIT FIX 4HK1-TCC ENG(RDV) 03.417 M8 W/LK WASHER	8-97581-234-0	04	1	0806-				●
10	03.634 NUT; BRKT,EXH BRAKE 4HK1-TCN ENG(RDQ) 07.833 M8 W/LK WASHER	8-94327-073-0	04	1	0612-0805	●
10	03.634 NUT; BRKT,EXH BRAKE 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) 07.833 M8 W/LK WASHER	8-94327-073-0	04	1	0612-0805		●
10	03.634 NUT; BRKT,EXH BRAKE 07.833 M8 W/LK WASHER	8-94327-073-0	04	1	0612-0805			●
10	03.634 NUT; BRKT,EXH BRAKE 4HK1-TCC ENG(RDV) 07.833 M8 W/LK WASHER	8-94327-073-0	04	1	0612-0805				●
10	03.634 NUT; BRKT,EXH BRAKE 4HK1-TCN ENG(RDQ) 03.417 M8 W/LK WASHER	8-97581-234-0	04	1	0806-	●
10	03.634 NUT; BRKT,EXH BRAKE 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) 03.417 M8 W/LK WASHER	8-97581-234-0	04	1	0806-		●
10	03.634 NUT; BRKT,EXH BRAKE 03.417 M8 W/LK WASHER	8-97581-234-0	04	1	0806-			●
10	03.634 NUT; BRKT,EXH BRAKE 4HK1-TCC ENG(RDV) 03.417 M8 W/LK WASHER	8-97581-234-0	04	1	0806-				●
