Sayfa 1-50 - Isuzu EPC

1-50 — EXHAUST PIPE AND SILENCER (#32503) — 871 parça

1 14 125 97 38 105 357 165 162 164 126 166 14 70 104 88 95 94 124 81 143 144 168 38 94 137

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D

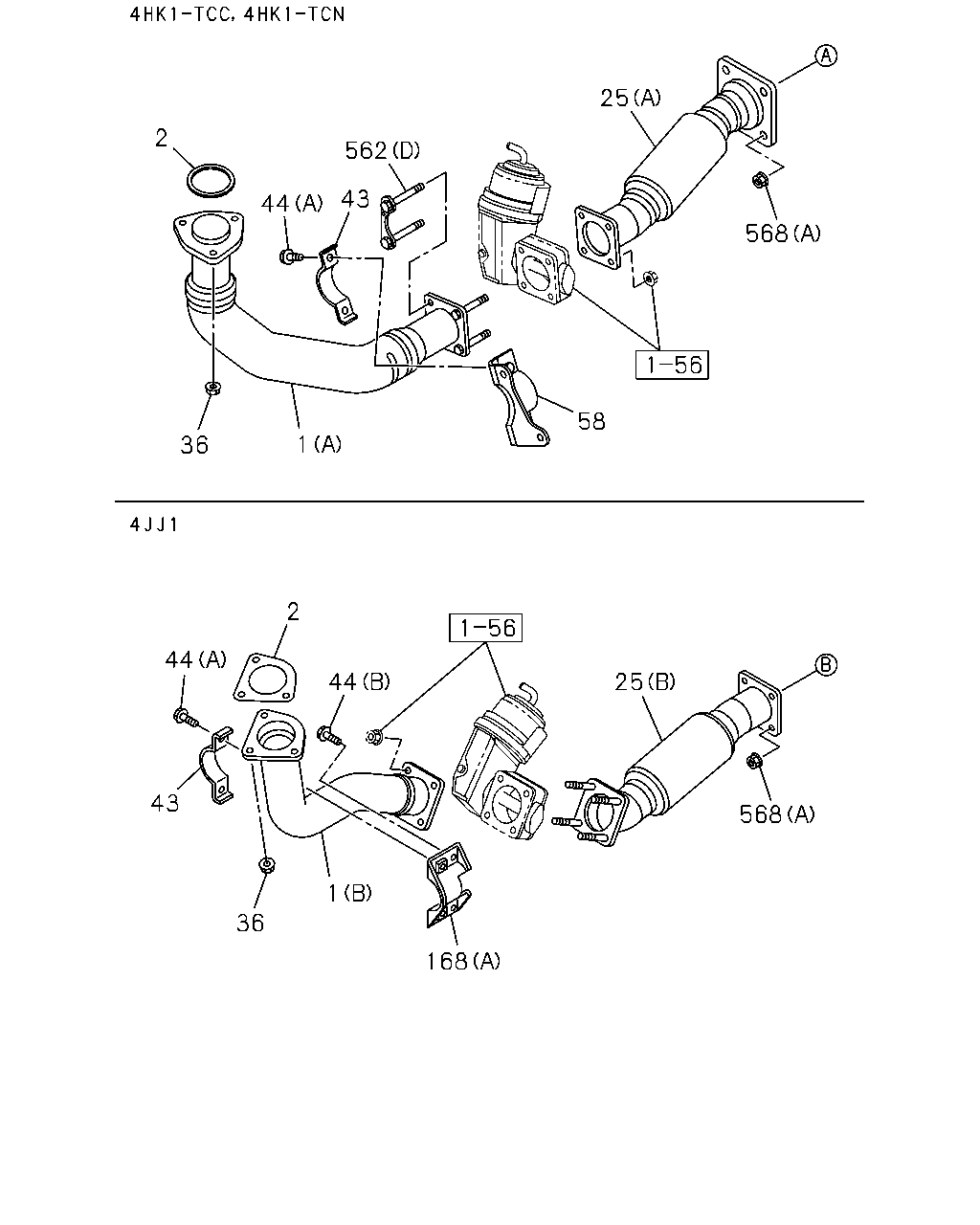

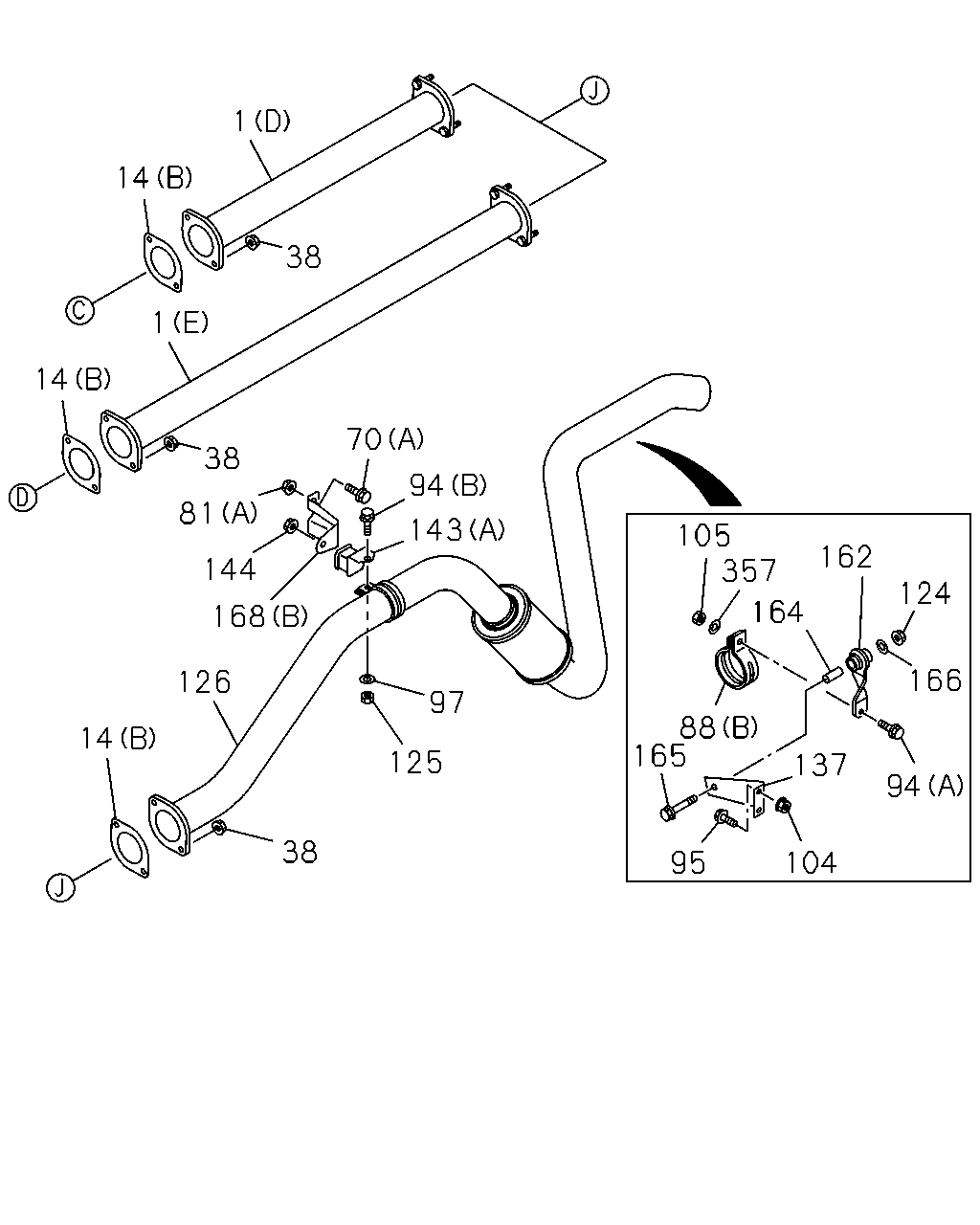

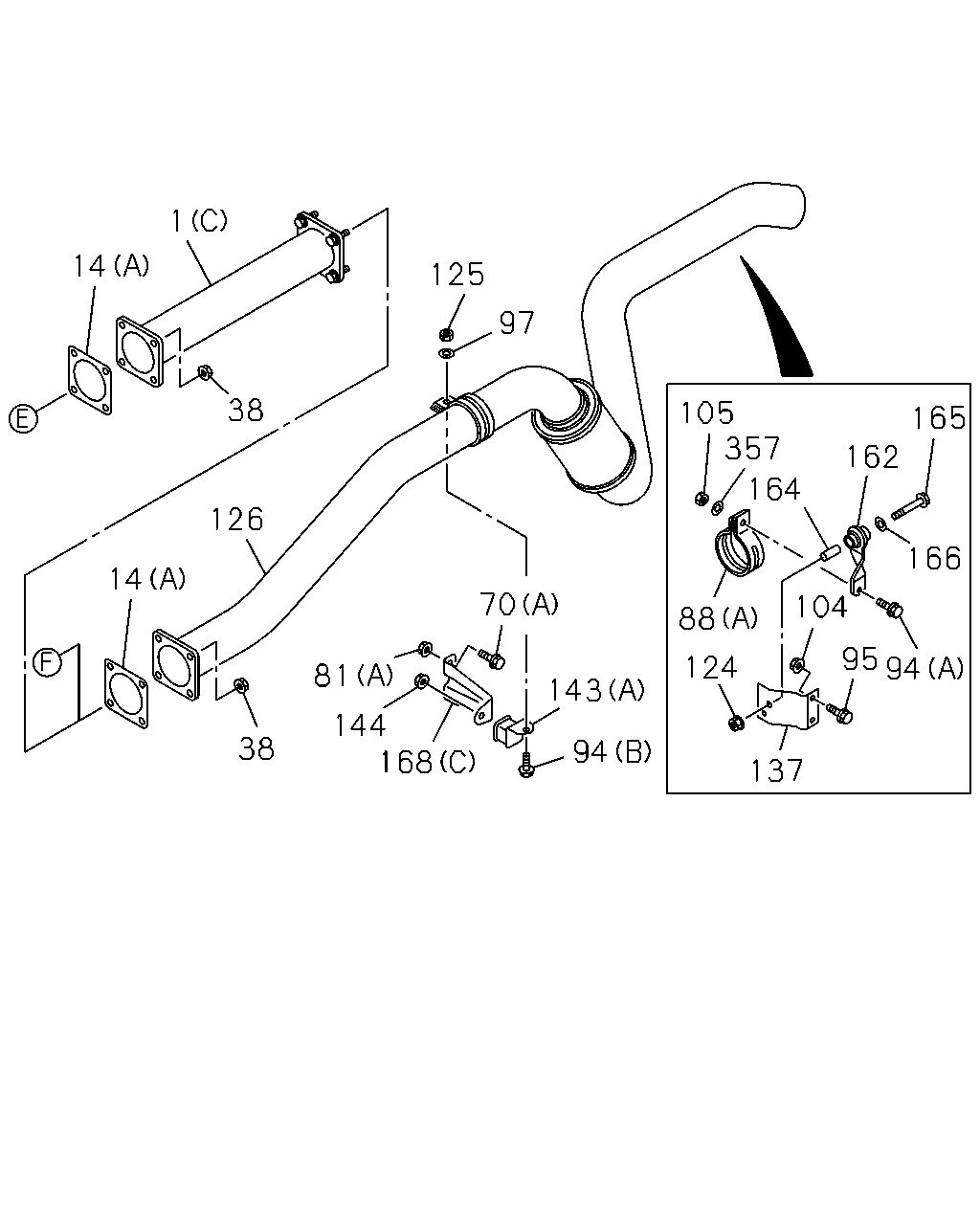

1	03.609 PIPE; EXH 4HK1-TCN ENG(RDQ) (A)	8-98006-765-2	01	1	0612-	●	●
1	03.609 PIPE; EXH 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) (A)	8-98006-765-2	01	1	0612-			●
1	03.609 PIPE; EXH 4HK1-TCC ENG(RDV) (A)	8-98006-765-2	01	1	0612-				●
1	03.609 PIPE; EXH 4JJ1 ENG(LFB) (D)	8-98005-237-0	01	1	0612-		●
1	03.609 PIPE; EXH 4JJ1 ENG(LFB) (B)	8-98026-060-0	01	1	0612-		●	●
1	03.609 PIPE; EXH 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) (C)	8-98020-602-0	01	1	0612-			●
1	03.609 PIPE; EXH 4HK1-TCC ENG(RDV) (C)	8-98020-602-0	01	1	0612-				●
1	03.609 PIPE; EXH 4JJ1 ENG(LFB) (E)	8-97387-264-0	01	1	0612-			●
14	03.704 GASKET; SILENCER TO EXH PIPE 4HK1-TCN ENG(RDQ) (A)	1-22116-043-0	01	1	0612-	●	●
14	03.704 GASKET; SILENCER TO EXH PIPE 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) (A)	1-22116-043-0	01	1	0612-			●
14	03.704 GASKET; SILENCER TO EXH PIPE 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) (A)	1-22116-043-0	01	1	0612-			●
14	03.704 GASKET; SILENCER TO EXH PIPE 4HK1-TCC ENG(RDV) (A)	1-22116-043-0	01	1	0612-				●
14	03.704 GASKET; SILENCER TO EXH PIPE 4HK1-TCC ENG(RDV) (A)	1-22116-043-0	01	1	0612-				●
14	03.704 GASKET; SILENCER TO EXH PIPE 4JJ1 ENG(LFB) 03.611 (B) ID=65	8-97148-757-1	01	1	0612-		●	●
14	03.704 GASKET; SILENCER TO EXH PIPE 4JJ1 ENG(LFB) 03.611 (B) ID=65	8-97148-757-1	01	1	0612-		●	●
38	00.002 NUT; SILENCER 4HK1-TCN ENG(RDQ) 03.162 M10 FLANGE	0-91180-110-0	04	1	0612-	●	●
38	00.002 NUT; SILENCER 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) 03.162 M10 FLANGE	0-91180-110-0	04	1	0612-			●
38	00.002 NUT; SILENCER 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) 03.162 M10 FLANGE	0-91180-110-0	04	1	0612-			●
38	00.002 NUT; SILENCER 4HK1-TCC ENG(RDV) 03.162 M10 FLANGE	0-91180-110-0	04	1	0612-				●
38	00.002 NUT; SILENCER 4HK1-TCC ENG(RDV) 03.162 M10 FLANGE	0-91180-110-0	04	1	0612-				●
38	00.002 NUT; SILENCER 4JJ1 ENG(LFB) 03.162 M10 FLANGE	0-91180-110-0	02	1	0612-		●	●
38	00.002 NUT; SILENCER 4JJ1 ENG(LFB) 03.162 M10 FLANGE	0-91180-110-0	02	1	0612-		●	●
70	03.706 BOLT; BRKT 02.277 (B) M10X35 FLANGE	0-28651-035-0	02	1	0612-	●	●	●	●
70	03.706 BOLT; BRKT 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	0612-		●	●	●
81	03.704 NUT; BRKT 4HK1-TCN ENG(RDQ) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	0612-	●
81	03.704 NUT; BRKT 4HK1-TCN ENG(RDQ) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0612-		●
81	03.704 NUT; BRKT 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0612-			●
81	03.704 NUT; BRKT 4HK1-TCC ENG(RDV) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0612-				●
81	03.704 NUT; BRKT 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	0612-		●	●	●
88	03.708 CLAMP; EXH PIPE 4HK1-TCN ENG(RDQ) (A)	8-98034-766-0	01	1	0612-	●	●
88	03.708 CLAMP; EXH PIPE 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) (A)	8-98034-766-0	01	1	0612-			●
88	03.708 CLAMP; EXH PIPE 4HK1-TCC ENG(RDV) (A)	8-98034-766-0	01	1	0612-				●
88	03.708 CLAMP; EXH PIPE 4JJ1 ENG(LFB) (B)	8-97373-158-0	01	1	0612-		●	●
88	03.708 CLAMP; EXH PIPE 4JJ1 ENG(LFB) (B)	8-97373-158-0	01	1	0612-		●	●
94	03.704 BOLT; CLAMP 00.685 (A) M10X45 FLANGE	0-28051-045-0	01	1	0612-	●	●	●	●
94	03.704 BOLT; CLAMP 03.023 (B) M10X50 FLANGE	8-97301-165-0	01	1	0612-		●	●	●
95	03.708 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0612-	●	●	●
95	03.708 BOLT; BRKT 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0612-				●
97	03.708 WASHER; PL,CLAMP 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	0612-		●	●	●
104	03.704 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	0612-	●	●	●
104	03.704 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	0612-				●
105	03.704 NUT; CLAMP 00.833 M10	0-91110-510-0	01	1	0612-	●	●	●	●
124	03.704 NUT; SUPPORT RUBBER 03.162 M10 FLANGE	0-91180-110-0	01	1	0612-	●	●	●	●
125	03.708 NUT; CLAMP 00.833 M10	0-91110-510-0	01	1	0612-		●	●	●
126	03.705 PIPE; EXH,RR 4HK1-TCN ENG(RDQ)	8-98020-607-2	01	1	0612-	●
126	03.705 PIPE; EXH,RR 4HK1-TCN ENG(RDQ)	8-98045-047-0	01	1	0612-		●	●
126	03.705 PIPE; EXH,RR 4JJ1 ENG(LFB)	8-98020-605-1	01	1	0612-		●	●
126	03.705 PIPE; EXH,RR 4HK1-TCC ENG(RDV)	8-98020-608-2	01	1	0612-			●
126	03.705 PIPE; EXH,RR 4HK1-TCC ENG(RDV)	8-98020-609-2	01	1	0612-				●
137	03.706 BRACKET; TAIL PIPE 4HK1-TCN ENG(RDQ)	8-97116-588-2	01	1	0612-	●	●
137	03.706 BRACKET; TAIL PIPE 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV)	8-97116-588-2	01	1	0612-			●
137	03.706 BRACKET; TAIL PIPE 4JJ1 ENG(LFB)	8-97232-759-0	01	1	0612-		●	●
137	03.706 BRACKET; TAIL PIPE	8-97185-801-0	01	1	0612-				●
143	03.704 RUBBER; SUPPORT 4JJ1 ENG(LFB) (B)	8-97080-694-0	01	1	0612-		●	●
143	03.704 RUBBER; SUPPORT (A)	8-98034-767-0	01	1	0612-		●	●	●
144	03.613 NUT; MTG RUBBER 01.062 M8 FLANGE	0-91180-108-0	01	1	0612-		●	●	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE 4HK1-TCN ENG(RDQ) L=115	8-98034-765-0	01	1	0612-	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE L=115	8-98034-765-0	01	1	0612-		●	●	●
164	03.706 COLLAR; DIST,TAIL PIPE 4HK1-TCN ENG(RDQ) L=37.5	9-22151-217-0	01	1	0612-	●
164	03.706 COLLAR; DIST,TAIL PIPE L=37.5	9-22151-217-0	01	1	0612-		●	●	●
165	03.706 BOLT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ) M10X70 FLANGE	0-28051-070-0	01	1	0612-	●
165	03.706 BOLT; SUPPORT RUBBER M10X70 FLANGE	0-28051-070-0	01	1	0612-		●	●	●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	0612-	●	●	●	●
168	03.613 BRACKET; EXH PIPE,FRT 4HK1-TCN ENG(RDQ) (C)	8-97096-651-0	01	1	0612-		●
168	03.613 BRACKET; EXH PIPE,FRT 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) (C)	8-97096-651-0	01	1	0612-			●
168	03.613 BRACKET; EXH PIPE,FRT 4HK1-TCC ENG(RDV) (C)	8-97096-651-0	01	1	0612-				●
168	03.613 BRACKET; EXH PIPE,FRT 4JJ1 ENG(LFB) 03.704 (B)	8-94468-174-1	01	1	0612-		●	●
168	03.613 BRACKET; EXH PIPE,FRT 4JJ1 ENG(LFB) (A)	8-98026-063-0	01	1	0612-		●	●
357	03.708 WASHER; PL,CLAMP 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	0612-	●	●	●	●

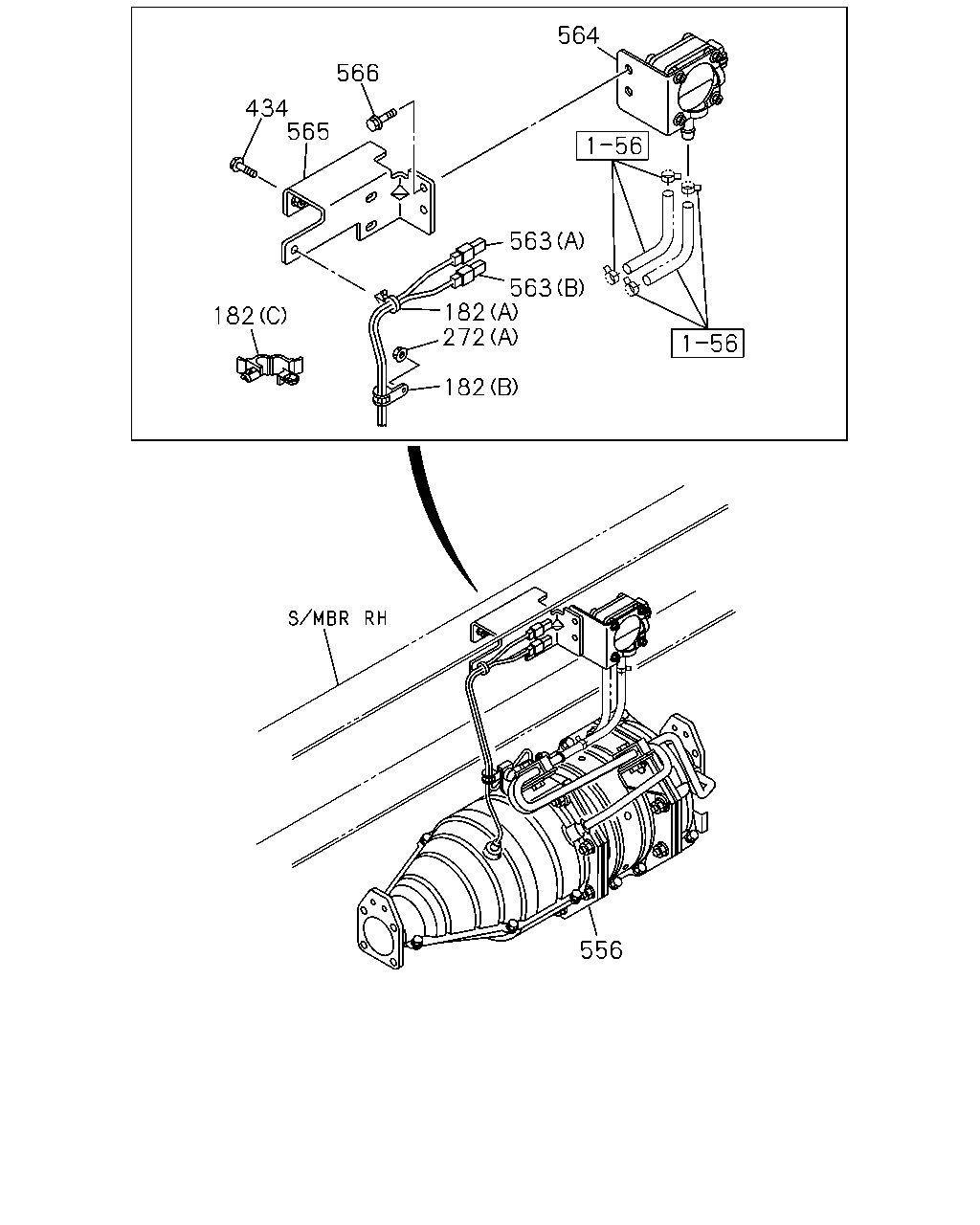

564 566 434 565 563 563 182 272 182 182 556

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
182	03.682 CLIP; HARNESS 4HK1-TCN ENG(RDQ) 02.587 (A) L=112	8-94232-618-0	01	1	0612-	●
182	03.682 CLIP; HARNESS 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM) 02.587 (A) L=112	8-94232-618-0	01	1	0612-		●
182	03.682 CLIP; HARNESS EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM) 02.587 (A) L=112	8-94232-618-0	01	1	0612-			●
182	03.682 CLIP; HARNESS 4HK1-TCC ENG(RDV) 02.587 (A) L=112	8-94232-618-0	01	1	0612-				●
182	03.682 CLIP; HARNESS 4HK1-TCN ENG(RDQ) (B) ID=7	8-98002-767-0	01	1	0612-	●
182	03.682 CLIP; HARNESS 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM) (B) ID=7	8-98002-767-0	01	1	0612-		●	●
182	03.682 CLIP; HARNESS 4HK1-TCC ENG(RDV) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM) (C) ID=7 L=7.5	8-97369-561-0	01	1	0612-			●
182	03.682 CLIP; HARNESS 4HK1-TCC ENG(RDV) (C) ID=7 L=7.5	8-97369-561-0	01	1	0612-				●
272	03.685 NUT; FLANGE 4HK1-TCN ENG(RDQ) 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	0612-	●
272	03.685 NUT; FLANGE 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM) 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	0612-		●	●
272	03.685 NUT; FLANGE 4HK1-TCN ENG(RDQ) 01.062 (C) M8 FLANGE	0-91180-108-0	16	1	0612-	●
272	03.685 NUT; FLANGE 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM) 01.062 (C) M8 FLANGE	0-91180-108-0	16	1	0612-		●	●
272	03.685 NUT; FLANGE 4HK1-TCC ENG(RDV) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM) 01.540 (B) M8 FLANGE	0-91180-208-0	20	1	0612-0702			●
272	03.685 NUT; FLANGE 4HK1-TCC ENG(RDV) 01.540 (B) M8 FLANGE	0-91180-208-0	20	1	0612-0702				●
272	03.685 NUT; FLANGE 4HK1-TCC ENG(RDV) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM) 01.062 (B) M8 FLANGE	0-91180-108-0	20	1	0703-			●
272	03.685 NUT; FLANGE 4HK1-TCC ENG(RDV) 01.062 (B) M8 FLANGE	0-91180-108-0	20	1	0703-				●
434	03.613 BOLT; BRKT 4HK1-TCN ENG(RDQ) 00.029 M10X30 FLANGE	0-28651-030-0	01	1	0612-	●
434	03.613 BOLT; BRKT 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0612-		●
434	03.613 BOLT; BRKT EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0612-			●
434	03.613 BOLT; BRKT 4HK1-TCC ENG(RDV) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0612-				●

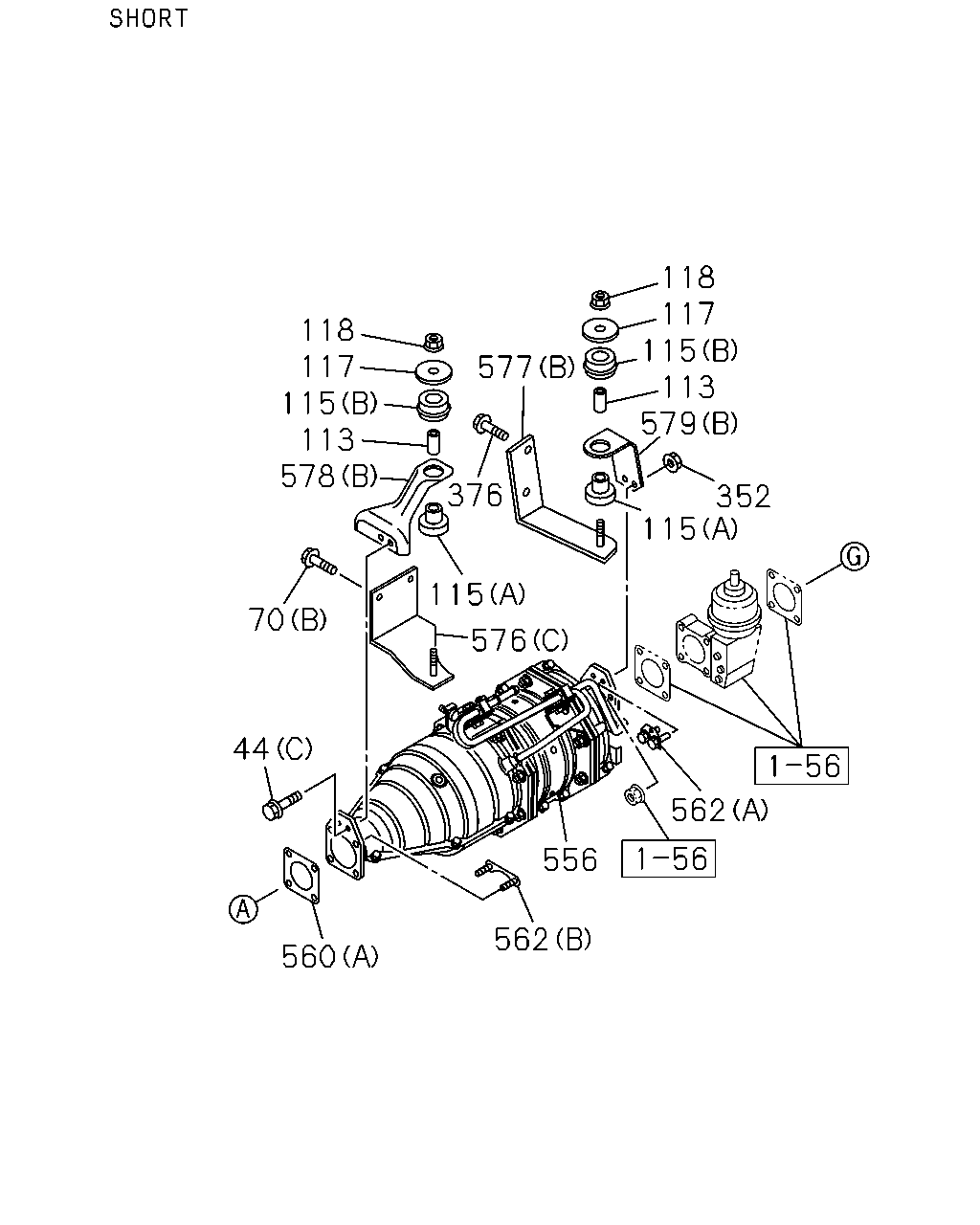

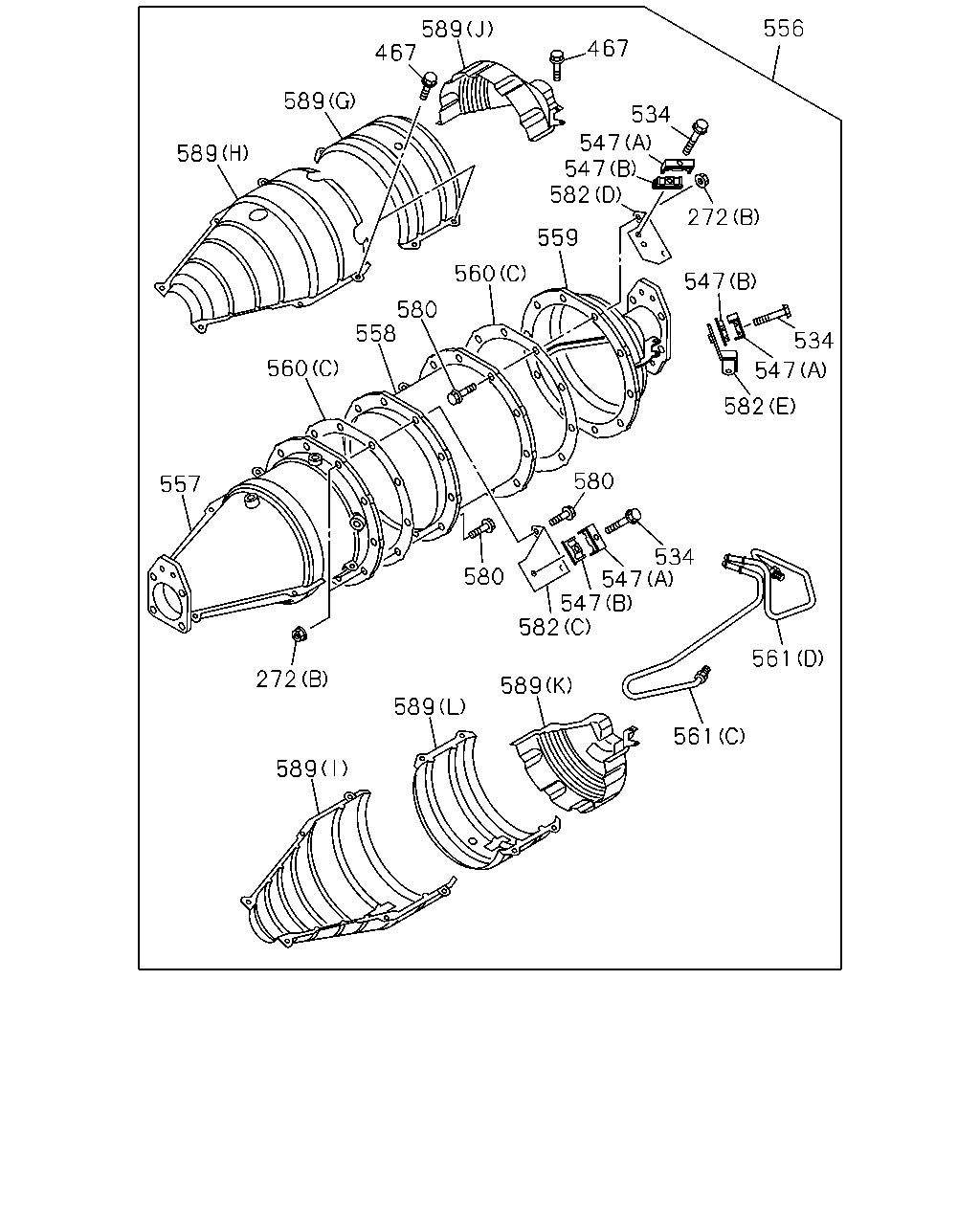

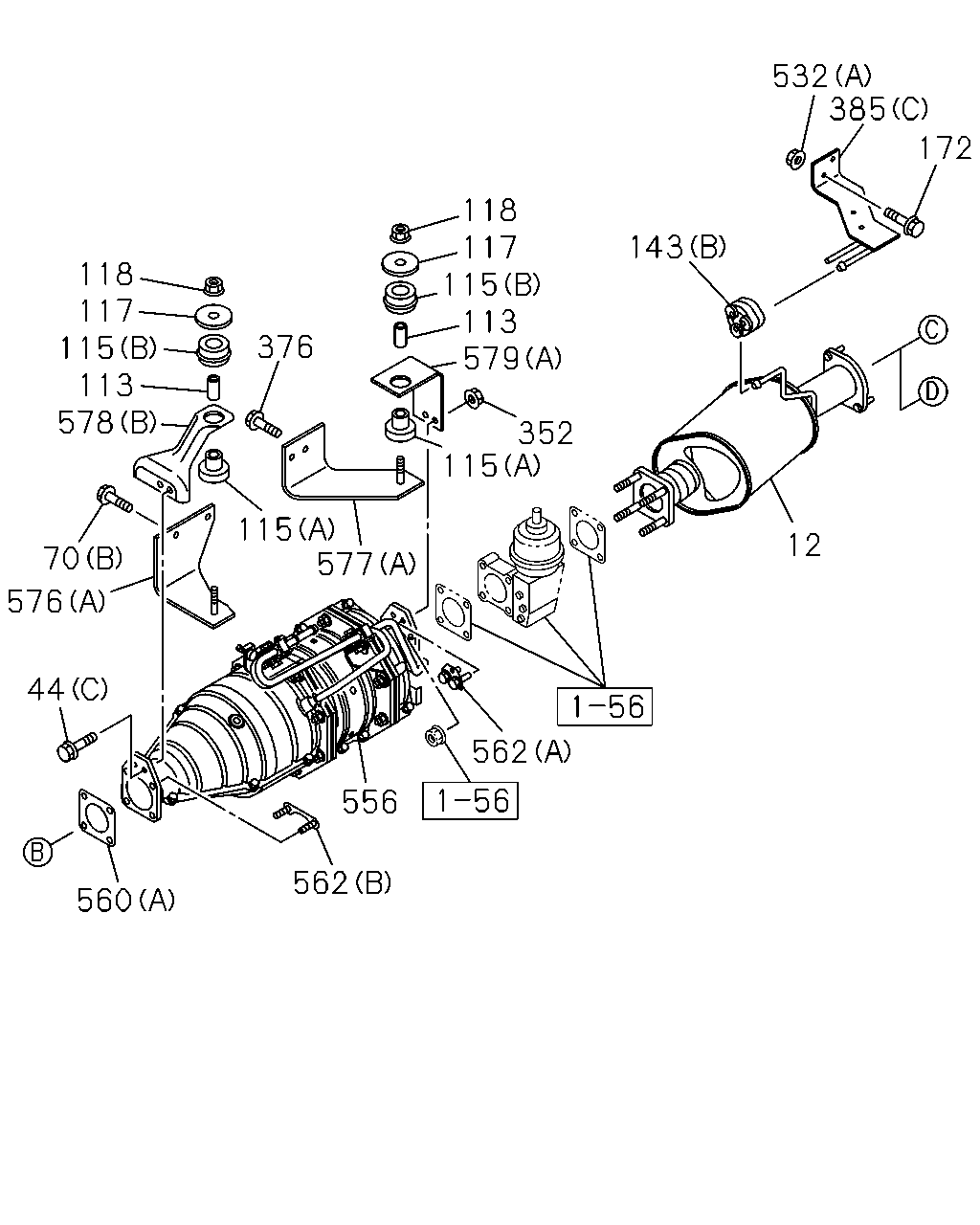

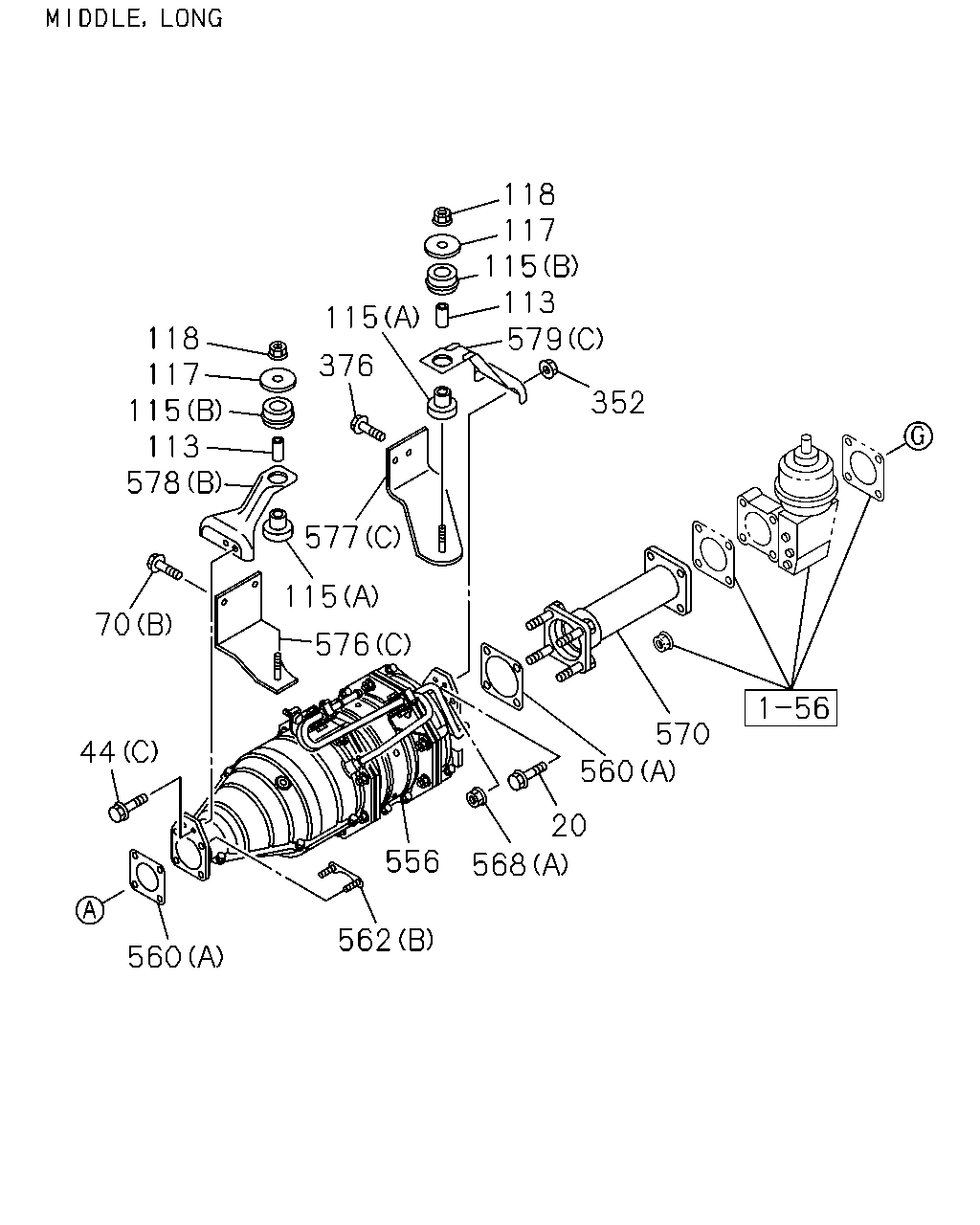

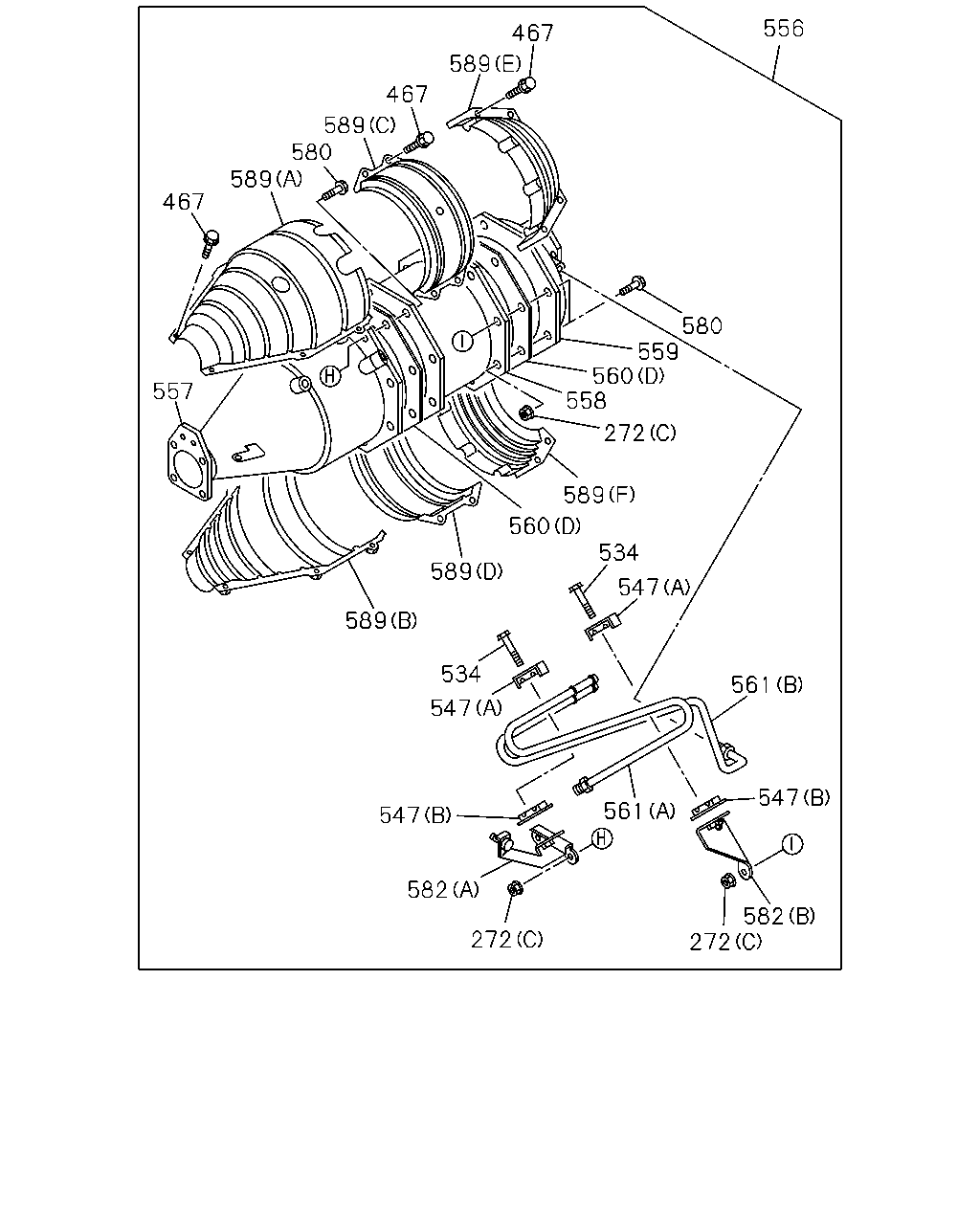

556	03.701 DPD ASM 4HK1-TCN ENG(RDQ)	8-98036-810-7	01	1	0612-1011	●
556	03.701 DPD ASM 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM)	8-98036-810-7	01	1	0612-1011		●	●
556	03.701 DPD ASM 4HK1-TCN ENG(RDQ)	8-98084-595-3	01	1	1012-	●
556	03.701 DPD ASM 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM)	8-98084-595-3	01	1	1012-		●	●
556	03.701 DPD ASM 4HK1-TCC ENG(RDV) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM)	8-98039-162-6	01	1	0612-1010			●
556	03.701 DPD ASM 4HK1-TCC ENG(RDV)	8-98039-162-6	01	1	0612-1010				●
556	03.701 DPD ASM 4HK1-TCC ENG(RDV) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM)	8-98084-602-3	01	1	1011-			●
556	03.701 DPD ASM 4HK1-TCC ENG(RDV)	8-98084-602-3	01	1	1011-				●
563	01.150 SENSOR; TEMPERATURE,DPD 4HK1-TCN ENG(RDQ) (A)	8-98004-329-0	01	1	0612-	●
563	01.150 SENSOR; TEMPERATURE,DPD 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM) (A)	8-98004-329-0	01	1	0612-		●
563	01.150 SENSOR; TEMPERATURE,DPD EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM) (A)	8-98004-329-0	01	1	0612-			●
563	01.150 SENSOR; TEMPERATURE,DPD 4HK1-TCC ENG(RDV) (A)	8-98004-329-0	01	1	0612-				●
563	01.150 SENSOR; TEMPERATURE,DPD 4HK1-TCN ENG(RDQ) (B)	8-98004-330-0	01	1	0612-	●
563	01.150 SENSOR; TEMPERATURE,DPD 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM) (B)	8-98004-330-0	01	1	0612-		●
563	01.150 SENSOR; TEMPERATURE,DPD EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM) (B)	8-98004-330-0	01	1	0612-			●
563	01.150 SENSOR; TEMPERATURE,DPD 4HK1-TCC ENG(RDV) (B)	8-98004-330-0	01	1	0612-				●
564	01.150 SENSOR; PRESSURE,DPD 4HK1-TCN ENG(RDQ)	8-97360-368-2	01	1	0612-	●
564	01.150 SENSOR; PRESSURE,DPD 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM)	8-97360-368-2	01	1	0612-		●
564	01.150 SENSOR; PRESSURE,DPD EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM)	8-97360-368-2	01	1	0612-			●
564	01.150 SENSOR; PRESSURE,DPD 4HK1-TCC ENG(RDV)	8-97360-368-2	01	1	0612-				●
565	03.706 BRACKET; SENSOR,PRESSURE 4HK1-TCN ENG(RDQ)	8-98020-016-1	01	1	0612-	●
565	03.706 BRACKET; SENSOR,PRESSURE 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM)	8-98020-036-1	01	1	0612-		●
565	03.706 BRACKET; SENSOR,PRESSURE EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM)	8-98020-036-1	01	1	0612-			●
565	03.706 BRACKET; SENSOR,PRESSURE 4HK1-TCC ENG(RDV)	8-98020-036-1	01	1	0612-				●
566	03.706 BOLT; SENSOR 4HK1-TCN ENG(RDQ) 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0612-	●
566	03.706 BOLT; SENSOR 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM) 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0612-		●
566	03.706 BOLT; SENSOR EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM) 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0612-			●
566	03.706 BOLT; SENSOR 4HK1-TCC ENG(RDV) 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0612-				●

532 385 172 118 117 115 113 579 143 118 117 115 113 578 376 352 115 115 577 12 70 576 44 562 556 562 560

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D

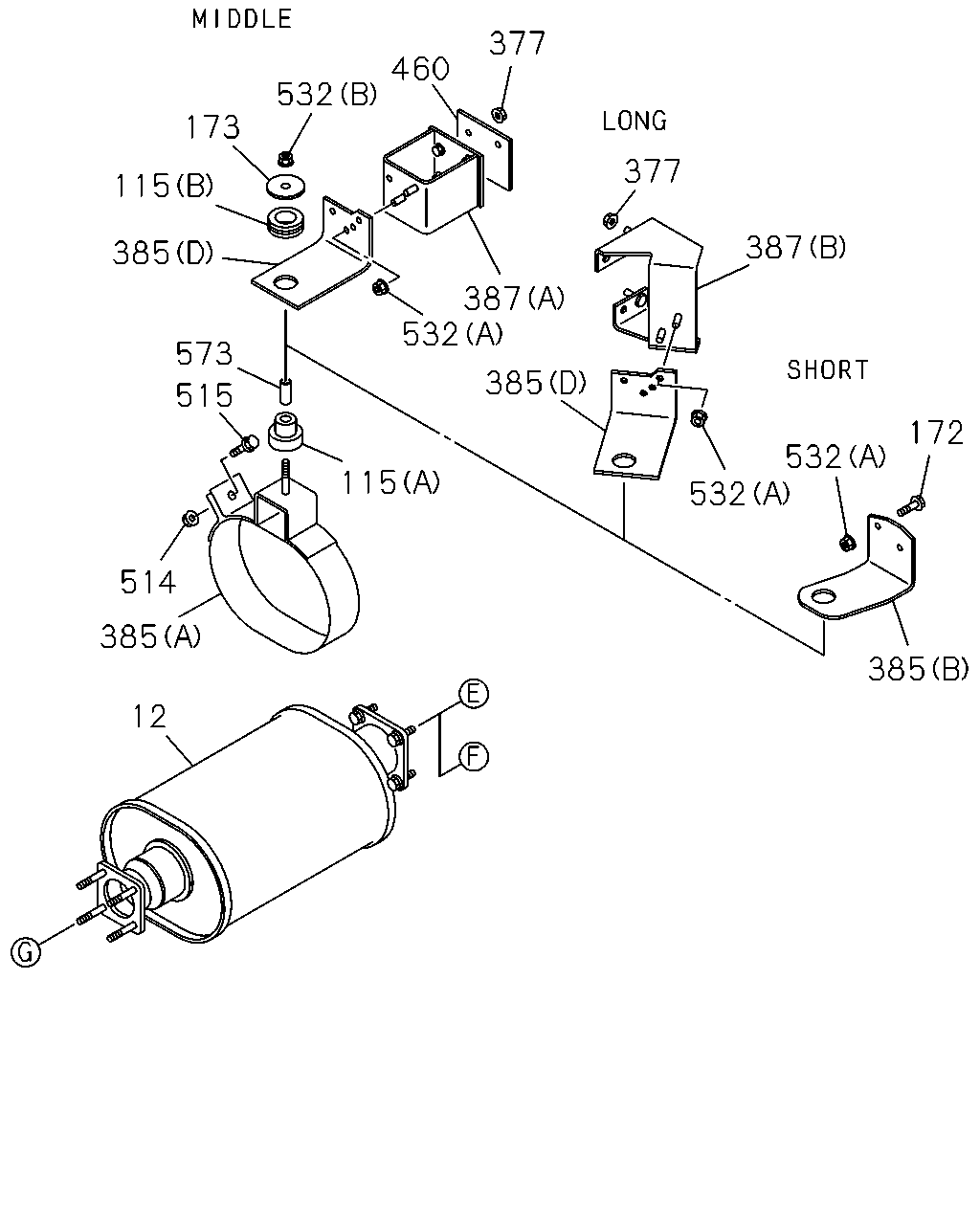

12	03.701 SILENCER ASM; EXH 4HK1-TCN ENG(RDQ)	8-98020-561-1	01	1	0612-	●
12	03.701 SILENCER ASM; EXH 4HK1-TCN ENG(RDQ)	8-98020-562-1	01	1	0612-		●
12	03.701 SILENCER ASM; EXH 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV)	8-98020-562-1	01	1	0612-			●
12	03.701 SILENCER ASM; EXH 4HK1-TCC ENG(RDV)	8-98020-562-1	01	1	0612-				●
12	03.701 SILENCER ASM; EXH 4JJ1 ENG(LFB)	8-97387-244-1	01	1	0612-		●	●
44	03.613 BOLT; BRKT 4HK1-TCN ENG(RDQ) 00.029 (A) M10X30 FLANGE	0-28651-030-0	02	1	0612-	●
44	03.613 BOLT; BRKT 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) 00.029 (A) M10X30 FLANGE	0-28651-030-0	02	1	0612-		●
44	03.613 BOLT; BRKT 00.029 (A) M10X30 FLANGE	0-28651-030-0	02	1	0612-			●
44	03.613 BOLT; BRKT 4HK1-TCC ENG(RDV) 00.029 (A) M10X30 FLANGE	0-28651-030-0	02	1	0612-				●
44	03.613 BOLT; BRKT 02.277 (C) M10X35 FLANGE	0-28651-035-0	02	1	0612-	●	●	●	●
44	03.613 BOLT; BRKT 4JJ1 ENG(LFB) 02.042 (B) M10X25 FLANGE	0-28151-025-0	02	1	0612-		●	●
70	03.706 BOLT; BRKT 02.277 (B) M10X35 FLANGE	0-28651-035-0	02	1	0612-	●	●	●	●
70	03.706 BOLT; BRKT 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	0612-		●	●	●
113	03.704 COLLAR; DIST,MTG BRKT 4HK1-TCN ENG(RDQ) 03.706 L=37.5	9-22151-217-0	02	1	0612-	●
113	03.704 COLLAR; DIST,MTG BRKT 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) 03.706 L=37.5	9-22151-217-0	02	1	0612-		●	●
113	03.704 COLLAR; DIST,MTG BRKT 4HK1-TCC ENG(RDV) 03.706 L=37.5	9-22151-217-0	03	1	0612-			●	●
115	03.704 RUBBER; MTG,SILENCER 4HK1-TCN ENG(RDQ) (A)	8-94457-277-1	02	1	0612-	●
115	03.704 RUBBER; MTG,SILENCER 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) (A)	8-94457-277-1	02	1	0612-		●	●
115	03.704 RUBBER; MTG,SILENCER 4HK1-TCN ENG(RDQ) (B)	8-94457-278-1	02	1	0612-	●
115	03.704 RUBBER; MTG,SILENCER 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) (B)	8-94457-278-1	02	1	0612-		●	●
115	03.704 RUBBER; MTG,SILENCER 4HK1-TCN ENG(RDQ) (A)	8-94457-277-1	01	1	0612-	●	●
115	03.704 RUBBER; MTG,SILENCER 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) (A)	8-94457-277-1	01	1	0612-			●
115	03.704 RUBBER; MTG,SILENCER 4HK1-TCC ENG(RDV) (A)	8-94457-277-1	01	1	0612-				●
115	03.704 RUBBER; MTG,SILENCER 4HK1-TCN ENG(RDQ) (B)	8-94457-278-1	01	1	0612-	●	●
115	03.704 RUBBER; MTG,SILENCER 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) (B)	8-94457-278-1	01	1	0612-			●
115	03.704 RUBBER; MTG,SILENCER 4HK1-TCC ENG(RDV) (B)	8-94457-278-1	01	1	0612-				●
115	03.704 RUBBER; MTG,SILENCER 4HK1-TCC ENG(RDV) (A)	8-94457-277-1	03	1	0612-			●	●
115	03.704 RUBBER; MTG,SILENCER 4HK1-TCC ENG(RDV) (B)	8-94457-278-1	03	1	0612-			●	●
117	03.704 WASHER; PL,SILENCER MTG BRKT 4HK1-TCN ENG(RDQ) OD=55	9-09852-169-0	02	1	0612-	●
117	03.704 WASHER; PL,SILENCER MTG BRKT 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) OD=55	9-09852-169-0	02	1	0612-		●	●
117	03.704 WASHER; PL,SILENCER MTG BRKT 4HK1-TCC ENG(RDV) OD=55	9-09852-169-0	03	1	0612-			●	●
118	03.704 NUT; SILENCER MTG BRKT 4HK1-TCN ENG(RDQ) 07.874 M10 FLANGE	5-09440-006-0	02	1	0612-	●
118	03.704 NUT; SILENCER MTG BRKT 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) 07.874 M10 FLANGE	5-09440-006-0	02	1	0612-		●	●
118	03.704 NUT; SILENCER MTG BRKT 4HK1-TCC ENG(RDV) 07.874 M10 FLANGE	5-09440-006-0	03	1	0612-			●	●
143	03.704 RUBBER; SUPPORT 4JJ1 ENG(LFB) (B)	8-97080-694-0	01	1	0612-		●	●
143	03.704 RUBBER; SUPPORT (A)	8-98034-767-0	01	1	0612-		●	●	●
172	03.708 BOLT 4HK1-TCN ENG(RDQ) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0612-	●
172	03.708 BOLT 4JJ1 ENG(LFB) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0612-		●	●
352	03.613 NUT; BRKT 4HK1-TCN ENG(RDQ) 03.162 M10 FLANGE	0-91180-110-0	02	1	0612-	●
352	03.613 NUT; BRKT 4HK1-TCN ENG(RDQ) 03.162 M10 FLANGE	0-91180-110-0	02	1	0612-	●
352	03.613 NUT; BRKT 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) 03.162 M10 FLANGE	0-91180-110-0	02	1	0612-		●
352	03.613 NUT; BRKT 4HK1-TCC ENG(RDV) 03.162 M10 FLANGE	0-91180-110-0	02	1	0612-			●	●
352	03.613 NUT; BRKT 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) 03.162 M10 FLANGE	0-91180-110-0	02	1	0612-			●
352	03.613 NUT; BRKT 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) 03.162 M10 FLANGE	0-91180-110-0	02	1	0612-			●
352	03.613 NUT; BRKT 4HK1-TCC ENG(RDV) 03.162 M10 FLANGE	0-91180-110-0	02	1	0612-				●
352	03.613 NUT; BRKT 4HK1-TCC ENG(RDV) 03.162 M10 FLANGE	0-91180-110-0	02	1	0612-				●
376	03.708 BOLT; BRKT 4HK1-TCN ENG(RDQ) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0612-	●
376	03.708 BOLT; BRKT 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0612-		●
376	03.708 BOLT; BRKT 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0612-			●
376	03.708 BOLT; BRKT 4HK1-TCC ENG(RDV) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0612-				●
385	03.704 BRACKET; SILENCER MTG 4HK1-TCN ENG(RDQ) (A)	8-98017-981-0	01	1	0612-	●
385	03.704 BRACKET; SILENCER MTG 4HK1-TCN ENG(RDQ) (B)	8-98031-169-1	01	1	0612-	●
385	03.704 BRACKET; SILENCER MTG 4HK1-TCN ENG(RDQ) (A)	8-98006-776-1	01	1	0612-		●
385	03.704 BRACKET; SILENCER MTG 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) (A)	8-98006-776-1	01	1	0612-			●
385	03.704 BRACKET; SILENCER MTG 4HK1-TCC ENG(RDV) (A)	8-98006-776-1	01	1	0612-				●
385	03.704 BRACKET; SILENCER MTG 4HK1-TCN ENG(RDQ) (D)	8-98031-150-0	01	1	0612-		●
385	03.704 BRACKET; SILENCER MTG 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) (D)	8-98031-150-0	01	1	0612-			●
385	03.704 BRACKET; SILENCER MTG 4HK1-TCC ENG(RDV) (D)	8-98031-150-0	01	1	0612-				●
385	03.704 BRACKET; SILENCER MTG 4JJ1 ENG(LFB) (C)	8-98020-600-1	01	1	0612-		●	●
532	03.704 NUT 4HK1-TCN ENG(RDQ) 07.874 (B) M10 FLANGE	5-09440-006-0	01	1	0612-	●	●
532	03.704 NUT 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) 07.874 (B) M10 FLANGE	5-09440-006-0	01	1	0612-			●
532	03.704 NUT 4HK1-TCC ENG(RDV) 07.874 (B) M10 FLANGE	5-09440-006-0	01	1	0612-				●
532	03.704 NUT 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	0612-	●	●	●	●
556	03.701 DPD ASM 4HK1-TCN ENG(RDQ)	8-98036-810-7	01	1	0612-1011	●
556	03.701 DPD ASM 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM)	8-98036-810-7	01	1	0612-1011		●	●
556	03.701 DPD ASM 4HK1-TCN ENG(RDQ)	8-98084-595-3	01	1	1012-	●
556	03.701 DPD ASM 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM)	8-98084-595-3	01	1	1012-		●	●
556	03.701 DPD ASM 4HK1-TCC ENG(RDV) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM)	8-98039-162-6	01	1	0612-1010			●
556	03.701 DPD ASM 4HK1-TCC ENG(RDV)	8-98039-162-6	01	1	0612-1010				●
556	03.701 DPD ASM 4HK1-TCC ENG(RDV) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM)	8-98084-602-3	01	1	1011-			●
556	03.701 DPD ASM 4HK1-TCC ENG(RDV)	8-98084-602-3	01	1	1011-				●
560	03.611 GASKET; DPD 4HK1-TCN ENG(RDQ) (D)	8-97331-947-0	02	1	0612-	●
560	03.611 GASKET; DPD 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM) (D)	8-97331-947-0	02	1	0612-		●	●
560	03.611 GASKET; DPD 4HK1-TCN ENG(RDQ) (A) ID=64	8-97373-108-0	01	1	0612-	●	●	●
560	03.611 GASKET; DPD 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) (A) ID=64	8-97373-108-0	01	1	0612-		●	●
560	03.611 GASKET; DPD 4HK1-TCC ENG(RDV) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM) (C)	8-97611-080-0	02	1	0612-			●
560	03.611 GASKET; DPD 4HK1-TCC ENG(RDV) (C)	8-97611-080-0	02	1	0612-				●
560	03.611 GASKET; DPD 4HK1-TCC ENG(RDV) (A)	1-22116-040-0	01	1	0612-			●	●
560	03.611 GASKET; DPD 4HK1-TCC ENG(RDV) 03.704 (B)	1-22116-043-0	01	1	0612-			●	●
562	03.690 PLATE; STUD,BOLT 4HK1-TCN ENG(RDQ) (B)	8-97373-966-0	02	1	0612-	●
562	03.690 PLATE; STUD,BOLT 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) (B)	8-97373-966-0	02	1	0612-		●	●
562	03.690 PLATE; STUD,BOLT 4HK1-TCN ENG(RDQ) (A)	8-98005-985-0	01	1	0612-	●
562	03.690 PLATE; STUD,BOLT 4JJ1 ENG(LFB) (A)	8-98005-985-0	01	1	0612-		●	●
562	03.690 PLATE; STUD,BOLT 4HK1-TCN ENG(RDQ) (D)	8-98030-175-0	01	1	0612-	●	●
562	03.690 PLATE; STUD,BOLT 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) (D)	8-98030-175-0	01	1	0612-			●
562	03.690 PLATE; STUD,BOLT 4HK1-TCC ENG(RDV) (D)	8-98030-175-0	01	1	0612-				●
562	03.690 PLATE; STUD,BOLT 4HK1-TCC ENG(RDV) 03.685 (C) M12X35	1-22131-963-0	02	1	0612-			●	●
576	03.706 BRACKET; DPD FRT TO FRAME 4HK1-TCN ENG(RDQ) (C)	8-98031-124-1	01	1	0612-	●	●	●
576	03.706 BRACKET; DPD FRT TO FRAME 4JJ1 ENG(LFB) (A)	8-98020-563-0	01	1	0612-		●	●
576	03.706 BRACKET; DPD FRT TO FRAME 4HK1-TCC ENG(RDV) (B)	8-98031-125-2	01	1	0612-			●	●
577	03.706 BRACKET; DPD RR TO FRAME 4HK1-TCN ENG(RDQ) (B)	8-98031-127-0	01	1	0612-	●
577	03.706 BRACKET; DPD RR TO FRAME 4HK1-TCN ENG(RDQ) (C)	8-98040-780-0	01	1	0612-		●	●
577	03.706 BRACKET; DPD RR TO FRAME 4JJ1 ENG(LFB) (A)	8-98020-564-0	01	1	0612-		●	●
577	03.706 BRACKET; DPD RR TO FRAME 4HK1-TCC ENG(RDV) (D)	8-98031-128-1	01	1	0612-			●	●
578	03.706 BRACKET; DPD FRT 4HK1-TCN ENG(RDQ) (B)	8-97387-248-1	01	1	0612-	●
578	03.706 BRACKET; DPD FRT 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) (B)	8-97387-248-1	01	1	0612-		●	●
578	03.706 BRACKET; DPD FRT 4HK1-TCC ENG(RDV) (A)	8-98006-772-1	01	1	0612-			●	●
579	03.704 BRACKET; DPD RR 4HK1-TCN ENG(RDQ) (B)	8-98031-168-1	01	1	0612-	●
579	03.704 BRACKET; DPD RR 4HK1-TCN ENG(RDQ) 03.706 (C)	8-97387-248-1	01	1	0612-		●	●
579	03.704 BRACKET; DPD RR 4JJ1 ENG(LFB) (A)	8-98020-598-1	01	1	0612-		●	●
579	03.704 BRACKET; DPD RR 4HK1-TCC ENG(RDV) (D)	8-98031-151-1	01	1	0612-			●	●

25 2 562 43 44 568 58 1 36 2 44 44 25 43 568 1 36 168

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.609 PIPE; EXH 4HK1-TCN ENG(RDQ) (A)	8-98006-765-2	01	1	0612-	●	●
1	03.609 PIPE; EXH 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) (A)	8-98006-765-2	01	1	0612-			●
1	03.609 PIPE; EXH 4HK1-TCC ENG(RDV) (A)	8-98006-765-2	01	1	0612-				●
1	03.609 PIPE; EXH 4JJ1 ENG(LFB) (D)	8-98005-237-0	01	1	0612-		●
1	03.609 PIPE; EXH 4JJ1 ENG(LFB) (B)	8-98026-060-0	01	1	0612-		●	●
1	03.609 PIPE; EXH 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) (C)	8-98020-602-0	01	1	0612-			●
1	03.609 PIPE; EXH 4HK1-TCC ENG(RDV) (C)	8-98020-602-0	01	1	0612-				●
1	03.609 PIPE; EXH 4JJ1 ENG(LFB) (E)	8-97387-264-0	01	1	0612-			●
2	03.611 GASKET; PIPE TO MANIF 4HK1-TCN ENG(RDQ)	8-97381-455-0	01	1	0612-	●	●
2	03.611 GASKET; PIPE TO MANIF 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV)	8-97381-455-0	01	1	0612-			●
2	03.611 GASKET; PIPE TO MANIF 4HK1-TCC ENG(RDV)	8-97381-455-0	01	1	0612-				●
2	03.611 GASKET; PIPE TO MANIF 4JJ1 ENG(LFB)	8-97384-590-0	01	1	0612-		●	●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4HK1-TCN ENG(RDQ) (A)	8-98020-556-0	01	1	0612-	●	●	●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4JJ1 ENG(LFB) (B)	8-98026-062-2	01	1	0612-		●	●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4HK1-TCC ENG(RDV) (A)	8-98020-557-1	01	1	0612-			●	●
36	03.613 NUT; EXH PIPE 4HK1-TCN ENG(RDQ) M10 FLANGE	8-97096-192-1	03	1	0612-	●
36	03.613 NUT; EXH PIPE 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) M10 FLANGE	8-97096-192-1	03	1	0612-		●
36	03.613 NUT; EXH PIPE M10 FLANGE	8-97096-192-1	03	1	0612-			●
36	03.613 NUT; EXH PIPE 4HK1-TCC ENG(RDV) M10 FLANGE	8-97096-192-1	03	1	0612-				●
43	03.611 CLAMP; EXH PIPE 4HK1-TCN ENG(RDQ)	8-97351-200-1	01	1	0612-	●
43	03.611 CLAMP; EXH PIPE 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ)	8-97351-200-1	01	1	0612-		●
43	03.611 CLAMP; EXH PIPE	8-97351-200-1	01	1	0612-			●
43	03.611 CLAMP; EXH PIPE 4HK1-TCC ENG(RDV)	8-97351-200-1	01	1	0612-				●
44	03.613 BOLT; BRKT 4HK1-TCN ENG(RDQ) 00.029 (A) M10X30 FLANGE	0-28651-030-0	02	1	0612-	●
44	03.613 BOLT; BRKT 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) 00.029 (A) M10X30 FLANGE	0-28651-030-0	02	1	0612-		●
44	03.613 BOLT; BRKT 00.029 (A) M10X30 FLANGE	0-28651-030-0	02	1	0612-			●
44	03.613 BOLT; BRKT 4HK1-TCC ENG(RDV) 00.029 (A) M10X30 FLANGE	0-28651-030-0	02	1	0612-				●
44	03.613 BOLT; BRKT 02.277 (C) M10X35 FLANGE	0-28651-035-0	02	1	0612-	●	●	●	●
44	03.613 BOLT; BRKT 4JJ1 ENG(LFB) 02.042 (B) M10X25 FLANGE	0-28151-025-0	02	1	0612-		●	●
58	03.613 BRACKET; EXH PIPE,RR 4HK1-TCN ENG(RDQ)	8-98020-555-0	01	1	0612-	●	●
58	03.613 BRACKET; EXH PIPE,RR 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV)	8-98020-555-0	01	1	0612-			●
58	03.613 BRACKET; EXH PIPE,RR 4HK1-TCC ENG(RDV)	8-98020-555-0	01	1	0612-				●
168	03.613 BRACKET; EXH PIPE,FRT 4HK1-TCN ENG(RDQ) (C)	8-97096-651-0	01	1	0612-		●
168	03.613 BRACKET; EXH PIPE,FRT 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) (C)	8-97096-651-0	01	1	0612-			●
168	03.613 BRACKET; EXH PIPE,FRT 4HK1-TCC ENG(RDV) (C)	8-97096-651-0	01	1	0612-				●
168	03.613 BRACKET; EXH PIPE,FRT 4JJ1 ENG(LFB) 03.704 (B)	8-94468-174-1	01	1	0612-		●	●
168	03.613 BRACKET; EXH PIPE,FRT 4JJ1 ENG(LFB) (A)	8-98026-063-0	01	1	0612-		●	●
562	03.690 PLATE; STUD,BOLT 4HK1-TCN ENG(RDQ) (B)	8-97373-966-0	02	1	0612-	●
562	03.690 PLATE; STUD,BOLT 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) (B)	8-97373-966-0	02	1	0612-		●	●
562	03.690 PLATE; STUD,BOLT 4HK1-TCN ENG(RDQ) (A)	8-98005-985-0	01	1	0612-	●
562	03.690 PLATE; STUD,BOLT 4JJ1 ENG(LFB) (A)	8-98005-985-0	01	1	0612-		●	●
562	03.690 PLATE; STUD,BOLT 4HK1-TCN ENG(RDQ) (D)	8-98030-175-0	01	1	0612-	●	●
562	03.690 PLATE; STUD,BOLT 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) (D)	8-98030-175-0	01	1	0612-			●
562	03.690 PLATE; STUD,BOLT 4HK1-TCC ENG(RDV) (D)	8-98030-175-0	01	1	0612-				●
562	03.690 PLATE; STUD,BOLT 4HK1-TCC ENG(RDV) 03.685 (C) M12X35	1-22131-963-0	02	1	0612-			●	●
568	03.704 NUT; DPD 4HK1-TCN ENG(RDQ) 01.062 (A) M8 FLANGE	0-91180-108-0	04	1	0612-	●	●	●
568	03.704 NUT; DPD 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) 01.062 (A) M8 FLANGE	0-91180-108-0	04	1	0612-		●	●
568	03.704 NUT; DPD 4HK1-TCC ENG(RDV) 03.162 (B) M10 FLANGE	0-91180-110-0	04	1	0612-			●	●
568	03.704 NUT; DPD 4HK1-TCC ENG(RDV) 02.042 (A) M12 FLANGE	0-91180-112-0	04	1	0612-			●	●

377 460 532 173 377 115 387 385 387 532 573 385 515 172 532 115 532 514 385 385 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
12	03.701 SILENCER ASM; EXH 4HK1-TCN ENG(RDQ)	8-98020-561-1	01	1	0612-	●
12	03.701 SILENCER ASM; EXH 4HK1-TCN ENG(RDQ)	8-98020-562-1	01	1	0612-		●
12	03.701 SILENCER ASM; EXH 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV)	8-98020-562-1	01	1	0612-			●
12	03.701 SILENCER ASM; EXH 4HK1-TCC ENG(RDV)	8-98020-562-1	01	1	0612-				●
12	03.701 SILENCER ASM; EXH 4JJ1 ENG(LFB)	8-97387-244-1	01	1	0612-		●	●
115	03.704 RUBBER; MTG,SILENCER 4HK1-TCN ENG(RDQ) (A)	8-94457-277-1	02	1	0612-	●
115	03.704 RUBBER; MTG,SILENCER 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) (A)	8-94457-277-1	02	1	0612-		●	●
115	03.704 RUBBER; MTG,SILENCER 4HK1-TCN ENG(RDQ) (B)	8-94457-278-1	02	1	0612-	●
115	03.704 RUBBER; MTG,SILENCER 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) (B)	8-94457-278-1	02	1	0612-		●	●
115	03.704 RUBBER; MTG,SILENCER 4HK1-TCN ENG(RDQ) (A)	8-94457-277-1	01	1	0612-	●	●
115	03.704 RUBBER; MTG,SILENCER 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) (A)	8-94457-277-1	01	1	0612-			●
115	03.704 RUBBER; MTG,SILENCER 4HK1-TCC ENG(RDV) (A)	8-94457-277-1	01	1	0612-				●
115	03.704 RUBBER; MTG,SILENCER 4HK1-TCN ENG(RDQ) (B)	8-94457-278-1	01	1	0612-	●	●
115	03.704 RUBBER; MTG,SILENCER 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) (B)	8-94457-278-1	01	1	0612-			●
115	03.704 RUBBER; MTG,SILENCER 4HK1-TCC ENG(RDV) (B)	8-94457-278-1	01	1	0612-				●
115	03.704 RUBBER; MTG,SILENCER 4HK1-TCC ENG(RDV) (A)	8-94457-277-1	03	1	0612-			●	●
115	03.704 RUBBER; MTG,SILENCER 4HK1-TCC ENG(RDV) (B)	8-94457-278-1	03	1	0612-			●	●
172	03.708 BOLT 4HK1-TCN ENG(RDQ) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0612-	●
172	03.708 BOLT 4JJ1 ENG(LFB) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0612-		●	●
173	03.685 WASHER; PL 4HK1-TCN ENG(RDQ) 03.704 OD=55	9-09852-169-0	01	1	0612-	●	●
173	03.685 WASHER; PL 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) 03.704 OD=55	9-09852-169-0	01	1	0612-			●
173	03.685 WASHER; PL 4HK1-TCC ENG(RDV) 03.704 OD=55	9-09852-169-0	01	1	0612-				●
377	03.704 NUT; BRKT 4HK1-TCN ENG(RDQ) 01.062 M8 FLANGE	0-91180-108-0	03	1	0612-		●
377	03.704 NUT; BRKT 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) 03.162 M10 FLANGE	0-91180-110-0	02	1	0612-			●
377	03.704 NUT; BRKT 4HK1-TCC ENG(RDV) 03.162 M10 FLANGE	0-91180-110-0	02	1	0612-				●
385	03.704 BRACKET; SILENCER MTG 4HK1-TCN ENG(RDQ) (A)	8-98017-981-0	01	1	0612-	●
385	03.704 BRACKET; SILENCER MTG 4HK1-TCN ENG(RDQ) (B)	8-98031-169-1	01	1	0612-	●
385	03.704 BRACKET; SILENCER MTG 4HK1-TCN ENG(RDQ) (A)	8-98006-776-1	01	1	0612-		●
385	03.704 BRACKET; SILENCER MTG 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) (A)	8-98006-776-1	01	1	0612-			●
385	03.704 BRACKET; SILENCER MTG 4HK1-TCC ENG(RDV) (A)	8-98006-776-1	01	1	0612-				●
385	03.704 BRACKET; SILENCER MTG 4HK1-TCN ENG(RDQ) (D)	8-98031-150-0	01	1	0612-		●
385	03.704 BRACKET; SILENCER MTG 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) (D)	8-98031-150-0	01	1	0612-			●
385	03.704 BRACKET; SILENCER MTG 4HK1-TCC ENG(RDV) (D)	8-98031-150-0	01	1	0612-				●
385	03.704 BRACKET; SILENCER MTG 4JJ1 ENG(LFB) (C)	8-98020-600-1	01	1	0612-		●	●
387	03.704 SPACER; BRKT 4HK1-TCN ENG(RDQ) (A)	8-98031-143-0	01	1	0612-		●
387	03.704 SPACER; BRKT 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) (B)	8-97373-853-0	01	1	0612-			●
387	03.704 SPACER; BRKT 4HK1-TCC ENG(RDV) (B)	8-97373-853-0	01	1	0612-				●
460	03.609 PLATE; EXH PIPE 4HK1-TCN ENG(RDQ)	8-98035-656-0	01	1	0612-		●
514	03.704 NUT; BAND 4HK1-TCN ENG(RDQ) 03.162 M10 FLANGE	0-91180-110-0	01	1	0612-	●	●
514	03.704 NUT; BAND 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) 03.162 M10 FLANGE	0-91180-110-0	01	1	0612-			●
514	03.704 NUT; BAND 4HK1-TCC ENG(RDV) 03.162 M10 FLANGE	0-91180-110-0	01	1	0612-				●
515	03.704 BOLT; BAND 4HK1-TCN ENG(RDQ) 00.685 M10X40 FLANGE	0-28051-040-0	01	1	0612-	●	●
515	03.704 BOLT; BAND 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) 00.685 M10X40 FLANGE	0-28051-040-0	01	1	0612-			●
515	03.704 BOLT; BAND 4HK1-TCC ENG(RDV) 00.685 M10X40 FLANGE	0-28051-040-0	01	1	0612-				●
532	03.704 NUT 4HK1-TCN ENG(RDQ) 07.874 (B) M10 FLANGE	5-09440-006-0	01	1	0612-	●	●
532	03.704 NUT 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) 07.874 (B) M10 FLANGE	5-09440-006-0	01	1	0612-			●
532	03.704 NUT 4HK1-TCC ENG(RDV) 07.874 (B) M10 FLANGE	5-09440-006-0	01	1	0612-				●
532	03.704 NUT 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	0612-	●	●	●	●
573	03.706 TUBE; DIST 4HK1-TCN ENG(RDQ) L=37.5	9-22151-217-0	01	1	0612-	●	●
573	03.706 TUBE; DIST 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) L=37.5	9-22151-217-0	01	1	0612-			●
573	03.706 TUBE; DIST 4HK1-TCC ENG(RDV) L=37.5	9-22151-217-0	01	1	0612-				●

556 467 589 467 589 580 589 467 580 559 560 558 557 272 589 560 534 589 547 589 534 561 547 547 561 547 582 582 272 272

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
272	03.685 NUT; FLANGE 4HK1-TCN ENG(RDQ) 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	0612-	●
272	03.685 NUT; FLANGE 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM) 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	0612-		●	●
272	03.685 NUT; FLANGE 4HK1-TCN ENG(RDQ) 01.062 (C) M8 FLANGE	0-91180-108-0	16	1	0612-	●
272	03.685 NUT; FLANGE 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM) 01.062 (C) M8 FLANGE	0-91180-108-0	16	1	0612-		●	●
272	03.685 NUT; FLANGE 4HK1-TCC ENG(RDV) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM) 01.540 (B) M8 FLANGE	0-91180-208-0	20	1	0612-0702			●
272	03.685 NUT; FLANGE 4HK1-TCC ENG(RDV) 01.540 (B) M8 FLANGE	0-91180-208-0	20	1	0612-0702				●
272	03.685 NUT; FLANGE 4HK1-TCC ENG(RDV) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM) 01.062 (B) M8 FLANGE	0-91180-108-0	20	1	0703-			●
272	03.685 NUT; FLANGE 4HK1-TCC ENG(RDV) 01.062 (B) M8 FLANGE	0-91180-108-0	20	1	0703-				●
467	03.685 BOLT; PROTECTOR 4HK1-TCN ENG(RDQ) M6X16	8-98019-179-0	14	1	0612-	●
467	03.685 BOLT; PROTECTOR 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM) M6X16	8-98019-179-0	14	1	0612-		●
467	03.685 BOLT; PROTECTOR EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM) M6X16	8-98019-179-0	14	1	0612-			●
467	03.685 BOLT; PROTECTOR 4HK1-TCC ENG(RDV) M6X16	8-98019-179-0	14	1	0612-				●
534	03.704 BOLT; CLIP 4HK1-TCN ENG(RDQ) 03.162 M6X35 FLANGE	0-28650-635-0	02	1	0612-	●
534	03.704 BOLT; CLIP 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM) 03.162 M6X35 FLANGE	0-28650-635-0	02	1	0612-		●	●
534	03.704 BOLT; CLIP 4HK1-TCC ENG(RDV) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM) 03.162 M6X35 FLANGE	0-28650-635-0	03	1	0612-			●
534	03.704 BOLT; CLIP 4HK1-TCC ENG(RDV) 03.162 M6X35 FLANGE	0-28650-635-0	03	1	0612-				●
547	03.682 CLIP; PIPE 4HK1-TCN ENG(RDQ) (A)	8-97381-635-0	02	1	0612-	●
547	03.682 CLIP; PIPE 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM) (A)	8-97381-635-0	02	1	0612-		●	●
547	03.682 CLIP; PIPE 4HK1-TCN ENG(RDQ) (B)	8-97381-636-0	02	1	0612-	●
547	03.682 CLIP; PIPE 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM) (B)	8-97381-636-0	02	1	0612-		●	●
547	03.682 CLIP; PIPE 4HK1-TCC ENG(RDV) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM) (A)	8-97381-635-0	03	1	0612-			●
547	03.682 CLIP; PIPE 4HK1-TCC ENG(RDV) (A)	8-97381-635-0	03	1	0612-				●
547	03.682 CLIP; PIPE 4HK1-TCC ENG(RDV) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM) (B)	8-97381-636-0	03	1	0612-			●
547	03.682 CLIP; PIPE 4HK1-TCC ENG(RDV) (B)	8-97381-636-0	03	1	0612-				●
556	03.701 DPD ASM 4HK1-TCN ENG(RDQ)	8-98036-810-7	01	1	0612-1011	●
556	03.701 DPD ASM 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM)	8-98036-810-7	01	1	0612-1011		●	●
556	03.701 DPD ASM 4HK1-TCN ENG(RDQ)	8-98084-595-3	01	1	1012-	●
556	03.701 DPD ASM 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM)	8-98084-595-3	01	1	1012-		●	●
556	03.701 DPD ASM 4HK1-TCC ENG(RDV) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM)	8-98039-162-6	01	1	0612-1010			●
556	03.701 DPD ASM 4HK1-TCC ENG(RDV)	8-98039-162-6	01	1	0612-1010				●
556	03.701 DPD ASM 4HK1-TCC ENG(RDV) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM)	8-98084-602-3	01	1	1011-			●
556	03.701 DPD ASM 4HK1-TCC ENG(RDV)	8-98084-602-3	01	1	1011-				●
557	03.701 CATALYST ASM 4HK1-TCN ENG(RDQ)	8-98036-815-6	01	1	0612-	●
557	03.701 CATALYST ASM 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM)	8-98036-815-6	01	1	0612-		●	●
557	03.701 CATALYST ASM 4HK1-TCC ENG(RDV) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM)	8-97608-055-7	01	1	0612-			●
557	03.701 CATALYST ASM 4HK1-TCC ENG(RDV)	8-97608-055-7	01	1	0612-				●
558	03.634 FILTER ASM 4HK1-TCN ENG(RDQ)	8-98032-908-2	01	1	0612-	●
558	03.634 FILTER ASM 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM)	8-98032-908-2	01	1	0612-		●	●
558	03.634 FILTER ASM 4HK1-TCC ENG(RDV) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM)	8-97608-057-3	01	1	0612-			●
558	03.634 FILTER ASM 4HK1-TCC ENG(RDV)	8-97608-057-3	01	1	0612-				●
559	03.602 COVER; RR 4HK1-TCN ENG(RDQ)	8-98032-909-0	01	1	0612-0708	●
559	03.602 COVER; RR 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM)	8-98032-909-0	01	1	0612-0708		●	●
559	03.602 COVER; RR 4HK1-TCN ENG(RDQ)	8-98084-599-0	01	1	0709-1011	●
559	03.602 COVER; RR 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM)	8-98084-599-0	01	1	0709-1011		●	●
559	03.602 COVER; RR 4HK1-TCN ENG(RDQ)	8-98093-507-0	01	1	1012-	●
559	03.602 COVER; RR 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM)	8-98093-507-0	01	1	1012-		●	●
559	03.602 COVER; RR 4HK1-TCC ENG(RDV) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM)	8-97611-078-0	01	1	0612-1010			●
559	03.602 COVER; RR 4HK1-TCC ENG(RDV)	8-97611-078-0	01	1	0612-1010				●
559	03.602 COVER; RR 4HK1-TCC ENG(RDV) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM)	8-97622-887-0	01	1	1011-			●
559	03.602 COVER; RR 4HK1-TCC ENG(RDV)	8-97622-887-0	01	1	1011-				●
560	03.611 GASKET; DPD 4HK1-TCN ENG(RDQ) (D)	8-97331-947-0	02	1	0612-	●
560	03.611 GASKET; DPD 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM) (D)	8-97331-947-0	02	1	0612-		●	●
560	03.611 GASKET; DPD 4HK1-TCN ENG(RDQ) (A) ID=64	8-97373-108-0	01	1	0612-	●	●	●
560	03.611 GASKET; DPD 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) (A) ID=64	8-97373-108-0	01	1	0612-		●	●
560	03.611 GASKET; DPD 4HK1-TCC ENG(RDV) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM) (C)	8-97611-080-0	02	1	0612-			●
560	03.611 GASKET; DPD 4HK1-TCC ENG(RDV) (C)	8-97611-080-0	02	1	0612-				●
560	03.611 GASKET; DPD 4HK1-TCC ENG(RDV) (A)	1-22116-040-0	01	1	0612-			●	●
560	03.611 GASKET; DPD 4HK1-TCC ENG(RDV) 03.704 (B)	1-22116-043-0	01	1	0612-			●	●
561	03.609 PIPE; DPD 4HK1-TCN ENG(RDQ) (A)	8-98032-910-0	01	1	0612-1011	●
561	03.609 PIPE; DPD 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM) (A)	8-98032-910-0	01	1	0612-1011		●	●
561	03.609 PIPE; DPD 4HK1-TCN ENG(RDQ) (A)	8-98084-600-0	01	1	1012-	●
561	03.609 PIPE; DPD 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM) (A)	8-98084-600-0	01	1	1012-		●	●
561	03.609 PIPE; DPD 4HK1-TCN ENG(RDQ) (B)	8-98032-911-1	01	1	0612-1011	●
561	03.609 PIPE; DPD 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM) (B)	8-98032-911-1	01	1	0612-1011		●	●
561	03.609 PIPE; DPD 4HK1-TCN ENG(RDQ) (B)	8-98084-601-0	01	1	1012-	●
561	03.609 PIPE; DPD 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM) (B)	8-98084-601-0	01	1	1012-		●	●
561	03.609 PIPE; DPD 4HK1-TCC ENG(RDV) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM) (C)	8-98039-239-0	01	1	0612-1010			●
561	03.609 PIPE; DPD 4HK1-TCC ENG(RDV) (C)	8-98039-239-0	01	1	0612-1010				●
561	03.609 PIPE; DPD 4HK1-TCC ENG(RDV) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM) (C)	8-98084-603-0	01	1	1011-			●
561	03.609 PIPE; DPD 4HK1-TCC ENG(RDV) (C)	8-98084-603-0	01	1	1011-				●
561	03.609 PIPE; DPD 4HK1-TCC ENG(RDV) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM) (D)	8-98039-241-0	01	1	0612-1010			●
561	03.609 PIPE; DPD 4HK1-TCC ENG(RDV) (D)	8-98039-241-0	01	1	0612-1010				●
561	03.609 PIPE; DPD 4HK1-TCC ENG(RDV) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM) (D)	8-98084-604-0	01	1	1011-			●
561	03.609 PIPE; DPD 4HK1-TCC ENG(RDV) (D)	8-98084-604-0	01	1	1011-				●
580	03.704 BOLT; FLANGE 4HK1-TCN ENG(RDQ) 01.060 M8X35 FLANGE	0-28650-835-0	16	1	0612-	●
580	03.704 BOLT; FLANGE 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM) 01.060 M8X35 FLANGE	0-28650-835-0	16	1	0612-		●	●
580	03.704 BOLT; FLANGE 4HK1-TCC ENG(RDV) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM) 01.060 M8X35 FLANGE	0-28650-835-0	20	1	0612-			●
580	03.704 BOLT; FLANGE 4HK1-TCC ENG(RDV) 01.060 M8X35 FLANGE	0-28650-835-0	20	1	0612-				●
582	03.706 BRACKET; PIPE 4HK1-TCN ENG(RDQ) (A)	8-98032-919-0	01	1	0612-	●
582	03.706 BRACKET; PIPE 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM) (A)	8-98032-919-0	01	1	0612-		●	●
582	03.706 BRACKET; PIPE 4HK1-TCN ENG(RDQ) (B)	8-98032-920-0	01	1	0612-	●
582	03.706 BRACKET; PIPE 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM) (B)	8-98032-920-0	01	1	0612-		●	●
582	03.706 BRACKET; PIPE 4HK1-TCC ENG(RDV) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM) (C)	8-97611-083-0	01	1	0612-			●
582	03.706 BRACKET; PIPE 4HK1-TCC ENG(RDV) (C)	8-97611-083-0	01	1	0612-				●
582	03.706 BRACKET; PIPE 4HK1-TCC ENG(RDV) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM) (D)	8-97611-084-0	01	1	0612-			●
582	03.706 BRACKET; PIPE 4HK1-TCC ENG(RDV) (D)	8-97611-084-0	01	1	0612-				●
582	03.706 BRACKET; PIPE 4HK1-TCC ENG(RDV) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM) (E)	8-97611-085-0	01	1	0612-			●
582	03.706 BRACKET; PIPE 4HK1-TCC ENG(RDV) (E)	8-97611-085-0	01	1	0612-				●
589	03.609 PROTECTOR; HEAT,DPD 4HK1-TCN ENG(RDQ) (C)	8-97383-660-0	01	1	0612-	●
589	03.609 PROTECTOR; HEAT,DPD 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM) (C)	8-97383-660-0	01	1	0612-		●	●
589	03.609 PROTECTOR; HEAT,DPD 4HK1-TCN ENG(RDQ) (F)	8-97383-663-0	01	1	0612-	●
589	03.609 PROTECTOR; HEAT,DPD 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM) (F)	8-97383-663-0	01	1	0612-		●	●
589	03.609 PROTECTOR; HEAT,DPD 4HK1-TCN ENG(RDQ) (A)	8-98032-921-0	01	1	0612-	●
589	03.609 PROTECTOR; HEAT,DPD 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM) (A)	8-98032-921-0	01	1	0612-		●	●
589	03.609 PROTECTOR; HEAT,DPD 4HK1-TCN ENG(RDQ) (B)	8-98032-923-0	01	1	0612-	●
589	03.609 PROTECTOR; HEAT,DPD 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM) (B)	8-98032-923-0	01	1	0612-		●	●
589	03.609 PROTECTOR; HEAT,DPD 4HK1-TCN ENG(RDQ) (D)	8-98032-924-0	01	1	0612-	●
589	03.609 PROTECTOR; HEAT,DPD 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM) (D)	8-98032-924-0	01	1	0612-		●	●
589	03.609 PROTECTOR; HEAT,DPD 4HK1-TCN ENG(RDQ) (E)	8-98032-926-0	01	1	0612-	●
589	03.609 PROTECTOR; HEAT,DPD 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM) (E)	8-98032-926-0	01	1	0612-		●	●
589	03.609 PROTECTOR; HEAT,DPD 4HK1-TCC ENG(RDV) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM) (G)	8-97605-172-0	01	1	0612-			●
589	03.609 PROTECTOR; HEAT,DPD 4HK1-TCC ENG(RDV) (G)	8-97605-172-0	01	1	0612-				●
589	03.609 PROTECTOR; HEAT,DPD 4HK1-TCC ENG(RDV) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM) (H)	8-97611-086-0	01	1	0612-			●
589	03.609 PROTECTOR; HEAT,DPD 4HK1-TCC ENG(RDV) (H)	8-97611-086-0	01	1	0612-				●
589	03.609 PROTECTOR; HEAT,DPD 4HK1-TCC ENG(RDV) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM) (I)	8-97611-087-0	01	1	0612-			●
589	03.609 PROTECTOR; HEAT,DPD 4HK1-TCC ENG(RDV) (I)	8-97611-087-0	01	1	0612-				●
589	03.609 PROTECTOR; HEAT,DPD 4HK1-TCC ENG(RDV) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM) (J)	8-97611-088-0	01	1	0612-			●
589	03.609 PROTECTOR; HEAT,DPD 4HK1-TCC ENG(RDV) (J)	8-97611-088-0	01	1	0612-				●
589	03.609 PROTECTOR; HEAT,DPD 4HK1-TCC ENG(RDV) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM) (K)	8-97611-089-0	01	1	0612-			●
589	03.609 PROTECTOR; HEAT,DPD 4HK1-TCC ENG(RDV) (K)	8-97611-089-0	01	1	0612-				●
589	03.609 PROTECTOR; HEAT,DPD 4HK1-TCC ENG(RDV) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM) (L)	8-97613-390-0	01	1	0612-			●
589	03.609 PROTECTOR; HEAT,DPD 4HK1-TCC ENG(RDV) (L)	8-97613-390-0	01	1	0612-				●

118 117 115 113 579 118 117 115 113 578 577 376 352 115 115 70 576 44 562 556 562 560

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
44	03.613 BOLT; BRKT 4HK1-TCN ENG(RDQ) 00.029 (A) M10X30 FLANGE	0-28651-030-0	02	1	0612-	●
44	03.613 BOLT; BRKT 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) 00.029 (A) M10X30 FLANGE	0-28651-030-0	02	1	0612-		●
44	03.613 BOLT; BRKT 00.029 (A) M10X30 FLANGE	0-28651-030-0	02	1	0612-			●
44	03.613 BOLT; BRKT 4HK1-TCC ENG(RDV) 00.029 (A) M10X30 FLANGE	0-28651-030-0	02	1	0612-				●
44	03.613 BOLT; BRKT 02.277 (C) M10X35 FLANGE	0-28651-035-0	02	1	0612-	●	●	●	●
44	03.613 BOLT; BRKT 4JJ1 ENG(LFB) 02.042 (B) M10X25 FLANGE	0-28151-025-0	02	1	0612-		●	●
70	03.706 BOLT; BRKT 02.277 (B) M10X35 FLANGE	0-28651-035-0	02	1	0612-	●	●	●	●
70	03.706 BOLT; BRKT 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	0612-		●	●	●
113	03.704 COLLAR; DIST,MTG BRKT 4HK1-TCN ENG(RDQ) 03.706 L=37.5	9-22151-217-0	02	1	0612-	●
113	03.704 COLLAR; DIST,MTG BRKT 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) 03.706 L=37.5	9-22151-217-0	02	1	0612-		●	●
113	03.704 COLLAR; DIST,MTG BRKT 4HK1-TCC ENG(RDV) 03.706 L=37.5	9-22151-217-0	03	1	0612-			●	●
115	03.704 RUBBER; MTG,SILENCER 4HK1-TCN ENG(RDQ) (A)	8-94457-277-1	02	1	0612-	●
115	03.704 RUBBER; MTG,SILENCER 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) (A)	8-94457-277-1	02	1	0612-		●	●
115	03.704 RUBBER; MTG,SILENCER 4HK1-TCN ENG(RDQ) (B)	8-94457-278-1	02	1	0612-	●
115	03.704 RUBBER; MTG,SILENCER 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) (B)	8-94457-278-1	02	1	0612-		●	●
115	03.704 RUBBER; MTG,SILENCER 4HK1-TCN ENG(RDQ) (A)	8-94457-277-1	01	1	0612-	●	●
115	03.704 RUBBER; MTG,SILENCER 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) (A)	8-94457-277-1	01	1	0612-			●
115	03.704 RUBBER; MTG,SILENCER 4HK1-TCC ENG(RDV) (A)	8-94457-277-1	01	1	0612-				●
115	03.704 RUBBER; MTG,SILENCER 4HK1-TCN ENG(RDQ) (B)	8-94457-278-1	01	1	0612-	●	●
115	03.704 RUBBER; MTG,SILENCER 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) (B)	8-94457-278-1	01	1	0612-			●
115	03.704 RUBBER; MTG,SILENCER 4HK1-TCC ENG(RDV) (B)	8-94457-278-1	01	1	0612-				●
115	03.704 RUBBER; MTG,SILENCER 4HK1-TCC ENG(RDV) (A)	8-94457-277-1	03	1	0612-			●	●
115	03.704 RUBBER; MTG,SILENCER 4HK1-TCC ENG(RDV) (B)	8-94457-278-1	03	1	0612-			●	●
117	03.704 WASHER; PL,SILENCER MTG BRKT 4HK1-TCN ENG(RDQ) OD=55	9-09852-169-0	02	1	0612-	●
117	03.704 WASHER; PL,SILENCER MTG BRKT 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) OD=55	9-09852-169-0	02	1	0612-		●	●
117	03.704 WASHER; PL,SILENCER MTG BRKT 4HK1-TCC ENG(RDV) OD=55	9-09852-169-0	03	1	0612-			●	●
118	03.704 NUT; SILENCER MTG BRKT 4HK1-TCN ENG(RDQ) 07.874 M10 FLANGE	5-09440-006-0	02	1	0612-	●
118	03.704 NUT; SILENCER MTG BRKT 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) 07.874 M10 FLANGE	5-09440-006-0	02	1	0612-		●	●
118	03.704 NUT; SILENCER MTG BRKT 4HK1-TCC ENG(RDV) 07.874 M10 FLANGE	5-09440-006-0	03	1	0612-			●	●
352	03.613 NUT; BRKT 4HK1-TCN ENG(RDQ) 03.162 M10 FLANGE	0-91180-110-0	02	1	0612-	●
352	03.613 NUT; BRKT 4HK1-TCN ENG(RDQ) 03.162 M10 FLANGE	0-91180-110-0	02	1	0612-	●
352	03.613 NUT; BRKT 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) 03.162 M10 FLANGE	0-91180-110-0	02	1	0612-		●
352	03.613 NUT; BRKT 4HK1-TCC ENG(RDV) 03.162 M10 FLANGE	0-91180-110-0	02	1	0612-			●	●
352	03.613 NUT; BRKT 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) 03.162 M10 FLANGE	0-91180-110-0	02	1	0612-			●
352	03.613 NUT; BRKT 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) 03.162 M10 FLANGE	0-91180-110-0	02	1	0612-			●
352	03.613 NUT; BRKT 4HK1-TCC ENG(RDV) 03.162 M10 FLANGE	0-91180-110-0	02	1	0612-				●
352	03.613 NUT; BRKT 4HK1-TCC ENG(RDV) 03.162 M10 FLANGE	0-91180-110-0	02	1	0612-				●
376	03.708 BOLT; BRKT 4HK1-TCN ENG(RDQ) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0612-	●
376	03.708 BOLT; BRKT 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0612-		●
376	03.708 BOLT; BRKT 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0612-			●
376	03.708 BOLT; BRKT 4HK1-TCC ENG(RDV) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0612-				●
556	03.701 DPD ASM 4HK1-TCN ENG(RDQ)	8-98036-810-7	01	1	0612-1011	●
556	03.701 DPD ASM 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM)	8-98036-810-7	01	1	0612-1011		●	●
556	03.701 DPD ASM 4HK1-TCN ENG(RDQ)	8-98084-595-3	01	1	1012-	●
556	03.701 DPD ASM 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM)	8-98084-595-3	01	1	1012-		●	●
556	03.701 DPD ASM 4HK1-TCC ENG(RDV) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM)	8-98039-162-6	01	1	0612-1010			●
556	03.701 DPD ASM 4HK1-TCC ENG(RDV)	8-98039-162-6	01	1	0612-1010				●
556	03.701 DPD ASM 4HK1-TCC ENG(RDV) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM)	8-98084-602-3	01	1	1011-			●
556	03.701 DPD ASM 4HK1-TCC ENG(RDV)	8-98084-602-3	01	1	1011-				●
560	03.611 GASKET; DPD 4HK1-TCN ENG(RDQ) (D)	8-97331-947-0	02	1	0612-	●
560	03.611 GASKET; DPD 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM) (D)	8-97331-947-0	02	1	0612-		●	●
560	03.611 GASKET; DPD 4HK1-TCN ENG(RDQ) (A) ID=64	8-97373-108-0	01	1	0612-	●	●	●
560	03.611 GASKET; DPD 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) (A) ID=64	8-97373-108-0	01	1	0612-		●	●
560	03.611 GASKET; DPD 4HK1-TCC ENG(RDV) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM) (C)	8-97611-080-0	02	1	0612-			●
560	03.611 GASKET; DPD 4HK1-TCC ENG(RDV) (C)	8-97611-080-0	02	1	0612-				●
560	03.611 GASKET; DPD 4HK1-TCC ENG(RDV) (A)	1-22116-040-0	01	1	0612-			●	●
560	03.611 GASKET; DPD 4HK1-TCC ENG(RDV) 03.704 (B)	1-22116-043-0	01	1	0612-			●	●
562	03.690 PLATE; STUD,BOLT 4HK1-TCN ENG(RDQ) (B)	8-97373-966-0	02	1	0612-	●
562	03.690 PLATE; STUD,BOLT 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) (B)	8-97373-966-0	02	1	0612-		●	●
562	03.690 PLATE; STUD,BOLT 4HK1-TCN ENG(RDQ) (A)	8-98005-985-0	01	1	0612-	●
562	03.690 PLATE; STUD,BOLT 4JJ1 ENG(LFB) (A)	8-98005-985-0	01	1	0612-		●	●
562	03.690 PLATE; STUD,BOLT 4HK1-TCN ENG(RDQ) (D)	8-98030-175-0	01	1	0612-	●	●
562	03.690 PLATE; STUD,BOLT 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) (D)	8-98030-175-0	01	1	0612-			●
562	03.690 PLATE; STUD,BOLT 4HK1-TCC ENG(RDV) (D)	8-98030-175-0	01	1	0612-				●
562	03.690 PLATE; STUD,BOLT 4HK1-TCC ENG(RDV) 03.685 (C) M12X35	1-22131-963-0	02	1	0612-			●	●
576	03.706 BRACKET; DPD FRT TO FRAME 4HK1-TCN ENG(RDQ) (C)	8-98031-124-1	01	1	0612-	●	●	●
576	03.706 BRACKET; DPD FRT TO FRAME 4JJ1 ENG(LFB) (A)	8-98020-563-0	01	1	0612-		●	●
576	03.706 BRACKET; DPD FRT TO FRAME 4HK1-TCC ENG(RDV) (B)	8-98031-125-2	01	1	0612-			●	●
577	03.706 BRACKET; DPD RR TO FRAME 4HK1-TCN ENG(RDQ) (B)	8-98031-127-0	01	1	0612-	●
577	03.706 BRACKET; DPD RR TO FRAME 4HK1-TCN ENG(RDQ) (C)	8-98040-780-0	01	1	0612-		●	●
577	03.706 BRACKET; DPD RR TO FRAME 4JJ1 ENG(LFB) (A)	8-98020-564-0	01	1	0612-		●	●
577	03.706 BRACKET; DPD RR TO FRAME 4HK1-TCC ENG(RDV) (D)	8-98031-128-1	01	1	0612-			●	●
578	03.706 BRACKET; DPD FRT 4HK1-TCN ENG(RDQ) (B)	8-97387-248-1	01	1	0612-	●
578	03.706 BRACKET; DPD FRT 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) (B)	8-97387-248-1	01	1	0612-		●	●
578	03.706 BRACKET; DPD FRT 4HK1-TCC ENG(RDV) (A)	8-98006-772-1	01	1	0612-			●	●
579	03.704 BRACKET; DPD RR 4HK1-TCN ENG(RDQ) (B)	8-98031-168-1	01	1	0612-	●
579	03.704 BRACKET; DPD RR 4HK1-TCN ENG(RDQ) 03.706 (C)	8-97387-248-1	01	1	0612-		●	●
579	03.704 BRACKET; DPD RR 4JJ1 ENG(LFB) (A)	8-98020-598-1	01	1	0612-		●	●
579	03.704 BRACKET; DPD RR 4HK1-TCC ENG(RDV) (D)	8-98031-151-1	01	1	0612-			●	●

1 14 38 1 14 70 38 94 81 143 105 357 162 144 124 164 168 166 126 97 88 165 14 125 137 94 38 95 104

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.609 PIPE; EXH 4HK1-TCN ENG(RDQ) (A)	8-98006-765-2	01	1	0612-	●	●
1	03.609 PIPE; EXH 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) (A)	8-98006-765-2	01	1	0612-			●
1	03.609 PIPE; EXH 4HK1-TCC ENG(RDV) (A)	8-98006-765-2	01	1	0612-				●
1	03.609 PIPE; EXH 4JJ1 ENG(LFB) (D)	8-98005-237-0	01	1	0612-		●
1	03.609 PIPE; EXH 4JJ1 ENG(LFB) (B)	8-98026-060-0	01	1	0612-		●	●
1	03.609 PIPE; EXH 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) (C)	8-98020-602-0	01	1	0612-			●
1	03.609 PIPE; EXH 4HK1-TCC ENG(RDV) (C)	8-98020-602-0	01	1	0612-				●
1	03.609 PIPE; EXH 4JJ1 ENG(LFB) (E)	8-97387-264-0	01	1	0612-			●
14	03.704 GASKET; SILENCER TO EXH PIPE 4HK1-TCN ENG(RDQ) (A)	1-22116-043-0	01	1	0612-	●	●
14	03.704 GASKET; SILENCER TO EXH PIPE 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) (A)	1-22116-043-0	01	1	0612-			●
14	03.704 GASKET; SILENCER TO EXH PIPE 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) (A)	1-22116-043-0	01	1	0612-			●
14	03.704 GASKET; SILENCER TO EXH PIPE 4HK1-TCC ENG(RDV) (A)	1-22116-043-0	01	1	0612-				●
14	03.704 GASKET; SILENCER TO EXH PIPE 4HK1-TCC ENG(RDV) (A)	1-22116-043-0	01	1	0612-				●
14	03.704 GASKET; SILENCER TO EXH PIPE 4JJ1 ENG(LFB) 03.611 (B) ID=65	8-97148-757-1	01	1	0612-		●	●
14	03.704 GASKET; SILENCER TO EXH PIPE 4JJ1 ENG(LFB) 03.611 (B) ID=65	8-97148-757-1	01	1	0612-		●	●
38	00.002 NUT; SILENCER 4HK1-TCN ENG(RDQ) 03.162 M10 FLANGE	0-91180-110-0	04	1	0612-	●	●
38	00.002 NUT; SILENCER 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) 03.162 M10 FLANGE	0-91180-110-0	04	1	0612-			●
38	00.002 NUT; SILENCER 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) 03.162 M10 FLANGE	0-91180-110-0	04	1	0612-			●
38	00.002 NUT; SILENCER 4HK1-TCC ENG(RDV) 03.162 M10 FLANGE	0-91180-110-0	04	1	0612-				●
38	00.002 NUT; SILENCER 4HK1-TCC ENG(RDV) 03.162 M10 FLANGE	0-91180-110-0	04	1	0612-				●
38	00.002 NUT; SILENCER 4JJ1 ENG(LFB) 03.162 M10 FLANGE	0-91180-110-0	02	1	0612-		●	●
38	00.002 NUT; SILENCER 4JJ1 ENG(LFB) 03.162 M10 FLANGE	0-91180-110-0	02	1	0612-		●	●
70	03.706 BOLT; BRKT 02.277 (B) M10X35 FLANGE	0-28651-035-0	02	1	0612-	●	●	●	●
70	03.706 BOLT; BRKT 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	0612-		●	●	●
81	03.704 NUT; BRKT 4HK1-TCN ENG(RDQ) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	0612-	●
81	03.704 NUT; BRKT 4HK1-TCN ENG(RDQ) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0612-		●
81	03.704 NUT; BRKT 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0612-			●
81	03.704 NUT; BRKT 4HK1-TCC ENG(RDV) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0612-				●
81	03.704 NUT; BRKT 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	0612-		●	●	●
88	03.708 CLAMP; EXH PIPE 4HK1-TCN ENG(RDQ) (A)	8-98034-766-0	01	1	0612-	●	●
88	03.708 CLAMP; EXH PIPE 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) (A)	8-98034-766-0	01	1	0612-			●
88	03.708 CLAMP; EXH PIPE 4HK1-TCC ENG(RDV) (A)	8-98034-766-0	01	1	0612-				●
88	03.708 CLAMP; EXH PIPE 4JJ1 ENG(LFB) (B)	8-97373-158-0	01	1	0612-		●	●
88	03.708 CLAMP; EXH PIPE 4JJ1 ENG(LFB) (B)	8-97373-158-0	01	1	0612-		●	●
94	03.704 BOLT; CLAMP 00.685 (A) M10X45 FLANGE	0-28051-045-0	01	1	0612-	●	●	●	●
94	03.704 BOLT; CLAMP 03.023 (B) M10X50 FLANGE	8-97301-165-0	01	1	0612-		●	●	●
95	03.708 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0612-	●	●	●
95	03.708 BOLT; BRKT 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0612-				●
97	03.708 WASHER; PL,CLAMP 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	0612-		●	●	●
104	03.704 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	0612-	●	●	●
104	03.704 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	0612-				●
105	03.704 NUT; CLAMP 00.833 M10	0-91110-510-0	01	1	0612-	●	●	●	●
124	03.704 NUT; SUPPORT RUBBER 03.162 M10 FLANGE	0-91180-110-0	01	1	0612-	●	●	●	●
125	03.708 NUT; CLAMP 00.833 M10	0-91110-510-0	01	1	0612-		●	●	●
126	03.705 PIPE; EXH,RR 4HK1-TCN ENG(RDQ)	8-98020-607-2	01	1	0612-	●
126	03.705 PIPE; EXH,RR 4HK1-TCN ENG(RDQ)	8-98045-047-0	01	1	0612-		●	●
126	03.705 PIPE; EXH,RR 4JJ1 ENG(LFB)	8-98020-605-1	01	1	0612-		●	●
126	03.705 PIPE; EXH,RR 4HK1-TCC ENG(RDV)	8-98020-608-2	01	1	0612-			●
126	03.705 PIPE; EXH,RR 4HK1-TCC ENG(RDV)	8-98020-609-2	01	1	0612-				●
137	03.706 BRACKET; TAIL PIPE 4HK1-TCN ENG(RDQ)	8-97116-588-2	01	1	0612-	●	●
137	03.706 BRACKET; TAIL PIPE 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV)	8-97116-588-2	01	1	0612-			●
137	03.706 BRACKET; TAIL PIPE 4JJ1 ENG(LFB)	8-97232-759-0	01	1	0612-		●	●
137	03.706 BRACKET; TAIL PIPE	8-97185-801-0	01	1	0612-				●
143	03.704 RUBBER; SUPPORT 4JJ1 ENG(LFB) (B)	8-97080-694-0	01	1	0612-		●	●
143	03.704 RUBBER; SUPPORT (A)	8-98034-767-0	01	1	0612-		●	●	●
144	03.613 NUT; MTG RUBBER 01.062 M8 FLANGE	0-91180-108-0	01	1	0612-		●	●	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE 4HK1-TCN ENG(RDQ) L=115	8-98034-765-0	01	1	0612-	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE L=115	8-98034-765-0	01	1	0612-		●	●	●
164	03.706 COLLAR; DIST,TAIL PIPE 4HK1-TCN ENG(RDQ) L=37.5	9-22151-217-0	01	1	0612-	●
164	03.706 COLLAR; DIST,TAIL PIPE L=37.5	9-22151-217-0	01	1	0612-		●	●	●
165	03.706 BOLT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ) M10X70 FLANGE	0-28051-070-0	01	1	0612-	●
165	03.706 BOLT; SUPPORT RUBBER M10X70 FLANGE	0-28051-070-0	01	1	0612-		●	●	●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	0612-	●	●	●	●
168	03.613 BRACKET; EXH PIPE,FRT 4HK1-TCN ENG(RDQ) (C)	8-97096-651-0	01	1	0612-		●
168	03.613 BRACKET; EXH PIPE,FRT 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) (C)	8-97096-651-0	01	1	0612-			●
168	03.613 BRACKET; EXH PIPE,FRT 4HK1-TCC ENG(RDV) (C)	8-97096-651-0	01	1	0612-				●
168	03.613 BRACKET; EXH PIPE,FRT 4JJ1 ENG(LFB) 03.704 (B)	8-94468-174-1	01	1	0612-		●	●
168	03.613 BRACKET; EXH PIPE,FRT 4JJ1 ENG(LFB) (A)	8-98026-063-0	01	1	0612-		●	●
357	03.708 WASHER; PL,CLAMP 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	0612-	●	●	●	●

118 117 115 118 579 117 115 352 113 115 44 352 376 578 113 115 577 81 70 576 570 560 352 20 568 556 562 560

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
20	03.613 BOLT; FLANGE,EXH PIPE 4HK1-TCN ENG(RDQ) 02.277 M10X35 FLANGE	0-28651-035-0	02	1	0612-		●
20	03.613 BOLT; FLANGE,EXH PIPE 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) 02.277 M10X35 FLANGE	0-28651-035-0	02	1	0612-			●
20	03.613 BOLT; FLANGE,EXH PIPE 4HK1-TCC ENG(RDV) 02.277 M10X35 FLANGE	0-28651-035-0	02	1	0612-				●
44	03.613 BOLT; BRKT 4HK1-TCN ENG(RDQ) 00.029 (A) M10X30 FLANGE	0-28651-030-0	02	1	0612-	●
44	03.613 BOLT; BRKT 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) 00.029 (A) M10X30 FLANGE	0-28651-030-0	02	1	0612-		●
44	03.613 BOLT; BRKT 00.029 (A) M10X30 FLANGE	0-28651-030-0	02	1	0612-			●
44	03.613 BOLT; BRKT 4HK1-TCC ENG(RDV) 00.029 (A) M10X30 FLANGE	0-28651-030-0	02	1	0612-				●
44	03.613 BOLT; BRKT 02.277 (C) M10X35 FLANGE	0-28651-035-0	02	1	0612-	●	●	●	●
44	03.613 BOLT; BRKT 4JJ1 ENG(LFB) 02.042 (B) M10X25 FLANGE	0-28151-025-0	02	1	0612-		●	●
70	03.706 BOLT; BRKT 02.277 (B) M10X35 FLANGE	0-28651-035-0	02	1	0612-	●	●	●	●
70	03.706 BOLT; BRKT 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	0612-		●	●	●
81	03.704 NUT; BRKT 4HK1-TCN ENG(RDQ) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	0612-	●
81	03.704 NUT; BRKT 4HK1-TCN ENG(RDQ) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0612-		●
81	03.704 NUT; BRKT 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0612-			●
81	03.704 NUT; BRKT 4HK1-TCC ENG(RDV) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0612-				●
81	03.704 NUT; BRKT 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	0612-		●	●	●
113	03.704 COLLAR; DIST,MTG BRKT 4HK1-TCN ENG(RDQ) 03.706 L=37.5	9-22151-217-0	02	1	0612-	●
113	03.704 COLLAR; DIST,MTG BRKT 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) 03.706 L=37.5	9-22151-217-0	02	1	0612-		●	●
113	03.704 COLLAR; DIST,MTG BRKT 4HK1-TCC ENG(RDV) 03.706 L=37.5	9-22151-217-0	03	1	0612-			●	●
115	03.704 RUBBER; MTG,SILENCER 4HK1-TCN ENG(RDQ) (A)	8-94457-277-1	02	1	0612-	●
115	03.704 RUBBER; MTG,SILENCER 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) (A)	8-94457-277-1	02	1	0612-		●	●
115	03.704 RUBBER; MTG,SILENCER 4HK1-TCN ENG(RDQ) (B)	8-94457-278-1	02	1	0612-	●
115	03.704 RUBBER; MTG,SILENCER 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) (B)	8-94457-278-1	02	1	0612-		●	●
115	03.704 RUBBER; MTG,SILENCER 4HK1-TCN ENG(RDQ) (A)	8-94457-277-1	01	1	0612-	●	●
115	03.704 RUBBER; MTG,SILENCER 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) (A)	8-94457-277-1	01	1	0612-			●
115	03.704 RUBBER; MTG,SILENCER 4HK1-TCC ENG(RDV) (A)	8-94457-277-1	01	1	0612-				●
115	03.704 RUBBER; MTG,SILENCER 4HK1-TCN ENG(RDQ) (B)	8-94457-278-1	01	1	0612-	●	●
115	03.704 RUBBER; MTG,SILENCER 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) (B)	8-94457-278-1	01	1	0612-			●
115	03.704 RUBBER; MTG,SILENCER 4HK1-TCC ENG(RDV) (B)	8-94457-278-1	01	1	0612-				●
115	03.704 RUBBER; MTG,SILENCER 4HK1-TCC ENG(RDV) (A)	8-94457-277-1	03	1	0612-			●	●
115	03.704 RUBBER; MTG,SILENCER 4HK1-TCC ENG(RDV) (B)	8-94457-278-1	03	1	0612-			●	●
117	03.704 WASHER; PL,SILENCER MTG BRKT 4HK1-TCN ENG(RDQ) OD=55	9-09852-169-0	02	1	0612-	●
117	03.704 WASHER; PL,SILENCER MTG BRKT 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) OD=55	9-09852-169-0	02	1	0612-		●	●
117	03.704 WASHER; PL,SILENCER MTG BRKT 4HK1-TCC ENG(RDV) OD=55	9-09852-169-0	03	1	0612-			●	●
118	03.704 NUT; SILENCER MTG BRKT 4HK1-TCN ENG(RDQ) 07.874 M10 FLANGE	5-09440-006-0	02	1	0612-	●
118	03.704 NUT; SILENCER MTG BRKT 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) 07.874 M10 FLANGE	5-09440-006-0	02	1	0612-		●	●
118	03.704 NUT; SILENCER MTG BRKT 4HK1-TCC ENG(RDV) 07.874 M10 FLANGE	5-09440-006-0	03	1	0612-			●	●
352	03.613 NUT; BRKT 4HK1-TCN ENG(RDQ) 03.162 M10 FLANGE	0-91180-110-0	02	1	0612-	●
352	03.613 NUT; BRKT 4HK1-TCN ENG(RDQ) 03.162 M10 FLANGE	0-91180-110-0	02	1	0612-	●
352	03.613 NUT; BRKT 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) 03.162 M10 FLANGE	0-91180-110-0	02	1	0612-		●
352	03.613 NUT; BRKT 4HK1-TCC ENG(RDV) 03.162 M10 FLANGE	0-91180-110-0	02	1	0612-			●	●
352	03.613 NUT; BRKT 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) 03.162 M10 FLANGE	0-91180-110-0	02	1	0612-			●
352	03.613 NUT; BRKT 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) 03.162 M10 FLANGE	0-91180-110-0	02	1	0612-			●
352	03.613 NUT; BRKT 4HK1-TCC ENG(RDV) 03.162 M10 FLANGE	0-91180-110-0	02	1	0612-				●
352	03.613 NUT; BRKT 4HK1-TCC ENG(RDV) 03.162 M10 FLANGE	0-91180-110-0	02	1	0612-				●
376	03.708 BOLT; BRKT 4HK1-TCN ENG(RDQ) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0612-	●
376	03.708 BOLT; BRKT 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0612-		●
376	03.708 BOLT; BRKT 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0612-			●
376	03.708 BOLT; BRKT 4HK1-TCC ENG(RDV) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0612-				●
556	03.701 DPD ASM 4HK1-TCN ENG(RDQ)	8-98036-810-7	01	1	0612-1011	●
556	03.701 DPD ASM 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM)	8-98036-810-7	01	1	0612-1011		●	●
556	03.701 DPD ASM 4HK1-TCN ENG(RDQ)	8-98084-595-3	01	1	1012-	●
556	03.701 DPD ASM 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM)	8-98084-595-3	01	1	1012-		●	●
556	03.701 DPD ASM 4HK1-TCC ENG(RDV) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM)	8-98039-162-6	01	1	0612-1010			●
556	03.701 DPD ASM 4HK1-TCC ENG(RDV)	8-98039-162-6	01	1	0612-1010				●
556	03.701 DPD ASM 4HK1-TCC ENG(RDV) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM)	8-98084-602-3	01	1	1011-			●
556	03.701 DPD ASM 4HK1-TCC ENG(RDV)	8-98084-602-3	01	1	1011-				●
560	03.611 GASKET; DPD 4HK1-TCN ENG(RDQ) (D)	8-97331-947-0	02	1	0612-	●
560	03.611 GASKET; DPD 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM) (D)	8-97331-947-0	02	1	0612-		●	●
560	03.611 GASKET; DPD 4HK1-TCN ENG(RDQ) (A) ID=64	8-97373-108-0	01	1	0612-	●	●	●
560	03.611 GASKET; DPD 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) (A) ID=64	8-97373-108-0	01	1	0612-		●	●
560	03.611 GASKET; DPD 4HK1-TCC ENG(RDV) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM) (C)	8-97611-080-0	02	1	0612-			●
560	03.611 GASKET; DPD 4HK1-TCC ENG(RDV) (C)	8-97611-080-0	02	1	0612-				●
560	03.611 GASKET; DPD 4HK1-TCC ENG(RDV) (A)	1-22116-040-0	01	1	0612-			●	●
560	03.611 GASKET; DPD 4HK1-TCC ENG(RDV) 03.704 (B)	1-22116-043-0	01	1	0612-			●	●
562	03.690 PLATE; STUD,BOLT 4HK1-TCN ENG(RDQ) (B)	8-97373-966-0	02	1	0612-	●
562	03.690 PLATE; STUD,BOLT 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) (B)	8-97373-966-0	02	1	0612-		●	●
562	03.690 PLATE; STUD,BOLT 4HK1-TCN ENG(RDQ) (A)	8-98005-985-0	01	1	0612-	●
562	03.690 PLATE; STUD,BOLT 4JJ1 ENG(LFB) (A)	8-98005-985-0	01	1	0612-		●	●
562	03.690 PLATE; STUD,BOLT 4HK1-TCN ENG(RDQ) (D)	8-98030-175-0	01	1	0612-	●	●
562	03.690 PLATE; STUD,BOLT 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) (D)	8-98030-175-0	01	1	0612-			●
562	03.690 PLATE; STUD,BOLT 4HK1-TCC ENG(RDV) (D)	8-98030-175-0	01	1	0612-				●
562	03.690 PLATE; STUD,BOLT 4HK1-TCC ENG(RDV) 03.685 (C) M12X35	1-22131-963-0	02	1	0612-			●	●
568	03.704 NUT; DPD 4HK1-TCN ENG(RDQ) 01.062 (A) M8 FLANGE	0-91180-108-0	04	1	0612-	●	●	●
568	03.704 NUT; DPD 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) 01.062 (A) M8 FLANGE	0-91180-108-0	04	1	0612-		●	●
568	03.704 NUT; DPD 4HK1-TCC ENG(RDV) 03.162 (B) M10 FLANGE	0-91180-110-0	04	1	0612-			●	●
568	03.704 NUT; DPD 4HK1-TCC ENG(RDV) 02.042 (A) M12 FLANGE	0-91180-112-0	04	1	0612-			●	●
570	03.704 ADAPTER; EXH PIPE 4HK1-TCN ENG(RDQ)	8-98020-558-1	01	1	0612-		●	●
570	03.704 ADAPTER; EXH PIPE 4HK1-TCC ENG(RDV)	8-98006-767-1	01	1	0612-			●	●
576	03.706 BRACKET; DPD FRT TO FRAME 4HK1-TCN ENG(RDQ) (C)	8-98031-124-1	01	1	0612-	●	●	●
576	03.706 BRACKET; DPD FRT TO FRAME 4JJ1 ENG(LFB) (A)	8-98020-563-0	01	1	0612-		●	●
576	03.706 BRACKET; DPD FRT TO FRAME 4HK1-TCC ENG(RDV) (B)	8-98031-125-2	01	1	0612-			●	●
577	03.706 BRACKET; DPD RR TO FRAME 4HK1-TCN ENG(RDQ) (B)	8-98031-127-0	01	1	0612-	●
577	03.706 BRACKET; DPD RR TO FRAME 4HK1-TCN ENG(RDQ) (C)	8-98040-780-0	01	1	0612-		●	●
577	03.706 BRACKET; DPD RR TO FRAME 4JJ1 ENG(LFB) (A)	8-98020-564-0	01	1	0612-		●	●
577	03.706 BRACKET; DPD RR TO FRAME 4HK1-TCC ENG(RDV) (D)	8-98031-128-1	01	1	0612-			●	●
578	03.706 BRACKET; DPD FRT 4HK1-TCN ENG(RDQ) (B)	8-97387-248-1	01	1	0612-	●
578	03.706 BRACKET; DPD FRT 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) (B)	8-97387-248-1	01	1	0612-		●	●
578	03.706 BRACKET; DPD FRT 4HK1-TCC ENG(RDV) (A)	8-98006-772-1	01	1	0612-			●	●
579	03.704 BRACKET; DPD RR 4HK1-TCN ENG(RDQ) (B)	8-98031-168-1	01	1	0612-	●
579	03.704 BRACKET; DPD RR 4HK1-TCN ENG(RDQ) 03.706 (C)	8-97387-248-1	01	1	0612-		●	●
579	03.704 BRACKET; DPD RR 4JJ1 ENG(LFB) (A)	8-98020-598-1	01	1	0612-		●	●
579	03.704 BRACKET; DPD RR 4HK1-TCC ENG(RDV) (D)	8-98031-151-1	01	1	0612-			●	●

118 117 115 113 579 115 118 117 115 113 578 376 352 577 115 70 576 570 560 44 20 556 568 562 560

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
20	03.613 BOLT; FLANGE,EXH PIPE 4HK1-TCN ENG(RDQ) 02.277 M10X35 FLANGE	0-28651-035-0	02	1	0612-		●
20	03.613 BOLT; FLANGE,EXH PIPE 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) 02.277 M10X35 FLANGE	0-28651-035-0	02	1	0612-			●
20	03.613 BOLT; FLANGE,EXH PIPE 4HK1-TCC ENG(RDV) 02.277 M10X35 FLANGE	0-28651-035-0	02	1	0612-				●
44	03.613 BOLT; BRKT 4HK1-TCN ENG(RDQ) 00.029 (A) M10X30 FLANGE	0-28651-030-0	02	1	0612-	●
44	03.613 BOLT; BRKT 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) 00.029 (A) M10X30 FLANGE	0-28651-030-0	02	1	0612-		●
44	03.613 BOLT; BRKT 00.029 (A) M10X30 FLANGE	0-28651-030-0	02	1	0612-			●
44	03.613 BOLT; BRKT 4HK1-TCC ENG(RDV) 00.029 (A) M10X30 FLANGE	0-28651-030-0	02	1	0612-				●
44	03.613 BOLT; BRKT 02.277 (C) M10X35 FLANGE	0-28651-035-0	02	1	0612-	●	●	●	●
44	03.613 BOLT; BRKT 4JJ1 ENG(LFB) 02.042 (B) M10X25 FLANGE	0-28151-025-0	02	1	0612-		●	●
70	03.706 BOLT; BRKT 02.277 (B) M10X35 FLANGE	0-28651-035-0	02	1	0612-	●	●	●	●
70	03.706 BOLT; BRKT 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	0612-		●	●	●
113	03.704 COLLAR; DIST,MTG BRKT 4HK1-TCN ENG(RDQ) 03.706 L=37.5	9-22151-217-0	02	1	0612-	●
113	03.704 COLLAR; DIST,MTG BRKT 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) 03.706 L=37.5	9-22151-217-0	02	1	0612-		●	●
113	03.704 COLLAR; DIST,MTG BRKT 4HK1-TCC ENG(RDV) 03.706 L=37.5	9-22151-217-0	03	1	0612-			●	●
115	03.704 RUBBER; MTG,SILENCER 4HK1-TCN ENG(RDQ) (A)	8-94457-277-1	02	1	0612-	●
115	03.704 RUBBER; MTG,SILENCER 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) (A)	8-94457-277-1	02	1	0612-		●	●
115	03.704 RUBBER; MTG,SILENCER 4HK1-TCN ENG(RDQ) (B)	8-94457-278-1	02	1	0612-	●
115	03.704 RUBBER; MTG,SILENCER 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) (B)	8-94457-278-1	02	1	0612-		●	●
115	03.704 RUBBER; MTG,SILENCER 4HK1-TCN ENG(RDQ) (A)	8-94457-277-1	01	1	0612-	●	●
115	03.704 RUBBER; MTG,SILENCER 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) (A)	8-94457-277-1	01	1	0612-			●
115	03.704 RUBBER; MTG,SILENCER 4HK1-TCC ENG(RDV) (A)	8-94457-277-1	01	1	0612-				●
115	03.704 RUBBER; MTG,SILENCER 4HK1-TCN ENG(RDQ) (B)	8-94457-278-1	01	1	0612-	●	●
115	03.704 RUBBER; MTG,SILENCER 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) (B)	8-94457-278-1	01	1	0612-			●
115	03.704 RUBBER; MTG,SILENCER 4HK1-TCC ENG(RDV) (B)	8-94457-278-1	01	1	0612-				●
115	03.704 RUBBER; MTG,SILENCER 4HK1-TCC ENG(RDV) (A)	8-94457-277-1	03	1	0612-			●	●
115	03.704 RUBBER; MTG,SILENCER 4HK1-TCC ENG(RDV) (B)	8-94457-278-1	03	1	0612-			●	●
117	03.704 WASHER; PL,SILENCER MTG BRKT 4HK1-TCN ENG(RDQ) OD=55	9-09852-169-0	02	1	0612-	●
117	03.704 WASHER; PL,SILENCER MTG BRKT 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) OD=55	9-09852-169-0	02	1	0612-		●	●
117	03.704 WASHER; PL,SILENCER MTG BRKT 4HK1-TCC ENG(RDV) OD=55	9-09852-169-0	03	1	0612-			●	●
118	03.704 NUT; SILENCER MTG BRKT 4HK1-TCN ENG(RDQ) 07.874 M10 FLANGE	5-09440-006-0	02	1	0612-	●
118	03.704 NUT; SILENCER MTG BRKT 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) 07.874 M10 FLANGE	5-09440-006-0	02	1	0612-		●	●
118	03.704 NUT; SILENCER MTG BRKT 4HK1-TCC ENG(RDV) 07.874 M10 FLANGE	5-09440-006-0	03	1	0612-			●	●
352	03.613 NUT; BRKT 4HK1-TCN ENG(RDQ) 03.162 M10 FLANGE	0-91180-110-0	02	1	0612-	●
352	03.613 NUT; BRKT 4HK1-TCN ENG(RDQ) 03.162 M10 FLANGE	0-91180-110-0	02	1	0612-	●
352	03.613 NUT; BRKT 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) 03.162 M10 FLANGE	0-91180-110-0	02	1	0612-		●
352	03.613 NUT; BRKT 4HK1-TCC ENG(RDV) 03.162 M10 FLANGE	0-91180-110-0	02	1	0612-			●	●
352	03.613 NUT; BRKT 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) 03.162 M10 FLANGE	0-91180-110-0	02	1	0612-			●
352	03.613 NUT; BRKT 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) 03.162 M10 FLANGE	0-91180-110-0	02	1	0612-			●
352	03.613 NUT; BRKT 4HK1-TCC ENG(RDV) 03.162 M10 FLANGE	0-91180-110-0	02	1	0612-				●
352	03.613 NUT; BRKT 4HK1-TCC ENG(RDV) 03.162 M10 FLANGE	0-91180-110-0	02	1	0612-				●
376	03.708 BOLT; BRKT 4HK1-TCN ENG(RDQ) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0612-	●
376	03.708 BOLT; BRKT 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0612-		●
376	03.708 BOLT; BRKT 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0612-			●
376	03.708 BOLT; BRKT 4HK1-TCC ENG(RDV) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0612-				●
556	03.701 DPD ASM 4HK1-TCN ENG(RDQ)	8-98036-810-7	01	1	0612-1011	●
556	03.701 DPD ASM 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM)	8-98036-810-7	01	1	0612-1011		●	●
556	03.701 DPD ASM 4HK1-TCN ENG(RDQ)	8-98084-595-3	01	1	1012-	●
556	03.701 DPD ASM 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM)	8-98084-595-3	01	1	1012-		●	●
556	03.701 DPD ASM 4HK1-TCC ENG(RDV) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM)	8-98039-162-6	01	1	0612-1010			●
556	03.701 DPD ASM 4HK1-TCC ENG(RDV)	8-98039-162-6	01	1	0612-1010				●
556	03.701 DPD ASM 4HK1-TCC ENG(RDV) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM)	8-98084-602-3	01	1	1011-			●
556	03.701 DPD ASM 4HK1-TCC ENG(RDV)	8-98084-602-3	01	1	1011-				●
560	03.611 GASKET; DPD 4HK1-TCN ENG(RDQ) (D)	8-97331-947-0	02	1	0612-	●
560	03.611 GASKET; DPD 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM) (D)	8-97331-947-0	02	1	0612-		●	●
560	03.611 GASKET; DPD 4HK1-TCN ENG(RDQ) (A) ID=64	8-97373-108-0	01	1	0612-	●	●	●
560	03.611 GASKET; DPD 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) (A) ID=64	8-97373-108-0	01	1	0612-		●	●
560	03.611 GASKET; DPD 4HK1-TCC ENG(RDV) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM) (C)	8-97611-080-0	02	1	0612-			●
560	03.611 GASKET; DPD 4HK1-TCC ENG(RDV) (C)	8-97611-080-0	02	1	0612-				●
560	03.611 GASKET; DPD 4HK1-TCC ENG(RDV) (A)	1-22116-040-0	01	1	0612-			●	●
560	03.611 GASKET; DPD 4HK1-TCC ENG(RDV) 03.704 (B)	1-22116-043-0	01	1	0612-			●	●
562	03.690 PLATE; STUD,BOLT 4HK1-TCN ENG(RDQ) (B)	8-97373-966-0	02	1	0612-	●
562	03.690 PLATE; STUD,BOLT 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) (B)	8-97373-966-0	02	1	0612-		●	●
562	03.690 PLATE; STUD,BOLT 4HK1-TCN ENG(RDQ) (A)	8-98005-985-0	01	1	0612-	●
562	03.690 PLATE; STUD,BOLT 4JJ1 ENG(LFB) (A)	8-98005-985-0	01	1	0612-		●	●
562	03.690 PLATE; STUD,BOLT 4HK1-TCN ENG(RDQ) (D)	8-98030-175-0	01	1	0612-	●	●
562	03.690 PLATE; STUD,BOLT 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) (D)	8-98030-175-0	01	1	0612-			●
562	03.690 PLATE; STUD,BOLT 4HK1-TCC ENG(RDV) (D)	8-98030-175-0	01	1	0612-				●
562	03.690 PLATE; STUD,BOLT 4HK1-TCC ENG(RDV) 03.685 (C) M12X35	1-22131-963-0	02	1	0612-			●	●
568	03.704 NUT; DPD 4HK1-TCN ENG(RDQ) 01.062 (A) M8 FLANGE	0-91180-108-0	04	1	0612-	●	●	●
568	03.704 NUT; DPD 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) 01.062 (A) M8 FLANGE	0-91180-108-0	04	1	0612-		●	●
568	03.704 NUT; DPD 4HK1-TCC ENG(RDV) 03.162 (B) M10 FLANGE	0-91180-110-0	04	1	0612-			●	●
568	03.704 NUT; DPD 4HK1-TCC ENG(RDV) 02.042 (A) M12 FLANGE	0-91180-112-0	04	1	0612-			●	●
570	03.704 ADAPTER; EXH PIPE 4HK1-TCN ENG(RDQ)	8-98020-558-1	01	1	0612-		●	●
570	03.704 ADAPTER; EXH PIPE 4HK1-TCC ENG(RDV)	8-98006-767-1	01	1	0612-			●	●
576	03.706 BRACKET; DPD FRT TO FRAME 4HK1-TCN ENG(RDQ) (C)	8-98031-124-1	01	1	0612-	●	●	●
576	03.706 BRACKET; DPD FRT TO FRAME 4JJ1 ENG(LFB) (A)	8-98020-563-0	01	1	0612-		●	●
576	03.706 BRACKET; DPD FRT TO FRAME 4HK1-TCC ENG(RDV) (B)	8-98031-125-2	01	1	0612-			●	●
577	03.706 BRACKET; DPD RR TO FRAME 4HK1-TCN ENG(RDQ) (B)	8-98031-127-0	01	1	0612-	●
577	03.706 BRACKET; DPD RR TO FRAME 4HK1-TCN ENG(RDQ) (C)	8-98040-780-0	01	1	0612-		●	●
577	03.706 BRACKET; DPD RR TO FRAME 4JJ1 ENG(LFB) (A)	8-98020-564-0	01	1	0612-		●	●
577	03.706 BRACKET; DPD RR TO FRAME 4HK1-TCC ENG(RDV) (D)	8-98031-128-1	01	1	0612-			●	●
578	03.706 BRACKET; DPD FRT 4HK1-TCN ENG(RDQ) (B)	8-97387-248-1	01	1	0612-	●
578	03.706 BRACKET; DPD FRT 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) (B)	8-97387-248-1	01	1	0612-		●	●
578	03.706 BRACKET; DPD FRT 4HK1-TCC ENG(RDV) (A)	8-98006-772-1	01	1	0612-			●	●
579	03.704 BRACKET; DPD RR 4HK1-TCN ENG(RDQ) (B)	8-98031-168-1	01	1	0612-	●
579	03.704 BRACKET; DPD RR 4HK1-TCN ENG(RDQ) 03.706 (C)	8-97387-248-1	01	1	0612-		●	●
579	03.704 BRACKET; DPD RR 4JJ1 ENG(LFB) (A)	8-98020-598-1	01	1	0612-		●	●
579	03.704 BRACKET; DPD RR 4HK1-TCC ENG(RDV) (D)	8-98031-151-1	01	1	0612-			●	●

556 589 467 467 589 534 547 547 582 589 272 559 560 547 580 558 534 560 547 582 580 557 534 547 547 582 580 561 272 589 589 561 589

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
272	03.685 NUT; FLANGE 4HK1-TCN ENG(RDQ) 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	0612-	●
272	03.685 NUT; FLANGE 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM) 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	0612-		●	●
272	03.685 NUT; FLANGE 4HK1-TCN ENG(RDQ) 01.062 (C) M8 FLANGE	0-91180-108-0	16	1	0612-	●
272	03.685 NUT; FLANGE 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM) 01.062 (C) M8 FLANGE	0-91180-108-0	16	1	0612-		●	●
272	03.685 NUT; FLANGE 4HK1-TCC ENG(RDV) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM) 01.540 (B) M8 FLANGE	0-91180-208-0	20	1	0612-0702			●
272	03.685 NUT; FLANGE 4HK1-TCC ENG(RDV) 01.540 (B) M8 FLANGE	0-91180-208-0	20	1	0612-0702				●
272	03.685 NUT; FLANGE 4HK1-TCC ENG(RDV) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM) 01.062 (B) M8 FLANGE	0-91180-108-0	20	1	0703-			●
272	03.685 NUT; FLANGE 4HK1-TCC ENG(RDV) 01.062 (B) M8 FLANGE	0-91180-108-0	20	1	0703-				●
467	03.685 BOLT; PROTECTOR 4HK1-TCN ENG(RDQ) M6X16	8-98019-179-0	14	1	0612-	●
467	03.685 BOLT; PROTECTOR 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM) M6X16	8-98019-179-0	14	1	0612-		●
467	03.685 BOLT; PROTECTOR EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM) M6X16	8-98019-179-0	14	1	0612-			●
467	03.685 BOLT; PROTECTOR 4HK1-TCC ENG(RDV) M6X16	8-98019-179-0	14	1	0612-				●
534	03.704 BOLT; CLIP 4HK1-TCN ENG(RDQ) 03.162 M6X35 FLANGE	0-28650-635-0	02	1	0612-	●
534	03.704 BOLT; CLIP 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM) 03.162 M6X35 FLANGE	0-28650-635-0	02	1	0612-		●	●
534	03.704 BOLT; CLIP 4HK1-TCC ENG(RDV) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM) 03.162 M6X35 FLANGE	0-28650-635-0	03	1	0612-			●
534	03.704 BOLT; CLIP 4HK1-TCC ENG(RDV) 03.162 M6X35 FLANGE	0-28650-635-0	03	1	0612-				●
547	03.682 CLIP; PIPE 4HK1-TCN ENG(RDQ) (A)	8-97381-635-0	02	1	0612-	●
547	03.682 CLIP; PIPE 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM) (A)	8-97381-635-0	02	1	0612-		●	●
547	03.682 CLIP; PIPE 4HK1-TCN ENG(RDQ) (B)	8-97381-636-0	02	1	0612-	●
547	03.682 CLIP; PIPE 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM) (B)	8-97381-636-0	02	1	0612-		●	●
547	03.682 CLIP; PIPE 4HK1-TCC ENG(RDV) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM) (A)	8-97381-635-0	03	1	0612-			●
547	03.682 CLIP; PIPE 4HK1-TCC ENG(RDV) (A)	8-97381-635-0	03	1	0612-				●
547	03.682 CLIP; PIPE 4HK1-TCC ENG(RDV) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM) (B)	8-97381-636-0	03	1	0612-			●
547	03.682 CLIP; PIPE 4HK1-TCC ENG(RDV) (B)	8-97381-636-0	03	1	0612-				●
556	03.701 DPD ASM 4HK1-TCN ENG(RDQ)	8-98036-810-7	01	1	0612-1011	●
556	03.701 DPD ASM 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM)	8-98036-810-7	01	1	0612-1011		●	●
556	03.701 DPD ASM 4HK1-TCN ENG(RDQ)	8-98084-595-3	01	1	1012-	●
556	03.701 DPD ASM 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM)	8-98084-595-3	01	1	1012-		●	●
556	03.701 DPD ASM 4HK1-TCC ENG(RDV) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM)	8-98039-162-6	01	1	0612-1010			●
556	03.701 DPD ASM 4HK1-TCC ENG(RDV)	8-98039-162-6	01	1	0612-1010				●
556	03.701 DPD ASM 4HK1-TCC ENG(RDV) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM)	8-98084-602-3	01	1	1011-			●
556	03.701 DPD ASM 4HK1-TCC ENG(RDV)	8-98084-602-3	01	1	1011-				●
557	03.701 CATALYST ASM 4HK1-TCN ENG(RDQ)	8-98036-815-6	01	1	0612-	●
557	03.701 CATALYST ASM 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM)	8-98036-815-6	01	1	0612-		●	●
557	03.701 CATALYST ASM 4HK1-TCC ENG(RDV) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM)	8-97608-055-7	01	1	0612-			●
557	03.701 CATALYST ASM 4HK1-TCC ENG(RDV)	8-97608-055-7	01	1	0612-				●
558	03.634 FILTER ASM 4HK1-TCN ENG(RDQ)	8-98032-908-2	01	1	0612-	●
558	03.634 FILTER ASM 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM)	8-98032-908-2	01	1	0612-		●	●
558	03.634 FILTER ASM 4HK1-TCC ENG(RDV) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM)	8-97608-057-3	01	1	0612-			●
558	03.634 FILTER ASM 4HK1-TCC ENG(RDV)	8-97608-057-3	01	1	0612-				●
559	03.602 COVER; RR 4HK1-TCN ENG(RDQ)	8-98032-909-0	01	1	0612-0708	●
559	03.602 COVER; RR 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM)	8-98032-909-0	01	1	0612-0708		●	●
559	03.602 COVER; RR 4HK1-TCN ENG(RDQ)	8-98084-599-0	01	1	0709-1011	●
559	03.602 COVER; RR 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM)	8-98084-599-0	01	1	0709-1011		●	●
559	03.602 COVER; RR 4HK1-TCN ENG(RDQ)	8-98093-507-0	01	1	1012-	●
559	03.602 COVER; RR 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM)	8-98093-507-0	01	1	1012-		●	●
559	03.602 COVER; RR 4HK1-TCC ENG(RDV) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM)	8-97611-078-0	01	1	0612-1010			●
559	03.602 COVER; RR 4HK1-TCC ENG(RDV)	8-97611-078-0	01	1	0612-1010				●
559	03.602 COVER; RR 4HK1-TCC ENG(RDV) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM)	8-97622-887-0	01	1	1011-			●
559	03.602 COVER; RR 4HK1-TCC ENG(RDV)	8-97622-887-0	01	1	1011-				●
560	03.611 GASKET; DPD 4HK1-TCN ENG(RDQ) (D)	8-97331-947-0	02	1	0612-	●
560	03.611 GASKET; DPD 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM) (D)	8-97331-947-0	02	1	0612-		●	●
560	03.611 GASKET; DPD 4HK1-TCN ENG(RDQ) (A) ID=64	8-97373-108-0	01	1	0612-	●	●	●
560	03.611 GASKET; DPD 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) (A) ID=64	8-97373-108-0	01	1	0612-		●	●
560	03.611 GASKET; DPD 4HK1-TCC ENG(RDV) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM) (C)	8-97611-080-0	02	1	0612-			●
560	03.611 GASKET; DPD 4HK1-TCC ENG(RDV) (C)	8-97611-080-0	02	1	0612-				●
560	03.611 GASKET; DPD 4HK1-TCC ENG(RDV) (A)	1-22116-040-0	01	1	0612-			●	●
560	03.611 GASKET; DPD 4HK1-TCC ENG(RDV) 03.704 (B)	1-22116-043-0	01	1	0612-			●	●
561	03.609 PIPE; DPD 4HK1-TCN ENG(RDQ) (A)	8-98032-910-0	01	1	0612-1011	●
561	03.609 PIPE; DPD 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM) (A)	8-98032-910-0	01	1	0612-1011		●	●
561	03.609 PIPE; DPD 4HK1-TCN ENG(RDQ) (A)	8-98084-600-0	01	1	1012-	●
561	03.609 PIPE; DPD 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM) (A)	8-98084-600-0	01	1	1012-		●	●
561	03.609 PIPE; DPD 4HK1-TCN ENG(RDQ) (B)	8-98032-911-1	01	1	0612-1011	●
561	03.609 PIPE; DPD 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM) (B)	8-98032-911-1	01	1	0612-1011		●	●
561	03.609 PIPE; DPD 4HK1-TCN ENG(RDQ) (B)	8-98084-601-0	01	1	1012-	●
561	03.609 PIPE; DPD 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM) (B)	8-98084-601-0	01	1	1012-		●	●
561	03.609 PIPE; DPD 4HK1-TCC ENG(RDV) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM) (C)	8-98039-239-0	01	1	0612-1010			●
561	03.609 PIPE; DPD 4HK1-TCC ENG(RDV) (C)	8-98039-239-0	01	1	0612-1010				●
561	03.609 PIPE; DPD 4HK1-TCC ENG(RDV) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM) (C)	8-98084-603-0	01	1	1011-			●
561	03.609 PIPE; DPD 4HK1-TCC ENG(RDV) (C)	8-98084-603-0	01	1	1011-				●
561	03.609 PIPE; DPD 4HK1-TCC ENG(RDV) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM) (D)	8-98039-241-0	01	1	0612-1010			●
561	03.609 PIPE; DPD 4HK1-TCC ENG(RDV) (D)	8-98039-241-0	01	1	0612-1010				●
561	03.609 PIPE; DPD 4HK1-TCC ENG(RDV) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM) (D)	8-98084-604-0	01	1	1011-			●
561	03.609 PIPE; DPD 4HK1-TCC ENG(RDV) (D)	8-98084-604-0	01	1	1011-				●
580	03.704 BOLT; FLANGE 4HK1-TCN ENG(RDQ) 01.060 M8X35 FLANGE	0-28650-835-0	16	1	0612-	●
580	03.704 BOLT; FLANGE 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM) 01.060 M8X35 FLANGE	0-28650-835-0	16	1	0612-		●	●
580	03.704 BOLT; FLANGE 4HK1-TCC ENG(RDV) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM) 01.060 M8X35 FLANGE	0-28650-835-0	20	1	0612-			●
580	03.704 BOLT; FLANGE 4HK1-TCC ENG(RDV) 01.060 M8X35 FLANGE	0-28650-835-0	20	1	0612-				●
582	03.706 BRACKET; PIPE 4HK1-TCN ENG(RDQ) (A)	8-98032-919-0	01	1	0612-	●
582	03.706 BRACKET; PIPE 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM) (A)	8-98032-919-0	01	1	0612-		●	●
582	03.706 BRACKET; PIPE 4HK1-TCN ENG(RDQ) (B)	8-98032-920-0	01	1	0612-	●
582	03.706 BRACKET; PIPE 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM) (B)	8-98032-920-0	01	1	0612-		●	●
582	03.706 BRACKET; PIPE 4HK1-TCC ENG(RDV) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM) (C)	8-97611-083-0	01	1	0612-			●
582	03.706 BRACKET; PIPE 4HK1-TCC ENG(RDV) (C)	8-97611-083-0	01	1	0612-				●
582	03.706 BRACKET; PIPE 4HK1-TCC ENG(RDV) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM) (D)	8-97611-084-0	01	1	0612-			●
582	03.706 BRACKET; PIPE 4HK1-TCC ENG(RDV) (D)	8-97611-084-0	01	1	0612-				●
582	03.706 BRACKET; PIPE 4HK1-TCC ENG(RDV) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM) (E)	8-97611-085-0	01	1	0612-			●
582	03.706 BRACKET; PIPE 4HK1-TCC ENG(RDV) (E)	8-97611-085-0	01	1	0612-				●
589	03.609 PROTECTOR; HEAT,DPD 4HK1-TCN ENG(RDQ) (C)	8-97383-660-0	01	1	0612-	●
589	03.609 PROTECTOR; HEAT,DPD 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM) (C)	8-97383-660-0	01	1	0612-		●	●
589	03.609 PROTECTOR; HEAT,DPD 4HK1-TCN ENG(RDQ) (F)	8-97383-663-0	01	1	0612-	●
589	03.609 PROTECTOR; HEAT,DPD 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM) (F)	8-97383-663-0	01	1	0612-		●	●
589	03.609 PROTECTOR; HEAT,DPD 4HK1-TCN ENG(RDQ) (A)	8-98032-921-0	01	1	0612-	●
589	03.609 PROTECTOR; HEAT,DPD 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM) (A)	8-98032-921-0	01	1	0612-		●	●
589	03.609 PROTECTOR; HEAT,DPD 4HK1-TCN ENG(RDQ) (B)	8-98032-923-0	01	1	0612-	●
589	03.609 PROTECTOR; HEAT,DPD 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM) (B)	8-98032-923-0	01	1	0612-		●	●
589	03.609 PROTECTOR; HEAT,DPD 4HK1-TCN ENG(RDQ) (D)	8-98032-924-0	01	1	0612-	●
589	03.609 PROTECTOR; HEAT,DPD 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM) (D)	8-98032-924-0	01	1	0612-		●	●
589	03.609 PROTECTOR; HEAT,DPD 4HK1-TCN ENG(RDQ) (E)	8-98032-926-0	01	1	0612-	●
589	03.609 PROTECTOR; HEAT,DPD 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM) (E)	8-98032-926-0	01	1	0612-		●	●
589	03.609 PROTECTOR; HEAT,DPD 4HK1-TCC ENG(RDV) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM) (G)	8-97605-172-0	01	1	0612-			●
589	03.609 PROTECTOR; HEAT,DPD 4HK1-TCC ENG(RDV) (G)	8-97605-172-0	01	1	0612-				●
589	03.609 PROTECTOR; HEAT,DPD 4HK1-TCC ENG(RDV) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM) (H)	8-97611-086-0	01	1	0612-			●
589	03.609 PROTECTOR; HEAT,DPD 4HK1-TCC ENG(RDV) (H)	8-97611-086-0	01	1	0612-				●
589	03.609 PROTECTOR; HEAT,DPD 4HK1-TCC ENG(RDV) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM) (I)	8-97611-087-0	01	1	0612-			●
589	03.609 PROTECTOR; HEAT,DPD 4HK1-TCC ENG(RDV) (I)	8-97611-087-0	01	1	0612-				●
589	03.609 PROTECTOR; HEAT,DPD 4HK1-TCC ENG(RDV) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM) (J)	8-97611-088-0	01	1	0612-			●
589	03.609 PROTECTOR; HEAT,DPD 4HK1-TCC ENG(RDV) (J)	8-97611-088-0	01	1	0612-				●
589	03.609 PROTECTOR; HEAT,DPD 4HK1-TCC ENG(RDV) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM) (K)	8-97611-089-0	01	1	0612-			●
589	03.609 PROTECTOR; HEAT,DPD 4HK1-TCC ENG(RDV) (K)	8-97611-089-0	01	1	0612-				●
589	03.609 PROTECTOR; HEAT,DPD 4HK1-TCC ENG(RDV) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM) (L)	8-97613-390-0	01	1	0612-			●
589	03.609 PROTECTOR; HEAT,DPD 4HK1-TCC ENG(RDV) (L)	8-97613-390-0	01	1	0612-				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
