1-40 — FUEL TANK (#32500) — 54 parça

6 1 19 3 14 158 159 452 25 8 11 8 181 10 411 10 411 411

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D

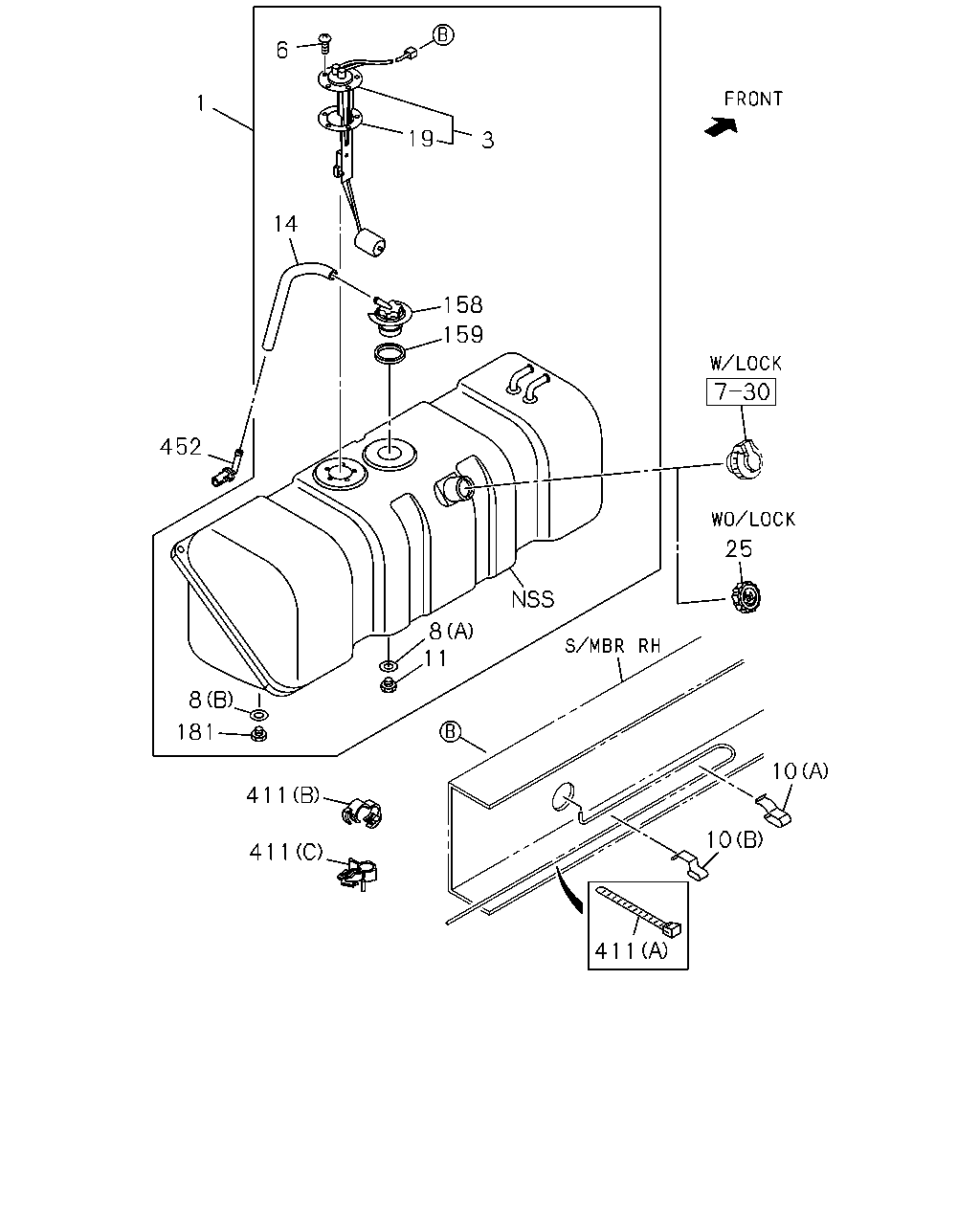

1	03.001 TANK; FUEL 1003X375X380 100L	8-97351-658-7	01	1	0612-	●	●	●	●
3	03.107 UNIT; FUEL TANK,SUB	8-98005-215-0	01	1	0612-0612	●	●	●	●
3	03.107 UNIT; FUEL TANK,SUB	8-98050-491-0	01	1	0612-	●	●	●	●
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN 02.361 M5X10 W/LK WASHER	0-36220-510-0	05	1	0612-	●	●	●	●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK 08.955 (A) ID=8.2 OD=17	9-09572-008-0	01	1	0612-	●	●	●	●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK 03.107 (B) ID=14.2 OD=23.0	9-09572-014-0	01	1	0612-	●	●	●	●
10	03.115 CLIP; SPRING,FUEL TANK UNIT CABL 02.559 (A) T=6.0	5-09709-012-0	AR	1	0612-	●	●	●	●
10	03.115 CLIP; SPRING,FUEL TANK UNIT CABL 02.483 (A) T=10.5	5-09709-014-0	AR	1	0612-	●	●	●	●
10	03.115 CLIP; SPRING,FUEL TANK UNIT CABL 02.559 (B) T=6.0	5-09709-024-0	AR	1	0612-	●	●	●	●
10	03.115 CLIP; SPRING,FUEL TANK UNIT CABL 01.240 (A) T=5.5	5-09709-047-0	AR	1	0612-	●	●	●	●
10	03.115 CLIP; SPRING,FUEL TANK UNIT CABL (B) T=9 & 10.5	8-97041-091-0	AR	1	0612-	●	●	●	●
11	03.890 PLUG; DRAIN,FUEL TANK 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0612-	●	●	●	●
14	03.163 HOSE; BREATHER,OUTLET L=420	8-98157-809-0	01	1	0612-	●	●	●	●
19	03.112 GASKET; FUEL TANK UNIT	8-97222-756-0	01	1	0612-	●	●	●	●
25	03.028 CAP; FILLER,FUEL TANK EXC. FUEL TANK CAP W/LOCK<N05>	8-94258-609-1	01	1	0612-	●	●	●	●
158	03.164 VALVE; ROLL OVER & FLOAT	8-97179-645-0	01	1	0612-	●	●	●	●
159	03.015 SEAL; ROLL OVER & FLOAT VALVE	8-97326-488-0	01	1	0612-	●	●	●	●
181	03.001 PLUG; CONNECTOR 01.453 M14X14	9-09862-156-0	01	1	0612-	●	●	●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS 4HK1-TCN ENG(RDQ) (B) ID=20	8-94241-972-0	01	1	0612-	●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS 4HK1-TCN ENG(RDQ) (B) ID=20	8-94241-972-0	01	1	0612-	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) (B) ID=20	8-94241-972-0	01	1	0612-		●
411	02.559 CLIP; FUEL TANK UNIT HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) (B) ID=20	8-94241-972-0	01	1	0612-			●
411	02.559 CLIP; FUEL TANK UNIT HARNESS EURO4 SPECIFICATION(NT4) (B) ID=20	8-94241-972-0	01	1	0612-			●
411	02.559 CLIP; FUEL TANK UNIT HARNESS 4HK1-TCC ENG(RDV) (B) ID=20	8-94241-972-0	01	1	0612-				●
411	02.559 CLIP; FUEL TANK UNIT HARNESS 4HK1-TCC ENG(RDV) (B) ID=20	8-94241-972-0	01	1	0612-				●
411	02.559 CLIP; FUEL TANK UNIT HARNESS 03.890 (C) ID=4.8	1-09701-218-0	01	1	0612-	●	●	●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS 03.162 (A) L=140	5-09707-031-1	03	1	0612-	●	●	●	●
452	03.028 BREATHER; FUEL TANK	8-97357-261-0	01	1	0612-	●	●	●	●

301 198 505 301 299 300 301 299

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D

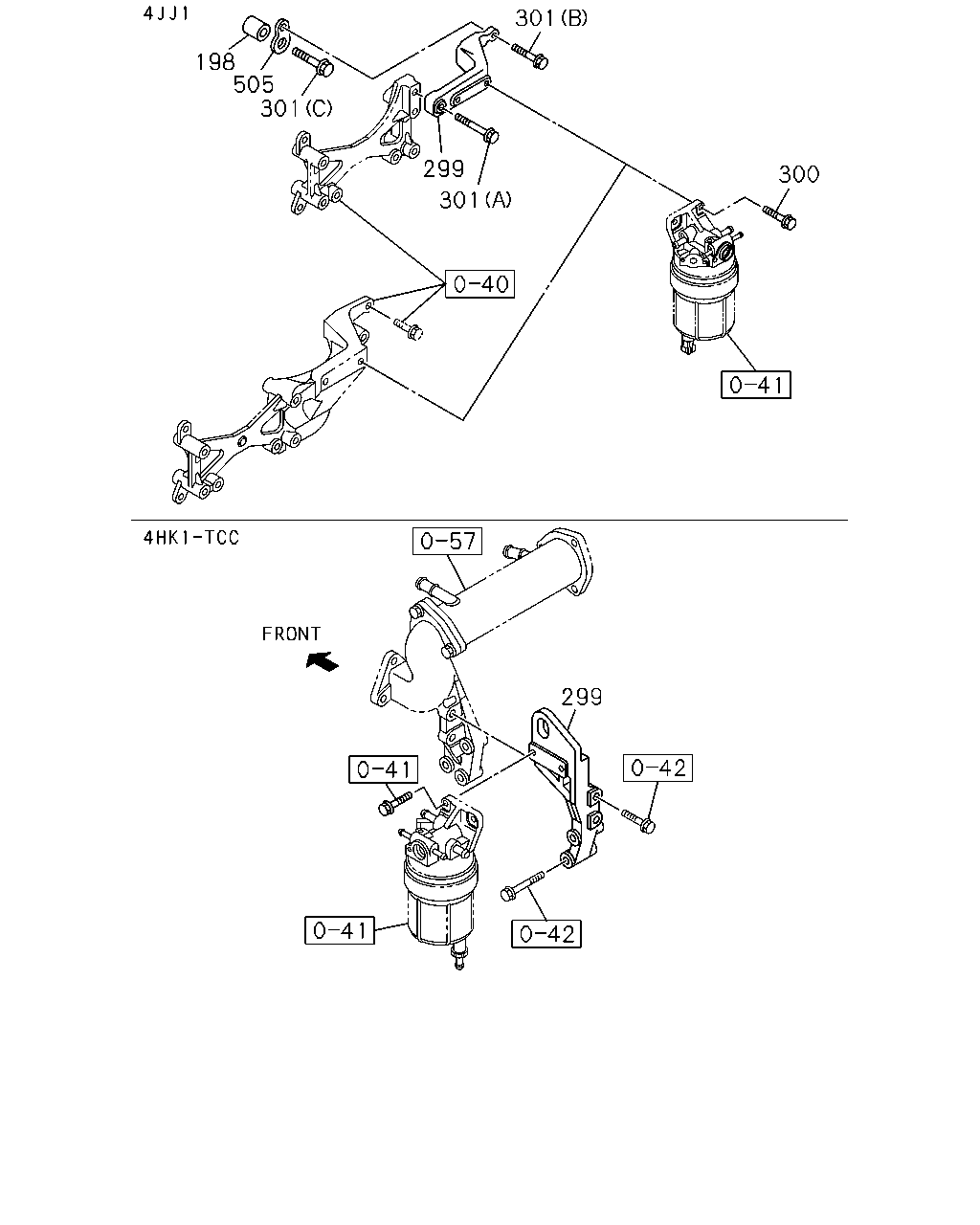

198	03.107 SPACER 4JJ1 ENG(LFB) EURO4 SPECIFICATION(NT4)	8-98081-509-0	01	1	0704-1001		●	●
299	03.162 BRACKET; FUEL FILTER 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV)	8-98038-359-2	01	1	0612-	●	●	●	●
299	03.162 BRACKET; FUEL FILTER 4JJ1 ENG(LFB) EURO4 SPECIFICATION(NT4)	8-98009-087-4	01	1	0612-1001		●	●
300	03.162 BOLT; BRKT TO BODY 4JJ1 ENG(LFB) EURO4 SPECIFICATION(NT4) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0612-		●	●
301	03.162 BOLT; BRKT TO SEDIMENTER 4JJ1 ENG(LFB) EURO4 SPECIFICATION(NT4) (C) M14X58 FLANGE	8-98081-508-0	01	1	0704-1001		●	●
301	03.162 BOLT; BRKT TO SEDIMENTER 4JJ1 ENG(LFB) EURO4 SPECIFICATION(NT4) 02.277 (B) M8X40 FLANGE	0-28050-840-0	01	1	0612-0703		●	●
301	03.162 BOLT; BRKT TO SEDIMENTER 4JJ1 ENG(LFB) EURO4 SPECIFICATION(NT4) (B) M8X40 FLANGE	0-28060-840-0	01	1	0704-1001		●	●
301	03.162 BOLT; BRKT TO SEDIMENTER 4JJ1 ENG(LFB) EURO4 SPECIFICATION(NT4) 04.686 (A) M8X60 FLANGE	0-28050-860-0	01	1	0612-0703		●	●
301	03.162 BOLT; BRKT TO SEDIMENTER 4JJ1 ENG(LFB) EURO4 SPECIFICATION(NT4) (A) M8X66 FLANGE	8-98081-507-0	01	1	0704-1001		●	●
505	03.163 BRACKET 4JJ1 ENG(LFB) EURO4 SPECIFICATION(NT4)	8-98081-486-0	01	1	0704-1001		●	●

36 36 47 227 51 227 40 40 47 51 43 42 43 42 49 49 51 40 40 51 43 42 43 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D

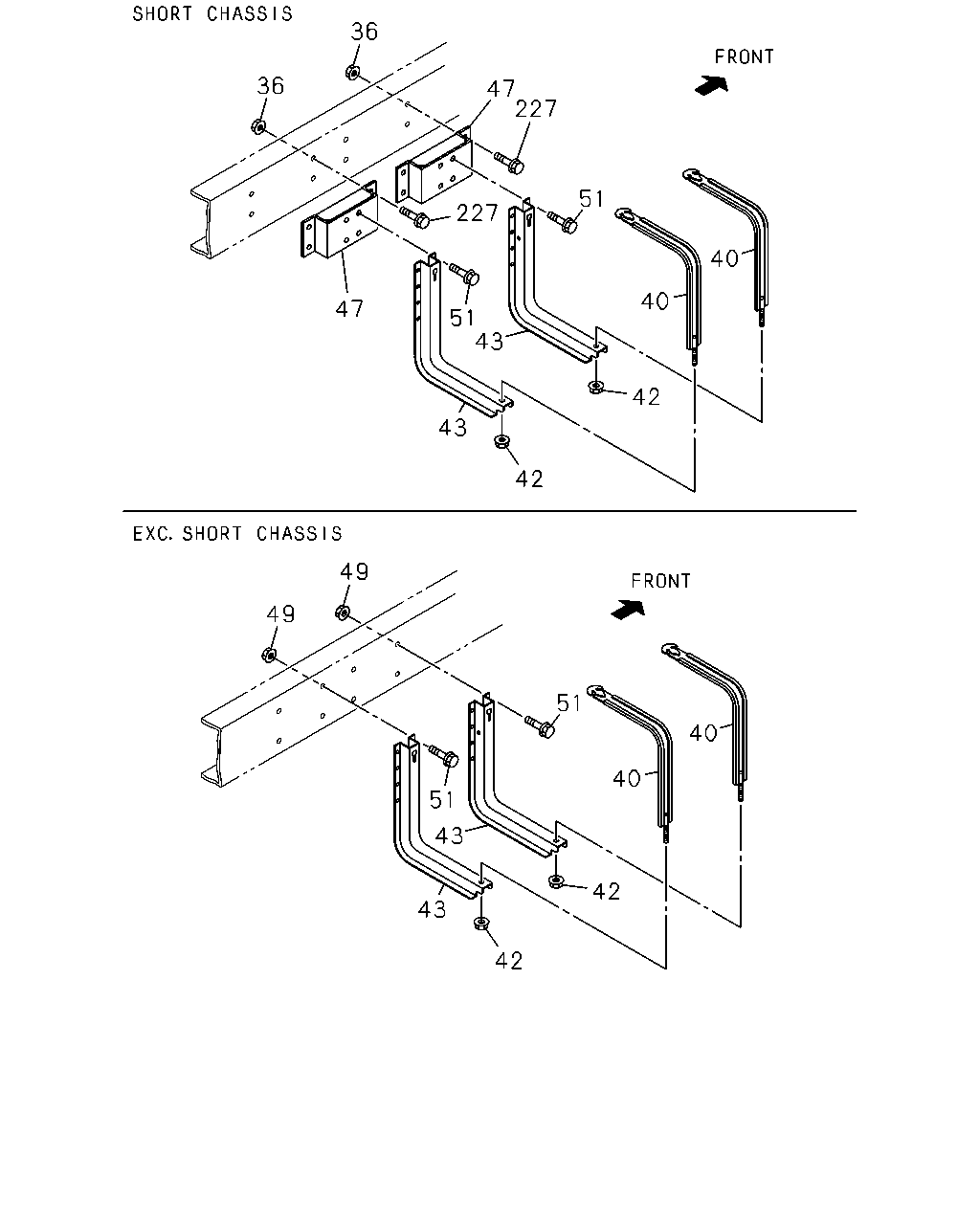

36	03.015 NUT; SPACER,FUEL TANK 03.162 M10 FLANGE	0-91180-110-0	08	1	0612-	●
40	03.022 BELT; SUPPORT,FUEL TANK	8-97169-231-1	02	1	0612-	●	●	●	●
42	03.023 NUT; SUPPORT BELT M8 FLANGE	9-09130-408-0	02	1	0612-	●	●	●	●
43	03.015 BRACKET; FUEL TANK FRONT	8-97035-517-0	01	1	0612-	●	●	●	●
43	03.015 BRACKET; FUEL TANK REAR	8-97181-220-0	01	1	0612-	●	●	●	●
47	03.023 SPACER; FUEL TANK	8-98031-030-0	02	1	0612-	●
49	03.023 NUT; BRKT 04.085 M10 FLANGE	0-91180-210-0	08	1	0612-	●			●
49	03.023 NUT; BRKT FRAME STRAIGHT TYPE<7KJ> 04.085 M10 FLANGE	0-91180-210-0	08	1	0612-		●	●
49	03.023 NUT; BRKT EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 04.085 M10 FLANGE	0-91180-210-0	08	1	0612-		●	●
49	03.023 NUT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 04.085 M10 FLANGE	0-91180-210-0	07	1	0612-		●	●
51	03.023 BOLT; BRKT TO FRAME 07.068 M10X30 FLANGE	0-28661-030-0	08	1	0612-	●
51	03.023 BOLT; BRKT TO FRAME EXC. FRAME STRAIGHT TYPE<7KJ> 07.068 M10X30 FLANGE	0-28661-030-0	08	1	0612-		●	●
51	03.023 BOLT; BRKT TO FRAME FRAME STRAIGHT TYPE<7KJ> 07.068 M10X30 FLANGE	0-28661-030-0	07	1	0612-		●	●
51	03.023 BOLT; BRKT TO FRAME 07.068 M10X30 FLANGE	0-28661-030-0	07	1	0612-				●
227	03.015 BOLT; SPACER,FUEL TANK 02.277 M10X35 FLANGE	0-28651-035-0	08	1	0612-	●			●
227	03.015 BOLT; SPACER,FUEL TANK FRAME STRAIGHT TYPE<7KJ> 02.277 M10X35 FLANGE	0-28651-035-0	08	1	0612-		●	●
