◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51103 - NPR/NQR(LHD) EURO4 ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-35 - CHARGE AIR COOLER ▶
1-35 — CHARGE AIR COOLER (#32499) — 38 parça

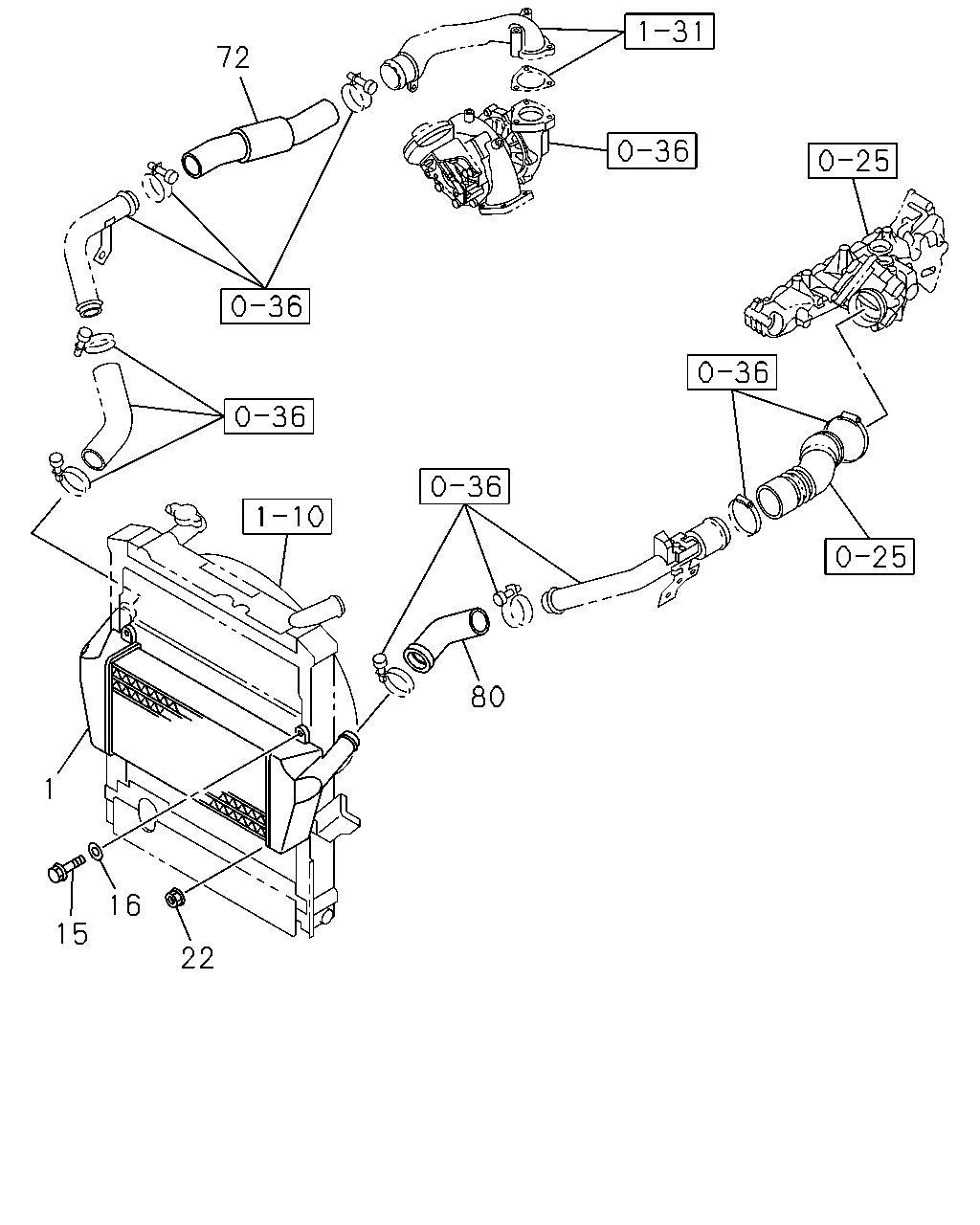

çizim 56886
72 80 1 16 15 22
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 03.374 COOLER; CHARGE AIR
4HK1-TCN ENG(RDQ) 		8-97389-001-0 01 1 0612- ● ●
1 03.374 COOLER; CHARGE AIR
4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) 		8-97389-001-0 01 1 0612- ●
1 03.374 COOLER; CHARGE AIR
4HK1-TCC ENG(RDV) 		8-97389-001-0 01 1 0612- ●
1 03.374 COOLER; CHARGE AIR
4JJ1 ENG(LFB) 		8-97387-033-0 01 1 0612- ● ●
15 03.374 BOLT; CHARGE AIR COOLER
4JJ1 ENG(LFB) 03.275 M8X25 FLANGE 		0-28050-825-0 02 1 0612- ● ●
16 03.374 WASHER; PL,CHARGE AIR COOLER
4HK1-TCN ENG(RDQ) 16.674 ID=8.4 		9-09160-508-0 04 1 0612- ● ●
16 03.374 WASHER; PL,CHARGE AIR COOLER
4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) 16.674 ID=8.4 		9-09160-508-0 04 1 0612- ●
16 03.374 WASHER; PL,CHARGE AIR COOLER
4HK1-TCC ENG(RDV) 16.674 ID=8.4 		9-09160-508-0 04 1 0612- ●
16 03.374 WASHER; PL,CHARGE AIR COOLER
4JJ1 ENG(LFB) 03.417 ID=8.4 OD=16 		0-91610-508-0 02 1 0612- ● ●
22 03.374 NUT
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE 		0-91180-108-0 02 1 0612- ● ●
22 03.374 NUT
4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0612- ● ●
72 01.540 HOSE; CONN,INL PIPE TO DUCT
4HK1-TCN ENG(RDQ) 		8-98020-248-2 01 1 0612- ● ●
72 01.540 HOSE; CONN,INL PIPE TO DUCT
4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) 		8-98020-248-2 01 1 0612- ●
72 01.540 HOSE; CONN,INL PIPE TO DUCT
4HK1-TCC ENG(RDV) 		8-98020-248-2 01 1 0612- ●
72 01.540 HOSE; CONN,INL PIPE TO DUCT
4JJ1 ENG(LFB) 		8-98048-142-1 01 1 0612- ● ●
80 01.540 HOSE; CONN,CHARGE AIR COOLER TO
4HK1-TCN ENG(RDQ) 		8-98053-760-0 01 1 0612- ● ●
80 01.540 HOSE; CONN,CHARGE AIR COOLER TO
4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) 		8-98053-760-0 01 1 0612- ●
80 01.540 HOSE; CONN,CHARGE AIR COOLER TO
4HK1-TCC ENG(RDV) 		8-98053-760-0 01 1 0612- ●
80 01.540 HOSE; CONN,CHARGE AIR COOLER TO
4JJ1 ENG(LFB) 		8-98018-532-2 01 1 0612- ● ●

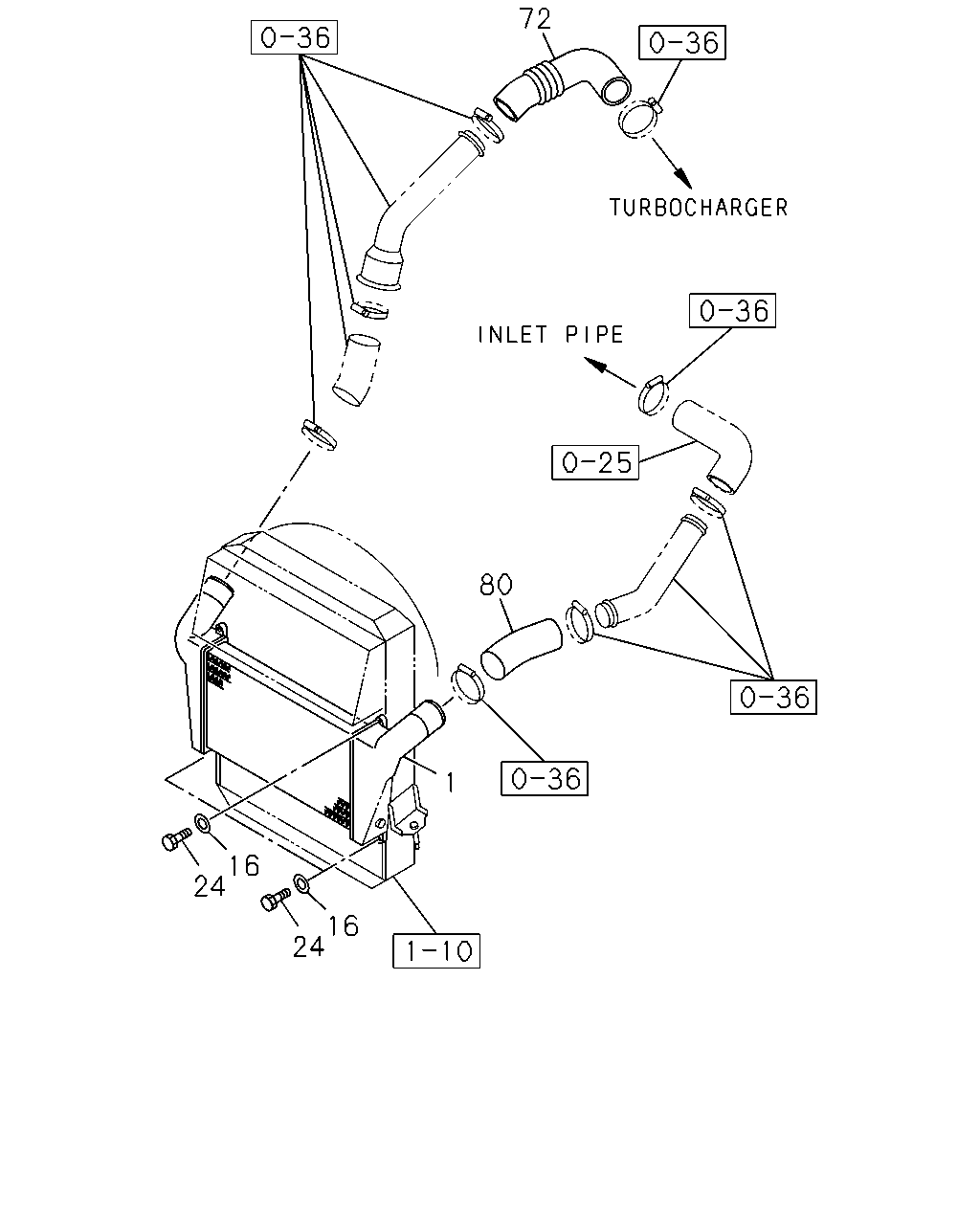

çizim 57996
72 80 1 16 24 16 24
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 03.374 COOLER; CHARGE AIR
4HK1-TCN ENG(RDQ) 		8-97389-001-0 01 1 0612- ● ●
1 03.374 COOLER; CHARGE AIR
4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) 		8-97389-001-0 01 1 0612- ●
1 03.374 COOLER; CHARGE AIR
4HK1-TCC ENG(RDV) 		8-97389-001-0 01 1 0612- ●
1 03.374 COOLER; CHARGE AIR
4JJ1 ENG(LFB) 		8-97387-033-0 01 1 0612- ● ●
16 03.374 WASHER; PL,CHARGE AIR COOLER
4HK1-TCN ENG(RDQ) 16.674 ID=8.4 		9-09160-508-0 04 1 0612- ● ●
16 03.374 WASHER; PL,CHARGE AIR COOLER
4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) 16.674 ID=8.4 		9-09160-508-0 04 1 0612- ●
16 03.374 WASHER; PL,CHARGE AIR COOLER
4HK1-TCC ENG(RDV) 16.674 ID=8.4 		9-09160-508-0 04 1 0612- ●
16 03.374 WASHER; PL,CHARGE AIR COOLER
4JJ1 ENG(LFB) 03.417 ID=8.4 OD=16 		0-91610-508-0 02 1 0612- ● ●
24 03.374 BOLT; COOLER TO RAD
4HK1-TCN ENG(RDQ) 01.531 M8X25 FLANGE 		0-28080-825-0 04 1 0612- ● ●
24 03.374 BOLT; COOLER TO RAD
4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) 01.531 M8X25 FLANGE 		0-28080-825-0 04 1 0612- ●
24 03.374 BOLT; COOLER TO RAD
4HK1-TCC ENG(RDV) 01.531 M8X25 FLANGE 		0-28080-825-0 04 1 0612- ●
72 01.540 HOSE; CONN,INL PIPE TO DUCT
4HK1-TCN ENG(RDQ) 		8-98020-248-2 01 1 0612- ● ●
72 01.540 HOSE; CONN,INL PIPE TO DUCT
4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) 		8-98020-248-2 01 1 0612- ●
72 01.540 HOSE; CONN,INL PIPE TO DUCT
4HK1-TCC ENG(RDV) 		8-98020-248-2 01 1 0612- ●
72 01.540 HOSE; CONN,INL PIPE TO DUCT
4JJ1 ENG(LFB) 		8-98048-142-1 01 1 0612- ● ●
80 01.540 HOSE; CONN,CHARGE AIR COOLER TO
4HK1-TCN ENG(RDQ) 		8-98053-760-0 01 1 0612- ● ●
80 01.540 HOSE; CONN,CHARGE AIR COOLER TO
4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) 		8-98053-760-0 01 1 0612- ●
80 01.540 HOSE; CONN,CHARGE AIR COOLER TO
4HK1-TCC ENG(RDV) 		8-98053-760-0 01 1 0612- ●
80 01.540 HOSE; CONN,CHARGE AIR COOLER TO
4JJ1 ENG(LFB) 		8-98018-532-2 01 1 0612- ● ●
