1-30 — AIR CLEANER (#32497) — 80 parça

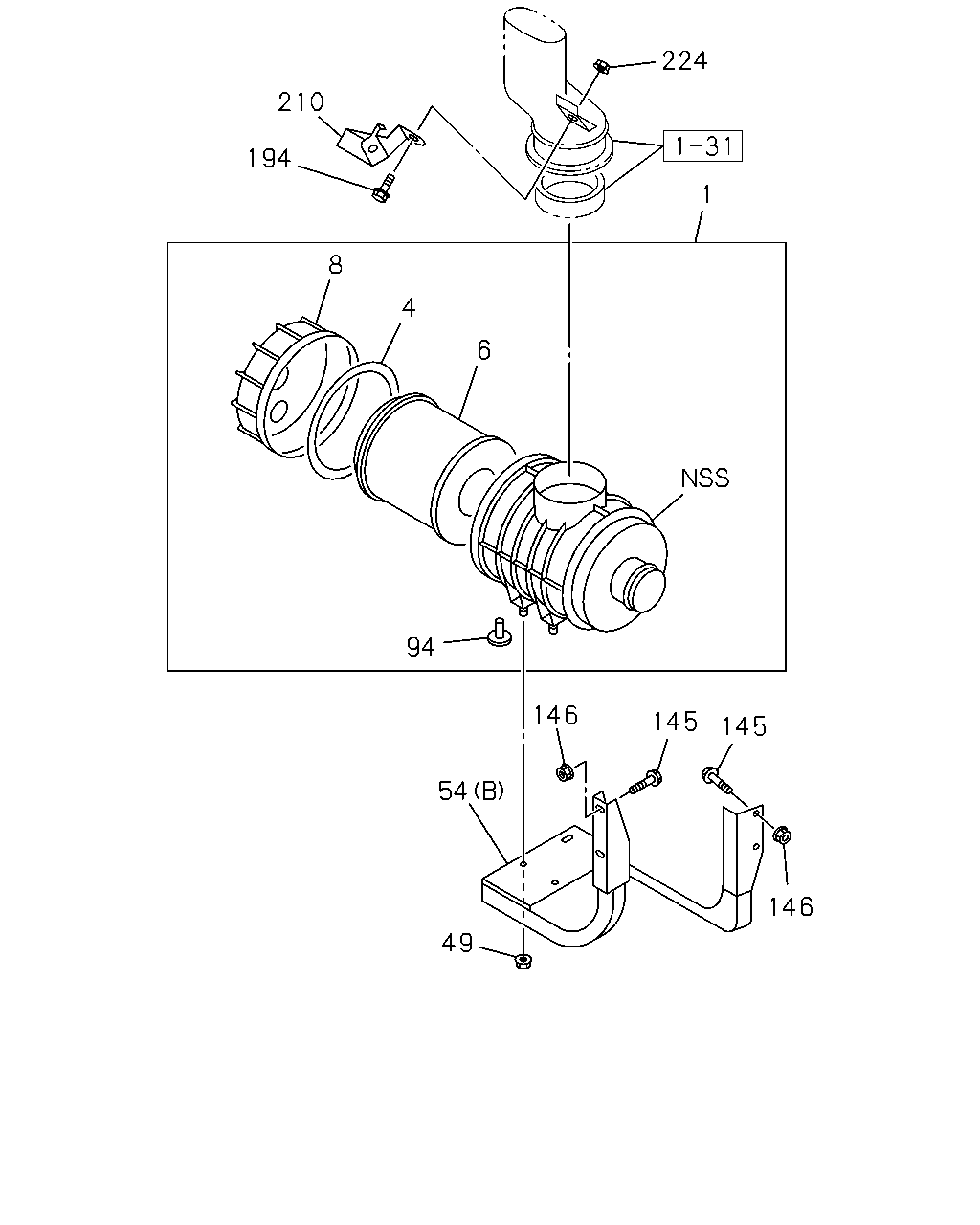

224 210 194 1 8 4 6 94 146 145 145 54 146 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.402 CLEANER ASM; AIR 4HK1-TCN ENG(RDQ)	8-97189-166-5	01	1	0612-	●	●
1	03.402 CLEANER ASM; AIR 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV)	8-97189-166-5	01	1	0612-			●
1	03.402 CLEANER ASM; AIR 4HK1-TCC ENG(RDV)	8-97189-166-5	01	1	0612-				●
1	03.402 CLEANER ASM; AIR 4JJ1 ENG(LFB)	8-98050-415-2	01	1	0612-		●	●
4	03.403 GASKET; COVER TO BODY 4JJ1 ENG(LFB)	8-97352-113-0	01	1	0612-		●	●
6	03.410 FILTER; ACL 4HK1-TCN ENG(RDQ)	8-94430-250-0	01	1	0612-0708	●	●
6	03.410 FILTER; ACL 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV)	8-94430-250-0	01	1	0612-0708			●
6	03.410 FILTER; ACL 4HK1-TCC ENG(RDV)	8-94430-250-0	01	1	0612-0708				●
6	03.410 FILTER; ACL 4HK1-TCN ENG(RDQ)	8-98091-394-0	01	1	0709-	●	●
6	03.410 FILTER; ACL 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV)	8-98091-394-0	01	1	0709-			●
6	03.410 FILTER; ACL 4HK1-TCC ENG(RDV)	8-98091-394-0	01	1	0709-				●
6	03.410 FILTER; ACL 4JJ1 ENG(LFB)	8-97062-294-0	01	1	0612-		●	●
8	03.410 COVER ASM; ACL 4JJ1 ENG(LFB)	8-98050-434-1	01	1	0612-		●	●
49	03.403 NUT; ACL 4JJ1 ENG(LFB) 01.062 M8 FLANGE	0-91180-108-0	04	1	0612-		●	●
54	03.405 BRACKET; ACL 4HK1-TCN ENG(RDQ) (A)	8-98046-708-0	01	1	0612-	●	●
54	03.405 BRACKET; ACL 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) (A)	8-98046-708-0	01	1	0612-			●
54	03.405 BRACKET; ACL 4HK1-TCC ENG(RDV) (A)	8-98046-708-0	01	1	0612-				●
54	03.405 BRACKET; ACL 4JJ1 ENG(LFB) (B)	8-98020-614-0	01	1	0612-		●	●
94	03.415 VALVE; VACUATOR 4HK1-TCN ENG(RDQ)	1-14219-075-0	01	1	0612-	●	●
94	03.415 VALVE; VACUATOR 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV)	1-14219-075-0	01	1	0612-			●
94	03.415 VALVE; VACUATOR 4HK1-TCC ENG(RDV)	1-14219-075-0	01	1	0612-				●
94	03.415 VALVE; VACUATOR 4JJ1 ENG(LFB)	8-97352-112-0	01	1	0612-0907		●	●
94	03.415 VALVE; VACUATOR 4JJ1 ENG(LFB)	8-97093-694-0	01	1	0908-		●	●
145	03.405 BOLT; BRKT TO FRAME 4HK1-TCN ENG(RDQ) 03.890 M10X30 FLANGE	0-28051-030-0	04	1	0612-	●
145	03.405 BOLT; BRKT TO FRAME 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) 03.890 M10X30 FLANGE	0-28051-030-0	04	1	0612-		●
145	03.405 BOLT; BRKT TO FRAME 03.890 M10X30 FLANGE	0-28051-030-0	04	1	0612-			●
145	03.405 BOLT; BRKT TO FRAME 4HK1-TCC ENG(RDV) 03.890 M10X30 FLANGE	0-28051-030-0	04	1	0612-				●
146	03.405 NUT; BRKT TO FRAME 4HK1-TCN ENG(RDQ) 03.162 M10 FLANGE	0-91180-110-0	04	1	0612-	●
146	03.405 NUT; BRKT TO FRAME 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) 03.162 M10 FLANGE	0-91180-110-0	04	1	0612-		●
146	03.405 NUT; BRKT TO FRAME 03.162 M10 FLANGE	0-91180-110-0	04	1	0612-			●
146	03.405 NUT; BRKT TO FRAME 4HK1-TCC ENG(RDV) 03.162 M10 FLANGE	0-91180-110-0	04	1	0612-				●
194	03.417 BOLT; BRKT 4JJ1 ENG(LFB) 01.531 M8X20 FLANGE	0-28650-820-0	01	1	0612-		●	●
210	03.405 BRACKET; ACL MTG 4JJ1 ENG(LFB)	8-98035-295-0	01	1	0612-		●	●
224	03.407 NUT; BRKT 4JJ1 ENG(LFB) 01.062 M8 FLANGE	0-91180-108-0	01	1	0612-		●	●

1 2 3 6 99 100 94 145 146 54 50 130

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.402 CLEANER ASM; AIR 4HK1-TCN ENG(RDQ)	8-97189-166-5	01	1	0612-	●	●
1	03.402 CLEANER ASM; AIR 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV)	8-97189-166-5	01	1	0612-			●
1	03.402 CLEANER ASM; AIR 4HK1-TCC ENG(RDV)	8-97189-166-5	01	1	0612-				●
1	03.402 CLEANER ASM; AIR 4JJ1 ENG(LFB)	8-98050-415-2	01	1	0612-		●	●
2	03.403 NUT; WING,ELEMENT 4HK1-TCN ENG(RDQ)	8-94447-989-0	01	1	0612-	●	●
2	03.403 NUT; WING,ELEMENT 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV)	8-94447-989-0	01	1	0612-			●
2	03.403 NUT; WING,ELEMENT 4HK1-TCC ENG(RDV)	8-94447-989-0	01	1	0612-				●
3	03.403 WASHER; SEAL,WING NUT 4HK1-TCN ENG(RDQ)	8-94447-990-0	01	1	0612-	●	●
3	03.403 WASHER; SEAL,WING NUT 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV)	8-94447-990-0	01	1	0612-			●
3	03.403 WASHER; SEAL,WING NUT 4HK1-TCC ENG(RDV)	8-94447-990-0	01	1	0612-				●
6	03.410 FILTER; ACL 4HK1-TCN ENG(RDQ)	8-94430-250-0	01	1	0612-0708	●	●
6	03.410 FILTER; ACL 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV)	8-94430-250-0	01	1	0612-0708			●
6	03.410 FILTER; ACL 4HK1-TCC ENG(RDV)	8-94430-250-0	01	1	0612-0708				●
6	03.410 FILTER; ACL 4HK1-TCN ENG(RDQ)	8-98091-394-0	01	1	0709-	●	●
6	03.410 FILTER; ACL 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV)	8-98091-394-0	01	1	0709-			●
6	03.410 FILTER; ACL 4HK1-TCC ENG(RDV)	8-98091-394-0	01	1	0709-				●
6	03.410 FILTER; ACL 4JJ1 ENG(LFB)	8-97062-294-0	01	1	0612-		●	●
50	03.403 WASHER; PL,ACL 4HK1-TCN ENG(RDQ) 00.002 ID=10.5 OD=22	0-91614-610-0	04	1	0612-	●	●
50	03.403 WASHER; PL,ACL 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) 00.002 ID=10.5 OD=22	0-91614-610-0	04	1	0612-			●
50	03.403 WASHER; PL,ACL 4HK1-TCC ENG(RDV) 00.002 ID=10.5 OD=22	0-91614-610-0	04	1	0612-				●
54	03.405 BRACKET; ACL 4HK1-TCN ENG(RDQ) (A)	8-98046-708-0	01	1	0612-	●	●
54	03.405 BRACKET; ACL 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) (A)	8-98046-708-0	01	1	0612-			●
54	03.405 BRACKET; ACL 4HK1-TCC ENG(RDV) (A)	8-98046-708-0	01	1	0612-				●
54	03.405 BRACKET; ACL 4JJ1 ENG(LFB) (B)	8-98020-614-0	01	1	0612-		●	●
94	03.415 VALVE; VACUATOR 4HK1-TCN ENG(RDQ)	1-14219-075-0	01	1	0612-	●	●
94	03.415 VALVE; VACUATOR 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV)	1-14219-075-0	01	1	0612-			●
94	03.415 VALVE; VACUATOR 4HK1-TCC ENG(RDV)	1-14219-075-0	01	1	0612-				●
94	03.415 VALVE; VACUATOR 4JJ1 ENG(LFB)	8-97352-112-0	01	1	0612-0907		●	●
94	03.415 VALVE; VACUATOR 4JJ1 ENG(LFB)	8-97093-694-0	01	1	0908-		●	●
99	03.403 CAP; NIPPLE 4HK1-TCN ENG(RDQ)	8-94448-008-0	01	1	0612-	●	●
99	03.403 CAP; NIPPLE 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV)	8-94448-008-0	01	1	0612-			●
99	03.403 CAP; NIPPLE 4HK1-TCC ENG(RDV)	8-94448-008-0	01	1	0612-				●
100	03.417 ADAPTER; ELBOW 4HK1-TCN ENG(RDQ)	8-94430-259-0	01	1	0612-	●	●
100	03.417 ADAPTER; ELBOW 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV)	8-94430-259-0	01	1	0612-			●
100	03.417 ADAPTER; ELBOW 4HK1-TCC ENG(RDV)	8-94430-259-0	01	1	0612-				●
130	03.405 BOLT; BRKT TO ACL 4HK1-TCN ENG(RDQ) 02.343 M8X16 FLANGE	0-28050-816-0	04	1	0612-	●	●
130	03.405 BOLT; BRKT TO ACL 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) 02.343 M8X16 FLANGE	0-28050-816-0	04	1	0612-			●
130	03.405 BOLT; BRKT TO ACL 4HK1-TCC ENG(RDV) 02.343 M8X16 FLANGE	0-28050-816-0	04	1	0612-				●
145	03.405 BOLT; BRKT TO FRAME 4HK1-TCN ENG(RDQ) 03.890 M10X30 FLANGE	0-28051-030-0	04	1	0612-	●
145	03.405 BOLT; BRKT TO FRAME 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) 03.890 M10X30 FLANGE	0-28051-030-0	04	1	0612-		●
145	03.405 BOLT; BRKT TO FRAME 03.890 M10X30 FLANGE	0-28051-030-0	04	1	0612-			●
145	03.405 BOLT; BRKT TO FRAME 4HK1-TCC ENG(RDV) 03.890 M10X30 FLANGE	0-28051-030-0	04	1	0612-				●
146	03.405 NUT; BRKT TO FRAME 4HK1-TCN ENG(RDQ) 03.162 M10 FLANGE	0-91180-110-0	04	1	0612-	●
146	03.405 NUT; BRKT TO FRAME 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) 03.162 M10 FLANGE	0-91180-110-0	04	1	0612-		●
146	03.405 NUT; BRKT TO FRAME 03.162 M10 FLANGE	0-91180-110-0	04	1	0612-			●
146	03.405 NUT; BRKT TO FRAME 4HK1-TCC ENG(RDV) 03.162 M10 FLANGE	0-91180-110-0	04	1	0612-				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
