1-11 — RADIATOR HOSE AND SUB TANK (#32496) — 89 parça

56 128 56 55 55 56 56 128

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
55	01.173 HOSE; WATER,RAD OUTLET 4HK1-TCN ENG(RDQ)	8-97330-530-0	01	1	0612-	●	●
55	01.173 HOSE; WATER,RAD OUTLET 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV)	8-97330-530-0	01	1	0612-			●
55	01.173 HOSE; WATER,RAD OUTLET 4HK1-TCC ENG(RDV)	8-97330-530-0	01	1	0612-				●
55	01.173 HOSE; WATER,RAD OUTLET 4JJ1 ENG(LFB)	8-97383-814-1	01	1	0612-		●	●
56	01.166 CLIP; WATER HOSE,RAD 4HK1-TCN ENG(RDQ) ID=48	8-98036-282-0	02	1	0612-0901	●
56	01.166 CLIP; WATER HOSE,RAD 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) ID=48	8-98036-282-0	02	1	0612-0901		●
56	01.166 CLIP; WATER HOSE,RAD ID=48	8-98036-282-0	02	1	0612-0901			●
56	01.166 CLIP; WATER HOSE,RAD 4HK1-TCC ENG(RDV) ID=48	8-98036-282-0	02	1	0612-0901				●
56	01.166 CLIP; WATER HOSE,RAD 4HK1-TCN ENG(RDQ) ID=48	8-98133-956-0	02	1	0902-	●
56	01.166 CLIP; WATER HOSE,RAD 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) ID=48	8-98133-956-0	02	1	0902-		●
56	01.166 CLIP; WATER HOSE,RAD ID=48	8-98133-956-0	02	1	0902-			●
56	01.166 CLIP; WATER HOSE,RAD 4HK1-TCC ENG(RDV) ID=48	8-98133-956-0	02	1	0902-				●
128	01.159 HOSE; WATER,RAD INL 4HK1-TCN ENG(RDQ)	8-97330-529-0	01	1	0612-	●	●
128	01.159 HOSE; WATER,RAD INL 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV)	8-97330-529-0	01	1	0612-			●
128	01.159 HOSE; WATER,RAD INL 4HK1-TCC ENG(RDV)	8-97330-529-0	01	1	0612-				●
128	01.159 HOSE; WATER,RAD INL 4JJ1 ENG(LFB)	8-97383-812-1	01	1	0612-		●	●

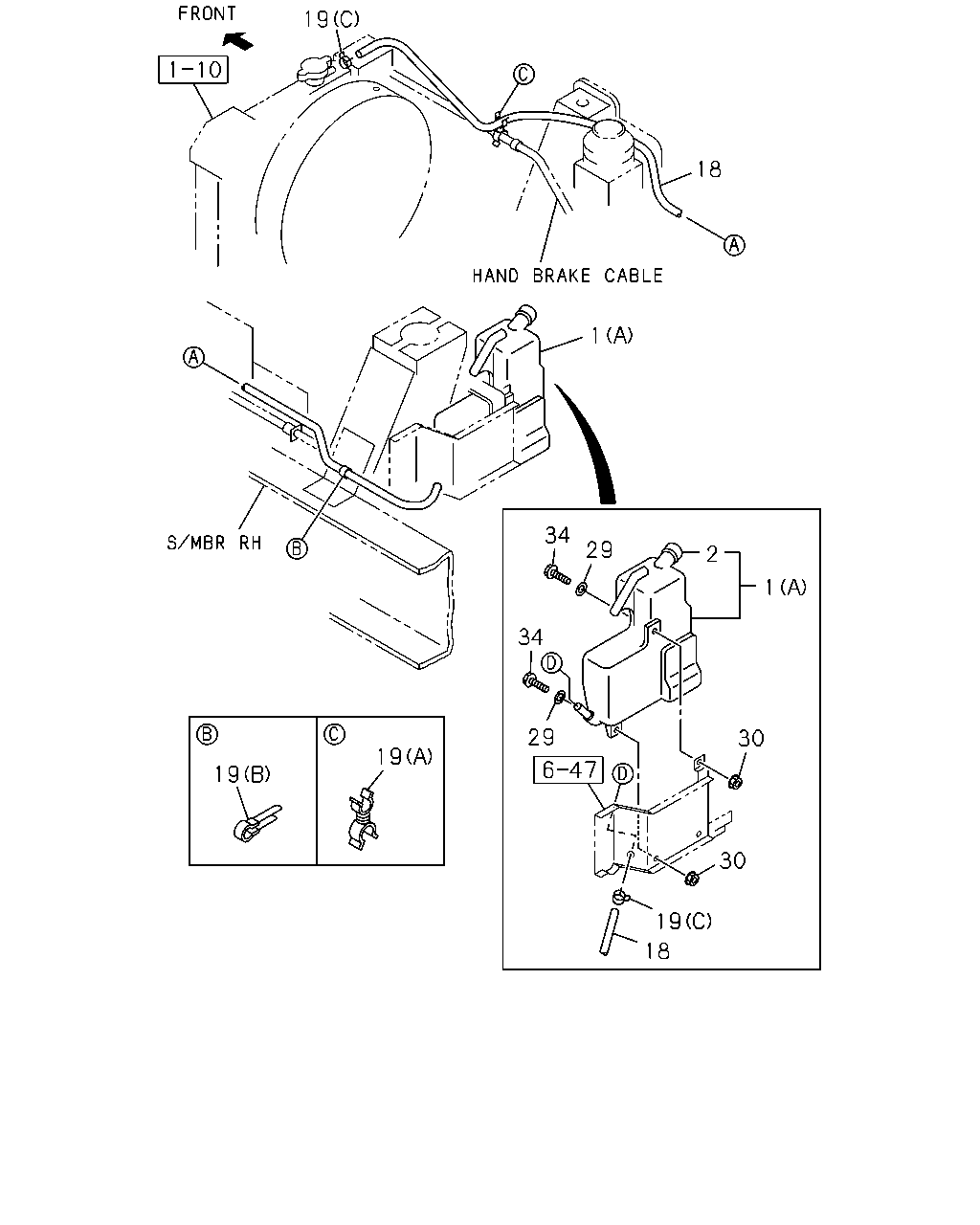

19 18 1 34 29 2 1 34 29 30 19 19 30 19 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	01.219 TANK; SURGE,RAD 4HK1-TCN ENG(RDQ) (A)	8-97210-844-0	01	1	0612-1010	●	●
1	01.219 TANK; SURGE,RAD 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) (A)	8-97210-844-0	01	1	0612-1010			●
1	01.219 TANK; SURGE,RAD 4HK1-TCC ENG(RDV) (A)	8-97210-844-0	01	1	0612-1010				●
1	01.219 TANK; SURGE,RAD 4HK1-TCN ENG(RDQ) (A)	8-98178-177-0	01	1	1011-	●	●
1	01.219 TANK; SURGE,RAD 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) (A)	8-98178-177-0	01	1	1011-			●
1	01.219 TANK; SURGE,RAD 4HK1-TCC ENG(RDV) (A)	8-98178-177-0	01	1	1011-				●
1	01.219 TANK; SURGE,RAD 4JJ1 ENG(LFB) (B)	8-97205-136-1	01	1	0612-		●	●
2	01.203 CAP; SURGE TANK 4HK1-TCN ENG(RDQ)	8-97217-796-0	01	1	0612-1010	●	●
2	01.203 CAP; SURGE TANK 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV)	8-97217-796-0	01	1	0612-1010			●
2	01.203 CAP; SURGE TANK 4HK1-TCC ENG(RDV)	8-97217-796-0	01	1	0612-1010				●
2	01.203 CAP; SURGE TANK 4HK1-TCN ENG(RDQ)	8-98178-074-0	01	1	1011-	●	●
2	01.203 CAP; SURGE TANK 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV)	8-98178-074-0	01	1	1011-			●
2	01.203 CAP; SURGE TANK 4HK1-TCC ENG(RDV)	8-98178-074-0	01	1	1011-				●
18	01.240 HOSE; RAD TO SURGE TANK 4HK1-TCN ENG(RDQ) L=1330	8-97358-573-0	01	1	0612-	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) L=1330	8-97358-573-0	01	1	0612-			●
18	01.240 HOSE; RAD TO SURGE TANK 4HK1-TCC ENG(RDV) L=1330	8-97358-573-0	01	1	0612-				●
18	01.240 HOSE; RAD TO SURGE TANK 4JJ1 ENG(LFB) L=2000	8-98018-437-2	01	1	0612-		●	●
19	01.240 CLIP; HOSE,SURGE TANK 4HK1-TCN ENG(RDQ) (B) ID=14 L=47	5-09700-319-0	02	1	0612-	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) (B) ID=14 L=47	5-09700-319-0	02	1	0612-			●
19	01.240 CLIP; HOSE,SURGE TANK 4HK1-TCC ENG(RDV) (B) ID=14 L=47	5-09700-319-0	02	1	0612-				●
19	01.240 CLIP; HOSE,SURGE TANK 4HK1-TCN ENG(RDQ) 02.559 (A) ID=10 & 11	8-94438-996-0	01	1	0612-	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) 02.559 (A) ID=10 & 11	8-94438-996-0	01	1	0612-			●
19	01.240 CLIP; HOSE,SURGE TANK 4HK1-TCC ENG(RDV) 02.559 (A) ID=10 & 11	8-94438-996-0	01	1	0612-				●
19	01.240 CLIP; HOSE,SURGE TANK 01.219 (C) ID=12	8-94238-610-0	02	1	0612-0911	●	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK (C) ID=12	8-98150-358-0	02	1	0912-	●	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JJ1 ENG(LFB) (B) ID=14 L=47	5-09700-319-0	01	1	0612-		●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JJ1 ENG(LFB) 02.559 (D) L=250	5-09707-030-1	02	1	0612-		●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JJ1 ENG(LFB) (E) ID=12	8-98029-256-0	04	1	0612-		●	●
29	01.203 WASHER; PL,RESERVE TANK 4HK1-TCN ENG(RDQ) 00.413 ID=6.4 OD=18	0-91610-706-0	03	1	0612-	●	●
29	01.203 WASHER; PL,RESERVE TANK 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) 00.413 ID=6.4 OD=18	0-91610-706-0	03	1	0612-			●
29	01.203 WASHER; PL,RESERVE TANK 4HK1-TCC ENG(RDV) 00.413 ID=6.4 OD=18	0-91610-706-0	03	1	0612-				●
30	01.203 NUT 4HK1-TCN ENG(RDQ) 01.062 M6 FLANGE	0-91180-106-0	03	1	0612-	●	●
30	01.203 NUT 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) 01.062 M6 FLANGE	0-91180-106-0	03	1	0612-			●
30	01.203 NUT 4HK1-TCC ENG(RDV) 01.062 M6 FLANGE	0-91180-106-0	03	1	0612-				●
30	01.203 NUT 4JJ1 ENG(LFB) 01.062 M8 FLANGE	0-91180-108-0	07	1	0612-		●	●
34	01.203 BOLT; RESERVE TANK 4HK1-TCN ENG(RDQ) 03.162 M6X20 FLANGE	0-28650-620-0	03	1	0612-	●	●
34	01.203 BOLT; RESERVE TANK 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) 03.162 M6X20 FLANGE	0-28650-620-0	03	1	0612-			●
34	01.203 BOLT; RESERVE TANK 4HK1-TCC ENG(RDV) 03.162 M6X20 FLANGE	0-28650-620-0	03	1	0612-				●
34	01.203 BOLT; RESERVE TANK 4JJ1 ENG(LFB) 06.216 M8X25 FLANGE	0-28650-825-0	04	1	0612-		●	●

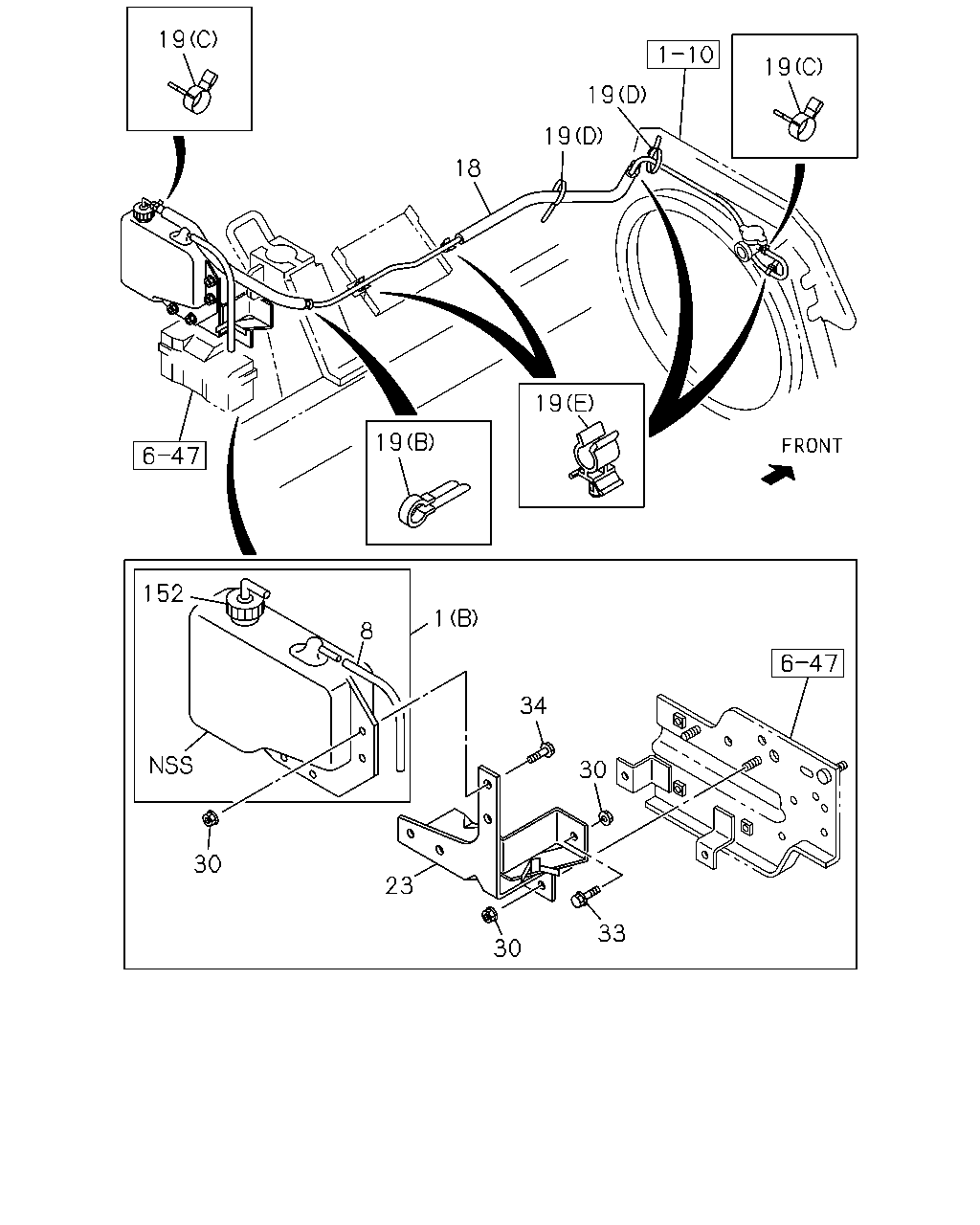

19 19 19 19 18 19 19 152 1 8 34 30 30 23 33 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	01.219 TANK; SURGE,RAD 4HK1-TCN ENG(RDQ) (A)	8-97210-844-0	01	1	0612-1010	●	●
1	01.219 TANK; SURGE,RAD 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) (A)	8-97210-844-0	01	1	0612-1010			●
1	01.219 TANK; SURGE,RAD 4HK1-TCC ENG(RDV) (A)	8-97210-844-0	01	1	0612-1010				●
1	01.219 TANK; SURGE,RAD 4HK1-TCN ENG(RDQ) (A)	8-98178-177-0	01	1	1011-	●	●
1	01.219 TANK; SURGE,RAD 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) (A)	8-98178-177-0	01	1	1011-			●
1	01.219 TANK; SURGE,RAD 4HK1-TCC ENG(RDV) (A)	8-98178-177-0	01	1	1011-				●
1	01.219 TANK; SURGE,RAD 4JJ1 ENG(LFB) (B)	8-97205-136-1	01	1	0612-		●	●
8	01.166 HOSE; VINYL 4JJ1 ENG(LFB) 01.240 L=500	1-09366-179-0	01	1	0612-		●	●
18	01.240 HOSE; RAD TO SURGE TANK 4HK1-TCN ENG(RDQ) L=1330	8-97358-573-0	01	1	0612-	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) L=1330	8-97358-573-0	01	1	0612-			●
18	01.240 HOSE; RAD TO SURGE TANK 4HK1-TCC ENG(RDV) L=1330	8-97358-573-0	01	1	0612-				●
18	01.240 HOSE; RAD TO SURGE TANK 4JJ1 ENG(LFB) L=2000	8-98018-437-2	01	1	0612-		●	●
19	01.240 CLIP; HOSE,SURGE TANK 4HK1-TCN ENG(RDQ) (B) ID=14 L=47	5-09700-319-0	02	1	0612-	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) (B) ID=14 L=47	5-09700-319-0	02	1	0612-			●
19	01.240 CLIP; HOSE,SURGE TANK 4HK1-TCC ENG(RDV) (B) ID=14 L=47	5-09700-319-0	02	1	0612-				●
19	01.240 CLIP; HOSE,SURGE TANK 4HK1-TCN ENG(RDQ) 02.559 (A) ID=10 & 11	8-94438-996-0	01	1	0612-	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) 02.559 (A) ID=10 & 11	8-94438-996-0	01	1	0612-			●
19	01.240 CLIP; HOSE,SURGE TANK 4HK1-TCC ENG(RDV) 02.559 (A) ID=10 & 11	8-94438-996-0	01	1	0612-				●
19	01.240 CLIP; HOSE,SURGE TANK 01.219 (C) ID=12	8-94238-610-0	02	1	0612-0911	●	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK (C) ID=12	8-98150-358-0	02	1	0912-	●	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JJ1 ENG(LFB) (B) ID=14 L=47	5-09700-319-0	01	1	0612-		●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JJ1 ENG(LFB) 02.559 (D) L=250	5-09707-030-1	02	1	0612-		●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JJ1 ENG(LFB) (E) ID=12	8-98029-256-0	04	1	0612-		●	●
23	01.219 BRACKET; RESERVE TANK 4JJ1 ENG(LFB)	8-97225-271-1	01	1	0612-		●	●
30	01.203 NUT 4HK1-TCN ENG(RDQ) 01.062 M6 FLANGE	0-91180-106-0	03	1	0612-	●	●
30	01.203 NUT 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) 01.062 M6 FLANGE	0-91180-106-0	03	1	0612-			●
30	01.203 NUT 4HK1-TCC ENG(RDV) 01.062 M6 FLANGE	0-91180-106-0	03	1	0612-				●
30	01.203 NUT 4JJ1 ENG(LFB) 01.062 M8 FLANGE	0-91180-108-0	07	1	0612-		●	●
33	01.277 BOLT; BRKT 4JJ1 ENG(LFB) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0612-		●	●
34	01.203 BOLT; RESERVE TANK 4HK1-TCN ENG(RDQ) 03.162 M6X20 FLANGE	0-28650-620-0	03	1	0612-	●	●
34	01.203 BOLT; RESERVE TANK 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) 03.162 M6X20 FLANGE	0-28650-620-0	03	1	0612-			●
34	01.203 BOLT; RESERVE TANK 4HK1-TCC ENG(RDV) 03.162 M6X20 FLANGE	0-28650-620-0	03	1	0612-				●
34	01.203 BOLT; RESERVE TANK 4JJ1 ENG(LFB) 06.216 M8X25 FLANGE	0-28650-825-0	04	1	0612-		●	●
152	01.203 CAP ASM; SURGE TANK 4JJ1 ENG(LFB)	8-97217-799-0	01	1	0612-		●	●
