Sayfa 1-10 - Isuzu EPC

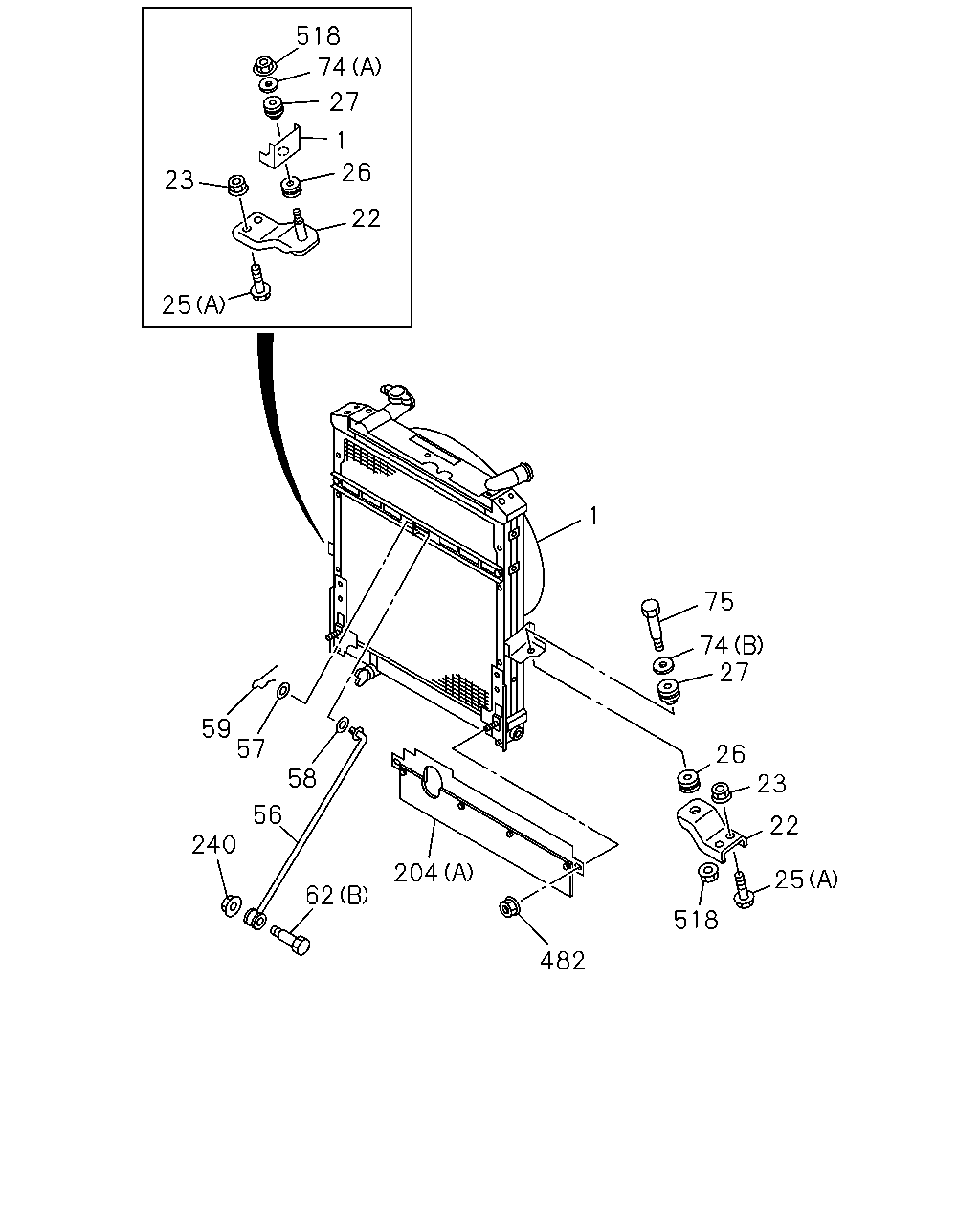

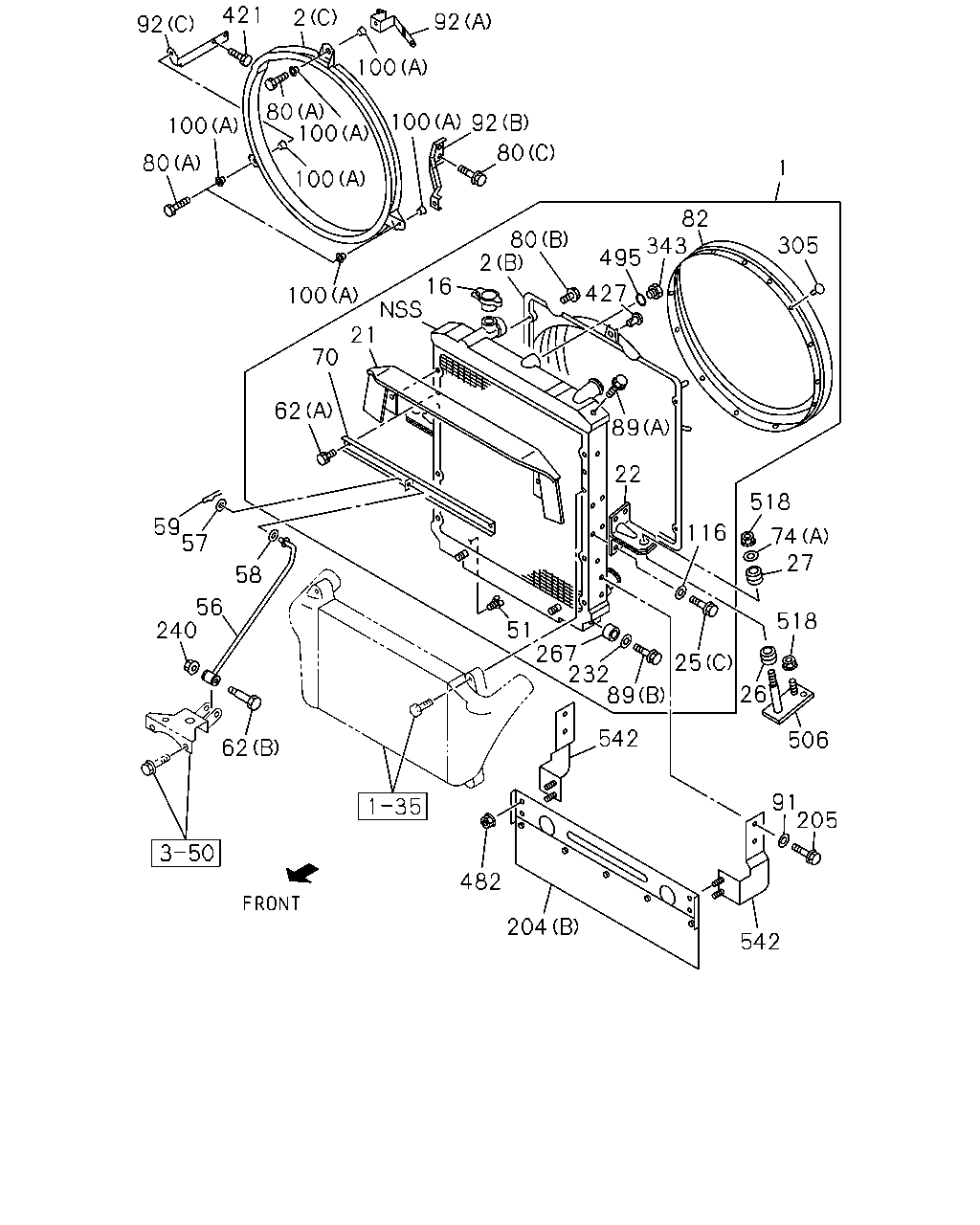

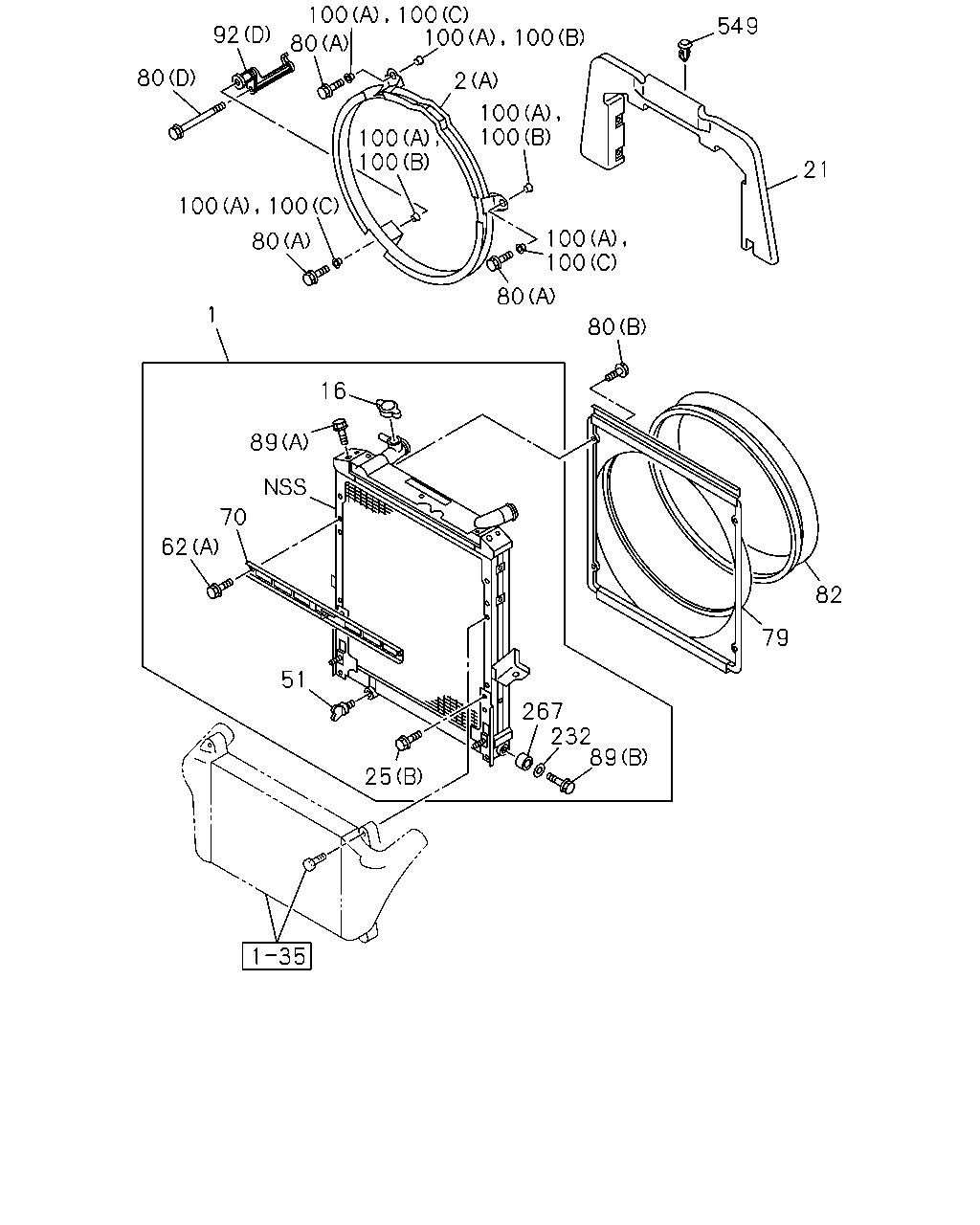

1-10 — RADIATOR (#32495) — 328 parça

421 2 92 92 100 80 100 100 92 100 80 80 1 100 82 343 495 80 2 305 16 21 427 100 70 62 89 22 518 59 57 116 74 27 58 56 240 518 51 267 232 89 25 26 542 506 62 91 205 482 204 542

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	01.219 RADIATOR ASM 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97388-823-0	01	1	0612-	●	●
1	01.219 RADIATOR ASM 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97388-823-0	01	1	0612-			●
1	01.219 RADIATOR ASM 4HK1-TCC ENG(RDV) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97388-823-0	01	1	0612-				●
1	01.219 RADIATOR ASM 4HK1-TCN ENG(RDQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97388-822-0	01	1	0612-	●	●
1	01.219 RADIATOR ASM 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97388-822-0	01	1	0612-			●
1	01.219 RADIATOR ASM 4HK1-TCC ENG(RDV) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97388-822-0	01	1	0612-				●
1	01.219 RADIATOR ASM 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98018-953-3	01	1	0612-		●	●
1	01.219 RADIATOR ASM 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98018-952-2	01	1	0612-		●	●
2	01.277 GUIDE; FAN 4HK1-TCN ENG(RDQ) (B)	8-97333-268-0	01	1	0612-	●	●
2	01.277 GUIDE; FAN 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) (B)	8-97333-268-0	01	1	0612-			●
2	01.277 GUIDE; FAN 4HK1-TCC ENG(RDV) (B)	8-97333-268-0	01	1	0612-				●
2	01.277 GUIDE; FAN 4HK1-TCN ENG(RDQ) (C)	8-97350-995-0	01	1	0612-	●	●
2	01.277 GUIDE; FAN 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) (C)	8-97350-995-0	01	1	0612-			●
2	01.277 GUIDE; FAN 4HK1-TCC ENG(RDV) (C)	8-97350-995-0	01	1	0612-				●
2	01.277 GUIDE; FAN 4JJ1 ENG(LFB) (A)	8-98054-659-0	01	1	0612-		●	●
16	01.203 CAP; RAD 4HK1-TCN ENG(RDQ)	8-97239-187-0	01	1	0612-	●
16	01.203 CAP; RAD 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ)	8-97239-187-0	01	1	0612-		●
16	01.203 CAP; RAD	8-97239-187-0	01	1	0612-			●
16	01.203 CAP; RAD 4HK1-TCC ENG(RDV)	8-97239-187-0	01	1	0612-				●
21	01.276 SEAL; RAD 4HK1-TCN ENG(RDQ) 01.277	8-97332-382-0	01	1	0612-	●	●
21	01.276 SEAL; RAD 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) 01.277	8-97332-382-0	01	1	0612-			●
21	01.276 SEAL; RAD 4HK1-TCC ENG(RDV) 01.277	8-97332-382-0	01	1	0612-				●
21	01.276 SEAL; RAD 4JJ1 ENG(LFB)	8-98000-817-1	01	1	0612-		●	●
22	01.270 BRACKET; RAD MTG 4HK1-TCN ENG(RDQ)	8-97333-280-0	01	1	0612-	●	●
22	01.270 BRACKET; RAD MTG 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV)	8-97333-280-0	01	1	0612-			●
22	01.270 BRACKET; RAD MTG 4HK1-TCC ENG(RDV)	8-97333-280-0	01	1	0612-				●
22	01.270 BRACKET; RAD MTG 4HK1-TCN ENG(RDQ)	8-97333-281-0	01	1	0612-	●	●
22	01.270 BRACKET; RAD MTG 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV)	8-97333-281-0	01	1	0612-			●
22	01.270 BRACKET; RAD MTG 4HK1-TCC ENG(RDV)	8-97333-281-0	01	1	0612-				●
22	01.270 BRACKET; RAD MTG 4JJ1 ENG(LFB)	8-97386-343-2	01	1	0612-		●	●
22	01.270 BRACKET; RAD MTG 4JJ1 ENG(LFB)	8-97386-342-1	01	1	0612-		●	●
25	01.271 BOLT; BRKT 4HK1-TCN ENG(RDQ) 08.900 (C) M8X12 FLANGE	0-28080-812-0	08	1	0612-	●	●
25	01.271 BOLT; BRKT 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) 08.900 (C) M8X12 FLANGE	0-28080-812-0	08	1	0612-			●
25	01.271 BOLT; BRKT 4HK1-TCC ENG(RDV) 08.900 (C) M8X12 FLANGE	0-28080-812-0	08	1	0612-				●
25	01.271 BOLT; BRKT 4JJ1 ENG(LFB) 03.162 (B) M6X12 FLANGE	0-28050-612-0	04	1	0612-		●	●
25	01.271 BOLT; BRKT 4JJ1 ENG(LFB) 00.029 (A) M10X30 FLANGE	0-28651-030-0	04	1	0612-		●	●
26	01.270 BUFFER; RAD,LWR	8-94249-347-0	02	1	0612-	●	●	●	●
27	01.270 BUFFER; RAD,UPR	8-94249-346-0	02	1	0612-	●	●	●	●
51	08.951 PLUG; DRAIN 4HK1-TCN ENG(RDQ) W/GASKET	8-97171-437-0	01	1	0612-	●
51	08.951 PLUG; DRAIN 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) W/GASKET	8-97171-437-0	01	1	0612-		●
51	08.951 PLUG; DRAIN W/GASKET	8-97171-437-0	01	1	0612-			●
51	08.951 PLUG; DRAIN 4HK1-TCC ENG(RDV) W/GASKET	8-97171-437-0	01	1	0612-				●
56	01.270 STAY; RAD 4HK1-TCN ENG(RDQ)	8-97032-802-2	01	1	0612-	●	●
56	01.270 STAY; RAD 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV)	8-97032-802-2	01	1	0612-			●
56	01.270 STAY; RAD 4HK1-TCC ENG(RDV)	8-97032-802-2	01	1	0612-				●
56	01.270 STAY; RAD 4JJ1 ENG(LFB)	8-97386-345-0	01	1	0612-		●	●
57	01.271 WASHER; PL,STAY 17.198 ID=10.5	0-91610-510-0	01	1	0612-	●	●	●	●
58	01.271 WASHER; CURVED,STAY ID=12	8-97011-676-0	01	1	0612-	●	●	●	●
59	01.271 PIN; SNAP,STAY L=32.6	8-97359-052-0	01	1	0612-	●	●	●	●
62	01.271 BOLT; STAY 4HK1-TCN ENG(RDQ) 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0612-	●	●
62	01.271 BOLT; STAY 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0612-			●
62	01.271 BOLT; STAY 4HK1-TCC ENG(RDV) 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0612-				●
62	01.271 BOLT; STAY (B) M8X45	8-94401-350-0	01	1	0612-	●	●	●	●
62	01.271 BOLT; STAY 4JJ1 ENG(LFB) 02.343 (A) M8X12 FLANGE	0-28050-812-0	02	1	0612-		●	●
70	01.271 STAY; RAD 4HK1-TCN ENG(RDQ)	8-98018-941-0	01	1	0612-	●	●
70	01.271 STAY; RAD 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV)	8-98018-941-0	01	1	0612-			●
70	01.271 STAY; RAD 4HK1-TCC ENG(RDV)	8-98018-941-0	01	1	0612-				●
70	01.271 STAY; RAD 4JJ1 ENG(LFB)	8-98018-940-0	01	1	0612-		●	●
74	01.270 WASHER; PL,CUSHION RUBBER 4HK1-TCN ENG(RDQ) (A) ID=8.5 OD=36	8-97359-049-1	02	1	0612-	●	●
74	01.270 WASHER; PL,CUSHION RUBBER 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) (A) ID=8.5 OD=36	8-97359-049-1	02	1	0612-			●
74	01.270 WASHER; PL,CUSHION RUBBER 4HK1-TCC ENG(RDV) (A) ID=8.5 OD=36	8-97359-049-1	02	1	0612-				●
74	01.270 WASHER; PL,CUSHION RUBBER 4JJ1 ENG(LFB) (B) ID=10.5 OD=36	8-97031-437-0	01	1	0612-		●	●
74	01.270 WASHER; PL,CUSHION RUBBER 4JJ1 ENG(LFB) (A) ID=8.5 OD=36	8-97359-049-1	01	1	0612-		●	●
80	01.277 BOLT; FAN GUIDE 4HK1-TCN ENG(RDQ) 03.403 (A) M8X30 FLANGE	0-28650-830-0	03	1	0612-	●
80	01.277 BOLT; FAN GUIDE 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) 03.403 (A) M8X30 FLANGE	0-28650-830-0	03	1	0612-		●
80	01.277 BOLT; FAN GUIDE 03.403 (A) M8X30 FLANGE	0-28650-830-0	03	1	0612-			●
80	01.277 BOLT; FAN GUIDE 4HK1-TCC ENG(RDV) 03.403 (A) M8X30 FLANGE	0-28650-830-0	03	1	0612-				●
80	01.277 BOLT; FAN GUIDE 4HK1-TCN ENG(RDQ) (B) M6X16	1-21559-481-0	04	1	0612-	●	●
80	01.277 BOLT; FAN GUIDE 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) (B) M6X16	1-21559-481-0	04	1	0612-			●
80	01.277 BOLT; FAN GUIDE 4HK1-TCC ENG(RDV) (B) M6X16	1-21559-481-0	04	1	0612-				●
80	01.277 BOLT; FAN GUIDE 4HK1-TCN ENG(RDQ) GENERATOR 24V80A(7YN) 03.417 (C) M10X20 FLANGE	0-28151-020-0	02	1	0612-	●	●
80	01.277 BOLT; FAN GUIDE 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) GENERATOR 24V80A(7YN) 03.417 (C) M10X20 FLANGE	0-28151-020-0	02	1	0612-			●
80	01.277 BOLT; FAN GUIDE 4HK1-TCC ENG(RDV) GENERATOR 24V80A(7YN) 03.417 (C) M10X20 FLANGE	0-28151-020-0	02	1	0612-				●
80	01.277 BOLT; FAN GUIDE 4JJ1 ENG(LFB) 01.428 (D) M8X130 FLANGE	0-28055-813-0	01	1	0612-		●	●
80	01.277 BOLT; FAN GUIDE 4JJ1 ENG(LFB) (B) M6X12	8-98039-672-0	02	1	0612-		●	●
82	01.277 COVER; FAN,RAD 4HK1-TCN ENG(RDQ)	8-97332-330-0	01	1	0612-	●	●
82	01.277 COVER; FAN,RAD 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV)	8-97332-330-0	01	1	0612-			●
82	01.277 COVER; FAN,RAD 4HK1-TCC ENG(RDV)	8-97332-330-0	01	1	0612-				●
82	01.277 COVER; FAN,RAD 4JJ1 ENG(LFB)	8-97387-085-1	01	1	0612-		●	●
89	01.277 BOLT 4HK1-TCN ENG(RDQ) 01.271 (B) M8X25	1-21469-153-0	02	1	0612-	●
89	01.277 BOLT 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) 01.271 (B) M8X25	1-21469-153-0	02	1	0612-		●
89	01.277 BOLT 01.271 (B) M8X25	1-21469-153-0	02	1	0612-			●
89	01.277 BOLT 4HK1-TCC ENG(RDV) 01.271 (B) M8X25	1-21469-153-0	02	1	0612-				●
89	01.277 BOLT 4HK1-TCN ENG(RDQ) 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0612-	●	●
89	01.277 BOLT 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0612-			●
89	01.277 BOLT 4HK1-TCC ENG(RDV) 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0612-				●
89	01.277 BOLT 4JJ1 ENG(LFB) 02.343 (A) M8X12 FLANGE	0-28050-812-0	02	1	0612-		●	●
91	01.277 WASHER; PL 4HK1-TCN ENG(RDQ) 00.413 ID=6.4 OD=18	0-91610-706-0	04	1	0612-	●	●
91	01.277 WASHER; PL 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) 00.413 ID=6.4 OD=18	0-91610-706-0	04	1	0612-			●
91	01.277 WASHER; PL 4HK1-TCC ENG(RDV) 00.413 ID=6.4 OD=18	0-91610-706-0	04	1	0612-				●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCN ENG(RDQ) (B)	8-97386-233-0	01	1	0612-	●	●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) (B)	8-97386-233-0	01	1	0612-			●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCC ENG(RDV) (B)	8-97386-233-0	01	1	0612-				●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCN ENG(RDQ) GENERATOR 24V80A(7YN) (C)	8-98032-526-0	01	1	0612-	●	●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) GENERATOR 24V80A(7YN) (C)	8-98032-526-0	01	1	0612-			●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCC ENG(RDV) GENERATOR 24V80A(7YN) (C)	8-98032-526-0	01	1	0612-				●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCN ENG(RDQ) EXC. GENERATOR 24V80A(7YN) (C)	8-97350-997-0	01	1	0612-	●	●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) EXC. GENERATOR 24V80A(7YN) (C)	8-97350-997-0	01	1	0612-			●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCC ENG(RDV) EXC. GENERATOR 24V80A(7YN) (C)	8-97350-997-0	01	1	0612-				●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) (A)	8-97382-827-2	01	1	0612-	●	●	●	●
92	01.277 BRACKET; FAN GUIDE 4JJ1 ENG(LFB) (D)	8-97381-550-1	01	1	0612-		●	●
100	01.277 RUBBER; MTG 4JJ1 ENG(LFB) (B)	8-94395-766-0	03	1	0701-		●	●
100	01.277 RUBBER; MTG 4JJ1 ENG(LFB) (C)	8-98058-502-1	03	1	0701-		●	●
100	01.277 RUBBER; MTG 4HK1-TCN ENG(RDQ) (A)	1-09337-027-0	06	1	0612-0612	●
100	01.277 RUBBER; MTG 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) (A)	1-09337-027-0	06	1	0612-0612		●
100	01.277 RUBBER; MTG (A)	1-09337-027-0	06	1	0612-0612			●
100	01.277 RUBBER; MTG 4HK1-TCC ENG(RDV) (A)	1-09337-027-0	06	1	0612-0612				●
100	01.277 RUBBER; MTG 4HK1-TCN ENG(RDQ) (A)	1-09337-027-0	06	1	0701-	●	●
100	01.277 RUBBER; MTG 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) (A)	1-09337-027-0	06	1	0701-			●
100	01.277 RUBBER; MTG 4HK1-TCC ENG(RDV) (A)	1-09337-027-0	06	1	0701-				●
116	01.270 WASHER; PL,BRKT 4HK1-TCN ENG(RDQ) 16.674 ID=8.4	9-09160-508-0	08	1	0612-	●	●
116	01.270 WASHER; PL,BRKT 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) 16.674 ID=8.4	9-09160-508-0	08	1	0612-			●
116	01.270 WASHER; PL,BRKT 4HK1-TCC ENG(RDV) 16.674 ID=8.4	9-09160-508-0	08	1	0612-				●
204	01.267 GUIDE ASM; AIR 4HK1-TCN ENG(RDQ) (B)	8-97332-962-1	01	1	0612-	●	●
204	01.267 GUIDE ASM; AIR 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) (B)	8-97332-962-1	01	1	0612-			●
204	01.267 GUIDE ASM; AIR 4HK1-TCC ENG(RDV) (B)	8-97332-962-1	01	1	0612-				●
204	01.267 GUIDE ASM; AIR 4JJ1 ENG(LFB) (A)	8-97383-928-1	01	1	0612-		●	●
205	01.267 BOLT; AIR GUIDE 4HK1-TCN ENG(RDQ) 03.671 M6X10 FLANGE	0-28050-610-0	04	1	0612-	●	●
205	01.267 BOLT; AIR GUIDE 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) 03.671 M6X10 FLANGE	0-28050-610-0	04	1	0612-			●
205	01.267 BOLT; AIR GUIDE 4HK1-TCC ENG(RDV) 03.671 M6X10 FLANGE	0-28050-610-0	04	1	0612-				●
232	01.540 COLLAR; DIST,CUSHION RUBBER 4HK1-TCN ENG(RDQ)	1-87410-723-0	02	1	0612-	●
232	01.540 COLLAR; DIST,CUSHION RUBBER 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ)	1-87410-723-0	02	1	0612-		●
232	01.540 COLLAR; DIST,CUSHION RUBBER	1-87410-723-0	02	1	0612-			●
232	01.540 COLLAR; DIST,CUSHION RUBBER 4HK1-TCC ENG(RDV)	1-87410-723-0	02	1	0612-				●
240	01.271 NUT; STAY M8 FLANGE	8-94178-701-0	01	1	0612-	●	●	●	●
267	01.277 RUBBER; CUSHION 4HK1-TCN ENG(RDQ)	1-21467-023-0	02	1	0612-	●
267	01.277 RUBBER; CUSHION 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ)	1-21467-023-0	02	1	0612-		●
267	01.277 RUBBER; CUSHION	1-21467-023-0	02	1	0612-			●
267	01.277 RUBBER; CUSHION 4HK1-TCC ENG(RDV)	1-21467-023-0	02	1	0612-				●
305	01.277 CLIP; FAN COVER TO FAN GUIDE 4HK1-TCN ENG(RDQ)	1-09470-009-0	12	1	0612-	●	●
305	01.277 CLIP; FAN COVER TO FAN GUIDE 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV)	1-09470-009-0	12	1	0612-			●
305	01.277 CLIP; FAN COVER TO FAN GUIDE 4HK1-TCC ENG(RDV)	1-09470-009-0	12	1	0612-				●
343	01.271 PLUG; WATER LEVEL 4HK1-TCN ENG(RDQ) M18X12	1-09604-081-0	01	1	0612-	●	●
343	01.271 PLUG; WATER LEVEL 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) M18X12	1-09604-081-0	01	1	0612-			●
343	01.271 PLUG; WATER LEVEL 4HK1-TCC ENG(RDV) M18X12	1-09604-081-0	01	1	0612-				●
421	01.277 BOLT; BRKT FAN GUIDE 4HK1-TCN ENG(RDQ) 03.417 M10X20 FLANGE	0-28151-020-0	02	1	0612-	●	●
421	01.277 BOLT; BRKT FAN GUIDE 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) 03.417 M10X20 FLANGE	0-28151-020-0	02	1	0612-			●
421	01.277 BOLT; BRKT FAN GUIDE 4HK1-TCC ENG(RDV) 03.417 M10X20 FLANGE	0-28151-020-0	02	1	0612-				●
427	01.240 CLIP; FAN GUIDE 4HK1-TCN ENG(RDQ) 01.277	1-09470-009-0	01	1	0612-	●	●
427	01.240 CLIP; FAN GUIDE 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) 01.277	1-09470-009-0	01	1	0612-			●
427	01.240 CLIP; FAN GUIDE 4HK1-TCC ENG(RDV) 01.277	1-09470-009-0	01	1	0612-				●
482	01.277 NUT; AIR GUIDE 4HK1-TCN ENG(RDQ) 01.062 M6 FLANGE	0-91180-106-0	04	1	0612-	●	●
482	01.277 NUT; AIR GUIDE 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) 01.062 M6 FLANGE	0-91180-106-0	04	1	0612-			●
482	01.277 NUT; AIR GUIDE 4HK1-TCC ENG(RDV) 01.062 M6 FLANGE	0-91180-106-0	04	1	0612-				●
482	01.277 NUT; AIR GUIDE 4JJ1 ENG(LFB) 01.062 M8 FLANGE	0-91180-108-0	02	1	0612-		●	●
495	01.274 GASKET; SENSOR 4HK1-TCN ENG(RDQ) 01.097	1-09623-185-0	01	1	0612-	●	●
495	01.274 GASKET; SENSOR 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) 01.097	1-09623-185-0	01	1	0612-			●
495	01.274 GASKET; SENSOR 4HK1-TCC ENG(RDV) 01.097	1-09623-185-0	01	1	0612-				●
506	01.277 PLATE; RAD 4HK1-TCN ENG(RDQ)	8-97330-527-1	02	1	0612-	●	●
506	01.277 PLATE; RAD 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV)	8-97330-527-1	02	1	0612-			●
506	01.277 PLATE; RAD 4HK1-TCC ENG(RDV)	8-97330-527-1	02	1	0612-				●
518	01.270 NUT 01.062 M8 FLANGE	0-91180-108-0	02	1	0612-	●	●	●	●
518	01.270 NUT 4HK1-TCN ENG(RDQ) 01.062 M8 FLANGE	0-91180-108-0	02	1	0612-	●	●
518	01.270 NUT 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) 01.062 M8 FLANGE	0-91180-108-0	02	1	0612-			●
518	01.270 NUT 4HK1-TCC ENG(RDV) 01.062 M8 FLANGE	0-91180-108-0	02	1	0612-				●
542	01.277 BRACKET; AIR GUIDE 4HK1-TCN ENG(RDQ)	8-97332-963-0	01	1	0612-	●	●
542	01.277 BRACKET; AIR GUIDE 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV)	8-97332-963-0	01	1	0612-			●
542	01.277 BRACKET; AIR GUIDE 4HK1-TCC ENG(RDV)	8-97332-963-0	01	1	0612-				●
542	01.277 BRACKET; AIR GUIDE 4HK1-TCN ENG(RDQ)	8-97332-964-0	01	1	0612-	●	●
542	01.277 BRACKET; AIR GUIDE 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV)	8-97332-964-0	01	1	0612-			●
542	01.277 BRACKET; AIR GUIDE 4HK1-TCC ENG(RDV)	8-97332-964-0	01	1	0612-				●

131 132 132 131

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
131	01.166 CLIP; ENG SIDE TOP 4HK1-TCN ENG(RDQ) ID=52	8-98036-283-0	01	1	0612-0901	●	●
131	01.166 CLIP; ENG SIDE TOP 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) ID=52	8-98036-283-0	01	1	0612-0901			●
131	01.166 CLIP; ENG SIDE TOP 4HK1-TCC ENG(RDV) ID=52	8-98036-283-0	01	1	0612-0901				●
131	01.166 CLIP; ENG SIDE TOP 4HK1-TCN ENG(RDQ) 00.413 ID=52	1-09704-057-0	01	1	0902-	●	●
131	01.166 CLIP; ENG SIDE TOP 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) 00.413 ID=52	1-09704-057-0	01	1	0902-			●
131	01.166 CLIP; ENG SIDE TOP 4HK1-TCC ENG(RDV) 00.413 ID=52	1-09704-057-0	01	1	0902-				●
131	01.166 CLIP; ENG SIDE TOP 4JJ1 ENG(LFB) ID=48	8-98036-282-0	01	1	0612-0901		●	●
131	01.166 CLIP; ENG SIDE TOP 4JJ1 ENG(LFB) ID=48	8-98133-956-0	01	1	0902-		●	●
132	01.166 CLIP; HOSE,ENG SIDE BOTTOM 4HK1-TCN ENG(RDQ) ID=62	8-98036-284-0	01	1	0612-0901	●	●
132	01.166 CLIP; HOSE,ENG SIDE BOTTOM 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) ID=62	8-98036-284-0	01	1	0612-0901			●
132	01.166 CLIP; HOSE,ENG SIDE BOTTOM 4HK1-TCC ENG(RDV) ID=62	8-98036-284-0	01	1	0612-0901				●
132	01.166 CLIP; HOSE,ENG SIDE BOTTOM 4HK1-TCN ENG(RDQ) ID=62	8-98133-957-0	01	1	0902-	●	●
132	01.166 CLIP; HOSE,ENG SIDE BOTTOM 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) ID=62	8-98133-957-0	01	1	0902-			●
132	01.166 CLIP; HOSE,ENG SIDE BOTTOM 4HK1-TCC ENG(RDV) ID=62	8-98133-957-0	01	1	0902-				●
132	01.166 CLIP; HOSE,ENG SIDE BOTTOM 4JJ1 ENG(LFB) ID=48	8-98036-282-0	01	1	0612-0901		●	●
132	01.166 CLIP; HOSE,ENG SIDE BOTTOM 4JJ1 ENG(LFB) ID=48	8-98133-956-0	01	1	0902-		●	●

100 100 92 80 100 100 549 2 80 100 21 100 100 100 100 100 80 100 100 80 80 1 16 89 70 62 51 25 267 232 89 79 82

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	01.219 RADIATOR ASM 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97388-823-0	01	1	0612-	●	●
1	01.219 RADIATOR ASM 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97388-823-0	01	1	0612-			●
1	01.219 RADIATOR ASM 4HK1-TCC ENG(RDV) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97388-823-0	01	1	0612-				●
1	01.219 RADIATOR ASM 4HK1-TCN ENG(RDQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97388-822-0	01	1	0612-	●	●
1	01.219 RADIATOR ASM 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97388-822-0	01	1	0612-			●
1	01.219 RADIATOR ASM 4HK1-TCC ENG(RDV) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97388-822-0	01	1	0612-				●
1	01.219 RADIATOR ASM 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98018-953-3	01	1	0612-		●	●
1	01.219 RADIATOR ASM 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98018-952-2	01	1	0612-		●	●
2	01.277 GUIDE; FAN 4HK1-TCN ENG(RDQ) (B)	8-97333-268-0	01	1	0612-	●	●
2	01.277 GUIDE; FAN 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) (B)	8-97333-268-0	01	1	0612-			●
2	01.277 GUIDE; FAN 4HK1-TCC ENG(RDV) (B)	8-97333-268-0	01	1	0612-				●
2	01.277 GUIDE; FAN 4HK1-TCN ENG(RDQ) (C)	8-97350-995-0	01	1	0612-	●	●
2	01.277 GUIDE; FAN 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) (C)	8-97350-995-0	01	1	0612-			●
2	01.277 GUIDE; FAN 4HK1-TCC ENG(RDV) (C)	8-97350-995-0	01	1	0612-				●
2	01.277 GUIDE; FAN 4JJ1 ENG(LFB) (A)	8-98054-659-0	01	1	0612-		●	●
16	01.203 CAP; RAD 4HK1-TCN ENG(RDQ)	8-97239-187-0	01	1	0612-	●
16	01.203 CAP; RAD 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ)	8-97239-187-0	01	1	0612-		●
16	01.203 CAP; RAD	8-97239-187-0	01	1	0612-			●
16	01.203 CAP; RAD 4HK1-TCC ENG(RDV)	8-97239-187-0	01	1	0612-				●
21	01.276 SEAL; RAD 4HK1-TCN ENG(RDQ) 01.277	8-97332-382-0	01	1	0612-	●	●
21	01.276 SEAL; RAD 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) 01.277	8-97332-382-0	01	1	0612-			●
21	01.276 SEAL; RAD 4HK1-TCC ENG(RDV) 01.277	8-97332-382-0	01	1	0612-				●
21	01.276 SEAL; RAD 4JJ1 ENG(LFB)	8-98000-817-1	01	1	0612-		●	●
25	01.271 BOLT; BRKT 4HK1-TCN ENG(RDQ) 08.900 (C) M8X12 FLANGE	0-28080-812-0	08	1	0612-	●	●
25	01.271 BOLT; BRKT 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) 08.900 (C) M8X12 FLANGE	0-28080-812-0	08	1	0612-			●
25	01.271 BOLT; BRKT 4HK1-TCC ENG(RDV) 08.900 (C) M8X12 FLANGE	0-28080-812-0	08	1	0612-				●
25	01.271 BOLT; BRKT 4JJ1 ENG(LFB) 03.162 (B) M6X12 FLANGE	0-28050-612-0	04	1	0612-		●	●
25	01.271 BOLT; BRKT 4JJ1 ENG(LFB) 00.029 (A) M10X30 FLANGE	0-28651-030-0	04	1	0612-		●	●
51	08.951 PLUG; DRAIN 4HK1-TCN ENG(RDQ) W/GASKET	8-97171-437-0	01	1	0612-	●
51	08.951 PLUG; DRAIN 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) W/GASKET	8-97171-437-0	01	1	0612-		●
51	08.951 PLUG; DRAIN W/GASKET	8-97171-437-0	01	1	0612-			●
51	08.951 PLUG; DRAIN 4HK1-TCC ENG(RDV) W/GASKET	8-97171-437-0	01	1	0612-				●
62	01.271 BOLT; STAY 4HK1-TCN ENG(RDQ) 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0612-	●	●
62	01.271 BOLT; STAY 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0612-			●
62	01.271 BOLT; STAY 4HK1-TCC ENG(RDV) 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0612-				●
62	01.271 BOLT; STAY (B) M8X45	8-94401-350-0	01	1	0612-	●	●	●	●
62	01.271 BOLT; STAY 4JJ1 ENG(LFB) 02.343 (A) M8X12 FLANGE	0-28050-812-0	02	1	0612-		●	●
70	01.271 STAY; RAD 4HK1-TCN ENG(RDQ)	8-98018-941-0	01	1	0612-	●	●
70	01.271 STAY; RAD 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV)	8-98018-941-0	01	1	0612-			●
70	01.271 STAY; RAD 4HK1-TCC ENG(RDV)	8-98018-941-0	01	1	0612-				●
70	01.271 STAY; RAD 4JJ1 ENG(LFB)	8-98018-940-0	01	1	0612-		●	●
79	01.277 GUIDE; FAN,RAD 4JJ1 ENG(LFB)	8-97387-081-1	01	1	0612-		●	●
80	01.277 BOLT; FAN GUIDE 4HK1-TCN ENG(RDQ) 03.403 (A) M8X30 FLANGE	0-28650-830-0	03	1	0612-	●
80	01.277 BOLT; FAN GUIDE 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) 03.403 (A) M8X30 FLANGE	0-28650-830-0	03	1	0612-		●
80	01.277 BOLT; FAN GUIDE 03.403 (A) M8X30 FLANGE	0-28650-830-0	03	1	0612-			●
80	01.277 BOLT; FAN GUIDE 4HK1-TCC ENG(RDV) 03.403 (A) M8X30 FLANGE	0-28650-830-0	03	1	0612-				●
80	01.277 BOLT; FAN GUIDE 4HK1-TCN ENG(RDQ) (B) M6X16	1-21559-481-0	04	1	0612-	●	●
80	01.277 BOLT; FAN GUIDE 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) (B) M6X16	1-21559-481-0	04	1	0612-			●
80	01.277 BOLT; FAN GUIDE 4HK1-TCC ENG(RDV) (B) M6X16	1-21559-481-0	04	1	0612-				●
80	01.277 BOLT; FAN GUIDE 4HK1-TCN ENG(RDQ) GENERATOR 24V80A(7YN) 03.417 (C) M10X20 FLANGE	0-28151-020-0	02	1	0612-	●	●
80	01.277 BOLT; FAN GUIDE 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) GENERATOR 24V80A(7YN) 03.417 (C) M10X20 FLANGE	0-28151-020-0	02	1	0612-			●
80	01.277 BOLT; FAN GUIDE 4HK1-TCC ENG(RDV) GENERATOR 24V80A(7YN) 03.417 (C) M10X20 FLANGE	0-28151-020-0	02	1	0612-				●
80	01.277 BOLT; FAN GUIDE 4JJ1 ENG(LFB) 01.428 (D) M8X130 FLANGE	0-28055-813-0	01	1	0612-		●	●
80	01.277 BOLT; FAN GUIDE 4JJ1 ENG(LFB) (B) M6X12	8-98039-672-0	02	1	0612-		●	●
82	01.277 COVER; FAN,RAD 4HK1-TCN ENG(RDQ)	8-97332-330-0	01	1	0612-	●	●
82	01.277 COVER; FAN,RAD 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV)	8-97332-330-0	01	1	0612-			●
82	01.277 COVER; FAN,RAD 4HK1-TCC ENG(RDV)	8-97332-330-0	01	1	0612-				●
82	01.277 COVER; FAN,RAD 4JJ1 ENG(LFB)	8-97387-085-1	01	1	0612-		●	●
89	01.277 BOLT 4HK1-TCN ENG(RDQ) 01.271 (B) M8X25	1-21469-153-0	02	1	0612-	●
89	01.277 BOLT 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) 01.271 (B) M8X25	1-21469-153-0	02	1	0612-		●
89	01.277 BOLT 01.271 (B) M8X25	1-21469-153-0	02	1	0612-			●
89	01.277 BOLT 4HK1-TCC ENG(RDV) 01.271 (B) M8X25	1-21469-153-0	02	1	0612-				●
89	01.277 BOLT 4HK1-TCN ENG(RDQ) 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0612-	●	●
89	01.277 BOLT 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0612-			●
89	01.277 BOLT 4HK1-TCC ENG(RDV) 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0612-				●
89	01.277 BOLT 4JJ1 ENG(LFB) 02.343 (A) M8X12 FLANGE	0-28050-812-0	02	1	0612-		●	●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCN ENG(RDQ) (B)	8-97386-233-0	01	1	0612-	●	●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) (B)	8-97386-233-0	01	1	0612-			●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCC ENG(RDV) (B)	8-97386-233-0	01	1	0612-				●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCN ENG(RDQ) GENERATOR 24V80A(7YN) (C)	8-98032-526-0	01	1	0612-	●	●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) GENERATOR 24V80A(7YN) (C)	8-98032-526-0	01	1	0612-			●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCC ENG(RDV) GENERATOR 24V80A(7YN) (C)	8-98032-526-0	01	1	0612-				●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCN ENG(RDQ) EXC. GENERATOR 24V80A(7YN) (C)	8-97350-997-0	01	1	0612-	●	●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) EXC. GENERATOR 24V80A(7YN) (C)	8-97350-997-0	01	1	0612-			●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCC ENG(RDV) EXC. GENERATOR 24V80A(7YN) (C)	8-97350-997-0	01	1	0612-				●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) (A)	8-97382-827-2	01	1	0612-	●	●	●	●
92	01.277 BRACKET; FAN GUIDE 4JJ1 ENG(LFB) (D)	8-97381-550-1	01	1	0612-		●	●
100	01.277 RUBBER; MTG 4JJ1 ENG(LFB) (B)	8-94395-766-0	03	1	0701-		●	●
100	01.277 RUBBER; MTG 4JJ1 ENG(LFB) (C)	8-98058-502-1	03	1	0701-		●	●
100	01.277 RUBBER; MTG 4HK1-TCN ENG(RDQ) (A)	1-09337-027-0	06	1	0612-0612	●
100	01.277 RUBBER; MTG 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) (A)	1-09337-027-0	06	1	0612-0612		●
100	01.277 RUBBER; MTG (A)	1-09337-027-0	06	1	0612-0612			●
100	01.277 RUBBER; MTG 4HK1-TCC ENG(RDV) (A)	1-09337-027-0	06	1	0612-0612				●
100	01.277 RUBBER; MTG 4HK1-TCN ENG(RDQ) (A)	1-09337-027-0	06	1	0701-	●	●
100	01.277 RUBBER; MTG 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) (A)	1-09337-027-0	06	1	0701-			●
100	01.277 RUBBER; MTG 4HK1-TCC ENG(RDV) (A)	1-09337-027-0	06	1	0701-				●
232	01.540 COLLAR; DIST,CUSHION RUBBER 4HK1-TCN ENG(RDQ)	1-87410-723-0	02	1	0612-	●
232	01.540 COLLAR; DIST,CUSHION RUBBER 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ)	1-87410-723-0	02	1	0612-		●
232	01.540 COLLAR; DIST,CUSHION RUBBER	1-87410-723-0	02	1	0612-			●
232	01.540 COLLAR; DIST,CUSHION RUBBER 4HK1-TCC ENG(RDV)	1-87410-723-0	02	1	0612-				●
267	01.277 RUBBER; CUSHION 4HK1-TCN ENG(RDQ)	1-21467-023-0	02	1	0612-	●
267	01.277 RUBBER; CUSHION 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ)	1-21467-023-0	02	1	0612-		●
267	01.277 RUBBER; CUSHION	1-21467-023-0	02	1	0612-			●
267	01.277 RUBBER; CUSHION 4HK1-TCC ENG(RDV)	1-21467-023-0	02	1	0612-				●
549	03.438 CLIP; SEAL,RAD 4JJ1 ENG(LFB) 01.276	8-97228-568-0	07	1	0612-		●	●

518 74 27 1 26 23 22 25 1 75 74 27 59 57 26 58 23 56 22 240 204 25 62 518 482

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	01.219 RADIATOR ASM 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97388-823-0	01	1	0612-	●	●
1	01.219 RADIATOR ASM 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97388-823-0	01	1	0612-			●
1	01.219 RADIATOR ASM 4HK1-TCC ENG(RDV) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97388-823-0	01	1	0612-				●
1	01.219 RADIATOR ASM 4HK1-TCN ENG(RDQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97388-822-0	01	1	0612-	●	●
1	01.219 RADIATOR ASM 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97388-822-0	01	1	0612-			●
1	01.219 RADIATOR ASM 4HK1-TCC ENG(RDV) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97388-822-0	01	1	0612-				●
1	01.219 RADIATOR ASM 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98018-953-3	01	1	0612-		●	●
1	01.219 RADIATOR ASM 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98018-952-2	01	1	0612-		●	●
22	01.270 BRACKET; RAD MTG 4HK1-TCN ENG(RDQ)	8-97333-280-0	01	1	0612-	●	●
22	01.270 BRACKET; RAD MTG 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV)	8-97333-280-0	01	1	0612-			●
22	01.270 BRACKET; RAD MTG 4HK1-TCC ENG(RDV)	8-97333-280-0	01	1	0612-				●
22	01.270 BRACKET; RAD MTG 4HK1-TCN ENG(RDQ)	8-97333-281-0	01	1	0612-	●	●
22	01.270 BRACKET; RAD MTG 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV)	8-97333-281-0	01	1	0612-			●
22	01.270 BRACKET; RAD MTG 4HK1-TCC ENG(RDV)	8-97333-281-0	01	1	0612-				●
22	01.270 BRACKET; RAD MTG 4JJ1 ENG(LFB)	8-97386-343-2	01	1	0612-		●	●
22	01.270 BRACKET; RAD MTG 4JJ1 ENG(LFB)	8-97386-342-1	01	1	0612-		●	●
23	01.271 NUT; RAD MTG 4JJ1 ENG(LFB) 04.085 M10 FLANGE	0-91180-210-0	04	1	0612-0909		●	●
23	01.271 NUT; RAD MTG 4JJ1 ENG(LFB) 03.162 M10 FLANGE	0-91180-110-0	04	1	0910-		●	●
25	01.271 BOLT; BRKT 4HK1-TCN ENG(RDQ) 08.900 (C) M8X12 FLANGE	0-28080-812-0	08	1	0612-	●	●
25	01.271 BOLT; BRKT 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) 08.900 (C) M8X12 FLANGE	0-28080-812-0	08	1	0612-			●
25	01.271 BOLT; BRKT 4HK1-TCC ENG(RDV) 08.900 (C) M8X12 FLANGE	0-28080-812-0	08	1	0612-				●
25	01.271 BOLT; BRKT 4JJ1 ENG(LFB) 03.162 (B) M6X12 FLANGE	0-28050-612-0	04	1	0612-		●	●
25	01.271 BOLT; BRKT 4JJ1 ENG(LFB) 00.029 (A) M10X30 FLANGE	0-28651-030-0	04	1	0612-		●	●
26	01.270 BUFFER; RAD,LWR	8-94249-347-0	02	1	0612-	●	●	●	●
27	01.270 BUFFER; RAD,UPR	8-94249-346-0	02	1	0612-	●	●	●	●
56	01.270 STAY; RAD 4HK1-TCN ENG(RDQ)	8-97032-802-2	01	1	0612-	●	●
56	01.270 STAY; RAD 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV)	8-97032-802-2	01	1	0612-			●
56	01.270 STAY; RAD 4HK1-TCC ENG(RDV)	8-97032-802-2	01	1	0612-				●
56	01.270 STAY; RAD 4JJ1 ENG(LFB)	8-97386-345-0	01	1	0612-		●	●
57	01.271 WASHER; PL,STAY 17.198 ID=10.5	0-91610-510-0	01	1	0612-	●	●	●	●
58	01.271 WASHER; CURVED,STAY ID=12	8-97011-676-0	01	1	0612-	●	●	●	●
59	01.271 PIN; SNAP,STAY L=32.6	8-97359-052-0	01	1	0612-	●	●	●	●
62	01.271 BOLT; STAY 4HK1-TCN ENG(RDQ) 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0612-	●	●
62	01.271 BOLT; STAY 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0612-			●
62	01.271 BOLT; STAY 4HK1-TCC ENG(RDV) 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0612-				●
62	01.271 BOLT; STAY (B) M8X45	8-94401-350-0	01	1	0612-	●	●	●	●
62	01.271 BOLT; STAY 4JJ1 ENG(LFB) 02.343 (A) M8X12 FLANGE	0-28050-812-0	02	1	0612-		●	●
74	01.270 WASHER; PL,CUSHION RUBBER 4HK1-TCN ENG(RDQ) (A) ID=8.5 OD=36	8-97359-049-1	02	1	0612-	●	●
74	01.270 WASHER; PL,CUSHION RUBBER 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) (A) ID=8.5 OD=36	8-97359-049-1	02	1	0612-			●
74	01.270 WASHER; PL,CUSHION RUBBER 4HK1-TCC ENG(RDV) (A) ID=8.5 OD=36	8-97359-049-1	02	1	0612-				●
74	01.270 WASHER; PL,CUSHION RUBBER 4JJ1 ENG(LFB) (B) ID=10.5 OD=36	8-97031-437-0	01	1	0612-		●	●
74	01.270 WASHER; PL,CUSHION RUBBER 4JJ1 ENG(LFB) (A) ID=8.5 OD=36	8-97359-049-1	01	1	0612-		●	●
75	01.271 BOLT; CUSHION RUBBER,RAD MTG 4JJ1 ENG(LFB) 01.274 M8X63	8-94249-446-0	01	1	0612-		●	●
204	01.267 GUIDE ASM; AIR 4HK1-TCN ENG(RDQ) (B)	8-97332-962-1	01	1	0612-	●	●
204	01.267 GUIDE ASM; AIR 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) (B)	8-97332-962-1	01	1	0612-			●
204	01.267 GUIDE ASM; AIR 4HK1-TCC ENG(RDV) (B)	8-97332-962-1	01	1	0612-				●
204	01.267 GUIDE ASM; AIR 4JJ1 ENG(LFB) (A)	8-97383-928-1	01	1	0612-		●	●
240	01.271 NUT; STAY M8 FLANGE	8-94178-701-0	01	1	0612-	●	●	●	●
482	01.277 NUT; AIR GUIDE 4HK1-TCN ENG(RDQ) 01.062 M6 FLANGE	0-91180-106-0	04	1	0612-	●	●
482	01.277 NUT; AIR GUIDE 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) 01.062 M6 FLANGE	0-91180-106-0	04	1	0612-			●
482	01.277 NUT; AIR GUIDE 4HK1-TCC ENG(RDV) 01.062 M6 FLANGE	0-91180-106-0	04	1	0612-				●
482	01.277 NUT; AIR GUIDE 4JJ1 ENG(LFB) 01.062 M8 FLANGE	0-91180-108-0	02	1	0612-		●	●
518	01.270 NUT 01.062 M8 FLANGE	0-91180-108-0	02	1	0612-	●	●	●	●
518	01.270 NUT 4HK1-TCN ENG(RDQ) 01.062 M8 FLANGE	0-91180-108-0	02	1	0612-	●	●
518	01.270 NUT 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) 01.062 M8 FLANGE	0-91180-108-0	02	1	0612-			●
518	01.270 NUT 4HK1-TCC ENG(RDV) 01.062 M8 FLANGE	0-91180-108-0	02	1	0612-				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
