1-01 — ACCELERATOR PEDAL AND CONTROL (#32494) — 77 parça

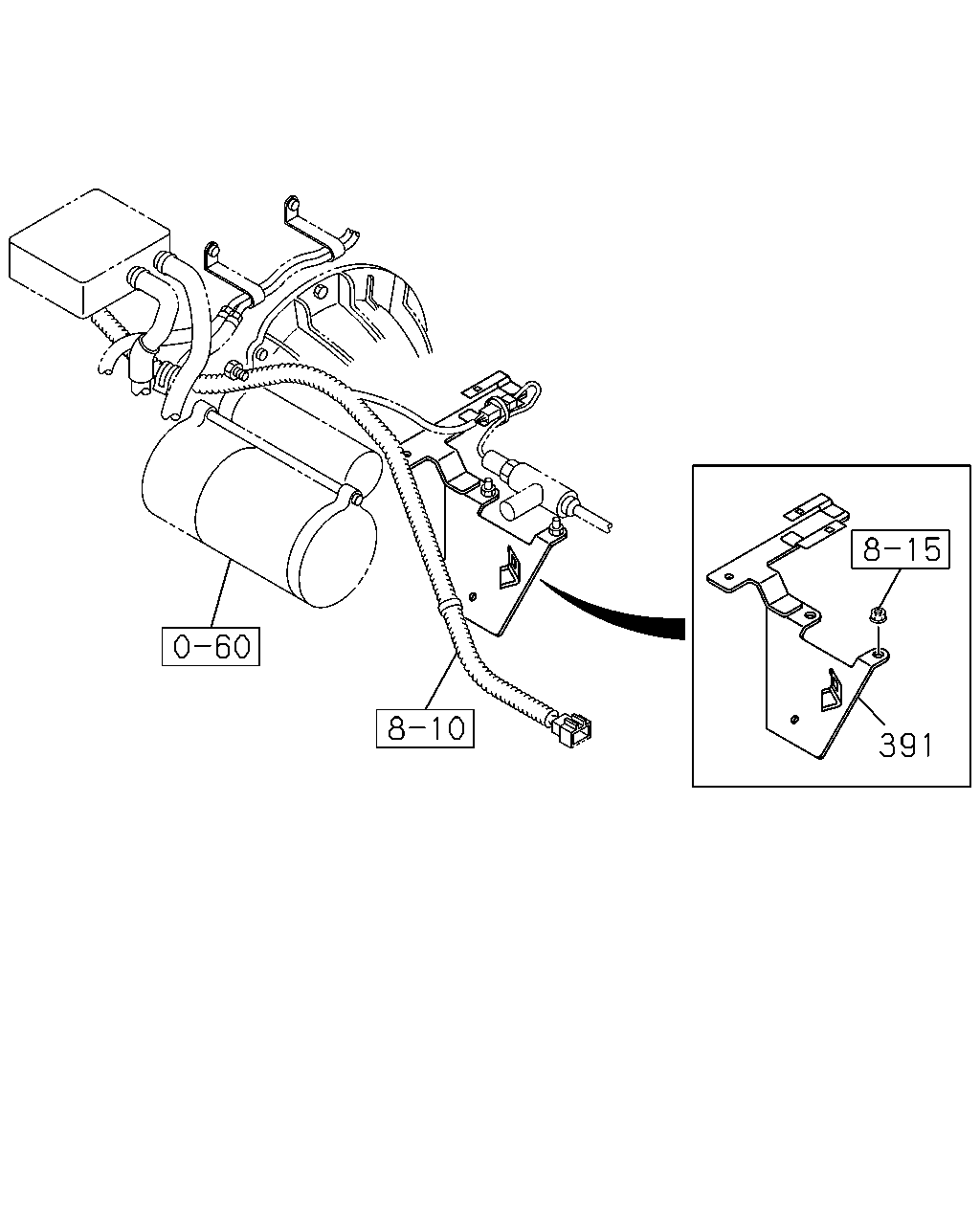

391

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
391	03.452 BRACKET; ENG CONT 4HK1-TCN ENG(RDQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97357-141-0	01	1	0612-	●
391	03.452 BRACKET; ENG CONT 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97357-141-0	01	1	0612-		●
391	03.452 BRACKET; ENG CONT EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97357-141-0	01	1	0612-			●
391	03.452 BRACKET; ENG CONT 4HK1-TCC ENG(RDV) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97357-141-0	01	1	0612-				●

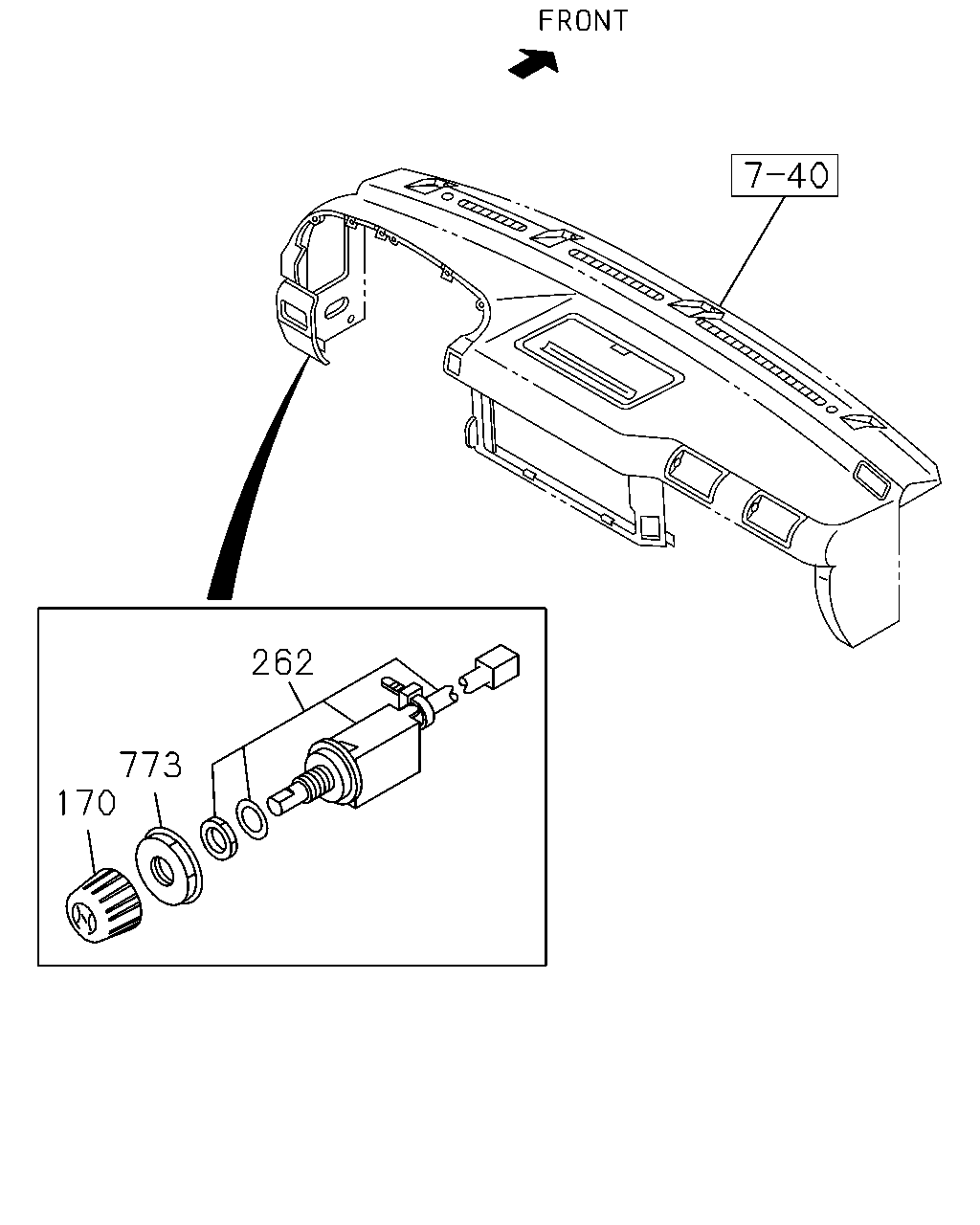

262 773 170

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
170	03.480 KNOB 4HK1-TCN ENG(RDQ)	8-97310-165-0	01	1	0612-	●
170	03.480 KNOB 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ)	8-97310-165-0	01	1	0612-		●
170	03.480 KNOB	8-97310-165-0	01	1	0612-			●
170	03.480 KNOB 4HK1-TCC ENG(RDV)	8-97310-165-0	01	1	0612-				●
262	03.452 SWITCH; ACCEL,IDLE 4HK1-TCN ENG(RDQ)	8-97215-119-1	01	1	0612-	●
262	03.452 SWITCH; ACCEL,IDLE 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ)	8-97215-119-1	01	1	0612-		●
262	03.452 SWITCH; ACCEL,IDLE	8-97215-119-1	01	1	0612-			●
262	03.452 SWITCH; ACCEL,IDLE 4HK1-TCC ENG(RDV)	8-97215-119-1	01	1	0612-				●
773	03.452 HOLDER; ACCEL PEDAL 4HK1-TCN ENG(RDQ)	8-97352-127-0	01	1	0612-	●
773	03.452 HOLDER; ACCEL PEDAL 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ)	8-97352-127-0	01	1	0612-		●
773	03.452 HOLDER; ACCEL PEDAL	8-97352-127-0	01	1	0612-			●
773	03.452 HOLDER; ACCEL PEDAL 4HK1-TCC ENG(RDV)	8-97352-127-0	01	1	0612-				●

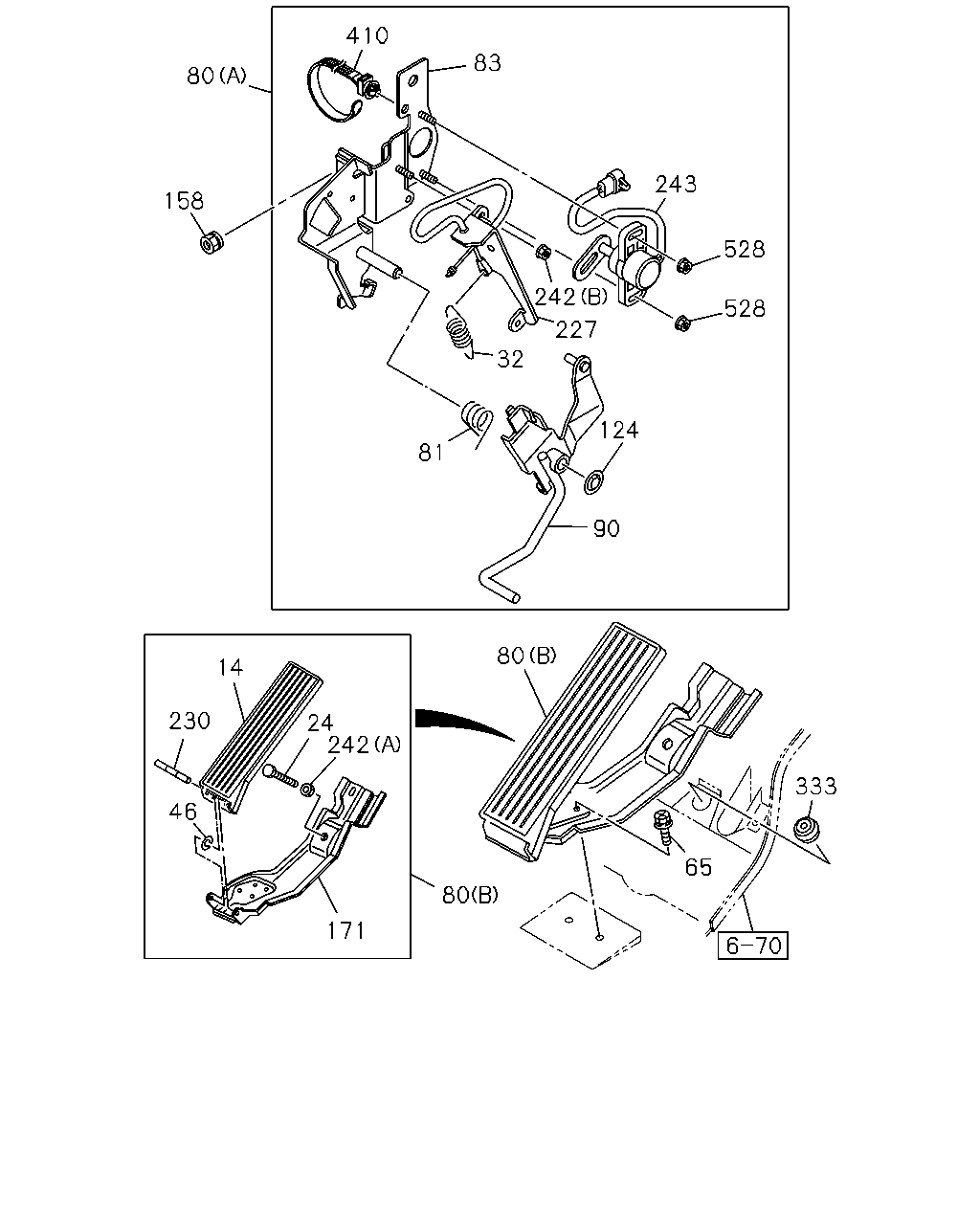

410 83 80 243 158 528 242 528 227 32 124 81 90 80 14 230 24 242 333 46 65 80 171

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
14	03.451 PAD; PEDAL,ACCEL	8-97859-101-0	01	1	0612-	●	●	●	●
24	03.483 BOLT; BRKT 03.459	0-20800-840-0	01	1	0612-	●	●	●	●
32	03.459 SPRING; RETURN,ACCEL PEDAL 4HK1-TCN ENG(RDQ)	8-97997-917-0	01	1	0612-	●
32	03.459 SPRING; RETURN,ACCEL PEDAL 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ)	8-97997-917-0	01	1	0612-		●
32	03.459 SPRING; RETURN,ACCEL PEDAL	8-97997-917-0	01	1	0612-			●
32	03.459 SPRING; RETURN,ACCEL PEDAL 4HK1-TCC ENG(RDV)	8-97997-917-0	01	1	0612-				●
46	03.485 RING; SNAP,ACCEL CONT PEDAL ID=4	0-91805-504-0	01	1	0612-	●	●	●	●
65	03.483 BOLT 16.550 M8X16 W/LK&PL WASHER	8-94310-730-0	03	1	0612-	●	●	●	●
80	03.452 LINK ASM; ENG CONT 4HK1-TCN ENG(RDQ) (A)	8-98032-148-1	01	1	0612-	●
80	03.452 LINK ASM; ENG CONT 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) (A)	8-98032-148-1	01	1	0612-		●
80	03.452 LINK ASM; ENG CONT (A)	8-98032-148-1	01	1	0612-			●
80	03.452 LINK ASM; ENG CONT 4HK1-TCC ENG(RDV) (A)	8-98032-148-1	01	1	0612-				●
80	03.452 LINK ASM; ENG CONT (B)	8-97859-100-0	01	1	0612-	●	●	●	●
81	03.459 SPRING; RETURN,ENG CONT LEVER 4HK1-TCN ENG(RDQ)	8-97853-205-1	01	1	0612-	●
81	03.459 SPRING; RETURN,ENG CONT LEVER 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ)	8-97853-205-1	01	1	0612-		●
81	03.459 SPRING; RETURN,ENG CONT LEVER	8-97853-205-1	01	1	0612-			●
81	03.459 SPRING; RETURN,ENG CONT LEVER 4HK1-TCC ENG(RDV)	8-97853-205-1	01	1	0612-				●
83	03.452 BRACKET; CONT LINK 4HK1-TCN ENG(RDQ)	8-98032-263-1	01	1	0612-	●
83	03.452 BRACKET; CONT LINK 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ)	8-98032-263-1	01	1	0612-		●
83	03.452 BRACKET; CONT LINK	8-98032-263-1	01	1	0612-			●
83	03.452 BRACKET; CONT LINK 4HK1-TCC ENG(RDV)	8-98032-263-1	01	1	0612-				●
90	03.454 LEVER; RELAY,ENG CONT 4HK1-TCN ENG(RDQ)	8-97994-590-3	01	1	0612-	●
90	03.454 LEVER; RELAY,ENG CONT 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ)	8-97994-590-3	01	1	0612-		●
90	03.454 LEVER; RELAY,ENG CONT	8-97994-590-3	01	1	0612-			●
90	03.454 LEVER; RELAY,ENG CONT 4HK1-TCC ENG(RDV)	8-97994-590-3	01	1	0612-				●
124	03.463 NUT; LEVER 4HK1-TCN ENG(RDQ) 09.011 ID=9.9 PUSH NUT	8-97012-098-0	01	1	0612-	●
124	03.463 NUT; LEVER 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) 09.011 ID=9.9 PUSH NUT	8-97012-098-0	01	1	0612-		●
124	03.463 NUT; LEVER 09.011 ID=9.9 PUSH NUT	8-97012-098-0	01	1	0612-			●
124	03.463 NUT; LEVER 4HK1-TCC ENG(RDV) 09.011 ID=9.9 PUSH NUT	8-97012-098-0	01	1	0612-				●
158	03.452 NUT; BRKT 08.857 M8 FLANGE	8-94279-060-0	02	1	0612-	●	●	●	●
171	03.483 BRACKET ASM; ACCEL PEDAL	8-97857-482-1	01	1	0612-	●	●	●	●
227	03.430 CABLE ASM; RETURN,ACCEL PEDAL 4HK1-TCN ENG(RDQ)	8-97892-203-5	01	1	0612-	●
227	03.430 CABLE ASM; RETURN,ACCEL PEDAL 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ)	8-97892-203-5	01	1	0612-		●
227	03.430 CABLE ASM; RETURN,ACCEL PEDAL	8-97892-203-5	01	1	0612-			●
227	03.430 CABLE ASM; RETURN,ACCEL PEDAL 4HK1-TCC ENG(RDV)	8-97892-203-5	01	1	0612-				●
230	03.452 PIN; JOINT,ACCEL PEDAL TO BRKT	8-97853-064-0	01	1	0612-	●	●	●	●
242	03.483 NUT; ACCEL PEDAL 4HK1-TCN ENG(RDQ) 10.147 (B) M6 W/DISHED WASHER	8-94423-325-0	01	1	0612-0805	●
242	03.483 NUT; ACCEL PEDAL 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) 10.147 (B) M6 W/DISHED WASHER	8-94423-325-0	01	1	0612-0805		●
242	03.483 NUT; ACCEL PEDAL 10.147 (B) M6 W/DISHED WASHER	8-94423-325-0	01	1	0612-0805			●
242	03.483 NUT; ACCEL PEDAL 4HK1-TCC ENG(RDV) 10.147 (B) M6 W/DISHED WASHER	8-94423-325-0	01	1	0612-0805				●
242	03.483 NUT; ACCEL PEDAL 4HK1-TCN ENG(RDQ) 04.115 (B) M6 W/DISHED WASHER	8-98029-921-0	01	1	0806-	●
242	03.483 NUT; ACCEL PEDAL 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) 04.115 (B) M6 W/DISHED WASHER	8-98029-921-0	01	1	0806-		●
242	03.483 NUT; ACCEL PEDAL 04.115 (B) M6 W/DISHED WASHER	8-98029-921-0	01	1	0806-			●
242	03.483 NUT; ACCEL PEDAL 4HK1-TCC ENG(RDV) 04.115 (B) M6 W/DISHED WASHER	8-98029-921-0	01	1	0806-				●
242	03.483 NUT; ACCEL PEDAL 02.334 (A) M8	0-91110-508-0	01	1	0612-	●	●	●	●
243	03.425 SENSOR; ACCEL 4HK1-TCN ENG(RDQ)	8-97384-127-1	01	1	0612-	●
243	03.425 SENSOR; ACCEL 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ)	8-97384-127-1	01	1	0612-		●
243	03.425 SENSOR; ACCEL	8-97384-127-1	01	1	0612-			●
243	03.425 SENSOR; ACCEL 4HK1-TCC ENG(RDV)	8-97384-127-1	01	1	0612-				●
333	03.671 GROMMET; HOLE,CABLE 4HK1-TCN ENG(RDQ) 16.545 OD=24.5 T=7.5	8-97224-683-0	01	1	0612-	●
333	03.671 GROMMET; HOLE,CABLE 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) 16.545 OD=24.5 T=7.5	8-97224-683-0	01	1	0612-		●
333	03.671 GROMMET; HOLE,CABLE 16.545 OD=24.5 T=7.5	8-97224-683-0	01	1	0612-			●
333	03.671 GROMMET; HOLE,CABLE 4HK1-TCC ENG(RDV) 16.545 OD=24.5 T=7.5	8-97224-683-0	01	1	0612-				●
410	03.483 CLIP; BAND 4HK1-TCN ENG(RDQ) 02.559 L=155	8-97173-307-0	01	1	0612-	●
410	03.483 CLIP; BAND 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) 02.559 L=155	8-97173-307-0	01	1	0612-		●
410	03.483 CLIP; BAND 02.559 L=155	8-97173-307-0	01	1	0612-			●
410	03.483 CLIP; BAND 4HK1-TCC ENG(RDV) 02.559 L=155	8-97173-307-0	01	1	0612-				●
528	03.463 NUT; ACCEL SENSOR 4HK1-TCN ENG(RDQ) 12.183 M5	8-94169-022-0	02	1	0612-	●
528	03.463 NUT; ACCEL SENSOR 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) 12.183 M5	8-94169-022-0	02	1	0612-		●
528	03.463 NUT; ACCEL SENSOR 12.183 M5	8-94169-022-0	02	1	0612-			●
528	03.463 NUT; ACCEL SENSOR 4HK1-TCC ENG(RDV) 12.183 M5	8-94169-022-0	02	1	0612-				●
