0-30 — WATER PUMP AND CORROSION RESISTOR (#3249) — 43 parça

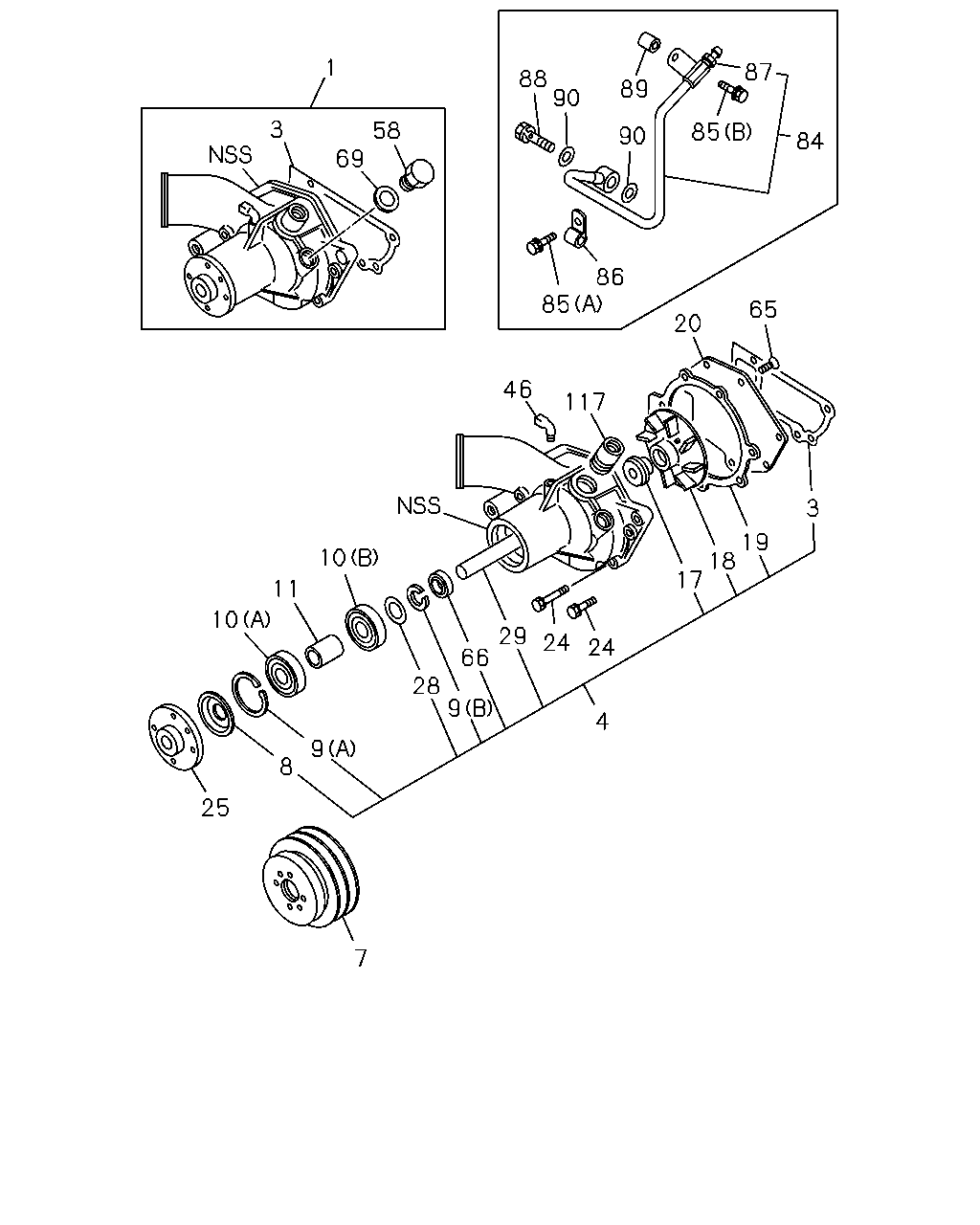

çizim 5263
1 87 88 90 89 3 58 69 85 90 84 86 85 65 20 46 117 3 19 18 17 10 11 10 29 66 24 24 28 9 4 9 8 25 7
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP ASM; WATER,W/GASKET 1-13610-838-0 01 1 9101- ● ●
3 GASKET; PUMP TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-13614-013-1 01 1 9101-9510 ● ●
3 GASKET; PUMP TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94370-661-0 01 1 9511- ● ●
4 REPAIR KIT; WATER PUMP 1-87810-937-0 01 1 9101-9510 ● ●
4 REPAIR KIT; WATER PUMP 1-87811-253-0 01 1 9511- ● ●
7 PULLEY; WATER PUMP
2-GROOVE 		5-13641-017-1 01 1 9101-9102 ● ●
7 PULLEY; WATER PUMP
2-GROOVE 		1-13641-165-0 01 1 9103- ● ●
8 THROWER; DUST,WATER PUMP 5-13639-001-0 01 1 9101- ● ●
9 RING; SNAP,WATER PUMP
(A) OD=56.2 		9-09180-152-0 01 1 9101- ● ●
9 RING; SNAP,WATER PUMP
(B) 		9-09952-143-0 01 1 9101- ● ●
10 BEARING; WATER PUMP
(A) NTN 		5-09800-059-0 01 1 9101- ● ●
10 BEARING; WATER PUMP
(B) NTN 		5-09800-060-0 01 1 9101- ● ●
10 BEARING; WATER PUMP
(B) NSK 		9-00090-059-0 01 1 9101- ● ●
10 BEARING; WATER PUMP
(A) NSK 		9-00090-113-0 01 1 9101- ● ●
11 SPACER; BRG,WATER PUMP 5-13634-002-0 01 1 9101- ● ●
17 SEAL UNIT; WATER PUMP 5-13620-006-1 01 1 9101- ● ●
18 IMPELLER; WATER PUMP 9-13621-802-0 01 1 9101- ● ●
19 GASKET; COVER TO BODY 9-13613-613-0 01 1 9101- ● ●
20 COVER; WATER PUMP 1-13612-023-0 01 1 9101- ● ●
24 BOLT; WATER PUMP
M10X35 W/LK WASHER 		0-50041-035-0 01 1 9101-9707 ● ●
24 BOLT; WATER PUMP
M10X50 FLANGE 		0-28081-050-0 02 1 9708- ● ●
24 BOLT; WATER PUMP
M10X50 W/LK WASHER 		0-50041-050-0 02 1 9101-9707 ● ●
24 BOLT; WATER PUMP
M10X35 FLANGE 		0-28681-035-0 01 1 9708- ● ●
24 BOLT; WATER PUMP
M10X75 W/LK WASHER 		5-09030-010-1 01 1 9101-9707 ● ●
24 BOLT; WATER PUMP
M10X70 FLANGE 		0-28081-070-0 01 1 9708- ● ●
25 CENTER; WATER PUMP 1-13642-003-0 01 1 9101- ● ●
28 WASHER; WATER PUMP 1-09503-070-0 01 1 9101- ● ●
29 SHAFT; WATER PUMP 5-13631-009-0 01 1 9101- ● ●
46 CONNECTOR; GREASE PIPE 1-09660-183-0 02 1 9101- ● ●
58 PLUG; HTR
M20 		9-99202-320-0 01 1 9101- ● ●
65 SCREW; COVER,WATER PUMP
M8X20 CK-HEAD 		9-03090-820-0 03 1 9101- ● ●
66 SEAL; SECONDARY 5-09625-055-0 01 1 9101- ● ●
69 GASKET; PLUG,HTR 9-09571-420-0 01 1 9101- ● ●
84 PIPE; OIL,GREASE 1-13312-158-0 01 1 9101- ● ●
85 BOLT; GREASE PIPE
(A) M8X20 W/LK&PL WASHER 		0-50140-820-0 01 1 9101- ● ●
85 BOLT; GREASE PIPE
(B) M8X35 W/LK&PL WASHER 		0-50140-835-0 01 1 9101- ● ●
86 CLIP; GREASE PIPE
ID=9 L=20 		9-09524-835-0 01 1 9101-9401 ● ●
86 CLIP; GREASE PIPE
ID=11 L=20 		9-09525-035-0 01 1 9402- ● ●
87 NIPPLE; GREASE
PT1/8 STRAIGHT 		9-09031-010-0 01 1 9101- ● ●
88 BOLT; EYE,OIL PIPE 1-09675-086-0 01 1 9101- ● ●
89 COLLAR; DIST,CLIP 8-11042-301-3 01 1 9101- ● ●
90 GASKET; EYE BOLT,OIL PIPE 1-09630-085-0 02 1 9101- ● ●
117 CONNECTOR; BYPASS 1-09660-119-2 01 1 9101- ● ●
