0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#32489) — 42 parça

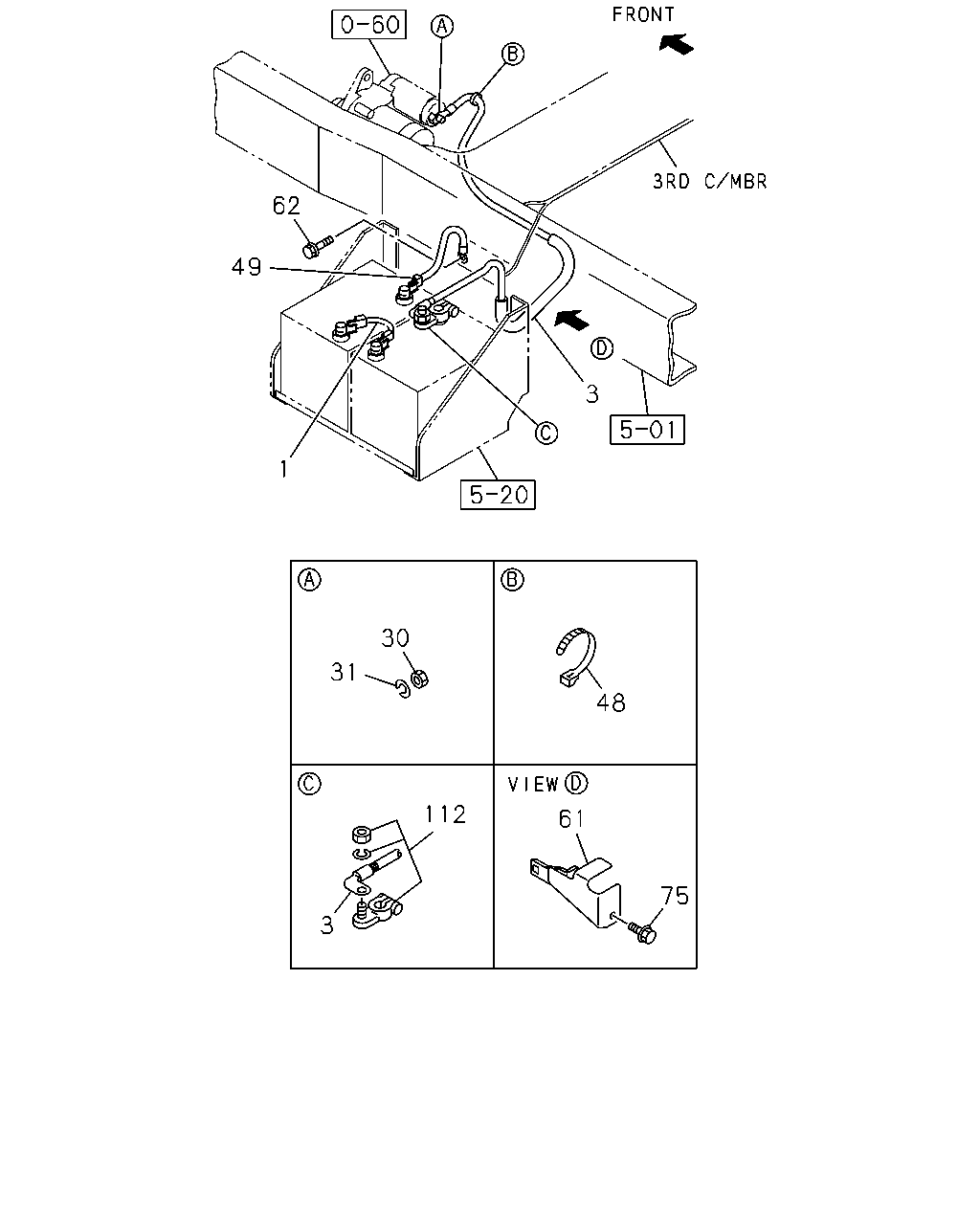

62 49 3 1 30 31 48 112 61 75 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	02.341 CABLE; BATTERY L=280	8-97230-719-2	01	1	0612-	●	●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98021-206-0	01	1	0612-	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97377-775-0	01	1	0612-	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE BATTERY 115E41R<6XD> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97377-778-2	01	1	0612-		●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE BATTERY 115E41R<6XD> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98019-816-0	01	1	0612-		●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE EXC. BATTERY 115E41R<6XD>,TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97377-772-1	01	1	0612-		●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. BATTERY 115E41R<6XD>	8-97377-779-1	01	1	0612-		●	●
30	02.334 NUT; CABLE,STARTER TO BATTERY M8	0-91110-508-0	01	1	0612-	●	●	●
31	02.334 WASHER; LK,CABLE,STARTER TO BATT 02.559 ID=8.2	0-91510-808-0	01	1	0612-	●
31	02.334 WASHER; LK,CABLE,STARTER TO BATT 04.439 ID=8.2	0-91510-508-0	01	1	0612-		●	●
48	02.343 CLIP; CABLE 03.162 L=140	5-09707-031-1	01	1	0612-	●	●	●
48	02.343 CLIP; CABLE TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 L=140	5-09707-031-1	01	1	0612-	●	●	●
49	02.342 CABLE; BATTERY TO S/MBR,RH EXC. BATTERY 115E41R<6XD>,FRAME STRAIGHTTYPE<7KJ> L=200	8-97231-243-1	01	1	0612-	●	●	●
49	02.342 CABLE; BATTERY TO S/MBR,RH FRAME STRAIGHT TYPE<7KJ> EXC. BATTERY 115E41R<6XD> L=300	8-97230-536-1	01	1	0612-	●	●	●
49	02.342 CABLE; BATTERY TO S/MBR,RH BATTERY 115E41R<6XD> L=770	8-97350-717-1	01	1	0612-		●	●
61	02.333 BRACKET; BATTERY CABLE EXC. BATTERY 115E41R<6XD>	8-97369-198-1	01	1	0612-	●	●	●
62	02.343 BOLT; EARTH CABLE FIX M8X25 W/LK&PL WASHER	8-97087-203-0	01	1	0612-1004	●	●	●
62	02.343 BOLT; EARTH CABLE FIX M8X24 W/PL WASHER	8-98141-256-1	01	1	1005-	●	●	●
75	02.333 BOLT; BRKT EXC. BATTERY 115E41R<6XD> 00.685 M6X25 FLANGE	0-28650-625-0	01	1	0612-	●	●	●
112	02.343 TERMINAL; BATTERY <+>	8-97356-925-1	01	1	0612-	●	●	●

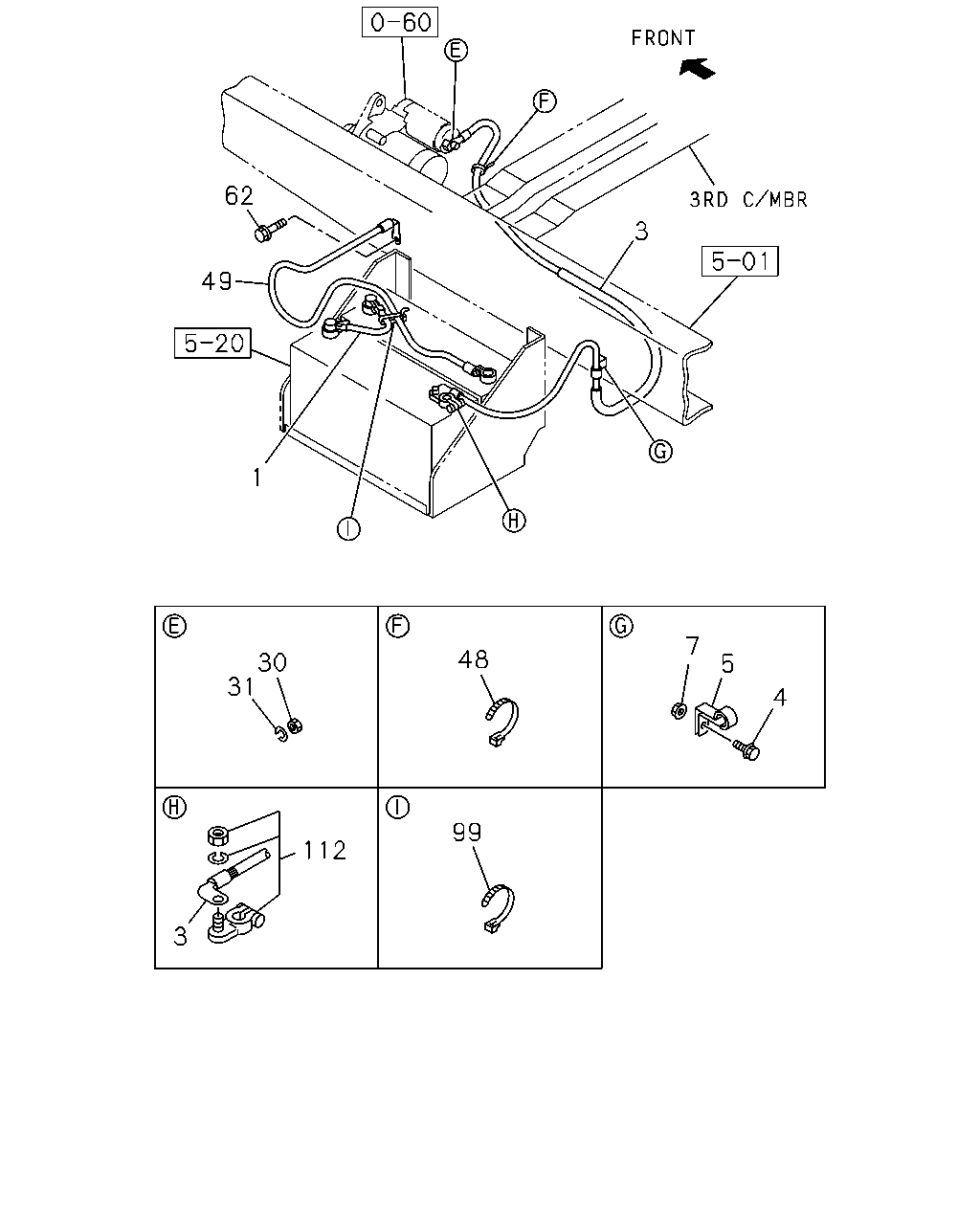

62 3 49 1 7 48 30 31 5 4 99 112 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	02.341 CABLE; BATTERY L=280	8-97230-719-2	01	1	0612-	●	●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98021-206-0	01	1	0612-	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97377-775-0	01	1	0612-	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE BATTERY 115E41R<6XD> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97377-778-2	01	1	0612-		●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE BATTERY 115E41R<6XD> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98019-816-0	01	1	0612-		●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE EXC. BATTERY 115E41R<6XD>,TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97377-772-1	01	1	0612-		●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. BATTERY 115E41R<6XD>	8-97377-779-1	01	1	0612-		●	●
4	02.559 BOLT; BATTERY CABLE BATTERY 115E41R<6XD> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0612-		●	●
5	02.559 CLIP; BATTERY CABLE TO BODY BATTERY 115E41R<6XD> ID=13 L=16	0-95235-222-0	01	1	0612-		●	●
7	02.343 NUT; (+) CABLE BATTERY 115E41R<6XD> 01.062 M8 FLANGE	0-91180-108-0	01	1	0612-		●	●
30	02.334 NUT; CABLE,STARTER TO BATTERY M8	0-91110-508-0	01	1	0612-	●	●	●
31	02.334 WASHER; LK,CABLE,STARTER TO BATT 02.559 ID=8.2	0-91510-808-0	01	1	0612-	●
31	02.334 WASHER; LK,CABLE,STARTER TO BATT 04.439 ID=8.2	0-91510-508-0	01	1	0612-		●	●
48	02.343 CLIP; CABLE 03.162 L=140	5-09707-031-1	01	1	0612-	●	●	●
48	02.343 CLIP; CABLE TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 L=140	5-09707-031-1	01	1	0612-	●	●	●
49	02.342 CABLE; BATTERY TO S/MBR,RH EXC. BATTERY 115E41R<6XD>,FRAME STRAIGHTTYPE<7KJ> L=200	8-97231-243-1	01	1	0612-	●	●	●
49	02.342 CABLE; BATTERY TO S/MBR,RH FRAME STRAIGHT TYPE<7KJ> EXC. BATTERY 115E41R<6XD> L=300	8-97230-536-1	01	1	0612-	●	●	●
49	02.342 CABLE; BATTERY TO S/MBR,RH BATTERY 115E41R<6XD> L=770	8-97350-717-1	01	1	0612-		●	●
62	02.343 BOLT; EARTH CABLE FIX M8X25 W/LK&PL WASHER	8-97087-203-0	01	1	0612-1004	●	●	●
62	02.343 BOLT; EARTH CABLE FIX M8X24 W/PL WASHER	8-98141-256-1	01	1	1005-	●	●	●
99	02.343 CLIP; BATTERY CABLE BATTERY 115E41R<6XD> 03.162 L=140	5-09707-031-1	01	1	0612-		●	●
112	02.343 TERMINAL; BATTERY <+>	8-97356-925-1	01	1	0612-	●	●	●
