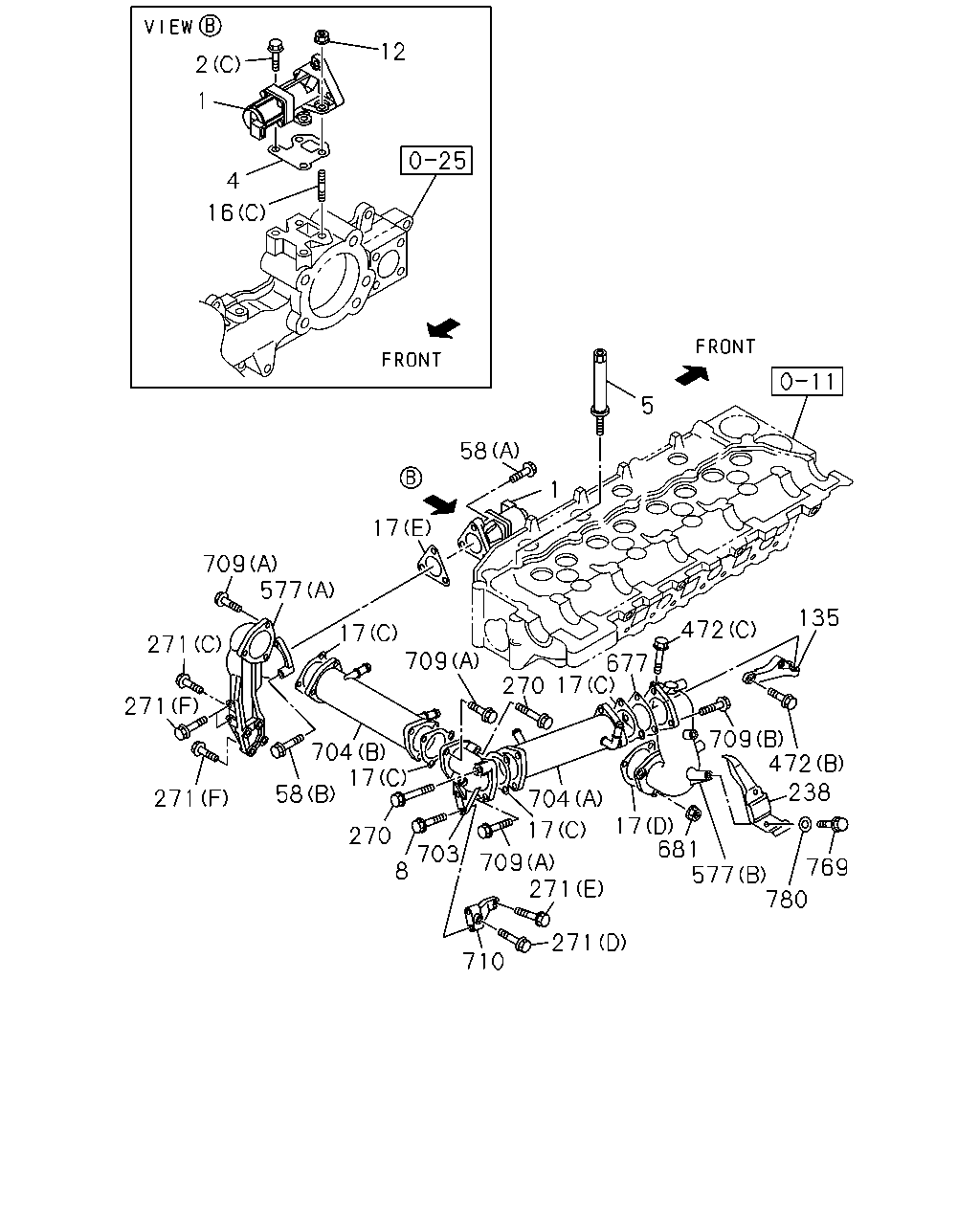

0-57 — EMISSION PIPING (#32487) — 106 parça

12 2 1 4 16 5 58 1 17 709 577 135 472 17 709 271 677 17 270 271 704 17 709 472 238 704 58 271 17 681 577 780 17 270 703 8 709 271 769 271 710

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.670 VALVE; EGR	8-97381-560-7	01	1	0612-	●
1	03.670 VALVE; EGR	8-98054-930-0	01	1	0612-0712		●	●
1	03.670 VALVE; EGR	8-98018-264-5	01	1	0801-		●	●
2	03.670 BOLT; EGR VLV 01.252 (A) M8X80 FLANGE	0-28050-880-0	01	1	0612-	●
2	03.670 BOLT; EGR VLV 03.417 (B) M8X23 FLANGE	8-97378-077-0	03	1	0612-	●
2	03.670 BOLT; EGR VLV 06.216 (C) M8X25 FLANGE	0-28650-825-0	01	1	0612-		●	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE).	8-97384-119-1	01	1	0612-0708	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE).	8-98094-528-2	01	1	0709-	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE).	8-97306-040-0	01	1	0612-		●	●
5	03.670 ADAPTER ASM 00.269	8-97377-804-0	01	1	0905-		●	●
8	03.670 BOLT; EGR ADAPTER 00.029 M10X40 FLANGE	0-28751-040-0	02	1	0612-		●	●
12	03.671 NUT; EGR VLV 01.540 M8 FLANGE	0-91180-208-0	04	1	0612-	●
12	03.671 NUT; EGR VLV 01.062 M8 FLANGE	0-91180-108-0	02	1	0612-		●	●
16	03.275 STUD; EGR VLV (B) M8X25 L=37	0-40210-825-0	02	1	0612-	●
16	03.275 STUD; EGR VLV (A) M8X50 L=62	0-40210-850-0	02	1	0612-	●
16	03.275 STUD; EGR VLV 02.510 (C) M8X20 L=32	0-41010-820-0	02	1	0612-		●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97357-684-3	01	1	0612-	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-98017-551-0	01	1	0612-	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-97388-919-0	04	1	0612-		●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (D)	8-97601-836-0	01	1	0612-		●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (E)	8-98036-507-0	01	1	0612-		●	●
58	03.417 BOLT; PIPE 09.173 (B) M8X45 FLANGE	0-28050-845-0	02	1	0612-		●	●
58	03.417 BOLT; PIPE 03.403 (A) M8X30 FLANGE	0-28650-830-0	01	1	0612-		●	●
135	03.680 BRACKET; EGR	8-98025-253-2	01	1	0612-		●	●
238	03.330 PROTECTOR; HEAT,EGR	8-97386-177-0	01	1	0612-		●	●
270	03.680 BOLT 00.683 M10X60 FLANGE	0-28151-060-0	03	1	0612-		●	●
271	03.675 BOLT; BRKT 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	0612-	●
271	03.675 BOLT; BRKT 09.181 (B) M10X45 FLANGE	0-28151-045-0	01	1	0612-1002	●
271	03.675 BOLT; BRKT 00.685 (C) M12X50 FLANGE	0-28151-250-0	03	1	0612-		●	●
271	03.675 BOLT; BRKT 00.685 (D) M12X60 FLANGE	0-28151-260-0	01	1	0612-		●	●
271	03.675 BOLT; BRKT 02.277 (E) M8X25 FLANGE	0-28660-825-0	01	1	0612-		●	●
271	03.675 BOLT; BRKT 09.181 (F) M12X30 FLANGE	0-28751-230-0	03	1	0612-0804		●	●
472	03.671 BOLT; BRKT 02.343 (A) M8X16 FLANGE	0-28050-816-0	02	1	0612-	●
472	03.671 BOLT; BRKT 02.277 (B) M8X25 FLANGE	0-28660-825-0	03	1	0612-		●	●
472	03.671 BOLT; BRKT 00.029 (C) M10X40 FLANGE	0-28751-040-0	01	1	0612-		●	●
577	03.675 PIPE; AIR,EGR (A)	8-97386-173-1	01	1	0612-0706		●	●
577	03.675 PIPE; AIR,EGR (A)	8-98055-858-2	01	1	0707-		●	●
577	03.675 PIPE; AIR,EGR (B)	8-98028-113-2	01	1	0612-		●	●
677	03.680 PLATE; DUCT	8-98015-035-0	01	1	0612-		●	●
681	03.671 NUT; EGR PIPE 01.540 M8 FLANGE	0-91180-208-0	02	1	0612-	●
681	03.671 NUT; EGR PIPE 03.613 M8 FLANGE	8-97061-401-1	03	1	0612-		●	●
703	03.675 DUCT; EGR	8-98028-114-0	01	1	0612-		●	●
704	03.337 COOLER ASM; EGR (A)	8-98028-110-1	01	1	0612-		●	●
704	03.337 COOLER ASM; EGR (B)	8-98028-112-1	01	1	0612-		●	●
709	03.670 BOLT; EGR COOLER 00.780 (A) M10X30 FLANGE	0-28751-030-0	06	1	0612-0808		●	●
709	03.670 BOLT; EGR COOLER 00.029 (A) M10X35 FLANGE	0-28751-035-0	06	1	0809-		●	●
709	03.670 BOLT; EGR COOLER 03.604 (B) M10X30 FLANGE	8-98032-158-0	03	1	0612-		●	●
710	03.337 BRACKET; EGR COOLER	8-98025-254-1	01	1	0612-		●	●
769	01.750 BOLT; HEAT PROTECTOR 03.604 M6X12 FLANGE	8-97108-669-0	04	1	0612-		●	●
780	03.671 WASHER; PROTECTOR 00.413 ID=6.4 OD=18	0-91610-706-0	04	1	0612-		●	●

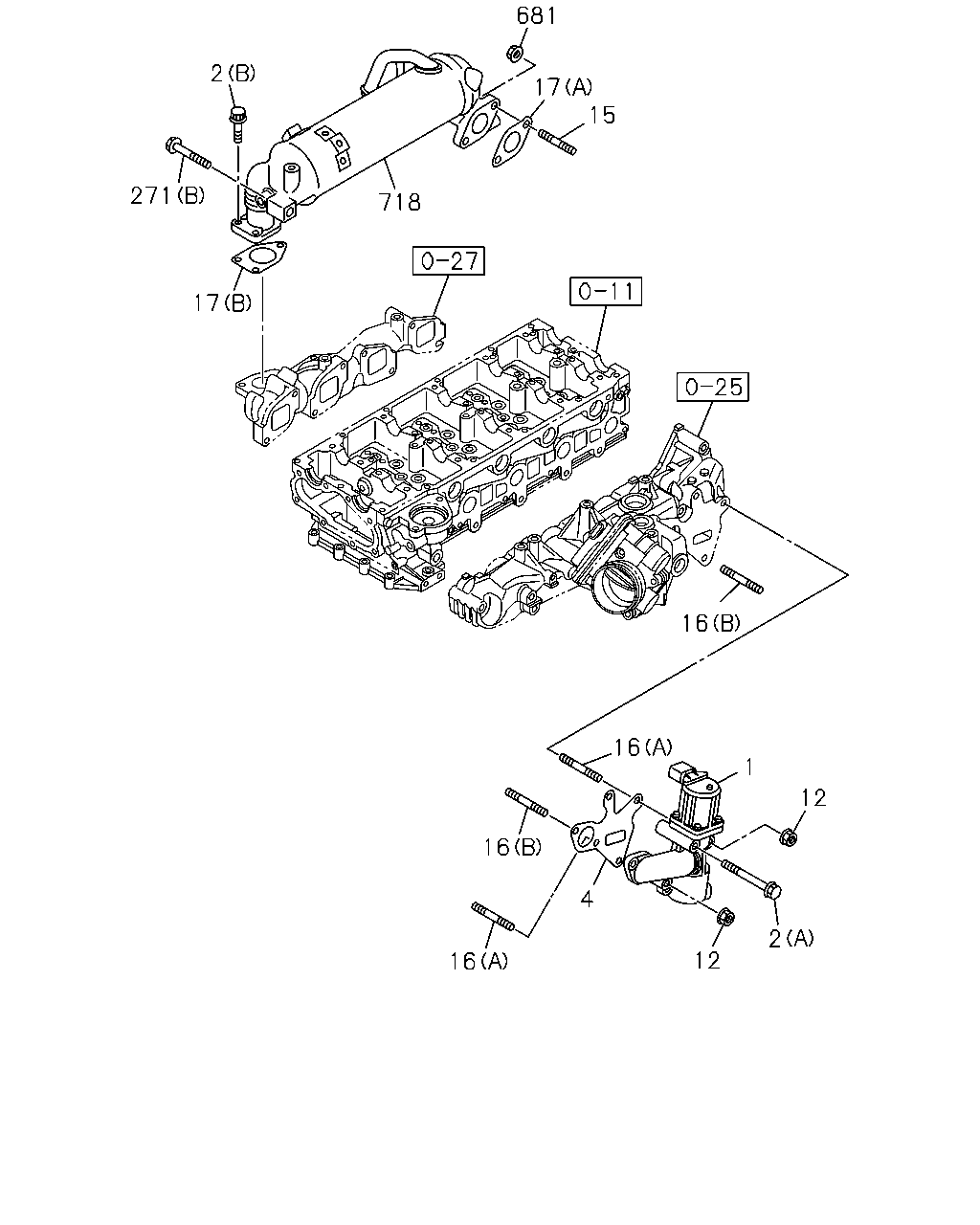

681 2 17 15 271 718 17 16 16 1 12 16 4 2 12 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.670 VALVE; EGR	8-97381-560-7	01	1	0612-	●
1	03.670 VALVE; EGR	8-98054-930-0	01	1	0612-0712		●	●
1	03.670 VALVE; EGR	8-98018-264-5	01	1	0801-		●	●
2	03.670 BOLT; EGR VLV 01.252 (A) M8X80 FLANGE	0-28050-880-0	01	1	0612-	●
2	03.670 BOLT; EGR VLV 03.417 (B) M8X23 FLANGE	8-97378-077-0	03	1	0612-	●
2	03.670 BOLT; EGR VLV 06.216 (C) M8X25 FLANGE	0-28650-825-0	01	1	0612-		●	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE).	8-97384-119-1	01	1	0612-0708	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE).	8-98094-528-2	01	1	0709-	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE).	8-97306-040-0	01	1	0612-		●	●
12	03.671 NUT; EGR VLV 01.540 M8 FLANGE	0-91180-208-0	04	1	0612-	●
12	03.671 NUT; EGR VLV 01.062 M8 FLANGE	0-91180-108-0	02	1	0612-		●	●
15	03.670 STUD; EGR PIPE 03.601 M8X25 L=36	8-97378-062-0	02	1	0612-1006	●
15	03.670 STUD; EGR PIPE 03.275 M8X25 L=37	0-41010-825-0	02	1	1007-	●
16	03.275 STUD; EGR VLV (B) M8X25 L=37	0-40210-825-0	02	1	0612-	●
16	03.275 STUD; EGR VLV (A) M8X50 L=62	0-40210-850-0	02	1	0612-	●
16	03.275 STUD; EGR VLV 02.510 (C) M8X20 L=32	0-41010-820-0	02	1	0612-		●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97357-684-3	01	1	0612-	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-98017-551-0	01	1	0612-	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-97388-919-0	04	1	0612-		●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (D)	8-97601-836-0	01	1	0612-		●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (E)	8-98036-507-0	01	1	0612-		●	●
271	03.675 BOLT; BRKT 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	0612-	●
271	03.675 BOLT; BRKT 09.181 (B) M10X45 FLANGE	0-28151-045-0	01	1	0612-1002	●
271	03.675 BOLT; BRKT 00.685 (C) M12X50 FLANGE	0-28151-250-0	03	1	0612-		●	●
271	03.675 BOLT; BRKT 00.685 (D) M12X60 FLANGE	0-28151-260-0	01	1	0612-		●	●
271	03.675 BOLT; BRKT 02.277 (E) M8X25 FLANGE	0-28660-825-0	01	1	0612-		●	●
271	03.675 BOLT; BRKT 09.181 (F) M12X30 FLANGE	0-28751-230-0	03	1	0612-0804		●	●
681	03.671 NUT; EGR PIPE 01.540 M8 FLANGE	0-91180-208-0	02	1	0612-	●
681	03.671 NUT; EGR PIPE 03.613 M8 FLANGE	8-97061-401-1	03	1	0612-		●	●
718	03.337 COOLER; EGR	8-98011-524-3	01	1	0612-1002	●
718	03.337 COOLER; EGR	8-98164-570-0	01	1	1003-	●

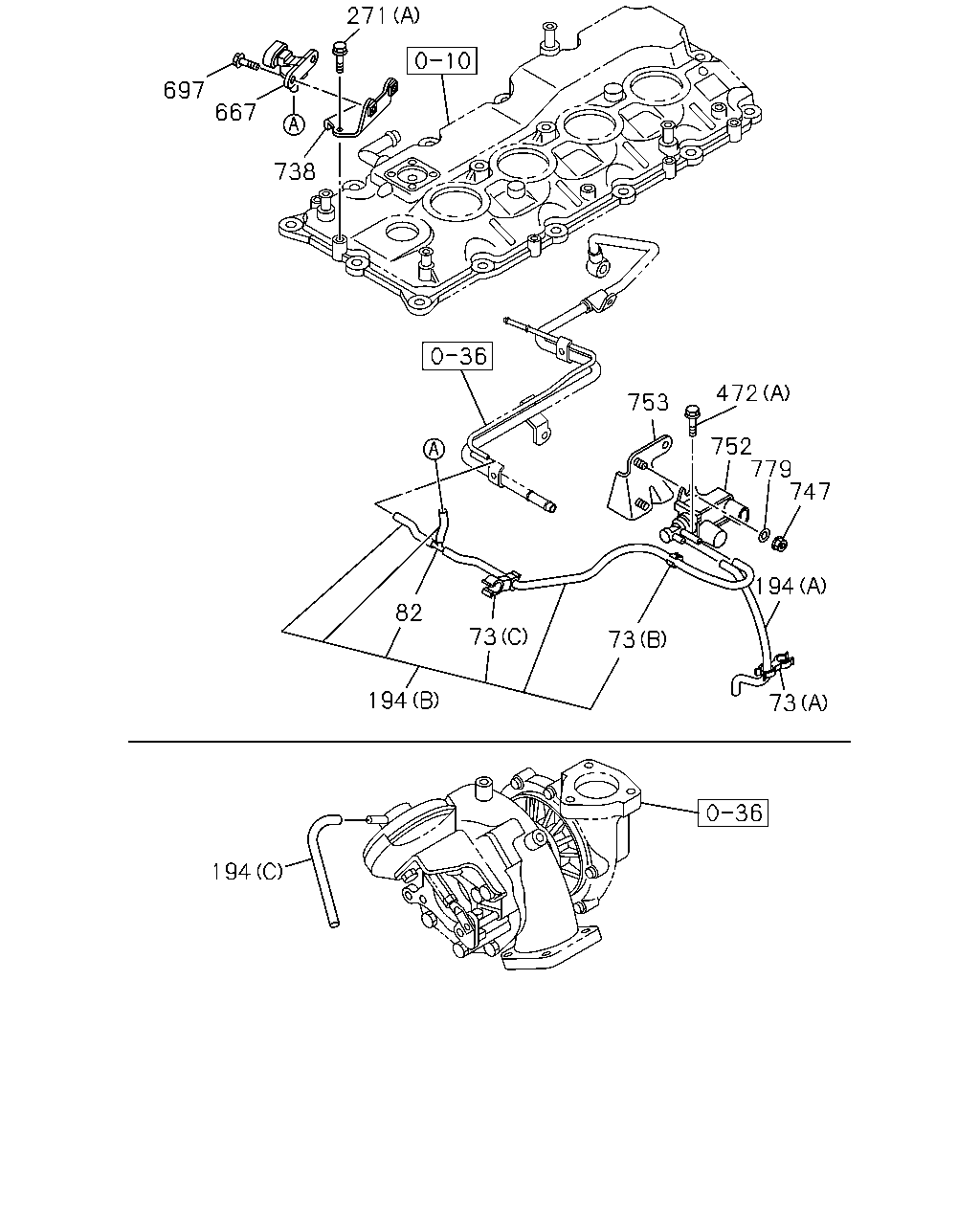

271 697 667 738 472 753 752 779 747 194 82 73 73 194 73 194

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
73	03.680 CLIP; VAC HOSE 00.854 (A) ID=11.8 & 7.5	1-09709-182-0	01	1	0612-	●
73	03.680 CLIP; VAC HOSE 04.342 (B) ID=8.3 & 10	8-94176-792-0	01	1	0612-	●
73	03.680 CLIP; VAC HOSE 03.162 (C) ID=13.2 & 7.5	8-94315-426-0	01	1	0612-	●
82	03.680 JOINT; 3 WAY 3WAY	8-98045-385-0	01	1	0612-	●
194	03.675 HOSE; VAC (A)	0-04420-270-0	01	1	0612-	●
194	03.675 HOSE; VAC (B)	8-98031-057-1	01	1	0612-0705	●
194	03.675 HOSE; VAC (B)	8-98085-688-0	01	1	0706-	●
194	03.675 HOSE; VAC (C)	8-98036-856-0	01	1	0612-	●
271	03.675 BOLT; BRKT 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	0612-	●
271	03.675 BOLT; BRKT 09.181 (B) M10X45 FLANGE	0-28151-045-0	01	1	0612-1002	●
271	03.675 BOLT; BRKT 00.685 (C) M12X50 FLANGE	0-28151-250-0	03	1	0612-		●	●
271	03.675 BOLT; BRKT 00.685 (D) M12X60 FLANGE	0-28151-260-0	01	1	0612-		●	●
271	03.675 BOLT; BRKT 02.277 (E) M8X25 FLANGE	0-28660-825-0	01	1	0612-		●	●
271	03.675 BOLT; BRKT 09.181 (F) M12X30 FLANGE	0-28751-230-0	03	1	0612-0804		●	●
472	03.671 BOLT; BRKT 02.343 (A) M8X16 FLANGE	0-28050-816-0	02	1	0612-	●
472	03.671 BOLT; BRKT 02.277 (B) M8X25 FLANGE	0-28660-825-0	03	1	0612-		●	●
472	03.671 BOLT; BRKT 00.029 (C) M10X40 FLANGE	0-28751-040-0	01	1	0612-		●	●
667	03.670 SENSOR; VAC	8-98044-520-0	01	1	0612-	●
697	03.680 BOLT; SENSOR 03.162 M6X20 FLANGE	0-28650-620-0	02	1	0612-	●
738	03.675 BRACKET; SENSOR,VAC	8-98044-607-0	01	1	0612-	●
747	03.671 NUT; VAC REG VALVE 01.062 M8 FLANGE	0-91180-108-0	02	1	0612-	●
752	03.670 VALVE; EVRV	8-97184-183-0	01	1	0612-0803	●
752	03.670 VALVE; EVRV	8-98116-259-0	01	1	0804-	●
753	03.670 BRACKET; VALVE	8-97381-571-1	01	1	0612-	●
779	03.671 WASHER; VALVE 06.168 ID=8.4 OD=18	0-91610-608-0	02	1	0612-	●
