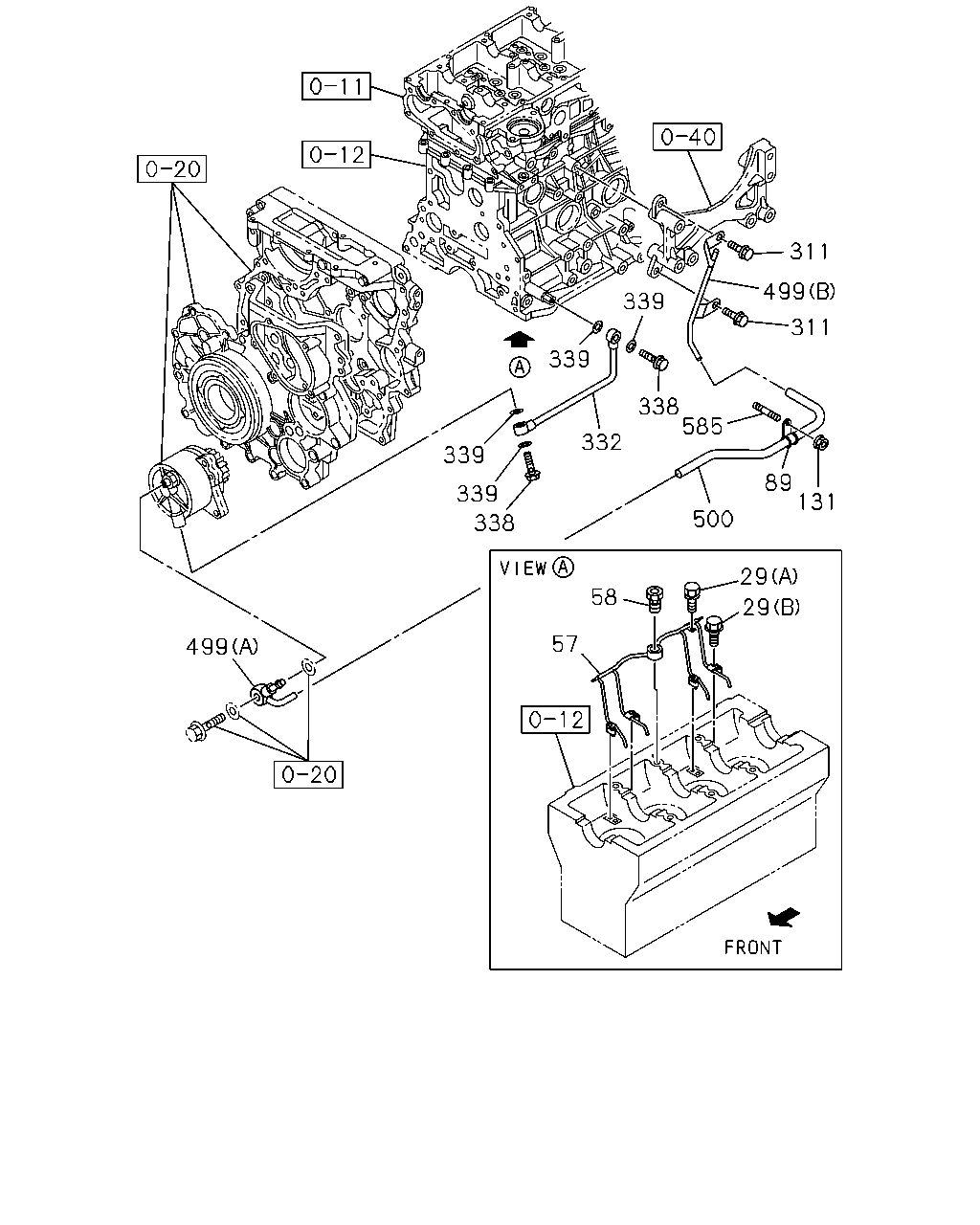

0-52 — OIL AND VACUUM PIPING; ENGINE (#32486) — 80 parça

311 499 339 311 339 338 585 339 332 89 131 339 500 338 29 58 29 57 499

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
29	01.531 BOLT; OIL PIPE,OIL JET 03.407 (A) M8X10 FLANGE	0-28050-810-0	01	1	0612-	●
29	01.531 BOLT; OIL PIPE,OIL JET (B) M6X20	8-97117-298-1	04	1	0612-	●
57	01.519 PIPE; OIL,OIL JET	8-97312-132-3	01	1	0612-	●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO	8-97239-048-1	01	1	0612-	●
89	04.681 CLIP; VAC HOSE	9-09520-835-0	01	1	0612-	●
131	01.531 NUT; UNION 06.164 M8 FLANGE	5-09440-010-0	01	1	0612-	●
311	01.531 BOLT; PIPE FIX 03.162 M6X12 FLANGE	0-28050-612-0	02	1	0612-	●
311	01.531 BOLT; PIPE FIX 03.162 M6X12 FLANGE	0-28050-612-0	01	1	0612-		●	●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP	8-98038-097-0	01	1	0612-0901	●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP	8-98038-929-0	01	1	0902-	●
338	01.531 BOLT; JOINT,OIL PIPE 03.162 M8X18 EYE-BOLT	1-09675-037-1	02	1	0612-0901	●
338	01.531 BOLT; JOINT,OIL PIPE M8X20 EYE-BOLT	5-09675-018-1	02	1	0902-	●
339	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 05.398 ID=8.2 OD=14.0 T=1.0	9-09571-408-0	04	1	0612-	●
499	04.681 PIPE; VACUUM (A)	8-97381-661-3	01	1	0612-	●
499	04.681 PIPE; VACUUM (B)	8-97385-434-1	01	1	0612-	●
499	04.681 PIPE; VACUUM (C)	8-98009-100-1	01	1	0612-		●	●
500	04.681 HOSE; VACUUM	8-97369-587-1	01	1	0612-	●
585	01.531 STUD; CLIP 01.428 M8X18 L=30	0-41010-818-0	01	1	0612-	●

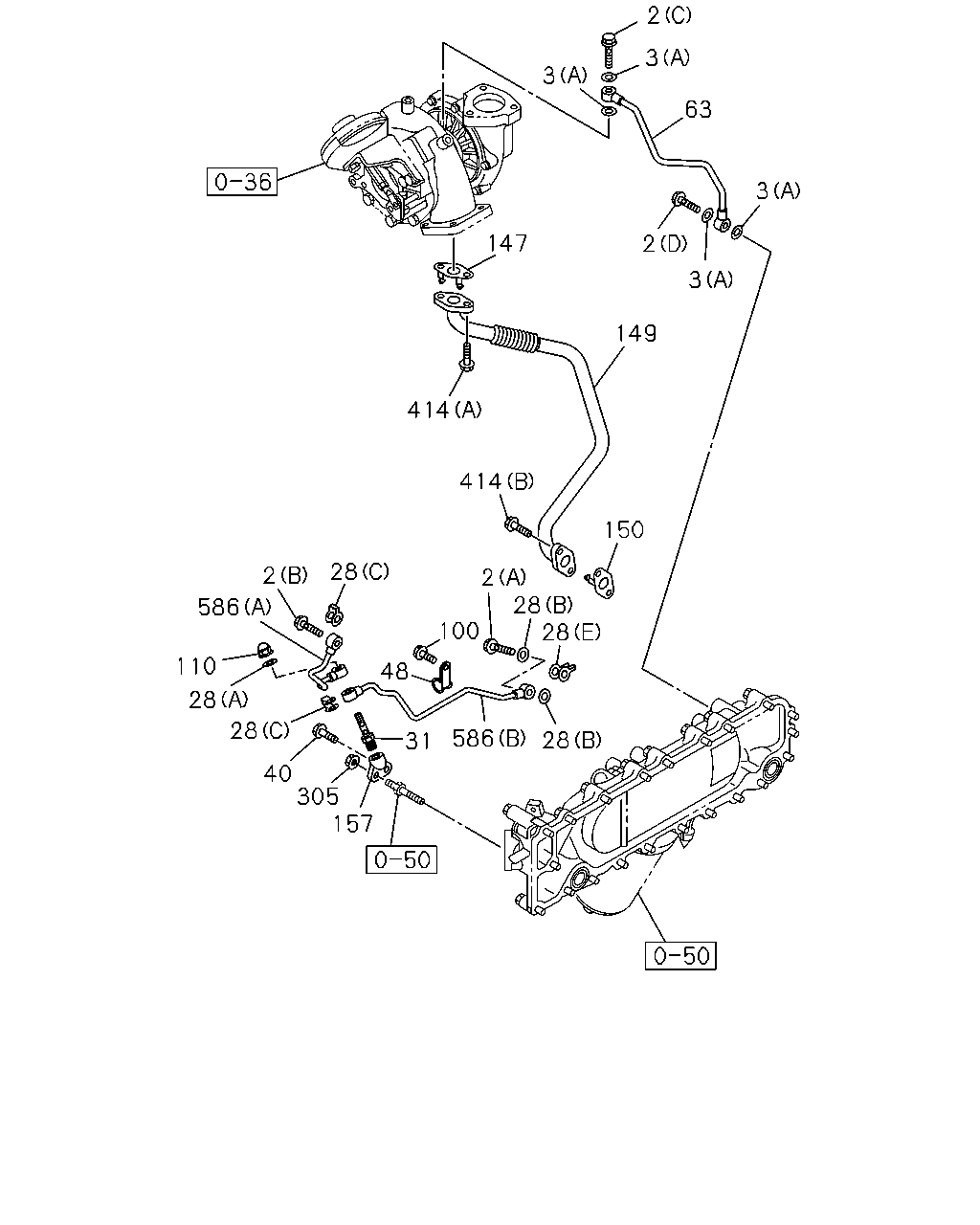

2 3 3 63 3 147 2 3 149 414 414 150 28 2 2 28 28 586 100 110 48 28 28 586 28 31 40 305 157

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	01.531 BOLT; EYE,OIL PIPE 03.162 (A) M14X27 FLANGE	1-09675-086-0	01	1	0612-	●
2	01.531 BOLT; EYE,OIL PIPE (B) M8X20 EYE-BOLT	5-09675-018-1	01	1	0612-	●
2	01.531 BOLT; EYE,OIL PIPE (C) M10X27	8-94443-535-0	01	1	0612-	●
2	01.531 BOLT; EYE,OIL PIPE 03.280 (D) M10X24	9-09906-205-1	01	1	0612-	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	01	1	0612-		●	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=10.2 OD=16.0	9-09571-410-0	04	1	0612-	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=10.2 OD=16.0	9-09571-410-0	02	1	0612-		●	●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.162 (A) ID=8.2 OD=13.2	1-09630-082-0	01	1	0612-	●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.162 (C)	8-97251-046-0	02	1	0612-	●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=14.2 OD=20.0	9-09571-414-0	02	1	0612-0902	●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (E) ID=14.2 OD=20.0	8-98113-762-0	01	1	0903-	●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=10.2 OD=15.2	1-09630-083-0	02	1	0612-		●	●
31	01.540 NIPPLE; OIL PIPE	8-98044-067-1	01	1	0612-	●
40	01.531 BOLT; OIL PIPE 03.162 M6X12 FLANGE	0-28050-612-0	01	1	0612-	●
40	01.531 BOLT; OIL PIPE 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0612-		●	●
48	01.531 CLIP; OIL PIPE ID=7 L=28	8-98068-212-0	01	1	0612-0903	●
48	01.531 CLIP; OIL PIPE ID=7 L=28	8-98121-233-0	01	1	0904-	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED	8-97381-488-0	01	1	0612-	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED	8-97386-643-2	01	1	0612-		●	●
100	01.531 BOLT; CLIP 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0612-	●
110	01.531 NUT; CAP OIL PIPE 00.349 M8 CAP NUT FLANGE	8-97372-242-0	01	1	0612-	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). ID=16	8-98029-475-0	01	1	0612-	●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER	8-97381-489-2	01	1	0612-	●
150	01.531 GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-98029-476-0	01	1	0612-	●
157	01.519 BRACKET; OIL PIPE	8-98043-093-0	01	1	0612-	●
157	01.519 BRACKET; OIL PIPE	8-98036-534-0	01	1	0612-		●	●
305	01.540 NUT; BRKT,OIL PIPE 01.062 M6 FLANGE	0-91180-106-0	01	1	0612-	●
414	01.531 BOLT; OIL PIPE 03.342 (A) M6X18 HEX SOCKET	0-58330-618-0	02	1	0612-1107	●
414	01.531 BOLT; OIL PIPE 00.724 (A) M6X16 HEX SOCKET	0-58330-616-0	02	1	1108-	●
414	01.531 BOLT; OIL PIPE 01.758 (B) M8X20 HEX SOCKET	0-58330-820-0	02	1	0612-	●
586	01.519 PIPE; OIL,TENSIONER (A)	8-98039-566-0	01	1	0612-	●
586	01.519 PIPE; OIL,TENSIONER (B)	8-98039-567-0	01	1	0612-	●

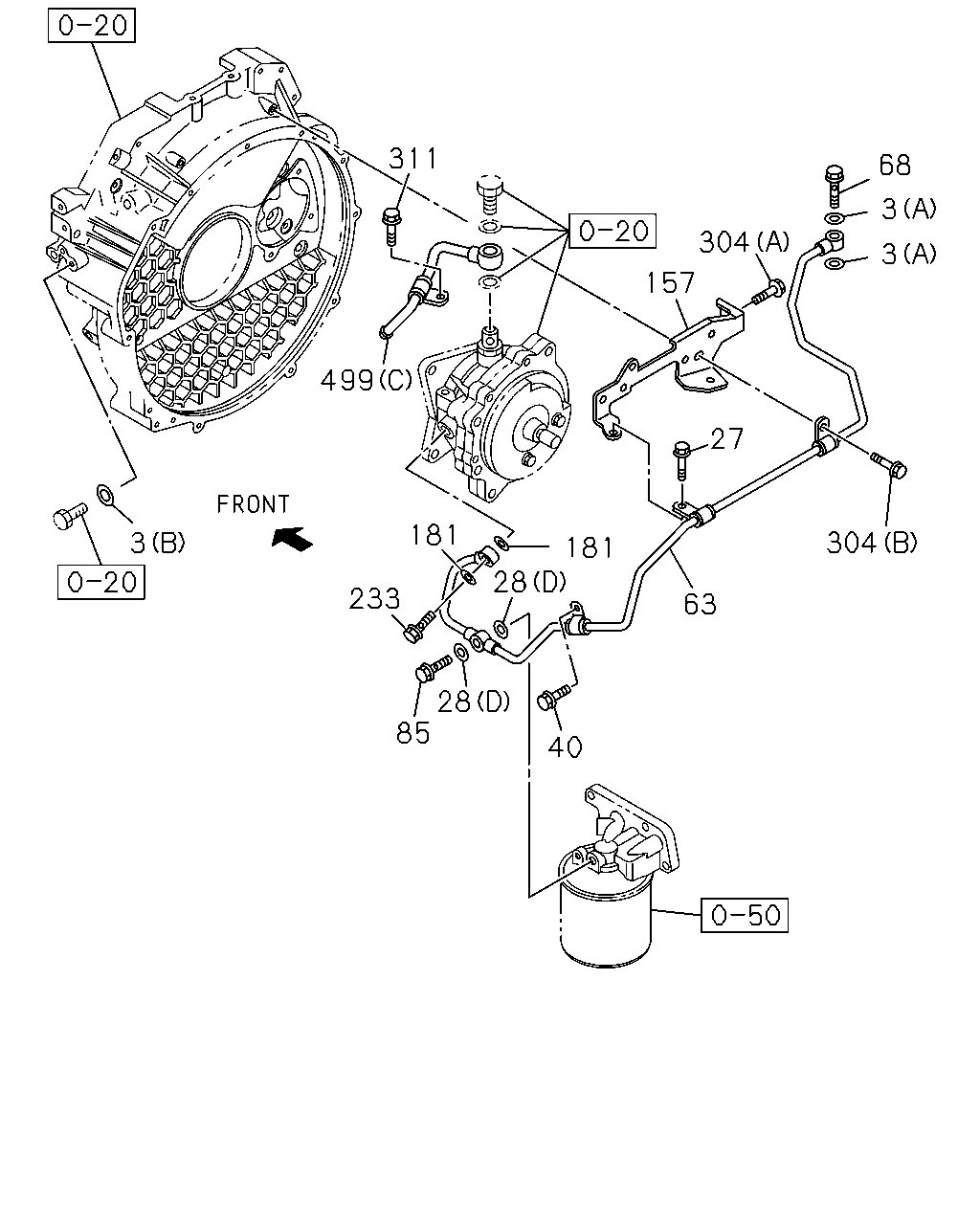

311 68 3 304 3 157 499 27 181 304 3 181 28 233 63 28 85 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	01	1	0612-		●	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=10.2 OD=16.0	9-09571-410-0	04	1	0612-	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=10.2 OD=16.0	9-09571-410-0	02	1	0612-		●	●
27	01.531 BOLT; OIL PIPE FIX 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0612-		●	●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.162 (A) ID=8.2 OD=13.2	1-09630-082-0	01	1	0612-	●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.162 (C)	8-97251-046-0	02	1	0612-	●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=14.2 OD=20.0	9-09571-414-0	02	1	0612-0902	●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (E) ID=14.2 OD=20.0	8-98113-762-0	01	1	0903-	●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=10.2 OD=15.2	1-09630-083-0	02	1	0612-		●	●
40	01.531 BOLT; OIL PIPE 03.162 M6X12 FLANGE	0-28050-612-0	01	1	0612-	●
40	01.531 BOLT; OIL PIPE 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0612-		●	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED	8-97381-488-0	01	1	0612-	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED	8-97386-643-2	01	1	0612-		●	●
68	01.531 BOLT; EYE,OIL PIPE,TURBOCHARGER M10X26	8-97081-817-0	01	1	0612-0805		●	●
68	01.531 BOLT; EYE,OIL PIPE,TURBOCHARGER M10X26	8-98037-825-0	01	1	0806-		●	●
85	01.531 BOLT; EYE,OIL PIPE FIX 03.330 M10X28 FLANGE	8-97149-995-0	01	1	0612-0710		●	●
85	01.531 BOLT; EYE,OIL PIPE FIX M10X28	8-98037-823-0	01	1	0711-		●	●
157	01.519 BRACKET; OIL PIPE	8-98043-093-0	01	1	0612-	●
157	01.519 BRACKET; OIL PIPE	8-98036-534-0	01	1	0612-		●	●
181	01.531 GASKET ID=10.2 OD=15.2	1-09630-083-0	02	1	0612-0707		●	●
181	01.531 GASKET ID=10.2 OD=15.2 ALSO INCLUDED IN GASKET SET(ENGINE).	1-09630-083-0	04	1	0708-		●	●
233	01.531 BOLT; EYE M10X22	1-09675-028-0	01	1	0612-		●	●
304	01.540 BOLT; BRKT,OIL PIPE 02.343 (A) M8X16 FLANGE	0-28050-816-0	02	1	0612-		●	●
304	01.540 BOLT; BRKT,OIL PIPE 02.483 (B) M10X16 FLANGE	0-28051-016-0	02	1	0612-1001		●	●
304	01.540 BOLT; BRKT,OIL PIPE 00.029 (B) M10X16 FLANGE	0-28151-016-0	02	1	1002-		●	●
311	01.531 BOLT; PIPE FIX 03.162 M6X12 FLANGE	0-28050-612-0	02	1	0612-	●
311	01.531 BOLT; PIPE FIX 03.162 M6X12 FLANGE	0-28050-612-0	01	1	0612-		●	●
499	04.681 PIPE; VACUUM (A)	8-97381-661-3	01	1	0612-	●
499	04.681 PIPE; VACUUM (B)	8-97385-434-1	01	1	0612-	●
499	04.681 PIPE; VACUUM (C)	8-98009-100-1	01	1	0612-		●	●
