1-50 — EXHAUST PIPE AND SILENCER (#32485) — 139 parça

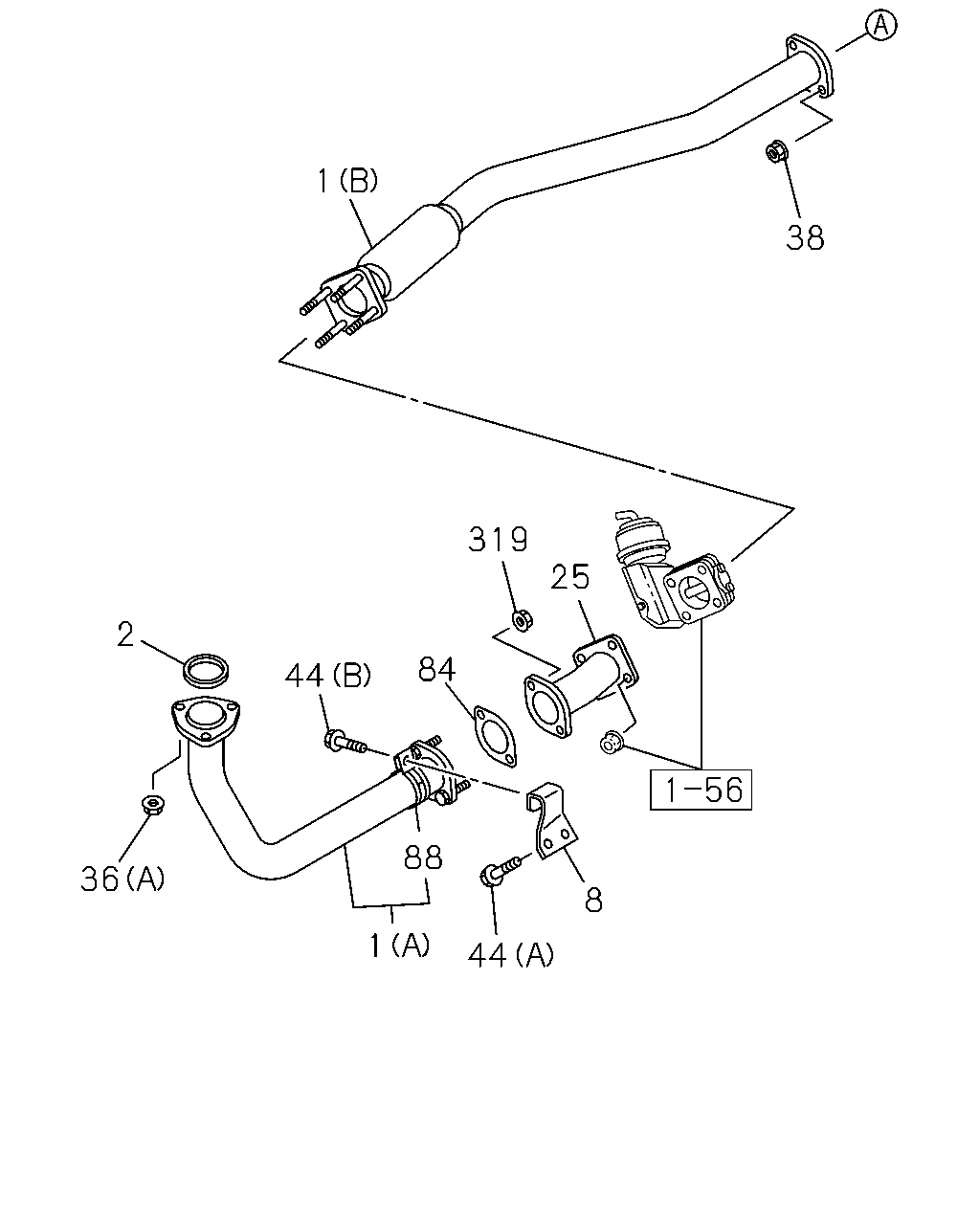

çizim 122139
1 38 319 25 2 84 44 88 36 8 1 44
BalonParca AdiParca NoAdetTipApplied Date A B
1 PIPE; EXH
(A) 		8-98082-540-0 01 1 0804-1004 ●
1 PIPE; EXH
(A) 		8-98082-540-0 01 1 1005- ● ●
1 PIPE; EXH
(B) 		8-98082-542-0 01 1 0804-1004 ●
1 PIPE; EXH
(B) 		8-98082-542-0 01 1 1005- ● ●
2 GASKET; PIPE TO MANIF 8-97381-455-0 01 1 0804-1004 ●
2 GASKET; PIPE TO MANIF 8-97381-455-0 01 1 1005- ● ●
8 BRACKET; EXH PIPE 8-98072-165-0 01 1 0804-1004 ●
8 BRACKET; EXH PIPE 8-98072-165-0 01 1 1005- ● ●
25 PIPE; EXH,BRK VLV TO SILENCER 8-98082-541-0 01 1 0804-1004 ●
25 PIPE; EXH,BRK VLV TO SILENCER 8-98082-541-0 01 1 1005- ● ●
36 NUT; EXH PIPE
(B) M10 FLANGE SOU 		0-91180-110-0 02 1 0804-1004 ●
36 NUT; EXH PIPE
(B) M10 FLANGE SOU 		0-91180-110-0 02 1 1005- ● ●
36 NUT; EXH PIPE
(A) M10 FLANGE SOU 		8-97096-192-1 03 1 0804-1004 ●
36 NUT; EXH PIPE
(A) M10 FLANGE SOU 		8-97096-192-1 03 1 1005- ● ●
38 NUT; SILENCER
M10 FLANGE SOU 		0-91180-110-0 02 1 0804-1004 ●
38 NUT; SILENCER
M10 FLANGE SOU 		0-91180-110-0 02 1 1005- ● ●
44 BOLT; BRKT
(A) M10X25 FLANGE 		0-28051-025-0 02 1 0804-1004 ●
44 BOLT; BRKT
(A) M10X25 FLANGE 		0-28051-025-0 02 1 1005- ● ●
44 BOLT; BRKT
(B) M10X40 FLANGE 		0-28051-040-0 01 1 0804-1004 ●
44 BOLT; BRKT
(B) M10X40 FLANGE 		0-28051-040-0 01 1 1005- ● ●
84 GASKET; EXH PIPE
ID=64.7 SOU 		8-94328-352-0 01 1 0804-1004 ●
84 GASKET; EXH PIPE
ID=64.7 SOU 		8-94328-352-0 01 1 0804-1004 ●
84 GASKET; EXH PIPE
ID=64.7 SOU 		8-94328-352-0 01 1 0804-1004 ●
84 GASKET; EXH PIPE
ID=64.7 SOU 		8-94328-352-0 01 1 1005- ● ●
84 GASKET; EXH PIPE
ID=64.7 SOU 		8-94328-352-0 01 1 1005- ● ●
84 GASKET; EXH PIPE
ID=64.7 SOU 		8-94328-352-0 01 1 1005- ● ●
88 CLAMP; EXH PIPE 8-97373-158-0 01 1 0804-1004 ●
88 CLAMP; EXH PIPE 8-97373-158-0 01 1 0804-1004 ●
88 CLAMP; EXH PIPE 8-97373-158-0 01 1 0804-1004 ●
88 CLAMP; EXH PIPE 8-97373-158-0 01 1 1005- ● ●
88 CLAMP; EXH PIPE 8-97373-158-0 01 1 1005- ● ●
88 CLAMP; EXH PIPE 8-97373-158-0 01 1 1005- ● ●
319 NUT; PROTECTOR
M10 FLANGE SOU 		0-91180-110-0 02 1 0804-1004 ●
319 NUT; PROTECTOR
M10 FLANGE SOU 		0-91180-110-0 02 1 1005- ● ●

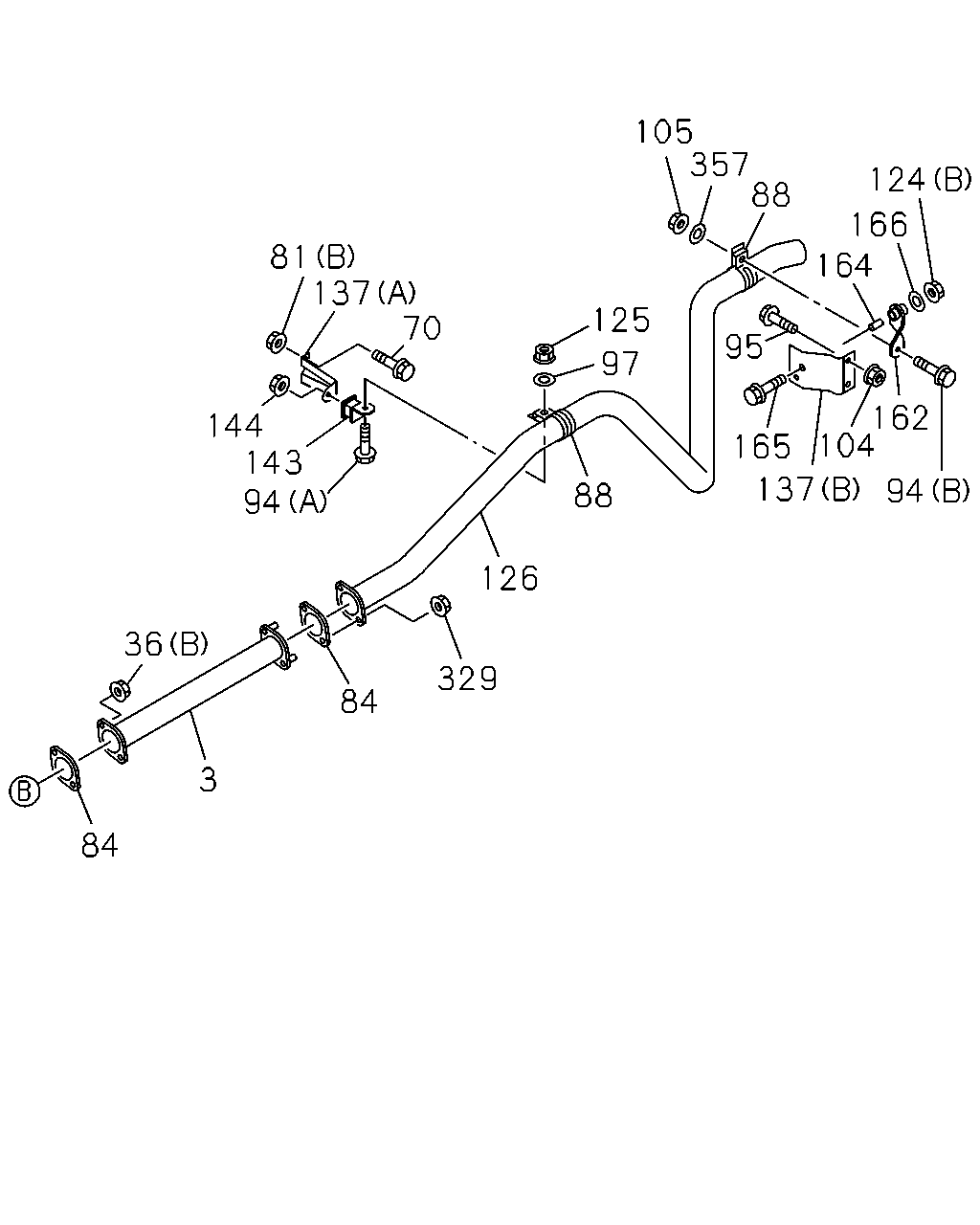

çizim 122142
105 357 88 124 166 164 81 137 70 125 95 97 162 104 144 143 94 165 137 94 88 126 36 329 84 3 84
BalonParca AdiParca NoAdetTipApplied Date A B
3 PIPE; EXH,CENTER 8-97355-648-0 01 1 0804-1004 ●
3 PIPE; EXH,CENTER 8-97355-648-0 01 1 1005- ● ●
36 NUT; EXH PIPE
(B) M10 FLANGE SOU 		0-91180-110-0 02 1 0804-1004 ●
36 NUT; EXH PIPE
(B) M10 FLANGE SOU 		0-91180-110-0 02 1 1005- ● ●
36 NUT; EXH PIPE
(A) M10 FLANGE SOU 		8-97096-192-1 03 1 0804-1004 ●
36 NUT; EXH PIPE
(A) M10 FLANGE SOU 		8-97096-192-1 03 1 1005- ● ●
70 BOLT; BRKT
M8X25 FLANGE SOU 		0-28650-825-0 02 1 0804-1004 ●
70 BOLT; BRKT
M8X25 FLANGE SOU 		0-28650-825-0 02 1 1005- ● ●
81 NUT; BRKT
(B) M8 FLANGE SOU 		0-91180-108-0 02 1 0804-1004 ●
81 NUT; BRKT
(B) M8 FLANGE SOU 		0-91180-108-0 02 1 1005- ● ●
81 NUT; BRKT
(A) M10 FLANGE SOU 		0-91180-110-0 02 1 0804-1004 ●
81 NUT; BRKT
(A) M10 FLANGE SOU 		0-91180-110-0 02 1 1005- ● ●
84 GASKET; EXH PIPE
ID=64.7 SOU 		8-94328-352-0 01 1 0804-1004 ●
84 GASKET; EXH PIPE
ID=64.7 SOU 		8-94328-352-0 01 1 0804-1004 ●
84 GASKET; EXH PIPE
ID=64.7 SOU 		8-94328-352-0 01 1 0804-1004 ●
84 GASKET; EXH PIPE
ID=64.7 SOU 		8-94328-352-0 01 1 1005- ● ●
84 GASKET; EXH PIPE
ID=64.7 SOU 		8-94328-352-0 01 1 1005- ● ●
84 GASKET; EXH PIPE
ID=64.7 SOU 		8-94328-352-0 01 1 1005- ● ●
88 CLAMP; EXH PIPE 8-97373-158-0 01 1 0804-1004 ●
88 CLAMP; EXH PIPE 8-97373-158-0 01 1 0804-1004 ●
88 CLAMP; EXH PIPE 8-97373-158-0 01 1 0804-1004 ●
88 CLAMP; EXH PIPE 8-97373-158-0 01 1 1005- ● ●
88 CLAMP; EXH PIPE 8-97373-158-0 01 1 1005- ● ●
88 CLAMP; EXH PIPE 8-97373-158-0 01 1 1005- ● ●
94 BOLT; CLAMP
(B) M10X45 FLANGE SOU 		0-28051-045-0 01 1 0804-1004 ●
94 BOLT; CLAMP
(B) M10X45 FLANGE SOU 		0-28051-045-0 01 1 1005- ● ●
94 BOLT; CLAMP
(A) M10X50 FLANGE 		8-97301-165-0 01 1 0804-1004 ●
94 BOLT; CLAMP
(A) M10X50 FLANGE 		8-97301-165-0 01 1 1005- ● ●
95 BOLT; BRKT
M8X25 FLANGE SOU 		0-28650-825-0 02 1 0804-1004 ●
95 BOLT; BRKT
M8X25 FLANGE SOU 		0-28650-825-0 02 1 1005- ● ●
97 WASHER; PL,CLAMP
ID=10.5 OD=22 		0-91614-610-0 01 1 0804-1004 ●
97 WASHER; PL,CLAMP
ID=10.5 OD=22 		0-91614-610-0 01 1 1005- ● ●
104 NUT; BRKT
M8 FLANGE SOU 		0-91180-108-0 02 1 0804-1004 ●
104 NUT; BRKT
M8 FLANGE SOU 		0-91180-108-0 02 1 1005- ● ●
105 NUT; CLAMP
M10 SOU 		0-91110-510-0 01 1 0804-1004 ●
105 NUT; CLAMP
M10 SOU 		0-91110-510-0 01 1 1005- ● ●
124 NUT; SUPPORT RUBBER
(A) M8 SOU 		0-91110-508-0 02 1 0804-1004 ●
124 NUT; SUPPORT RUBBER
(A) M8 SOU 		0-91110-508-0 02 1 1005- ● ●
124 NUT; SUPPORT RUBBER
(B) M10 FLANGE SOU 		0-91180-110-0 01 1 0804-1004 ●
124 NUT; SUPPORT RUBBER
(B) M10 FLANGE SOU 		0-91180-110-0 01 1 1005- ● ●
125 NUT; CLAMP
M10 SOU 		0-91110-510-0 01 1 0804-1004 ●
125 NUT; CLAMP
M10 SOU 		0-91110-510-0 01 1 1005- ● ●
126 PIPE; EXH,RR 8-98082-543-0 01 1 0804-1004 ●
126 PIPE; EXH,RR 8-98082-543-0 01 1 1005- ● ●
137 BRACKET; TAIL PIPE
(A) 		8-97096-651-0 01 1 0804-1004 ●
137 BRACKET; TAIL PIPE
(A) 		8-97096-651-0 01 1 1005- ● ●
137 BRACKET; TAIL PIPE
(B) 		8-97116-588-2 01 1 0804-1004 ●
137 BRACKET; TAIL PIPE
(B) 		8-97116-588-2 01 1 1005- ● ●
143 RUBBER; SUPPORT 8-98034-767-0 01 1 0804-1004 ●
143 RUBBER; SUPPORT 8-98034-767-0 01 1 1005- ● ●
144 NUT; MTG RUBBER
M8 FLANGE SOU 		0-91180-108-0 01 1 0804-1004 ●
144 NUT; MTG RUBBER
M8 FLANGE SOU 		0-91180-108-0 01 1 1005- ● ●
162 RUBBER; SUPPORT,TAIL PIPE
L=115 		8-98034-765-0 01 1 0804-1004 ●
162 RUBBER; SUPPORT,TAIL PIPE
L=115 		8-98034-765-0 01 1 1005- ● ●
164 COLLAR; DIST,TAIL PIPE
L=37.5 SOU 		9-22151-217-0 01 1 0804-1004 ●
164 COLLAR; DIST,TAIL PIPE
L=37.5 SOU 		9-22151-217-0 01 1 1005- ● ●
165 BOLT; SUPPORT RUBBER
M10X70 FLANGE SOU 		0-28051-070-0 01 1 0804-1004 ●
165 BOLT; SUPPORT RUBBER
M10X70 FLANGE SOU 		0-28051-070-0 01 1 1005- ● ●
166 WASHER; PL,SUPPORT RUBBER,EXH PIPE
ID=10.5 OD=32 		0-91614-810-0 01 1 0804-1004 ●
166 WASHER; PL,SUPPORT RUBBER,EXH PIPE
ID=10.5 OD=32 		0-91614-810-0 01 1 1005- ● ●
329 NUT; EXH PIPE TO PIPE
M10 FLANGE SOU 		0-91180-110-0 02 1 0804-1004 ●
329 NUT; EXH PIPE TO PIPE
M10 FLANGE SOU 		0-91180-110-0 02 1 1005- ● ●
357 WASHER; PL,CLAMP
ID=10.5 OD=22 		0-91614-610-0 01 1 0804-1004 ●
357 WASHER; PL,CLAMP
ID=10.5 OD=22 		0-91614-610-0 01 1 1005- ● ●

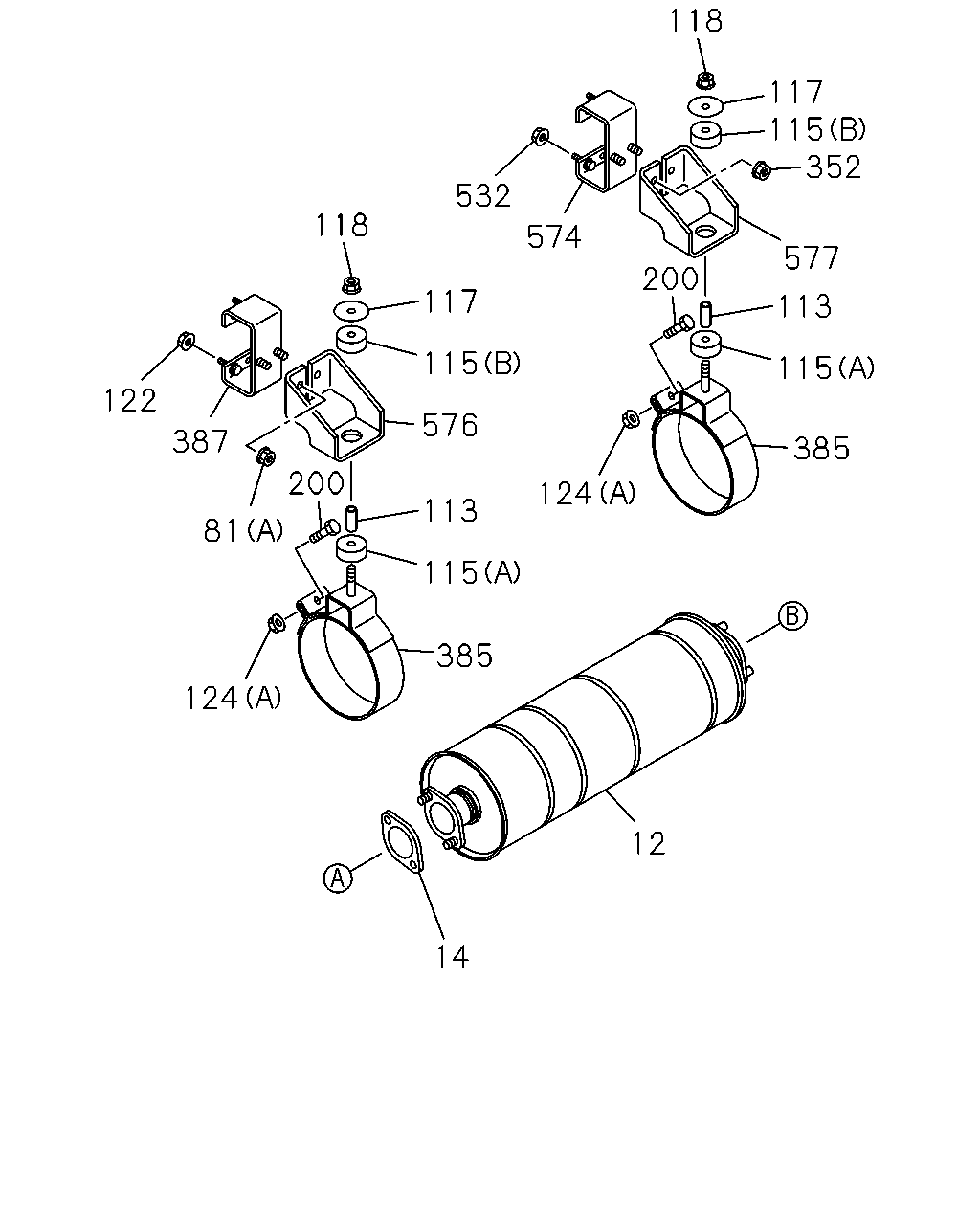

çizim 122147
118 117 115 352 532 118 574 577 200 117 113 115 115 122 576 387 385 200 124 113 81 115 385 124 12 14
BalonParca AdiParca NoAdetTipApplied Date A B
12 SILENCER ASM; EXH 8-98090-839-0 01 1 0804-1004 ●
12 SILENCER ASM; EXH 8-98090-839-0 01 1 1005- ● ●
14 GASKET; SILENCER TO EXH PIPE
ID=64.7 SOU 		8-94328-352-0 01 1 0804-1004 ●
14 GASKET; SILENCER TO EXH PIPE
ID=64.7 SOU 		8-94328-352-0 01 1 1005- ● ●
81 NUT; BRKT
(B) M8 FLANGE SOU 		0-91180-108-0 02 1 0804-1004 ●
81 NUT; BRKT
(B) M8 FLANGE SOU 		0-91180-108-0 02 1 1005- ● ●
81 NUT; BRKT
(A) M10 FLANGE SOU 		0-91180-110-0 02 1 0804-1004 ●
81 NUT; BRKT
(A) M10 FLANGE SOU 		0-91180-110-0 02 1 1005- ● ●
113 COLLAR; DIST,MTG BRKT
L=37.5 SOU 		9-22151-217-0 02 1 0804-1004 ●
113 COLLAR; DIST,MTG BRKT
L=37.5 SOU 		9-22151-217-0 02 1 1005- ● ●
115 RUBBER; MTG,SILENCER
(A) 		8-97379-882-0 02 1 0804-1004 ●
115 RUBBER; MTG,SILENCER
(A) 		8-97379-882-0 02 1 1005- ● ●
115 RUBBER; MTG,SILENCER
(B) 		8-97379-927-0 02 1 0804-1004 ●
115 RUBBER; MTG,SILENCER
(B) 		8-97379-927-0 02 1 1005- ● ●
117 WASHER; PL,SILENCER MTG BRKT
OD=55 		9-09852-169-0 02 1 0804-1004 ●
117 WASHER; PL,SILENCER MTG BRKT
OD=55 		9-09852-169-0 02 1 1005- ● ●
118 NUT; SILENCER MTG BRKT
M10 FLANGE 		5-09440-006-0 02 1 0804-1004 ●
118 NUT; SILENCER MTG BRKT
M10 FLANGE 		5-09440-006-0 02 1 1005- ● ●
122 NUT; HANGER BRKT
M10 FLANGE SOU 		0-91180-110-0 02 1 0804-1004 ●
122 NUT; HANGER BRKT
M10 FLANGE SOU 		0-91180-110-0 02 1 1005- ● ●
124 NUT; SUPPORT RUBBER
(A) M8 SOU 		0-91110-508-0 02 1 0804-1004 ●
124 NUT; SUPPORT RUBBER
(A) M8 SOU 		0-91110-508-0 02 1 1005- ● ●
124 NUT; SUPPORT RUBBER
(B) M10 FLANGE SOU 		0-91180-110-0 01 1 0804-1004 ●
124 NUT; SUPPORT RUBBER
(B) M10 FLANGE SOU 		0-91180-110-0 01 1 1005- ● ●
200 BOLT; SUPPORT RUBBER
M8X45 W/LK WASHER 		0-50040-845-0 02 1 0804-0909 ●
200 BOLT; SUPPORT RUBBER
M8X45 W/LK WASHER SOU 		0-50540-845-0 02 1 0910-1004 ●
200 BOLT; SUPPORT RUBBER
M8X45 W/LK WASHER SOU 		0-50540-845-0 02 1 1005- ● ●
352 NUT; BRKT
M10 FLANGE SOU 		0-91180-110-0 02 1 0804-1004 ●
352 NUT; BRKT
M10 FLANGE SOU 		0-91180-110-0 02 1 1005- ● ●
385 BRACKET; SILENCER MTG 8-97207-224-0 02 1 0804-1004 ●
385 BRACKET; SILENCER MTG 8-97207-224-0 02 1 1005- ● ●
387 SPACER; BRKT 8-98044-774-0 01 1 0804-1004 ●
387 SPACER; BRKT 8-98044-774-0 01 1 1005- ● ●
532 NUT
M10 FLANGE SOU 		0-91180-110-0 02 1 0804-1004 ●
532 NUT
M10 FLANGE SOU 		0-91180-110-0 02 1 1005- ● ●
574 SPACER; DPD 8-98044-774-0 01 1 0804-1004 ●
574 SPACER; DPD 8-98044-774-0 01 1 1005- ● ●
576 BRACKET; DPD FRT TO FRAME 8-98074-124-1 01 1 0804-1004 ●
576 BRACKET; DPD FRT TO FRAME 8-98074-124-1 01 1 1005- ● ●
577 BRACKET; DPD RR TO FRAME 8-98074-124-1 01 1 0804-1004 ●
577 BRACKET; DPD RR TO FRAME 8-98074-124-1 01 1 1005- ● ●
