1-41 — FUEL PIPING; CHASSIS (#32484) — 176 parça
çizim 122135
66 124 47 124 29 147 311 147
BalonParca AdiParca NoAdetTipApplied Date A B
29 HOSE; FUEL
(B) 		8-98067-564-4 01 1 0804-1004 ●
29 HOSE; FUEL
(B) 		8-98067-564-4 01 1 1005- ● ●
29 HOSE; FUEL
(A) 		8-98099-502-0 01 1 0804-1004 ●
29 HOSE; FUEL
(A) 		8-98099-502-0 01 1 0907-1004 ●
29 HOSE; FUEL
(A) 		8-98099-502-0 01 1 1005- ● ●
47 PIPE; FUEL,RETURN
(C) 		8-98036-483-0 01 1 0804-1004 ●
47 PIPE; FUEL,RETURN
(C) 		8-98036-483-0 01 1 1005- ● ●
47 PIPE; FUEL,RETURN
(B) 		8-98041-618-1 01 1 0804-1004 ●
47 PIPE; FUEL,RETURN
(B) 		8-98041-618-1 01 1 1005- ● ●
47 PIPE; FUEL,RETURN
(A) 		8-98043-639-0 01 1 0804-1004 ●
47 PIPE; FUEL,RETURN
(A) 		8-98043-639-0 01 1 1005- ● ●
66 HOSE; FUEL,RETURN PIPE
(A) L=150 SERVICED BY L=3000 		0-01855-300-0 01 1 0804-1004 ●
66 HOSE; FUEL,RETURN PIPE
(A) L=150 SERVICED BY L=3000 		0-01855-300-0 01 1 1005- ● ●
66 HOSE; FUEL,RETURN PIPE
(C) 		8-98067-567-2 01 1 0804-1004 ●
66 HOSE; FUEL,RETURN PIPE
(C) 		8-98067-567-2 01 1 1005- ● ●
66 HOSE; FUEL,RETURN PIPE
(B) 		8-98093-616-0 01 1 0804-1004 ●
66 HOSE; FUEL,RETURN PIPE
(B) 		8-98093-616-0 01 1 1005- ● ●
124 CLIP; HOSE
(A) ID=13 		8-94238-571-0 01 1 0804-0911 ●
124 CLIP; HOSE
(A) ID=13 		8-98150-357-0 01 1 0912-1004 ●
124 CLIP; HOSE
(A) ID=13 		8-98150-357-0 01 1 1005- ● ●
124 CLIP; HOSE
(B) ID=12 		8-97358-961-0 01 1 0804-1002 ●
124 CLIP; HOSE
(B) ID=12 		8-98150-358-0 01 1 1003-1004 ●
124 CLIP; HOSE
(B) ID=12 		8-98150-358-0 01 1 1005- ● ●
147 CLIP; FUEL PIPE TO HOSE
(A) ID=16 		8-98008-098-0 02 1 0912-1004 ●
147 CLIP; FUEL PIPE TO HOSE
(A) ID=16 		8-98008-098-0 02 1 0912-1004 ●
147 CLIP; FUEL PIPE TO HOSE
(A) ID=16 		8-98008-098-0 02 1 0912-1004 ●
147 CLIP; FUEL PIPE TO HOSE
(A) ID=16 		8-98008-098-0 02 1 1005- ● ●
147 CLIP; FUEL PIPE TO HOSE
(A) ID=16 		8-98008-098-0 02 1 1005- ● ●
147 CLIP; FUEL PIPE TO HOSE
(A) ID=16 		8-98008-098-0 02 1 1005- ● ●
147 CLIP; FUEL PIPE TO HOSE
(A) ID=16 SOU 		8-94238-568-0 04 1 0804-0911 ●
147 CLIP; FUEL PIPE TO HOSE
(A) ID=16 SOU 		8-94238-568-0 02 1 0912-1004 ●
147 CLIP; FUEL PIPE TO HOSE
(A) ID=16 SOU 		8-94238-568-0 02 1 1005- ● ●
147 CLIP; FUEL PIPE TO HOSE
(A) ID=16 SOU 		8-94238-568-0 02 1 0804-0906 ●
147 CLIP; FUEL PIPE TO HOSE
(A) ID=16 SOU 		8-94238-568-0 02 1 0804-0906 ●
147 CLIP; FUEL PIPE TO HOSE
(A) ID=16 SOU 		8-94238-568-0 02 1 0804-0906 ●
147 CLIP; FUEL PIPE TO HOSE
(A) ID=16 SOU 		8-94238-568-0 02 1 0907-0911 ●
147 CLIP; FUEL PIPE TO HOSE
(A) ID=16 SOU 		8-94238-568-0 02 1 0907-0911 ●
147 CLIP; FUEL PIPE TO HOSE
(A) ID=16 SOU 		8-94238-568-0 02 1 0907-0911 ●
147 CLIP; FUEL PIPE TO HOSE
(A) ID=16 SOU 		8-94238-568-0 02 1 0907-0911 ●
147 CLIP; FUEL PIPE TO HOSE
(A) ID=16 		8-98008-098-0 04 1 0912-1004 ●
147 CLIP; FUEL PIPE TO HOSE
(A) ID=16 		8-98008-098-0 04 1 1005- ● ●
147 CLIP; FUEL PIPE TO HOSE
(C) ID=13 		8-94238-571-0 01 1 0804-0911 ●
147 CLIP; FUEL PIPE TO HOSE
(C) ID=13 		8-98150-357-0 01 1 0912-1004 ●
147 CLIP; FUEL PIPE TO HOSE
(C) ID=13 		8-98150-357-0 01 1 1005- ● ●
147 CLIP; FUEL PIPE TO HOSE
(B) ID=12 		8-94238-610-0 01 1 0804-0911 ●
147 CLIP; FUEL PIPE TO HOSE
(B) ID=12 		8-98150-358-0 01 1 0912-1004 ●
147 CLIP; FUEL PIPE TO HOSE
(B) ID=12 		8-98150-358-0 01 1 1005- ● ●
311 JOINT; HOSE 8-97353-668-0 01 1 0804-1004 ●
311 JOINT; HOSE 8-97353-668-0 01 1 1005- ● ●

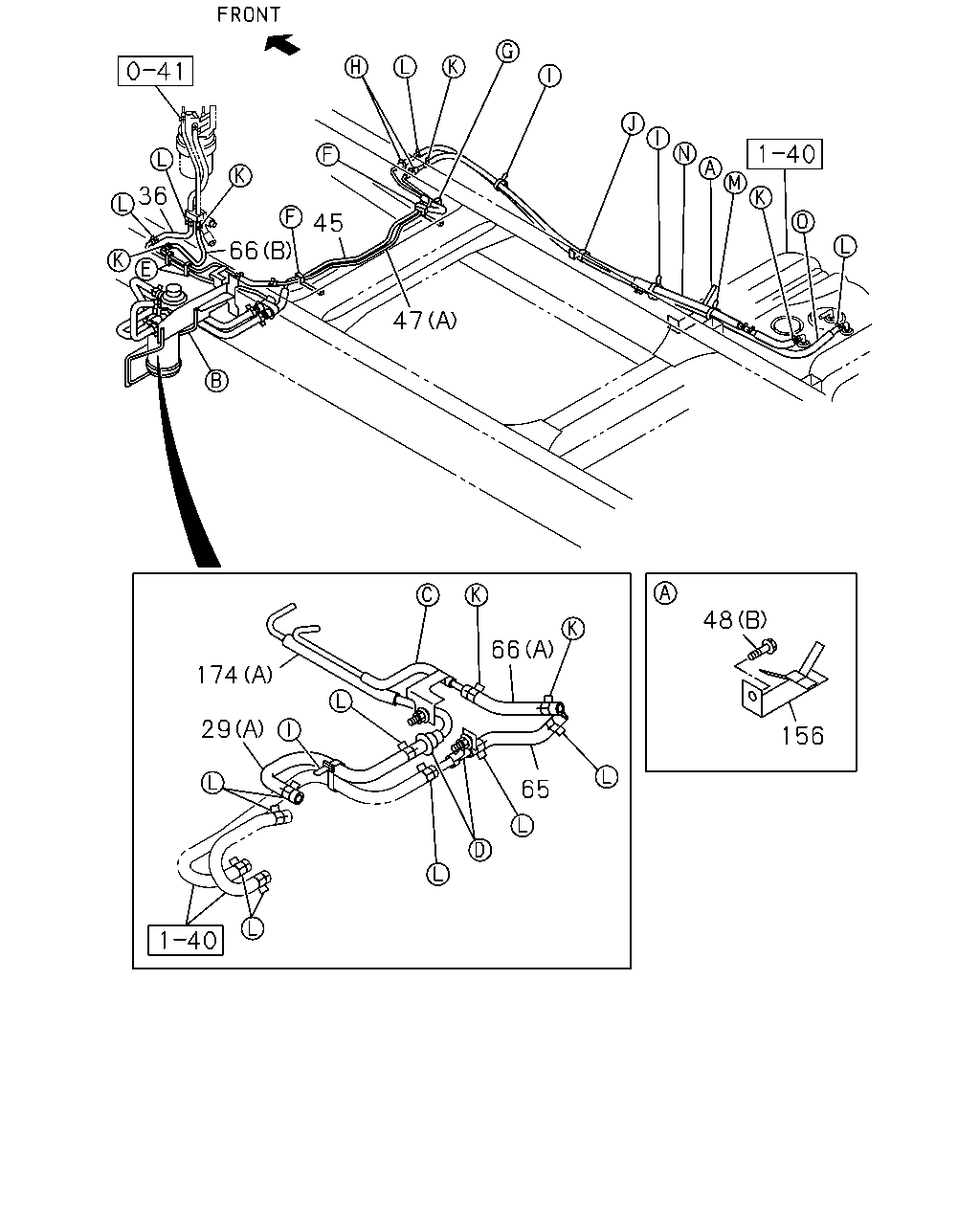

çizim 122141
36 45 66 47 48 66 174 29 156 65
BalonParca AdiParca NoAdetTipApplied Date A B
29 HOSE; FUEL
(B) 		8-98067-564-4 01 1 0804-1004 ●
29 HOSE; FUEL
(B) 		8-98067-564-4 01 1 1005- ● ●
29 HOSE; FUEL
(A) 		8-98099-502-0 01 1 0804-1004 ●
29 HOSE; FUEL
(A) 		8-98099-502-0 01 1 0907-1004 ●
29 HOSE; FUEL
(A) 		8-98099-502-0 01 1 1005- ● ●
36 HOSE; FUEL,FILTER TO TANK 8-98093-615-0 01 1 0804-1004 ●
36 HOSE; FUEL,FILTER TO TANK 8-98093-615-0 01 1 1005-1008 ● ●
36 HOSE; FUEL,FILTER TO TANK 8-98171-618-0 01 1 1009- ● ●
45 PIPE; FUEL,DELIVERY 8-98043-681-1 01 1 0804-1004 ●
45 PIPE; FUEL,DELIVERY 8-98043-681-1 01 1 1005- ● ●
47 PIPE; FUEL,RETURN
(C) 		8-98036-483-0 01 1 0804-1004 ●
47 PIPE; FUEL,RETURN
(C) 		8-98036-483-0 01 1 1005- ● ●
47 PIPE; FUEL,RETURN
(B) 		8-98041-618-1 01 1 0804-1004 ●
47 PIPE; FUEL,RETURN
(B) 		8-98041-618-1 01 1 1005- ● ●
47 PIPE; FUEL,RETURN
(A) 		8-98043-639-0 01 1 0804-1004 ●
47 PIPE; FUEL,RETURN
(A) 		8-98043-639-0 01 1 1005- ● ●
48 BOLT; BRKT
(A) M8X25 FLANGE SOU 		0-28650-825-0 02 1 0804-1004 ●
48 BOLT; BRKT
(A) M8X25 FLANGE SOU 		0-28650-825-0 02 1 1005- ● ●
48 BOLT; BRKT
(B) M10X30 FLANGE SOU 		0-28651-030-0 01 1 0804- ●
65 HOSE; FUEL,DELIVERY PIPE
L=140 SERVICED BY L=3000 		0-01259-300-0 01 1 0804-1004 ●
65 HOSE; FUEL,DELIVERY PIPE
L=140 SERVICED BY L=3000 		0-01259-300-0 01 1 1005- ● ●
66 HOSE; FUEL,RETURN PIPE
(A) L=150 SERVICED BY L=3000 		0-01855-300-0 01 1 0804-1004 ●
66 HOSE; FUEL,RETURN PIPE
(A) L=150 SERVICED BY L=3000 		0-01855-300-0 01 1 1005- ● ●
66 HOSE; FUEL,RETURN PIPE
(C) 		8-98067-567-2 01 1 0804-1004 ●
66 HOSE; FUEL,RETURN PIPE
(C) 		8-98067-567-2 01 1 1005- ● ●
66 HOSE; FUEL,RETURN PIPE
(B) 		8-98093-616-0 01 1 0804-1004 ●
66 HOSE; FUEL,RETURN PIPE
(B) 		8-98093-616-0 01 1 1005- ● ●
156 BRACKET; FUEL HOSE 8-98041-250-2 01 1 0804- ●
174 PIPE; FUEL,FEED,FRT
(A) 		8-98033-844-1 01 1 0804-1004 ●
174 PIPE; FUEL,FEED,FRT
(A) 		8-98033-844-1 01 1 1005- ● ●
174 PIPE; FUEL,FEED,FRT
(B) 		8-98041-616-0 01 1 0804-1004 ●
174 PIPE; FUEL,FEED,FRT
(B) 		8-98041-616-0 01 1 1005- ● ●

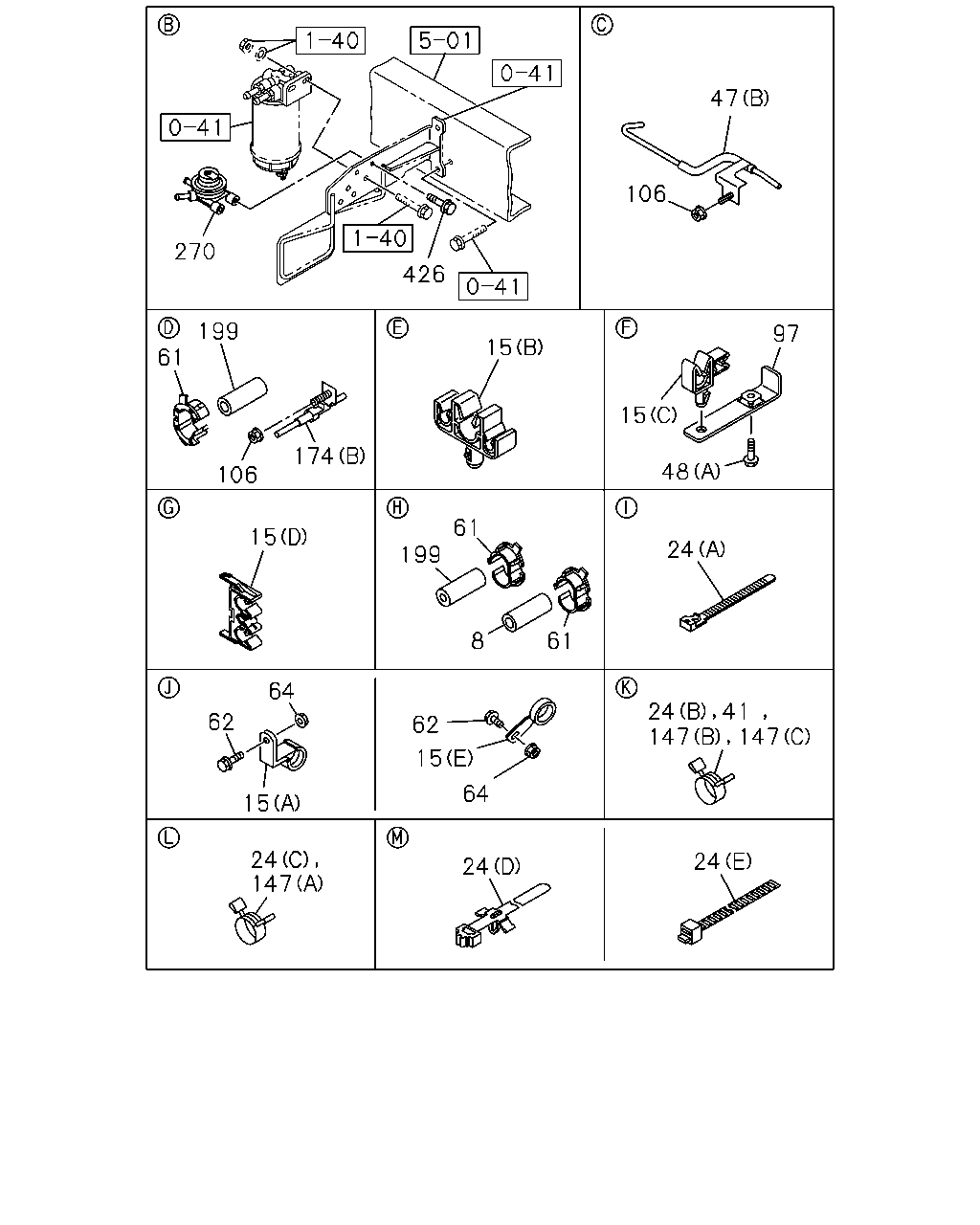

çizim 122144
270 426 106 47 199 61 106 174 15 97 15 48 15 199 61 61 8 24 41 147 147 24 62 15 64 15 64 62 24 147 24 24
BalonParca AdiParca NoAdetTipApplied Date A B
8 RUBBER; MTG
OD=17 L=50 SOU 		8-94157-054-1 01 1 0804-1004 ●
8 RUBBER; MTG
OD=17 L=50 SOU 		8-94157-054-1 01 1 1005- ● ●
15 CLIP; FUEL PIPE
(E) ID=28 L=60 		1-09700-585-1 01 1 1005- ●
15 CLIP; FUEL PIPE
(A) ID=29 H=50 L=45.5 		1-09701-027-0 01 1 0804-0804 ●
15 CLIP; FUEL PIPE
(A) ID=29 H=50 L=45.5 		1-09701-027-0 01 1 0805- ●
15 CLIP; FUEL PIPE
(A) ID=29 H=50 L=45.5 		1-09701-027-0 01 1 0805- ●
15 CLIP; FUEL PIPE
(C) ID=12 & 6.35 		8-97215-437-0 02 1 0804-1004 ●
15 CLIP; FUEL PIPE
(C) ID=12 & 6.35 		8-97215-437-0 02 1 1005- ● ●
15 CLIP; FUEL PIPE
(B) ID=12 & 6.35 & 4.76 		8-97202-954-1 02 1 0804-1004 ●
15 CLIP; FUEL PIPE
(B) ID=12 & 6.35 & 4.76 		8-97202-954-1 02 1 1005- ● ●
15 CLIP; FUEL PIPE
(D) ID=10X2 OR 12X2 & 6.35 		8-97326-157-1 01 1 0804-1004 ●
15 CLIP; FUEL PIPE
(D) ID=10X2 OR 12X2 & 6.35 		8-97326-157-1 01 1 1005- ● ●
24 CLIP; FUEL HOSE
(E) L=450 		1-09707-142-1 01 1 1005- ●
24 CLIP; FUEL HOSE
(D) L=170.3 		1-09987-182-0 01 1 0804-1004 ●
24 CLIP; FUEL HOSE
(D) L=170.3 		1-09987-182-0 01 1 1005- ● ●
24 CLIP; FUEL HOSE
(A) L=140 SOU 		5-09707-031-1 01 1 0804-1004 ●
24 CLIP; FUEL HOSE
(A) L=140 SOU 		5-09707-031-1 01 1 1005- ● ●
24 CLIP; FUEL HOSE
(A) L=140 SOU 		5-09707-031-1 02 1 0804-1004 ●
24 CLIP; FUEL HOSE
(A) L=140 SOU 		5-09707-031-1 02 1 1005- ● ●
24 CLIP; FUEL HOSE
(C) ID=16 SOU 		8-94238-568-0 04 1 0804-0911 ●
24 CLIP; FUEL HOSE
(C) ID=16 		8-98008-098-0 04 1 0912-1004 ●
24 CLIP; FUEL HOSE
(C) ID=16 		8-98008-098-0 04 1 1005- ● ●
24 CLIP; FUEL HOSE
(B) ID=12 		8-94238-610-0 02 1 0804-0911 ●
24 CLIP; FUEL HOSE
(B) ID=12 		8-98150-358-0 02 1 0912-1004 ●
24 CLIP; FUEL HOSE
(B) ID=12 		8-98150-358-0 02 1 1005- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
ID=12 		8-94238-610-0 02 1 0804-0911 ●
41 CLIP; FUEL PIPE,FUEL TANK
ID=12 		8-98150-358-0 02 1 0912-1004 ●
41 CLIP; FUEL PIPE,FUEL TANK
ID=12 		8-98150-358-0 02 1 1005- ● ●
47 PIPE; FUEL,RETURN
(C) 		8-98036-483-0 01 1 0804-1004 ●
47 PIPE; FUEL,RETURN
(C) 		8-98036-483-0 01 1 1005- ● ●
47 PIPE; FUEL,RETURN
(B) 		8-98041-618-1 01 1 0804-1004 ●
47 PIPE; FUEL,RETURN
(B) 		8-98041-618-1 01 1 1005- ● ●
47 PIPE; FUEL,RETURN
(A) 		8-98043-639-0 01 1 0804-1004 ●
47 PIPE; FUEL,RETURN
(A) 		8-98043-639-0 01 1 1005- ● ●
48 BOLT; BRKT
(A) M8X25 FLANGE SOU 		0-28650-825-0 02 1 0804-1004 ●
48 BOLT; BRKT
(A) M8X25 FLANGE SOU 		0-28650-825-0 02 1 1005- ● ●
48 BOLT; BRKT
(B) M10X30 FLANGE SOU 		0-28651-030-0 01 1 0804- ●
61 GROMMET; PIPE TO FRAME
ID=17 		8-94128-319-2 01 1 0804-1004 ●
61 GROMMET; PIPE TO FRAME
ID=17 		8-94128-319-2 01 1 1005- ● ●
61 GROMMET; PIPE TO FRAME
ID=17 		8-94128-319-2 02 1 0804-1004 ●
61 GROMMET; PIPE TO FRAME
ID=17 		8-94128-319-2 02 1 1005- ● ●
62 BOLT; CLIP FIX
M8X25 FLANGE SOU 		0-28650-825-0 01 1 0804-0804 ●
62 BOLT; CLIP FIX
M8X25 FLANGE SOU 		0-28650-825-0 01 1 0805-1004 ●
62 BOLT; CLIP FIX
M8X25 FLANGE SOU 		0-28650-825-0 01 1 0805-1004 ●
62 BOLT; CLIP FIX
M8X25 FLANGE SOU 		0-28650-825-0 01 1 1005- ● ●
62 BOLT; CLIP FIX
M8X25 FLANGE SOU 		0-28650-825-0 01 1 1005- ●
64 NUT; CLIP
M8 FLANGE SOU 		0-91180-108-0 01 1 0804-0804 ●
64 NUT; CLIP
M8 FLANGE SOU 		0-91180-108-0 01 1 0805-1004 ●
64 NUT; CLIP
M8 FLANGE SOU 		0-91180-108-0 01 1 0805-1004 ●
64 NUT; CLIP
M8 FLANGE SOU 		0-91180-108-0 01 1 1005- ● ●
64 NUT; CLIP
M8 FLANGE SOU 		0-91180-108-0 01 1 1005- ●
97 BRACKET; CLIP 8-98041-203-0 02 1 0804-1004 ●
97 BRACKET; CLIP 8-98041-203-0 02 1 1005- ● ●
106 NUT; FUEL PIPE
M10 FLANGE SOU 		0-91180-110-0 01 1 0804-1004 ●
106 NUT; FUEL PIPE
M10 FLANGE SOU 		0-91180-110-0 01 1 0804-1004 ●
106 NUT; FUEL PIPE
M10 FLANGE SOU 		0-91180-110-0 01 1 1005- ● ●
106 NUT; FUEL PIPE
M10 FLANGE SOU 		0-91180-110-0 01 1 1005- ● ●
147 CLIP; FUEL PIPE TO HOSE
(A) ID=16 		8-98008-098-0 02 1 0912-1004 ●
147 CLIP; FUEL PIPE TO HOSE
(A) ID=16 		8-98008-098-0 02 1 0912-1004 ●
147 CLIP; FUEL PIPE TO HOSE
(A) ID=16 		8-98008-098-0 02 1 0912-1004 ●
147 CLIP; FUEL PIPE TO HOSE
(A) ID=16 		8-98008-098-0 02 1 1005- ● ●
147 CLIP; FUEL PIPE TO HOSE
(A) ID=16 		8-98008-098-0 02 1 1005- ● ●
147 CLIP; FUEL PIPE TO HOSE
(A) ID=16 		8-98008-098-0 02 1 1005- ● ●
147 CLIP; FUEL PIPE TO HOSE
(A) ID=16 SOU 		8-94238-568-0 04 1 0804-0911 ●
147 CLIP; FUEL PIPE TO HOSE
(A) ID=16 SOU 		8-94238-568-0 02 1 0912-1004 ●
147 CLIP; FUEL PIPE TO HOSE
(A) ID=16 SOU 		8-94238-568-0 02 1 1005- ● ●
147 CLIP; FUEL PIPE TO HOSE
(A) ID=16 SOU 		8-94238-568-0 02 1 0804-0906 ●
147 CLIP; FUEL PIPE TO HOSE
(A) ID=16 SOU 		8-94238-568-0 02 1 0804-0906 ●
147 CLIP; FUEL PIPE TO HOSE
(A) ID=16 SOU 		8-94238-568-0 02 1 0804-0906 ●
147 CLIP; FUEL PIPE TO HOSE
(A) ID=16 SOU 		8-94238-568-0 02 1 0907-0911 ●
147 CLIP; FUEL PIPE TO HOSE
(A) ID=16 SOU 		8-94238-568-0 02 1 0907-0911 ●
147 CLIP; FUEL PIPE TO HOSE
(A) ID=16 SOU 		8-94238-568-0 02 1 0907-0911 ●
147 CLIP; FUEL PIPE TO HOSE
(A) ID=16 SOU 		8-94238-568-0 02 1 0907-0911 ●
147 CLIP; FUEL PIPE TO HOSE
(A) ID=16 		8-98008-098-0 04 1 0912-1004 ●
147 CLIP; FUEL PIPE TO HOSE
(A) ID=16 		8-98008-098-0 04 1 1005- ● ●
147 CLIP; FUEL PIPE TO HOSE
(C) ID=13 		8-94238-571-0 01 1 0804-0911 ●
147 CLIP; FUEL PIPE TO HOSE
(C) ID=13 		8-98150-357-0 01 1 0912-1004 ●
147 CLIP; FUEL PIPE TO HOSE
(C) ID=13 		8-98150-357-0 01 1 1005- ● ●
147 CLIP; FUEL PIPE TO HOSE
(B) ID=12 		8-94238-610-0 01 1 0804-0911 ●
147 CLIP; FUEL PIPE TO HOSE
(B) ID=12 		8-98150-358-0 01 1 0912-1004 ●
147 CLIP; FUEL PIPE TO HOSE
(B) ID=12 		8-98150-358-0 01 1 1005- ● ●
174 PIPE; FUEL,FEED,FRT
(A) 		8-98033-844-1 01 1 0804-1004 ●
174 PIPE; FUEL,FEED,FRT
(A) 		8-98033-844-1 01 1 1005- ● ●
174 PIPE; FUEL,FEED,FRT
(B) 		8-98041-616-0 01 1 0804-1004 ●
174 PIPE; FUEL,FEED,FRT
(B) 		8-98041-616-0 01 1 1005- ● ●
199 PROTECTOR; FUEL PIPE
OD=15 L=50 		8-97077-629-0 01 1 0804-1004 ●
199 PROTECTOR; FUEL PIPE
OD=15 L=50 		8-97077-629-0 01 1 0804-1004 ●
199 PROTECTOR; FUEL PIPE
OD=15 L=50 		8-97077-629-0 01 1 1005- ● ●
199 PROTECTOR; FUEL PIPE
OD=15 L=50 		8-97077-629-0 01 1 1005- ● ●
270 PUMP ASM; FUEL 8-98018-187-2 01 1 0804-1004 ●
270 PUMP ASM; FUEL 8-98018-187-4 01 1 1005-1408 ● ●
270 PUMP ASM; FUEL 8-97948-892-0 01 1 1409- ● ●
426 BOLT; FUEL PUMP
M8X20 FLANGE 		0-28650-820-0 02 1 0804-0804 ●
426 BOLT; FUEL PUMP
M8X20 FLANGE 		0-28650-820-0 02 1 0805-1004 ●
426 BOLT; FUEL PUMP
M8X20 FLANGE 		0-28650-820-0 02 1 1005- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
