Isuzu WW
▶
TRUCKS
▶
NPS
▶
51173 - NPS(SOUTH AFRICA)
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-10 - RADIATOR
▶
1-10 — RADIATOR
(#32478) — 83 parça
Tümü
A - NPS5SN
B - NPS5WN
◀

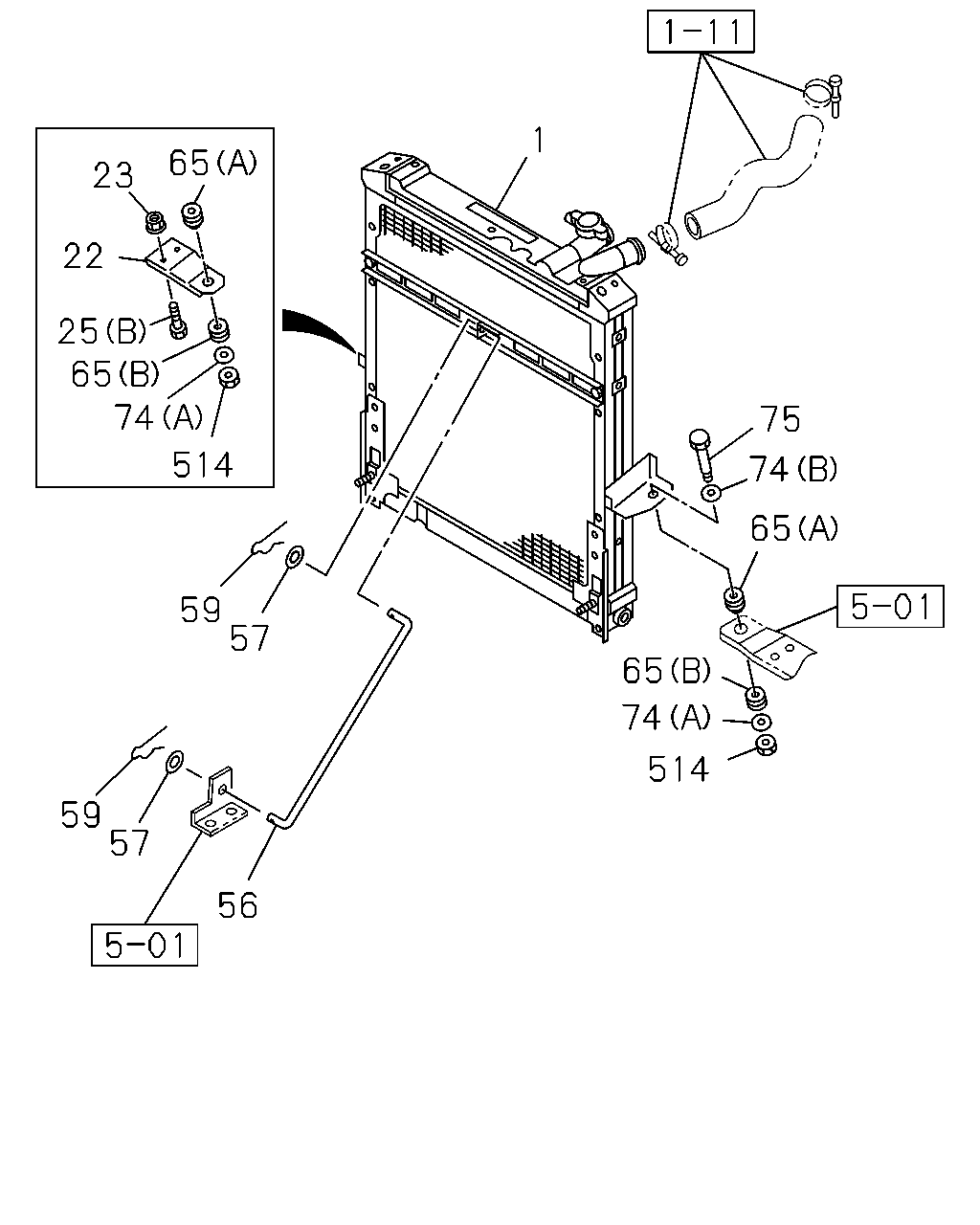

[110A] NO.1 (31 parça)

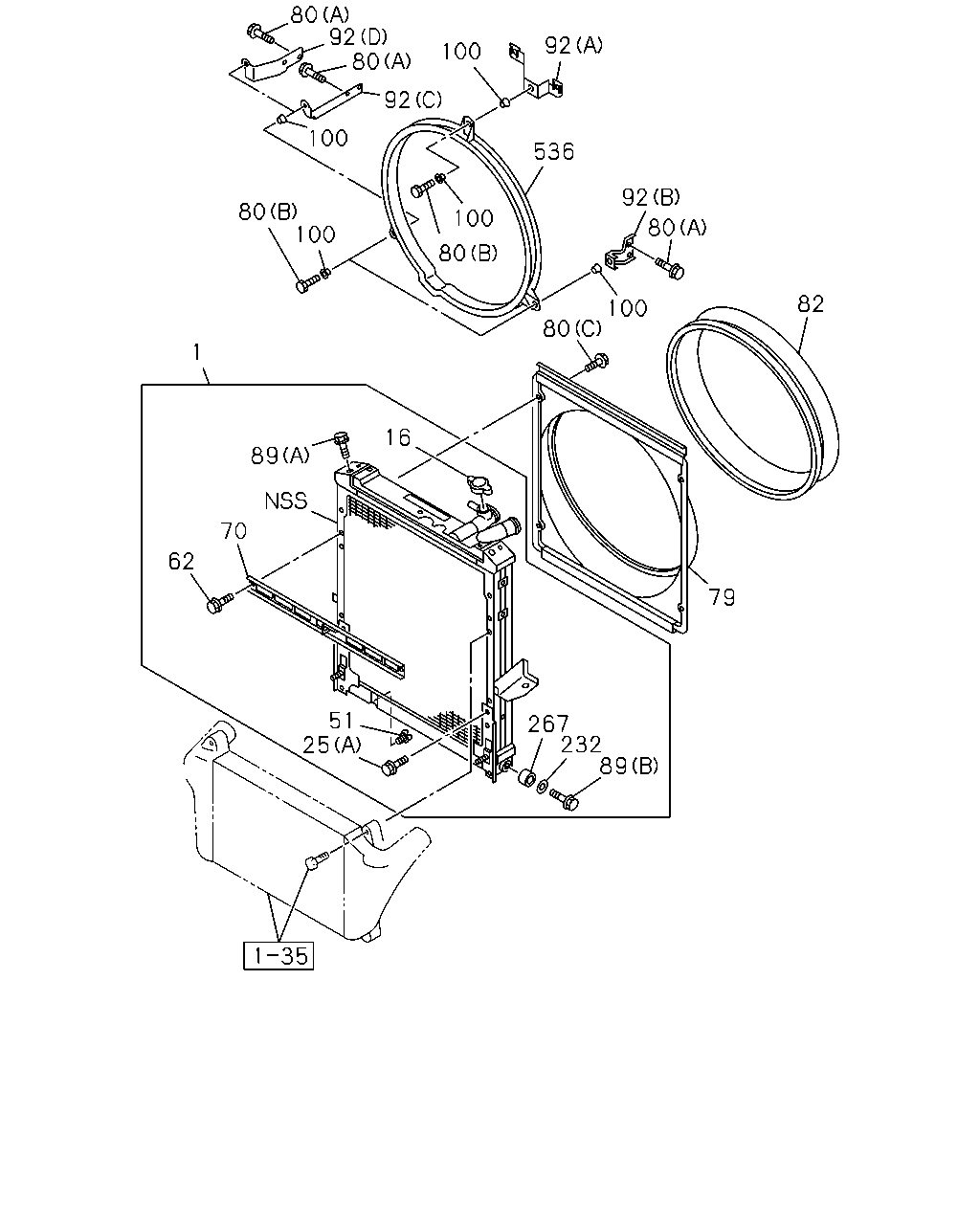

[110A] NO.2 (52 parça)
▶
65
23
22
25
65
74
514
59
57
59
57
56
65
74
514
65
74
75
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
RADIATOR ASM
8-98070-467-0
01
1
0804-1004
●
1
RADIATOR ASM
8-98070-467-0
01
1
1005-1308
●
●
1
RADIATOR ASM
8-98245-663-1
01
1
1309-1410
●
●
1
RADIATOR ASM
8-98259-940-0
01
1
1411-
●
●
22
BRACKET; RAD MTG
8-97074-093-0
01
1
0804-1004
●
22
BRACKET; RAD MTG
8-97074-093-0
01
1
1005-
●
●
23
NUT; RAD MTG
M10 FLANGE SOU
0-91180-210-0
02
1
0804-0909
●
23
NUT; RAD MTG
M10 FLANGE SOU
0-91180-110-0
02
1
0910-1004
●
23
NUT; RAD MTG
M10 FLANGE SOU
0-91180-110-0
02
1
1005-
●
●
25
BOLT; BRKT
(A) M6X12 FLANGE SOU
0-28050-612-0
04
1
0804-1004
●
25
BOLT; BRKT
(A) M6X12 FLANGE SOU
0-28050-612-0
04
1
1005-
●
●
25
BOLT; BRKT
(B) M10X30 FLANGE SOU
0-28651-030-0
02
1
0804-1004
●
25
BOLT; BRKT
(B) M10X30 FLANGE SOU
0-28651-030-0
02
1
1005-
●
●
56
STAY; RAD
8-98101-270-0
01
1
0804-1004
●
56
STAY; RAD
8-98101-270-0
01
1
1005-
●
●
57
WASHER; PL,STAY
ID=10.5 SOU
0-91610-510-0
02
1
0804-1004
●
57
WASHER; PL,STAY
ID=10.5 SOU
0-91610-510-0
02
1
1005-
●
●
59
PIN; SNAP,STAY
L=32.6
8-97359-052-0
02
1
0804-1004
●
59
PIN; SNAP,STAY
L=32.6
8-97359-052-0
02
1
1005-
●
●
65
INSULATOR; RAD
(A)
8-94249-346-0
02
1
0804-1004
●
65
INSULATOR; RAD
(A)
8-94249-346-0
02
1
1005-
●
●
65
INSULATOR; RAD
(B)
8-94249-347-0
02
1
0804-1004
●
65
INSULATOR; RAD
(B)
8-94249-347-0
02
1
1005-
●
●
74
WASHER; PL,CUSHION RUBBER
(A) ID=8.5 OD=36
8-97359-049-1
02
1
0804-1004
●
74
WASHER; PL,CUSHION RUBBER
(A) ID=8.5 OD=36
8-97359-049-1
02
1
1005-
●
●
74
WASHER; PL,CUSHION RUBBER
(B) ID=10.5
0-91610-710-0
01
1
0804-1004
●
74
WASHER; PL,CUSHION RUBBER
(B) ID=10.5
0-91610-710-0
01
1
1005-
●
●
75
BOLT; CUSHION RUBBER,RAD MTG
M8X63 SOU
8-94249-446-0
01
1
0804-1004
●
75
BOLT; CUSHION RUBBER,RAD MTG
M8X63 SOU
8-94249-446-0
01
1
1005-
●
●
514
NUT; RAD
M8 FLANGE SOU
0-91180-108-0
02
1
0804-1004
●
514
NUT; RAD
M8 FLANGE SOU
0-91180-108-0
02
1
1005-
●
●
80
92
80
92
100
100
80
1
16
89
70
62
25
51
267
232
89
79
82
80
100
80
92
536
100
80
100
92
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
RADIATOR ASM
8-98070-467-0
01
1
0804-1004
●
1
RADIATOR ASM
8-98070-467-0
01
1
1005-1308
●
●
1
RADIATOR ASM
8-98245-663-1
01
1
1309-1410
●
●
1
RADIATOR ASM
8-98259-940-0
01
1
1411-
●
●
16
CAP; RAD
SOU
8-97239-187-0
01
1
0804-1004
●
16
CAP; RAD
SOU
8-97239-187-0
01
1
1005-
●
●
25
BOLT; BRKT
(A) M6X12 FLANGE SOU
0-28050-612-0
04
1
0804-1004
●
25
BOLT; BRKT
(A) M6X12 FLANGE SOU
0-28050-612-0
04
1
1005-
●
●
25
BOLT; BRKT
(B) M10X30 FLANGE SOU
0-28651-030-0
02
1
0804-1004
●
25
BOLT; BRKT
(B) M10X30 FLANGE SOU
0-28651-030-0
02
1
1005-
●
●
51
PLUG; DRAIN
W/GASKET SOU
8-97171-437-0
01
1
0804-1004
●
51
PLUG; DRAIN
W/GASKET SOU
8-97171-437-0
01
1
1005-
●
●
62
BOLT; STAY
M8X12 FLANGE
0-28050-812-0
02
1
0804-1004
●
62
BOLT; STAY
M8X12 FLANGE
0-28050-812-0
02
1
1005-
●
●
70
STAY; RAD
8-98034-644-0
01
1
0804-1004
●
70
STAY; RAD
8-98034-644-0
01
1
1005-
●
●
79
GUIDE; FAN,RAD
8-98004-326-0
01
1
0804-1004
●
79
GUIDE; FAN,RAD
8-98004-326-0
01
1
1005-1308
●
●
79
GUIDE; FAN,RAD
8-98245-715-0
01
1
1309-
●
●
80
BOLT; FAN GUIDE
EXC. GENERATOR 24V80A(7YN) (A) M10X20 FLANGE
0-28151-020-0
02
1
0807-1004
●
80
BOLT; FAN GUIDE
EXC. GENERATOR 24V80A(7YN) (A) M10X20 FLANGE
0-28151-020-0
02
1
1005-
●
●
80
BOLT; FAN GUIDE
(A) M10X20 FLANGE
0-28151-020-0
02
1
0804-0806
●
80
BOLT; FAN GUIDE
GENERATOR 24V80A(7YN) (A) M10X20 FLANGE
0-28151-020-0
04
1
0807-1004
●
80
BOLT; FAN GUIDE
GENERATOR 24V80A(7YN) (A) M10X20 FLANGE
0-28151-020-0
04
1
1005-
●
●
80
BOLT; FAN GUIDE
(B) M8X30 FLANGE
0-28650-830-0
03
1
0804-1004
●
80
BOLT; FAN GUIDE
(B) M8X30 FLANGE
0-28650-830-0
03
1
1005-
●
●
80
BOLT; FAN GUIDE
(C) M6X12
8-98039-672-0
02
1
0804-1004
●
80
BOLT; FAN GUIDE
(C) M6X12
8-98039-672-0
02
1
1005-1401
●
●
80
BOLT; FAN GUIDE
(C) M6X12
8-98039-672-0
04
1
1402-
●
●
82
COVER; FAN,RAD
8-98006-478-0
01
1
0804-1004
●
82
COVER; FAN,RAD
8-98006-478-0
01
1
1005-
●
●
89
BOLT
(A) M8X12 FLANGE
0-28050-812-0
02
1
0804-1004
●
89
BOLT
(A) M8X12 FLANGE
0-28050-812-0
02
1
1005-
●
●
89
BOLT
(B) M8X25 W/PL WASHER
1-21469-153-0
02
1
0804-1004
●
89
BOLT
(B) M8X25 W/PL WASHER
1-21469-153-0
02
1
1005-
●
●
92
BRACKET; FAN GUIDE
(A)
8-97382-827-2
01
1
0804-1004
●
92
BRACKET; FAN GUIDE
(A)
8-97382-827-2
01
1
1005-
●
●
92
BRACKET; FAN GUIDE
(B)
8-97386-233-0
01
1
0804-1004
●
92
BRACKET; FAN GUIDE
(B)
8-97386-233-0
01
1
1005-
●
●
92
BRACKET; FAN GUIDE
GENERATOR 24V80A(7YN) (D)
8-98032-526-0
01
1
0804-1004
●
92
BRACKET; FAN GUIDE
GENERATOR 24V80A(7YN) (D)
8-98032-526-0
01
1
1005-
●
●
92
BRACKET; FAN GUIDE
EXC. GENERATOR 24V80A(7YN) (C)
8-97350-997-0
01
1
0804-1004
●
92
BRACKET; FAN GUIDE
EXC. GENERATOR 24V80A(7YN) (C)
8-97350-997-0
01
1
1005-
●
●
100
RUBBER; MTG
1-09337-027-0
06
1
0804-1004
●
100
RUBBER; MTG
1-09337-027-0
06
1
1005-
●
●
232
COLLAR; DIST,CUSHION RUBBER
1-87410-723-0
02
1
0804-1004
●
232
COLLAR; DIST,CUSHION RUBBER
1-87410-723-0
02
1
1005-1308
●
●
232
COLLAR; DIST,CUSHION RUBBER
8-98141-232-0
02
1
1309-
●
●
267
RUBBER; CUSHION
1-21467-023-0
02
1
0804-1004
●
267
RUBBER; CUSHION
1-21467-023-0
02
1
1005-
●
●
536
SHROUD; FAN
8-97350-995-0
01
1
0804-1004
●
536
SHROUD; FAN
8-97350-995-0
01
1
1005-
●
●
