51173 - NPS(SOUTH AFRICA)
▶
0 - Engine, Emission, Engine Electrical
▶
0-57 - EMISSION PIPING
▶
0-57 — EMISSION PIPING
(#32470) — 17 parça
◀

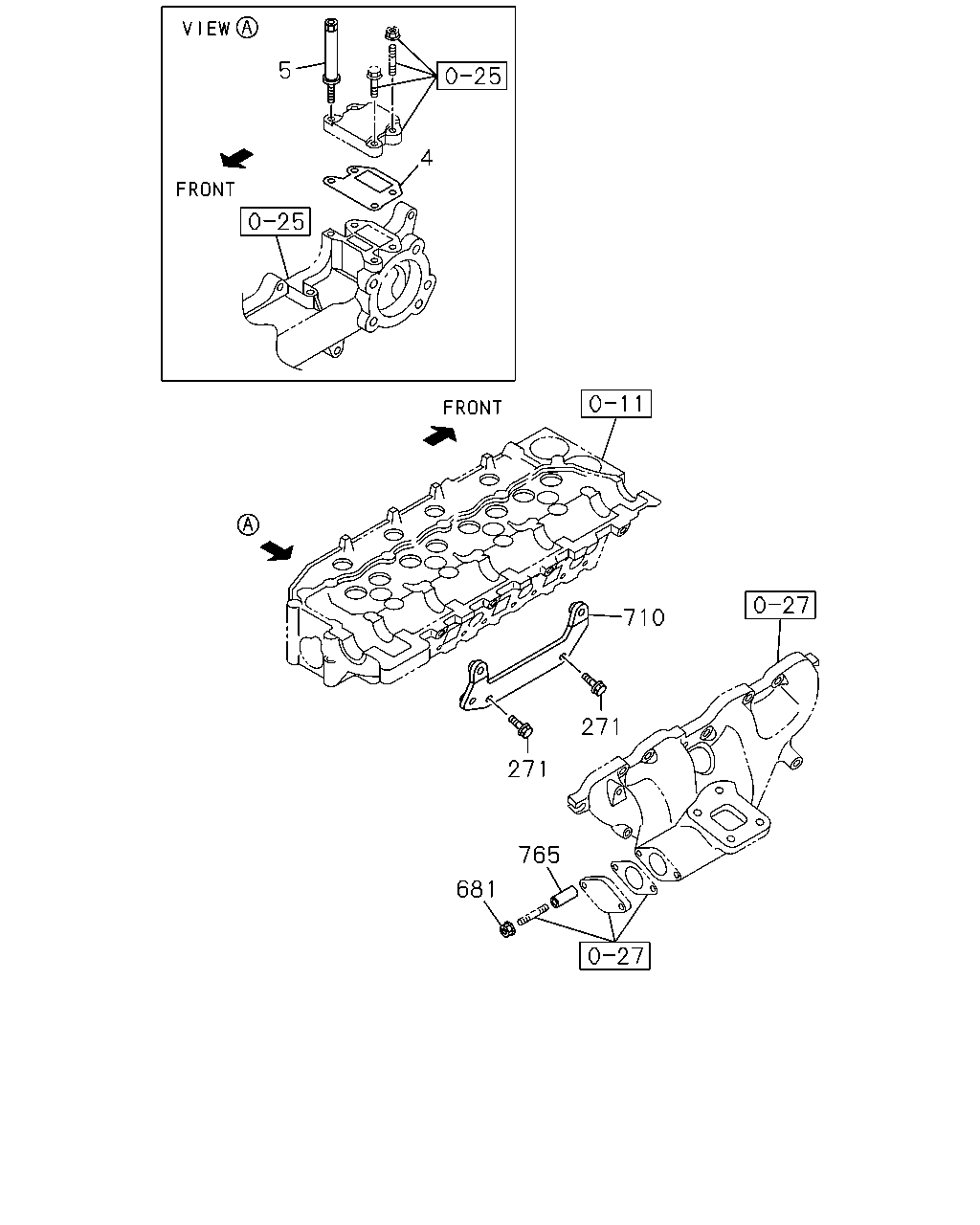

[057A] NO.1 (6 parça)
[057A] NO.2 (11 parça)
▶
5
4
710
271
271
765
681
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
4
GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE).
8-97306-040-0
01
1
0804-
5
ADAPTER ASM
8-97377-804-0
01
1
0804-
271
BOLT; BRKT
M12X50 FLANGE
0-28151-250-0
02
1
0804-
681
NUT; EGR PIPE
M8 FLANGE SOU
0-91180-208-0
02
1
0804-
710
BRACKET; EGR COOLER
8-98079-255-1
01
1
0804-
765
SPACER; EGR PIPE
8-94225-562-0
02
1
0804-
93
200
98
485
97
97
73
110
303
486
73
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
73
CLIP; VAC HOSE
(B) ID=13.2 & 14.5
8-94475-649-0
01
1
0811-0905
73
CLIP; VAC HOSE
(A) L=350
8-97373-487-0
02
1
0804-
93
HOSE ASM
8-98105-295-1
01
1
0906-
97
HOSE; RUBBER
(B)
8-98113-964-0
01
1
0804-
97
HOSE; RUBBER
(A)
8-98113-965-0
01
1
0804-
98
VALVE; DELAY
8-94110-978-0
01
1
0804-
110
CLIP; VAC HOSE
ID=13.2 & 14.5
8-94475-649-0
01
1
0906-
200
HOSE; VAC
8-98105-295-1
01
1
0804-0905
303
BRACKET; VAC SW
8-98097-124-0
01
1
0804-
485
BOLT; VSV
M5X10 W/LK+PL WASHER
0-36230-510-0
01
1
0804-
486
NUT; BRKT
M8 FLANGE SOU
0-91180-108-0
01
1
0804-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
