Isuzu WW
▶
TRUCKS
▶
NPS
▶
51173 - NPS(SOUTH AFRICA)
▶
0 - Engine, Emission, Engine Electrical
▶
0-22 - ENGINE MOUNTING
▶

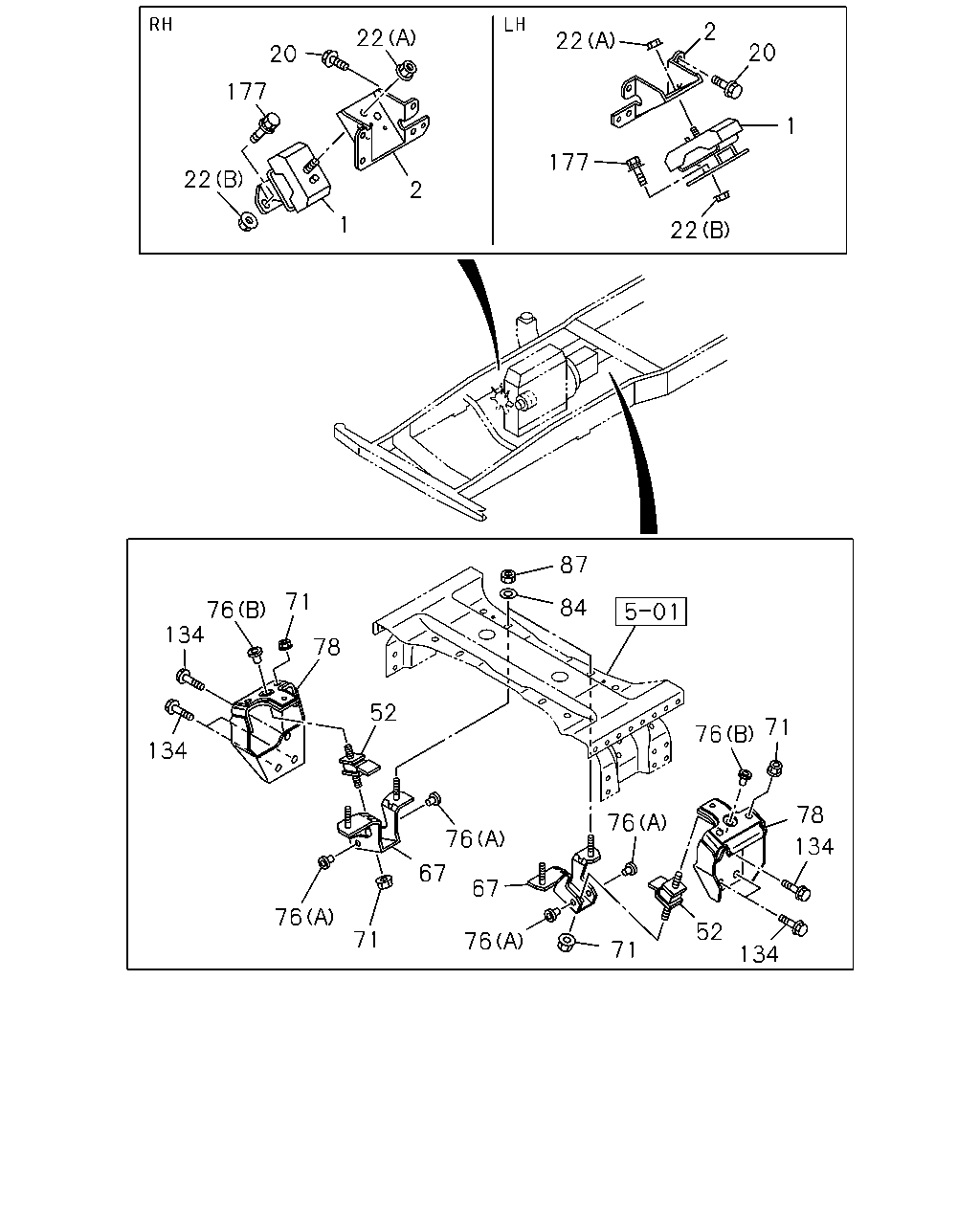

0-22 — ENGINE MOUNTING
(#32452) — 20 parça
2
22
22
20
20
177
1
177
22
2
1
22
87
71
84
76
134
78
52
71
76
134
78
76
76
134
67
67
76
52
71
76
71
134
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
RUBBER; ENG FOOT,FRT
8-97387-250-2
01
1
0804-1112
1
RUBBER; ENG FOOT,FRT
8-98203-633-0
01
1
1201-
1
RUBBER; ENG FOOT,FRT
8-98061-232-0
01
1
0804-1112
1
RUBBER; ENG FOOT,FRT
8-98203-634-0
01
1
1201-
2
FOOT; ENG
8-97228-669-2
02
1
0804-
20
BOLT; ENG FOOT
M10X20 FLANGE
0-28161-020-0
08
1
0804-
22
NUT; CUSHION RUBBER TO BRKT
(A) M12 FLANGE
0-91180-112-0
02
1
0804-
22
NUT; CUSHION RUBBER TO BRKT
(B) M10 FLANGE SOU
0-91180-210-0
04
1
0804-
52
RUBBER; CUSHION,ENG MTG,RR
8-97176-994-0
02
1
0804-
67
BRACKET; SUPPORT,ENG MTG,RR
8-97303-863-0
01
1
0804-
67
BRACKET; SUPPORT,ENG MTG,RR
8-97303-864-0
01
1
0804-
71
NUT; SUPPORT RUBBER TO BRKT
M10 FLANGE SOU
0-91180-110-0
04
1
0804-
76
STOPPER; ENG MTG RUBBER
(B)
8-94111-904-0
02
1
0804-
76
STOPPER; ENG MTG RUBBER
(A)
8-97039-947-1
04
1
0804-
78
BRACKET; ENG MTG,RR
8-98098-900-0
01
1
0804-
78
BRACKET; ENG MTG,RR
8-98098-901-0
01
1
0804-
84
WASHER; PL,ENG MTG RR TO FRAME
ID=10.5 OD=32
0-91614-810-0
04
1
0804-
87
NUT; ENG MTG RR
M10 FLANGE SOU
0-91180-110-0
04
1
0804-
134
BOLT; SUPPORT BRKT
M12X25 FLANGE
0-28751-225-0
06
1
0804-
177
BOLT; BRKT TO CUSHION RUBBER
M10X37.5
8-94468-733-1
04
1
0804-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
