Isuzu WW
▶
BUSES
▶
MR
▶
10663 - MR
▶
0 - Engine, Emission, Engine Electrical
▶
0-22 - ENGINE MOUNTING
▶

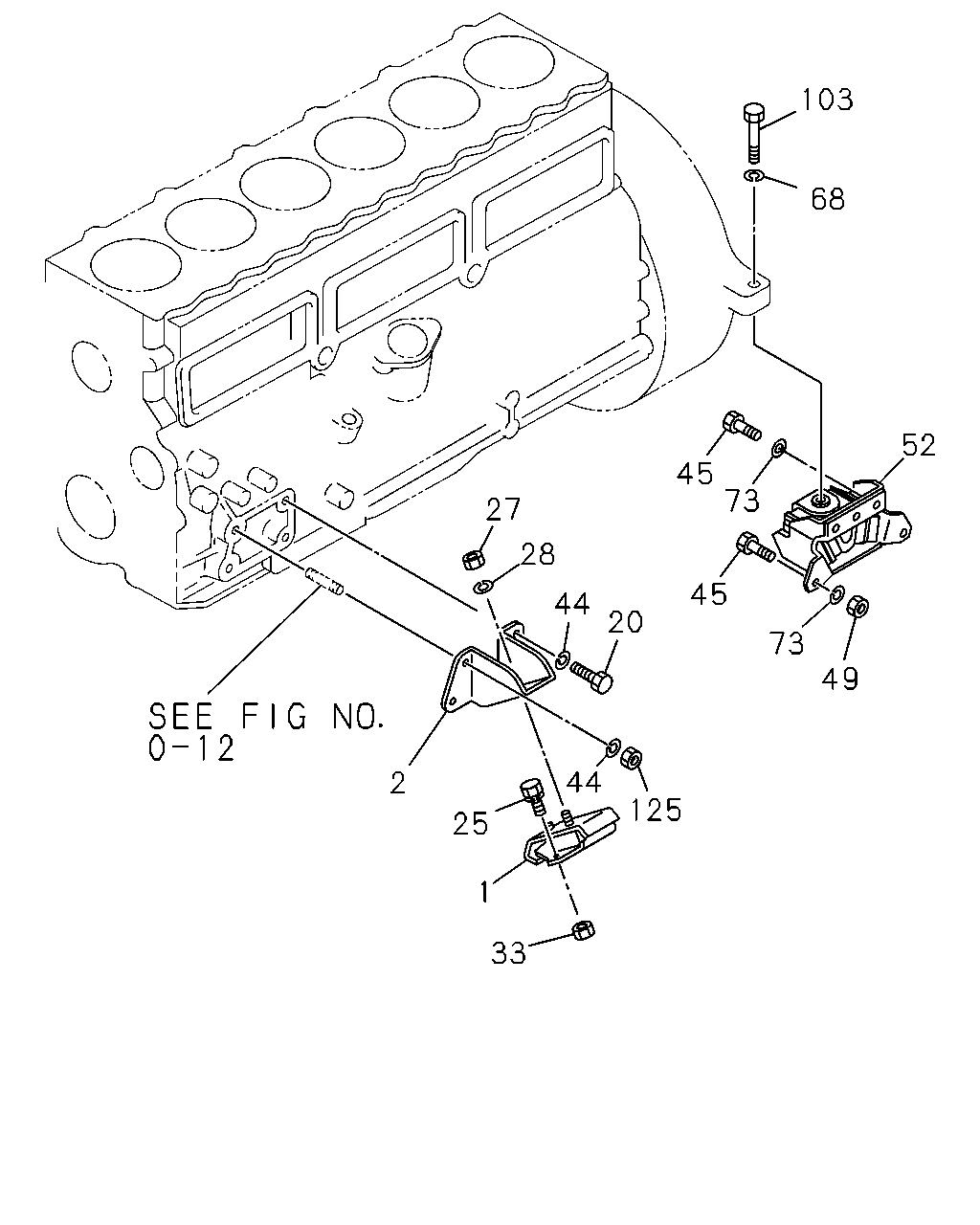

0-22 — ENGINE MOUNTING
(#3245) — 21 parça
Tümü
A - 6BG1 STD ENG
B - 6BD1 STD ENG
103
68
52
45
73
27
28
45
44
20
73
49
2
44
125
25
1
33
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
RUBBER; ENG FOOT,FRT
1-53215-041-1
02
1
9101-
●
●
2
FOOT; ENG
1-11771-179-0
01
1
9101-
●
●
2
FOOT; ENG
1-11771-178-0
01
1
9101-
●
●
20
BOLT; ENG FOOT
9-02061-022-0
07
1
9101-9707
●
●
20
BOLT; ENG FOOT
M10X25 FLANGE
0-28691-025-0
07
1
9708-
●
●
25
BOLT; CUSHION RUBBER TO BRKT
0-50041-025-0
04
1
9101-
●
●
27
NUT; CUSHION RUBBER TO ENG FOOT
9-99110-412-0
02
1
9101-9307
●
●
27
NUT; CUSHION RUBBER TO ENG FOOT
9-99110-512-0
02
1
9308-
●
●
28
WASHER; LK,SUPPORT BRKT
9-09150-812-0
02
1
9101-
●
●
33
NUT; CUSHION RUBBER TO BRKT
9-09110-510-0
04
1
9101-
●
●
44
WASHER; LK,ENG FOOT
9-09150-510-0
08
1
9101-9707
●
●
44
WASHER; LK,ENG FOOT
ID=10.2
9-09150-510-0
01
1
9710-
●
●
45
BOLT; CUSHION RUBBER TO FRAME
M12X35
9-92061-235-0
04
1
9101-
●
●
45
BOLT; CUSHION RUBBER TO FRAME
M12X40
9-92061-240-0
04
1
9101-
●
●
49
NUT; CUSHION RUBBER TO FRAME
9-99110-512-0
08
1
9101-
●
●
52
RUBBER; CUSHION,ENG MTG,RR
1-53225-141-1
02
1
9101-9812
●
●
52
RUBBER; CUSHION,ENG MTG,RR
1-53225-228-1
02
1
9901-
●
●
68
WASHER; LK,CUSHION RUBBER
ID=18.2
9-09150-518-0
02
1
9101-
●
●
73
WASHER; LK,CUSHION RUBBER TO FRAME
9-09150-612-0
08
1
9101-
●
●
103
BOLT; CUSHION RUBBER RR,LWR
0-16806-865-0
02
1
9101-
●
●
125
NUT; ENG FOOT
9-09110-510-0
01
1
9101-
●
●
