Isuzu WW
▶
TRUCKS
▶
NPS
▶
51173 - NPS(SOUTH AFRICA)
▶
0 - Engine, Emission, Engine Electrical
▶
0-10 - CYLINDER HEAD COVER
▶

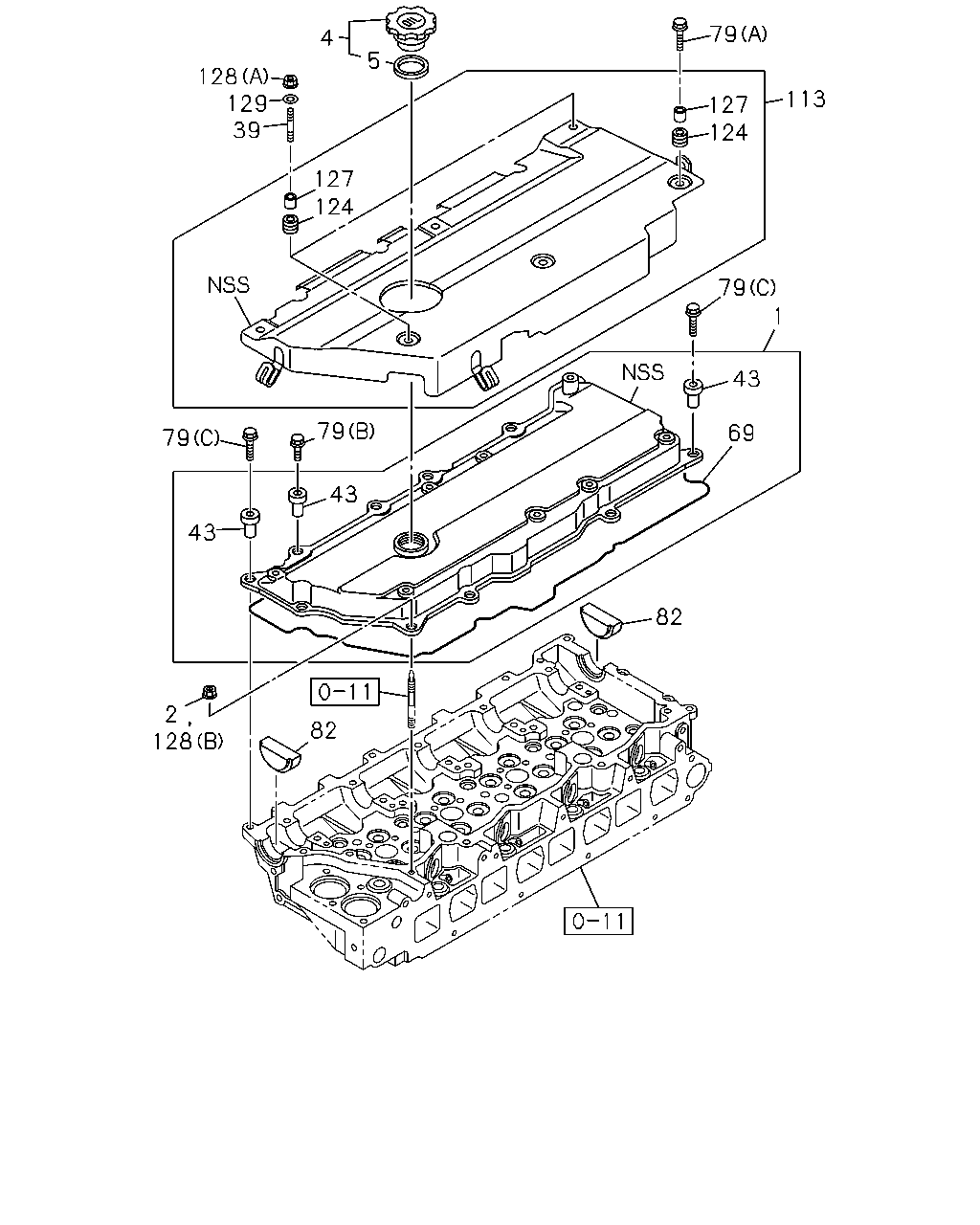

0-10 — CYLINDER HEAD COVER
(#32445) — 18 parça
4
5
128
39
129
127
124
79
79
43
43
2
128
82
69
79
43
124
127
79
113
82
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
COVER; CYL HD
8-97331-361-2
01
1
0804-
2
NUT; COVER,HD
M8 FLANGE SOU
0-91180-108-0
02
1
0804-0811
4
CAP; OIL FILLER
8-94133-207-5
01
1
0804-
5
GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=32 OD=40 SOU
8-94123-623-1
01
1
0804-
39
STUD; COVER,HD
M6X25 L=34
0-41010-625-0
02
1
0804-0906
43
RUBBER; MTG,HD COVER,OUTER
OD=22
8-94395-684-0
11
1
0804-
69
GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97331-359-1
01
1
0804-
79
BOLT; COVER
(B) M8X35 FLANGE SOU
0-28650-835-0
02
1
0804-
79
BOLT; COVER
(C) M8X65 FLANGE
1-09044-072-1
07
1
0804-
79
BOLT; COVER
(A) M6X20
8-97127-607-0
04
1
0804-0906
82
PLUG; CYL HD COVER
8-94399-605-0
02
1
0804-1005
82
PLUG; CYL HD COVER
8-98163-813-0
02
1
1006-
113
COVER; CYL HEAD COVER
8-97354-803-3
01
1
0804-0906
124
RUBBER; MTG,COVER
8-97226-908-0
06
1
0804-0906
127
RETAINER; COVER
8-97092-314-0
06
1
0804-0906
128
NUT; COVER,CYL HEAD COVER
(A) M6 FLANGE SOU
0-91180-106-0
02
1
0804-0906
128
NUT; COVER,CYL HEAD COVER
(B) M8 FLANGE SOU
0-91180-108-0
02
1
0804-
129
WASHER; COVER,CYL HEAD COVER
ID=6.4 OD=18 SOU
0-91610-706-0
02
1
0804-0906
