◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 51126 - NKR(IRAN) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-43 - SUN VISOR AND ASSIST GRIP ▶
7-43 — SUN VISOR AND ASSIST GRIP (#32442) — 57 parça
çizim 119572
30 31 128 128 152 151 128 138 30 31 1 15
BalonParca AdiParca NoAdetTipApplied Date
1 BOARD; HEADER SHELF
TRAY ROOF HEAD<7EJ> LIGHT GRAY 		8-97994-818-1 01 1 0609-
15 FASTENER; HEADER SHELF BOARD
TRAY ROOF HEAD<7EJ> LIGHT GRAY, D8X15 PUSH RIVET 		8-97892-693-0 02 1 0609-
30 BRACKET ASM; HEADER SHELF
TRAY ROOF HEAD<7EJ> (A) 		8-97859-388-4 01 1 0609-
30 BRACKET ASM; HEADER SHELF
TRAY ROOF HEAD<7EJ> (B) 		8-97856-798-3 01 1 0609-
30 BRACKET ASM; HEADER SHELF
TRAY ROOF HEAD<7EJ> (B) 		8-97856-797-3 01 1 0609-
31 SCREW; BRKT,HEADER SHELF
TRAY ROOF HEAD<7EJ> (A) M5X16 		8-94279-341-0 02 1 0609-0612
31 SCREW; BRKT,HEADER SHELF
TRAY ROOF HEAD<7EJ> (A) M6X16 		0-38050-616-0 04 1 0701-
31 SCREW; BRKT,HEADER SHELF
TRAY ROOF HEAD<7EJ> (B) M6X20 W/LK&PL WASHER 		8-94279-403-0 04 1 0609-0612
31 SCREW; BRKT,HEADER SHELF
TRAY ROOF HEAD<7EJ> (B) M5X16 W/TORQUES 		8-98061-741-0 02 1 0701-0702
31 SCREW; BRKT,HEADER SHELF
TRAY ROOF HEAD<7EJ> (B) M5X16 		8-94279-341-0 02 1 0703-
128 FASTENER; HEADER SHELF
TRAY ROOF HEAD<7EJ> (B) LIGHT GRAY 		8-97892-153-2 02 1 0609-
128 FASTENER; HEADER SHELF
TRAY ROOF HEAD<7EJ> (C) 		8-97892-737-0 03 1 0609-0612
128 FASTENER; HEADER SHELF
TRAY ROOF HEAD<7EJ> (C) M6X16 W/TORQUES 		8-98064-273-0 03 1 0701-
128 FASTENER; HEADER SHELF
TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> (A) LIGHT GRAY 		8-97892-151-0 01 1 0609-
138 NUT; BRKT,HEADER SHELF
TRAY ROOF HEAD<7EJ> M8 FLANGE 		0-91180-108-0 01 1 0609-
151 COVER; BRKT
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> LIGHT GRAY 		8-97867-250-0 01 1 0609-
152 CLIP; BRKT
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> LIGHT GRAY 		8-97867-185-0 02 1 0609-

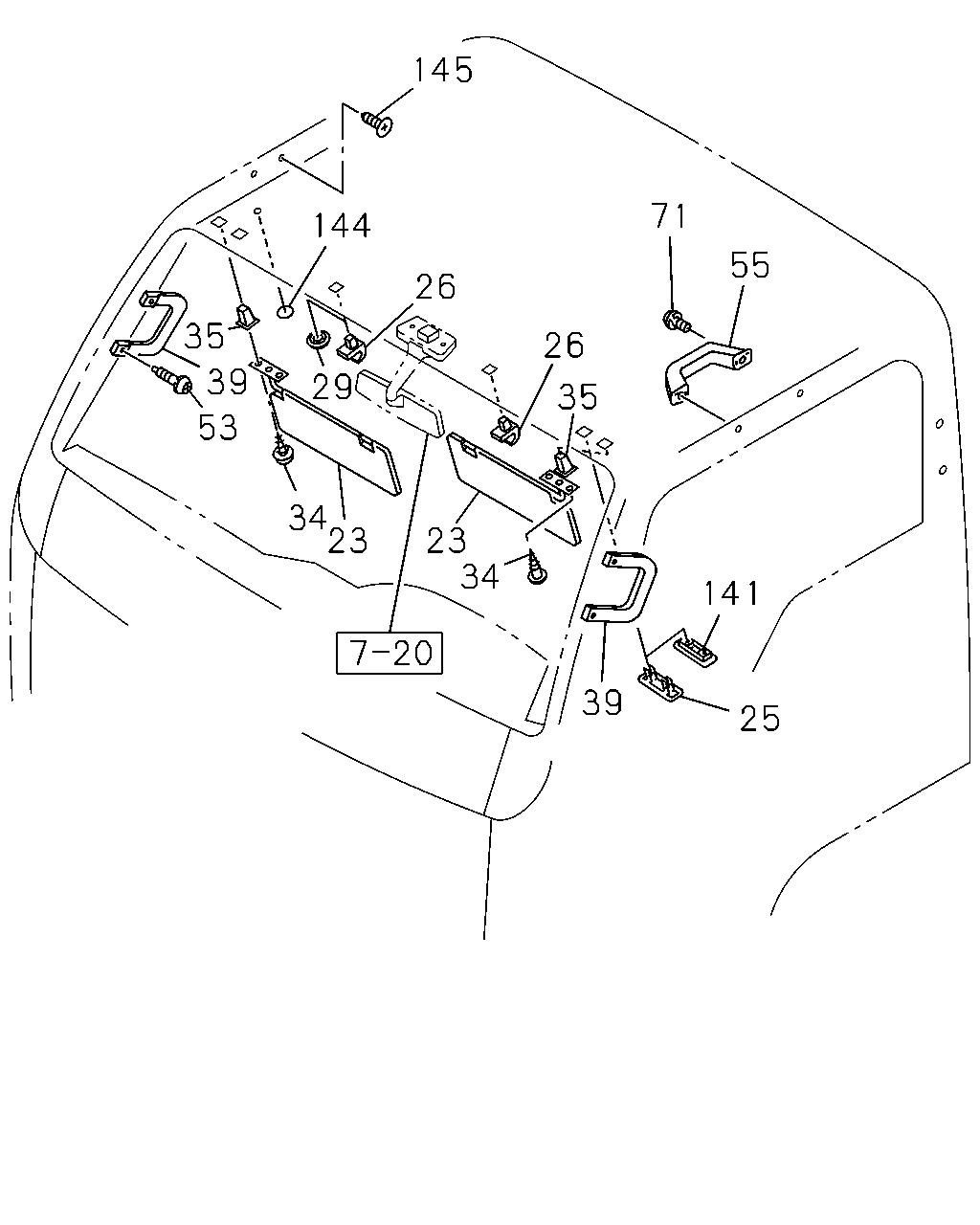

çizim 119574
145 71 144 55 26 35 26 39 29 35 53 34 23 23 34 141 39 25
BalonParca AdiParca NoAdetTipApplied Date
23 SUN VISOR
SUNVISOR PASSENGER SIDE<D20> TRAY ROOF HEAD<7EJ> LIGHT GRAY 		8-97404-452-0 01 1 0609-
23 SUN VISOR
SUNVISOR PASSENGER SIDE<D20> EXC. TRAY ROOF HEAD<7EJ> LIGHT GRAY 		8-97404-450-0 01 1 0609-
23 SUN VISOR
TRAY ROOF HEAD<7EJ> LIGHT GRAY 		8-97404-400-0 01 1 0609-
23 SUN VISOR
EXC. TRAY ROOF HEAD<7EJ> LIGHT GRAY 		8-97404-398-0 01 1 0609-
25 COVER; HOLE,SUN VISOR
EXC. SUNVISOR PASSENGER SIDE<D20>,TRAY ROOF HEAD<7EJ> LIGHT GRAY 		8-97859-846-3 01 1 0609-0610
25 COVER; HOLE,SUN VISOR
EXC. SUNVISOR PASSENGER SIDE<D20>,TRAY ROOF HEAD<7EJ> DARK GRAY 		8-97406-201-3 01 1 0611-
26 HOLDER; SUN VISOR
SUNVISOR PASSENGER SIDE<D20> TRAY ROOF HEAD<7EJ> LIGHT GRAY 		8-97867-184-2 02 1 0609-0610
26 HOLDER; SUN VISOR
SUNVISOR PASSENGER SIDE<D20> TRAY ROOF HEAD<7EJ> DARK GRAY 		8-97406-198-2 02 1 0611-
26 HOLDER; SUN VISOR
SUNVISOR PASSENGER SIDE<D20> EXC. TRAY ROOF HEAD<7EJ> LIGHT GRAY 		8-94351-982-0 02 1 0609-0610
26 HOLDER; SUN VISOR
SUNVISOR PASSENGER SIDE<D20> EXC. TRAY ROOF HEAD<7EJ> DARK GRAY 		8-97405-171-0 02 1 0611-
26 HOLDER; SUN VISOR
EXC. SUNVISOR PASSENGER SIDE<D20>,TRAY ROOF HEAD<7EJ> LIGHT GRAY 		8-94351-982-0 01 1 0609-0610
26 HOLDER; SUN VISOR
EXC. SUNVISOR PASSENGER SIDE<D20>,TRAY ROOF HEAD<7EJ> DARK GRAY 		8-97405-171-0 01 1 0611-
26 HOLDER; SUN VISOR
TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> LIGHT GRAY 		8-97867-184-2 01 1 0609-0610
26 HOLDER; SUN VISOR
TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> DARK GRAY 		8-97406-198-2 01 1 0611-
29 HOLDER; GROMMET,SUN VISOR
EXC. SUNVISOR PASSENGER SIDE<D20>,TRAY ROOF HEAD<7EJ> OD=15.0 		8-94279-040-0 01 1 0609-
34 SCREW; SUN VISOR
SUNVISOR PASSENGER SIDE<D20> M5X20 		5-09981-059-0 04 1 0609-0612
34 SCREW; SUN VISOR
TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> M5X20 		5-09981-059-0 04 1 0609-0612
34 SCREW; SUN VISOR
SUNVISOR PASSENGER SIDE<D20> M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 0701-0706
34 SCREW; SUN VISOR
TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 0701-0706
34 SCREW; SUN VISOR
SUNVISOR PASSENGER SIDE<D20> M5X18 TAPPING 		0-72180-518-0 04 1 0707-
34 SCREW; SUN VISOR
TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> M5X18 TAPPING 		0-72180-518-0 04 1 0707-
34 SCREW; SUN VISOR
EXC. SUNVISOR PASSENGER SIDE<D20>,TRAY ROOF HEAD<7EJ> M5X20 		5-09981-059-0 02 1 0609-0612
34 SCREW; SUN VISOR
EXC. SUNVISOR PASSENGER SIDE<D20>,TRAY ROOF HEAD<7EJ> M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 02 1 0701-0706
34 SCREW; SUN VISOR
EXC. SUNVISOR PASSENGER SIDE<D20>,TRAY ROOF HEAD<7EJ> M5X18 TAPPING 		0-72180-518-0 02 1 0707-
35 GROMMET; SCREW,SUN VISOR
SUNVISOR PASSENGER SIDE<D20> 		8-94279-039-0 04 1 0609-
35 GROMMET; SCREW,SUN VISOR
TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> 		8-94279-039-0 04 1 0609-
35 GROMMET; SCREW,SUN VISOR
EXC. SUNVISOR PASSENGER SIDE<D20>,TRAY ROOF HEAD<7EJ> 		8-94279-039-0 02 1 0609-
39 HANDLE; ASSIST,A-POST
GRAY 		8-97582-194-1 02 1 0609-0702
39 HANDLE; ASSIST,A-POST
GRAY 		8-97409-477-0 02 1 0703-
53 SCREW; ASSIST HANDLE
M6X34 W/LK&PL WASHER 		8-94279-411-0 04 1 0609-0612
53 SCREW; ASSIST HANDLE
M6X28 		8-98004-344-0 04 1 0701-
55 GRIP; ASSIST,CAB SIDE UPR
ASSIST GRIP PASSENGER<EG5> GRAY 		8-97582-294-2 01 1 0609-0610
55 GRIP; ASSIST,CAB SIDE UPR
ASSIST GRIP PASSENGER<EG5> DARK GRAY 		8-97405-285-2 01 1 0611-
71 SCREW
ASSIST GRIP PASSENGER<EG5> M6X30 W/LK WASHER 		5-09981-064-0 02 1 0609-0612
71 SCREW
ASSIST GRIP PASSENGER<EG5> M6X28 		8-98004-344-0 02 1 0701-
141 COVER; SUN VISOR
TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> LIGHT GRAY 		8-97859-845-1 01 1 0609-
144 SEAL; LOCATION HOLE
BODY COLOR ARC WHITE(729) EXC. TRAY ROOF HEAD<7EJ> OD=20 T=0.05 WHITE 		8-97856-832-2 04 1 0609-0610
144 SEAL; LOCATION HOLE
BODY COLOR ARC WHITE(729) EXC. TRAY ROOF HEAD<7EJ> OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 0611-
144 SEAL; LOCATION HOLE
BODY COLOR POLAR SILVER MET(845),BODY COLOR MARINE BLUE(890) EXC. TRAY ROOF HEAD<7EJ> OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 0609-
145 PLUG; HOLE
EXC. TRAY ROOF HEAD<7EJ> OD=12 L=14.8 		8-94279-921-0 04 1 0609-
