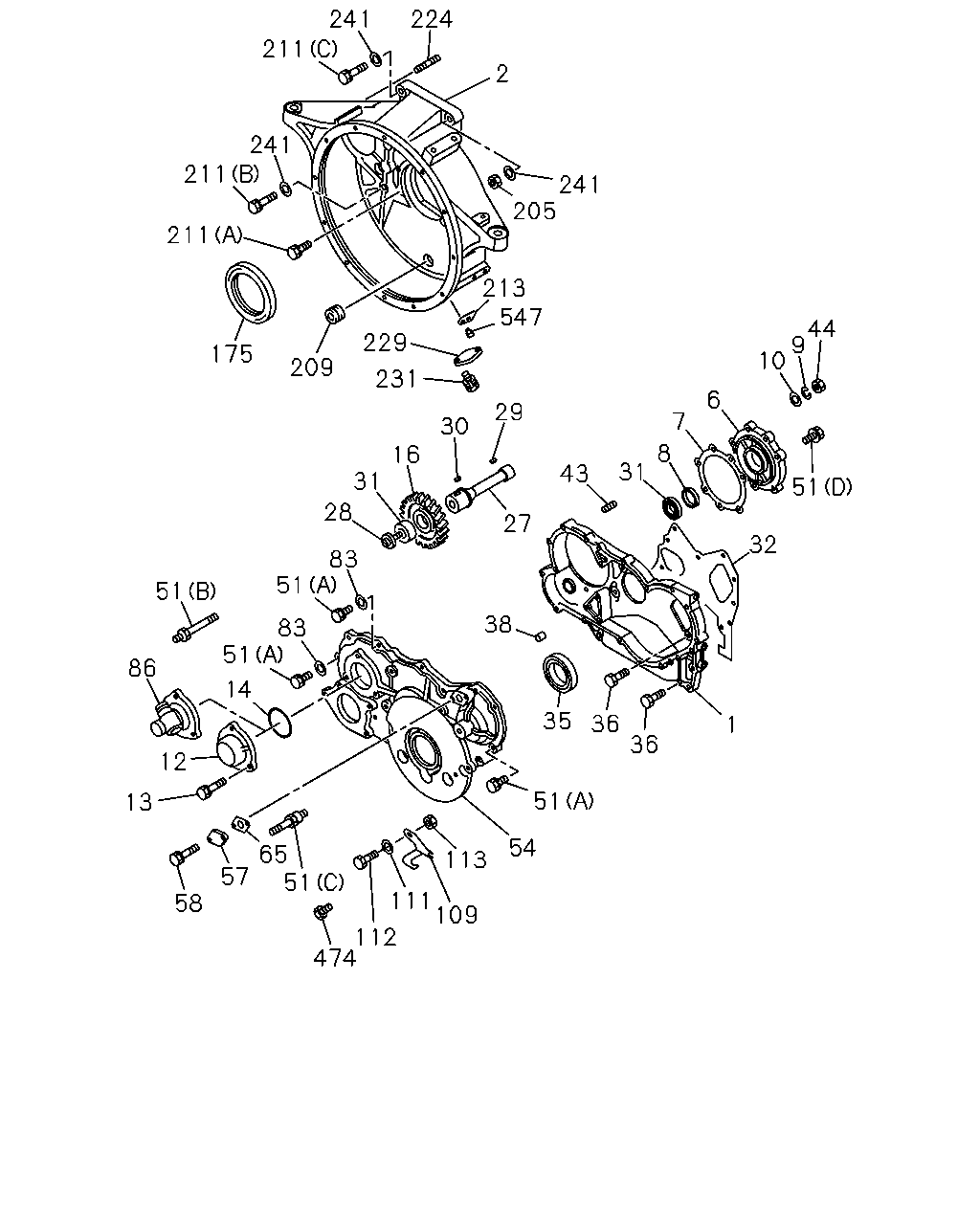

0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING (#3244) — 74 parça

241 224 211 2 241 211 241 205 211 213 547 44 9 10 229 175 209 231 6 29 7 30 8 16 31 43 31 51 28 27 32 83 51 51 38 83 51 86 14 35 36 1 36 12 51 13 54 65 51 113 57 111 109 58 112 474

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CASE; TIMING GEAR POWER STEERING(N40)	1-11311-042-1	01	1	9101-	●	●
1	CASE; TIMING GEAR EXC. POWER STEERING(N40)	5-11311-011-3	01	1	9101-	●	●
2	HOUSING; FLYWHEEL AT545 A/T ALLISON(MD1)	1-11341-268-6	01	1	9101-	●	●
2	HOUSING; FLYWHEEL ISUZU M/T<X9A>	1-11341-397-1	01	1	9101-	●	●
6	COVER; BRG,GEAR CASE,RR BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01)	1-11325-008-1	01	1	9101-	●	●
7	GASKET; BRG COVER TO GEAR CASE BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01)	1-11319-009-0	01	1	9101-9510	●	●
7	GASKET; BRG COVER TO GEAR CASE BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01)	8-94370-675-0	01	1	9511-	●	●
8	SEAL; OIL,BRG COVER BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01)	1-09625-440-0	01	1	9101-	●	●
9	WASHER; LK,BRG COVER,RR POWER STEERING(N40)	9-09150-508-0	01	1	9101-	●	●
10	WASHER; PL,BRG COVER	9-09160-508-0	02	1	9101-9704	●	●
12	COVER; BRG,GEAR CASE,FRT	5-11325-001-1	01	1	9101-	●	●
13	BOLT; BRG COVER M8X20 W/LK&PL WASHER	0-50140-820-0	01	1	9101-	●	●
13	BOLT; BRG COVER M8X25 W/LK&PL WASHER	0-50140-825-0	02	1	9101-	●	●
14	GASKET; BRG COVER TO GEAR CASE COVER	1-09623-215-0	01	1	9101-	●	●
16	GEAR; INJ PUMP DRIVE BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01)	1-12524-012-1	01	1	9101-	●	●
27	SHAFT; DRIVE,INJ PUMP BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01)	1-12532-009-2	01	1	9101-	●	●
28	BOLT; DRIVE GEAR BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01)	1-09009-094-2	01	1	9101-	●	●
29	KEY; COUPLING BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01)	9-08055-416-0	01	1	9101-	●	●
30	KEY; DRIVE GEAR BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01)	9-08050-725-0	01	1	9101-	●	●
31	BEARING; DRIVE SHAFT BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01)	9-00006-007-0	02	1	9101-	●	●
32	GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	1-11312-014-0	01	1	9101-9510	●	●
32	GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-94370-671-0	01	1	9511-	●	●
35	SEAL; OIL,CRANKSHAFT FRT ALSO INCLUDED IN GASKET SET(ENGINE).	1-09625-438-0	01	1	9101-	●	●
36	BOLT; GEAR CASE M8X20 W/LK WASHER	0-50040-820-0	04	1	9101-9704	●	●
36	BOLT; GEAR CASE M8X45 FLANGE	0-28080-845-0	02	1	9705-	●	●
36	BOLT; GEAR CASE M8X45 W/LK WASHER	0-50040-845-0	02	1	9101-9704	●	●
36	BOLT; GEAR CASE M8X20 FLANGE	0-28680-820-0	04	1	9705-	●	●
38	PIN; GEAR CASE COVER	9-08151-018-0	01	1	9101-	●	●
43	STUD; BRG COVER POWER STEERING(N40)	5-09302-003-0	01	1	9101-	●	●
44	NUT; BRG COVER POWER STEERING(N40)	9-09110-408-0	01	1	9101-	●	●
51	BOLT; GEAR CASE COVER EXC. POWER STEERING(N40) (A) M8X25 W/LK&PL WASHER	0-50140-825-0	06	1	9101-9707	●
51	BOLT; GEAR CASE COVER (A) M8X25 W/LK&PL WASHER	0-50140-825-0	06	1	9101-9707		●
51	BOLT; GEAR CASE COVER EXC. POWER STEERING(N40) (A) M8X25 W/LK&PL WASHER	0-50140-825-0	06	1	9708-	●	●
51	BOLT; GEAR CASE COVER (A) M8X50 W/LK WASHER	0-50040-850-0	01	1	9101-9606	●	●
51	BOLT; GEAR CASE COVER EXC. GENERATOR NIKKO 24V-90A 2.5KW(SD2) (A) M8X50 W/LK WASHER	0-50040-850-0	01	1	9607-	●	●
51	BOLT; GEAR CASE COVER (B) M8X20.3,M8X70 L=94	1-09300-049-1	01	1	9101-	●	●
51	BOLT; GEAR CASE COVER (C) M5X12,M8X55 L=79.8	1-09309-013-1	01	1	9101-	●	●
51	BOLT; GEAR CASE COVER (A) M8X55 W/LK WASHER	5-09000-084-1	04	1	9101-	●	●
51	BOLT; GEAR CASE COVER (D) M8X65 W/LK WASHER	8-94205-986-1	05	1	9101-	●	●
51	BOLT; GEAR CASE COVER POWER STEERING(N40) (A) M8X25 W/LK WASHER	0-50040-825-0	07	1	9101-9707	●	●
51	BOLT; GEAR CASE COVER POWER STEERING(N40) (A) M8X25 W/LK WASHER	0-50040-825-0	07	1	9708-	●	●
51	BOLT; GEAR CASE COVER EXC. POWER STEERING(N40),GENERATOR NIKKO 24V-90A 2.5KW(SD2) (A) M8X25 W/LK WASHER	0-50040-825-0	07	1	9708-		●
51	BOLT; GEAR CASE COVER GENERATOR NIKKO 24V-90A 2.5KW(SD2) (A) M8X25 W/LK WASHER	0-50040-825-0	08	1	9112-		●
54	COVER; GEAR CASE POWER STEERING(N40)	1-11321-048-1	01	1	9101-	●	●
54	COVER; GEAR CASE EXC. POWER STEERING(N40)	5-11321-025-2	01	1	9101-	●	●
57	COVER; TIMING CHECK HOLE	5-11321-009-0	01	1	9101-	●	●
58	BOLT; CHECK HOLE COVER	9-01900-614-0	02	1	9101-9204	●	●
58	BOLT; CHECK HOLE COVER	0-50040-614-0	02	1	9205-9704	●	●
58	BOLT; CHECK HOLE COVER M6X12 FLANGE	0-28080-612-0	02	1	9705-	●	●
65	GASKET; COVER,TIMING CHECK HOLE ALSO INCLUDED IN GASKET SET(ENGINE).	1-11282-013-0	01	1	9101-9510	●	●
65	GASKET; COVER,TIMING CHECK HOLE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97027-601-1	01	1	9511-	●	●
83	WASHER; PL,COVER	9-09160-508-0	02	1	9101-	●	●
86	ELBOW; TACHOMETER DRIVE	1-19310-007-1	01	1	9101-	●	●
109	POINTER; TIMING	1-11342-014-0	01	1	9101-	●	●
111	WASHER; PL ID=5.3 OD=12	9-09164-605-0	02	1	9101-	●	●
112	BOLT; POINTER FIX	0-20800-510-0	01	1	9101-	●	●
113	NUT; POINTER FIX	9-99110-405-0	01	1	9101-	●	●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	1-09625-439-1	01	1	9101-	●	●
205	NUT; HSG	9-99110-414-0	01	1	9101-9703	●	●
205	NUT; HSG M14 FLANGE	0-91160-214-0	01	1	9704-	●	●
209	COVER; CONV HOLE AT545 A/T ALLISON(MD1)	9-09575-797-0	01	1	9101-	●	●
211	BOLT; HSG (A) M8X25 W/LK WASHER	0-50040-825-0	07	1	9101-	●	●
211	BOLT; HSG (B) M14X50	9-91066-450-0	05	1	9101-9701	●	●
211	BOLT; HSG (B) M14X45 FLANGE	0-28891-445-0	05	1	9702-	●	●
211	BOLT; HSG (C) M14X65	9-91066-465-0	02	1	9101-9701	●	●
211	BOLT; HSG (C) M14X60 FLANGE	0-28891-460-0	02	1	9702-	●	●
213	POINTER; FLYWHEEL HSG	5-11342-004-0	01	1	9101-	●	●
224	STUD; STARTER	9-94411-235-0	03	1	9101-	●	●
229	COVER; TIMING CHECK HOLE	5-11321-009-0	01	1	9101-	●	●
231	BOLT; COVER	9-01900-614-0	02	1	9101-9204	●	●
231	BOLT; COVER	0-50040-614-0	02	1	9205-	●	●
241	WASHER; PL,HSG	9-09651-069-0	08	1	9101-9701	●	●
474	ADAPTER; ELBOW DRIVE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-12539-011-0	01	1	9101-	●	●
547	RIVET; POINTER	9-06670-616-0	02	1	9101-	●	●
