7-20 — MIRROR AND MIRROR STAY (#32437) — 57 parça
çizim 119590
4 162 2 159 3 158 1
BalonParca AdiParca NoAdetTipApplied Date
1 MIRROR; ROOM
TRAY ROOF HEAD<7EJ> LIGHT GRAY 		8-97582-925-1 01 1 0609-
1 MIRROR; ROOM
EXC. TRAY ROOF HEAD<7EJ> LIGHT GRAY 		8-97582-926-2 01 1 0609-
2 SCREW; MIRROR TO BODY
TRAY ROOF HEAD<7EJ> M5X20 		5-09981-059-0 02 1 0609-0612
2 SCREW; MIRROR TO BODY
TRAY ROOF HEAD<7EJ> M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 02 1 0701-0702
2 SCREW; MIRROR TO BODY
TRAY ROOF HEAD<7EJ> M5X20 		5-09981-059-0 02 1 0703-
2 SCREW; MIRROR TO BODY
EXC. TRAY ROOF HEAD<7EJ> M5X16 		8-94279-341-0 02 1 0609-0612
2 SCREW; MIRROR TO BODY
EXC. TRAY ROOF HEAD<7EJ> M5X16 W/TORQUES 		8-98061-741-0 02 1 0701-0702
2 SCREW; MIRROR TO BODY
EXC. TRAY ROOF HEAD<7EJ> M5X16 		8-94279-341-0 02 1 0703-
3 STOPPER; RR VIEW MIRROR
WINDSHIELD WEATHERSTRIP TYPE<7EL> L=31 		8-97859-098-2 01 1 0609-
3 STOPPER; RR VIEW MIRROR
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> L=22 		8-97857-352-1 01 1 0609-
4 GROMMET; SCREW,ROOM MIRROR
TRAY ROOF HEAD<7EJ> 		8-94279-039-0 01 1 0609-
158 LENS; ROOM LAMP 5-73117-108-1 01 1 0609-
159 BULB; ROOM LAMP
12V 10W 		8-97128-771-0 01 1 0609-
162 SEAL; ROOM LAMP
TRAY ROOF HEAD<7EJ> 		8-97856-532-0 01 1 0609-

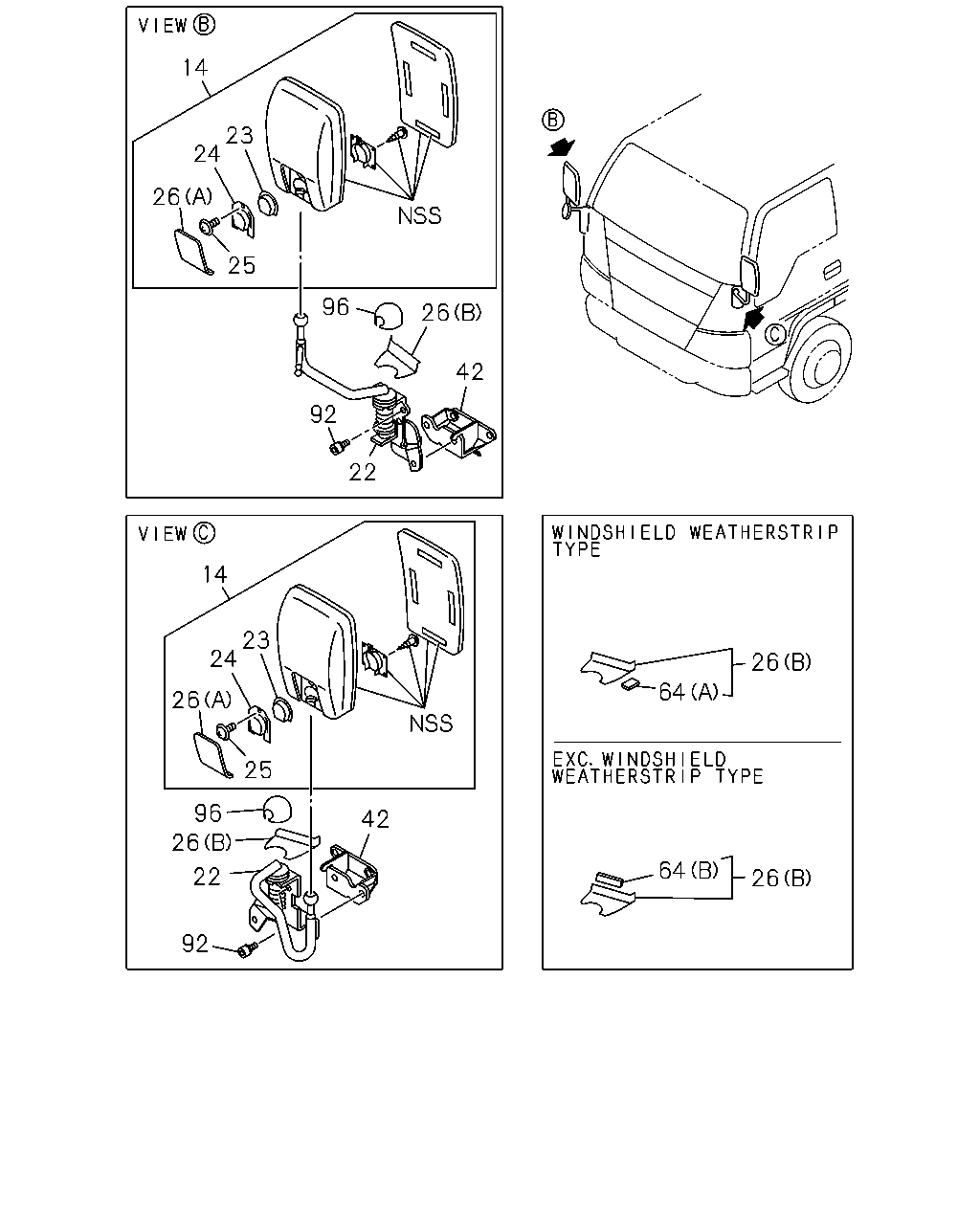

çizim 119618
14 23 24 26 25 96 26 42 92 22 14 23 24 26 64 26 25 96 26 42 64 22 26 92
BalonParca AdiParca NoAdetTipApplied Date
14 MIRROR ASM; OUTSIDE 8-94262-542-3 01 1 0609-
14 MIRROR ASM; OUTSIDE 8-94262-542-3 01 1 0609-
22 STAY; OUTSIDE MIRROR 8-97582-991-3 01 1 0609-0701
22 STAY; OUTSIDE MIRROR 8-98039-576-1 01 1 0702-
22 STAY; OUTSIDE MIRROR 8-97582-987-3 01 1 0609-0701
22 STAY; OUTSIDE MIRROR 8-98039-572-1 01 1 0702-
23 WASHER; OUTSIDE MIRROR
T=2.0 		8-94262-545-0 01 1 0609-
23 WASHER; OUTSIDE MIRROR
T=2.0 		8-94262-545-0 01 1 0609-
24 HOLDER; OUTSIDE MIRROR
T=1.6 		8-94262-546-1 01 1 0609-
24 HOLDER; OUTSIDE MIRROR
T=1.6 		8-94262-546-1 01 1 0609-
25 SCREW; OUTSIDE MIRROR
M6X30 		8-94279-365-0 01 1 0609-
25 SCREW; OUTSIDE MIRROR
M6X30 		8-94279-365-0 01 1 0609-
26 COVER; OUTSIDE MIRROR
(A) T=2.3 		8-94262-547-2 01 1 0609-
26 COVER; OUTSIDE MIRROR
(A) T=2.3 		8-94262-547-2 01 1 0609-
26 COVER; OUTSIDE MIRROR
BODY COLOR ARC WHITE(729) WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) WHITE 		8-97589-166-0 01 1 0609-
26 COVER; OUTSIDE MIRROR
BODY COLOR ARC WHITE(729) WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) WHITE 		8-97589-159-1 01 1 0609-
26 COVER; OUTSIDE MIRROR
BODY COLOR ARC WHITE(729) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) WHITE 		8-97582-840-4 01 1 0609-0807
26 COVER; OUTSIDE MIRROR
BODY COLOR ARC WHITE(729) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) WHITE 		8-97582-840-4 01 1 0808-
26 COVER; OUTSIDE MIRROR
BODY COLOR ARC WHITE(729) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) WHITE 		8-97582-831-5 01 1 0609-0807
26 COVER; OUTSIDE MIRROR
BODY COLOR ARC WHITE(729) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) WHITE 		8-97582-831-5 01 1 0808-
26 COVER; OUTSIDE MIRROR
BODY COLOR MARINE BLUE(890) WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) BLUE 		8-97589-168-0 01 1 0609-
26 COVER; OUTSIDE MIRROR
BODY COLOR MARINE BLUE(890) WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) BLUE 		8-97589-161-1 01 1 0609-
26 COVER; OUTSIDE MIRROR
BODY COLOR MARINE BLUE(890) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) BLUE 		8-97582-844-4 01 1 0609-0807
26 COVER; OUTSIDE MIRROR
BODY COLOR MARINE BLUE(890) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) BLUE 		8-97582-844-4 01 1 0808-
26 COVER; OUTSIDE MIRROR
BODY COLOR MARINE BLUE(890) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) BLUE 		8-97582-835-5 01 1 0609-0807
26 COVER; OUTSIDE MIRROR
BODY COLOR MARINE BLUE(890) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) BLUE 		8-97582-835-5 01 1 0808-
26 COVER; OUTSIDE MIRROR
BODY COLOR POLAR SILVER MET(845) WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) SILVER 		8-97589-167-0 01 1 0609-
26 COVER; OUTSIDE MIRROR
BODY COLOR POLAR SILVER MET(845) WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) SILVER 		8-97589-160-1 01 1 0609-
26 COVER; OUTSIDE MIRROR
BODY COLOR POLAR SILVER MET(845) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) SILVER 		8-97582-842-4 01 1 0609-0807
26 COVER; OUTSIDE MIRROR
BODY COLOR POLAR SILVER MET(845) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) SILVER 		8-97582-842-4 01 1 0808-
26 COVER; OUTSIDE MIRROR
BODY COLOR POLAR SILVER MET(845) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) SILVER 		8-97582-833-5 01 1 0609-0807
26 COVER; OUTSIDE MIRROR
BODY COLOR POLAR SILVER MET(845) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) SILVER 		8-97582-833-5 01 1 0808-
42 ATTACHMENT; OUTSIDE MIRROR 8-97581-755-2 01 1 0609-
42 ATTACHMENT; OUTSIDE MIRROR 8-97581-625-2 01 1 0609-
64 SEAL; MIRROR
WINDSHIELD WEATHERSTRIP TYPE<7EL> (A) 		8-98015-058-0 02 1 0609-
64 SEAL; MIRROR
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) 		8-98015-057-0 02 1 0609-0807
64 SEAL; MIRROR
EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) 		8-98015-057-0 02 1 0808-0809
64 SEAL; MIRROR
IDENTIFICATION LABEL FOR KD<6UT> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) 		8-98015-057-0 02 1 0808-0809
64 SEAL; MIRROR
EXC. KD PREPARATORY PACK VAR.4<7TV> (B) 		8-98015-057-0 02 1 0810-
64 SEAL; MIRROR
KD PREPARATORY PACK VAR.4<7TV> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) 		8-98015-057-0 02 1 0810-
92 BOLT; STAY BRKT,MIRROR
M8X30 W/LK WASHER 		8-94279-183-1 10 1 0609-0611
92 BOLT; STAY BRKT,MIRROR
M8X30 W/LK WASHER 		8-98020-347-0 10 1 0612-
96 CAP; MIRROR STAY 8-97581-631-2 02 1 0609-
