1-50 — EXHAUST PIPE AND SILENCER (#32434) — 47 parça

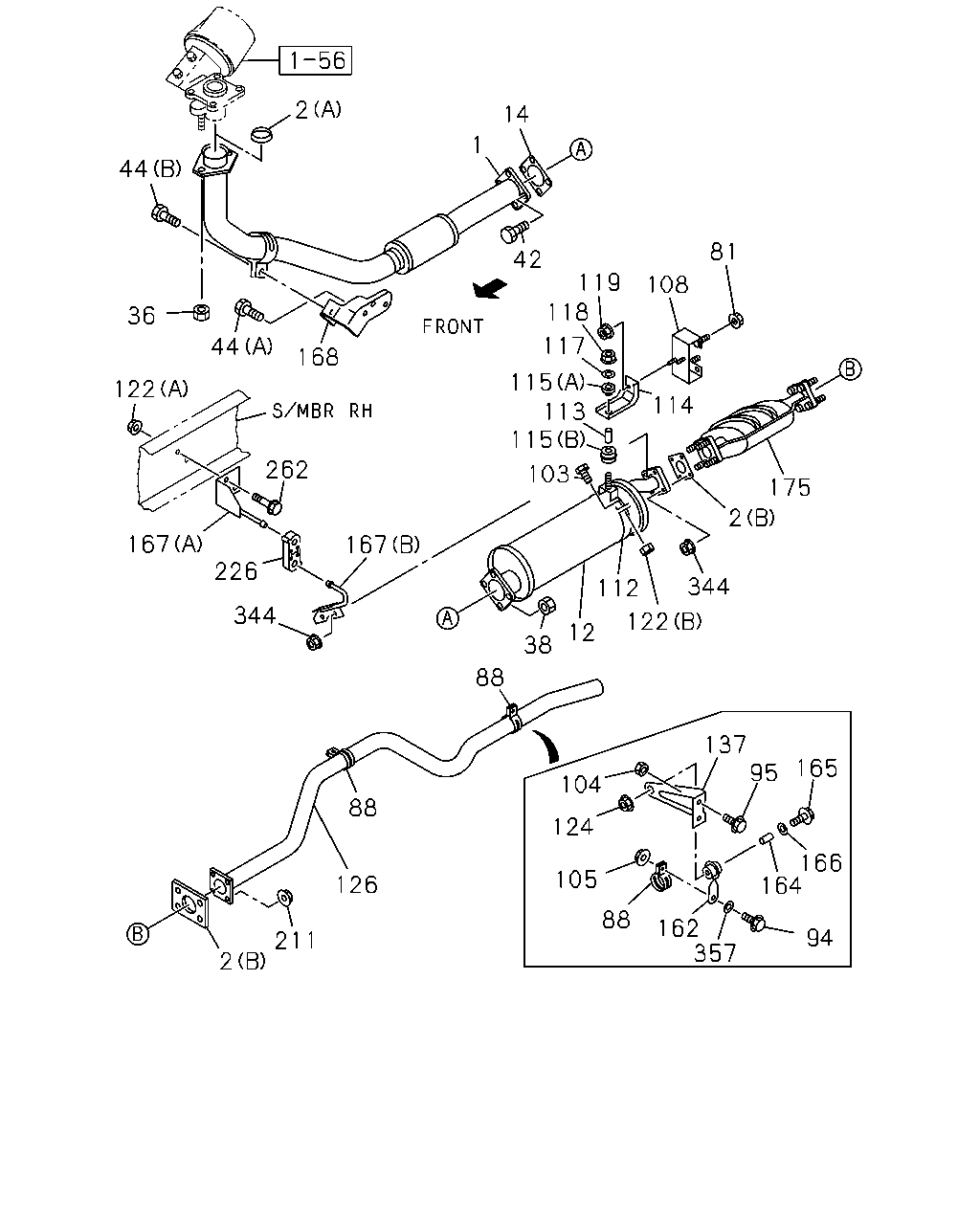

çizim 119453
2 14 1 44 81 42 119 108 118 36 117 44 168 115 113 115 122 114 262 103 175 2 167 167 226 344 112 344 122 12 38 88 137 95 165 104 88 124 166 164 105 126 88 162 357 94 211 2
BalonParca AdiParca NoAdetTipApplied Date
1 PIPE; EXH
EXHAUST BRAKE<NF8> 		8-97254-978-2 01 1 0609-
1 PIPE; EXH
EXC. EXHAUST BRAKE<NF8> 		8-97254-982-2 01 1 0609-
2 GASKET; PIPE TO MANIF
(B) ID=71 		8-94324-194-1 02 1 0609-
2 GASKET; PIPE TO MANIF
(A) 		8-97381-456-0 01 1 0609-
12 SILENCER ASM; EXH 8-97254-979-0 01 1 0609-
14 GASKET; SILENCER TO EXH PIPE
EXC. EXHAUST BRAKE<NF8> ID=54 		8-94328-354-0 01 1 0609-
36 NUT; EXH PIPE
M10 FLANGE 		8-97096-192-1 02 1 0609-
38 NUT; SILENCER
EXC. EXHAUST BRAKE<NF8> M8 FLANGE 		0-91180-108-0 04 1 0609-
42 BOLT; EXH PIPE TO EXH SILENCER
EXC. EXHAUST BRAKE<NF8> M8X35 FLANGE 		0-28650-835-0 04 1 0609-0710
44 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 02 1 0609-
44 BOLT; BRKT
(B) M8X45 W/LK WASHER 		0-50040-845-0 01 1 0609-0909
44 BOLT; BRKT
(B) M8X45 W/LK WASHER 		0-50540-845-0 01 1 0910-
81 NUT; BRKT
M10 FLANGE 		0-91180-110-0 02 1 0609-
88 CLAMP; EXH PIPE
ID=51.5 		8-97325-352-0 01 1 0609-
94 BOLT; CLAMP
M8X45 		0-20800-845-0 01 1 0609-
95 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0609-
103 BOLT; SILENCER BRKT FIX
M8X45 W/LK WASHER 		0-50040-845-0 01 1 0609-0909
103 BOLT; SILENCER BRKT FIX
M8X45 W/LK WASHER 		0-50540-845-0 01 1 0910-
104 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0609-
105 NUT; CLAMP
M8 		0-91110-508-0 01 1 0609-
108 BRACKET; BRKT TO FRAME,EXH SILENCER,FR 8-97254-980-1 01 1 0609-
112 BRACKET; HANGER 8-97076-018-0 01 1 0609-
113 COLLAR; DIST,MTG BRKT
L=37.5 		9-22151-217-0 01 1 0609-
114 BRACKET; EXH SILENCER 8-97172-313-0 01 1 0609-
115 RUBBER; MTG,SILENCER
(A) 		8-94457-277-1 01 1 0609-
115 RUBBER; MTG,SILENCER
(B) 		8-94457-278-1 01 1 0609-
117 WASHER; PL,SILENCER MTG BRKT
OD=55 		9-09852-169-0 01 1 0609-
118 NUT; SILENCER MTG BRKT
M10 FLANGE 		5-09440-006-0 01 1 0609-
119 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0609-
122 NUT; HANGER BRKT
(B) M8 		0-91110-508-0 01 1 0609-
122 NUT; HANGER BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 0609-
124 NUT; SUPPORT RUBBER
M10 		0-91110-510-0 01 1 0609-
126 PIPE; EXH,RR 8-97187-138-0 01 1 0609-
137 BRACKET; TAIL PIPE 8-97169-014-0 01 1 0609-
162 RUBBER; SUPPORT,TAIL PIPE
L=148 		8-97145-971-0 01 1 0609-
164 COLLAR; DIST,TAIL PIPE
L=37.5 		9-22151-217-0 01 1 0609-
165 BOLT; SUPPORT RUBBER
M10X70 FLANGE 		0-28051-070-0 01 1 0609-
166 WASHER; PL,SUPPORT RUBBER,EXH PIPE
ID=10.5 OD=32 		0-91614-810-0 01 1 0609-
167 HANGER; EXH PIPE
(A) 		8-97144-952-0 01 1 0609-
167 HANGER; EXH PIPE
(B) 		8-97187-324-1 01 1 0609-
168 BRACKET; EXH PIPE,FRT 8-97084-346-2 01 1 0609-
175 CONVERTER; CATALYST 8-97140-417-2 01 1 0609-
211 NUT; CONV
M10 FLANGE 		0-91180-110-0 04 1 0609-
226 RUBBER; CUSHION 8-97166-498-1 01 1 0609-
262 BOLT; HANGER TO BODY
M8X25 FLANGE 		0-28650-825-0 02 1 0609-
344 NUT; SILENCER
M10 FLANGE 		0-91180-110-0 04 1 0609-
357 WASHER; PL,CLAMP
ID=8.4 OD=18 		0-91614-608-0 01 1 0609-
