1-41 — FUEL PIPING; CHASSIS (#32432) — 83 parça

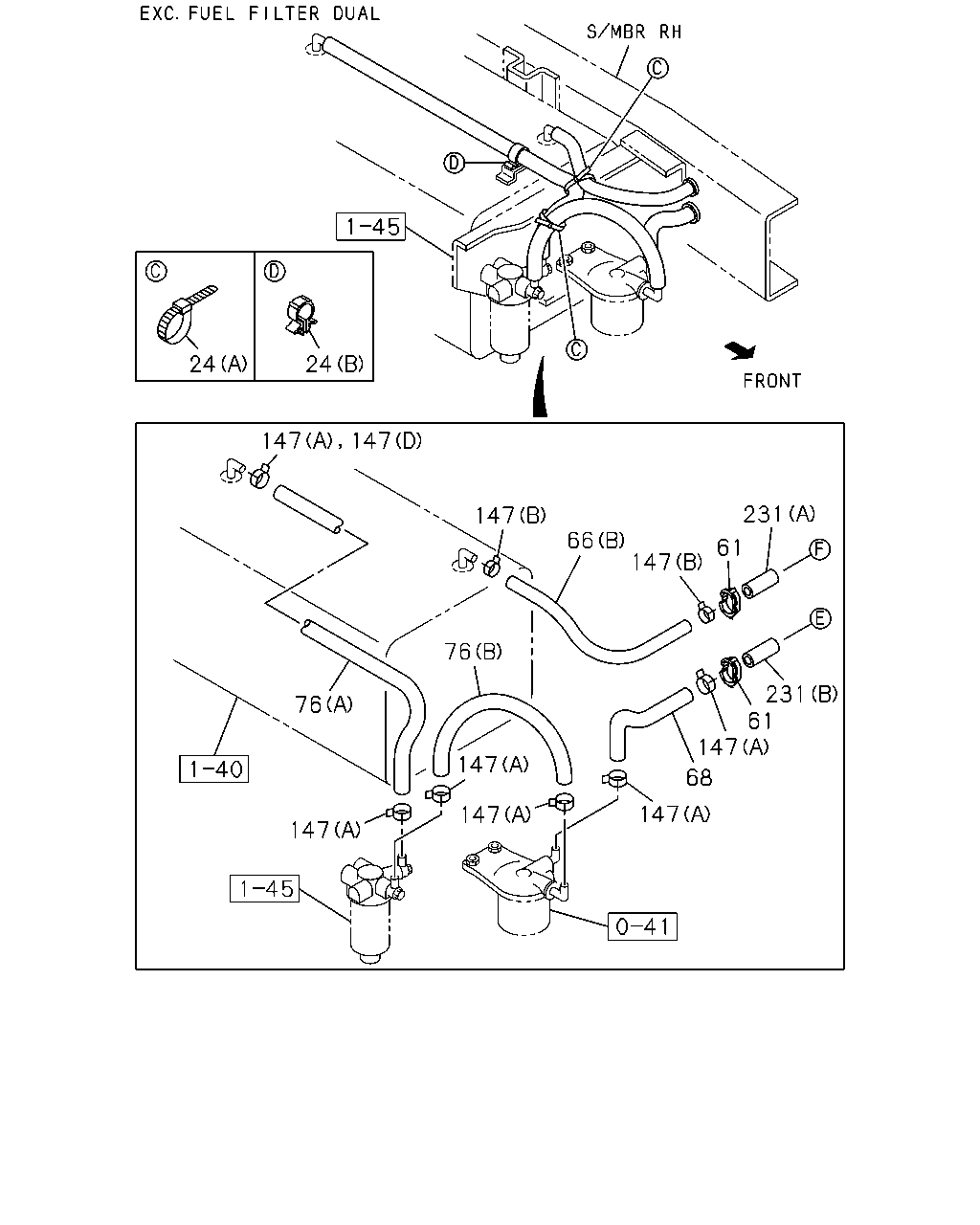

24 24 147 147 231 147 66 147 61 76 231 61 147 76 147 68 147 147 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	CLIP; FUEL HOSE FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	01	1	0609-
24	CLIP; FUEL HOSE FUEL FILTER DUAL(S6B) EXC. FUEL TANK 75 LITTER<7GX> (A) L=250	5-09707-030-1	01	1	0609-
24	CLIP; FUEL HOSE EXC. FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	02	1	0609-
24	CLIP; FUEL HOSE FUEL TANK 75 LITTER<7GX> FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	02	1	0609-
24	CLIP; FUEL HOSE EXC. FUEL TANK 75 LITTER<7GX> (B)	8-97089-536-0	01	1	0609-
61	GROMMET; PIPE TO FRAME ID=17	8-94128-319-2	02	1	0609-
66	HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0609-
66	HOSE; FUEL,RETURN PIPE FUEL TANK 75 LITTER<7GX> (B) L=440 SERVICED BY L=3000	0-01256-300-0	01	1	0609-
66	HOSE; FUEL,RETURN PIPE EXC. FUEL TANK 75 LITTER<7GX> (B) L=380 SERVICED BY L=3000	0-01256-300-0	01	1	0609-
68	HOSE; FUEL,FILTER TO PIPE EXC. FUEL FILTER DUAL(S6B) L=180 SERVICED BY L=3000	0-01259-300-0	01	1	0609-
76	HOSE; FUEL,TANK FUEL TANK 75 LITTER<7GX> (A) L=430	8-97353-526-0	01	1	0609-
76	HOSE; FUEL,TANK EXC. FUEL FILTER DUAL(S6B),FUEL TANK 75 LITTER<7GX> (B) L=470 SERVICED BY L=3000	0-01259-300-0	01	1	0609-
76	HOSE; FUEL,TANK FUEL TANK 75 LITTER<7GX> EXC. FUEL FILTER DUAL(S6B) (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	0609-
76	HOSE; FUEL,TANK EXC. FUEL TANK 75 LITTER<7GX> (A) L=760 SERVICED BY L=3000	0-01259-300-0	01	1	0609-
147	CLIP; FUEL PIPE TO HOSE (C) ID=11 & 7 L=15 & 15	1-09700-071-0	03	1	0609-1410
147	CLIP; FUEL PIPE TO HOSE (C) ID=11 & 7 L=15 & 15	8-98289-347-0	03	1	1411-
147	CLIP; FUEL PIPE TO HOSE (A) ID=16	8-94238-568-0	09	1	0609-0911
147	CLIP; FUEL PIPE TO HOSE (A) ID=16	8-98008-098-0	09	1	0912-
147	CLIP; FUEL PIPE TO HOSE (B) ID=13	8-94238-571-0	06	1	0609-0911
147	CLIP; FUEL PIPE TO HOSE (B) ID=13	8-98150-357-0	06	1	0912-
147	CLIP; FUEL PIPE TO HOSE FUEL TANK 75 LITTER<7GX> (D) ID=19	8-94238-569-0	01	1	0609-0911
147	CLIP; FUEL PIPE TO HOSE FUEL TANK 75 LITTER<7GX> (D) ID=19	8-98150-356-0	01	1	0912-
147	CLIP; FUEL PIPE TO HOSE EXC. FUEL TANK 75 LITTER<7GX> (A) ID=16	8-94238-568-0	01	1	0609-0911
147	CLIP; FUEL PIPE TO HOSE EXC. FUEL TANK 75 LITTER<7GX> (A) ID=16	8-98008-098-0	01	1	0912-
231	RUBBER; SUPPORT,FUEL PIPE (A) OD=17 L=50	8-94157-054-1	01	1	0609-
231	RUBBER; SUPPORT,FUEL PIPE (B) OD=15 L=50	8-97077-629-0	01	1	0609-

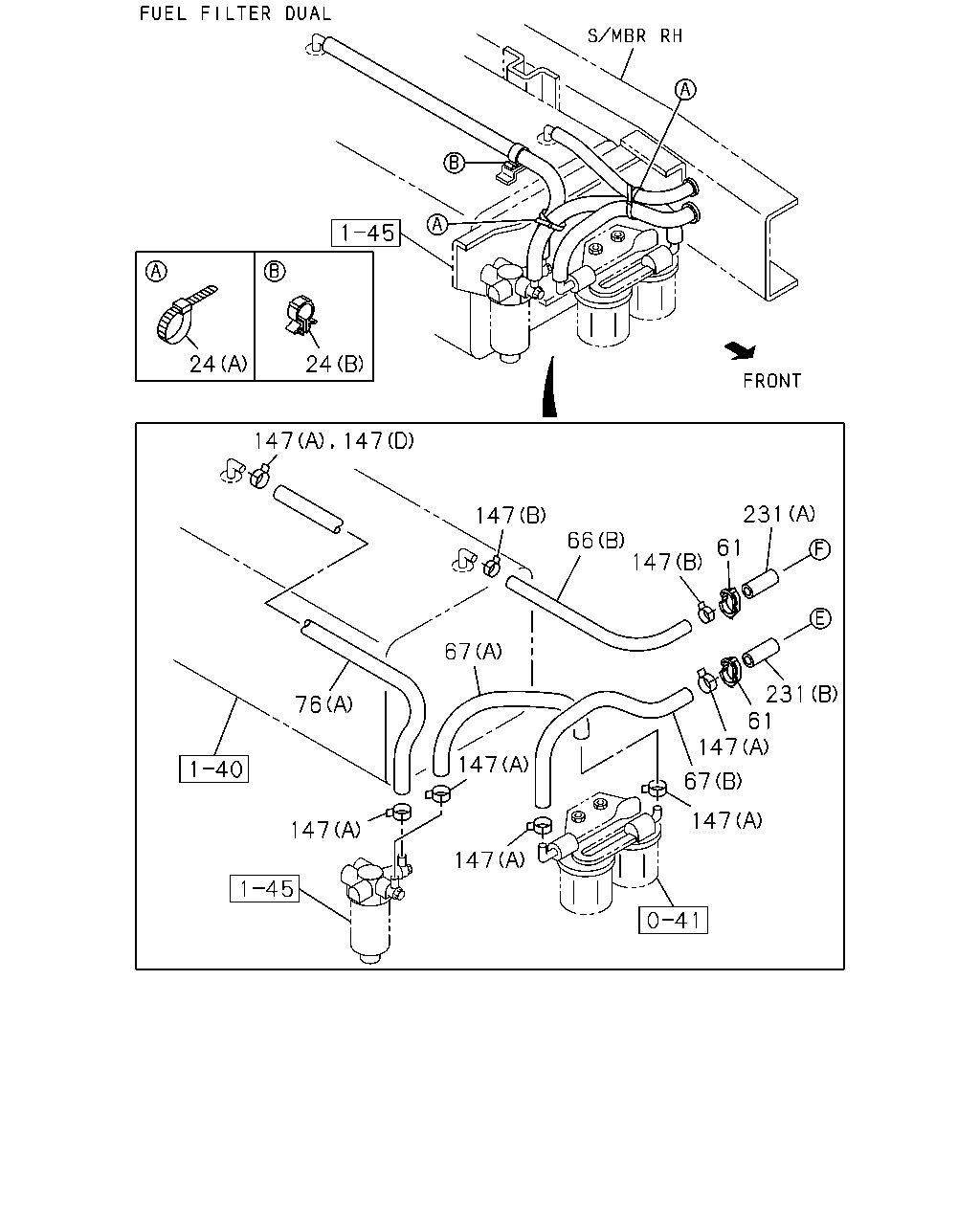

24 24 147 147 231 147 66 147 61 67 231 61 147 76 147 67 147 147 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	CLIP; FUEL HOSE FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	01	1	0609-
24	CLIP; FUEL HOSE FUEL FILTER DUAL(S6B) EXC. FUEL TANK 75 LITTER<7GX> (A) L=250	5-09707-030-1	01	1	0609-
24	CLIP; FUEL HOSE EXC. FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	02	1	0609-
24	CLIP; FUEL HOSE FUEL TANK 75 LITTER<7GX> FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	02	1	0609-
24	CLIP; FUEL HOSE EXC. FUEL TANK 75 LITTER<7GX> (B)	8-97089-536-0	01	1	0609-
61	GROMMET; PIPE TO FRAME ID=17	8-94128-319-2	02	1	0609-
66	HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0609-
66	HOSE; FUEL,RETURN PIPE FUEL TANK 75 LITTER<7GX> (B) L=440 SERVICED BY L=3000	0-01256-300-0	01	1	0609-
66	HOSE; FUEL,RETURN PIPE EXC. FUEL TANK 75 LITTER<7GX> (B) L=380 SERVICED BY L=3000	0-01256-300-0	01	1	0609-
67	HOSE; FUEL,DELIVERY FUEL FILTER DUAL(S6B) (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	0609-
67	HOSE; FUEL,DELIVERY FUEL FILTER DUAL(S6B) EXC. FUEL TANK 75 LITTER<7GX> (A) L=530 SERVICED BY L=3000	0-01259-300-0	01	1	0609-
67	HOSE; FUEL,DELIVERY FUEL TANK 75 LITTER<7GX> FUEL FILTER DUAL(S6B) (A) L=470 SERVICED BY L=3000	0-01259-300-0	01	1	0609-
76	HOSE; FUEL,TANK FUEL TANK 75 LITTER<7GX> (A) L=430	8-97353-526-0	01	1	0609-
76	HOSE; FUEL,TANK EXC. FUEL FILTER DUAL(S6B),FUEL TANK 75 LITTER<7GX> (B) L=470 SERVICED BY L=3000	0-01259-300-0	01	1	0609-
76	HOSE; FUEL,TANK FUEL TANK 75 LITTER<7GX> EXC. FUEL FILTER DUAL(S6B) (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	0609-
76	HOSE; FUEL,TANK EXC. FUEL TANK 75 LITTER<7GX> (A) L=760 SERVICED BY L=3000	0-01259-300-0	01	1	0609-
147	CLIP; FUEL PIPE TO HOSE (C) ID=11 & 7 L=15 & 15	1-09700-071-0	03	1	0609-1410
147	CLIP; FUEL PIPE TO HOSE (C) ID=11 & 7 L=15 & 15	8-98289-347-0	03	1	1411-
147	CLIP; FUEL PIPE TO HOSE (A) ID=16	8-94238-568-0	09	1	0609-0911
147	CLIP; FUEL PIPE TO HOSE (A) ID=16	8-98008-098-0	09	1	0912-
147	CLIP; FUEL PIPE TO HOSE (B) ID=13	8-94238-571-0	06	1	0609-0911
147	CLIP; FUEL PIPE TO HOSE (B) ID=13	8-98150-357-0	06	1	0912-
147	CLIP; FUEL PIPE TO HOSE FUEL TANK 75 LITTER<7GX> (D) ID=19	8-94238-569-0	01	1	0609-0911
147	CLIP; FUEL PIPE TO HOSE FUEL TANK 75 LITTER<7GX> (D) ID=19	8-98150-356-0	01	1	0912-
147	CLIP; FUEL PIPE TO HOSE EXC. FUEL TANK 75 LITTER<7GX> (A) ID=16	8-94238-568-0	01	1	0609-0911
147	CLIP; FUEL PIPE TO HOSE EXC. FUEL TANK 75 LITTER<7GX> (A) ID=16	8-98008-098-0	01	1	0912-
231	RUBBER; SUPPORT,FUEL PIPE (A) OD=17 L=50	8-94157-054-1	01	1	0609-
231	RUBBER; SUPPORT,FUEL PIPE (B) OD=15 L=50	8-97077-629-0	01	1	0609-

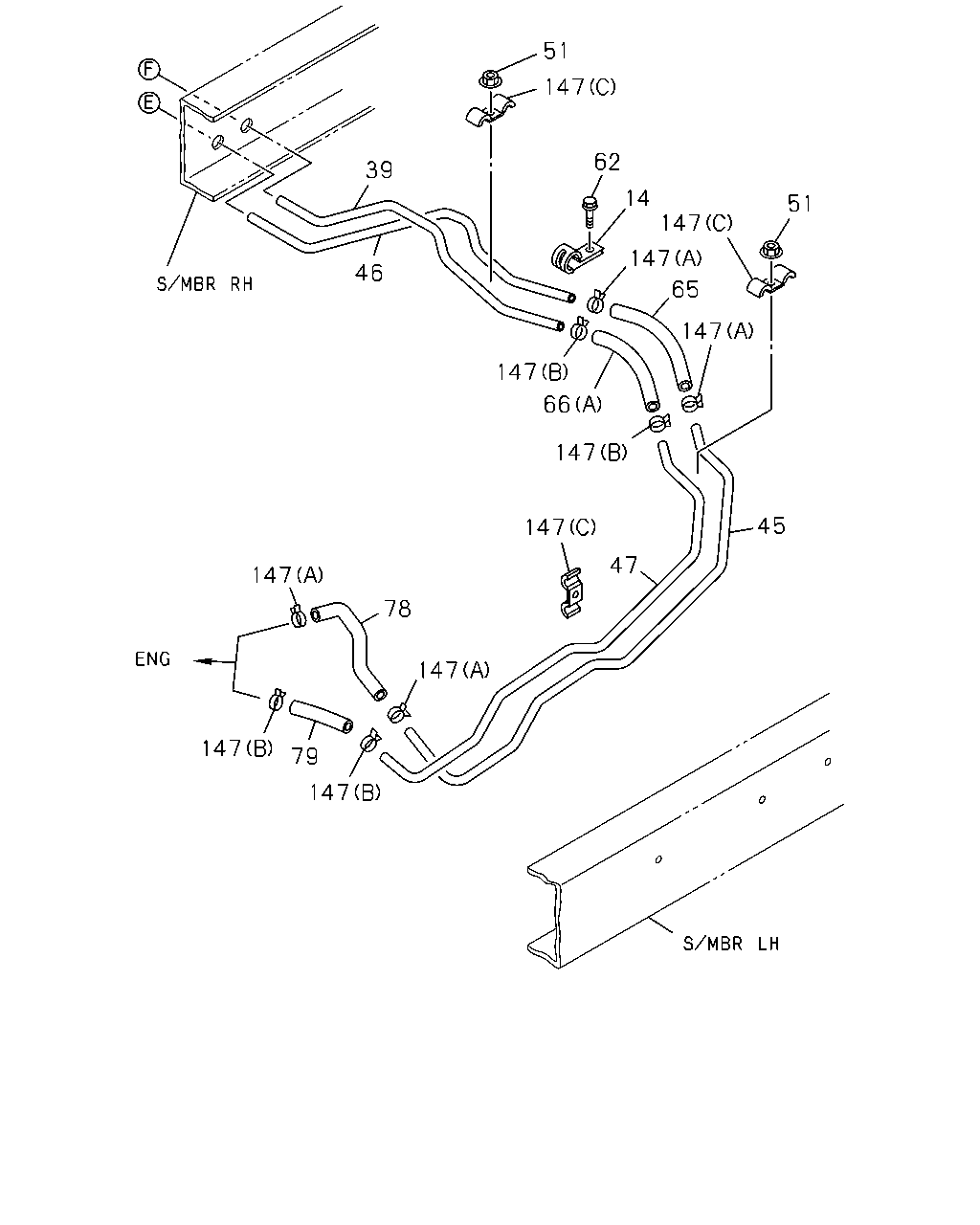

51 147 62 39 14 51 147 147 46 65 147 147 66 147 45 147 47 147 78 147 147 79 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
14	CLIP; HOSE ID=22 L=22	5-83574-045-0	01	1	0609-1201
39	PIPE; FUEL	8-97088-710-2	01	1	0609-1402
39	PIPE; FUEL	8-98270-102-0	01	1	1403-
45	PIPE; FUEL,DELIVERY	8-97225-253-0	01	1	0609-1201
45	PIPE; FUEL,DELIVERY	8-98201-156-0	01	1	1202-
46	PIPE; FUEL,TANK SIDE	8-97070-373-2	01	1	0609-1402
46	PIPE; FUEL,TANK SIDE	8-98270-101-0	01	1	1403-
47	PIPE; FUEL,RETURN	8-97354-091-0	01	1	0609-1201
47	PIPE; FUEL,RETURN	8-98201-157-0	01	1	1202-
51	NUT; CLIP,PIPE M6 FLANGE	0-91180-106-0	03	1	0609-
62	BOLT; CLIP FIX M6X12 FLANGE	0-28050-612-0	01	1	0609-1201
65	HOSE; FUEL,DELIVERY PIPE L=140 SERVICED BY L=3000	0-01259-300-0	01	1	0609-
66	HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0609-
66	HOSE; FUEL,RETURN PIPE FUEL TANK 75 LITTER<7GX> (B) L=440 SERVICED BY L=3000	0-01256-300-0	01	1	0609-
66	HOSE; FUEL,RETURN PIPE EXC. FUEL TANK 75 LITTER<7GX> (B) L=380 SERVICED BY L=3000	0-01256-300-0	01	1	0609-
78	HOSE; FUEL,PUMP TO PIPE	8-97222-766-0	01	1	0609-1201
78	HOSE; FUEL,PUMP TO PIPE	8-98201-250-0	01	1	1202-
79	HOSE; FUEL,PUMP TO PIPE,RETURN L=150 SERVICED BY L=3000	0-01256-300-0	01	1	0609-1201
79	HOSE; FUEL,PUMP TO PIPE,RETURN	8-98201-251-0	01	1	1202-
147	CLIP; FUEL PIPE TO HOSE (C) ID=11 & 7 L=15 & 15	1-09700-071-0	03	1	0609-1410
147	CLIP; FUEL PIPE TO HOSE (C) ID=11 & 7 L=15 & 15	8-98289-347-0	03	1	1411-
147	CLIP; FUEL PIPE TO HOSE (A) ID=16	8-94238-568-0	09	1	0609-0911
147	CLIP; FUEL PIPE TO HOSE (A) ID=16	8-98008-098-0	09	1	0912-
147	CLIP; FUEL PIPE TO HOSE (B) ID=13	8-94238-571-0	06	1	0609-0911
147	CLIP; FUEL PIPE TO HOSE (B) ID=13	8-98150-357-0	06	1	0912-
147	CLIP; FUEL PIPE TO HOSE FUEL TANK 75 LITTER<7GX> (D) ID=19	8-94238-569-0	01	1	0609-0911
147	CLIP; FUEL PIPE TO HOSE FUEL TANK 75 LITTER<7GX> (D) ID=19	8-98150-356-0	01	1	0912-
147	CLIP; FUEL PIPE TO HOSE EXC. FUEL TANK 75 LITTER<7GX> (A) ID=16	8-94238-568-0	01	1	0609-0911
147	CLIP; FUEL PIPE TO HOSE EXC. FUEL TANK 75 LITTER<7GX> (A) ID=16	8-98008-098-0	01	1	0912-
