Isuzu WW
▶
TRUCKS
▶
NKR
▶
51126 - NKR(IRAN)
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-31 - AIR DUCT
▶
1-31 — AIR DUCT
(#32429) — 45 parça
◀

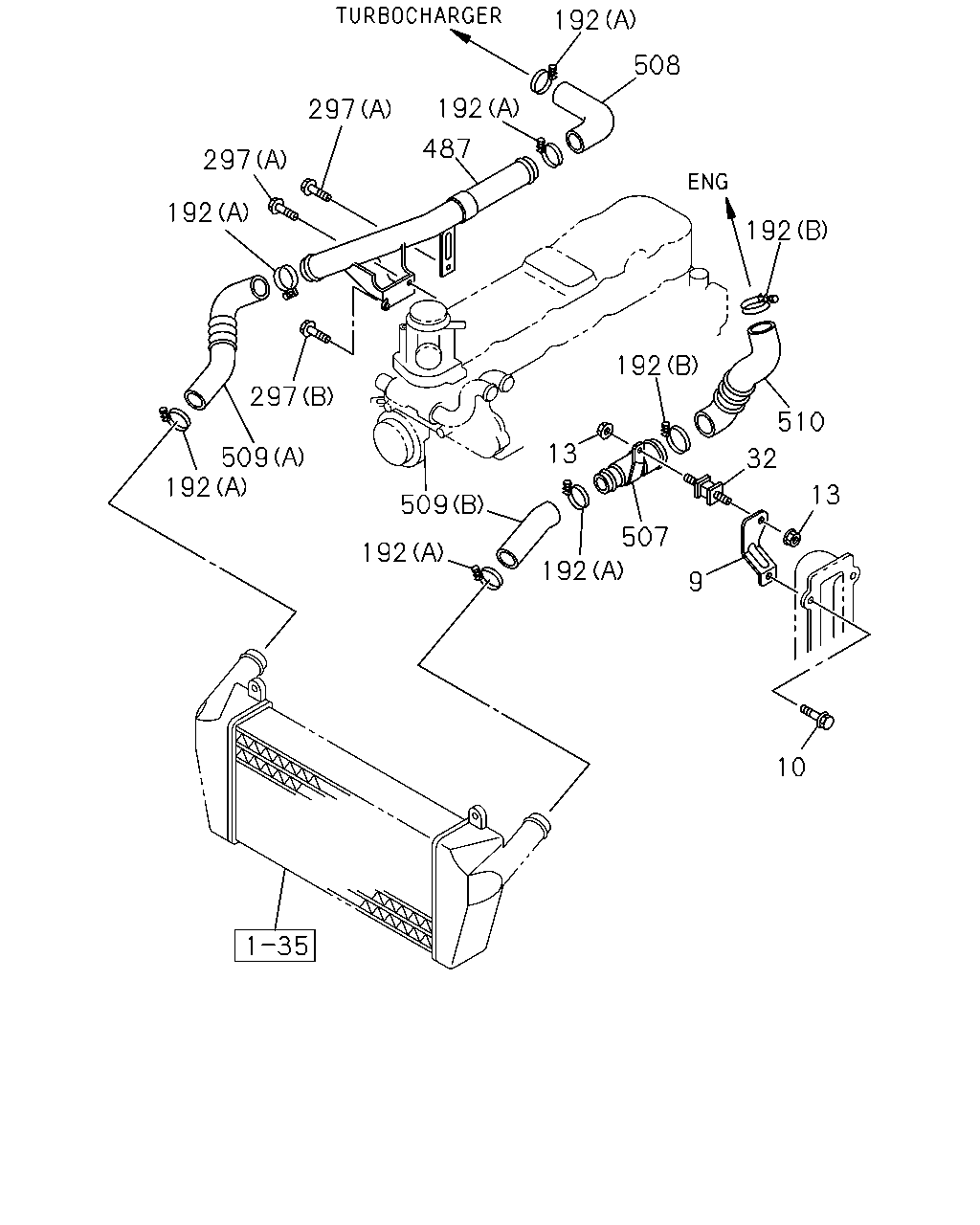

[131A] NO.2 (20 parça)
[131A] NO.1 (25 parça)
▶
192
508
192
297
487
297
192
192
192
297
510
13
509
192
32
13
509
507
192
192
9
10
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
9
BRACKET; INT PIPE
8-97226-059-0
01
1
0609-
10
BOLT; BRKT FIX
M8X12 FLANGE
0-28050-812-0
01
1
0609-
13
NUT; BRKT FIX
M8 FLANGE
0-91180-108-0
02
1
0609-
32
RUBBER; AIR DUCT MTG
8-94158-155-1
01
1
0609-
192
CLIP; HOSE
EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=58-79
1-09707-136-0
02
1
1002-
192
CLIP; HOSE
EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) ID=44-60
8-94175-940-0
07
1
1002-
192
CLIP; HOSE
(B) ID=58-76
1-09707-203-0
02
1
0609-0811
192
CLIP; HOSE
(B) ID=55-75
8-98133-349-0
02
1
0812-1001
192
CLIP; HOSE
IDENTIFICATION LABEL FOR KD<6UT> (B) ID=55-75
8-98133-349-0
02
1
1002-
192
CLIP; HOSE
(A) ID=44-57
1-09707-207-0
07
1
0609-0810
192
CLIP; HOSE
(A) ID=40-50
8-98133-347-0
07
1
0811-1001
192
CLIP; HOSE
IDENTIFICATION LABEL FOR KD<6UT> (A) ID=40-50
8-98133-347-0
07
1
1002-
297
BOLT; DUCT
(A) M8X12 FLANGE
0-28050-812-0
02
1
0609-
297
BOLT; DUCT
(B) M10X12 FLANGE
0-28051-012-0
01
1
0609-
487
PIPE; TURBO TO CHARGE AIR COOLER
8-97216-223-0
01
1
0609-
507
PIPE; CHARGE AIR COOLER TO INL MANIF
8-97228-660-0
01
1
0609-
508
HOSE; AIR,TURBO TO PIPE
8-97217-911-3
01
1
0609-
509
HOSE; AIR,PIPE TO CHARGE AIR COOLER
(A)
8-97221-914-3
01
1
0609-
509
HOSE; AIR,PIPE TO CHARGE AIR COOLER
(B)
8-97228-657-1
01
1
0609-
510
HOSE; AIR,PIPE TO INL MANIF
8-97228-658-2
01
1
0609-
60
399
391
381
391
281
389
391
242
242
17
64
391
391
389
64
391
391
242
389
232
192
5
320
290
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
5
CLIP; AIR DUCT
ID=87
8-97087-432-0
01
1
0609-
17
GASKET; AIR DUCT
8-97853-699-2
01
1
0609-
60
BRACKET; AIR DUCT,UPR
8-97856-956-1
01
1
0609-
64
BOLT; BRKT,AIR DUCT
M8X20.5 W/LK&PL WASHER
8-94279-207-0
03
1
0609-
192
CLIP; HOSE
EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=58-79
1-09707-136-0
02
1
1002-
192
CLIP; HOSE
EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) ID=44-60
8-94175-940-0
07
1
1002-
192
CLIP; HOSE
(B) ID=58-76
1-09707-203-0
02
1
0609-0811
192
CLIP; HOSE
(B) ID=55-75
8-98133-349-0
02
1
0812-1001
192
CLIP; HOSE
IDENTIFICATION LABEL FOR KD<6UT> (B) ID=55-75
8-98133-349-0
02
1
1002-
192
CLIP; HOSE
(A) ID=44-57
1-09707-207-0
07
1
0609-0810
192
CLIP; HOSE
(A) ID=40-50
8-98133-347-0
07
1
0811-1001
192
CLIP; HOSE
IDENTIFICATION LABEL FOR KD<6UT> (A) ID=40-50
8-98133-347-0
07
1
1002-
232
HOSE; CONN
8-97224-994-0
01
1
0609-
242
BRACKET; AIR DUCT
(A)
8-97856-932-0
01
1
0609-
242
BRACKET; AIR DUCT
(B)
8-97856-933-0
01
1
0609-
242
BRACKET; AIR DUCT
(C)
8-97856-958-0
01
1
0609-
281
DUCT; AIR,VERTICAL INT
8-97300-255-1
01
1
0609-
290
CLIP; ACL TO AIR DUCT
ID=87
8-97087-432-0
01
1
0609-
320
HOSE; CONN,ACL
8-97205-771-0
01
1
0609-
381
NUT; BRKT,AIR DUCT
M6 FLANGE
1-09984-018-0
02
1
0609-
389
RUBBER; SUPPORT,AIR INT UPR
(A)
8-97080-149-0
01
1
0609-
389
RUBBER; SUPPORT,AIR INT UPR
(B)
8-97081-886-0
02
1
0609-
391
NUT; SUPPORT RUBBER,UPR
M8 FLANGE
8-94279-517-0
07
1
0609-0910
391
NUT; SUPPORT RUBBER,UPR
M8 W/LK WASHER
8-97581-234-0
07
1
0911-
399
CAP; BRKT,AIR DUCT
8-94273-605-0
02
1
0609-
