Isuzu WW
▶
TRUCKS
▶
NKR
▶
51126 - NKR(IRAN)
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-11 - RADIATOR HOSE AND SUB TANK
▶
1-11 — RADIATOR HOSE AND SUB TANK
(#32427) — 17 parça
◀
[111A] NO.2 (5 parça)
[111A] NO.1 (12 parça)
▶

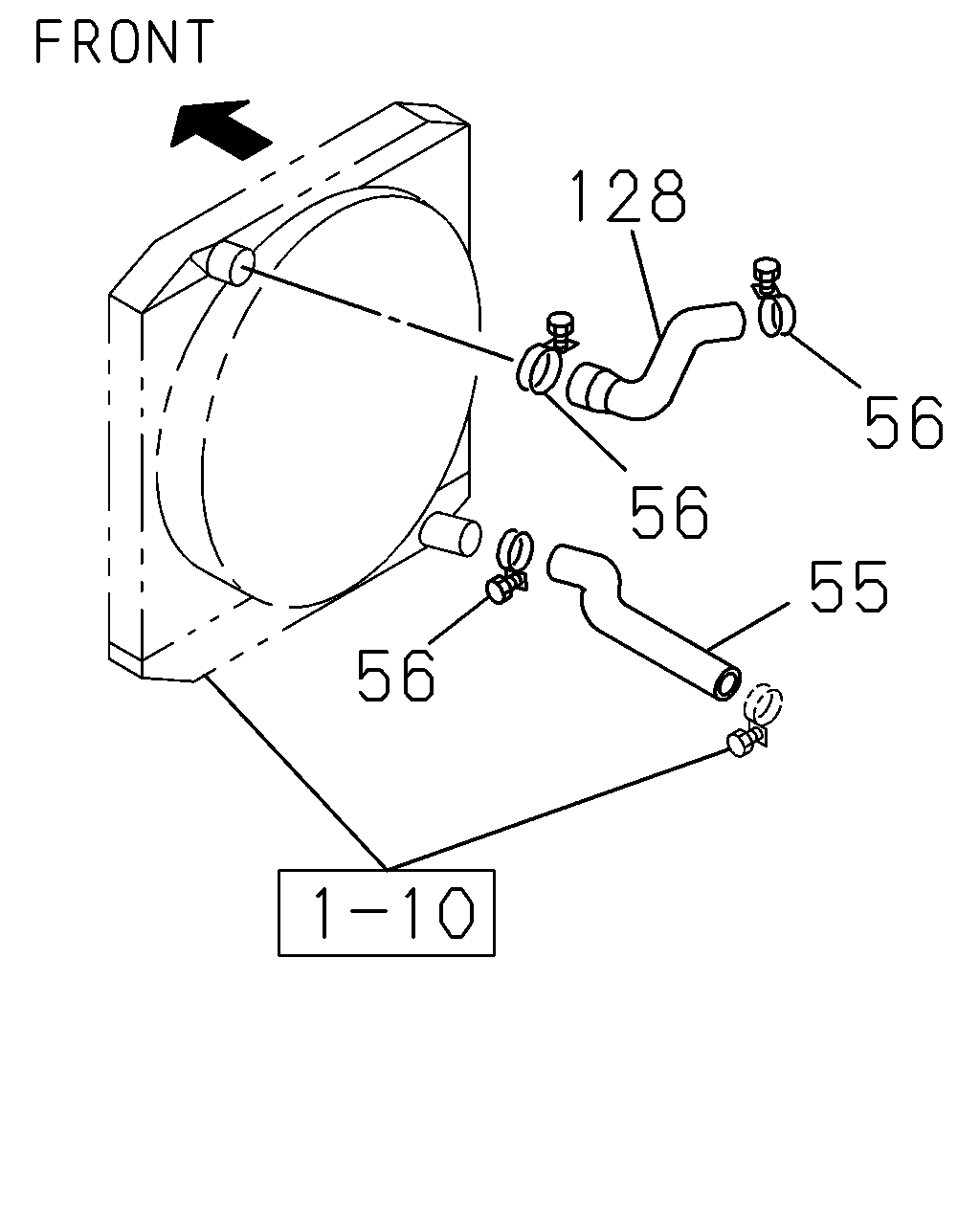

128
56
56
55
56
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
55
HOSE; WATER,RAD OUTLET
8-97089-916-1
01
1
0609-
56
CLIP; WATER HOSE,RAD
ID=48
5-09704-049-0
03
1
0609-0610
56
CLIP; WATER HOSE,RAD
ID=48
8-98036-282-0
03
1
0611-0901
56
CLIP; WATER HOSE,RAD
ID=48
8-98133-956-0
03
1
0902-
128
HOSE; WATER,RAD INL
8-97221-676-0
01
1
0609-

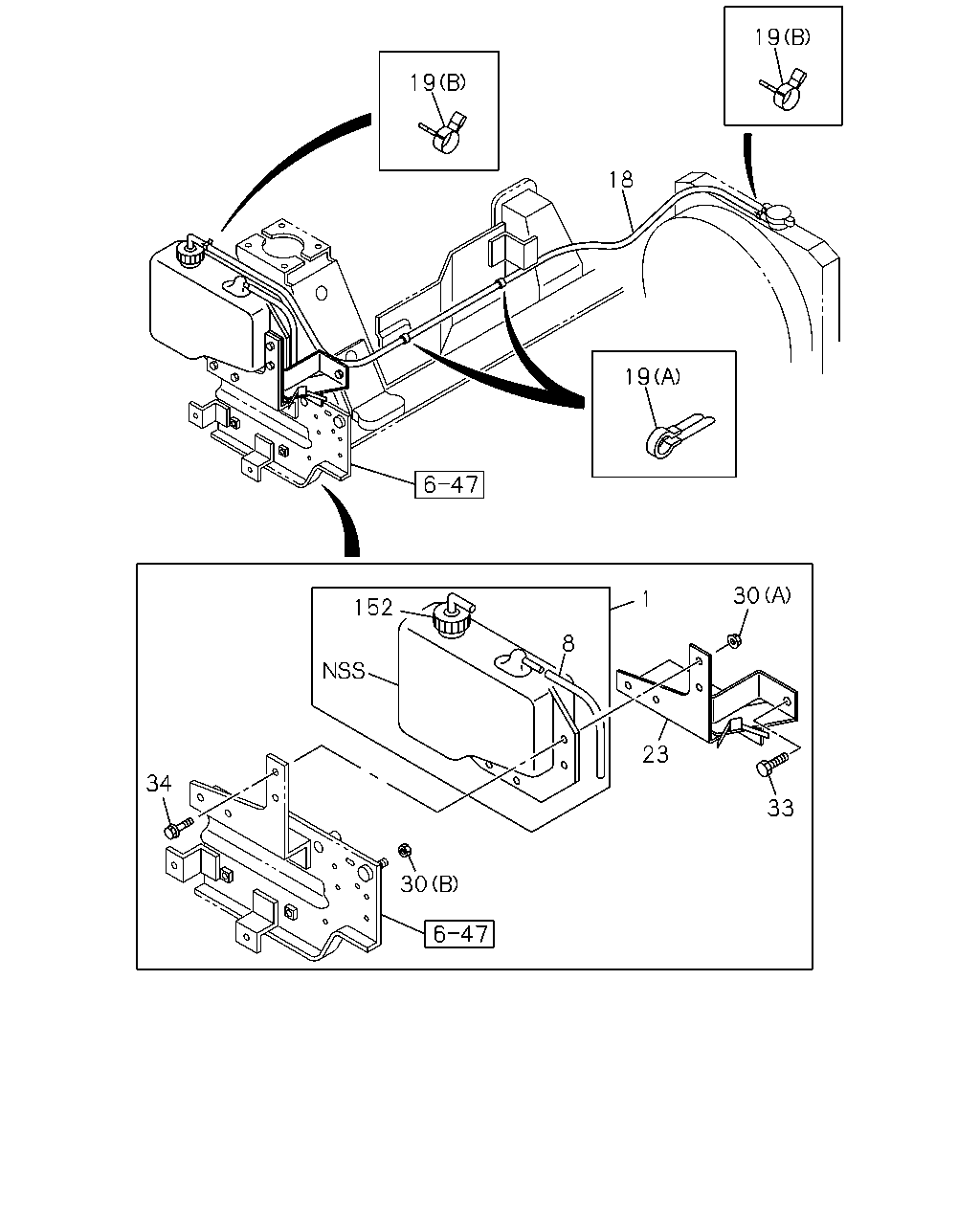

19
19
18
19
30
1
152
8
23
34
33
30
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TANK; SURGE,RAD
8-97205-136-1
01
1
0609-
8
HOSE; VINYL
L=500
1-09366-179-0
01
1
0609-
18
HOSE; RAD TO SURGE TANK
L=1700
8-97225-445-2
01
1
0609-
19
CLIP; HOSE,SURGE TANK
(A) ID=14 L=47
5-09700-319-0
02
1
0609-
19
CLIP; HOSE,SURGE TANK
(B) ID=12
8-94238-610-0
02
1
0609-0911
19
CLIP; HOSE,SURGE TANK
(B) ID=12
8-98150-358-0
02
1
0912-
23
BRACKET; RESERVE TANK
8-97225-271-1
01
1
0609-
30
NUT
(A) M8 FLANGE
0-91180-108-0
04
1
0609-
30
NUT
(B) M8 FLANGE
0-91180-208-0
03
1
0609-
33
BOLT; BRKT
M8X25 FLANGE
0-28650-825-0
01
1
0609-
34
BOLT; RESERVE TANK
M8X25 FLANGE
0-28650-825-0
04
1
0609-
152
CAP ASM; SURGE TANK
8-97217-799-0
01
1
0609-
