Isuzu WW
▶
TRUCKS
▶
NKR
▶
51126 - NKR(IRAN)
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-10 - RADIATOR
▶
1-10 — RADIATOR
(#32426) — 37 parça
◀
[110A] NO.1 (22 parça)
[110A] NO.2 (15 parça)
▶

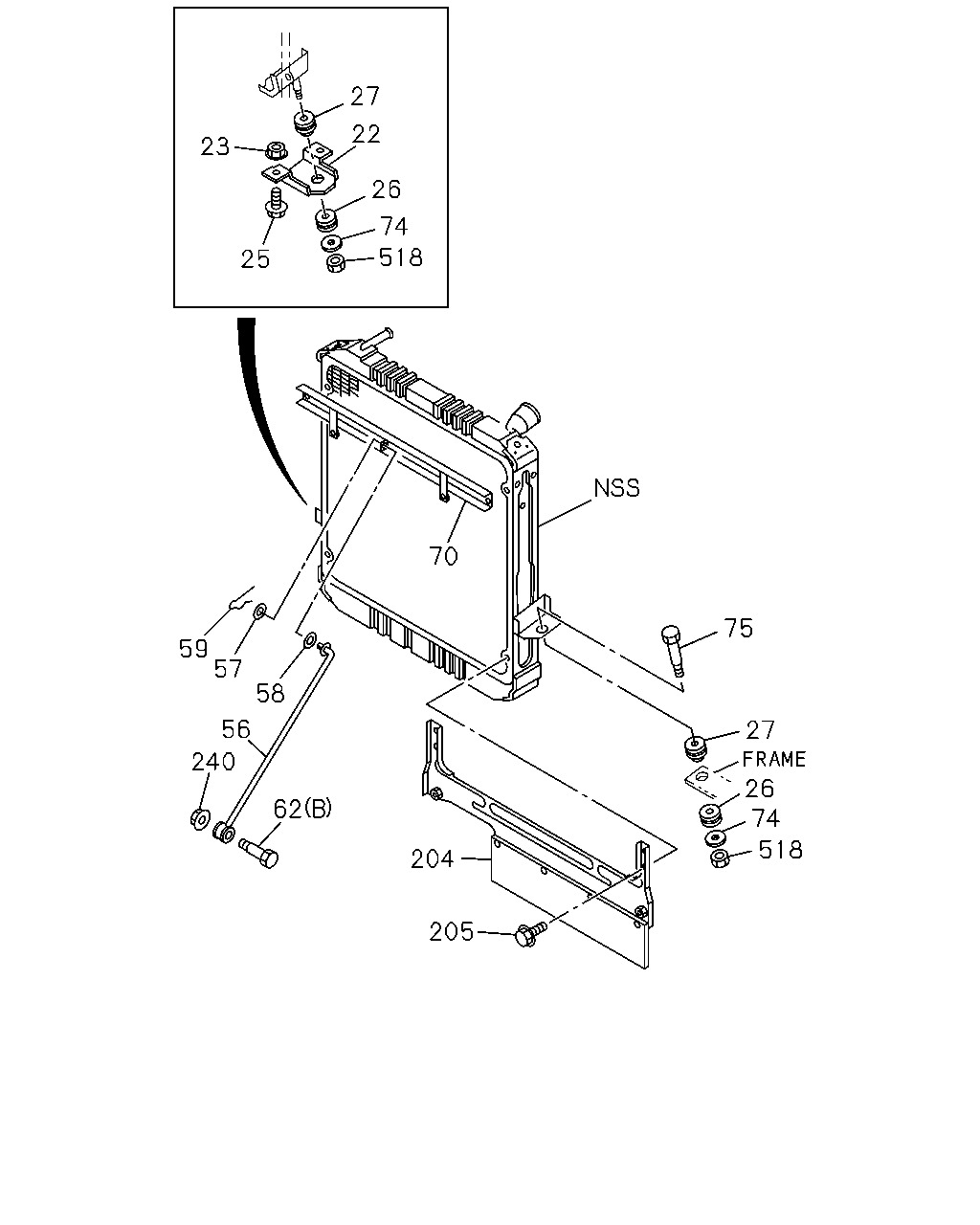

27
22
23
26
74
518
25
70
75
59
57
58
56
27
240
26
74
62
518
204
205
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
22
BRACKET; RAD MTG
8-94257-949-1
01
1
0609-
23
NUT; RAD MTG
M10 FLANGE
5-09440-006-0
02
1
0609-
25
BOLT; BRKT
M10X30 FLANGE
0-28651-030-0
02
1
0609-
26
BUFFER; RAD,LWR
8-94249-347-0
02
1
0609-
27
BUFFER; RAD,UPR
8-94249-346-0
02
1
0609-
56
STAY; RAD
8-97350-324-0
01
1
0609-
57
WASHER; PL,STAY
ID=10.5
0-91610-510-0
01
1
0609-
58
WASHER; CURVED,STAY
ID=12
8-97011-676-0
01
1
0609-
59
PIN; SNAP,STAY
L=32.6
8-94202-777-0
01
1
0609-0610
59
PIN; SNAP,STAY
L=32.6
8-97359-052-0
01
1
0611-
62
BOLT; STAY
(A) M8X12 FLANGE
0-28080-812-0
02
1
0609-
62
BOLT; STAY
(B) M8X45
8-94401-350-0
01
1
0609-
70
STAY; RAD
8-97047-899-0
01
1
0609-
74
WASHER; PL,CUSHION RUBBER
ID=8.5 OD=36
8-94221-082-0
02
1
0609-0610
74
WASHER; PL,CUSHION RUBBER
ID=8.5 OD=36
8-97359-049-1
02
1
0611-
74
WASHER; PL,CUSHION RUBBER
ID=10.5 OD=26
9-09160-710-0
01
1
0609-
75
BOLT; CUSHION RUBBER,RAD MTG
M8X63
8-94249-446-0
01
1
0609-
204
GUIDE ASM; AIR
AIR CONDITIONER MANUAL CONT(C60)
8-97089-919-3
01
1
0609-
205
BOLT; AIR GUIDE
AIR CONDITIONER MANUAL CONT(C60) M6X12 FLANGE
0-28050-612-0
04
1
0609-
240
NUT; STAY
M8 FLANGE
8-94178-701-0
01
1
0609-
518
NUT
M8 FLANGE
5-09440-005-0
02
1
0609-0610
518
NUT
M8 FLANGE
0-91180-108-0
02
1
0611-

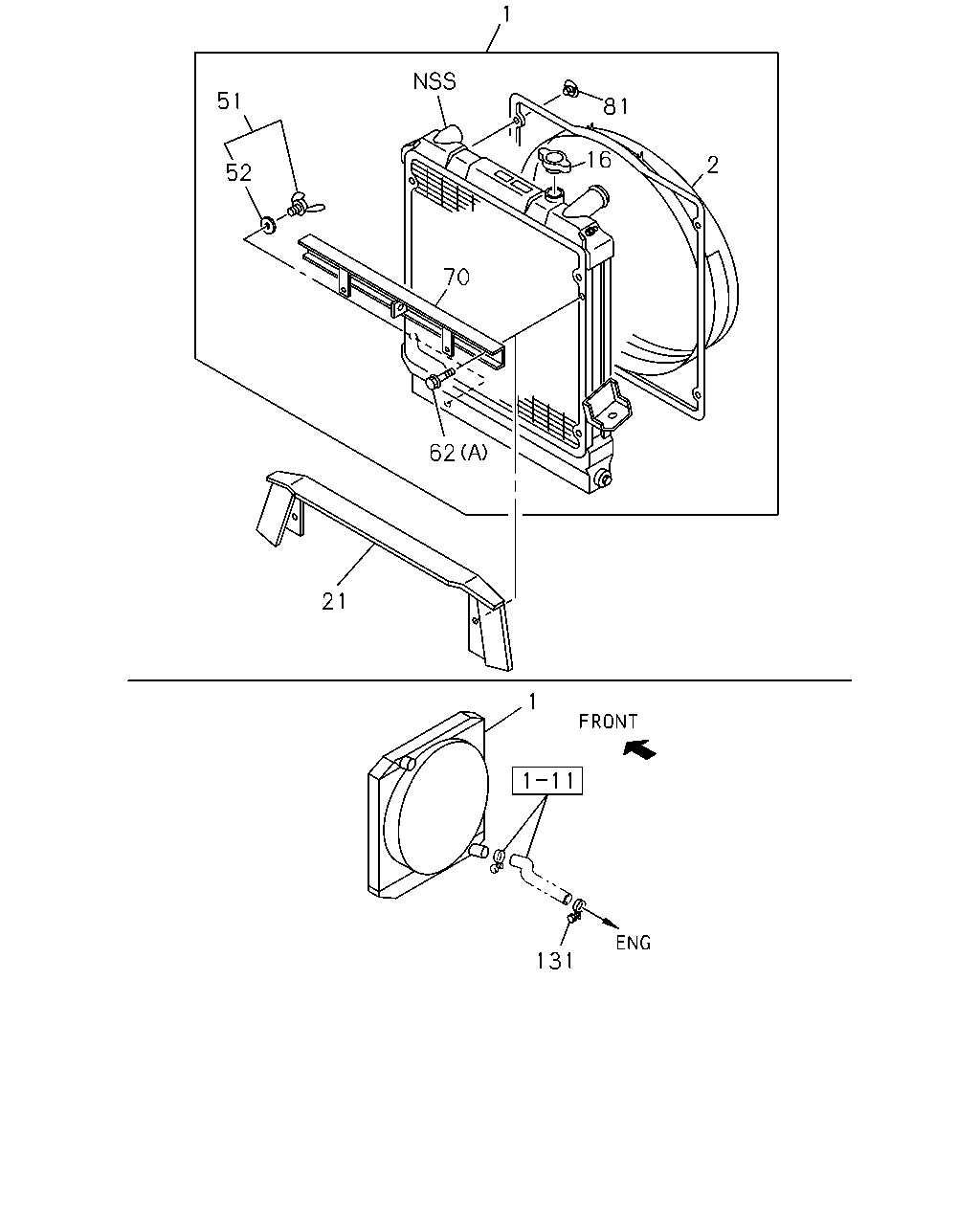

1
51
81
16
2
52
70
62
21
1
131
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
RADIATOR ASM
8-97221-762-0
01
1
0609-1109
1
RADIATOR ASM
8-98203-145-0
01
1
1110-
2
GUIDE; FAN
8-97066-011-0
01
1
0609-1109
2
GUIDE; FAN
8-97223-685-0
01
1
1110-
16
CAP; RAD
8-97177-872-0
01
1
0609-1109
16
CAP; RAD
8-97371-017-0
01
1
1110-
21
SEAL; RAD
8-97219-806-3
01
1
0609-
51
PLUG; DRAIN
W/GASKET
8-94321-236-0
01
1
0609-
52
GASKET; DRAIN PLUG
ID=10
9-09720-557-0
01
1
0609-1109
62
BOLT; STAY
(A) M8X12 FLANGE
0-28080-812-0
02
1
0609-
62
BOLT; STAY
(B) M8X45
8-94401-350-0
01
1
0609-
70
STAY; RAD
8-97047-899-0
01
1
0609-
81
SCREW; FAN GUIDE,RAD
8-97088-810-0
04
1
0609-
131
CLIP; ENG SIDE TOP
ID=42
5-09704-047-1
01
1
0609-0901
131
CLIP; ENG SIDE TOP
ID=42
8-98133-958-0
01
1
0902-
