1-01 — ACCELERATOR PEDAL AND CONTROL (#32425) — 26 parça

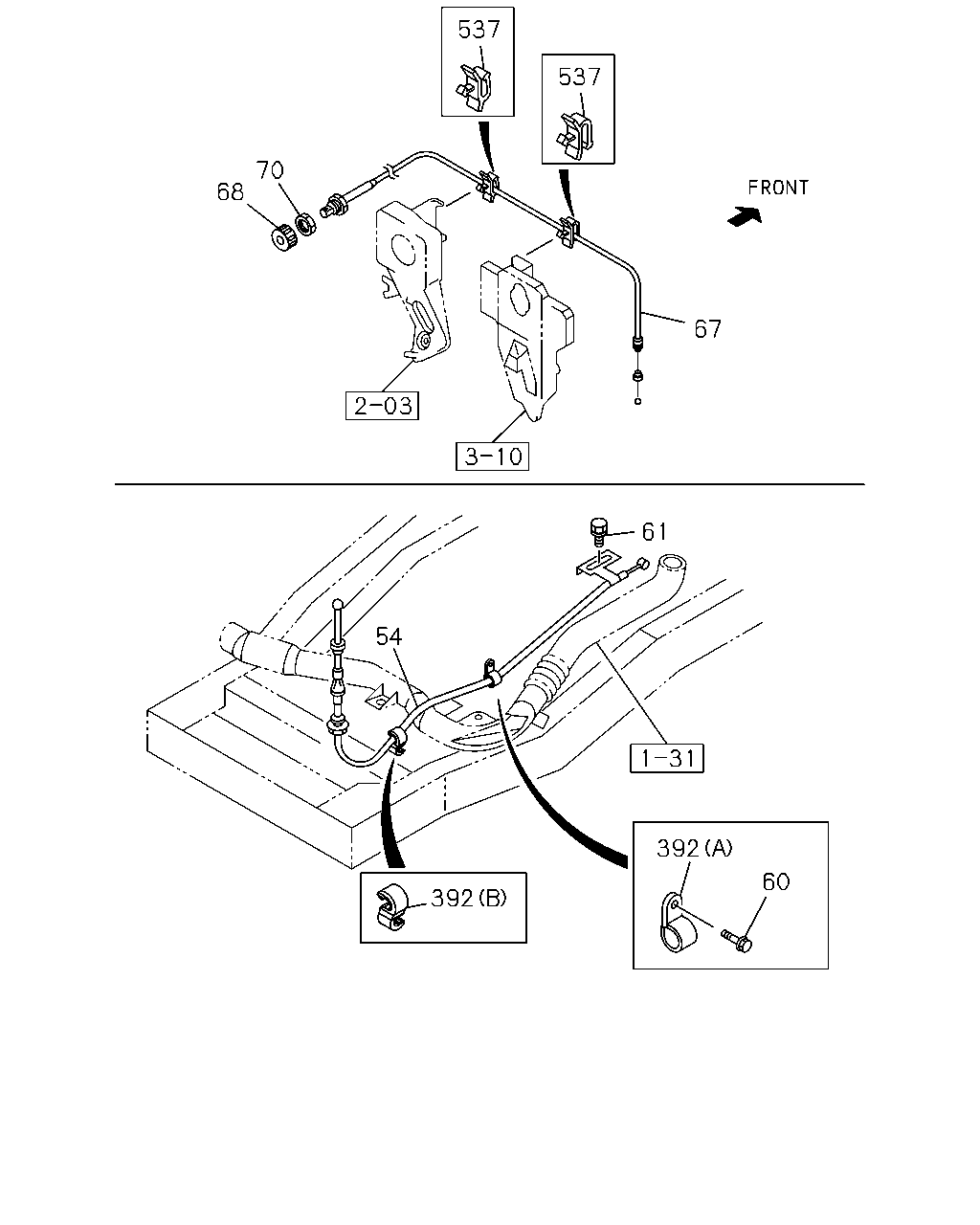

537 537 70 68 67 61 54 392 392 60

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
54	CABLE; ENG CONT L=1749	8-97228-819-3	01	1	0609-
60	BOLT; CABLE M6X12 FLANGE	0-28050-612-0	01	1	0609-
61	BOLT; BRKT TO FRAME ENG CONT CABLE M6X12 FLANGE	0-28050-612-0	01	1	0609-
67	CABLE ASM; IDLE CONT L=945	8-97856-223-4	01	1	0609-
68	KNOB; IDLE CONT	8-97853-765-1	01	1	0609-
70	NUT; CONT CABLE M18	8-97853-233-0	01	1	0609-
392	CLIP; ACCEL CONT CABLE POWER STEERING<N40> (B) ID=12 & 15	1-09709-281-1	01	1	0805-
392	CLIP; ACCEL CONT CABLE (A) ID=16 L=28	0-95235-552-0	01	1	0609-
537	CLIP; IDLING CONT CABLE ID=7	5-09707-053-0	02	1	0609-

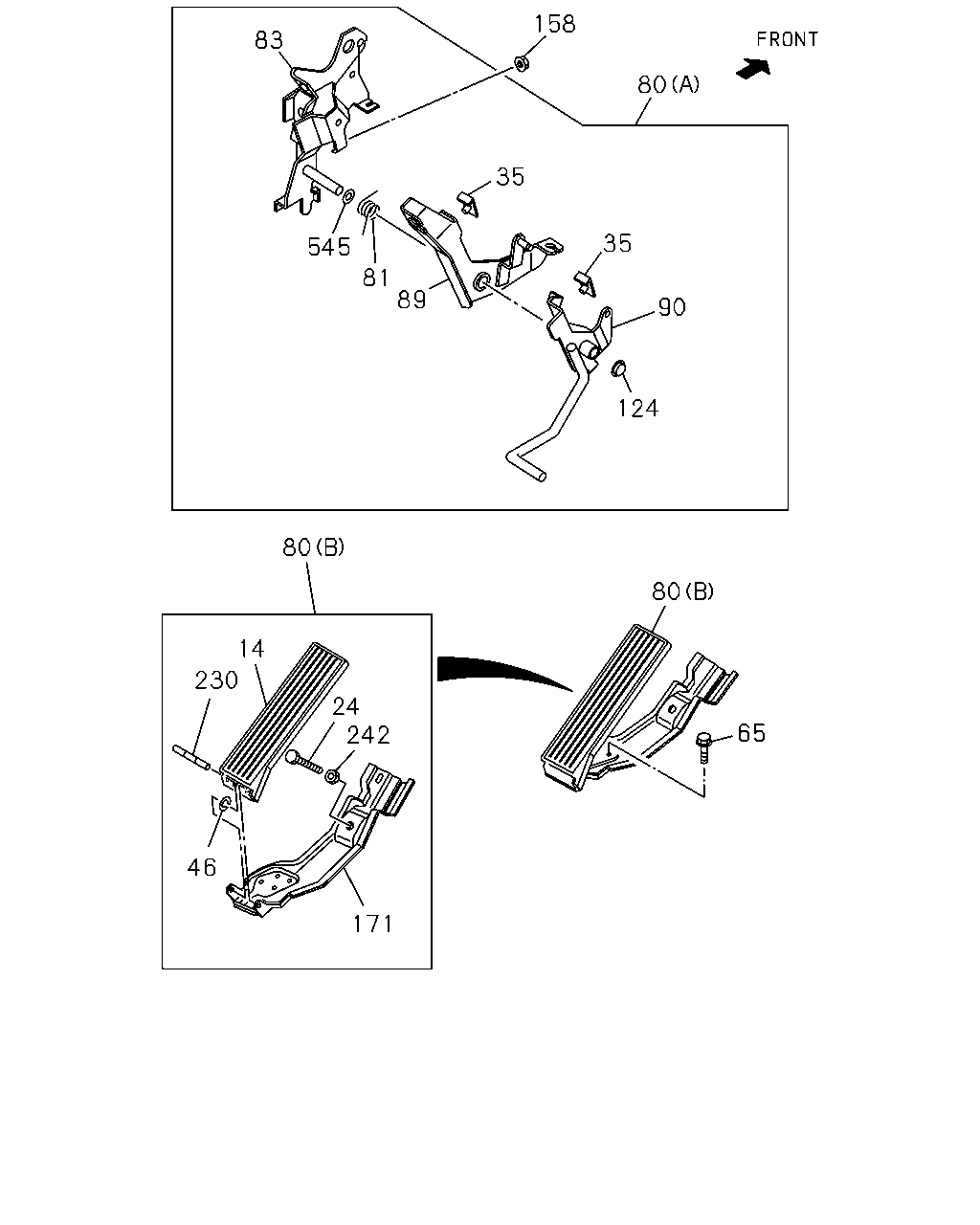

158 83 80 35 35 545 81 89 90 124 80 80 14 230 24 242 65 46 171

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
14	PAD; PEDAL,ACCEL	8-97859-101-0	01	1	0609-
24	BOLT; BRKT	0-20800-840-0	01	1	0609-
35	STOPPER; ACCEL PEDAL	8-97302-305-0	02	1	0609-
46	RING; SNAP,ACCEL CONT PEDAL ID=4	0-91805-504-0	01	1	0609-
65	BOLT M8X16 W/LK&PL WASHER	8-94310-730-0	03	1	0609-
80	LINK ASM; ENG CONT (B)	8-97859-100-0	01	1	0609-
80	LINK ASM; ENG CONT (A)	8-97859-518-3	01	1	0609-
81	SPRING; RETURN,ENG CONT LEVER	8-97853-205-1	01	1	0609-
83	BRACKET; CONT LINK	8-97859-519-0	01	1	0609-
89	LEVER; RELAY	8-97857-617-4	01	1	0609-
90	LEVER; RELAY,ENG CONT	8-97857-613-6	01	1	0609-
124	NUT; LEVER ID=9.9 PUSH NUT	8-97012-098-0	01	1	0609-
158	NUT; BRKT M8 FLANGE	8-94279-060-0	02	1	0609-
171	BRACKET ASM; ACCEL PEDAL	8-97857-482-1	01	1	0609-
230	PIN; JOINT,ACCEL PEDAL TO BRKT	8-97853-064-0	01	1	0609-
242	NUT; ACCEL PEDAL M8	0-91110-508-0	01	1	0609-
545	WASHER; NYLON ID=10.5 OD=16	9-09855-178-0	01	1	0609-
