0-80 — INJECTION PUMP (#32420) — 144 parça

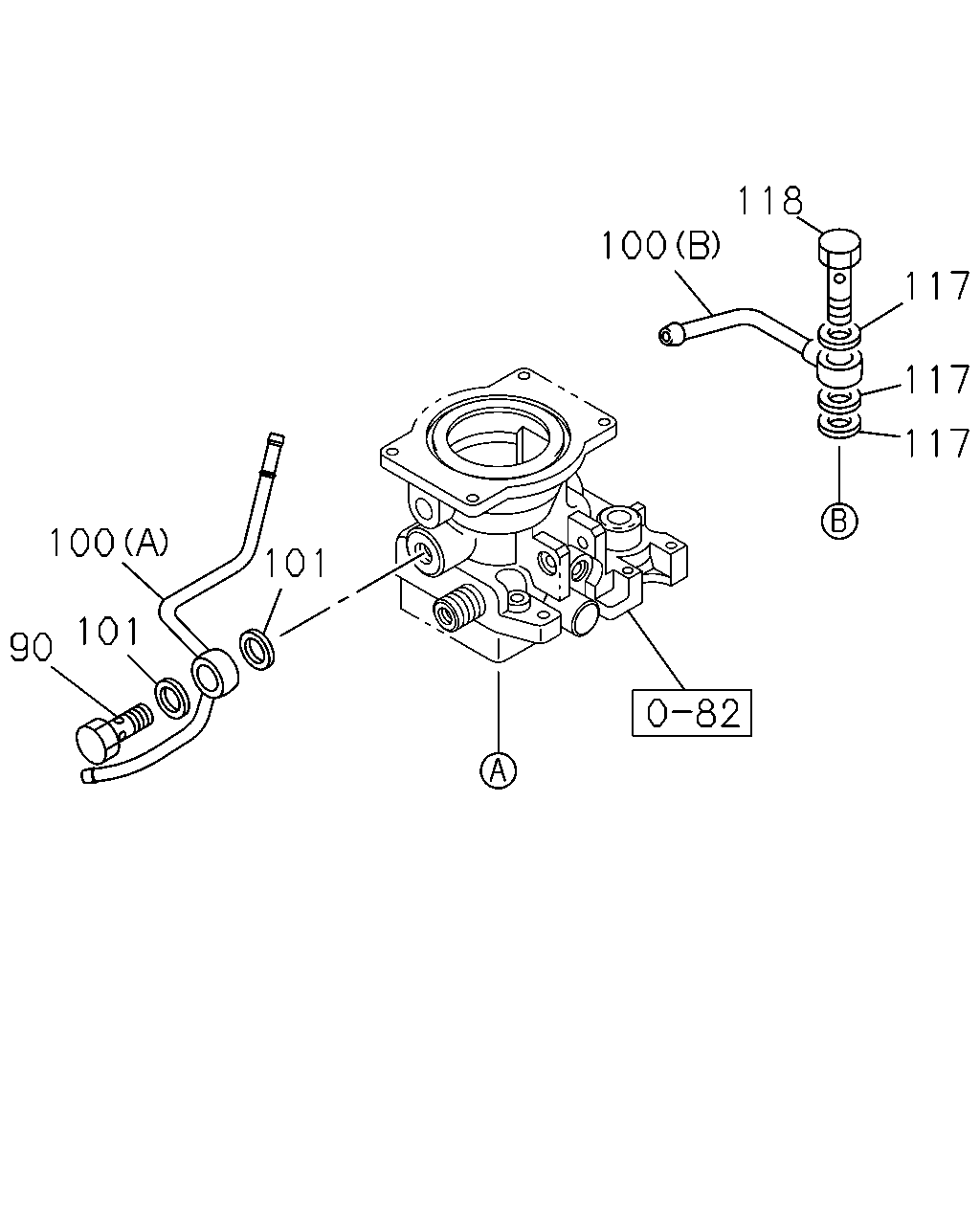

çizim 119457
118 100 117 117 117 100 101 101 90
BalonParca AdiParca NoAdetTipApplied Date
16 BOLT; DISTR PLUG,INJ PUMP
ASM PART: A = 8-97263-086-3 		8-97224-536-0 01 1 -
90 VALVE; OVERFLOW,INJ PUMP
ASM PART: A = 8-97263-086-3 		8-97214-509-0 01 1 -
100 PIPE; FUEL INJ PUMP
(A) ASM PART: A = 8-97263-086-3 		8-97214-510-0 01 1 -
100 PIPE; FUEL INJ PUMP
(B) ASM PART: A = 8-97263-086-3 		8-97385-181-0 01 1 -
101 GASKET; OVERFLOW VLV,INJ PUMP
ASM PART: A = 8-97263-086-3 		8-97249-545-0 02 1 -
117 GASKET; EYE BOLT,INJ PUMP
ASM PART: A = 8-97263-086-3 		8-97249-545-0 03 1 -
118 BOLT; EYE,FUEL INL,INJ PUMP
ASM PART: A = 8-97263-086-3 		8-94379-688-0 01 1 -

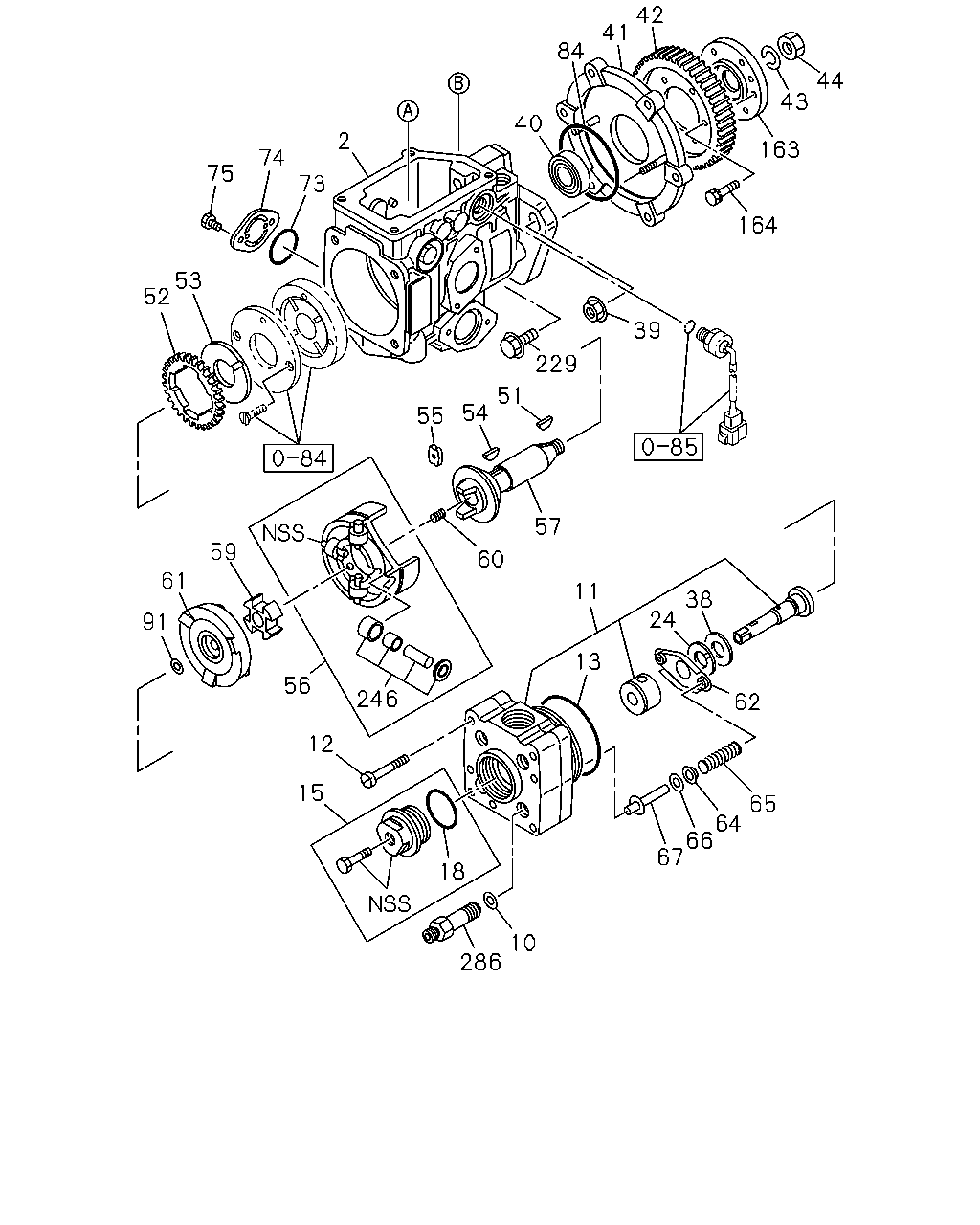

çizim 119472
42 41 84 44 43 40 2 163 74 75 73 164 53 52 39 229 51 54 55 57 59 60 61 11 38 24 91 13 56 246 62 12 15 65 64 66 67 18 10 286
BalonParca AdiParca NoAdetTipApplied Date
2 HOUSING ASM; PUMP,FUEL INJ
ASM PART: A = 8-97263-086-3 		8-97231-940-0 01 1 -
10 GASKET; DELIVERY VLV,INJ PUMP
ASM PART: A = 8-97263-086-3 		8-94247-716-0 04 1 -
11 HEAD ASM; DISTR,INJ PUMP
ASM PART: A = 8-97263-086-3 		8-97214-499-0 01 1 -
12 SCREW; DISTR HD,INJ PUMP
ASM PART: A = 8-97263-086-3 		8-94257-670-0 03 1 -
13 GASKET; DISTR HD,INJ PUMP
ASM PART: A = 8-97263-086-3 		8-94227-527-0 01 1 -
15 PLUG ASM; DISTR,INJ PUMP
ASM PART: A = 8-97263-086-3 		8-97231-942-0 01 1 -
16 BOLT; DISTR PLUG,INJ PUMP
ASM PART: A = 8-97263-086-3 		8-97224-536-0 01 1 -
18 GASKET; DISTR PLUG,INJ PUMP
ASM PART: A = 8-97263-086-3 		8-94227-637-0 01 1 -
24 WASHER; PLUNGER,INJ PUMP
ASM PART: A = 8-97263-086-3 		8-94227-515-0 01 1 -
38 SHIM; PLUNGER BARREL,INJ PUMP
ASM PART: A = 8-97263-086-3 		8-94227-514-0 01 1 -
39 NUT; MTG BRKT FIX
ASM PART: A = 8-97263-086-3 		8-97119-344-0 02 1 -
40 SEAL; OIL,CM/SHF FRT,INJ PUMP
ASM PART: A = 8-97263-086-3 		8-97147-034-0 01 1 -
41 BRACKET; INJ PUMP HSG
ASM PART: A = 8-97263-086-3 		8-97214-512-1 01 1 -
42 GEAR; DRIVE,INJ PUMP
ASM PART: A = 8-97263-086-3 		8-97229-619-0 01 1 -
43 WASHER; LK,DRIVE GEAR,INJ PUMP
ASM PART: A = 8-97263-086-3 		8-94226-554-0 01 1 -
44 NUT; DRIVE GEAR FIX,INJ PUMP
M14 ASM PART: A = 8-97263-086-3 		8-94226-565-0 01 1 -
51 KEY; DRIVE GEAR,INJ PUMP
ASM PART: A = 8-97263-086-3 		8-94239-370-0 01 1 -
52 GEAR; GOV DRIVE,INJ PUMP
ASM PART: A = 8-97263-086-3 		8-94227-483-0 01 1 -
53 WASHER; GOV DRIVE GEAR,INJ PUMP
ASM PART: A = 8-97263-086-3 		8-94317-488-0 01 1 -
54 KEY; FEED PUMP,INJ PUMP
ASM PART: A = 8-97263-086-3 		8-94227-481-0 01 1 -
55 DAMPER; CAM DRIVE,INJ PUMP
ASM PART: A = 8-97263-086-3 		8-94169-528-0 02 1 -
56 ROLLER ASM; TIMER,INJ PUMP
ASM PART: A = 8-97263-086-3 		8-97218-960-0 01 1 -
57 SHAFT; DRIVE,INJ PUMP
ASM PART: A = 8-97263-086-3 		8-97217-211-0 01 1 -
59 DISC; DRIVE,INJ PUMP
ASM PART: A = 8-97263-086-3 		8-97144-349-1 01 1 -
60 SPRING; DRIVE DISC,INJ PUMP
ASM PART: A = 8-97263-086-3 		8-97214-524-0 01 1 -
61 CAM; DISC,PLUNGER,INJ PUMP
ASM PART: A = 8-97263-086-3 		8-97214-495-0 01 1 -
62 SEAT; PLUNGER SPRING,INJ PUMP
ASM PART: A = 8-97263-086-3 		8-94227-516-1 01 1 -
64 SEAT; PLUNGER SPRING LWR,INJ PUMP
ASM PART: A = 8-97263-086-3 		8-94227-517-0 02 1 -
65 SPRING KIT; PLUNGER,INJ PUMP
ASM PART: A = 8-97263-086-3 		8-97214-522-0 01 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=0.50 ASM PART: A = 8-97263-086-3 		8-94227-518-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=0.80 ASM PART: A = 8-97263-086-3 		8-94227-519-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=1.00 ASM PART: A = 8-97263-086-3 		8-94227-520-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=1.20 ASM PART: A = 8-97263-086-3 		8-94227-521-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=1.50 ASM PART: A = 8-97263-086-3 		8-94227-522-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=1.80 ASM PART: A = 8-97263-086-3 		8-94227-523-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=2.00 ASM PART: A = 8-97263-086-3 		8-94227-524-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=0.90 ASM PART: A = 8-97263-086-3 		8-94433-204-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=1.10 ASM PART: A = 8-97263-086-3 		8-94433-205-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=1.30 ASM PART: A = 8-97263-086-3 		8-94433-206-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=1.40 ASM PART: A = 8-97263-086-3 		8-94433-207-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=1.60 ASM PART: A = 8-97263-086-3 		8-94433-208-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=1.70 ASM PART: A = 8-97263-086-3 		8-94433-209-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=0.40 ASM PART: A = 8-97263-086-3 		8-97146-139-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=0.60 ASM PART: A = 8-97263-086-3 		8-97146-140-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=0.70 ASM PART: A = 8-97263-086-3 		8-97146-141-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=1.90 ASM PART: A = 8-97263-086-3 		8-97146-142-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=2.10 ASM PART: A = 8-97263-086-3 		8-97189-360-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=2.20 ASM PART: A = 8-97263-086-3 		8-97189-361-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=2.30 ASM PART: A = 8-97263-086-3 		8-97189-362-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=2.40 ASM PART: A = 8-97263-086-3 		8-97189-363-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=2.50 ASM PART: A = 8-97263-086-3 		8-97189-364-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=2.60 ASM PART: A = 8-97263-086-3 		8-97189-365-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=2.70 ASM PART: A = 8-97263-086-3 		8-97189-366-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=2.80 ASM PART: A = 8-97263-086-3 		8-97189-367-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=2.90 ASM PART: A = 8-97263-086-3 		8-97189-368-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=3.00 ASM PART: A = 8-97263-086-3 		8-97189-369-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=3.10 ASM PART: A = 8-97263-086-3 		8-97189-370-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=3.20 ASM PART: A = 8-97263-086-3 		8-97189-371-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=3.30 ASM PART: A = 8-97263-086-3 		8-97189-372-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=3.40 ASM PART: A = 8-97263-086-3 		8-97189-373-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=0.20 ASM PART: A = 8-97263-086-3 		8-97189-374-0 AR 1 -
67 PIN; GUIDE,PLUNGER SPRING
ASM PART: A = 8-97263-086-3 		8-97328-703-0 02 1 -
73 GASKET; COVER TO HSG
ASM PART: A = 8-97263-086-3 		8-97383-765-0 01 1 -
74 COVER; HSG,INJ PUMP
ASM PART: A = 8-97263-086-3 		8-97231-934-0 01 1 -
75 SCREW; COVER TO HSG
ASM PART: A = 8-97263-086-3 		8-97231-933-0 02 1 -
84 GASKET; BRKT TO HSG
ASM PART: A = 8-97263-086-3 		8-94247-722-0 01 1 -
91 SHIM; PLUNGER,INJ PUMP
T=1.74 ASM PART: A = 8-97263-086-3 		8-94111-658-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=1.76 ASM PART: A = 8-97263-086-3 		8-94111-659-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=1.78 ASM PART: A = 8-97263-086-3 		8-94111-660-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=1.80 ASM PART: A = 8-97263-086-3 		8-94111-661-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=1.82 ASM PART: A = 8-97263-086-3 		8-94111-662-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=1.84 ASM PART: A = 8-97263-086-3 		8-94111-663-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=1.86 ASM PART: A = 8-97263-086-3 		8-94111-664-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=1.88 ASM PART: A = 8-97263-086-3 		8-94111-665-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=1.90 ASM PART: A = 8-97263-086-3 		8-94227-528-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=1.92 ASM PART: A = 8-97263-086-3 		8-94227-529-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=1.94 ASM PART: A = 8-97263-086-3 		8-94227-530-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=1.96 ASM PART: A = 8-97263-086-3 		8-94227-531-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=1.98 ASM PART: A = 8-97263-086-3 		8-94227-532-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.00 ASM PART: A = 8-97263-086-3 		8-94227-533-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.02 ASM PART: A = 8-97263-086-3 		8-94227-534-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.04 ASM PART: A = 8-97263-086-3 		8-94227-535-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.06 ASM PART: A = 8-97263-086-3 		8-94227-536-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.08 ASM PART: A = 8-97263-086-3 		8-94227-537-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.10 ASM PART: A = 8-97263-086-3 		8-94227-538-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.12 ASM PART: A = 8-97263-086-3 		8-94227-539-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.14 ASM PART: A = 8-97263-086-3 		8-94227-540-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.16 ASM PART: A = 8-97263-086-3 		8-94227-541-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.18 ASM PART: A = 8-97263-086-3 		8-94227-542-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.20 ASM PART: A = 8-97263-086-3 		8-94227-543-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.22 ASM PART: A = 8-97263-086-3 		8-94227-544-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.24 ASM PART: A = 8-97263-086-3 		8-94227-545-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.26 ASM PART: A = 8-97263-086-3 		8-94227-546-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.28 ASM PART: A = 8-97263-086-3 		8-94227-547-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.30 ASM PART: A = 8-97263-086-3 		8-94227-548-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.32 ASM PART: A = 8-97263-086-3 		8-94227-549-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.34 ASM PART: A = 8-97263-086-3 		8-94227-550-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.36 ASM PART: A = 8-97263-086-3 		8-94227-551-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.38 ASM PART: A = 8-97263-086-3 		8-94227-552-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.40 ASM PART: A = 8-97263-086-3 		8-94227-553-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.42 ASM PART: A = 8-97263-086-3 		8-94227-554-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.44 ASM PART: A = 8-97263-086-3 		8-94227-555-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.46 ASM PART: A = 8-97263-086-3 		8-94227-556-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.48 ASM PART: A = 8-97263-086-3 		8-94227-557-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.50 ASM PART: A = 8-97263-086-3 		8-94227-558-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.52 ASM PART: A = 8-97263-086-3 		8-94227-559-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.54 ASM PART: A = 8-97263-086-3 		8-94227-560-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.56 ASM PART: A = 8-97263-086-3 		8-94227-561-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.58 ASM PART: A = 8-97263-086-3 		8-94227-562-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.60 ASM PART: A = 8-97263-086-3 		8-94227-563-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.62 ASM PART: A = 8-97263-086-3 		8-94227-564-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.64 ASM PART: A = 8-97263-086-3 		8-94227-565-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.66 ASM PART: A = 8-97263-086-3 		8-94227-566-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.68 ASM PART: A = 8-97263-086-3 		8-94227-567-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.70 ASM PART: A = 8-97263-086-3 		8-94227-568-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.72 ASM PART: A = 8-97263-086-3 		8-94227-569-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.74 ASM PART: A = 8-97263-086-3 		8-94227-570-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.76 ASM PART: A = 8-97263-086-3 		8-94227-571-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.78 ASM PART: A = 8-97263-086-3 		8-94227-572-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.80 ASM PART: A = 8-97263-086-3 		8-94227-573-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.82 ASM PART: A = 8-97263-086-3 		8-94227-574-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.84 ASM PART: A = 8-97263-086-3 		8-94227-575-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.86 ASM PART: A = 8-97263-086-3 		8-94227-576-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.88 ASM PART: A = 8-97263-086-3 		8-94227-577-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.90 ASM PART: A = 8-97263-086-3 		8-94227-578-0 AR 1 -
163 COUPLING; INJ PUMP
ASM PART: A = 8-97263-086-3 		8-94227-337-1 01 1 -
164 BOLT; GEAR TO COUPLING
M6X18 ASM PART: A = 8-97263-086-3 		9-01910-618-0 06 1 -
229 BOLT; BRKT
ASM PART: A = 8-97263-086-3 		8-97049-904-0 01 1 -
246 ROLLER KIT; INJ PUMP
ASM PART: A = 8-97263-086-3 		8-97218-980-0 01 1 -
286 VALVE; PRESSURE,CONT
ASM PART: A = 8-97263-086-3 		8-97227-581-1 04 1 -

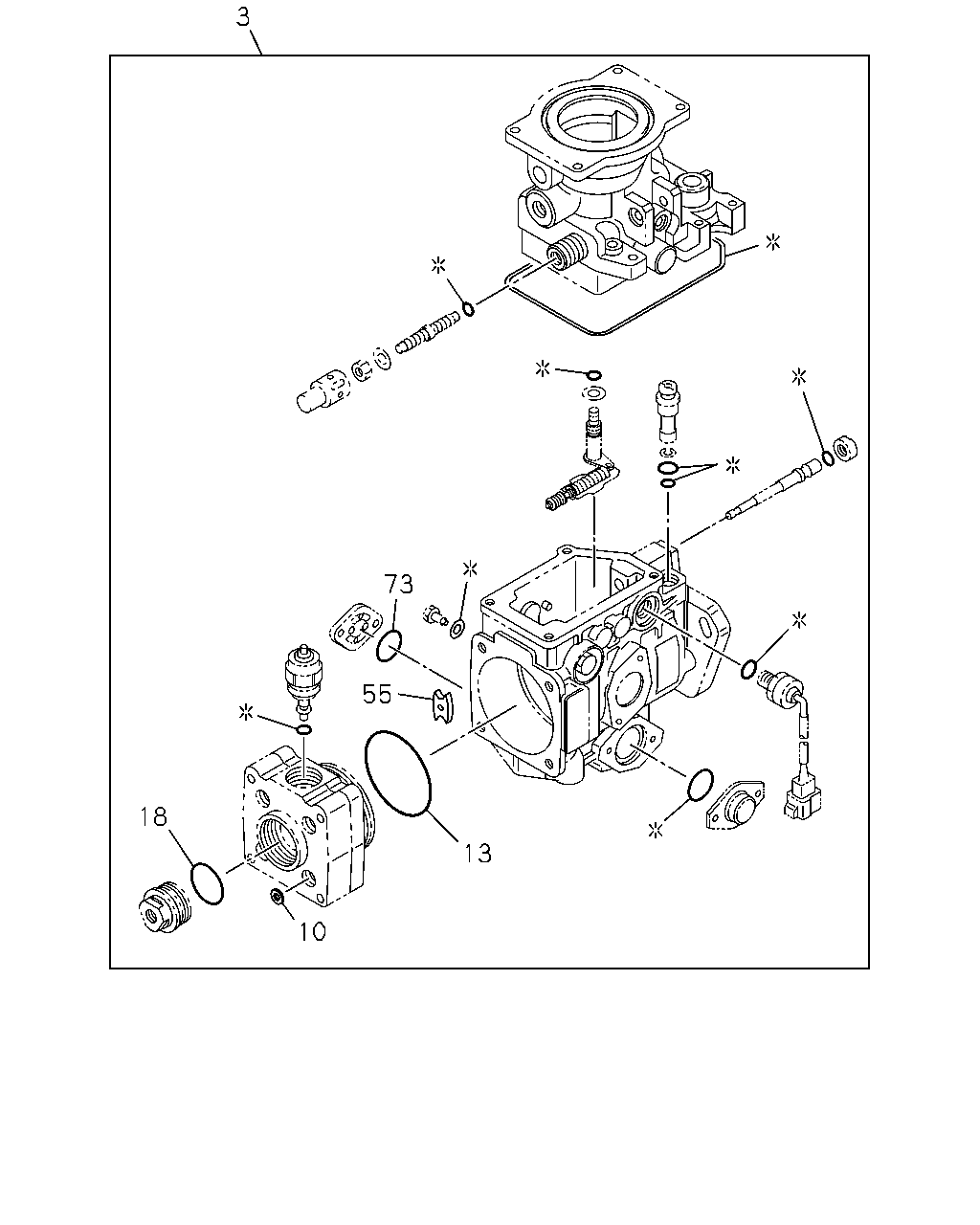

çizim 119473
3 73 55 18 13 10
BalonParca AdiParca NoAdetTipApplied Date
3 REPAIR KIT; FUEL INJ PUMP
ASM PART: A = 8-97263-086-3 		8-97383-766-0 01 1 -
10 GASKET; DELIVERY VLV,INJ PUMP
ASM PART: A = 8-97263-086-3 		8-94247-716-0 04 1 -
13 GASKET; DISTR HD,INJ PUMP
ASM PART: A = 8-97263-086-3 		8-94227-527-0 01 1 -
16 BOLT; DISTR PLUG,INJ PUMP
ASM PART: A = 8-97263-086-3 		8-97224-536-0 01 1 -
18 GASKET; DISTR PLUG,INJ PUMP
ASM PART: A = 8-97263-086-3 		8-94227-637-0 01 1 -
55 DAMPER; CAM DRIVE,INJ PUMP
ASM PART: A = 8-97263-086-3 		8-94169-528-0 02 1 -
73 GASKET; COVER TO HSG
ASM PART: A = 8-97263-086-3 		8-97383-765-0 01 1 -
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
